Integrate-and-Fire from a Mathematical and Signal Processing Perspective

T0 review · 3 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Integrate-and-fire with reset-to-mod is exactly send-on-delta sampling applied to the integral of the signal, making threshold-based spiking a quantization operator in the Alexiewicz norm.

desk verdict A genuine new identity between SOD and IF/mod, but the sparse-regularization theorem is false as stated and the main proofs are deferred to the authors' own under-review papers. read the letter →

arxiv 2501.11453 v1 pith:TTCNNB4D submitted 2025-01-20 eess.SP cs.NE

Bernhard A. Moser , Anna Werzi , Michael Lunglmayr This is my paper · ORCID
classification eess.SPcs.NE
keywords integrate-and-firesend-on-deltathreshold-basedsamplingAlexiewicznormsparseregularizationneuromorphiccomputingspiketrainquantizationevent-basedsignalprocessing
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes that the integrate-and-fire (IF) neuron model, when its membrane potential is reset by a modulo operation, is the integral version of send-on-delta (SOD) threshold sampling: the identity $\mathrm{SOD}_\vartheta(\int f) = \mathrm{IF}^M_\vartheta(f)$ holds for bounded integrable signals with finitely many Dirac impulses. The same identity is reframed as $\mathrm{IF}^M_\vartheta = A^{-1} \circ q_\vartheta \circ A$, which turns spiking into a quantization of the signal's running integral into packets of size $\vartheta$. This makes the Alexiewicz norm $\|f\|_A = \sup_T |\int_{t_a}^T f|$ the natural metric for spiking error, with the bound $\|\mathrm{IF}^M_\vartheta(f) - f\|_A < \vartheta$. The paper then derives quasi-isometry bounds, a maximal-sparsity property, and a sparse-regularization reading of threshold-based sampling, extending these guarantees to signals with jumps.

What carries the argument

The key object is the reset-to-mod integrate-and-fire operator $\mathrm{IF}^M_\vartheta$, in which each spike discharges the membrane potential by the largest multiple of the threshold $\vartheta$ that leaves the potential subthreshold, effectively a modulo operation. The argument runs through the operator identity $\mathrm{IF}^M_\vartheta = A^{-1} \circ q_\vartheta \circ A$, with $A(f)(t) = \int_0^t f(\tau)\,d\tau$ the accumulating integral and $q_\vartheta$ the threshold quantization by truncation to multiples of $\vartheta$; this integrate-quantize-differentiate structure is what ties threshold-based spiking to the Alexiewicz norm $\|f\|_A = \sup_T |\int_{t_a}^T f|$. The sparsity and regularization results then follow from this quantization view, because the spike train is chosen as the minimal $\ell^1$ grid point within an Alexiewicz ball around the input.

What would settle it

For the ramp $f(t)=t$ on $[0,1]$, compute $\mathrm{SOD}_u(f)$ for thresholds $1/2 < u \le 1$; the output is a single spike of amplitude $u$, so $\|\mathrm{SOD}_u(f)\|_1 = u$ and every such $u$ satisfies the fixed-point equation $u = \|\mathrm{SOD}_u(f)\|_1$. This contradicts the uniqueness of $u^*$ required by Theorem 4, so the regularization claim as stated cannot hold for this simple continuous signal.

Watch

Extended reading notes

Core claim

The central discovery is that reset-to-mod integrate-and-fire is not merely analogous to send-on-delta sampling but is the same operation in the integral domain: for any signal $f$ that is integrable and bounded except for finitely many superimposed Dirac impulses, $\mathrm{SOD}_\vartheta(\int f) = \mathrm{IF}^M_\vartheta(f)$. The decomposition $\mathrm{IF}^M_\vartheta = A^{-1} \circ q_\vartheta \circ A$, where $A$ is the accumulating integral operator and $q_\vartheta$ is pointwise truncation to multiples of $\vartheta$, shows that IF/mod behaves as a quantizer in the Alexiewicz norm with error strictly below the threshold. From this the paper derives a global quasi-isometry between the signal space and the spike-train space, a maximal-sparsity property identifying the IF spike train as the minimal-$\ell^1$ spike train inside an open Alexiewicz ball around the signal, and a characterization of SOD (and, analogously, IF/mod) as the solver of a total-variation sparse-regularization problem.

Load-bearing premise

The sparse-regularization theorem depends on a proof deferred to a later paper and on the assumption that the reconstruction error $\|f - \chi_u\|_\infty$ equals $u$ and that the threshold equation $u^* = \|\mathrm{SOD}_{u^*}(f)\|_1$ has a unique solution; that uniqueness already fails for the ramp $f(t)=t$ on $[0,1]$.

Editorial extensions

If this is right

  • IF/mod spike trains reconstruct the input with an Alexiewicz-norm error below $\vartheta$, and the piecewise reconstruction (19) stays within $2\vartheta$, giving a uniform error guarantee that does not require the signal to be continuous.
  • The quasi-isometry (12) preserves signal distances up to an additive $2\vartheta$, so spike-based representations become asymptotically isometric as the threshold goes to zero.
  • The maximal-sparsity property makes the IF/mod spike train the unique minimal-$\ell^1$ spike train among all spike trains inside the open Alexiewicz ball of radius $\vartheta$, so event-based encoding is optimally sparse in this metric.
  • SOD and IF/mod solve sparse-regularization problems, linking the threshold $\vartheta$ to a regularization parameter $\lambda$ and giving a principled way to choose the threshold.
  • The generalized SOD applies to discontinuous signals with jumps and Dirac impulses, so threshold-based sampling can handle mixed analog signals in communication and measurement applications.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: the identity suggests a direct hardware recipe - an analog integrator feeding a SOD comparator realizes an IF/mod neuron, and an SOD sampler yields an IF neuron if an integrator is placed in front; this could guide analog-to-spike converter designs for jump-heavy signals, which the paper only sketches as future work.
  • Editorial extension: if the Alexiewicz-norm view is right, then reconstruction quality and error bounds for neuromorphic sensing should be evaluated on cumulative sums of the signal rather than pointwise values, which may explain why spiking codes tolerate small timing jitter.
  • Editorial extension: the same quantization argument could be carried over to leaky integrate-and-fire and to other reset rules through a weighted or discounted integral operator, yielding a family of Alexiewicz-type norms; the paper does not develop this, but it follows directly from the operator decomposition.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes a unified mathematical treatment of integrate-and-fire (IF) with reset-to-mod and send-on-delta (SOD) threshold-based sampling. Its central claims are the identity SOD_ϑ(∫f)=IF^M_ϑ(f) (Eq. 7), the quantization-operator characterization IF^M_ϑ=A^{-1}∘q_ϑ∘A (Theorem 1), a quasi-isometry relation in the Alexiewicz norm (Eq. 12), a maximal sparsity property (Theorem 2), and a sparse-regularization interpretation (Theorem 4). The paper also gives reconstruction formulas for SOD and IF/mod. The main structural theorems are not proven in the manuscript: Theorem 1 and Theorem 2 cite an under-review preprint [9], and Theorem 4 postpones its proof to an upcoming paper.

Significance. If the main claims were correct, the paper would provide a useful conceptual bridge between neuromorphic integrate-and-fire encoding and event-based send-on-delta sampling, offering unified error bounds, sparsity guarantees, and a regularization-based interpretation. The identity in Eq. (7) and the quasi-isometry derivation are interesting and plausible. However, the sparse-regularization characterization in Theorem 4 is demonstrably false, and the other central theorems are deferred to references rather than proved here. Because the advertised regularization result collapses, the paper does not deliver its stated contribution.

major comments (3)
  1. [Section 5, Theorem 4] The fixed-point condition u* = ||SOD_{u*}(f)||_1 is not uniquely solvable. For f(t)=t on [0,1], the SOD spike train has ||SOD_u(f)||_1 = u floor(1/u), so the fixed-point equation reduces to floor(1/u)=1, which holds for every u in (1/2,1]. Thus uniqueness fails. Moreover, the objective in (21) for this f equals u + λ floor(1/u) (since α(u)=u and (1/u)||χ_u||_TV = floor(1/u)), and its minimizer depends on λ: for λ=1, u=0.51 yields about 1.51 while u=0.1 yields about 10.1, whereas for λ=0.01, u=0.51 yields about 0.52 while u=0.1 yields about 0.2. Hence no single value ϑ=u* can solve (21) for arbitrary λ, contrary to the theorem. The 'Vice versa' remark does not repair the stated claim.
  2. [Sections 3.1 and 3.3, Theorems 1 and 2] The proofs of Theorem 1 (quantization operator) and Theorem 2 (maximal sparsity) are not contained in this manuscript; they are cited to reference [9], which is under review. Theorem 4's proof is likewise postponed to an upcoming paper. Since these theorems carry the paper's central structural claims, the manuscript is not self-contained, and the results cannot be verified from the presented material. This is a load-bearing completeness issue independent of the counterexample to Theorem 4.
  3. [Section 5, proof sketch] The proof sketch asserts α(u)=||f−χ_u||_∞ = u for continuous f and convexity of β(u)=(1/u)||χ_u||_TV, but neither is established, and the claimed consequence does not follow. The counterexample in the previous comment shows that even when α(u)=u holds, the conclusion of Theorem 4 fails. The sketch is therefore insufficient to support the sparse-regularization characterization.
minor comments (4)
  1. [Section 1, Introduction] The sentence 'While the mathematical principles are outlined in this article, their exploitation, e.g. for a novel design approach for adapting analog-to-spike converters for signals with jumps' is incomplete; it lacks a main clause.
  2. [Section 2, Figure 2 caption] The caption reads 'q(x) := q_ϑ(x) for ϑ = 1, i.e., q_ϑ(x) = ϑ q(x/ϑ)', which is confusing because q is defined through q_ϑ; it would be clearer to define q as the integer truncation and q_ϑ as the scaled version.
  3. [Section 4, Eq. (17)] The reconstruction formula G_k(t) uses s_{k+1} within the interval [t_k, t_{k+1}); please clarify the treatment of the final interval and the case |s_{k+1}| > ϑ, which appears not to be covered by the displayed formula.
  4. [Section 6, Figure 3 discussion] The numerical illustration of Eq. (21) uses discrete acceleration data, for which the paper states α(u)=u is only approximately valid; the figure should be described as a heuristic illustration rather than a verification of Theorem 4, since the theorem assumes continuous f.

Circularity Check

4 steps flagged · score 7.0 of 10

Core results rest on the authors' own under-review preprint [9] and on a self-referential fixed point: Theorem 4's threshold u*=||SOD_{u*}(f)||_1 is not unique (f(t)=t) and cannot be a λ-independent sparse-regularization solver.

  1. self citation load bearing [Section 3.1, Theorem 1 (Quantization Operator); Eq. (9)-(10)]
    "there holds IFMϑ(f) = (A−1 ◦ qϑ ◦ A)(f), (9) ... For a proof see [9]."

    This theorem is the basis of the quantization bound (10), which in turn yields the quasi-isometry (12) and the claimed reconstruction error order O(ϑ). The only support supplied is a citation to [9], a Moser–Lunglmayr preprint under review. The key operator identity and its norm consequence are not proved in this manuscript, and the cited source is not an independent, externally checkable proof (e.g., machine-checked or code-verified). The main analytic chain therefore rests on an unverified self-citation.

  2. self citation load bearing [Section 3.3, before Theorem 2; Eq. (14)]
    "An analogous characterization can be proven for IF/mod. For the proof we refer to a paper currently under review, see [9]."

    The abstract advertises a maximum sparsity property as a consequence of the analysis, but Theorem 2 is exactly that property and its proof is deferred to the same under-review, same-author preprint [9]. No derivation from the preceding definitions is given here, so the advertised sparsity finding is imported wholesale from the authors' own unpublished work rather than established in this paper.

2 more flagged steps
  1. uniqueness imported from authors [Section 3.2, after Eq. (12)]
    "Further the Alexiewicz norm is uniquely determined up to quasi-isometric norm equivalence to satisfy a quasi-isometry relation between input and sample space, see [6, 7]."

    The uniqueness of the Alexiewicz norm is presented as an external mathematical fact that forces the metric choice, but it is sourced only to the authors' own prior papers [6,7]. No independent proof or external reference is supplied, and the claimed uniqueness is used to close off alternative metric structures. This is a load-bearing self-citation of a uniqueness assertion rather than a demonstrated mathematical necessity.

  2. self definitional [Section 5, Theorem 4 (SOD as sparse-regularization solver), Eq. (21)]
    "is solved by sϑ := SODϑ(f) ... where ϑ = u∗ is determined by the unique intersection point u∗ = ∥SODu∗ (f )∥1. The proof relies on α(u) := ∥f − χu∥∞ = u for continuous f and the convexity of β(u) := 1/u ∥χu∥TV ... An extended proof is postponed to an upcoming paper."

    The theorem sets its threshold by the fixed-point equation u* = ||SOD_{u*}(f)||_1: the threshold is defined through the l1-norm of the very SOD output it selects. This is self-referential, and the asserted uniqueness is false: for f(t)=t on [0,1], ||SOD_u(f)||_1 = u·floor(1/u), so the equation holds for every u in (1/2,1]. Since the minimizer of (21) depends on λ (for λ=1, u=0.51 beats u=0.1; for λ=0.01, u=0.1 beats u=0.51), no λ-independent fixed point can be the universal solver. The characterization therefore reduces to a self-consistency condition on the proposed solution rather than a derivation from the regularization objective.

full rationale

Section 2's identity (7) is a legitimate relation between the definitions of SOD and IF/mod and is not circular. However, virtually every advertised structural consequence is not established in this manuscript. Theorem 1 (IFM = A^{-1}∘q∘A) and Theorem 2 (maximal sparsity) are explicitly deferred to [9], a same-author preprint under review; the norm bound (10), quasi-isometry (12), and the sparsity claim all hang on those citations. Section 3.2's statement that the Alexiewicz norm is uniquely forced by quasi-isometry is likewise imported from [6,7] by the same authors. Most seriously, Theorem 4 in Section 5 defines its threshold via the self-referential equation u* = ||SOD_{u*}(f)||_1 and postpones the proof; for f(t)=t every u in (1/2,1] satisfies the equation, so the 'unique intersection point' does not exist, and the minimizer of (21) depends on λ. Thus the sparse-regularization characterization is neither derived nor forced by the construction. The paper is self-contained only for the elementary reconstruction identities (15)-(20); the central unifying results reduce to same-author citations or to a self-consistency condition, warranting a score of 7.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The paper introduces no fitted constants. Its central claims rely on the reset-to-mod dynamics from the authors' prior work, on the Alexiewicz norm machinery, and crucially on unproved theorems deferred to under-review and forthcoming papers. Theorem 4 additionally assumes properties of the reconstruction error and a unique fixed point that do not hold in simple examples.

assumptions (4)
  • standard math The Alexiewicz semi-norm and its properties are standard and applicable to the signal space of bounded integrable functions with finitely many Dirac impulses.
    Used throughout Section 3; norm properties are taken as known.
  • domain assumption Signals are restricted to bounded integrable functions with locally finitely many superimposed Dirac impulses.
    Stated in Section 3.1 and Theorem 2; this excludes other distributions.
  • ad hoc to paper For continuous f, the SOD reconstruction error α(u) = ||f - χ_u||_∞ equals exactly u, and β(u) = (1/u)||χ_u||_TV is convex; the fixed point u* = ||SOD_{u*}(f)||_1 is unique and identifies the solution of (21) for any λ.
    Assumed in Theorem 4; not proven here and contradicted by the example f(t)=t on [0,1] where fixed points are not unique.
  • ad hoc to paper Correctness of Theorems 1 and 2 as stated in the authors' under-review preprint [9].
    The paper provides no proofs for these theorems and relies on an unpublished manuscript by the same authors.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Integrate-and-Fire from a Mathematical and Signal Processing Perspective." pith.science (2026). https://pith.science/paper/TTCNNB4D

@misc{pith2026250111453,
  author       = {Pith},
  title        = {Pith review of: Integrate-and-Fire from a Mathematical and Signal Processing Perspective},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/TTCNNB4D}},
  note         = {Machine review of arXiv:2501.11453}
}
read the original abstract

Integrate-and-Fire (IF) is an idealized model of the spike-triggering mechanism of a biological neuron. It is used to realize the bio-inspired event-based principle of information processing in neuromorphic computing. We show that IF is closely related to the concept of Send-on-Delta (SOD) as used in threshold-based sampling. It turns out that the IF model can be adjusted in a way that SOD can be understood as differential version of IF. As a result, we gain insight into the underlying metric structure based on the Alexiewicz norm with consequences for clarifying the underlying signal space including bounded integrable signals with superpositions of finitely many Dirac impulses, the identification of a maximum sparsity property, error bounds for signal reconstruction and a characterization in terms of sparse regularization.

Figures

Figures reproduced from arXiv: 2501.11453 by the authors.

Figure 1
Figure 1. Schematic description of integration within an IF neuron with spike feedback connection leading to signals [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

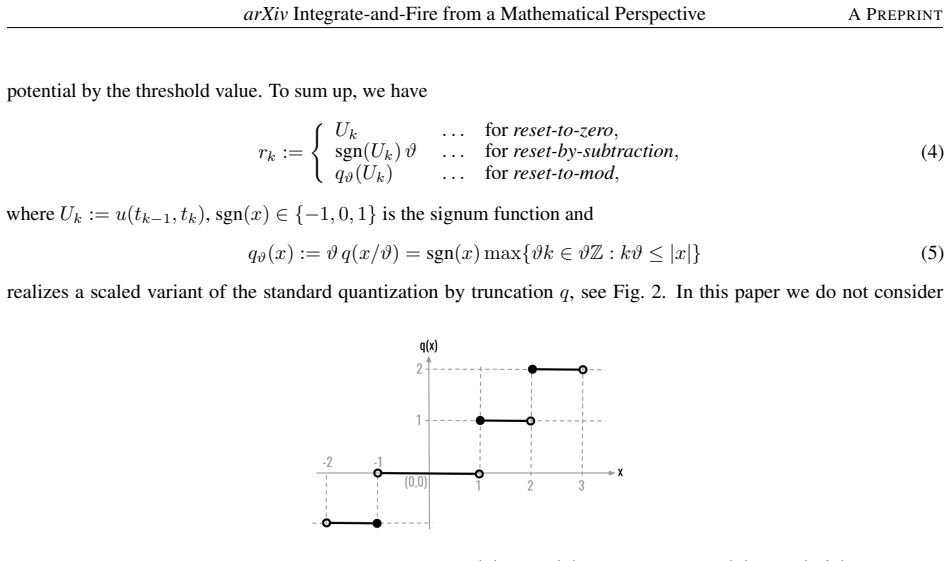

Figure 2. Standard quantization by truncation q(x) := qϑ(x) for ϑ = 1, i.e., qϑ(x) = ϑq(x/ϑ). the variant based on reset-to-zero. For the other variants we also use the notation IFS ϑ for reset-by-subtraction, and, respectively, IFM ϑ , for IF based on reset-to-mod. Another concept of level crossing is Send-on-Delta (SOD), which is typically used on continuous signals, see [4, 5]. In this paper we consider also signals with d… view at source ↗
Figure 3
Figure 3. Illustration of (21) with typical curves [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: 100Hz acceleration data and its sparse representation by spikes obtained by integrate-and-fire (2) based on reset-to-mod and its induced reconstruction 19). Here, spike amplitudes are multiples of the threshold. Due to (10) and (19) we have ∥f − IFM ϑ (f)∥A ≤ ϑ and ∥f …
Figure 5
Figure 5. Figure 5: Like Fig. 4, but now with IF based on [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Velocity data obtained from integrating the acceleration data in Fig. 4, resp. Fig. 5 and its IF-based [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: ∥.∥∞-error between velocity and its IF-based reconstructions for ϑ ∈ (0, 0.1). Due to (10) and (19), for IF/mod the error is O(ϑ), while IF/sub variant becomes instable for too small ϑ. ϑ ∗ denotes the threshold with minimal max-norm reconstruction error based on IF/su…
