Strain-Tunable Topological Phase Transitions in Line- and Split-Graph Flat-Band Lattices

T0 review · 4 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper's central claim is that uniform in-plane strain alone drives trivial insulating, Dirac semimetallic, and quantum spin-Hall phases across an entire family of flat-band lattices built by line and split graph operations.

desk verdict A systematic tight-binding survey with two genuinely new phase diagrams, but the abstract's 'universal' strain-switch claim is contradicted by the paper's own checkerboard result. read the letter →

arxiv 2501.11783 v4 pith:RZAPGSE5 submitted 2025-01-20 cond-mat.str-el cond-mat.mtrl-scicond-mat.supr-conquant-ph

Shivam Sharma , Amartya S. Banerjee This is my paper · ORCID
classification cond-mat.str-elcond-mat.mtrl-scicond-mat.supr-conquant-ph
keywords flatbandstopologicalphasetransitionstrainengineeringlinegraphsplitquantumspinHallDiracsemimetaltight-bindingmodel
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper seeks to establish that uniform in-plane strain is a single, universal mechanical knob for electronic topology in flat-band lattices. The family is built from square and honeycomb parent lattices by two graph operations — placing a site on each bond (line graph) or adding a bond-center site while keeping parent sites (split graph) — and includes known lattices such as kagome and Lieb as well as new ones, the checkerboard split-graph and triangular-kagome. Analytical tight-binding phase diagrams show strain magnitude and direction moving these lattices among trivial insulating, Dirac semimetallic, and quantum spin-Hall phases, often along linear phase boundaries. If the claim holds, strain becomes a broadly applicable design principle for strain-programmable quantum matter in 2D materials, photonic crystals, and circuit lattices.

What carries the argument

The carrying mechanism is a pair of graph operations on a bipartite parent lattice: the line graph places a new site on every bond, and the split graph adds a bond-center site while retaining parent sites. Iterating these operations generates first- and second-generation flat-band lattices whose tight-binding spectra follow from spectral identities (Eq. 5) expressing the new eigenvalues in terms of the parent spectrum, with flat bands arising from the infinite-multiplicity eigenvalues 0 and 2. Strain is introduced as a uniform displacement field with hopping amplitudes renormalized by an exponential bond-length rule (Eq. 7), using $\beta=3$ and $\nu=0.165$; intrinsic spin-orbit coupling opens the bulk gaps, and the $Z_2$ invariant is obtained from the evolution of Wannier charge centers.

What would settle it

Measure the Grüneisen parameter and Poisson ratio for one of the new lattices, such as the checkerboard split-graph or triangular-kagome, and recompute the strain–spin-orbit phase diagrams with the measured values; if $\beta$ or $\nu$ departs substantially from 3 and 0.165, the predicted phase boundaries shift and the transitions within the ±10% strain window may disappear, falsifying the universal switch as stated.

Watch

Extended reading notes

Core claim

The central claim is that uniform in-plane strain is a universal topological switch: within a 10% strain window, strain magnitude and direction drive these lattices through phase transitions among a trivial band insulator, a Dirac semimetal, and a quantum spin-Hall insulator, with ordinary and semi-Dirac semimetals in selected cases. The paper establishes the strain–spin-orbit-coupling phase diagrams for ten lattices across three generations, including two it introduces, the checkerboard split-graph and triangular-kagome. Boundaries in the $\epsilon_{xx}$–$\lambda_I$ plane are largely linear, and changing the strain direction can move the system between topological and trivial regions at fixed filling.

Load-bearing premise

The load-bearing premise is that the same Grüneisen parameter ($\beta=3$) and Poisson ratio ($\nu=0.165$) measured for graphene describe the strain response of every lattice in the family, even though the paper states these values have not been reported for most of the lattices it studies.

Editorial extensions

If this is right

  • At fixed spin-orbit coupling and filling, sweeping strain magnitude or direction toggles the $Z_2$ invariant, so a mechanical deformation could switch topologically protected edge transport on and off.
  • Because phase boundaries in strain–SOC space are largely linear, near a boundary a small relative strain change is enough to complete a topological phase transition, which simplifies experimental control.
  • The newly introduced checkerboard split-graph and triangular-kagome lattices natively host flat bands, including, in the triangular-kagome case, gapped flat bands isolated from dispersive bands that survive deformation; this makes them candidate platforms for strongly correlated phases.
  • The paper's spectral identities imply that higher-generation lattices inherit the flat bands and Dirac crossings of their parents, so the parameter space for strain-driven transitions is not exhausted by the ten lattices studied.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the universal switch survives realistic parameter values, strain could serve as an in-situ tuning knob for flat-band topology in moiré and twisted systems, where these graph-built lattices provide clean single-band models for the same physics.
  • The near-linearity of the phase boundaries suggests a low-energy effective description in which strain acts as a tunable mass term; fitting the boundary slopes to the generalized $H(k)$ near high-symmetry points could predict transitions without full band diagonalization.
  • A concrete test is to build one of the new lattices as a photonic or circuit array, where bond lengths are replaced by engineered couplings; sweeping the analogue of strain should reproduce the trivial–Dirac–topological sequence at the predicted strain values.
  • First-principles calculation of $\beta$ and $\nu$ for the checkerboard split-graph and triangular-kagome lattices is the most direct way to decide whether the graphene parameters are a harmless idealization or the weak point of the universal claim.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The manuscript uses graph-theoretic line- and split-graph operations on square and honeycomb parent lattices to generate ten two-dimensional flat-band lattices, and studies their tight-binding models with intrinsic spin-orbit coupling, on-site potentials, and uniform in-plane strain. Band structures, nanoribbon spectra, and Z2 phase diagrams are presented for each lattice, and the paper claims that uniform strain acts as a universal switch among trivial insulating, Dirac semimetal, and quantum spin-Hall phases across the whole family. The checkerboard split-graph and triangular-kagome lattices are presented as new or understudied platforms.

Significance. The systematic catalog of explicit Hamiltonians and strain-SOC phase diagrams is a useful addition to the flat-band literature, and the graph-theoretic construction is elegant. The direct computation of Z2 invariants with Z2Pack together with ribbon edge-state checks is a reproducible methodology, and the paper gives concrete tight-binding expressions for several lattices that have received little attention. However, the universal strain-switch claim is not derived and is weakened by the paper's own checkerboard result and by the qualified statements in Section III and the Fig. 2 caption. The value of the paper lies mainly in the individual lattice studies once the claims are properly scoped.

major comments (4)
  1. [Abstract; Sec. III.B.2; Sec. IV] The headline claim that uniform in-plane strain 'drives universal transitions ... across all lattices' is contradicted by the manuscript's own results. In Section III.B.2 the authors write that for the checkerboard lattice 'we have not found any significant strain-induced effects on the topological properties,' and in Section III.C.2 they state that for the checkerboard split-graph lattice 'at other filling fractions, we do not observe any significant changes in the topological properties.' The opening of Section III and the caption of Fig. 2 also say that 'not all lattices show all phases or in the same order.' Because the checkerboard is a first-generation line graph, it is a direct counterexample to the literal 'across all lattices' claim. The abstract, introduction, and conclusion must be rewritten to restrict the claim to the lattices and parameter regimes for which transitions are actually found, or the universality must be proved rather than asserted.
  2. [Sec. II.B, Eqs. (6)-(7)] The strain model assumes the graphene Grüneisen parameter beta=3 and Poisson ratio nu=0.165 for every lattice, as the authors acknowledge in the paragraph after Eq. (7): 'the corresponding values have not yet been reported for most of the lattices considered here.' Since Eq. (7) sets the strain dependence of all hopping amplitudes and Eq. (6) depends on nu, the phase boundaries in Figs. 7, 8, 11, 12, 17, 19, 20, 23, and 26-29 are quantitative outcomes of this untested parameter transfer. The location of the transitions within the ±10% strain window could shift or disappear for other parameter values. The paper should either present a sensitivity analysis over a physically plausible range of beta and nu or explicitly frame the phase diagrams as valid only for this parameter choice; the universal claim cannot rest on an unvalidated parameter transfer.
  3. [Abstract; Sec. II.A, Eq. (5); Sec. IV] The paper describes 'analytical tight-binding calculations' and 'design rules,' but the universal transition is not derived from the graph-theoretic spectral relations in Eq. (5); it is extrapolated from a finite set of numerical phase diagrams computed from the explicit Hamiltonians of ten specific lattices. This is not a circularity problem, but it is an extrapolation. To support the claimed design principle, the authors would need either a general argument (for example, a symmetry or low-energy k·p analysis for each graph generation) or a restriction of the claim to the enumerated lattices. As written, the gap between the numerical evidence and the 'universal'/'broadly applicable' language is too large.
  4. [Sec. II.A; Sec. III.C.2, Eq. (23)] The text states that for the triangular-kagome lattice 'the lack of local inversion symmetry dictates that the nearest neighbor SOC terms be considered as well.' In the displayed Hamiltonian, Eq. (23), the spin-orbit part is block diagonal, with E(k) and F(k) acting only on the two blue-site blocks and no off-diagonal red-blue SOC block. Either the nearest-neighbor SOC terms are missing from the displayed Hamiltonian, or the text should be corrected. Since the TKL phase diagrams in Figs. 26-29 depend on this Hamiltonian, the inconsistency needs to be resolved.
minor comments (4)
  1. [Sec. III.B.2, Fig. 13 caption] The negative result for the checkerboard lattice is reported in a single sentence without specifying the scanned strain range, directions, or fillings; please document the scan so the negative finding is reproducible and not mistaken for an oversight.
  2. [Sec. III.B.1, Fig. 17 caption] There are multiple typos: 'nonoribbon' should be 'nanoribbon' in the caption of Fig. 17, and 'particularity' should be 'particularly' in Section III.B.1; the paper would also benefit from a consistent notation for the strain components (epsilon versus epsilon_xx in Figs. 8 and 12).
  3. [Refs. [85], [136]] The 'In preparation' self-citations [85] and [136] are used as supporting references for physically substantive claims (coherent transport under strain and realistic morphologies of the decorated honeycomb lattice); please replace them with published sources or clearly mark them as unpublished internal work.
  4. [Sec. II.B] The phase classification is described qualitatively; for reproducibility, please state the numerical criterion used to distinguish Dirac semimetal, ordinary semimetal, and gapped phases (for example, gap values or band-touching tolerances) and the parameters used in the Z2Pack calculations.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation: phase diagrams are direct outputs of stated tight-binding Hamiltonians; self-citations are background only.

full rationale

The derivation chain is self-contained: each phase diagram is obtained by diagonalizing explicitly written tight-binding Hamiltonians (Eqs. 8 through 24) with stated parameters, computing the Z2 invariant via Wannier charge centers using Z2Pack, and identifying gap-closing phases. The strain model in Eqs. 6 and 7 uses the graphene Gruneisen parameter beta=3 and Poisson ratio nu=0.165, taken from an external measurement, and the paper explicitly notes that these values are transferred because they have not been reported for most lattices; this is a parameter-transfer assumption, not a fit to the paper's own outputs. The graph-spectral relations in Eq. 5 are standard external graph theory, not author-specific claims. Self-citations (e.g., refs. 55, 56, 85, 136) appear only as background for quasi-1D materials, strain-tuned coherent transport, and prior studies of decorated honeycomb morphologies; none enters the Hamiltonians or the Z2 computation. The abstract's 'across all lattices' phrasing conflicts with the checkerboard section's 'no significant strain-induced effects,' but that is an internal-consistency or correctness issue, not circular reasoning. No prediction is fitted to its own input, and no load-bearing premise reduces to a self-citation.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central claim depends on several model parameters and assumptions. The strain parameters are imported from graphene; the phase diagrams are parametric scans over SOC, on-site energies, and hopping ratios. No new physical entities are introduced. The two new lattices are graph constructions rather than invented particles or forces.

free parameters (5)
  • Gruneisen parameter beta = 3
    Set to the graphene value in Eq. (7) and applied to all ten lattices; the paper states the value is unreported for most of these lattices.
  • Poisson ratio nu = 0.165
    Adopted from graphene (Ref. 102) to define the strain tensor in Eq. (6) for every lattice.
  • Intrinsic spin-orbit coupling lambda_I = scanned from 0.1t to 0.8t
    The topological phase diagrams are functions of lambda_I; no material-specific value is given, so the QSH regions are illustrative.
  • On-site energies epsilon_b (Lieb) and epsilon_c (HK) = scanned, e.g. epsilon_b near 2t, epsilon_c near 1.05t
    These site asymmetries drive the tilted Dirac cone and phase boundary shifts; values are chosen to show transitions.
  • Hopping ratios t2/t1, t3/t1, v/u, tbb/trb = scanned over ranges such as 0 to 2.6
    Phase diagrams are computed at selected ratios; different ratios change the topology, so the universal strain response is conditional on these choices.
assumptions (5)
  • standard math The graph-spectrum relations in Eq. (5) for line and split graphs hold, with flat bands at E=0 and E=2 and Dirac touching.
    Taken from Refs. [76,77,90]; used to identify flat bands and band touchings at zero strain, before strain and SOC are added.
  • domain assumption Each lattice is described by a single-orbital per site tight-binding Hamiltonian with nearest-neighbor hopping and intrinsic Kane-Mele SOC (Eq. 1).
    Assumes no multi-orbital effects, long-range hopping, or material-specific orbital character; the authors note real materials can deviate substantially (Section II.B).
  • ad hoc to paper Uniform in-plane strain renormalizes hopping amplitudes via Eq. (7) with graphene parameters beta=3 and nu=0.165 for all lattices.
    The paper explicitly says these values have not been reported for most lattices and are chosen by standard practice (Section II.B).
  • domain assumption Line graph and split graph operations on square and honeycomb parents produce physically realizable 2D lattices with the stated translational symmetries.
    The construction assumes the graph operations correspond to valid Euclidean lattices with periodic unit cells (Section II.A, Fig. 1).
  • domain assumption The Z2 invariant computed with Z2Pack correctly determines the topological phase in the presence of strain and SOC.
    The paper relies on Z2Pack [103,104] for the phase labels; no independent check of the invariant is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Strain-Tunable Topological Phase Transitions in Line- and Split-Graph Flat-Band Lattices." pith.science (2026). https://pith.science/paper/RZAPGSE5

@misc{pith2026250111783,
  author       = {Pith},
  title        = {Pith review of: Strain-Tunable Topological Phase Transitions in Line- and Split-Graph Flat-Band Lattices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RZAPGSE5}},
  note         = {Machine review of arXiv:2501.11783}
}
read the original abstract

In recent years, materials with topological flat bands have attracted significant attention due to their association with extraordinary transport properties and strongly correlated electrons. Yet, generic principles linking lattice architecture, strain, and band topology remain scarce. Here, using a unified graph-theoretic framework we generate entire families of two-dimensional lattices and, using analytical tight-binding calculations, demonstrate that a single mechanical knob -- uniform in-plane strain -- drives universal transitions between trivial insulating, Dirac semimetal, and quantum spin-Hall phases across all lattices. The framework yields several flat band lattices that were hitherto absent or largely unexplored in the literature -- for example, the checkerboard split-graph and triangular-Kagome lattices -- whose strain-driven topological phase diagrams we establish here for the first time. The design rules implied by our studies provide a blueprint for engineering topological states in a wide variety of 2D materials, photonic crystals, and circuit lattices, and are anticipated to accelerate the discovery of strain-programmable quantum matter.

Figures

Figures reproduced from arXiv: 2501.11783 by the authors.

Figure 1
Figure 1. FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figures from the paper (30 more)
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p017_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p018_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p019_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p020_8.png]
Figure 9
Figure 9. Figure 9: FIG. 9 [PITH_FULL_IMAGE:figures/full_fig_p021_9.png]
Figure 10
Figure 10. Figure 10: FIG. 10 [PITH_FULL_IMAGE:figures/full_fig_p022_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11 [PITH_FULL_IMAGE:figures/full_fig_p022_11.png]
Figure 12
Figure 12. Figure 12: FIG. 12 [PITH_FULL_IMAGE:figures/full_fig_p023_12.png]
Figure 13
Figure 13. Figure 13: FIG. 13 [PITH_FULL_IMAGE:figures/full_fig_p025_13.png]
Figure 14
Figure 14. Figure 14: FIG. 14 [PITH_FULL_IMAGE:figures/full_fig_p026_14.png]
Figure 15
Figure 15. Figure 15: FIG. 15 [PITH_FULL_IMAGE:figures/full_fig_p028_15.png]
Figure 16
Figure 16. Figure 16: b. Finally, when t3 = 0, the band structure becomes chiral symmetric as the triply degenerate Dirac band crossing at the Γ point also appears at the M point (Fig. 16c). In this limiting case, the Hamiltonian satisfies the symmetry relation HL(S(X4))[kx +π, ky +π] = −H…
Figure 17
Figure 17. Figure 17: FIG. 17 [PITH_FULL_IMAGE:figures/full_fig_p031_17.png]
Figure 18
Figure 18. Figure 18: FIG. 18 [PITH_FULL_IMAGE:figures/full_fig_p032_18.png]
Figure 19
Figure 19. Figure 19: FIG. 19 [PITH_FULL_IMAGE:figures/full_fig_p033_19.png]
Figure 20
Figure 20. Figure 20: FIG. 20 [PITH_FULL_IMAGE:figures/full_fig_p034_20.png]
Figure 21
Figure 21. Figure 21: FIG. 21 [PITH_FULL_IMAGE:figures/full_fig_p036_21.png]
Figure 22
Figure 22. Figure 22: FIG. 22 [PITH_FULL_IMAGE:figures/full_fig_p037_22.png]
Figure 23
Figure 23. Figure 23: FIG. 23 [PITH_FULL_IMAGE:figures/full_fig_p037_23.png]
Figure 24
Figure 24. Figure 24: FIG. 24 [PITH_FULL_IMAGE:figures/full_fig_p040_24.png]
Figure 25
Figure 25. Figure 25: FIG. 25 [PITH_FULL_IMAGE:figures/full_fig_p040_25.png]
Figure 26
Figure 26. Figure 26: FIG. 26 [PITH_FULL_IMAGE:figures/full_fig_p041_26.png]
Figure 27
Figure 27. Figure 27: FIG. 27 [PITH_FULL_IMAGE:figures/full_fig_p041_27.png]
Figure 28
Figure 28. Figure 28: FIG. 28 [PITH_FULL_IMAGE:figures/full_fig_p042_28.png]
Figure 29
Figure 29. Figure 29: FIG. 29 [PITH_FULL_IMAGE:figures/full_fig_p042_29.png]
Figure 30
Figure 30. Figure 30: FIG. 30 [PITH_FULL_IMAGE:figures/full_fig_p045_30.png]
Figure 31
Figure 31. Figure 31: FIG. 31 [PITH_FULL_IMAGE:figures/full_fig_p045_31.png]
Figure 32
Figure 32. Figure 32: FIG. 32 [PITH_FULL_IMAGE:figures/full_fig_p046_32.png]
Figure 33

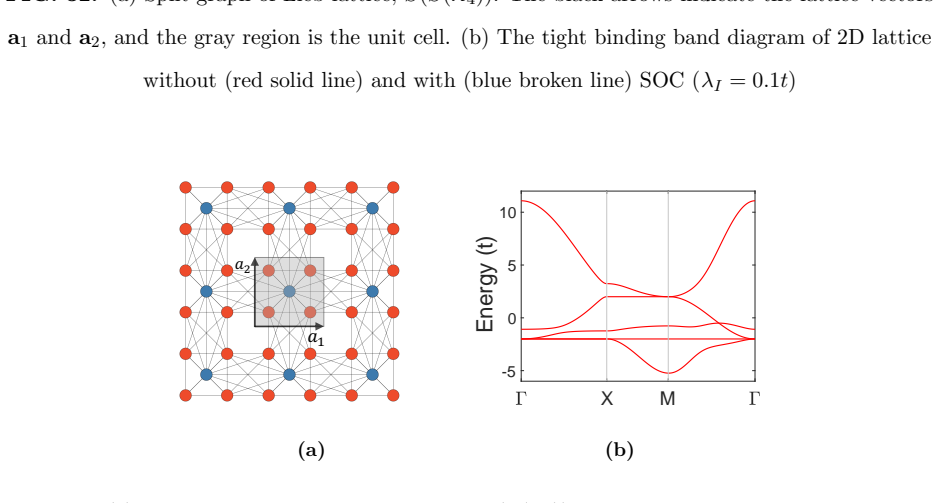

Figure 33. Figure 33: FIG. 33 [PITH_FULL_IMAGE:figures/full_fig_p046_33.png]
