Pith's one-line read Oriented object detection can sidestep angle discontinuities by regressing Gaussian Cholesky parameters directly instead of oriented bounding boxes.

desk verdict GauCho is a genuinely new regression head with correct math and broad experiments, but the boundary-discontinuity claim is a labeled hypothesis, not a proven theorem, so the paper needs revision and reproducibility artifacts before acceptance. read the letter →

arxiv 2502.01565 v1 pith:4RVSWN6V submitted 2025-02-03 cs.CV

Jeffri Murrugarra-LLerena , Jose Henrique Lima Marques , Claudio R. Jung This is my paper · ORCID

classification cs.CV

keywords orientedobjectdetectionGaussiandistributionCholeskydecompositionboundarydiscontinuityellipsesremotesensingDOTAloss

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Oriented object detection usually regresses rotated rectangles described by center, size, and angle, and the angle parameter jumps at the wrap-around boundary, confusing training. This paper proposes GauCho, a regression head that outputs the parameters of a 2D Gaussian distribution directly, specifically the lower-triangular Cholesky factors of its covariance matrix, instead of passing through oriented bounding boxes. Because the Cholesky parameters are continuous functions of rotation, the head theoretically removes the boundary discontinuity that plagues angle-based regression, while remaining compatible with existing Gaussian-based losses such as GWD, KLD, and ProbIoU. The paper also argues for reporting detections as oriented ellipses, which remove the meaningless orientation assigned to circular objects. On DOTA, the proposal matches or improves the standard OBB head, with the largest gains on the anchor-free detector FCOS.

What carries the argument

The Cholesky decomposition of the 2D covariance matrix, C = LL^T with L = [[α, 0], [γ, β]] and α, β > 0, γ ∈ R. This gives a unique, continuous parameterization of a Gaussian distribution: unlike the covariance entries (a, b, c), the parameters (α, β, γ) are unconstrained except for positivity of α and β, and unlike OBB parameters (w, h, θ) they are 180-degree periodic and continuous in rotation. The paper uses it as the regression target of detection heads, with multiplicative offsets relative to anchors or strides, and proves bounds relating α, β, γ to object dimensions so the head can be initialized from anchor geometry.

What would settle it

Train an otherwise identical detector to regress the Cholesky parameters (α, β, γ) directly from a Gaussian ground truth, using a Gaussian loss, and plot the loss as a function of predicted orientation for a fixed anisotropic object. If a second local minimum persists near the boundary (e.g., near -90 degrees for a target at 89 degrees) that is almost as deep as the global minimum, the causal claim that the mapping is the culprit would be refuted; if the landscape becomes single-minimum, the claim survives.

Watch

Extended reading notes

Core claim

The paper claims that the angular boundary problem in oriented object detection is caused by the mapping from oriented bounding boxes to Gaussians, not by Gaussian loss functions themselves, and that regressing Gaussian Cholesky parameters directly should therefore mitigate it. GauCho parameterizes a 2D Gaussian by its mean (x,y) and a covariance matrix C, whose positive-definiteness is enforced by writing C = LL^T with lower-triangular L, whose entries α, β, γ the network outputs. The paper proves bounds relating α, β, γ to the OBB dimensions w and h and shows a bijective continuous relation between the Cholesky parameters and the Gaussian, so any Gaussian-based regression loss can be applied without angle discontinuity. It also introduces oriented ellipses as a decoding target and shows that they are a natural output for Gaussian-based detectors, especially for near-circular objects.

Load-bearing premise

The advantage of GauCho rests on the hypothesis that the angular boundary problem observed with Gaussian losses is caused by the OBB-to-Gaussian mapping, not by the Gaussian loss function itself; the paper illustrates but does not prove this causal chain.

Editorial extensions

If this is right

Any Gaussian-based regression loss — GWD, KLD, or ProbIoU — can be trained with the GauCho head without modifying the loss, since the head outputs the same Gaussian parameters the loss consumes.
Anchor-free and anchor-based, one-stage and two-stage detectors can switch to GauCho by changing only the regression head, keeping the rest of the architecture intact.
GauCho reduces orientation errors: on HRSC the average orientation error drops from 1.36 degrees with the OBB head to 1.11 degrees, with smaller errors in every orientation bin.
On DOTA v1.0 with multiscale training, GauCho paired with RoI-Transformer reaches 80.61 AP50, better than the OBB-head methods compared.
Decoding detections as oriented ellipses raises AP75 on UCAS-AOD and gives a representation that is well defined for circular objects.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A testable extension: if the causal claim is right, then any future improvement to Gaussian loss functions will inherit the boundary-discontinuity fix without extra machinery; one way to test this is to inject perfect Cholesky ground truth and check whether the two local minima in the loss landscape disappear.
A natural extension beyond 2D is to regress Cholesky factors of 3D covariance ellipsoids for oriented 3D detection, where the same continuity argument should hold.
The OE representation could become a practical output format for detectors on datasets with many circular instances, replacing arbitrary OBB angles with a representable circle; measuring IoU against masks would quantify the gain.
GauCho's bound equations suggest that anchor boxes could be designed directly in (α, β, γ) space; testing whether such anchors give better recall than OBB-space anchors would isolate the benefit of the parameterization.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

You should know two things about GauCho. First, the core idea is genuinely new: no one has regressed Cholesky parameters of a Gaussian covariance directly for oriented object detection, and it slots cleanly into existing detectors with Gaussian losses. Second, the paper's loudest claim — that it "theoretically mitigates" the boundary discontinuity problem — is a hypothesis the authors themselves label as such in Appendix 7.1. The math proves continuity of the covariance as a function of angle, but that does not rule out the near-boundary local minimum shown in Figure 5. A 1D loss curve along the OBB angle tells you nothing about whether an optimizer free in (α, β, γ) space escapes that basin. So the theoretical contribution is real but weaker than the abstract suggests.

The paper does several things well. Proposition 3.1 is immediate, and Proposition 3.2 is proved correctly (modulo a strict-vs-non-strict inequality slip in the text; the bound is attained). The anchor-free and anchor-based head formulations are sensible, and the bounds relating Cholesky entries to box dimensions are practically useful. The experiments sweep four detectors, three losses, and four datasets on the MMRotate configs — a broad, honest test. The OE discussion is thoughtful and the orientation-error analysis on HRSC is a nice addition.

Soft spots, in proportion. The causal story for boundary discontinuity is under-supported, as stressed above. The empirical results are mixed: GauCho helps FCOS consistently, but for R3Det and RoI Transformer it often loses to the OBB head, and the tables contain single-run numbers with no error bars or seeds. The paper attributes the differences to "random seed selection" without providing evidence. Code is promised but not yet available, which matters for a representation claim.

Who gets value: researchers working on rotated object detection, especially those using Gaussian losses, will find the representation and bounds useful. It deserves a serious referee — not a desk reject — but the referee should send it back for a major revision: tone down the theoretical claim to what is proven, add multi-seed statistics, and release code. I would not accept it as-is, but the underlying idea is sound and likely to be cited once it lands in usable form.

Referee Report

3 major / 4 minor

Summary. The paper proposes GauCho, a regression head for oriented object detection that directly outputs the lower-triangular Cholesky factors (α, β, γ) of a 2D Gaussian covariance matrix, instead of the usual oriented-bounding-box (OBB) parameters (x, y, w, h, θ). The authors derive bounds relating the Cholesky parameters to OBB dimensions, instantiate the head in anchor-free and anchor-based detectors, advocate oriented ellipses (OEs) as an alternative output representation, and evaluate the head with GWD, KLD, and ProbIoU losses on FCOS, RetinaNet, R3Det, and RoI-Transformer over HRSC, UCAS-AOD, and DOTA v1.0/v1.5. The paper's central theoretical claim is that this parameterization is continuous in orientation and therefore mitigates the angular boundary discontinuity problem.

Significance. If the continuity argument were sufficient to guarantee the mitigation claim, GauCho would be a simple, loss-agnostic representation change applicable to a broad family of existing detectors and Gaussian-based losses. The experimental breadth is a genuine strength: four detectors, three losses, and three datasets using standard MMRotate configurations, with competitive DOTA results when multiscale training is used. The OE analysis is also a useful contribution for thinking about circular and ill-oriented objects. However, the central 'theoretically mitigates' claim is weaker than stated: continuity of the target mapping does not by itself ensure the loss landscape has no problematic near-boundary local minima, and the paper's own appendix frames the causal mechanism as a hypothesis. The practical value of the head as an alternative representation is supported by the experiments, but the deeper theoretical claim needs either additional analysis or a more modest framing.

major comments (3)

[Section 3.1 and Appendix 7.1] The central claim that directly regressing Cholesky parameters 'theoretically mitigates' the boundary discontinuity problem is not established. The argument shows only that the covariance elements a, b, c in Eq. (15) are continuous and 180°-periodic in θ; this does not imply that GWD, KLD, or ProbIoU, viewed as functions of the predicted Cholesky parameters (α, β, γ), have no problematic local minima near the angle boundary. Appendix 7.1 itself labels the mechanism as a hypothesis, and Figure 5 plots the loss only along the one-dimensional OBB angle curve, not over the full Cholesky output space. Please either provide a proof or a numerical optimization-landscape study for the relevant losses in (α, β, γ) coordinates, or weaken the claim to 'empirically improves orientation consistency'.
[Section 3.3.1 and Appendix 7.2] Proposition 3.2 as stated is incorrect: the text claims |γ| < √λmax − √λmin, but the proof's Eq. (27) yields f(x*) = (√λw − √λh)^2, so the inequality is attained and should be ≤. This matters because Eq. (13) uses the bound as the default scale for γ; the construction remains valid with ≤, but the proposition must be corrected.
[Table 1 and Section 4] The experimental evidence for the central mechanism is mixed and underpowered. On DOTA v1.0, GauCho improves FCOS across all losses, but for R3Det it decreases AP50 under KLD (38.90 → 37.65) and ProbIoU (38.91 → 37.89), and for RoI-Transformer all three losses give lower AP50 (e.g., KLD 45.96 → 44.32). Since all results appear to be single runs, seed variability cannot be assessed. To support the claim that GauCho mitigates the boundary problem rather than merely serving as an alternative parameterization, the key comparisons should include multiple seeds or error bars, and the head change should be isolated from the anchor/stride scaling and OBB-to-OE decoding changes.

minor comments (4)

[Throughout] There are several typos: 'ambuiguity' in Sections 1 and 2, 'Choleky' in Proposition 3.2, and 'Not that' in Section 5, which should be 'Note that'.
[Section 5 and Appendix 7.3] The number of DOTA categories is inconsistent: Section 5 says 'nine of the 15 categories', while Appendix 7.3 says 'nine of the sixteen categories' and Figure 6 says 'sixteen'; DOTA v1.0 has 15 categories.
[Section 3.1 and 3.3.1] Equation cross-references are inconsistent: Section 3.1 refers to Eq. (15) for the covariance matrix, but the equation appears as Eq. (3), and Section 3.3.1 refers to 'Eq. (1) to Eq. (17)', which does not match the displayed equation numbers.
[Table 1] The column header 'HRSC (OBB)' is potentially confusing because the table also reports OE-based metrics for UCAS-AOD; a clearer caption or sub-headers would help.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: GauCho's head parameterization is derived from standard linear algebra and the experimental claims are tested against external baselines; the few self-citations are not load-bearing.

full rationale

The paper's central derivation—representing a 2D Gaussian by its Cholesky factor and regressing (alpha, beta, gamma) directly—does not reduce to a fitted parameter or to a prior result from the same authors. Cholesky decomposition is a standard, externally established linear-algebra fact, and the bounds in Propositions 3.1 and 3.2 are proven from the covariance formulas in Eqs. (15)-(17), not assumed. The claim that the covariance elements are continuous and 180-degree periodic in theta is a direct mathematical consequence of Eq. (15), and the decoding to OBB or OE uses the eigenvalue decomposition of the covariance, so no target quantity is encoded into the representation by construction. Although Appendix 7.1 labels the cause of the angular local minimum as a hypothesis and Figure 5 only plots a 1D loss curve, that is an under-supported causal/convexity claim (a correctness risk), not a circular step. The paper's use of ProbIoU [20], which shares an author, is one of three loss baselines, and GWD and KLD come from other groups; the GauCho head is not defined through ProbIoU, so the self-citation is not load-bearing. Experimental comparisons are against MMRotate baselines and published SOTA numbers, with no parameter fitted to the test data; the hand-set quantities s and delta are fixed before training and are not tuned to the reported AP values. Thus no circularity is present.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The central derivation uses the standard Cholesky decomposition and the existing Gaussian-loss pipeline. The only hand-set numbers are the OBB-to-Gaussian scale s and the anchor gamma slack delta. There are no invented physical entities. The causal story for the boundary problem is an explicit hypothesis rather than a proved theorem.

free parameters (2)

Gaussian scaling factor s = 1/4 for GWD/KLD; 1/12 for ProbIoU
Eq. (2) sets the eigenvalue matrix as s times diag(w^2, h^2); all OBB and OE decodings use this conversion. The value is taken from prior work, not fitted here, but it is a free choice that changes the regression targets.
Anchor-based gamma slack delta = delta = sqrt(lambda_min)
Eq. (13) sets gamma = sqrt(s) * max(delta, |aw-ah|) * d_gamma; delta is introduced ad hoc so square anchors can regress a nonzero gamma and is justified by anchor aspect ratios 1:2 and 2:1. It is a hand-chosen constant, not optimized.

assumptions (5)

standard math Cholesky decomposition gives a unique lower-triangular matrix for every positive-definite covariance matrix.
Used in Eq. (5) and throughout Section 3.2; standard linear algebra result.
standard math Sylvester's criterion for positive-definiteness motivates the Cholesky parameterization.
Section 3.1: regressing a, b, c directly would be a constrained problem, and the Cholesky form avoids that constraint.
domain assumption The fixed scaling s in Eq. (2) maps OBB dimensions to Gaussian eigenvalues and supports all Gaussian losses.
Inherited from prior Gaussian-based losses; all decoding of box dimensions depends on this choice.
ad hoc to paper The angular boundary problem with Gaussian losses is caused by the OBB-to-Gaussian mapping.
Section 3.1 and Appendix 7.1 state this as a belief or hypothesis; it is the causal justification for why direct Gaussian regression helps.
domain assumption Oriented ellipses decoded from Gaussians are a valid output representation comparable to oriented bounding boxes.
Section 5 and Appendix 7.3 use IoU with segmentation masks to argue that ellipses fit typical DOTA categories; this grounds the proposed OE output.

how reviews work

0 comments

Cite this review

Pith. "Pith review of GauCho: Gaussian Distributions with Cholesky Decomposition for Oriented Object Detection." pith.science (2026). https://pith.science/paper/4RVSWN6V

@misc{pith2026250201565,
  author       = {Pith},
  title        = {Pith review of: GauCho: Gaussian Distributions with Cholesky Decomposition for Oriented Object Detection},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4RVSWN6V}},
  note         = {Machine review of arXiv:2502.01565}
}

read the original abstract

Oriented Object Detection (OOD) has received increased attention in the past years, being a suitable solution for detecting elongated objects in remote sensing analysis. In particular, using regression loss functions based on Gaussian distributions has become attractive since they yield simple and differentiable terms. However, existing solutions are still based on regression heads that produce Oriented Bounding Boxes (OBBs), and the known problem of angular boundary discontinuity persists. In this work, we propose a regression head for OOD that directly produces Gaussian distributions based on the Cholesky matrix decomposition. The proposed head, named GauCho, theoretically mitigates the boundary discontinuity problem and is fully compatible with recent Gaussian-based regression loss functions. Furthermore, we advocate using Oriented Ellipses (OEs) to represent oriented objects, which relates to GauCho through a bijective function and alleviates the encoding ambiguity problem for circular objects. Our experimental results show that GauCho can be a viable alternative to the traditional OBB head, achieving results comparable to or better than state-of-the-art detectors for the challenging dataset DOTA

Figures

Figures reproduced from arXiv: 2502.01565 by the authors.

**Figure 2.** Encoding ambiguity problem for circular objects: any rotated square (red) is a viable choice. Oriented Ellipses (OEs, in green) induced by Gaussian representations mitigate the problem. In this work, we propose a new paradigm for OOD by regressing the parameters of a Gaussian distribution directly from the network, avoiding the intermediate use of OBBs. The encoding through a covariance matrix provides a continuou… view at source ↗

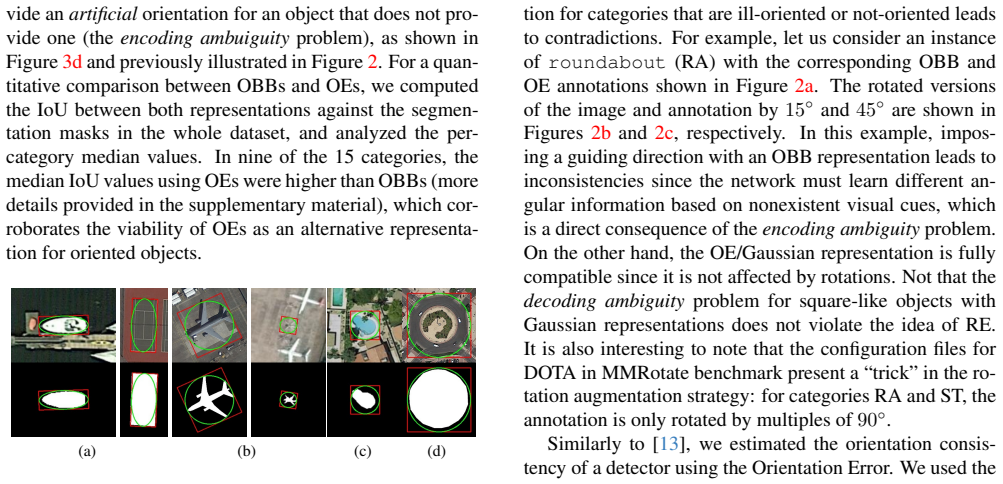

**Figure 3.** Examples of object representations using OEs and [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

Figures from the paper (6 more)

**Figure 4.** Figure 4: Orientation Error for different GT orientation bins using FCOS with OBB and GauCho heads in HRSC. Orientation Consistency: one of the motivations for GauCho was to mitigate the orientation discontinuity problem in OOD, which impacts orientation accuracy. A closely re…

**Figure 5.** Figure 5: When regressing angular information from a Gaussian [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]

**Figure 6.** Figure 6: IoU between OBB and OE representations with the corresponding segmentation masks in DOTA. [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]

**Figure 7.** Figure 7: Examples of inconsistencies between OBB and segmen [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]

**Figure 8.** Figure 8: Visual comparison of FCOS-Baseline (a, c) and FCOS [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]

**Figure 10.** Figure 10: Qualitative comparison of FCOS-Gaucho using OBBs (top) and OEs (bottom) from some images from the DOTA dataset. [PITH_FULL_IMAGE:figures/full_fig_p012_10.png]
