Optimizing Movable Antennas in Wideband Multi-User MIMO With Hardware Impairments

T0 review · 2 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Movable antennas in wideband MIMO mostly pay off in line-of-sight, interference-limited channels, not in rich scattering at practical subcarrier counts.

desk verdict Honest, well-built wideband movable-antenna model, but the paper never quantifies the benefit of movement itself against the best fixed irregular array. read the letter →

arxiv 2504.12885 v2 pith:CFCWREDV submitted 2025-04-17 cs.IT eess.SPmath.IT

Amna Irshad , Emil Björnson , Alva Kosasih , Vitaly Petrov This is my paper · ORCID
classification cs.ITeess.SPmath.IT
keywords movableantennaswidebandMIMOOFDMhardwareimpairmentserrorvectormagnitudeparticleswarmoptimizationsumratemaximizationmultipathchannels
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper asks whether movable antennas, whose positions at a base station can be physically adjusted, meaningfully improve data rates in wideband multi-user MIMO systems, where prior work had mostly considered narrowband operation. It derives an OFDM uplink model that includes the pulse-shaping filter and transceiver hardware impairments, then optimizes antenna positions with particle swarm optimization and compares against fixed uniform arrays. The central finding is that the benefit of moving antennas is conditional: in line-of-sight-dominant channels, optimized movable antennas achieve up to 57% higher average sum rate than a compact uniform planar array and up to 28% higher than a sparse one, but in rich scattering with practical subcarrier counts the gain over a sparse uniform linear array falls to about 2.4%. Hardware impairments cap the achievable rate at a level independent of antenna positions, so movable antennas help mainly in interference-limited rather than hardware-limited regimes. These results matter because they identify when the complexity of physically moving antennas is actually worth deploying.

What carries the argument

The mechanism is a geometric wideband channel model in which each antenna's position enters through the array response vector $a_P(\varphi,\theta) = [e^{j p_1^T k(\varphi,\theta)},\ldots,e^{j p_M^T k(\varphi,\theta)}]^T$, with wave vector $k(\varphi,\theta)$ determined by azimuth and elevation angles. The multipath channel becomes a finite-impulse-response filter whose taps combine path amplitudes, delays, and the position-dependent array response, and each subcarrier's channel is the DFT of those taps. The sum rate is the average over subcarriers of a log-det expression with two terms: the ideal-hardware rate minus a hardware-impairment penalty controlled by the error vector magnitude; the high-SNR limit $K \log_2(1/\mathrm{EVM}^2)$ is independent of positions. Particle swarm optimization then searches the antenna positions, constrained to non-overlapping squares with a minimum $\lambda/2$ spacing, to maximize this sum rate.

What would settle it

Simulate the same LOS-dominant scenario with a fixed irregular array whose positions are optimized once for the user distribution, using the same PSO objective and the same $5\lambda \times 5\lambda$ aperture per antenna. If that static array's average sum rate matches the movable-antenna result within a few percent, then the claim that dynamic movement drives the reported 28–57% gains is falsified; the gains would come from geometry selection rather than movement.

Watch

Extended reading notes

Core claim

The paper establishes that in a wideband multi-user MIMO uplink with a base station carrying few antennas ($M \approx K$), optimizing antenna positions with particle swarm optimization yields the largest rate gains when the channel is line-of-sight dominant and the system is interference-limited. For a 16-antenna array serving 10 users, the optimized movable configuration reaches within 3% of an interference-free upper bound and outperforms a compact uniform planar array by up to 57% and a sparse uniform planar array by up to 28%. In rich non-line-of-sight scattering, the gains shrink rapidly as subcarriers increase; at practical subcarrier counts the improvement over a sparse uniform linear array is only about 2.4%. The paper also derives an achievable sum-rate expression under error-vector-magnitude hardware impairments and shows that as transmit power grows the rate converges to $K \log_2(1/\mathrm{EVM}^2)$, a ceiling independent of antenna positions. Hence movable antennas are beneficial precisely when inter-user interference, not hardware distortion, is the bottleneck.

Load-bearing premise

The reported gains are measured against fixed uniform arrays that were not optimized for the propagation scenario, and if a fixed irregular array pre-optimized for the scenario, as the paper itself notes is possible, is the benchmark, the advantage of physically moving antennas would shrink or disappear.

Editorial extensions

If this is right

  • In LOS-dominant wideband scenarios with moderate subcarrier counts, movable antennas can nearly match an interference-free upper bound (within about 3%), yielding gains up to 57% over a compact UPA and 28% over a sparse UPA.
  • In rich scattering with many subcarriers, different subcarriers prefer different antenna positions, so the gain over a sparse ULA falls to about 2.4%; fixed arrays are nearly as good.
  • Hardware impairments set an EVM-dependent rate ceiling $K \log_2(1/\mathrm{EVM}^2)$ that no antenna movement can exceed; at high SNR all array geometries converge to the same limit, and movable-antenna advantages become negligible.
  • The relative benefit of movable antennas degrades with bandwidth: from roughly 14% at 20 or fewer subcarriers down to 4.8% at 100 or more subcarriers in non-LOS conditions.
  • Because a fixed irregular array pre-optimized for the propagation scenario could plausibly achieve similar rates without any movement, the value of dynamic movement itself is narrower than the headline gains over uniform arrays suggest.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An implication the paper leaves implicit is a sharper test: in a static deployment where the user distribution is known in advance, a one-time optimized irregular array should capture most of the movable-antenna gain, so the real advantage of movable antennas may be adaptability to changing user locations rather than peak rate.
  • Because the gains are tied to channel similarity across subcarriers, a natural extension is to predict that in wideband systems with high mobility or fast-changing multipath, the optimal positions would need frequent re-optimization, and the PSO-based approach as presented would need an online, low-complexity update rule to remain practical.
  • The same model could be applied to the downlink with hardware impairments at the base station; since the asymptotic ceiling is independent of positions there as well, one would expect the interference-limited LOS regime to again be the only favorable case.
  • A testable design rule follows from the high-SNR limit: when the operating SNR already puts the system near $K \log_2(1/\mathrm{EVM}^2)$, investing in antenna movement is pointless; the distance between the current rate and that ceiling tells whether position optimization is worth the mechanical cost.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. This paper studies a wideband multi-user MIMO uplink with movable antennas at the base station. The authors derive an OFDM system model with a geometric multipath channel that includes pulse-shaping, and model user hardware impairments via the error vector magnitude (EVM). Lemma 1 gives an achievable average sum rate expression, and Corollary 1 shows a high-SNR ceiling K log2(1/EVM^2) that is independent of the antenna positions. The antenna positions are optimized by particle swarm optimization under per-antenna movement regions and a minimum-separation constraint. Numerical results in LOS-dominant and rich-scattering scenarios compare the optimized movable array against sparse and compact uniform arrays, leading to the claimed conditional gains. The paper concludes that movable antennas are most useful in LOS-dominant, interference-limited wideband systems, and it explicitly concedes that a pre-optimized fixed irregular array may achieve similar rates without antenna movement.

Significance. The derivation of the wideband channel model with pulse shaping and the achievable sum-rate expression is a solid contribution, and the high-SNR ceiling in Corollary 1 is a neat result that is independent of the array geometry. If the numerical claims are robust, the paper would provide useful guidance on when movable antennas help in wideband systems. Strengths include the explicit worst-case noise argument in the proof of Lemma 1, the algebraic proof of the EVM ceiling, and the identification of interference-limited regimes as the relevant operating point for movable antenna gains. The main weakness is that the numerical baselines do not include a pre-optimized fixed irregular array, so the headline gains may overstate the value of physical movement. The PSO solver also lacks a global optimality guarantee, so the reported rates may be local optima that could affect the quantitative conclusions.

major comments (2)
  1. [V (Conclusion) and IV (Baselines)] The conclusion explicitly states: 'In scenarios where movable antennas outperform a sparse ULA/UPA, one could potentially use a fixed irregular array optimized for the propagation scenario (as proposed in [15]) to achieve similar rates without antenna movements.' The three baselines considered in Section IV (sparse UPA, sparse ULA, and compact UPA) are all uniform arrays and are not optimized for the channel. Consequently, the reported gains of up to 57% versus a compact UPA and 28% versus a sparse UPA (Section IV-A) conflate geometry optimization with physical antenna movement. To support the central claim that movable antennas provide a distinct benefit, the paper should compare against a fixed irregular array optimized for the same propagation scenario in the wideband setting, or at least bound the best achievable fixed-geometry performance. Without such a baseline, the paper's central quantitative claims are not substantiated.
  2. [III-A and IV-A] The PSO algorithm is terminated after 100 iterations and no optimality-gap analysis is provided. The statement in Section IV-A that 'The proposed PSO algorithm finds excellent antenna positions, which are only 3 % from the interference-free upper bound' is not supported by any convergence test or comparison with a global optimum. Since the objective in (13) is non-concave and the search space is effectively 32-dimensional (16 antennas, each movable in two dimensions), the solutions may be local optima, and the reported differential gains over fixed arrays could change with a better optimizer. Please provide evidence of near-global optimality, for example by running multiple restarts, comparing against exhaustive search on a low-dimensional instance, or refining the PSO output with a local gradient-based method.
minor comments (5)
  1. [II-A, Eq. (4)] The exponent in (4) is written as e^{-j2πλ(τ_{i,n}-η)/c}; using λ/c = 1/f_c makes this algebraically correct, but the notation is nonstandard and may confuse readers. Rewriting it as e^{-j2π f_c (τ_{i,n}-η)} would make the units clear.
  2. [IV-A, Figs. 3 and 4] The y-axis label 'Average sum rate' is used while the text refers to 'rate per subcarrier' in the discussion of increasing S. Since R_Σ in (8) is already an average over subcarriers, please clarify whether the plotted quantity is the per-subcarrier average or the total sum rate, and adjust the label and captions accordingly.
  3. [IV-A] The sentence 'The loss is largest with movable antennas' is ambiguous because the total sum rate increases with S; the underlying observation is that the average rate per subcarrier decreases. Consider stating this explicitly in relative terms.
  4. [IV-B] The parenthetical 'which was not observed in [10]' is unclear: it is not obvious whether [10] claimed the opposite effect or simply did not study the high-SNR asymptote. Clarify the comparison to [10] or remove the parenthetical.
  5. [V] The numerical percentages in the conclusion (22%, 5.3%, 14%, 4.8%) are not all directly traceable to the figures because the reference baseline changes between the sparse ULA and sparse UPA. Please specify which baseline each percentage refers to so that the summary is reproducible.

Circularity Check

0 steps flagged · score 0.0 of 10

Derivation is self-contained: the sum-rate expression follows from a standard information-theoretic bound, the PSO maximizes that same expression, and the cited prior work is used only as a comparison point rather than as a load-bearing input.

full rationale

The paper's central derivation is self-contained. The OFDM channel model in Eqs. (3)-(6) is constructed from a geometric multipath model, and the achievable sum rate in Lemma 1 is obtained by applying the worst-case uncorrelated additive noise theorem from Hassibi-Hochwald [12] to the received signal in Eq. (5); no fitted constant or target data enters the derivation. Corollary 1 is an algebraic limit of the same expression. The optimization problem in Eqs. (13)-(15) maximizes exactly that sum-rate expression using PSO, so the reported rates are evaluations of the derived expression, not predictions defined in terms of fitted parameters. The comparisons against sparse UPA, sparse ULA, and compact UPA are external benchmarks. The only self-citation, [15], appears in the conclusion as a caveat that a pre-optimized fixed irregular array might achieve similar rates without antenna movements; that statement is not used to derive any result and, if anything, weakens the paper's own motivation rather than importing a circular assumption. Thus there is no circular step reducing a claimed result to its inputs.

Assumptions & free parameters 0 free parameters · 5 assumptions · 0 invented entities

The analytical core relies on standard information-theoretic and signal-processing assumptions, not on fitted parameters. All simulation settings, such as EVM, transmit power, cluster layouts, and movement region size, are exogenous inputs from prior literature or chosen scenario values, and none are tuned to make the central claim true. The paper introduces no new physical entities. The PSO solver settings are heuristic and are listed as an ad hoc assumption.

assumptions (5)
  • standard math Worst-case uncorrelated additive noise theorem of [12] applies to the effective noise model in (5)
    Used in the proof of Lemma 1 to upper-bound the rate of a signal plus uncorrelated additive distortion noise with covariance Q[nu].
  • domain assumption Far-field geometric channel model with discrete plane-wave paths
    Used in Section II to define array response (1) and channel taps (3); assumes known angles and delays and plane-wave propagation.
  • domain assumption EVM model of hardware impairment as per-subcarrier uncorrelated additive distortion
    Equation (7) postulates epsilon_i[nu] with variance EVM^2, uncorrelated across subcarriers; a standard but idealized impairment model.
  • domain assumption OFDM FIR channel model with pulse-shaping filter f(t), no residual inter-carrier interference
    Section II-A treats the channel as a finite impulse response of length T and takes the DFT to obtain per-subcarrier channels, implicitly assuming perfect cyclic-prefix operation.
  • ad hoc to paper PSO termination at 100 iterations yields near-global optimum for (13)
    The paper claims the optimizer is only 3% from an interference-free bound, but no optimality certificate is given; this is an algorithmic assumption, not a proven property.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Optimizing Movable Antennas in Wideband Multi-User MIMO With Hardware Impairments." pith.science (2026). https://pith.science/paper/CFCWREDV

@misc{pith2026250412885,
  author       = {Pith},
  title        = {Pith review of: Optimizing Movable Antennas in Wideband Multi-User MIMO With Hardware Impairments},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CFCWREDV}},
  note         = {Machine review of arXiv:2504.12885}
}
read the original abstract

Movable antennas represent an emerging field in telecommunication research and a potential approach to achieving higher data rates in multiple-input multiple-output (MIMO) communications when the total number of antennas is limited. Most solutions and analyses to date have been limited to \emph{narrowband} setups. This work complements the prior studies by quantifying the benefit of using movable antennas in \emph{wideband} MIMO communication systems. First, we derive a novel uplink wideband system model that also accounts for distortion from transceiver hardware impairments. We then formulate and solve an optimization task to maximize the average sum rate by adjusting the antenna positions using particle swarm optimization. Finally, the performance with movable antennas is compared with fixed uniform arrays and the derived theoretical upper bound. The numerical study concludes that the data rate improvement from movable antennas over other arrays heavily depends on the level of hardware impairments, the richness of the multi-path environments, and the number of subcarriers. The present study provides vital insights into the most suitable use cases for movable antennas in future wideband systems.

Figures

Figures reproduced from arXiv: 2504.12885 by the authors.

Figure 1
Figure 1. Illustration of the considered multipath channel setup. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Regions where the movable antennas can be optimized [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

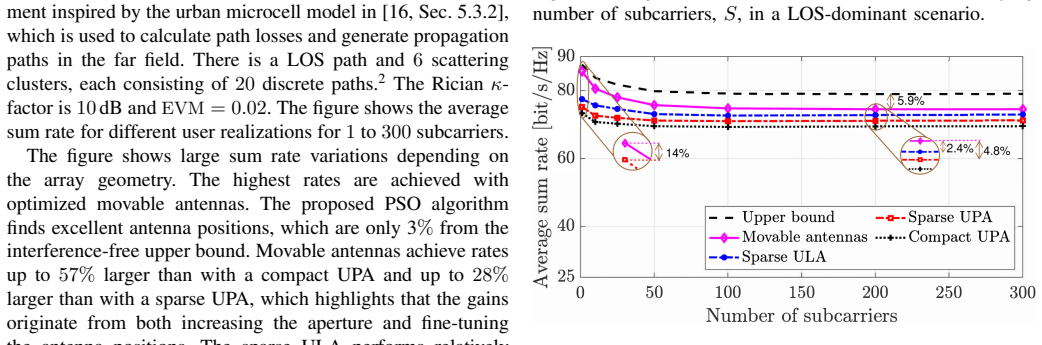

Figure 3. Average sum rate with K = 10 users for a varying number of subcarriers, S, in a LOS-dominant scenario [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: Average sum rate with K = 10 users for a varying number of subcarriers, S, in a rich non-LOS scenario. angles. The κ-factor is 0 dB, so the LOS path is barely stronger than the scattered paths. All other parameters are unchanged compared to the last figure [PITH_FULL_…
Figure 5
Figure 5. Figure 5: Average sum rate versus EVM with ρ = 316 mW [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Average sum rate as a function of the transmit power [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

16 extracted references · 12 canonical work pages

  1. [15]

    Pre-Optimized Irregular Arrays versus Moveable Antennas in Multi-User MIMO Systems

    A. Irshad, A. Kosasih, V . Petrov, and E. Björnson, “Pre-optimized irregular arrays versus moveable antennas in multi-user MIMO systems,” 2025. [Online]. Available: https://arxiv.org/abs/2502.03994

    work page Pith review arXiv 2025

  2. [1]

    Massive MIMO is a reality — What is next?: Five promis- ing research directions for antenna arrays,

    E. Björnson, L. Sanguinetti, H. Wymeersch, J. Hoydis, and T. L. Marzetta, “Massive MIMO is a reality — What is next?: Five promis- ing research directions for antenna arrays,” Digital Signal Processing , vol. 94, pp. 3–20, 2019

    work page 2019

  3. [2]

    Massive MIMO for next generation wireless systems,

    E. G. Larsson, F. Tufvesson, O. Edfors, and T. L. Marzetta, “Massive MIMO for next generation wireless systems,” IEEE Commun. Mag. , vol. 52, no. 2, pp. 186–195, 2014

    work page 2014

  4. [3]

    A tutorial on movable antennas for wireless networks,

    L. Zhu, W. Ma, W. Mei, Y . Zeng, Q. Wu, B. Ning, Z. Xiao, X. Shao, J. Zhang, and R. Zhang, “A tutorial on movable antennas for wireless networks,” IEEE Commun. Surveys Tuts. , 2025, to appear

    work page 2025

  5. [4]

    Movable antenna-enhanced wireless communications: General archi- tectures and implementation methods,

    B. Ning, S. Yang, Y . Wu, P. Wang, W. Mei, C. Yuen, and E. Björnson, “Movable antenna-enhanced wireless communications: General archi- tectures and implementation methods,” IEEE Wireless Commun., 2025, to appear

    work page 2025

  6. [5]

    Fluid antenna systems,

    K.-K. Wong, A. Shojaeifard, K.-F. Tong, and Y . Zhang, “Fluid antenna systems,” IEEE Trans. Wireless Commun., vol. 20, no. 3, pp. 1950–1962, 2021

    1950

  7. [6]

    Transmit diversity vs. spatial multiplexing in modern MIMO systems,

    A. Lozano and N. Jindal, “Transmit diversity vs. spatial multiplexing in modern MIMO systems,” IEEE Trans. Wireless Commun., vol. 9, no. 1, pp. 186–197, 2010

    work page 2010

  8. [7]

    Fluid antenna system empowering 5G NR,

    H. Hong, K.-K. Wong, H. Li, H. Xu, H. Xiao, H. Shin, K.-F. Tong, and Y . Zhang, “Fluid antenna system empowering 5G NR,” 2025. [Online]. Available: https://arxiv.org/abs/2503.05384

    arXiv 2025

Show all 16 references
  1. [8]

    Performance analysis and optimization for movable antenna aided wideband communications,

    L. Zhu, W. Ma, Z. Xiao, and R. Zhang, “Performance analysis and optimization for movable antenna aided wideband communications,” IEEE Trans. Wireless Commun. , vol. 23, no. 12, pp. 18 653–18 668, 2024

    2024

  2. [9]

    Massive MIMO networks: Spectral, energy, and hardware efficiency,

    E. Björnson, J. Hoydis, and L. Sanguinetti, “Massive MIMO networks: Spectral, energy, and hardware efficiency,” Foundations and Trends® in Signal Processing, vol. 11, no. 3-4, pp. 154–655, 2017

    2017

  3. [10]

    Rethinking hardware impairments in multi-user systems: Can FAS make a difference?

    J. Yao, T. Wu, L. Zhou, M. Jin, C. Pan, M. Elkashlan, F. Adachi, G. K. Karagiannidis, N. Al-Dhahir, and C. Yuen, “Rethinking hardware impairments in multi-user systems: Can FAS make a difference?” 2024. [Online]. Available: https://arxiv.org/abs/2412.15843

    2024 arXiv

  4. [11]

    Björnson and Ö

    E. Björnson and Ö. T. Demir, Introduction to multiple antenna commu- nications and reconfigurable surfaces . Now Publishers, 2024

    2024

  5. [12]

    How much training is needed in multiple-antenna wireless links?

    B. Hassibi and B. M. Hochwald, “How much training is needed in multiple-antenna wireless links?” IEEE Trans. Inf. Theory, vol. 49, no. 4, pp. 951–963, 2003

    2003

  6. [13]

    Clerc, Particle swarm optimization , 1st ed., ser

    M. Clerc, Particle swarm optimization , 1st ed., ser. Wiley Series in Computational Intelligence. London, UK: Wiley-ISTE, 2006

    2006

  7. [14]

    Yarpiz evolutionary algorithms toolbox for MATLAB (YPEA),

    M. Kalami Heris, “Yarpiz evolutionary algorithms toolbox for MATLAB (YPEA),” 2020

    2020

  8. [16]

    3GPP TS 25.996, Jul

    3GPP, Spatial channel model for Multiple Input Multiple Output (MIMO) simulations (Release 16) . 3GPP TS 25.996, Jul. 2020

    2020
