Full Crystallographic Imaging of Hexagonal Boron Nitride Monolayers with Phonon-Enhanced Sum-Frequency Microscopy

T0 review · 2 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Phase-resolved SFG microscopy images the full crystal orientation of hBN monolayers with an ~800-fold phonon boost.

desk verdict New phase-resolved SFG microscopy gives hBN orientation maps that SHG cannot; the edge-polarity claim needs the DFT sign shown. read the letter →

arxiv 2504.15939 v2 pith:FV2VZTBH submitted 2025-04-22 cond-mat.mtrl-sci cond-mat.mes-hallphysics.optics

Niclas S. Mueller , Alexander P. Fellows , Ben John , Andrew E. Naclerio , Christian Carbogno , Katayoun Gharagozloo-Hubmann , Damián Baláž , Ryan A. Kowalski
show 8 more authors
Hendrik H. Heenen Christoph Scheurer Karsten Reuter Joshua D. Caldwell Martin Wolf Piran R. Kidambi Martin Thämer Alexander Paarmann
This is my paper · ORCID
classification cond-mat.mtrl-scicond-mat.mes-hallphysics.optics
keywords sum-frequencygenerationmicroscopyhexagonalboronnitridephononenhancementheterodynedetectioncrystallographicorientationzigzagedgeterminationtwo-dimensionalmaterialswide-fieldnonlinearimaging
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Hexagonal boron nitride monolayers are nearly invisible to ordinary optics, yet their crystal orientation matters for almost every van der Waals device application. This paper establishes that phase-resolved sum-frequency generation (SFG) microscopy can image these monolayers and recover their full crystallographic orientation in a wide-field measurement. The key is tuning the mid-infrared drive onto hBN's transverse optical phonon, which gives an ~800-fold resonant enhancement of the SFG signal and makes the material as easy to image as excitonic transition metal dichalcogenides. With heterodyne phase detection and azimuthal rotation, the 3-fold lattice symmetry is resolved including the B-N versus N-B direction, and the authors find that CVD-grown triangular islands have nitrogen-terminated zigzag edges. If true, this gives a fast, label-free way to locate and orient hBN monolayers and other non-centrosymmetric van der Waals materials.

What carries the argument

The central object is the effective second-order nonlinear susceptibility $\chi^{(2)}(\omega)$ of monolayer hBN, whose resonant form couples the IR-active transverse optical phonon at $\omega_{TO}=1368\ \mathrm{cm^{-1}}$ to the Raman polarizability; because the monolayer lacks inversion symmetry, the phonon is both IR- and Raman-active, giving the ~800-fold signal boost. The measurement apparatus is a wide-field, phase-resolved SFG microscope using balanced paired-pixel heterodyne imaging, and the crystallographic readout comes from a rotational Fourier analysis that isolates the $\cos(3\varphi)$ threefold component of the SFG amplitude, where $\varphi$ is the angle between the armchair crystal direction and the in-plane laser polarization. The sign of that component distinguishes B-N from N-B directions.

What would settle it

Perform atomically resolved scanning tunnelling microscopy or transmission electron microscopy on the same type of CVD-grown triangular hBN islands and record which element terminates the zigzag edges; if the terminating atoms are boron rather than nitrogen, the DFT sign assignment used to interpret the SFG phase is inverted.

Watch

Extended reading notes

Core claim

Phase-resolved, phonon-enhanced SFG microscopy can serve as a full crystallographic imaging tool for monolayer hBN: it visualizes the monolayer over ~100x150 micron fields in under a second, measures the resonant nonlinear susceptibility through interference with a local oscillator, and, by recording the threefold azimuthal component of the SFG amplitude, maps the in-plane crystal orientation pixel by pixel at an infrared-subdiffractional resolution set by the visible SFG wavelength. The paper's concrete material-science finding is that the vast majority of CVD-grown triangular hBN islands are single crystals with zigzag edges, and that these edges are nitrogen-terminated; the B-N versus N-B distinction is drawn from the sign of the phase-resolved SFG signal referenced against z-cut quartz and interpreted with density functional theory. The paper also quantifies a ~790-fold intensity enhancement of the resonant phonon contribution relative to the off-resonant electronic second-order response.

Load-bearing premise

The B-N versus N-B edge-termination result rests on a density functional theory calculation, described only in the supplementary information, that fixes which sign of the SFG amplitude corresponds to a nitrogen-terminated zigzag edge; if that calculated sign is wrong, the conclusion flips to boron-terminated edges.

Editorial extensions

If this is right

  • Monolayer hBN islands can be located, oriented, and distinguished from contamination on transparent substrates without AFM, Raman, or destructive probes.
  • Phase-resolved SFG resolves 180-degree rotated domains that ordinary SHG intensity measurements cannot distinguish, enabling B-N versus N-B polarity imaging over macroscopic areas.
  • Because the response is resonant with a phonon and spectrally resolved, local strain, layer number, stacking, and twist-angle variations should show up as shifts and changes in the SFG spectrum across the field of view.
  • The strong phonon-enhanced nonlinearity makes monolayer hBN an efficient mid-IR-to-visible converter, with further quadratic gains expected for 3R-stacked multilayers.
  • The same microscope concept should apply to other van der Waals materials, interfaces, and molecular assemblies with broken inversion symmetry and IR- plus Raman-active phonons.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the DFT sign convention were reversed, the same microscopy data would assign boron-terminated zigzag edges instead of nitrogen-terminated; the imaging method itself would survive, but the chemical label would flip.
  • The rotational Fourier analysis should transfer directly to any 3-fold-symmetric non-centrosymmetric 2D material with an IR-active, Raman-active phonon, giving phonon-selective twist-angle maps in heterostructures without needing lattice-resolved probes.
  • Because the spatial resolution is currently set by the visible SFG wavelength, using a shorter upconversion wavelength or structured illumination could push phonon-selective nonlinear imaging to the nanoscale, a testable extension the paper does not demonstrate.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. This manuscript demonstrates phase-resolved, phonon-enhanced sum-frequency generation (SFG) microscopy for imaging CVD-grown monolayer hexagonal boron nitride (hBN) islands on fused silica. The authors use heterodyne detection with balanced paired-pixel imaging and azimuthal sample rotation to record the amplitude and phase of the threefold SFG component. They report an ~800-fold intensity enhancement from the E' transverse optical phonon, enabling acquisition over ~150x200 µm^2 fields in about a second. The orientation maps are correlated with AFM topography, and the measured phase, combined with DFT calculations, leads to the conclusion that the triangular islands have nitrogen-terminated zigzag edges. The paper also discusses future applications to twist angles, stacking, strain, and infrared upconversion devices.

Significance. If it holds, the central result offers a fast, label-free, large-area technique for full crystallographic characterization of hBN monolayers, a material that is essentially invisible to linear optical microscopy. The experimental execution is careful: phase-resolved heterodyne detection isolates the sign of the threefold response, quartz normalization provides an amplitude and phase reference, rotational Fourier analysis cleanly separates the desired 3-fold component, and AFM images independently corroborate the topography. The huge phonon enhancement places SFG on par with excitonic SHG in TMDs, which argues for wide applicability. The absolute edge-termination claim, however, is only as secure as the DFT sign of the nonlinear susceptibility, which is not presented in the main text; this is the key caveat to the paper's headline conclusion.

major comments (2)
  1. [Results, 'Full Crystallographic Imaging of hBN Monolayers' (last paragraph)] The absolute assignment of N-terminated versus B-terminated zigzag edges rests on the sign of the DFT-calculated nonlinear susceptibility and on the phase of the z-cut quartz reference. The main text states only that 'Through comparison with density functional theory calculations (SI Section S2), we expect a positive SFG amplitude when the B-N arm-chair crystal direction points along the positive x axis'. Since the threefold Fourier component is sign-sensitive, a sign error in the DFT calculation or an uncontrolled sign flip in the quartz reference would reverse the edge-termination conclusion for every island. This issue is load-bearing for the headline claim. Please present the calculated sign of the susceptibility and all sign conventions (lattice coordinates, Cartesian axes, field polarizations, quartz reference phase) in the main text or in a dedicated, clearly explained SI section, and provide at least one independent check of the sign (for example, a phase measurement on an hBN sample whose termination is known from STM/TEM, or a cross-check of the quartz reference sign against an independent nonlinear measurement).
  2. [Results, Fig. 3f and discussion of 'B-terminated edges'] The sentence 'we do not observe B-terminated edges' is not an independent empirical finding; it is the same DFT-sign assignment just described. The measurement determines a threefold phase, and the identification of that phase with N-termination is contingent on the DFT sign. Please state this contingency explicitly and consider softening the claim unless an independent experimental calibration is provided.
minor comments (4)
  1. [Abstract vs. Results] The abstract quotes '100x100 µm2' while the Results text and Figure 1 caption mention '150x200 μm' and '200x150 µm2'; please harmonize the stated field of view.
  2. [Discussion] The term 'IR-subdiffractional spatial resolution' should be defined; the resolution is limited by the visible SFG wavelength, not by the IR wavelength, so a brief clarification would help avoid confusion.
  3. [Results, edge-termination statistics] The paper states that 'for almost all islands' the armchair directions point toward the triangle corners and that the 'vast majority' have N-terminated edges, but it does not report the number of islands analyzed or the criteria for classifying the few irregular flakes; please provide the island count and the fraction of each orientation.
  4. [Figure 3e] The black lines indicating armchair directions may be difficult to distinguish from the island edges; a zoomed panel or a legend showing a single flake would improve clarity.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the SFG imaging and orientation analysis are self-contained, while the N-termination assignment rests on an external DFT sign calibration (a verification risk, not circularity).

full rationale

The derivation chain is self-contained. The measured quantity S_SFG is defined by the balanced heterodyne cross-term in Eq. (2), and the azimuthal Fourier analysis extracts the three-fold Fourier component from images taken in 15° rotation steps; the rotational phase arg(S̃_3)/3 is then the armchair orientation, a mathematical consequence of the D3h symmetry and the cos(3φ) angular dependence stated in the text. No parameter is fitted to the final claim and then re-reported as a prediction: Eq. (1) is a standard Lorentzian phonon lineshape, and the phonon enhancement is obtained by referencing the measured resonant amplitude to a z-cut quartz standard and comparing the derived χ(2) to the independent off-resonant SHG value of Ref. 11. The N-termination assignment is calibrated by DFT (SI Section S2), an external calculation whose assumptions do not include the measured orientation; the main text phrase 'Through comparison with density functional theory calculations (SI Section S2), we expect a positive SFG amplitude' is a sign calibration rather than a fitted input. The paper's self-citations (Refs. 21, 22, 25, 26, 30) describe the microscope, balanced imaging, azimuthal Fourier analysis, and quartz phase reference; these are supporting methodology, the key equations are reproduced, and the results are cross-validated against AFM and prior STM/TEM edge-termination observations. The dependence of the B-N versus N-B assignment on the DFT sign and the quartz phase reference is a reproducibility and verification risk, not circularity: a sign error would flip the conclusion, but that would be an external calibration error, not a reduction of the output to the input. No circular step can be exhibited from the paper's own equations or self-citation chain.

Assumptions & free parameters 1 free parameters · 4 assumptions · 0 invented entities

The central claim rests on standard nonlinear optics, a Lorentzian phonon model with parameters from DFT/literature, and a DFT-determined sign convention. No new particles or entities are introduced. The only explicit fitted parameter is the phonon damping from the spectral linewidth.

free parameters (1)
  • γ_TO (phonon damping) = not given explicitly
    Damping of the E' TO phonon at 1368 cm-1 used in the Lorentzian fit to the measured SFG spectrum (Eq. 1, Fig. 2b).
assumptions (4)
  • domain assumption The SFG response of monolayer hBN is dominated by the E' TO phonon and follows the Lorentzian model in Eq. (1).
    Invoked when fitting Fig. 2b and when interpreting the resonance at 1368 cm-1 as originating from the TO phonon; this model underpins the phonon-enhancement claim.
  • domain assumption The sign of the calculated nonlinear susceptibility from DFT determines the absolute crystal orientation (B-N vs N-B).
    Used in the Results section to translate the SFG phase into N- vs B-terminated zigzag edges; the DFT calculation is not shown in the main text.
  • domain assumption CVD-grown triangular hBN islands are single crystals, and their triangular shape combined with the armchair direction indicates zigzag edges.
    Needed to correlate shape with edge termination in Fig. 3e,f; the paper relies on this standard geometry to infer zigzag edges from armchair directions pointing to corners.
  • domain assumption Reference to z-cut α-quartz provides a reliable amplitude and phase normalization.
    Used in Methods/Data analysis for normalizing spectral data in both amplitude and phase; the quartz coherence length is quoted as ~36 nm.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Full Crystallographic Imaging of Hexagonal Boron Nitride Monolayers with Phonon-Enhanced Sum-Frequency Microscopy." pith.science (2026). https://pith.science/paper/FV2VZTBH

@misc{pith2026250415939,
  author       = {Pith},
  title        = {Pith review of: Full Crystallographic Imaging of Hexagonal Boron Nitride Monolayers with Phonon-Enhanced Sum-Frequency Microscopy},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FV2VZTBH}},
  note         = {Machine review of arXiv:2504.15939}
}
read the original abstract

Hexagonal boron nitride (hBN) is an important 2D material for van der Waals heterostructures, single photon emitters, and infrared nanophotonics. The optical characterization of mono- and few-layer samples of hBN however remains a challenge as the material is almost invisible optically. Here we introduce phase-resolved sum-frequency microscopy as a technique for imaging monolayers of hBN grown by chemical vapor deposition (CVD) and visualize their crystal orientation. A combination of femtosecond mid-infrared (IR) and visible laser pulses is used for sum-frequency generation (SFG), which is imaged in a wide-field optical microscope. The IR laser resonantly excites a phonon of hBN that leads to an ~800-fold enhancement of the SFG intensity, making it possible to image large 100x100 {\mu}m2 sample areas in less than 1 s. Implementing heterodyne detection in combination with azimuthal rotation of the sample further provides full crystallographic information. Through combined knowledge of topography and crystal orientation, we find that triangular domains of CVD-grown monolayer hBN have nitrogen-terminated zigzag edges. Overall, SFG microscopy can be used as an ultra-sensitive tool to image crystal structure, strain, stacking sequences, and twist angles, and is applicable to the wide range of van der Waals structures, where location and identification of monolayer regions and interfaces with broken inversion symmetry is of paramount importance.

Figures

Figures reproduced from arXiv: 2504.15939 by the authors.

Figure 1
Figure 1. Phase-Resolved SFG Microscopy of hBN. (a) Schematic of the SFG microscope. An IR beam (black) and VIS upconversion beam (red) with controllable time delay Δ𝑡 collinearly illuminate a large sample area (150x200 μm) through a hole in a reflective objective. The nonlinear SFG signal (blue) is collected by the objective and guided through filters to a CCD camera. The SFG light is interfered with a collinear local oscill… view at source ↗
Figure 2

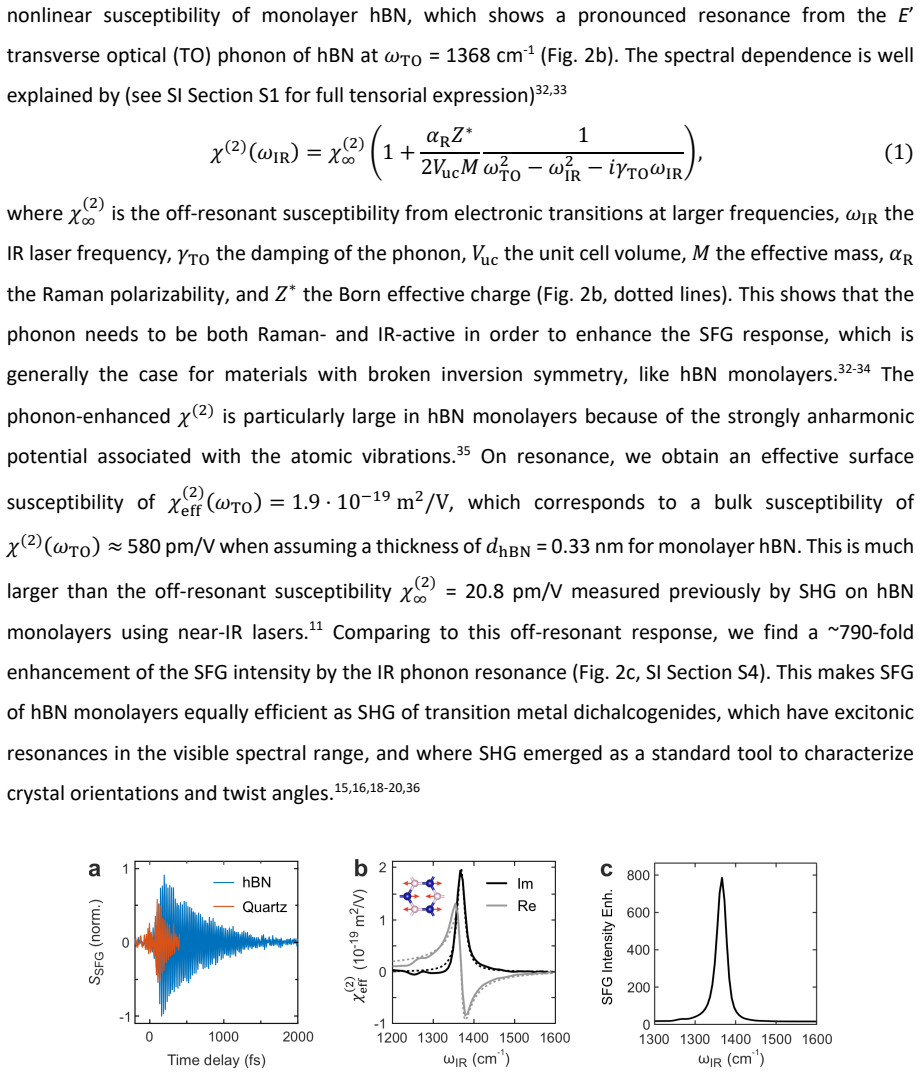

Figure 2. Phonon-Enhancement of SFG. (a) Time-domain interferogram of SFG amplitude for monolayer hBN (blue, evaluated at white cross in Fig. 1b) and z-cut α-quartz(orange) by scanning a time delay of the mid-IR pulse with respect to the VIS and LO pulses. (b) Measured SFG spectrum (solid lines) of monolayer hBN with the E’ TO phonon resonance at ωTO = 1368 cm-1 (see inset). A fit with Eq. (1) is shown as dashed lines. (c) En… view at source ↗
Figure 3
Figure 3. Crystallographic Imaging of hBN Monolayers. (a) Resonant SFG amplitude Im[𝑆*+,(𝜔&' = 𝜔())] of monolayer hBN [cross in (c)] as function of azimuthal sample rotation angle 𝜑-./, with red indicating positive and blue negative sign. (b) Angle 𝜑 = 𝜑0-12/−𝜑-./ between crystallographic B-N arm-chair direction and in-plane polarization of all beams along x. (c) Image of SFG amplitude |𝑆4 *+,,4"| with 3-fold rotational symme… view at source ↗
