Software architecture evaluation has a blind spot: ATAM (the Architecture Tradeoff Analysis Method) and its extension ATAM/R evaluate concrete systems and, to a degree, reference architectures, but nothing systematically evaluates architectural frameworks that guide entire families of systems. The paper proposes ATRAF, a family of three methods — ATRAM for concrete systems, RATRAM for reference architectures, and AFTRAM for frameworks — that share a four-phase spiral process and differ in scenario types and artifacts as abstraction rises. If the proposal holds, architects would gain one coherent way to surface sensitivities, tradeoffs, and risks at any abstraction level, early in the lifecycle, and to feed those findings back into artifact refinement. The paper demonstrates the three methods' structure on a vertically aligned example chain (RTSA, RTSRA, RMAF) but explicitly states that the case evaluations themselves are ongoing work deferred to future versions.

What carries the argument

The carrying mechanism is the four-phase spiral evaluation process inherited from the 1998 ATAM: scenario and requirements gathering, architectural views and scenario realization, attribute-specific analyses, and sensitivity, tradeoff, and risk analysis. Each of the three methods re-instantiates this spiral at its abstraction level by escalating the scenario catalog and artifacts: ATRAM uses functional, evolution, and stress scenarios; RATRAM adds adoption and interoperability scenarios mapped through instantiated architectures; AFTRAM adds extension, process, and reference-architecture-creation scenarios. The distinctive device at the framework level is AFTRAM's Step 6, meta-scenario simulation, which walks through abstract future usage situations — reuse across unforeseen domains, evolution under changing constraints — to classify whether framework-level requirements are fully met, partially met, or not met. The scenario support classifications (natively supported, guided, constrained, unsupported) are the vocabulary that makes realization gaps visible at every level.

What would settle it

Run the three methods as specified on the paper's own example family — ATRAM on RTSA, RATRAM on RTSRA, AFTRAM on RMAF — and check whether Phase IV actually produces concrete, distinct sensitivity points, tradeoff points, and risk lists at each abstraction level. The central claim fails if the framework-level evaluation yields only generic statements about flexibility and extensibility, or if two independent evaluation teams working from the same artifacts produce divergent risk lists.

Watch

Extended reading notes

Core claim

On its own terms, the paper's discovery is that tradeoff and risk analysis can be organized as one method family parameterized by abstraction level. ATRAM is the 1998 ATAM four-phase spiral with the 2000 report's explicit risk identification folded in. RATRAM adapts ATRAM to reference architectures by adding domain-aligned scenario types (adoption, interoperability), context multiplicity, and evaluation through instantiated candidate architectures, borrowing from ATAM/R. AFTRAM extends RATRAM to frameworks with extension, process, and reference-architecture-creation scenarios, plus meta-scenario simulation — a step that evaluates the framework itself against abstract, forward-looking usage situations. The claimed payoff is that sensitivities, tradeoff points, and risks can be identified before any concrete system exists, at the level of the artifact that actually shapes the system family.

Load-bearing premise

The load-bearing premise is that the checklists, scenario instantiation steps, and meta-scenario simulations defined in ATRAM, RATRAM, and AFTRAM can reliably surface real sensitivities, tradeoffs, and risks for abstract artifacts such as reference architectures and frameworks; the paper asserts this in its method sections but provides no completed evaluation, and its own notes (Sections 5.2, 6.2, 7.2, 8.2) explicitly defer validation to future versions.

Editorial extensions

If this is right

  • One method family covers the whole abstraction hierarchy, so tradeoff and risk analysis no longer stops at the boundary of a single deployed system.
  • Reference architects can evaluate reuse, variability, and fault-tolerance tradeoffs before any concrete system exists, by instantiating candidate architectures from the reference architecture.
  • Framework designers can assess flexibility, extensibility, and lifecycle support through meta-scenario simulation instead of waiting years for systems built on the framework to reveal problems.
  • Because every method is a spiral, each evaluation round produces an action plan that feeds back into the artifact, so sensitivities, tradeoffs, and risks become drivers of continuous refinement rather than end-of-cycle verdicts.
  • Scenario types scale with abstraction — from functional, evolution, and stress scenarios, to adoption and interoperability scenarios, to extension, process, and meta-scenarios — giving evaluators a defined ladder of concerns to check at each level.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's untested bridgehead is that scenario-based evaluation, designed for concrete system behavior, can be lifted to the meta level by simulation: the meta-scenario step is asserted to surface real framework-level risks, but no completed run demonstrates it.
  • A natural validation test would take a published reference architecture with a documented evolution history, run RATRAM on it, and compare the risk list against the issues actually encountered by downstream systems.
  • The support classifications (natively supported, guided, constrained, unsupported) read like ordinal scales, but the paper leaves them as judgment calls; an inter-rater consistency check across independent evaluators would be a cheap, decisive test of their reliability.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 3 minor

Summary. The paper proposes ATRAF, a unified framework containing three scenario-driven methods — ATRAM for concrete software architectures, RATRAM for reference architectures, and AFTRAM for architectural frameworks. Each method is described as a four-phase spiral process extending ATAM, with steps for scenario collection, architectural views, attribute-specific analyses, and sensitivity/tradeoff/risk identification. The paper supplies the RTSA, RTSRA, and RMAF artifacts as a progressive example chain and includes a comparative table and related-work discussion. The body, however, repeatedly defers actual application of the methods to future work, and no evaluation outputs such as Sensitivity Point Lists, Tradeoff Point Matrices, or Architectural Risk Documents are reported.

Significance. If the framework were validated, it would address a genuine need: ATAM and its known extensions target concrete architectures and reference architectures but do not directly handle architectural frameworks as meta-architectures. The paper is well structured and the phase descriptions are detailed, with useful artifacts lists and a clear hierarchy of abstraction levels. The authors are also honest in several places, labeling the examples as crafted for illustration and stating the work is ongoing. As submitted, however, the contribution is a method specification, not a demonstrated framework. There are no completed case studies, no comparison against ATAM or ATAM/R on the same artifacts, and no evidence that the proposed methods produce different or better results than simply applying ATAM with renamed artifacts. The manuscript therefore falls short of its abstract's central claim.

major comments (4)
  1. [Abstract vs. Sections 5.2, 6.2, 7.2, 8.2] The abstract states 'We demonstrate ATRAF through progressively abstracted examples derived from the Remote Temperature Sensor (RTS) case,' but the body explicitly defers every case-specific evaluation. Section 5.2 says 'Future versions of this paper will incorporate extensive case-specific evaluations of the RTSA using ATRAM'; Section 6.2 says the same for RTSRA using RATRAM; Section 7.2 says the same for RMAF using AFTRAM; Section 8.2 postpones 'lessons learned from applying these methods.' Nowhere in the manuscript do the authors provide the promised output artifacts — no Sensitivity Point List, Tradeoff Point Matrix, or Architectural Risk Document appears for any of the three methods. The central claim of demonstration is therefore contradicted by the paper's own content, and the contribution reduces to a method proposal rather than a validated framework.
  2. [Section 4.3] The 'Validation Strategy Using the RTS Case Family' describes a plan, not an executed evaluation. Moreover, the artifacts are explicitly author-created: Section 2.3 says 'we crafted the Remote Monitoring Architectural Framework (RMAF),' and Section 5.2 says RTSA 'was specifically designed as an example to evaluate ATRAM's application.' Consequently, even if the deferred evaluations were added, they would be in-sample demonstrations using artifacts selected by the same author, with no independent artifact or external case. The paper needs either a genuine external case study or at least a clear statement that the RTS materials are purely illustrative and do not constitute validation.
  3. [Sections 5.1, 6.1, 7.1] The three methods are structurally identical four-phase ATAM variants, and the claimed novelties are not operationalized. Section 6.1.4 states that RATRAM Phase IV 'follows the same structure and intent as ATRAM Phase IV' and describes the 'key nuance' in one sentence; Section 7.1.4 says AFTRAM Phase IV is 'structurally identical to ATRAM Phase IV.' The distinctive concepts — 'context multiplicity' in RATRAM and 'meta-scenario simulation' in AFTRAM — are introduced by name but are not given a concrete procedure, worked example, or decision rule. As written, the reader cannot determine whether these are genuinely new methods or a relabeling of ATAM phases with new artifact names. This undermines the paper's claim of a 'unified' framework and leaves the contribution difficult to assess.
  4. [Section 9 and Table 2] The related-work section mentions ATAM/R only briefly, yet RATRAM is claimed to build on it. The paper would need a detailed comparison specifying exactly which steps of ATAM/R are retained, which are changed, and which new steps are introduced, with a concrete example showing different outputs. Table 2 lists aspects such as 'Context multiplicity' and 'Meta-scenario realizations,' but these are categories rather than evidence of distinct evaluation behavior. Without such a comparison, the novelty claim relative to existing ATAM and ATAM/R literature remains unsupported.
minor comments (3)
  1. [Section 9] The acronym 'AFTAM' appears on page 24 in 'the proposed Architectural Framework Tradeoff and Risk Analysis Method (AFTAM)' and later 'AFTAM seeks to evaluate,' whereas the rest of the paper uses 'AFTRAM.' Please make the acronym consistent.
  2. [Section 1] The introduction says 'Sections 5, 6 and 7 introduce ATRAM, RATRAM, and AFTRAM respectively, each with their evaluation phases and illustrative examples.' The word 'illustrative' is more accurate than the abstract's 'demonstrate,' but the abstract should be aligned with the actual level of evidence.
  3. [Sections 4.2 and 5.1] The paper says ATRAM incorporates risk identification from the 2000 ATAM report, but ATAM 2000 already includes explicit risk identification. The authors should state precisely which new risk-related activities or artifacts ATRAM adds beyond ATAM 2000, rather than treating the incorporation itself as a novelty.

Circularity Check

1 steps flagged · score 5.0 of 10

Demonstration claim is in-sample and deferred: the RTS examples were crafted by the paper for its own methods, and Sections 5.2/6.2/7.2 postpone all case-specific evaluations.

  1. fitted input called prediction [Abstract; Section 4.3; Sections 5.2, 6.2, 7.2]
    "We demonstrate ATRAF through progressively abstracted examples derived from the Remote Temperature Sensor (RTS) case, originally introduced in the ATAM literature. ... To validate the applicability of ATRAF, we used a progressive example chain derived from the Remote Temperature Sensor (RTS) case, crafted specifically for illustrative purposes. ... Note: This is an ongoing work. Future versions of this paper will incorporate extensive case-specific evaluations of the RTSA using the Architecture Tradeoff Analysis Method (ATRAM)."

    The paper's central demonstration claim rests on example artifacts (RTSA, RTSRA, RMAF) that it says were 'crafted specifically' for the methods, and then defers the actual evaluations to future versions. No external benchmark is used, and no completed run produces the promised Sensitivity Point Lists, Tradeoff Point Matrices, or Architectural Risk Documents. The claimed demonstration is therefore built from self-authored inputs with no independent constraint; any future evaluation of these examples would be in-sample by construction, so the framework's applicability is asserted rather than derived from evidence.

full rationale

ATRAF's methods are explicitly and transparently derived from external ATAM and ATAM/R literature (references [1], [2], [3]), not from a self-citation chain or an imported uniqueness theorem. There are no equations whose outputs equal their inputs, and no self-citations are load-bearing. The main circularity concern is the validation design: the paper says the example chain was 'crafted specifically' to validate the framework, and then Sections 5.2, 6.2, and 7.2 each state that 'future versions of this paper will incorporate extensive case-specific evaluations.' The abstract's 'we demonstrate' claim is thus internally contradicted by the body: the demonstration reduces to Appendix A's artifact descriptions rather than to executed applications of ATRAM, RATRAM, or AFTRAM. Because the methods have some independent grounding in prior ATAM work, the circularity is moderate rather than total; but the central illustrative validation is in-sample and deferred, so the paper cannot be read as having demonstrated its own central claim.

Assumptions & free parameters 0 free parameters · 3 assumptions · 2 invented entities

No free parameters or fitted values appear because the paper does not use quantitative modeling. The central claim rests on unvalidated domain assumptions about the transferability of ATAM, and on new conceptual constructs such as meta-scenario simulation and context multiplicity that have no independent evidence beyond the author's description.

assumptions (3)
  • domain assumption ATAM's scenario-driven evaluation process is a valid and transferable basis for evaluating reference architectures and frameworks.
    ATRAF adapts the four-phase ATAM structure to ATRAM, RATRAM, and AFTRAM without providing evidence that the transfer preserves validity at higher abstraction levels; see Section 4.2.
  • domain assumption Quality attributes such as modifiability, performance, and security remain meaningful and measurable for abstract artifacts like reference architectures and frameworks.
    The methods assume these attributes can be evaluated through scenario realization and instantiated architectures; asserted in Section 3.3 and used in Phase III of each method.
  • domain assumption The four-phase spiral structure of ATAM from 1998 is appropriate for multi-level evaluation.
    ATRAF deliberately retains this spiral structure (Section 4.1) but gives no independent justification for why this specific process organization is suitable for meta-level artifacts.
invented entities (2)
  • Meta-scenario simulation
    purpose: AFTRAM construct intended to evaluate framework-level requirements by simulating abstract, forward-looking usage situations.
    Introduced in Section 7.1.2, Step 6; no empirical evidence is provided that such simulation produces valid or reliable framework assessments.
  • Context multiplicity
    purpose: RATRAM concept for evaluating reference architectures across multiple domains and deployment contexts.
    Introduced in Section 4.2 as an innovation of RATRAM, but no independent validation is given, and the paper itself notes it borrows from ATAM/R.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Architecture Tradeoff and Risk Analysis Framework (ATRAF): A Unified Approach for Evaluating Software Architectures, Reference Architectures, and Architectural Frameworks." pith.science (2026). https://pith.science/paper/HTPJCJHI

@misc{pith2026250500688,
  author       = {Pith},
  title        = {Pith review of: The Architecture Tradeoff and Risk Analysis Framework (ATRAF): A Unified Approach for Evaluating Software Architectures, Reference Architectures, and Architectural Frameworks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HTPJCJHI}},
  note         = {Machine review of arXiv:2505.00688}
}
read the original abstract

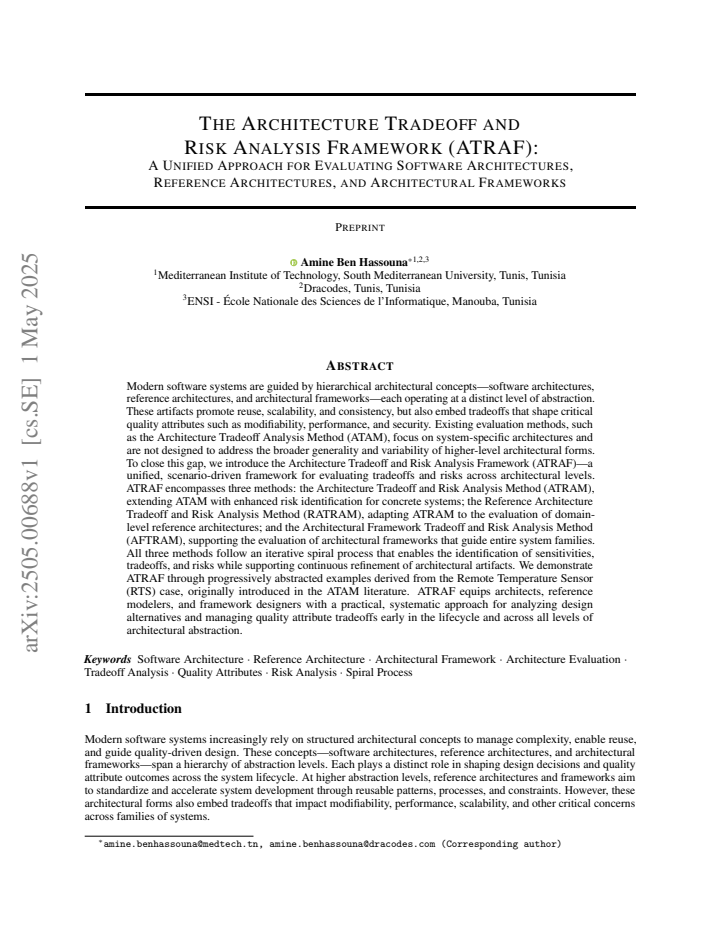

Modern software systems are guided by hierarchical architectural concepts -- software architectures, reference architectures, and architectural frameworks -- each operating at a distinct level of abstraction. These artifacts promote reuse, scalability, and consistency, but also embed tradeoffs that shape critical quality attributes such as modifiability, performance, and security. Existing evaluation methods, such as the Architecture Tradeoff Analysis Method (ATAM), focus on system-specific architectures and are not designed to address the broader generality and variability of higher-level architectural forms. To close this gap, we introduce the Architecture Tradeoff and Risk Analysis Framework (ATRAF) -- a unified, scenario-driven framework for evaluating tradeoffs and risks across architectural levels. ATRAF encompasses three methods: the Architecture Tradeoff and Risk Analysis Method (ATRAM), extending ATAM with enhanced risk identification for concrete systems; the Reference Architecture Tradeoff and Risk Analysis Method (RATRAM), adapting ATRAM to the evaluation of domain-level reference architectures; and the Architectural Framework Tradeoff and Risk Analysis Method (AFTRAM), supporting the evaluation of architectural frameworks that guide entire system families. All three methods follow an iterative spiral process that enables the identification of sensitivities, tradeoffs, and risks while supporting continuous refinement of architectural artifacts. We demonstrate ATRAF through progressively abstracted examples derived from the Remote Temperature Sensor (RTS) case, originally introduced in the ATAM literature. ATRAF equips architects, reference modelers, and framework designers with a practical, systematic approach for analyzing design alternatives and managing quality attribute tradeoffs early in the lifecycle and across all levels of architectural abstraction.

Figures

Figures reproduced from arXiv: 2505.00688 by the authors.

Figure 1
Figure 1. Hierarchical Architectural Concepts We illustrate this concept with the Remote Temperature Sensor Architecture (RTSA), originally developed to demon￾strate the ATAM methodology. RTSA specifies the design of a system for remotely monitoring furnace temperatures, fulfilling both functional and quality requirements such as performance, availability, and security. It organizes re￾sponsibilities among three main entities… view at source ↗
Figure 2
Figure 2. Derivation process of ATRAF [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Steps of the Architecture Tradeoff and Risk Analysis Method (ATRAM) [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4

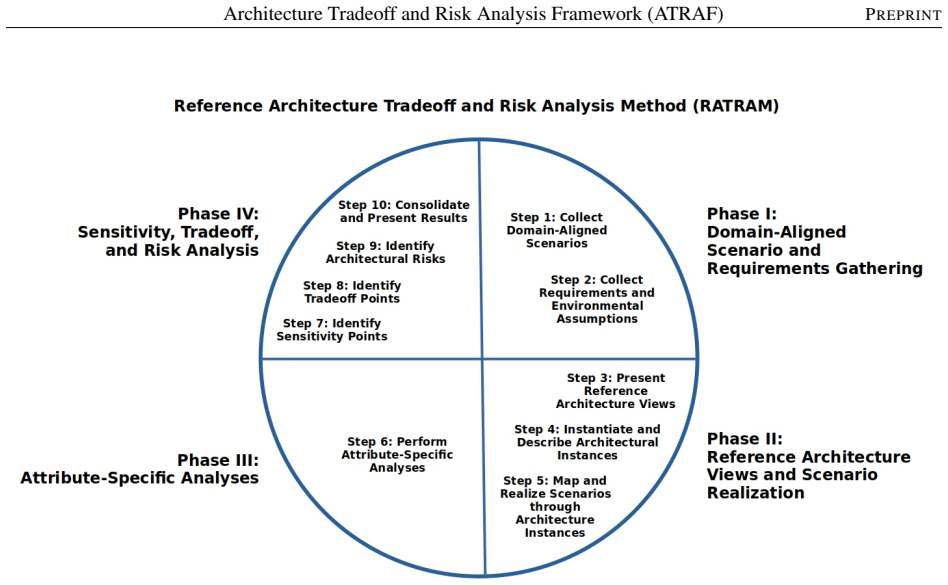

Figure 4. Figure 4: Steps of the Reference Architecture Tradeoff and Risk Analysis Method (RATRAM) [PITH_FULL_IMAGE:figures/full_fig_p014_4.png]
