Characterizing Ocean Flows with the Scattering Transform

T0 review · 2 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper argues that the scattering transform, a wavelet-based method, can separate ocean flows—balanced currents, internal waves, and turbulence types—even when their power spectra are identical.

desk verdict Useful new application of the scattering transform to ocean flows, with the strongest claim (identical spectra) fully checked only for the 2D-vs-SQG case. read the letter →

arxiv 2505.00819 v1 pith:QRUMC4K2 submitted 2025-05-01 physics.ao-ph physics.flu-dyn

J. W. Skinner , A. Lawrence , J. Callies This is my paper · ORCID
classification physics.ao-phphysics.flu-dyn
keywords scatteringtransformseasurfaceheightinternalwavesbalanceddynamicsgeostrophicturbulencesubmesoscalesatellitealtimetrypowerspectrum
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the scattering transform (ST), a wavelet-based method that records the shape and arrangement of structures, can characterize upper-ocean flows beyond what the power spectrum provides. The ST converts a spatial field into coefficients that quantify how sparse and how elongated its features are at each scale. In idealized simulations the authors show that two turbulence types with the same $k^{-5/3}$ spectra—2D turbulence and surface quasi-geostrophic turbulence—are separable by these statistics, and that balanced flow and inertia-gravity waves separate as well. Applied to sea surface height from a realistic North Atlantic simulation, the ST separates a wave-dominated eastern region from a turbulence-dominated western region and tracks the seasonal transition between regimes. If this holds for satellite snapshots, it would let altimetry missions like SWOT identify underlying ocean dynamics without the temporal filtering that current approaches require.

What carries the argument

The central object is the scattering transform: convolve the field with a family of rotated and dilated Morlet wavelets (plane waves modulated by Gaussian envelopes), take the modulus, convolve again, and spatially average. First-order coefficients capture scale-by-scale amplitudes; second-order coefficients capture how structures at different scales and orientations interact. The paper reduces this to two orientation-averaged ratios: $s_{21}$ (sparsity) and $s_{22}$ (shape). It is these ratios, computed across scale pairs $j_1, j_2$, that carry the discrimination: they quantify the localization and anisotropy that distinguish filaments, eddies, and wave patterns, while remaining insensitive to the Fourier phases that the power spectrum ignores.

What would settle it

Recompute the isotropic power spectra of the $\nabla^2 h$ fields at $t=1000$ for both the balanced and inertia-gravity-wave ensembles and compare them; if they have diverged, the 'identical power spectra' claim for that case is not established. A stronger test would phase-randomize one balanced snapshot to force identical spectra and check whether the ST still separates the fields.

Watch

Extended reading notes

Core claim

The paper's central claim is that morphology, not just spectral power, identifies oceanic flow regimes. Two summary scattering statistics—sparsity $s_{21}$, which measures how localized or clustered features are, and shape $s_{22}$, which measures whether structures are smooth or elongated—separate dynamical classes. For equal power spectra, the scattering coefficients remain distinct because they retain phase and spatial information that the power spectrum discards. The paper demonstrates this for 2D versus SQG turbulence with matched $E(k)\propto k^{-5/3}$ spectra, and for balanced shallow-water flow versus inertia-gravity waves initialized from the same Garrett-Munk spectrum. In realistic sea surface height fields the statistics separate western and eastern North Atlantic regions and reveal a winter-to-summer shift toward wave-dominated signals.

Load-bearing premise

The load-bearing premise is that, in the wave-versus-balanced shallow-water experiment, the two flow types still have identical power spectra when the scattering transform is applied; the initial spectra are matched, but the spectra at analysis time are not shown.

Editorial extensions

If this is right

  • Single snapshots of sea surface height can be classified by dynamical regime, making temporally sparse altimetry such as SWOT useful for separating waves from balanced motion.
  • Model evaluation gains a stricter test: simulations must reproduce not only spectral slopes but also the geometry of fronts, filaments, eddies, and waves.
  • Because the statistics are scale-resolved, they identify the wavenumber range over which waves or balanced flow dominates, as shown for 4–8 km versus 32–64 km scales.
  • The method transfers to other spatial maps, such as airborne or coastal radar, and to other geophysical fields.
  • Seasonal and regional contrasts in upper-ocean dynamics can be tracked from daily snapshots without temporal filtering.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • One consequence the paper leaves implicit is that the ST statistics could serve as an unsupervised diagnostic for satellite swath data, flagging regions where internal tides contaminate the balanced signal without requiring harmonic fits to time series.
  • A direct extension, not tested here, would be to check whether $s_{21}$ and $s_{22}$ remain robust to realistic altimeter noise, swath gaps, and the anisotropic sampling of SWOT.
  • Because sparsity and shape vary with scale, the same machinery could be applied to subsurface fields such as buoyancy or tracer concentrations to compare stirring geometry across models and observations.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The manuscript proposes the scattering transform (ST) as a diagnostic for characterizing the geometry of upper-ocean flows beyond what can be learned from power spectra. It defines two scale-dependent summary statistics—s21 (sparsity) and s22 (shape)—and shows, in three experimental settings, that they separate dynamical regimes: (i) 2D inverse-cascade turbulence versus surface quasi-geostrophic (SQG) forward-cascade turbulence, both configured to have kinetic-energy spectra with k^{-5/3} slopes; (ii) balanced turbulence versus inertia-gravity waves in freely decaying shallow-water equations initialized with identical k^{-2} kinetic-energy spectra; and (iii) two regions of a realistic North Atlantic simulation with different balances between mesoscale/submesoscale turbulence and internal waves. The paper argues that the ST extracts phase/geometry information that the power spectrum discards, and it positions the method as a framework for interpreting SWOT sea-surface-height snapshots. The code and packages used are publicly available.

Significance. The central claim—that the ST can distinguish flows even when their power spectra are identical—is of considerable interest for oceanography, because many observed flows share similar spectral slopes. The 2D-versus-SQG experiment in Section 3 is well posed: the analyzed ∇²ψ fields share the same power-law spectrum, the ensemble statistics show small error bars, and the differences in s21 and s22 are consistent with the visual morphology. The realistic North Atlantic application uses an independent temporal filter as a ground-truth check, which is a sound validation strategy. The paper is clearly written and uses open-source, reproducible tools, which are strengths. However, the strongest claim is not fully supported for the balanced-versus-IGW experiment in Section 4, where the spectra are matched only at initialization and not verified at the analysis time; this is the case closest to the satellite-altimetry motivation. The manuscript needs to address this gap or carefully qualify its claims.

major comments (2)
  1. [Section 4, Fig. 3] The abstract claims that the ST distinguishes balanced flows and internal waves 'even when their power spectra are identical,' but the balanced-versus-IGW shallow-water experiment does not verify that the two ensembles have identical power spectra at the time the ST is applied. The simulations are initialized with matched E(k) ∝ k^{-2} spectra, yet the ST is applied to ∇²h at t=1000, after the balanced flow has undergone an inverse cascade and filament sharpening while the IGW field has dispersed and smoothed through weak nonlinear interactions. The manuscript does not show the power spectra of the analyzed ∇²h fields at t=1000 or at the times displayed in Fig. 3c. Because s21 and s22 are scale-dependent statistics, a spectral rearrangement alone could produce differences between the ensembles, so the claimed geometric discrimination is not established for this experiment. Please provide the ensemble-mean spectra at the analysis time, or perform a controlled test with spectra matched at the analysis time, and adjust the claims accordingly. If the spectra differ at t=1000, restrict the 'identical power spectra' claim to the 2D-versus-SQG experiment or phrase it more cautiously.
  2. [Section 3 and Abstract] The abstract states that the ST distinguishes 'types of turbulence—even when their power spectra are identical,' but Section 3 describes the 2D and SQG simulations as configured to equilibrate 'with identical spectral slopes in their inertial ranges,' not with identical power spectra. The analyzed ∇²ψ fields will then have the same power-law slope, but the text does not state whether the full spectra (including prefactor and dissipation-range structure) coincide over the analyzed scales. Since s21 and s22 are amplitude-ratio statistics, a global amplitude difference would not matter, but differences in the shape of the spectrum (e.g., inertial-range boundaries) could still influence the scale-dependent statistics. Please either show that the power spectra of the analyzed fields are identical in the analyzed range, or rephrase the claim to 'even when their power spectra have the same slope' or 'similar power spectra.' This distinction is directly relevant to the paper's headline claim.
minor comments (5)
  1. [Section 7.3] The text contains a typo: 'Guassian random fields' should read 'Gaussian random fields.'
  2. [Section 7.4] The model start date '06-12-2025' appears to be a future date relative to the manuscript submission; please clarify whether this is a model time or a calendar date, and if it is a typo, correct it.
  3. [Section 3 and Figure 2] In the SQG case, the dynamically active field is the surface buoyancy ξ = |∇|ψ, while the text and figure caption refer to the analyzed field as 'the vorticity field ∇²ψ' for both 2D and SQG turbulence. The analysis of ∇²ψ for SQG is a legitimate choice, but the terminology should be explained to avoid confusion.
  4. [Equation (4)] The definition of s22(j1,j2) = ⟨S∥2/S⊥2⟩_{l1} would be clearer if the text explicitly stated that for each l1 the average is over second-order coefficients whose wavelet orientation l2 is parallel (∥) or perpendicular (⊥) to l1.
  5. [Section 5] A brief discussion of the robustness of the ST summary statistics to measurement noise would be useful, since SWOT observations will contain significant noise and the Laplacian ∇²h amplifies small-scale noise.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the scattering-transform diagnostics are fixed transforms with no label-fitted parameters; the shallow-water 'identical spectra at analysis time' gap is an evidentiary issue, not a circular reduction.

full rationale

The scattering transform (ST) coefficients S1 and S2, and the summary statistics s21 and s22, are fixed functions of the input field (Eqs. 1-4), with no parameters fitted to the labels 'balanced,' 'IGW,' '2D,' or 'SQG.' The discrimination results therefore do not reduce by construction to a fit. In the 2D-vs-SQG experiment, the matched k^-5/3 kinetic-energy spectra are shown at equilibrium (Fig. 2i), and the ST differences are reported as ensemble statistics with standard deviations. In the shallow-water experiment, the E(k) proportional to k^-2 spectra are matched at initialization, but the paper does not display spectra at t=1000, when the ST is applied; nonlinear balanced evolution could plausibly have reshaped the spectrum. This is a verification gap in the 'even when their power spectra are identical' claim for that particular case, not a circular reduction: the ST has no tunable parameters, the distinction is not defined in terms of the ST outputs, and no parameter is renamed as a prediction. The realistic-ocean analysis is independently checked against a subinertial temporal filter: the full-versus-subinertial comparison is a separate, externally imposed separation that agrees with the ST differences, providing non-circular validation. Self-citations (e.g., Lawrence & Callies 2022; Sinha, Callies & Menemenlis 2023) supply context, simulation setup, and physical interpretation; none is invoked as a uniqueness theorem or as the sole justification for the central claim. No self-definitional, fitted-input, ansatz-smuggled-via-citation, or renaming pattern is present. The sparsity/shape interpretation of s21 and s22 is illustrative (Fig. 1b), not an assumption of the conclusion.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new physical entities or fitted parameters. The main assumptions are that the scattering transform's known properties hold for ocean fields, that the turbulence simulations have matched spectra, that the Eulerian filter is sufficient for wave/balanced separation, and that the modified shallow-water model is representative. These assumptions are standard within the methodology but not independently verified within this paper.

free parameters (2)
  • Scattering transform hyperparameters (Morlet wavelet width sigma, oscillation wavenumber k0, max scale J, number of… = sigma = 0.8 * 2^j, |k0| = 3*pi/(4*2^j), J=8, L=4
    Chosen by hand for the presented fields. The paper states results are unchanged up to 1024x1024 resolution with J=log2 N, but no systematic sensitivity analysis is provided for these choices.
  • Analyzed scale range (j1, j2) for summary statistics = j1=2-5, j2=2-7 (4-32 km and 4-128 km for realistic fields)
    The paper excludes grid and domain scales because they are affected by damping. This selection is based on physical intuition and could influence the separability of the regimes.
assumptions (4)
  • domain assumption The scattering transform captures phase information beyond the power spectrum and preserves enough structure to distinguish geometric differences in fields.
    Relies on results from Mallat 2012 and Cheng & Ménard 2021, and on Fig. 1a. The paper does not re-derive these properties.
  • domain assumption The turbulence simulations (2D and SQG) at equilibrium have identical kinetic-energy spectra and thus identical power spectra of the analyzed ∇²ψ fields.
    The paper configures forcing and dissipation to produce identical spectral slopes, but the power spectra of the analyzed fields are only implied, not directly shown in the paper. This is essential to the 'identical power spectra' claim.
  • domain assumption The Eulerian subinertial filter with cutoff at the local Coriolis frequency adequately separates balanced motions from waves in the realistic North Atlantic simulation.
    Section 5 footnote: 'Lagrangian filtering would be preferable but the Eulerian filter is sufficient for the ST analysis.' The interpretation of full vs subinertial differences relies on this.
  • domain assumption The Bühler (1998) modification of the shallow-water equations prevents nonlinear steepening of gravity waves and does not bias the balanced-vs-IGW comparison.
    Supplementary 7.3. The modified equations suppress wave breaking, so the IGW field remains largely linear, which may not represent real ocean internal waves.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Characterizing Ocean Flows with the Scattering Transform." pith.science (2026). https://pith.science/paper/QRUMC4K2

@misc{pith2026250500819,
  author       = {Pith},
  title        = {Pith review of: Characterizing Ocean Flows with the Scattering Transform},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QRUMC4K2}},
  note         = {Machine review of arXiv:2505.00819}
}

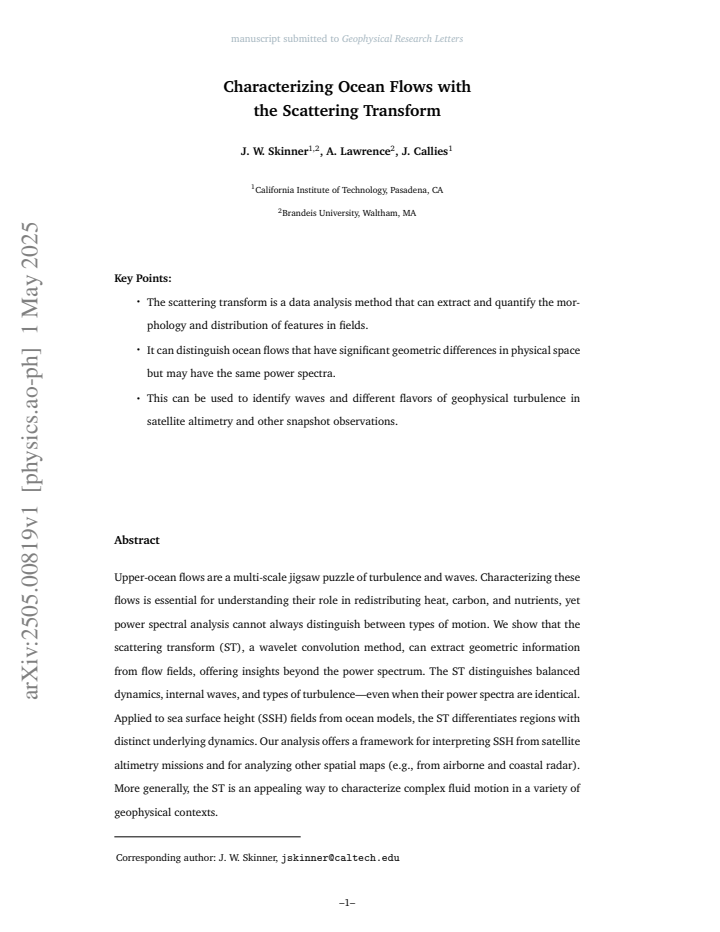

read the original abstract

Upper-ocean flows are a multi-scale jigsaw puzzle of turbulence and waves. Characterizing these flows is essential for understanding their role in redistributing heat, carbon, and nutrients, yet power spectral analysis cannot always distinguish between types of motion. We show that the scattering transform (ST), a wavelet convolution method, can extract geometric information from flow fields, offering insights beyond the power spectrum. The ST distinguishes balanced dynamics, internal waves, and types of turbulence -- even when their power spectra are identical. Applied to sea surface height (SSH) fields from ocean models, the ST differentiates regions with distinct underlying dynamics. Our analysis offers a framework for interpreting SSH from satellite altimetry missions and for analyzing other spatial maps (e.g., from airborne and coastal radar). More generally, the ST is an appealing way to characterize complex fluid motion in a variety of geophysical contexts.

Figures

Figures reproduced from arXiv: 2505.00819 by the authors.

Figure 1

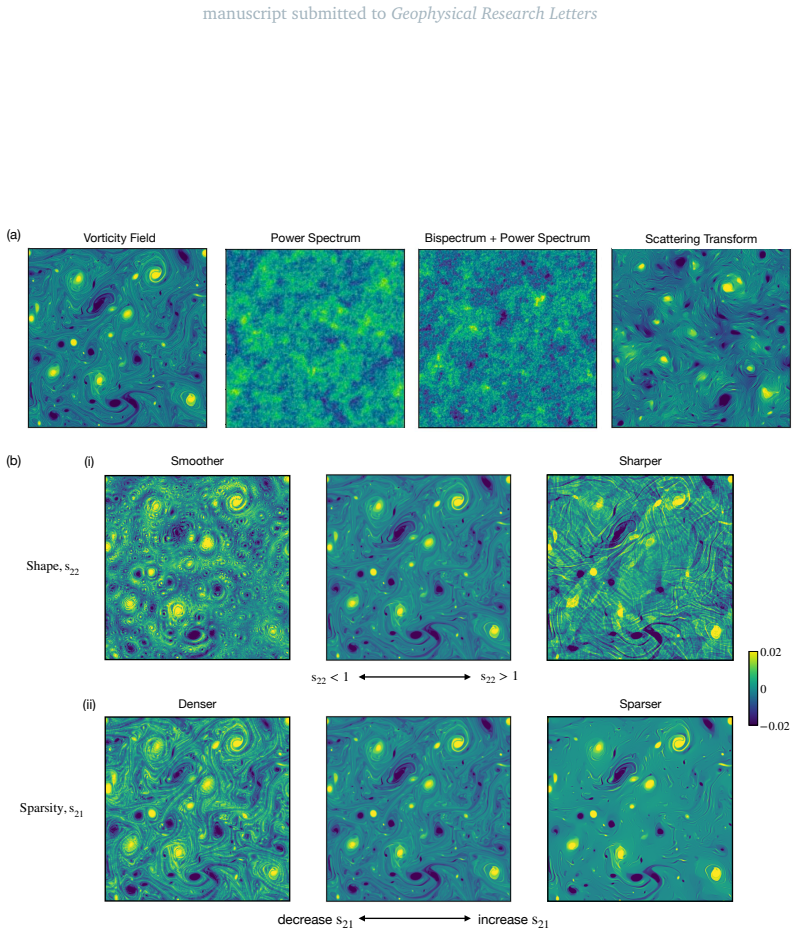

Figure 1. Building intuition for the scattering transform. (a) Comparison on structural information cap￾tured by the power spectrum, bispectrum, and scattering transform. A turbulent vorticity field (left panel) with spatially intermittent and geometrically complex multi-scale structures is reconstructed using the in￾formation captured by each method. The power spectrum reconstruction randomizes the Fourier phases of the turb… view at source ↗
Figure 2
Figure 2. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Distinguishing balanced flows and inertia–gravity waves (IGWs). (a) Balanced and (b) IGW flow fields and their shape and sparsity from shallow-water simulations. Snapshots of ∇2h, where h is sur￾face height, at t = 1000 are shown alongside shape and sparsity coefficients averaged over 20 ensemble members (error bars show standard deviations). (c) Time series of shape and sparsity for individual simu￾lations in each … view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: Waves and balanced flows in a realistic simulation of the North Atlantic Ocean. (a) Snapshot of ∇2h, where h is SSH, on March 3 (using an arsinh-scaled color map). (b) Magnified regions of interest in the western and eastern North Atlantic, where the fields at small sc…
Figure 5
Figure 5. Figure 5: Characterizing the shape and sparsity of realistic fields. Shown are snapshots of ∇2h in the ENA and WNA regions with axes in units of grid points and 90-day averages of the shape and sparsity coefficients for j1 = 2 to 5 and j2 = 2 to 7, characterizing structures with…
Figure 6
Figure 6. Figure 6: Seasonal evolution of the shape and sparsity in the ENA and WNA regions. Shown are time series of sparsity s21 and shape s22 from daily snapshots of ∇2h. Values are shown for both the full and subinertial fields for spatial scales of (a) 4 to 8 km ( j1 = 2, j2 = 3) and…
