Pith's one-line read JWST spectroscopy of 12 disks in NGC 6357 shows that intense ultraviolet irradiation does not strip away the inner-disk molecules needed for rocky planet formation, and suggests the disks are compact because of external photoevaporation.

desk verdict A genuinely new JWST sample of irradiated IMTT disks; the molecular richness is believable but the water detection counts need quantitative thresholds, and the truncation story is a hypothesis rather than a result. read the letter →

arxiv 2505.06093 v2 pith:DTH4DBOM submitted 2025-05-09 astro-ph.SR astro-ph.EP

María Claudia Ramírez-Tannus , Arjan Bik , Konstantin V. Getman , Rens Waters , Bayron Portilla-Revelo , Christiane Göppl , Andrew Winter , Jenny Frediani

show 12 more authors

Germán Chaparro Eric D. Feigelson Thomas J. Haworth Thomas Henning Sebastián Hernández M. Alejandra Lemus-Nemocón Michael Kuhn Thomas Preibisch Veronica Roccatagliata Elena Sabbi Roy van Boekel Peter Zeidler

This is my paper · ORCID

classification astro-ph.SRastro-ph.EP

keywords protoplanetarydisksintermediate-massTTauristarsexternalUVirradiationJWSTMIRI-MRSNGC6357disktruncationwateremissioninnerchemistry

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that the inner disks of young intermediate-mass stars can keep the chemistry needed for rocky planet formation even under extreme ultraviolet irradiation. It reports JWST MIRI-MRS spectra for 12 disks in NGC 6357, a region where massive stars bathe the disks in FUV fields of roughly $10^3$ to $10^6$ times the Habing field. The spectra show water, CO, HCN, C$_2$H$_2$, OH, and CO$_2$, with hot ($\sim$900 K) water in most disks, making the molecular inventory comparable to isolated T Tauri disks. The paper interprets the near-total absence of PAH emission and of strong line fluxes as evidence that the disks have been truncated by external photons, yet their inner regions remain chemically rich. If right, this means rocky planet formation can proceed with water available even in the most hostile stellar nurseries.

What carries the argument

The central diagnostic is the near-total absence of PAH emission (molecules of polycyclic aromatic hydrocarbons) and of FUV-boosted molecular line fluxes, read together with a radiative thermochemical model of one disk, XUE 1, that reproduces its spectrum only with a disk truncated near 10 au. The authors also use the Meeus Group I/II SED classification, temperature-dependent water line ratios to separate hot ($\sim$900 K), warm ($\sim$400 K), and cold ($\sim$200 K) components, and spectral indices compared with Orion disks. The argument runs: an extended, flared disk exposed to strong FUV should show bright PAH features and enhanced molecular lines, so their absence implies a small emitting surface, meaning the disks are compact and their inner chemistry is governed by the central star rather than the external radiation field.

What would settle it

Measure the 1.3 mm continuum sizes of all 12 XUE disks with ALMA at roughly 0.1 arcsecond resolution: if most disks have radii exceeding about 30 au while still lacking PAH emission and strong molecular lines, the truncation interpretation is refuted; if they are as compact as about 10 au, it is confirmed.

Watch

Extended reading notes

Core claim

The central discovery claimed is that externally irradiated disks around 1–4 $M_\odot$ young stars in NGC 6357 retain an inner-disk molecular inventory comparable to that of unirradiated T Tauri disks, and that the absence of PAH and line-boost signatures indicates truncation rather than chemical destruction. Hot water at about 900 K is detected in 6–9 of 12 sources and warm water in 3; no cold component is seen. Molecular emission likely originates within about 10 au. The XUE disks show lower 10 $\mu$m silicate $F_{11.3}/F_{9.8}$ ratios at a given $F_{\mathrm{peak}}$ than nearby comparison samples, although dereddening uncertainties prevent a firm grain-size conclusion. The paper concludes that compact, truncated disks in extreme UV environments can still retain the ingredients for rocky planet formation.

Load-bearing premise

The paper's truncation claim assumes that the missing PAH emission and weak line fluxes trace a small disk surface rather than sample selection toward disks with weak near-infrared excess, the brighter continuum of more massive central stars masking lines, or other geometry.

Editorial extensions

If this is right

The inner regions of externally irradiated intermediate-mass T Tauri disks can hold a molecular inventory like that of isolated T Tauri disks, despite central stars two to three times more massive.
Hot ($\sim$900 K) water is present in at least half and possibly three quarters of the sample, so water is available where rocky planets assemble.
Disks in this environment are likely compact or truncated, which would make wide-orbit gas giants rare and favor compact planetary architectures.
The absence of cold water, unlike nearby T Tauri disks, implies either environmental effects or the stronger central-star radiation, to be disentangled by observing non-irradiated IMTTs.
JWST can reach inner-disk spectroscopy in massive star-forming regions beyond 1.5 kpc, opening these populations to direct study.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Editorial inference: combined with the Orion proplyd results, the XUE spectra suggest an evolutionary sequence in which external photoevaporation strips the outer disk first, leaving a compact inner disk whose chemistry is set by the central star; the paper floats this idea but does not claim to prove it.
Editorial inference: if the truncation is confirmed, the sample becomes a natural laboratory for compact planetary systems like those found by Kepler, since truncated disks may preferentially produce small, tightly packed planets.
Editorial inference: a direct test would be MIRI-MRS observations of non-irradiated IMTTs of the same mass and age; if those also lack PAH emission and cold water, the differences would be stellar-mass effects rather than UV-driven truncation.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

First, the useful part: this is the first JWST MIRI-MRS survey of intermediate-mass T Tauri disks in an extreme UV environment, and it delivers real data. The spectra are public, the sample selection is documented, and the molecular inventory comparison to nearby T Tauri disks is done carefully. This deserves a serious referee.\n\nWhat is actually new: 12 disks in NGC 6357, spanning FUV fields of roughly 1e3 to 1e6 G0, with detections of water, CO, HCN, C2H2, CO2, and even CO2 isotopologues in one source. The full sample and its comparison to Herbig and T Tauri samples are new, even though XUE 1 and XUE 10 had dedicated papers before. The water luminosity comparison shows the XUE disks sit at the high end of the distribution despite their more massive central stars, which is an interesting flattening that the paper handles cautiously. The silicate analysis is honest: the paper explicitly says extinction uncertainty prevents firm conclusions about grain size, so no one should cite that as a result.\n\nThe soft spots are real but clearly self-flagged. The main one is detection methodology. Table 1 uses checkmarks, but no signal-to-noise threshold is defined; Section 5.4 admits the assessment was visual inspection. That means the "majority of disks display water" claim rests on 6 to 9 of 12 sources, with the definite count at only half. Before that headline is solid, each source needs a quantitative detection criterion and per-line S/N or flux uncertainties. The truncation interpretation is indirect: absence of PAH emission and strong line fluxes, plus a radiative transfer model of one disk (XUE 1). This is plausible and the paper says ALMA is needed for confirmation, so it is fine as a hypothesis, but it is not a measured result. There is also a sample selection bias toward weak near-IR excess that could explain the Group II SEDs without invoking truncation; the paper acknowledges this, but it should be more prominent in the discussion.\n\nThe citation pattern looks clean, and the weak circularity concern does not land: the Portilla-Revelo modeling is independent radiative transfer work, not an assumed conclusion.\n\nWho this is for: observers working on disk chemistry, JWST surveys, and planet formation in massive clusters. The public data means it will be a reference point for future work. My recommendation: accept with revisions. The revisions should add explicit detection thresholds and flux uncertainties per line, and soften the truncation language to match the indirect evidence.

Referee Report

3 major / 6 minor

Summary. This manuscript presents MIRI-MRS spectroscopy of 12 protoplanetary disks around intermediate-mass T Tauri stars in the three sub-clusters of the massive star-forming region NGC 6357, obtained as part of the XUE program. The authors classify the disks into Meeus Groups I and II, analyze their mid-infrared molecular emission (H2O, CO, CO2, HCN, C2H2, OH, and CO2 isotopologues), and compare their SED shapes, 10 micron silicate features, spectral indices, and water line luminosities with nearby T Tauri and Herbig disk samples. They report that the XUE disks show molecular richness comparable to isolated T Tauri disks, that most disks show hot water emission, and that the absence of PAH and strong line emission suggests that the disks are truncated by external UV photons. The central claim is that even in these extreme UV environments, the inner disks retain the ingredients necessary for rocky planet formation.

Significance. If the results are robust, this is the first detailed mid-infrared spectroscopic characterization of inner disks around intermediate-mass young stars in a high-mass star-forming region, and it directly addresses how external UV radiation affects the chemistry and structure of planet-forming disks. The paper benefits from a well-defined sample (12 sources across three sub-clusters with varying FUV fields), high-quality MIRI-MRS data, a transparent discussion of the data reduction challenges (variable PAH background, custom nodding subtraction), and a useful comparison with literature samples. The authors also candidly acknowledge several limitations, including the lack of a sigma threshold for line detections and the need for ALMA observations to confirm truncation. The qualitative message, that inner-disk water and molecular inventories can survive strong external irradiation, is important for theories of planet formation in clustered environments, but the quantitative support for the headline 'majority of disks show water' claim needs strengthening before the conclusion can be accepted as stated.

major comments (3)

[Section 5.4, Table 1, Appendix E] The headline claim that the majority of XUE disks show hot water, and the associated conclusion that rocky planets can form in the presence of water, is based on visual inspection of line detections without a quantitative significance threshold. Table 1 quotes ranges such as [6-9]/12 for hot H2O, and Section 5.4 explicitly states that 'the assessment of line detection was made by visual inspection rather than by applying a specific sigma threshold'; Appendix E reports only upper limits for the 17 micron water lines in XUE 2, 3, 4, 5, 9, and 10. Please report per-source signal-to-noise ratios or flux uncertainties for each molecular transition/window and use a defined detection threshold, or explicitly present both optimistic and conservative counts. This matters because the lower bound of the reported range, 6/12, is not a majority, and several key sources (e.g., XUE 2 and XUE 9) carry question marks in Table 1.
[Section 6.3, Abstract, Conclusions] The truncation interpretation rests on the absence of PAH emission and strong line fluxes, not on direct radius measurements, as the paper itself acknowledges: 'Direct confirmation of disk truncation in the XUE disks requires ALMA observations.' This null-result inference is load-bearing for the statements in the abstract and conclusions that 'the XUE disks have been truncated by external UV photons.' I ask the authors to either (a) add quantitative model predictions comparing expected PAH and line fluxes for truncated versus extended irradiated disks and show that the non-detections exclude extended disks, or (b) rephrase the abstract and conclusions so that truncation is presented explicitly as one plausible interpretation rather than a definitive conclusion. The current text is careful in places but the abstract and conclusions go beyond the direct evidence.
[Section 6.2, Table 1] The claim that the XUE disks show molecular richness comparable to isolated T Tauri systems is made without a same-mass control sample: the comparison set consists of low-mass T Tauri stars observed with Spitzer and MIRI, while the XUE central stars are mostly 2-4 Msun. Since stellar luminosity, continuum brightness, and sample selection (K-band spectral classification) directly affect line detectability, the comparison cannot fully separate environmental effects from stellar-mass effects. Please qualify this claim, for example by stating that detection rates of key molecules are comparable at the achieved sensitivities, and consider normalizing line luminosities by stellar luminosity or disk continuum where possible.

minor comments (6)

[Abstract] The abstract says 'The majority of disks display water emission,' but Table 1 gives [6-9]/12 for hot H2O, and the lower bound is exactly half. Please state the counted range or use a more cautious phrasing such as 'up to 9 of 12 disks.'
[Section 6.3] In the discussion of PAH emission, the text reads 'the absence if PAH features'; this should be 'the absence of PAH features.'
[Section 5.2 and Abstract] The abstract says the silicate comparison suggests 'smaller grains compared to nearby disks,' but the text in Section 5.2 states that uncertainties in extinction prevent firm conclusions and that 'further investigation is required.' Please align the abstract with this caveat.
[Figure 2] The source labels in Figure 2 are described as 'visible when zooming in'; please increase the label size or provide the FUV fluxes in a table so that the figure is readable in print.
[Appendix D] In the description of XUE 1, 'Humpreys series' should be 'Humphreys series.'
[Section 2.2] The custom background subtraction using nod pairs is described, but the residual spectral artifacts after peak removal are not quantified. A short statement on the typical amplitude of residual features relative to the molecular line fluxes would help the reader judge the reliability of weak detections.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the molecular inventory and water detections are direct MIRI measurements, and the truncation interpretation is explicitly left open pending ALMA.

full rationale

The paper's derivation chain is observational rather than parametric. The molecular inventory (CO, H2O, HCN, C2H2, CO2, OH) and the hot-water detections are read directly from MIRI-MRS spectra (Section 4, Table 1); no parameter is fitted to a subset of the data and then renamed as a prediction. The comparisons of molecular richness, silicate shapes, and spectral indices to isolated T Tauri, Herbig, and Orion disks use external literature samples (Banzatti et al. 2020; Gasman et al. 2025; Kim et al. 2016; van Boekel et al. 2005) and do not reduce to the paper's own inputs. The secondary interpretation that the XUE disks are truncated rests on the absence of PAH and strong line emission together with the radiative-transfer model of XUE 1 in Portilla-Revelo et al. (2025); that model is a separate published analysis, and the paper itself says 'Direct confirmation of disk truncation in the XUE disks requires ALMA observations' (Sect. 6.3), so the claim is not treated as forced. The in-prep models cited (Hernandez Arboleda, in prep.) are not accessible, but they serve as supporting context rather than the lynchpin of the water/rocky-planet conclusion. The only legitimate caveat is the visual-inspection line detection criterion in Sect. 5.4, which affects detection confidence but is not a circularity. No step in the paper equates an output to an input by construction.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

No free parameters are fit in this paper; derived quantities rely on adopted extinction, stellar evolution models, and assumed massive star properties. No new physical entities are introduced.

free parameters (2)

RV extinction parameter = 3.30 (+0.13 / -0.19)
Adopted from a median over 78 sources in a 15 arcmin cone (Fouesneau et al. 2022) rather than fit to XUE sources. Affects dereddening and hence silicate feature shape; the authors show a +/-20 percent change in AV shifts the F11.3/F9.8 ratio.
Massive star rotational velocity = v = 0.4 vcrit
Assumed for Phoenix model FUV luminosity computations in Section 2.1; affects derived log G0 values by about 10 percent relative to the Parravano et al. (2003) scaling formula.

assumptions (4)

domain assumption Detected molecular emission traces the inner disk within about 10 au for all XUE sources.
No spatially resolved data for most sources; based on XUE 1 modeling and line excitation arguments. The paper itself notes this inner disk origin may not be typical for all externally irradiated disks.
domain assumption The adopted Gordon et al. (2023) diffuse-sightline extinction law with RV = 3.3 applies to all XUE sightlines.
Affects dereddening and silicate shape; van Breemen et al. (2011) show molecular sightlines differ from diffuse ones, and the authors acknowledge this uncertainty in Section 5.2.
domain assumption Comparison T Tauri and Herbig samples are representative despite different stellar masses, ages, and distances.
Authors note direct comparisons with nearby IMTT and Herbig disks are unavailable or saturated; they compare to T Tauri samples while acknowledging central star mass affects inner disk properties.
domain assumption No extinction between massive stars and XUE sources when computing FUV fluxes; projected separations are used.
Section 2.1 states FUV flux is computed from projected distance assuming no extinction between the massive stars and the sources; log G0 values could change if line-of-sight extinction is significant.

how reviews work

0 comments

Cite this review

Pith. "Pith review of XUE. JWST spectroscopy of externally irradiated disks around young intermediate-mass stars." pith.science (2026). https://pith.science/paper/DTH4DBOM

@misc{pith2026250506093,
  author       = {Pith},
  title        = {Pith review of: XUE. JWST spectroscopy of externally irradiated disks around young intermediate-mass stars},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DTH4DBOM}},
  note         = {Machine review of arXiv:2505.06093}
}

abstract

Most young stars and therefore planetary systems form in high-mass star forming regions and are exposed to ultraviolet radiation, affecting the protoplanetary disk. These regions are located at large distances and only now with JWST become accessible to study the inner disks surrounding young stars. We present the eXtreme UV Environments (XUE) program, which provides the first detailed characterization of the physical and chemical properties of the inner disks around young intermediate-mass stars exposed to external irradiation from nearby massive stars. We present high signal to noise MIRI-MRS spectroscopy of 12 disks located in three sub-clusters of the high-mass star-forming region NGC 6357. Based on their mid-infrared spectral energy distribution, we classify the XUE sources into Group I and II based on the Meeus scheme. We analyze their molecular emission features, and compare their spectral indices and 10 $\mu$m silicate emission profiles to those of nearby Herbig and intermediate T Tauri disks. Despite being more massive, the XUE stars host disks with molecular richness comparable to isolated T Tauri systems. The 10 $\mu$m silicate features show lower F$_{11.3}$/F$_{9.8}$ ratios at a given F$_{\mathrm{peak}}$, but current uncertainties prevent conclusions about their inner disk properties. Most disks display water emission from the inner disk, suggesting that even in these extreme environments rocky planets can form in the presence of water. The absence of strong line fluxes and other irradiation signatures suggests that the XUE disks have been truncated by external UV photons. However, this truncation does not appear to significantly impact the chemical richness of their inner regions. These findings indicate that even in extreme environments, IMTT disks can retain the ingredients necessary for rocky planet formation.

Figures

Figures reproduced from arXiv: 2505.06093 by the authors.

**Figure 1.** Color composite image of the massive star forming region NGC 6357 combining UKIRT Ks-band (blue) with Spitzer-IRAC 4.5 µm (green) and Spitzer-IRAC 8.0 µm (red) data. The small colored points show the location of the XUE sources with respect to the massive stars (Teff > 25000 K) in the region which are shown with the stars. The color bar indicates the temperature of the massive stars. The white circles show the locat… view at source ↗

**Figure 2.** FUV flux experienced by our targets with respect to their projected separation to ionising sources in each NGC 6357 sub-region. The full and empty symbols show the primary and secondary ionising stars in each sub-region. The names of the sources are displayed on the markers and are visible when zooming in. sured the position of each source in the datacube and ran the extract1d step with the position of the sources… view at source ↗

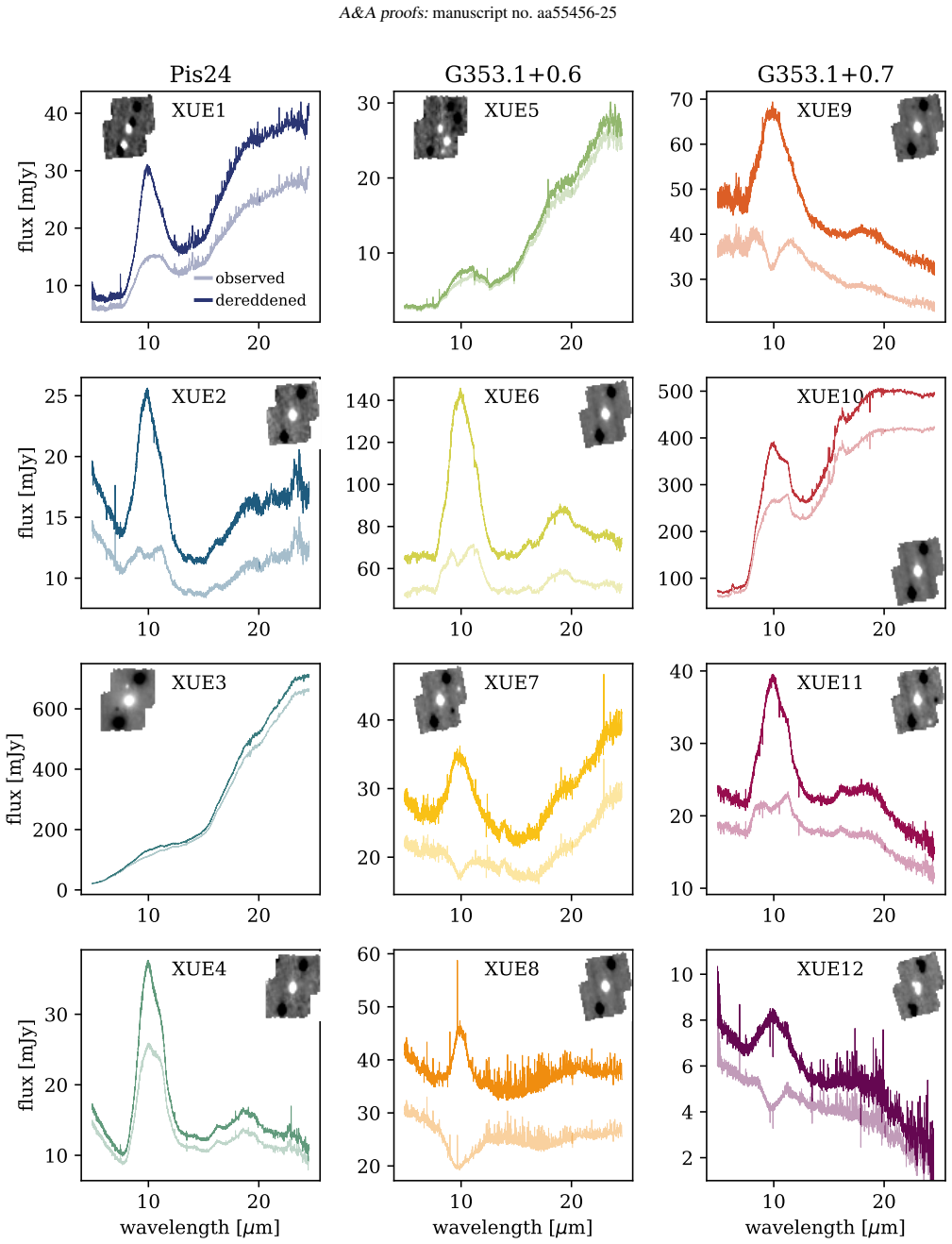

**Figure 3.** Spectral energy distributions of the XUE sources. Each column shows the sources in one region: Pis 24, G353.1+0.6 and G353.1+0.7 from left to right. The light colors show the observed data, the dark ones show the dereddened data. The panels in the top of each subfigure show the MRS data cube at 5.5 µm. Article number, page 6 of 22 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

Figures from the paper (4 more)

**Figure 4.** Figure 4: Overview of the spectral region between 13.2 and 16 µm for all XUE sources. The lowermost spectrum shows the most prominent molecules in this region: HCN at 400 K and 1016 cm−2 (dark green), H2O at 400 K and 2.2 × 1016 cm−2 (magenta), C2H2 at 400 K and 2.2 × 1016 cm−2 …

**Figure 5.** Figure 5: 10 µm silicate feature for the XUE sources. The features are continuum subtracted and normalized to the maximum value. The thick solid lines show the smoothed spectra and the thin lines the MIRI observations. The dashed lines mark 9.8 and 11.3 µm and the dot on top of…

**Figure 7.** Figure 7: Comparison with a sample of disks with masses > 2 M⊙ in Orion (Kim et al. 2016). The top panels show the external FUV flux as a function of each spectral index, the XUE sources are shown with the colored dots and Kim et al. (2016) data with the gray crosses. The bottom…

**Figure 8.** Figure 8: Comparison between the 17 µm H2O luminosity and the spectral index n13−25 (left), the stellar mass (middle) and the stellar luminosity (right) of the XUE disks with the Spitzer sample studied by Banzatti et al. (2020) shown with black squares (M < 2 M⊙) and blue pentag…
