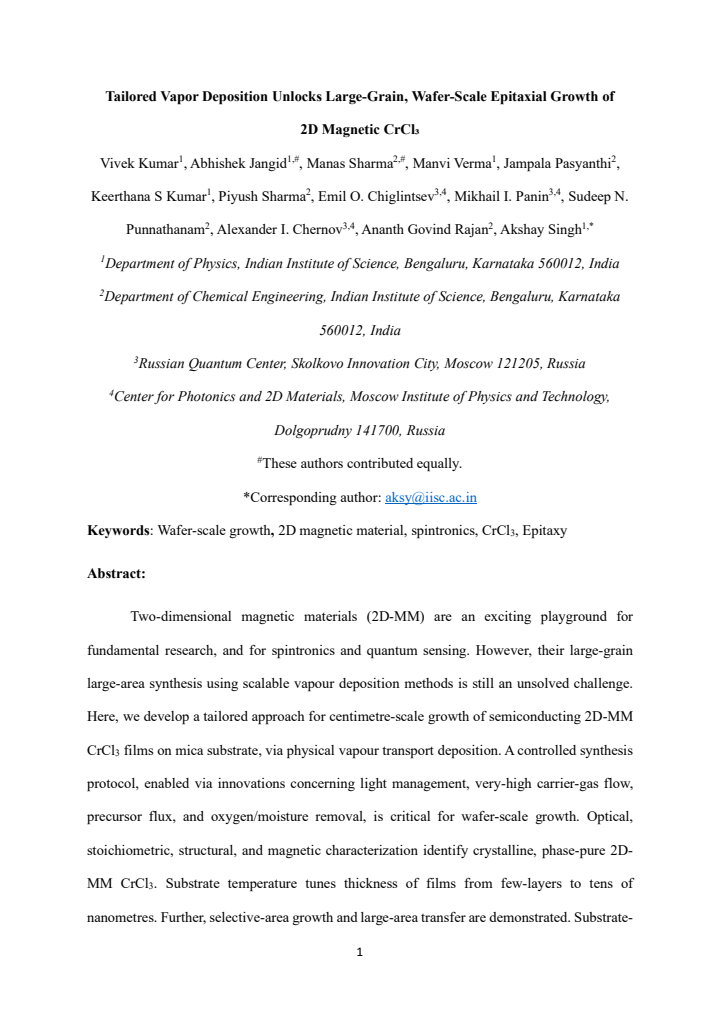

Tailored Vapor Deposition Unlocks Large-Grain, Wafer-Scale Epitaxial Growth of 2D Magnetic CrCl3

Pith reviewed 2026-05-22 02:06 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords 2D magnetic materialsCrCl3vapor depositionwafer-scale growthepitaxial filmsphysical vapor transportmica substratethin film synthesis
0
0 comments X

The pith

A tailored vapor deposition protocol enables centimetre-scale crystalline 2D magnetic CrCl3 films on mica.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a controlled physical vapour transport method to grow large-area films of the two-dimensional magnetic material CrCl3. Large-grain, wafer-scale synthesis of such materials has remained difficult with scalable deposition techniques, limiting applications in spintronics and quantum sensing. The authors show that innovations in light management, very-high carrier-gas flow, precursor flux control, and oxygen/moisture removal together produce phase-pure, epitaxial films on mica substrates. Substrate temperature adjusts film thickness from a few layers to tens of nanometres, and the process runs at roughly 500 C. Selective-area growth and large-area transfer are also shown to work.

Core claim

A controlled synthesis protocol, enabled via innovations concerning light management, very-high carrier-gas flow, precursor flux, and oxygen/moisture removal, is critical for wafer-scale growth of crystalline, phase-pure 2D CrCl3 films on mica via physical vapour transport deposition.

What carries the argument

The tailored physical vapour transport deposition protocol incorporating light management, high carrier-gas flow, controlled precursor flux, and oxygen/moisture removal to drive large-grain epitaxial growth.

If this is right

  • Substrate temperature tunes film thickness from few layers to tens of nanometres.
  • Selective-area growth and large-area transfer of the films become feasible.
  • The same vapour deposition approach can be used for growth of several other 2D magnetic materials.
  • The low growth temperature near 500 C supports creation of hybrid heterostructures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The substrate-dependent growth features explained by simulations could guide selection of other substrates for related 2D magnets.
  • Integration of these films with conventional semiconductors at low temperature may speed development of 2D spintronic devices.
  • The atomic-scale simulations could be extended to predict optimal conditions for growing similar materials such as CrI3 or CrBr3 at scale.

Load-bearing premise

The specific combination of light management, very-high carrier-gas flow, precursor flux control, and oxygen/moisture removal directly produces the large-grain epitaxial growth and phase purity rather than substrate properties or other unmentioned factors.

What would settle it

Reproduce the growth while removing one listed innovation, such as the very-high carrier-gas flow, and check whether centimetre-scale, large-grain, phase-pure CrCl3 films still form on mica.

read the original abstract

Two-dimensional magnetic materials (2D-MM) are an exciting playground for fundamental research, and for spintronics and quantum sensing. However, their large-grain large-area synthesis using scalable vapour deposition methods is still an unsolved challenge. Here, we develop a tailored approach for centimetre-scale growth of semiconducting 2D-MM CrCl3 films on mica substrate, via physical vapour transport deposition. A controlled synthesis protocol, enabled via innovations concerning light management, very-high carrier-gas flow, precursor flux, and oxygen/moisture removal, is critical for wafer-scale growth. Optical, stoichiometric, structural, and magnetic characterization identify crystalline, phase-pure 2D-MM CrCl3. Substrate temperature tunes thickness of films from few-layers to tens of nanometres. Further, selective-area growth and large-area transfer are demonstrated. Substrate-dependent growth features are explained by density functional theory and state-of-the-art machine learning interatomic potential-based atomic-scale simulations. This scalable vapour deposition approach can be applied for growth of several 2D-MM, and low growth temperature (~500 C) will enable creation of hybrid heterostructures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports a tailored physical vapor transport (PVT) method for centimeter-scale epitaxial growth of phase-pure 2D CrCl3 films on mica. It claims that a specific combination of light management, very-high carrier-gas flow, precursor flux control, and oxygen/moisture removal enables large-grain crystalline material, with substrate temperature tuning thickness from few layers to tens of nm. Optical, stoichiometric, structural, and magnetic characterization, plus selective-area growth and transfer, are presented; DFT and machine-learning interatomic potential simulations address substrate-dependent features. The low growth temperature (~500 °C) is highlighted for enabling hybrid heterostructures.

Significance. If the central synthesis claim is substantiated, the work would advance scalable fabrication of 2D magnetic materials for spintronics and quantum sensing by demonstrating wafer-scale vapor deposition of CrCl3 with tunable thickness and phase purity. The integration of growth innovations with atomic-scale simulations provides mechanistic insight into substrate effects. Reproducible protocols for large-area 2D magnets at moderate temperatures would be a notable contribution to the field.

major comments (2)
  1. [Abstract and Synthesis Protocol] Abstract and Synthesis Protocol section: the claim that the specific combination of light management, very-high carrier-gas flow, precursor flux control, and oxygen/moisture removal 'is critical for wafer-scale growth' is load-bearing but unsupported by isolated control experiments. No side-by-side runs disabling one variable at a time (while holding substrate, temperature, and total pressure fixed) are shown to demonstrate that these innovations outperform standard PVT conditions on mica; substrate properties or generic low-temperature halide growth could be dominant.
  2. [Characterization Results] Characterization Results (optical, XRD, magnetic data): the assertion of uniform wafer-scale crystalline phase-pure material lacks reported error bars, statistical sampling across multiple wafer positions, or quantitative metrics of grain-size distribution and thickness uniformity, weakening the evidence that the protocol achieves the claimed large-area quality.
minor comments (2)
  1. [Methods] Methods section: full details on precursor purity, exact light-management implementation (wavelength, intensity), and carrier-gas flow rates are needed for reproducibility.
  2. [Figures] Figure captions: scale bars, measurement conditions, and number of replicates should be explicitly stated for all optical and AFM images.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review of our manuscript. We have addressed each major comment point by point below, providing clarifications and outlining revisions where appropriate to strengthen the evidence for our claims.

read point-by-point responses
  1. Referee: [Abstract and Synthesis Protocol] Abstract and Synthesis Protocol section: the claim that the specific combination of light management, very-high carrier-gas flow, precursor flux control, and oxygen/moisture removal 'is critical for wafer-scale growth' is load-bearing but unsupported by isolated control experiments. No side-by-side runs disabling one variable at a time (while holding substrate, temperature, and total pressure fixed) are shown to demonstrate that these innovations outperform standard PVT conditions on mica; substrate properties or generic low-temperature halide growth could be dominant.

    Authors: We thank the referee for this observation. Our protocol was developed through iterative experimentation in which standard PVT conditions on mica (without the combined light management, high carrier-gas flow, precursor flux control, and moisture/oxygen removal) consistently failed to produce centimeter-scale crystalline films. This experience informed our conclusion that the specific combination is critical. We acknowledge, however, that dedicated side-by-side control experiments isolating each variable would provide stronger, more quantitative support. In the revised manuscript we will expand the Synthesis Protocol section with additional discussion of the role of each innovation based on our optimization observations and will include any available supplementary data from partial control runs performed during development. We note that fully isolating every variable while maintaining identical substrate, temperature, and pressure conditions is experimentally demanding given the sensitivity of the growth, but the revised text will clarify this context. revision: partial

  2. Referee: [Characterization Results] Characterization Results (optical, XRD, magnetic data): the assertion of uniform wafer-scale crystalline phase-pure material lacks reported error bars, statistical sampling across multiple wafer positions, or quantitative metrics of grain-size distribution and thickness uniformity, weakening the evidence that the protocol achieves the claimed large-area quality.

    Authors: We agree that the current characterization would benefit from more rigorous quantitative metrics and statistical presentation. In the revised manuscript we will add error bars to all relevant plots (optical, XRD peak intensities, magnetic susceptibility, and thickness data). We will also report statistical sampling from multiple positions across the wafer (minimum of five locations including center and edges) and include quantitative metrics such as grain-size distribution (mean and standard deviation extracted from optical and SEM images) and thickness uniformity (percentage variation across the centimeter-scale area, typically <10 %). These additions will provide clearer evidence for the uniformity and phase purity of the wafer-scale films. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental synthesis protocol with independent characterization and simulations

full rationale

This is a materials synthesis and characterization paper. The central claim rests on a described vapor deposition protocol, optical/structural/magnetic measurements, and DFT/ML simulations of substrate effects. No equations, fitted parameters, or predictions are presented that reduce by construction to the inputs or to self-citations. The protocol innovations are stated as empirical enablers without self-referential definitions or load-bearing prior-author uniqueness theorems. External benchmarks (mica substrate growth, low-temperature halide CVD) remain independently testable.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental tuning of growth parameters and the assumption that mica provides a suitable template for epitaxial CrCl3; no new entities are postulated.

free parameters (2)
  • substrate temperature
    Used to tune film thickness from few layers to tens of nanometers.
  • carrier gas flow rate
    Set to very high values as part of the controlled protocol.
axioms (1)
  • domain assumption Mica substrate supports epitaxial alignment and large-grain growth of CrCl3 under the stated conditions
    Substrate-dependent features are explained by DFT and machine-learning interatomic potential simulations.
