Pith's one-line read This dissertation claims that text-centric representation, inference-time optimization, and correct-by-construction synthetic data — not parameter scale — can make LLMs generalize across modalities, resource constraints, and low-resource…

desk verdict A solid thesis-style compilation of prior wins; the headline Verilog SOTA needs artifacts and a contamination audit before I'd bank on it. read the letter →

arxiv 2505.17040 v1 pith:AGROHPCK submitted 2025-05-13 cs.LG cs.CL

Yun-Da Tsai This is my paper · ORCID

classification cs.LGcs.CL

keywords largelanguagemodelsmultimodalalignmentmodalitymismatchpromptoptimizationuncertaintyquantificationRTLcodegenerationVerilogcorrect-by-constructionsyntheticdata

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This dissertation argues that the practical ceiling on large language models in constrained settings is set less by model scale than by how inputs are represented and how training data is built. Its central demonstration is that translating every input modality — images, tables, waveforms — into natural language lets a single frozen LLM handle unseen, noisy, or missing modality combinations without retraining, and that this text-centric pipeline (TAMML) outperforms embedding-based cross-modality translation baselines on three datasets. A second thread shows LLMs can act as optimizers through iterative prompting, and that standard uncertainty metrics measure answer diversity rather than correctness, making them unfit to guide such search. A third thread addresses Verilog, a data-scarce hardware language, with correct-by-construction synthetic problems (Karnaugh maps, finite-state machines, waveforms) and targeted code-repair data, lifting a fine-tuned Starcoder2-15B above prior state-of-the-art pass@1 by 3.8%, 10.9%, and 6.6% on VerilogEval-Machine, VerilogEval-Human, and RTLLM. If these results hold, users facing limited data or compute can buy LLM capability with data curation and prompt engineering instead of scaling models.

What carries the argument

The load-bearing device is the modality-to-text transformation $F_m(x)$ of Eq. (3.1): a function that converts any modality input — image, table, waveform, or text — into a natural-language summary. Together with the three stages that follow it (text-style translation across modalities, cross-modality summarization, and chain-of-thought reasoning augmentation), this transformation collapses all input heterogeneity into one linguistic space, so a frozen LLM can do the reasoning in-context and the model never needs new weights for new modalities. The same 'turn heterogeneous input into a uniformly verifiable format' move recurs on the code side in the correct-by-construction generators: programs that sample random Boolean minterms, finite-state-machine transition graphs, and waveform timing patterns, then emit problem statements and Verilog solutions whose consistency is guaranteed by construction rather than by the LLM's own verification. A companion repair-data loop writes detailed LLM-generated error reports for the model's own mistakes and injects those same errors into open-source code, producing training pairs aimed at the 'minor' bugs that cause pass-rate volatility.

What would settle it

Run the TAMML pipeline on a dataset whose label depends on a precise continuous table value (a price, a timing delay) and corrupt the serialization so that value is rounded or dropped; if accuracy collapses toward a constant predictor while an embedding-based model trained on raw values holds its performance, the 'text preserves task-relevant information' premise is falsified. A complementary check for the Verilog claim: score Starcoder2-15B-CC-Repair on freshly written, uncontaminated non-textual RTL problems; if pass@1 falls back to the base model's level, the reported gains came from benchmark overlap rather than new capability.

Watch

Extended reading notes

Core claim

The dissertation's central claim is that principled methods in three areas — alignment, optimization, and synthetic data generation — can significantly broaden LLM usability across modalities, resource regimes, and application domains without large-scale retraining or parameter scaling. Concretely, it claims that a frozen LLM prompted with structured natural-language summaries of each input modality beats embedding-based zero-shot cross-modality translation methods (SDEdit, DDRM, Idinvert) under train/test modality mismatch, with roughly 21% relative accuracy gain over the strongest baseline on PetFinder and 54% lower mean squared error on Airbnb, and stays competitive even when train and test modality sets match. It further claims that prompt-space adversarial perturbation, rather than gradient-based robust training, is the effective way to harden this pipeline against noisy, missing, or reordered modalities. On the code side, it claims that LLM-generated synthetic Verilog data is unreliable precisely where hardware problems are hardest — non-textual representations like Karnaugh maps and waveforms — and that replacing it with generator-verified correct-by-construction data plus LLM-injected repair data is what allows a 15B model to surpass prior state of the art on VerilogEval and RTLLM. Finally, it claims that the uncertainty metrics commonly used for LLM reasoning track answer diversity, not correctness uncertainty, so they should not guide prompt optimization; a correctness-aligned metric would hit 50% accuracy at maximum uncertainty on binary tasks.

Load-bearing premise

The whole multimodal argument rests on one premise: that turning each input modality into a written description via the transformation $F_m(x)$ at Eq. (3.1) loses none of the information the task depends on, because if the captioner or table serializer drops exact values, timing relations, or visual details, the frozen text-only LLM has no way to recover them and the claimed advantage over embedding-based systems collapses; the premise is tested on only three datasets (PetFinder, Airbnb, Avito).

Editorial extensions

If this is right

A deployment that adopts text-centric alignment can add a new modality (audio, sensor streams, video) by writing one captioner-stage prompt and rerunning inference, with no weight updates and no paired data for the new modality.
Prompt-space adversarial perturbation becomes a viable alternative to gradient-based robust training for multimodal inputs, with the extra property that every perturbation is human-readable and attributable.
Correct-by-construction and repair data make fine-tuning effective in low-resource symbolic domains where LLM self-verification is unreliable, because solution correctness is guaranteed by the generator, not by the model.
Because standard uncertainty metrics do not track correctness, iterative prompting guided by a correctness-aligned uncertainty signal is the paper's prescribed — and benchmarked — direction for inference-time optimization.
Extreme data pruning (1% of the MBPP training set retains near-full-data pass@1) implies fine-tuning budgets can be cut by orders of magnitude when clustering plus diversity metrics select the examples.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

If the text-centric premise holds, the framework's ceiling tracks the quality of the captioners and serializers it leans on, so the pipeline should improve automatically as off-the-shelf captioning improves; the paper's own four-captioner comparison suggests the downstream model is not the bottleneck.
The correct-by-construction recipe should transfer to any machine-checkable low-resource language — VHDL, SystemVerilog assertions, assembly, formal specifications — since it only needs an invertible generator that samples problems with certified solutions; testing it on VHDL would be a direct check of the generality claim.
The paper stops short of building the optimizer its uncertainty analysis points to; a natural next step is an iterative search that asks the LLM for its own correctness probability (via self-consistency over perturbed questions) and uses that to decide when to stop, with the 50%-accuracy-at-max-uncertainty criterion as the acceptance test.
The same adversarial-prompting machinery could double as an automated robustness test-suite for multimodal systems: let the LLM propose semantically plausible corruptions and use the drop in a correctness-aligned uncertainty metric as the pass/fail gate.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Dear colleague,

You should know: this is a PhD dissertation that repackages the author's published papers — TAMML, RTLFixer, the correct-by-construction Verilog data work, plus data pruning and a short RL chapter — under a "resource-constrained generalization" umbrella. If you're expecting a single new technical result, you won't find one. But if you treat it as a unified record of a coherent research program, it is a reasonably careful one.

What it does well: the empirical backbone is broad and mostly uses external benchmarks (PetFinder, Airbnb, Avito, VerilogEval, RTLLM, GSM8K, HumanEval/MBPP). TAMML's text-centric alignment is tested against diffusion/GAN translation baselines and against fine-tuned LanguageBind-style alignment, which is a fair comparison set. The Verilog synthetic-data chapters give a clear analysis of why naive SDG fails — non-textual representations and checkpoint variability — and the correct-by-construction pipeline (KMaps, FSMs, waveforms) plus the targeted repair data is a sensible, believable fix. The author also states limitations in the conclusion, which I respect.

Soft spots, in order of importance. The headline SOTA numbers for Starcoder2-15B on VerilogEval and RTLLM rest on decontamination and re-evaluation claims that are not verifiable from the preprint. The appendix that supposedly details re-evaluation of baselines is not fully included, and no code or data is released. The Repair-data generation (Figure 5.7) starts from error reports on benchmark problems; the decontamination sentence in Section 5.3.5 is about the CC data, not the Repair data. If any benchmark-derived prompt or testbench leaks into the fine-tuning set, the 3.8/10.9/6.6 pass@1 gains are inflated. Second, many headline tables report single-point estimates with no error bars or significance tests. Third, the "significantly broaden usability" thesis is a meta-claim that is never directly tested — it is an arrangement of results across separate domains, not a single experiment.

None of this kills the paper. The individual components were peer-reviewed separately, and the framing is honest. But the dissertation as submitted doesn't yet support the strongest quantitative claim in its abstract.

Who's it for: someone entering RTL code generation or modality-mismatch robustness who wants a map of what worked and what didn't. It deserves a serious referee if the artifacts are provided; without them, I'd condition acceptance on releasing data and doing an explicit contamination audit of the Repair set. I'd send it out, but I'd ask for those revisions.

Referee Report

4 major / 5 minor

Summary. This doctoral dissertation argues that principled methods for alignment, optimization, and synthetic data generation can broadly improve LLM usability under resource constraints. It develops a text-centric multimodal alignment pipeline (TAMML) that converts images, tables, and text into natural language and uses in-context learning to handle modality mismatch and robustness, with adversarial prompting as a robustness mechanism. It also studies inference-time optimization with uncertainty quantification, and addresses Verilog code generation through agent-based repair (RTLFixer), correct-by-construction synthetic data, targeted code-repair data, and data pruning. The most specific load-bearing empirical claims are that TAMML outperforms embedding-based cross-modality baselines under modality mismatch (Tables 3.2 and 3.3), and that a fine-tuned Starcoder2-15B model surpasses prior state-of-the-art pass@1 on VerilogEval-Machine, VerilogEval-Human, and RTLLM by 3.8%, 10.9%, and 6.6% respectively (Section 5.3.1).

Significance. If the claims hold, the dissertation makes several useful contributions. The correct-by-construction synthetic data generation for Karnaugh maps, FSMs, and waveforms is a genuinely valuable idea for low-resource hardware-language modeling, and the use of external benchmarks such as VerilogEval, RTLLM, GSM8K, and StrategyQA means the central comparisons are not definitionally circular. The TAMML framework's modular text-centric design, with its interpretable intermediate representations, is also a sensible alternative to embedding-fusion approaches in dynamic modality settings. However, the manuscript is a compilation of separate studies, and the unified 'usability across resource-constrained settings' claim is only partially tested because the chapters use different tasks, datasets, and baselines. The strongest quantitative result, the Verilog SOTA claim, currently rests on decontamination and re-evaluation procedures that are described only by reference to an appendix that is not present in the submitted text, and no code or data artifacts are provided. Reproducibility and decontamination evidence are therefore essential before the headline claims can be accepted.

major comments (4)

[Section 5.3.1 and Tables 5.12-5.13] The Verilog state-of-the-art claim depends on two conditions that are not verifiable from the submitted manuscript. First, Section 5.3.5 says that CC data excludes entries duplicating benchmark data representations, but the Repair data is explicitly constructed from error reports on benchmark problems (Figure 5.7), and the validation step in Appendix I.49 states that 'the generated code fix will be evaluated for functional correctness' without specifying the oracle or whether any benchmark-derived function is used as an oracle. If any benchmark problem statement, reference solution, or testbench survives into the fine-tuning data or validation filter, the reported pass@1 gains of 3.8%, 10.9%, and 6.6% could be inflated. The table captions state 'All models are re-evaluated (see Appendix I.1)', but Appendix I.1 is not included in the submitted text, and no code or dataset is released. Please provide the full re-evaluation protocol, a precise decontamination description covering the Repair pipeline, and release the fine-tuning data and evaluation harness.
[Section 3.4.2, Tables 3.2-3.3] The headline cross-modality comparisons are not fully controlled. The embedding-based baselines (SDEdit, DDRM, Idinvert) involve trained generative translation plus fine-tuned downstream models, while TAMML uses a frozen LLM, so the comparison conflates representation choice with training protocol. In addition, the reported numbers are single-point estimates without error bars or significance tests, even though the text states that LLM outputs can vary under identical prompts and temperature (Section 5.2.4). The claimed 21% accuracy improvement on PetFinder and 54% MSE reduction on Airbnb are computed from these single averages. Reporting variance across at least several repeated evaluation runs, and ideally matching the downstream fine-tuning budget or reporting it explicitly, is necessary to support the comparative claims.
[Section 3.3.1, Eq. (3.2)] The robustness claims for adversarial prompting are partially self-referential. The adversarial perturbations are generated by an LLM of the same general class used both for the text-centric alignment and for the downstream reasoning, guided by labels and instructions (LLM(x', inst, label, T)). Demonstrating robustness against self-generated perturbations does not necessarily imply robustness against independently constructed or human-authored adversarial inputs. This is a correctness-risk concern rather than a circularity claim about the benchmarks themselves; a concrete test would be to evaluate the trained text-centric pipeline on perturbations produced by a different model family (or by human annotators) and show that the robustness advantage persists.
[Section 3.2.3, Eq. (3.1)] The central premise that modality-to-text transformation preserves task-relevant information is tested only on PetFinder, Airbnb, and Avito, which are all social-adoption or e-commerce datasets with tabular, image, and text inputs. The abstract's claim of extending to 'any modalities' and the inclusion of waveforms and FSM diagrams in the pipeline are not supported by experimental evidence in Chapter 3. At minimum, the text should restrict the generalization claim to the modality types and datasets actually evaluated, or add experiments on at least one structurally different modality, such as audio or time-series, where captioning/serialization loss is known to be more severe.

minor comments (5)

[Section 1.4] The chapter outline skips Chapter 4 entirely, moving from Chapter 3 to Chapter 5; please correct the outline to include the inference-time optimization chapter.
[Sections 3.4.6 and 3.4.7] The two sections both carry the title 'Modality Robustness Baselines' and contain overlapping text about MLLMs, robust training, and text-centric strategies; merge them or rename one to avoid duplication.
[Tables 3.2 and 3.3] The row labels such as 'text+image | tabular' are visually ambiguous in the typeset table; clarifying the notation (e.g., 'train: text+image, test: tabular') would substantially improve readability.
[References and Appendix I.1] The full text references Appendices I.1 and Appendix H for evaluation details, but these appendices are not included in the submitted manuscript; since the SOTA claim depends on them, at least a complete evaluation-protocol appendix should be part of the manuscript.
[Notation throughout] The model name is written inconsistently as 'Starcoder2', 'StarCoder2', and 'starcoder2-15B'; please unify the spelling and the hyphenation in all tables and text.

Circularity Check

1 steps flagged · score 6.0 of 10

Verilog SOTA claim is partially circular: the 'Repair' fine-tuning data is generated from the same VerilogEval/RTLLM benchmark problems on which state-of-the-art pass@1 is reported.

fitted input called prediction [Section 5.3.1 (contribution bullet), Section 5.3.5 / Figure 5.7, and Appendix I.3 examples]
"The development of an automated framework that utilizes LLMs to generate error reports from benchmark problems at various checkpoints, which are then injected into open-source code to create a fine-tuning dataset targeted at correcting the model's specific 'minor' mistakes. ... Another example based on multi_booth_8bit from RTLLM."

The 'benchmark problems' used for Repair data are VerilogEval-Human/Machine and RTLLM, exactly the benchmarks on which Section 5.3.1 claims SOTA pass@1 gains of 3.8%, 10.9%, and 6.6%. Error reports are extracted from the model's correct and erroneous code on these problems and transformed into fine-tuning data, so the evaluation set directly informs the training distribution. The paper's decontamination statement ('entries that duplicate the data representations of benchmark problems were excluded') is made only for the CC data, not for the Repair pipeline, and Appendix I.3 openly labels examples as derived from VerilogEval-Human and RTLLM problems.

full rationale

The bulk of this dissertation is empirically self-contained: TAMML is evaluated on PetFinder, Airbnb, and Avito with external labels; RTLFixer is assessed on VerilogEval/RTLLM using compiler feedback and does not train on those benchmarks; the correct-by-construction CC data is explicitly decontaminated; data pruning is validated on MBPP and HumanEval; and the uncertainty analysis uses GSM8K/StrategyQA ground truths. Self-citations to TAMML [138], RTLFixer [132], and CraftRTL [174] are normal and not load-bearing because the dissertation re-derives the methods in place. The reader-flagged loops (LLM-generated adversarial perturbations, LLM self-verification of synthetic data) are self-referential quality-control steps, but they do not make the reported metrics equal to their inputs by definition. The one genuine circular element is the Repair-data pipeline: fine-tuning data is constructed from error reports on the very VerilogEval/RTLLM problems later used for the SOTA pass@1 claim. This makes the headline Verilog result partially a fit to the benchmark rather than an independent prediction, so I assign partial circularity (6) rather than a full collapse. Additionally, no code or dataset is released and Appendix I.1 appears incomplete, so the decontamination and re-evaluation protocols cannot be independently verified; that is a correctness/verifiability risk distinct from the circularity finding itself.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

The central claims of the dissertation are empirical. They do not depend on fitted mathematical constants. The main assumptions are about the sufficiency of text-based representations and the reliability of LLM-based verification, both domain assumptions rather than standard mathematical axioms.

assumptions (3)

domain assumption Modality-to-text transformation preserves task-relevant information for downstream prediction.
The entire TAMML pipeline in Chapter 3.2 depends on this. Table 3.8 shows only small differences across captioners, but this does not prove preservation for all tasks or modalities.
domain assumption LLM self-verification and syntax checkers are sufficient filters for synthetic Verilog data quality.
The SDG pipeline in Section 5.3.2 uses self-verification to keep synthetic data. The authors themselves note this is insufficient for non-textual representations, which motivates the correct-by-construction data.
domain assumption VerilogEval and RTLLM benchmarks measure the intended functional correctness.
All state-of-the-art claims in Chapter 5 use these benchmarks as ground truth. They are constructed by humans or LLMs and are not machine-checked in a formal system.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Generalizing Large Language Model Usability Across Resource-Constrained." pith.science (2026). https://pith.science/paper/AGROHPCK

@misc{pith2026250517040,
  author       = {Pith},
  title        = {Pith review of: Generalizing Large Language Model Usability Across Resource-Constrained},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/AGROHPCK}},
  note         = {Machine review of arXiv:2505.17040}
}

read the original abstract

Large Language Models (LLMs) have achieved remarkable success across a wide range of natural language tasks, and recent efforts have sought to extend their capabilities to multimodal domains and resource-constrained environments. However, existing approaches often rely on costly supervised fine-tuning or assume fixed training conditions, limiting their generalization when facing unseen modalities, limited data, or restricted compute resources. This dissertation presents a systematic study toward generalizing LLM usability under real-world constraints. First, it introduces a robust text-centric alignment framework that enables LLMs to seamlessly integrate diverse modalities-including text, images, tables, and any modalities - via natural language interfaces. This approach supports in-context adaptation to unseen or dynamically changing modalities without requiring retraining. To enhance robustness against noisy and missing modalities, an adversarial prompting technique is proposed, generating semantically challenging perturbations at the prompt level to stress-test model reliability. Beyond multimodal setting, the dissertation investigates inference-time optimization strategies for LLMs, leveraging prompt search and uncertainty quantification to improve performance without additional model training. This perspective offers an efficient alternative to scaling model parameters or retraining from scratch. Additionally, the work addresses low-resource domains such as Verilog code generation by designing correct-by-construction synthetic data pipelines and logic-enhanced reasoning models, achieving state-of-the-art performance with minimal data. Together, these contributions form a unified effort to enhance the adaptability, scalability, and efficiency of large language models under practical constraints.

Figures

Figures reproduced from arXiv: 2505.17040 by the authors.

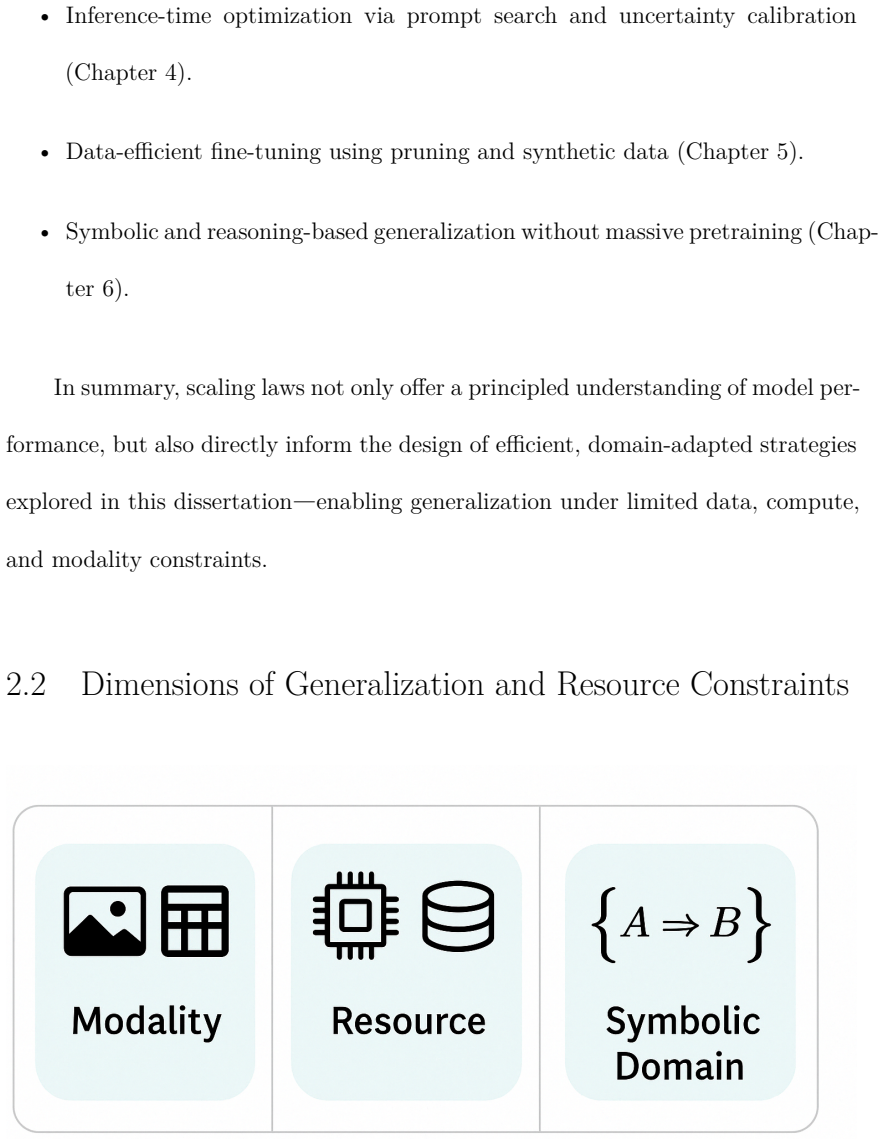

**Figure 2.1.** Three axes of generalization considered in this dissertation: modality, resource, and symbolic domain. LLMs are increasingly deployed in diverse real-world applications that require them to generalize across different input modalities, tasks, and resource conditions. This dissertation explores generalization across three complementary axes: modality, 9 [PITH_FULL_IMAGE:figures/full_fig_p039_2_1.png] view at source ↗

**Figure 3.1.** Illustration of the modality mismatch problem. During training, the model observes a fixed modality configuration. At inference, it must generalize across all combinations, including fully seen, fully unseen, and mixture setups. • Fully Seen: MI = MT . The inference modality set exactly matches the training configuration. This serves as the baseline. • Fully Unseen (Disjoint Modality): MT ∩ MI = ∅. Inference uses en… view at source ↗

**Figure 3.2.** Architectural comparison between embedding-based and text-centric multimodal alignment approaches. Text-centric methods transform all inputs into a common linguistic representation, enabling more flexible processing and fusion. nerabilities when confronted with missing, noisy, or dynamically composed inputs. Furthermore, fusion methods necessitate substantial retraining overhead whenever new modalities are introduce… view at source ↗

Figures from the paper (29 more)

**Figure 3.3.** Figure 3.3: Text-centric multimodal alignment pipeline architecture. Each modality undergoes transformation into text via specialized summarization functions, followed by text-style translation, multimodal summarization, and reasoning augmentation to produce a unified prompt for…

**Figure 3.4.** Figure 3.4: Prompt templates for different pipeline modules, illustrating the text transformation, translation, summarization, and reasoning processes employed in the multimodal alignment framework. 3.2.7 Discussion This pipeline offers several compelling advantages: • Modular e…

**Figure 3.5.** Figure 3.5: Transformation pipeline for multimodal alignment. Raw inputs are converted to text representations using foundation models, then processed through parallel modality summarization and LLM reasoning. The resulting text outputs are concatenated for downstream prediction…

**Figure 3.6.** Figure 3.6: Example prompt templates for each module in the adversarial training pipeline. 3.4 Experimental Evaluation 3.4.1 Evaluation Setup Evaluation Metrics The evaluation uses two primary metrics: • Absolute performance: Measured via accuracy (for classification) or mean sq…

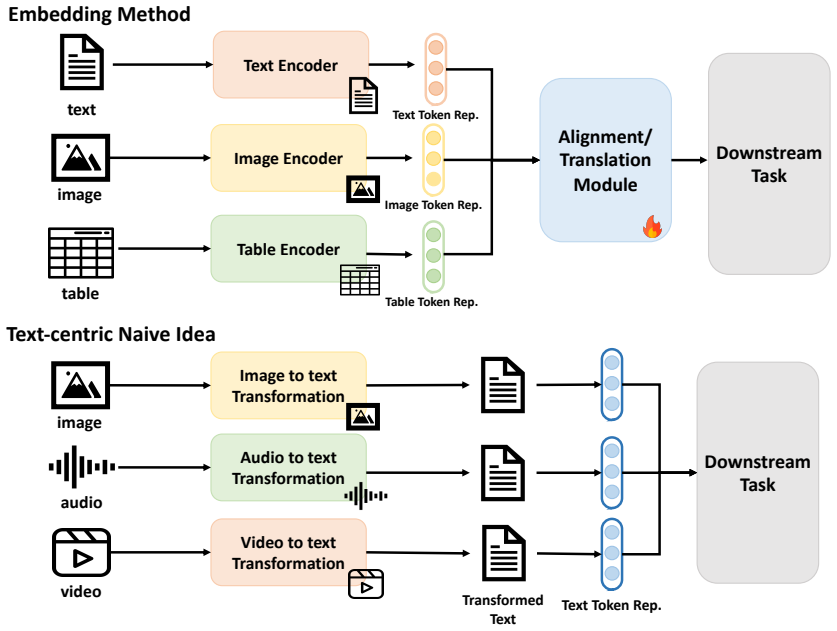

**Figure 3.7.** Figure 3.7: Comparison between traditional and proposed approaches for multimodal learning. Traditional downstream training (top) relies on embeddings from modality-specific foundation models, limiting adaptation to unseen modalities without complete retraining. Previous resea…

**Figure 3.8.** Figure 3.8: Visualization of embedding distributions before and after applying the proposed approach. The left panel shows the original distinct clustering of image and text embeddings, while the right panel demonstrates how the method brings these distributions closer in the se…

**Figure 3.9.** Figure 3.9: Visualization of the cross-modality translation approach, showing how source modality data (orange) is effectively transformed (purple) to align closely with the target modality distribution (blue) in semantic space [PITH_FULL_IMAGE:figures/full_fig_p080_3_9.png]

**Figure 3.10.** Figure 3.10: Visualization of SDEdit-based cross-modality translation on the PetFinder dataset, demonstrating less effective alignment between transformed source modality (purple) and target modality distribution (blue) compared to the proposed approach. 3.4.6 Modality Robustnes…

**Figure 3.11.** Figure 3.11: Robustness evaluation under noisy conditions across three datasets. The top row displays relative accuracy while the bottom row shows effective robustness (performance drop ratio). Text-centric methods consistently exhibit superior resilience to noise compared to b…

**Figure 3.12.** Figure 3.12: Modality-specific noise impact on accuracy (top) and performance drop ratio (bottom) for Image (left), Table (center), and Text (right). Results reveal varying degrees of sensitivity to noise across different modalities, suggesting opportunities for targeted robustn…

**Figure 4.1.** Figure 4.1: Relationship between LLM correctness uncertainty and response accuracy in the GSM8K dataset. A reliable uncertainty quantification metric exhibits 50% accuracy at maximum uncertainty, while standard confidence-based metrics fail to provide sufficient guidance for pr…

**Figure 4.2.** Figure 4.2: Prompting strategy for optimization with LLMs. The process involves: (1) loss function formulation from samples, (2) solution generation following algorithm instructions, (3) loss calculation and result tracking, and (4) iteration until stopping criteria are met. ou…

**Figure 4.3.** Figure 4.3: Benchmark workflow for evaluating uncertainty in prompt optimization. The three-step process at each level includes: 1) question perturbation, 2) model output sampling with temperature adjustments, and 3) uncertainty measurement using different metrics. answer sampli…

**Figure 4.4.** Figure 4.4: Performance metrics for GPT-3.5-Turbo across optimization tasks. Goal Metric values (left) show optimization capability, while Policy Metric values (right) demonstrate alignment with ground truth. (a) Goal Metric - performance degrades with dimension increase (b) Unc…

**Figure 4.5.** Figure 4.5: Black-Box optimization performance for GPT-3.5-Turbo and GPT-4. Performance degrades as dimensions increase, with significant drop-off beyond dimension 6 in both optimization capability (left) and solution stability (right). LLMs can function effectively as black-bo…

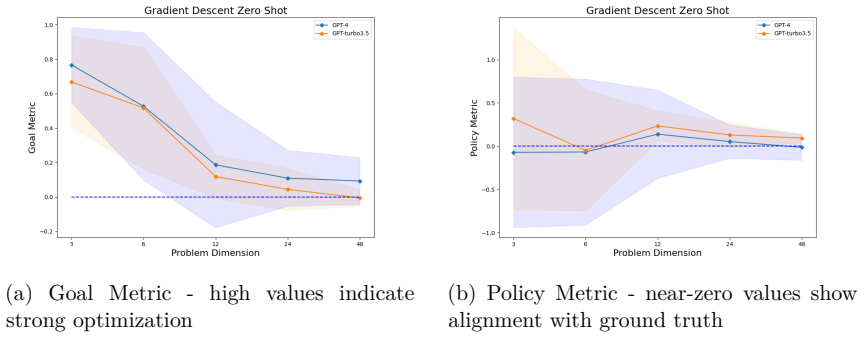

**Figure 4.6.** Figure 4.6: Gradient Descent performance metrics showing consistent optimization capability across problem dimensions. Near-zero Policy Metric values indicate strong alignment with ground truth, while high Goal Metric values demonstrate effective optimization. The policy metric …

**Figure 4.7.** Figure 4.7: Correlation between uncertainty metrics and uncertainty types across models and datasets. The maps reveal that existing metrics correlate strongly with answer uncertainty (confidence/diversity) rather than correctness uncertainty, making them unsuitable for prompt o…

**Figure 4.8.** Figure 4.8: Uncertainty Metric results across optimization tasks and problem dimensions. Higher uncertainty values for smaller dimensions suggest LLMs possess a richer solution space for small-scale problems, consistent with their better performance on these problems. in these…

**Figure 4.9.** Figure 4.9: Performance improvement with self-consistency in Gradient Descent optimization. Narrower confidence intervals indicate enhanced stability, while negative Policy Metric values with high Goal Metric values demonstrate significant outperformance compared to ground tru…

**Figure 5.1.** Figure 5.1: Architectural overview of the RTLFixer framework illustrating the seamless integration of language model reasoning with hardware verification tools to create a robust iterative debugging pipeline. 5.2.3 RTLFixer System Overview: Resolving Syntax Error with LLM Agen…

**Figure 5.2.** Figure 5.2: Frequency distribution of error categories in the RTL benchmark dataset, highlighting the relative prevalence of different error types encountered in practical hardware designs rules (e.g., type mismatches) 3. Timing Errors: Issues related to clock domain crossings, …

**Figure 5.3.** Figure 5.3: Comparative visualization of VerilogEval pass@1 results before (inner circle) and after (outer circle) syntax error correction with RTLFixer, demonstrating substantial improvement in successful compilation Remarkably, even without access to explicit compiler diagnost…

**Figure 5.4.** Figure 5.4: Frequency distribution of iterations required by ReAct to successfully resolve syntax errors, demonstrating the efficiency of the approach with most errors fixed in a single revision Challenges in Debugging Simulation Errors: While this framework is readily adaptabl…

**Figure 5.5.** Figure 5.5: The proposed methods reduce pass rate variability during training: SDG (left) shows high volatility with significant degradation on many problems, while SDG-CC-Repair (right) stabilizes learning outcomes on solvable problems (details in Appendix I.1.10). 5.3.4 Variab…

**Figure 5.6.** Figure 5.6: State transition logic [PITH_FULL_IMAGE:figures/full_fig_p143_5_6.png]

**Figure 5.7.** Figure 5.7: Overview of the approach for generating targeted code repair data: (1) prompting the LLM to generate detailed error reports from correct and erroneous code, (2) validating error report quality by ensuring the LLM can debug the errors based on the report, and (3) leve…

**Figure 5.8.** Figure 5.8: pass@1 on non-textual problems with total number of CC data with temperature 0.8 [PITH_FULL_IMAGE:figures/full_fig_p151_5_8.png]

**Figure 5.9.** Figure 5.9: Comprehensive pipeline for efficient data pruning in LLM fine-tuning. The process consists of three key stages: (1) embedding instruction-following data and applying dimensionality reduction to the feature representations, (2) clustering to identify and group semanti…

**Figure 5.10.** Figure 5.10: Performance comparison under extreme data pruning on the MBPP (left) and HumanEval (right) benchmarks. Using only 1% of the training data, our pruning method retains performance close to that of full-data training on MBPP, achieving a 4.1% gain over the base model. …
