DissolvPCB: Fully Recyclable 3D-Printed Electronics with Liquid Metal Conductors and PVA Substrates

T0 review · 4 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims a complete pipeline—design, print, assemble, dissolve, reuse—can make circuit boards that are fully recyclable and functionally comparable to standard FR-4 boards.

desk verdict The fabrication pipeline is real and well-demonstrated; the sustainability headline outruns the LCA data. read the letter →

arxiv 2507.22193 v1 pith:WFKBND4G submitted 2025-07-29 cs.HC

Zeyu Yan , SuHwan Hong , Josiah Hester , Tingyu Cheng , Huaishu Peng This is my paper · ORCID
classification cs.HC
keywords PCBrecyclingliquidmetalEGaInPVAsubstrateFDM3Dprintingsustainableelectronicse-wastelifecycleassessment
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

DissolvPCB sets out to prove that an entire printed circuit board assembly—substrate, conductor, and components—can be designed, made, used, and then recycled back into raw materials with no soldering and no harsh chemicals. The recipe is a 3D-printed polyvinyl alcohol (PVA) substrate with hollow channels that are injected with eutectic gallium–indium (EGaIn) liquid metal; components sit in printed sockets sealed with PVA glue. Because PVA dissolves in water and EGaIn re-coalesces into a bead, dropping the finished board into water separates all three material streams for reuse. The paper backs this with characterization data, a KiCad-to-printable-substrate plugin, three working prototypes, and a life-cycle assessment reporting order-of-magnitude environmental reductions versus a CNC-milled FR-4 board. The broader point is that e-waste from prototyping could be handled locally and cyclically instead of shipped to centralized recyclers.

What carries the argument

The load-bearing combination is PVA plus EGaIn: PVA is a water-soluble thermoplastic that an unmodified FDM printer can extrude into a channeled substrate, and EGaIn is a room-temperature liquid metal whose surface tension forms a conductive meniscus at channel openings and whose droplet re-forms in water. The substrate is a network of hollow 0.7 mm channels (traces), sealed sockets sized to component footprints, and PVA glue applied at component seams as a solder analog. A FreeCAD plugin parses KiCad .kicad_pcb files, turns trace segments into channel geometry, inserts sockets from a 3D model library, and subtracts everything from the board body in one Boolean operation, which is what lowers the barrier from hand-built 3D models to standard PCB designs.

What would settle it

Recompute the LCA with a genuine PVA production inventory instead of the PVC proxy; if global-warming, resource-depletion, and acidification potentials rise toward the FR-4 baseline, the order-of-magnitude environmental claims collapse. A second check: build a fresh board from recovered filament and recovered EGaIn and measure trace resistance against the reported 0.03 $\Omega$ per 30 mm to confirm the recycling loop actually closes.

Watch

Extended reading notes

Core claim

The paper's central claim is that a PCBA built from a 3D-printed PVA dielectric and EGaIn conductors is functionally comparable to a traditional FR-4 board yet fully recyclable: immersion in water dissolves the substrate, the liquid metal reforms into a droplet, and the unsoldered components are recovered intact. Recovery is demonstrated at 98.6–99.4% of the PVA and 97.7–99.0% of the EGaIn across three prototypes, and the recovered PVA was re-extruded into filament and used to print a new functioning board. Electrically, 0.7 mm by 0.7 mm EGaIn-filled traces measured about 0.03 $\Omega$ per 30 mm (versus about 0.02 $\Omega$ for 1 oz copper at the same width), sustained 5 A loads with surface temperatures plateauing near 51 °C, and passed 100 Hz–10 MHz waveforms without visible attenuation. The comparison LCA reports reductions of roughly one order of magnitude in global-warming, resource-depletion, and acidification impacts relative to a CNC-milled FR-4 board, with the explicit caveat that PVA production data were substituted with PVC.

Load-bearing premise

The environmental-impact claim rests on the assumption that polyvinyl chloride (PVC) production data are a fair stand-in for polyvinyl alcohol (PVA) in the life-cycle database; if real PVA production is substantially more polluting than PVC, the reported order-of-magnitude reductions do not follow.

Editorial extensions

If this is right

  • Adopting the workflow means a maker can move from a KiCad layout to a functioning, double-sided circuit on a stock FDM printer, then recover the substrate, conductor, and components by dissolving the board in water.
  • The measured 5 A current capacity and 10 MHz signaling cover a substantial fraction of hobbyist and research prototyping loads, so the method is a practical alternative to FR-4 for that range, not just a material demonstration.
  • Because the substrate is printed rather than laminated, the same pipeline extends to single-piece 3D circuit topologies (the fidget cube) and Joule-heated 4D shape change (the gripper) that flat FR-4 cannot produce.
  • If the LCA survives scrutiny, substituting this process for CNC-milled FR-4 in prototyping cuts global-warming, resource-depletion, and acidification impacts by roughly an order of magnitude per board.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper does not test how PVA filament and EGaIn survive repeated recycling cycles; whether the loop stays circular over several generations, including any buildup of contaminants from recovered components, is an open question the authors leave implicit.
  • Since the plugin handles only flat multi-layer boards, the 3D and 4D examples required manual CAD routing; an automated 3D-routing EDA pass would make those form factors as accessible as the flat ones.
  • The environmental comparison would be more decisive if re-run with a true PVA production inventory, since the PVC proxy is the one unverified input in the LCA.
  • The mechanism is general: any water-soluble thermoplastic substrate paired with a low-melting conductive alloy should reproduce the dissolve-and-recover behavior, so PVA plus EGaIn is one instance of a broader design space the paper does not explore.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. This paper presents DissolvPCB, an end-to-end prototyping workflow for recyclable PCBAs built from FDM-printed PVA substrates with EGaIn-filled channels. The manuscript describes fabrication and water-based recycling, characterizes printable channel dimensions, insulation thickness, DC conductivity/current capacity, and high-frequency waveform delivery, introduces a FreeCAD plugin that converts KiCad PCB files into printable substrate models, conducts a cradle-to-grave LCA comparing a small circuit with a CNC-milled FR-4 counterpart, and demonstrates three prototypes (Bluetooth speaker, fidget device, Joule-heated gripper) with reported material recovery rates. The central claim is that DissolvPCB is the first pipeline for reliable, fully recyclable PCBAs functionally comparable to FR-4 boards.

Significance. The paper's strengths are concrete: working prototypes, an open-source conversion tool, measured recovery percentages, reproducible fabrication parameters, and candid discussion of limitations in Section 8. If the LCA claim is adequately supported, the work would make a meaningful contribution to sustainable making by combining prior materials (PVA, EGaIn) into an integrated and accessible pipeline. The fabrication core is credible, but the environmental-impact headline currently rests on an unvalidated data substitution; the paper also under-reports sample sizes in insulation and high-frequency tests. These issues are fixable with sensitivity analysis and additional quantitative reporting, rather than being fundamental flaws in the fabrication approach.

major comments (4)
  1. [Section 6.1 and Abstract] The LCA substitutes PVC for PVA in ecoinvent v3.10 because PVA is unavailable, and the abstract and Section 6.3 claim reductions in ADP, AP, and GWP by approximately one order of magnitude. PVA and PVC have very different production routes, so the substitution is not validated. Please rerun the LCA with an actual PVA inventory or, at minimum, add a sensitivity analysis that bounds the PVA production and disposal impacts. Without this, the order-of-magnitude environmental claim in the abstract is not established, even though the fabrication-side contributions are credible.
  2. [Section 4.3] The minimum insulation thickness of 0.15 mm is supported only by the statement that no short circuits were observed 'across multiple samples,' without reporting the number of samples, the number of trace pairs tested, or the test conditions. This value feeds the DRC rules in Section 5.1 and underlies the reliability claim in Section 8. Please report the sample size and, ideally, a pass/fail rate or a statistical bound for the insulation tests.
  3. [Section 4.5] The claim that DissolvPCB 'supports high-frequency signal transmission... up to 10 MHz without significant signal loss or distortion' is based on visual comparison of input and output waveforms in Figure 10. No measured insertion loss, amplitude ratio, edge-rate data, or sample count is reported. Please provide quantitative waveform measurements (e.g., output/input amplitude versus frequency, or S-parameter data for representative traces) or weaken the claim to match the qualitative evidence.
  4. [Section 3.2 and Section 7] The manuscript states that recovered electronic components and EGaIn are ready for reuse, and the abstract describes the loop as 'fully recyclable.' However, the only demonstrated downstream use is recovered PVA re-extruded into filament (Section 4, motor driver example). No functional test is reported for reclaimed components or for the electrical conductivity of EGaIn after NaOH deoxidation and reformation. Please add functionality checks, or explicitly limit the recyclability claim to material recovery rather than closed-loop electronic reuse.
minor comments (5)
  1. [Title and Section 4.4] The title and several headers use inconsistent spacing ('PV A'); Section 4.4 contains a typo ('a across-section'). Please correct these and run a spelling pass.
  2. [Section 3.1.3 and Appendix A.1] The EGaIn composition is given as 75.5% gallium and 24.5% indium in Section 3.1.3, but Appendix A.1 states a 3:1 ratio by weight. Please reconcile these values.
  3. [Figure 10] The waveform figures would be easier to interpret with axis labels, an input/output overlay legend, and a printed amplitude difference; the current presentation is purely qualitative.
  4. [Section 6.3] The LCA credits recycling benefits in Figure 12b, but the allocation rule between the current product life and the next use is not documented. Please state the allocation method or explain how benefits are credited.
  5. [Section 8.1] The comparison of 15 mil FR-4 trace width to the 0.7 mm DissolvPCB channel width should be checked, since 15 mil is approximately 0.38 mm, which is not exactly half of 0.7 mm.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the paper's fabrication, characterization, recovery, and software claims are supported by in-paper measurements and disclosed data assumptions, not by self-referential derivation.

full rationale

The paper does not derive any predicted quantity from a fitted parameter. Trace conductivity, current capacity, waveform delivery, recovery rates, and prototype function are direct measurements reported in Sections 4 and 7. The FreeCAD plugin converts KiCad files into 3D models by geometric parsing and Boolean operations (Section 5.2); the output model is a rendering of the input layout subject to stated design rule constraints, not a prediction statistically forced by a fit. The LCA in Section 6.1 uses PVC inventory as a substitute for PVA, and this is disclosed in the text: "Due to the unavailability of PVA in the database, we substituted it with PVC (Polyvinyl Chloride)." This is a data-availability assumption that may affect the magnitude of the environmental comparison, but it is not circular: the DissolvPCB-side inventory is specified independently (Section 6.2), and the comparison is computed with ecoinvent and CML rather than calibrated to the conclusion. Self-citations to prior PCB-recycling work, such as SolderlessPCB and PCB Renewal, are contextual background in Sections 1 and 2 and are not used to justify any load-bearing inference in the present derivation chain. The central claims rest on in-paper experiments and measurements; no fitted input is renamed as a prediction, and no uniqueness result or ansatz is imported via self-citation.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The core fabrication result is measured rather than derived, but the LCA and performance claims depend on several unverified assumptions: PVC as a stand-in for PVA, prior-literature EGaIn resistivity, component survivability after water recycling, and a comparison scenario whose FR-4 end-of-life is not detailed.

free parameters (5)
  • PVA glue formulation ratio = 3:5 PVA pellets to water by weight
    Chosen empirically (Section 3.1.4) to minimize substrate dissolution while providing adhesive strength; not derived from a model.
  • Print speed and retraction distance = 30 mm/s, 10 mm retraction
    Empirically set (Section 3.1.2) to prevent stringing and channel blockage in PVA printing.
  • Minimum printable channel cross-section = 0.7 x 0.7 mm with 0.2 mm nozzle; 0.9 x 0.9 mm with 0.4 mm nozzle
    Determined by EGaIn injection trials (Section 4.2); sets the trace width limit and board footprint.
  • Minimum insulation wall thickness = 0.15 mm in-plane; 0.18 mm vertical
    Minimum values with no observed short circuits in the reported samples (Section 4.3); adopted into DRC rules.
  • NaOH deoxidation concentration = 2 mol/L
    Applied at droplet scale to deoxidize recovered EGaIn (Section 3.2.2); no titration or sensitivity data provided.
assumptions (4)
  • ad hoc to paper ecoinvent v3.10 PVC inventory approximates PVA production and disposal impacts
    Section 6.1 substitutes PVC for PVA because PVA is unavailable in the database; no chemical or energy justification is given.
  • domain assumption EGaIn material properties from prior literature are accurate for the prepared alloy
    Section 4.4 cites Dickey et al. 2008 for EGaIn volume resistivity of 29 microOhm cm instead of measuring the lab-prepared alloy.
  • domain assumption Recovered electronic components remain functional after water immersion, drying, and NaOH exposure
    Section 3.2.2 says components are ready for reuse after drying, but no systematic before/after electrical test is reported.
  • domain assumption The selected LCA scenarios fairly compare DissolvPCB with in-lab recycling to FR-4 with conventional end-of-life
    Section 6.3 attributes most of the impact difference to FR-4 non-recyclability, yet the FR-4 end-of-life details are not described.

how reviews work

0 comments
Cite this review

Pith. "Pith review of DissolvPCB: Fully Recyclable 3D-Printed Electronics with Liquid Metal Conductors and PVA Substrates." pith.science (2026). https://pith.science/paper/WFKBND4G

@misc{pith2026250722193,
  author       = {Pith},
  title        = {Pith review of: DissolvPCB: Fully Recyclable 3D-Printed Electronics with Liquid Metal Conductors and PVA Substrates},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WFKBND4G}},
  note         = {Machine review of arXiv:2507.22193}
}
read the original abstract

We introduce DissolvPCB, an electronic prototyping technique for fabricating fully recyclable printed circuit board assemblies (PCBAs) using affordable FDM 3D printing, with polyvinyl alcohol (PVA) as a water-soluble substrate and eutectic gallium-indium (EGaIn) as the conductive material. When obsolete, the PCBA can be easily recycled by immersing it in water: the PVA dissolves, the EGaIn re-forms into a liquid metal bead, and the electronic components are recovered. These materials can then be reused to fabricate a new PCBA. We present the DissolvPCB workflow, characterize its design parameters, evaluate the performance of circuits produced with it, and quantify its environmental impact through a lifecycle assessment (LCA) comparing it to conventional CNC-milled FR-4 boards. We further develop a software plugin that automatically converts PCB design files into 3D-printable circuit substrate models. To demonstrate the capabilities of DissolvPCB, we fabricate and recycle three functional prototypes: a Bluetooth speaker featuring a double-sided PCB, a finger fidget toy with a 3D circuit topology, and a shape-changing gripper enabled by Joule-heat-driven 4D printing. The paper concludes with a discussion of current technical limitations and opportunities for future directions.

Figures

Figures reproduced from arXiv: 2507.22193 by the authors.

Figure 1
Figure 1. A magnetic field detector circuit made using [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Overview of the magnetic field detector circuit: a) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Fabrication and recycling process of DissolvPCB: a) 3D printing the circuit substrate; b) injecting EGaIn; c) placing components into their corresponding sockets; d) fixing components and sealing the EGaIn channel openings using PVA adhesive; e) completed and functional DissolvPCB circuit; f) the example circuit dissolving in water; g) separated elements after dissolving, including PVA solution, EGaIn, and electroni… view at source ↗
Figures from the paper (13 more)
Figure 4
Figure 4. Figure 4: PVA re-extrusion and reuse: a) a shredder used for [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Socket designs for components: a) THT; b) SMD [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Trace dimension experiment sample and its internal [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 9
Figure 9. Figure 9: Trace conductivity and current capacity test sample: [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 8
Figure 8. Figure 8: Trace Z-direction insulation test sample, with an [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 10
Figure 10. Figure 10: Waveform delivery test sample: a) test setup con [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
Figure 11
Figure 11. Figure 11: Screenshots of the FreeCAD plugin generating a [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 12
Figure 12. Figure 12: Life cycle assessment: a) life cycle system inven [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
Figure 13
Figure 13. Figure 13: Bluetooth Speaker: a) KiCad design of the speaker [PITH_FULL_IMAGE:figures/full_fig_p011_13.png]
Figure 14

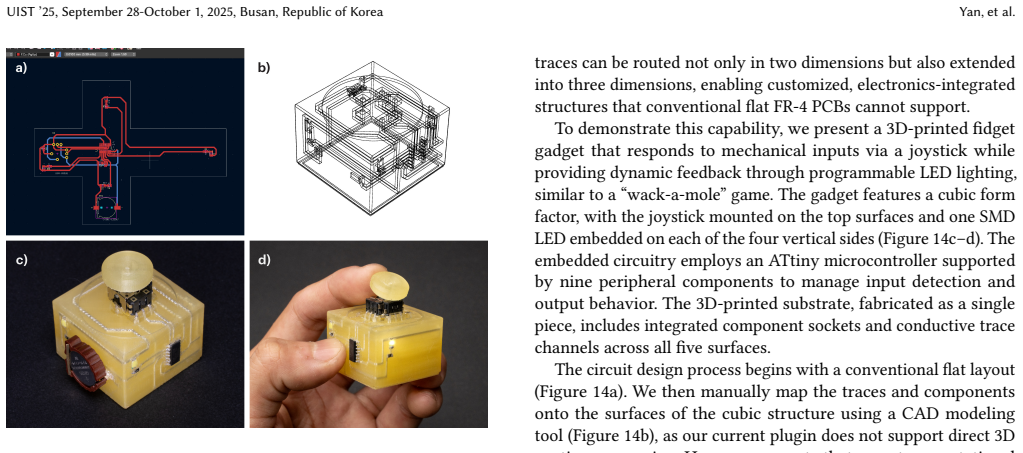

Figure 14. Figure 14: Electronic Fidget: a) the KiCad PCB design used [PITH_FULL_IMAGE:figures/full_fig_p012_14.png]
Figure 15
Figure 15. Figure 15: Three-finger gripper: a) gripper design with ex [PITH_FULL_IMAGE:figures/full_fig_p012_15.png]
Figure 16
Figure 16. Figure 16: Recommended equipment and preparation of [PITH_FULL_IMAGE:figures/full_fig_p016_16.png]
Figure 17
Figure 17. Figure 17: Processing PVA solution: a) filtering the recov [PITH_FULL_IMAGE:figures/full_fig_p017_17.png]
