From EMR Data to Clinical Insight: An LLM-Driven Framework for Automated Pre-Consultation Questionnaire Generation

T0 review · 5 major / 7 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A three-stage LLM pipeline, built from atomic assertions and causal networks, turns EMRs into pre-consultation questionnaires that capture more key facts than direct LLM prompting, with disease-level coverage close to manual expert writing.

desk verdict Solid pipeline, circular evaluation: the coverage metric measures prompt compliance, not clinical completeness, so the paper needs major revision before its claims hold. read the letter →

arxiv 2508.00581 v1 pith:5HPVTDAQ submitted 2025-08-01 cs.AI

Ruiqing Ding , Qianfang Sun , Yongkang Leng , Hui Yin , Xiaojian Li This is my paper · ORCID
classification cs.AI
keywords LargeLanguageModelElectronicMedicalRecordPre-consultationQuestionnaireGenerationAtomicAssertionExtractionCausalNetworkClinicalKnowledgeRepresentationLLMmulti-stageframework
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that the right way to turn an unstructured electronic medical record into a pre-consultation questionnaire is not to ask a large language model to do it in one pass, but to run it through three explicit stages: split the record into atomic assertions (single medical facts each with a relative time), wire those assertions into a personal causal network, and only then generate questions from that structure. The claimed payoff is that the questionnaire covers the facts that matter, follows a logical order, and can be tailored to one patient or generalized to a disease. On a real 3,000-record hospital corpus, the authors report that personal questionnaires cover 84.2% of key facts versus 42.1% for direct LLM prompting, and that disease-specific questionnaires approach manual expert coverage (92.2% versus 90.8%) while cutting generation time from about 34 minutes to about 10 minutes. The underlying bet is that explicit, intermediate clinical knowledge, not raw prompt engineering, is what direct LLM approaches lack for this task.

What carries the argument

The load-bearing object is the atomic assertion, a single indivisible medical fact paired with a relative time, produced by a prompted LLM. It is the unit that makes coverage measurable and causal structure possible. On top of it, the paper builds personal causal networks whose edges are cause–effect links between assertions; edge embeddings are computed by concatenating vectors from BCEmbedding, a bilingual embedding model, for the cause and effect assertions, network similarity is the average cosine similarity over all edge pairs, and hierarchical clustering with average linkage groups networks into typical disease pathways. Each cluster is represented by its most central network, and the cluster's size gives the pathway's weight. The final generation prompt is explicitly required to cover every atomic assertion, which is how the questionnaire inherits the completeness of the earlier stages.

What would settle it

Take 50 EMRs from the same hospital, ask two independent clinicians to list every key fact without seeing the model output, run Stage 1 on the same records, and recompute the questionnaire's coverage against the clinicians' list instead of the model's own assertions; if that independently measured coverage falls well below the reported 84.2% and 92.2%, the central completeness claim fails.

Watch

Extended reading notes

Core claim

The central claim is that a questionnaire is only as good as the structure built between the raw record and the final text. The framework therefore decomposes the task into three stages: Stage 1 has an LLM extract atomic assertions, defined as the smallest indivisible medical fact with its relative time; Stage 2 builds a personal causal network for each patient, then clusters those networks per disease (grouped by ICD-10) into representative causal structures weighted by prevalence; Stage 3 prompts the LLM to turn the assertions and networks into personal and disease-specific questionnaires, with instructions to cover every assertion and to order questions along the causal structure. The authors argue that this structured pipeline solves the failure modes of direct generation—missed facts, broken logical order, and the inability to synthesize a whole corpus into a single disease-level questionnaire—and they support the argument with expert-scored comparisons showing large gains on personal coverage and relevance, and near-parity with manual experts on disease questionnaires at a fraction of the time.

Load-bearing premise

The evaluation assumes that the atomic assertions the LLM extracts in Stage 1 are a complete and correct inventory of the clinically meaningful facts in each EMR, so a questionnaire that covers all of them is judged comprehensive; if extraction silently drops or distorts facts, the reported coverage measures prompt compliance rather than clinical completeness.

Editorial extensions

If this is right

  • Personal pre-consultation questionnaires for follow-up visits can be generated automatically from an existing EMR, cutting the manual chart-review burden that precedes many appointments.
  • Disease-specific questionnaires can be produced for whole EMR corpora within minutes, with questions ordered by how often each clinical pathway occurs in the data.
  • Because coverage is enforced at the assertion level, every question in the final questionnaire can be traced back to a specific extracted fact or causal edge, which makes the output auditable by clinicians.
  • The large gap between the framework and direct LLM prompting (84.2% versus 42.1% personal coverage) implies that decomposing the task into explicit structures, rather than relying on larger context windows or better prompts alone, is what drives completeness on long, multi-condition records.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An independent clinician re-extraction of key facts from a sample of the same EMRs would test whether the reported coverage reflects true clinical completeness or only how faithfully the LLM's own extracted assertions are restated as questions.
  • Because the clustering and generation stages are disease-agnostic, the pipeline should transfer to other specialties and languages wherever a bilingual embedding model and an ICD-10-style grouping are available; the paper only demonstrates it on the Shanghai hospital corpus.
  • The Stage 1 extractor is effectively a plug-in: swapping the chosen LLM for a cheaper or stronger model would change all downstream results, so the framework's gains are a property of the architecture and the model together, not of the architecture alone.
  • The slightly lower diagnostic relevance and understandability scores for disease questionnaires (9.2 and 9.1 versus 9.5 for manual generation) suggest that coverage and clinical sharpness can diverge when the model is instructed to restate every assertion; weighting assertions by clinical importance before generation could close that gap.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 7 minor

Summary. The paper proposes a three-stage LLM-driven framework for generating pre-consultation questionnaires from electronic medical records: Stage 1 extracts atomic assertions from a single EMR, Stage 2 constructs personal causal networks and clusters them to synthesize disease-level knowledge, and Stage 3 generates personal and disease-specific questionnaires from these structured representations. The authors evaluate on 3,000 real-world EMRs, comparing against direct LLM prompting (for personal questionnaires) and manual expert generation (for disease-specific questionnaires). Reported metrics are key-fact coverage, diagnostic relevance, understandability, and generation time. The headline claim is that the framework achieves superior performance on all four metrics. The core finding, however, is that the key-fact coverage metric is defined so that the Stage 3 prompt explicitly requires covering the same atomic assertions that define the metric, making the reported coverage advantage a prompt-compliance score rather than an independent measure of clinical completeness. Expert-rated relevance and understandability are reported as point means without statistical support, and the generation-time comparison is incomplete. The underlying architecture is interesting, but the current evidence does not substantiate the stated claims.

Significance. The problem of automating pre-consultation questionnaire generation from complex EMRs is timely and practically important. The proposed structured multi-stage design, with atomic assertions and causal networks as intermediate representations, is a reasonable and potentially valuable contribution to clinical NLP. The collected dataset of 3,000 EMRs, if made available, would be a useful resource. However, the evaluation design is the key weakness. Because the coverage metric is defined by the same model that generates both the answer key and the questionnaire, the headline coverage results (C_personal 84.2% vs 42.1%, C_disease 92.2% vs 90.8%) do not establish clinical superiority. The expert-rated metrics lack statistical rigor, and the comparisons are asymmetric. If the authors rework the evaluation with an independent gold standard for key facts, statistical testing, and fair baselines, the framework could make a meaningful contribution. As presented, the central claims are not supported.

major comments (5)
  1. [Section 5.2, Figure 5, Figure 3] The key-fact coverage metric is circular. C_personal is defined as the proportion of key facts from the EMR that appear in the questionnaire, and in the implementation those key facts are exactly the atomic assertions extracted by GPT-4o in Stage 1. The Stage 3 prompt (Figure 5) explicitly requires that the questionnaire cover all atomic assertions, with a termination condition to enforce this. Therefore the reported 84.2% vs 42.1% gap measures whether the generator echoes the input fact list, not whether the extracted list is clinically complete. There is no independent verification that Stage 1 extraction is complete or correct. The authors should have clinical experts (not the LLM) independently enumerate the key facts in each EMR and compute coverage against that gold standard, and should also report Stage 1 extraction precision/recall against the same gold standard.
  2. [Sections 5.3 and 5.4] Diagnostic relevance (R) and understandability (U) are reported as point means from a panel of 5 clinical experts, with no confidence intervals, significance tests, or inter-rater reliability statistics. For instance, the claim that R=8.5 is 'markedly superior' to R=3.2 requires a hypothesis test with the actual rating distribution; with only 5 experts, the variance could be large. For disease-specific questionnaires, the paper asserts that R=9.2 and U=9.1 are only 'slightly lower' than the manual baseline (9.5, 9.5), but this is not tested statistically. Please report per-questionnaire scores, variance, and agreement metrics such as ICC or Cohen's kappa, and specify the number of questionnaires rated and the rating protocol.
  3. [Section 5.3] The personal-questionnaire comparison is asymmetric. The direct LLM baseline receives only the raw EMR text, whereas the proposed framework receives the extracted atomic assertions as input at Stage 3. Thus the coverage advantage may be due to information being handed to the generator, not to the multi-stage architecture. To isolate the contribution of the causal network and clustering, include a baseline where GPT-4o is given the same atomic assertions but no causal network, and another where it is given the raw text plus an unstructured list of facts. Without such controls, the coverage comparison conflates the value of the structured representation with the value of simply providing the extracted facts.
  4. [Abstract, Sections 5.3 and 5.4] The abstract claims superior generation time, but the paper only reports a generation-time comparison for the disease-specific task (10.4 min vs 33.8 min for manual generation). No generation-time data are given for the personal questionnaire task (our method vs direct LLM). Since the abstract lists generation time as one of the four dimensions of superiority, the omission is load-bearing. Please report wall-clock times for all methods and both tasks, including variance across runs.
  5. [Section 4, Equation (3)] The clustering procedure relies on 'cutting the dendrogram at a fixed cut-off' to obtain the final clusters, but the paper neither reports the cut-off value nor provides a sensitivity analysis. The number of clusters directly determines the set of representative causal networks used for disease-specific questionnaires, so the choice is a free parameter that affects the main results. Please state the value used and test whether the disease-specific R, U, and C_disease are stable to reasonable variations in the cut-off.
minor comments (7)
  1. [Section 4 heading] The heading of Section 4's second stage is misspelled as 'Satge 2' and should read 'Stage 2'.
  2. [Figures 9 and 10] Please add error bars or confidence intervals to the bar charts and state the number of questionnaires and raters involved in each comparison.
  3. [Section 5.2] The definitions of Relevance to Diagnosis (R) and Understandability (U) would benefit from a concrete rubric or evaluation form, ideally provided in an appendix, so that the expert ratings are reproducible.
  4. [References] The reference 'Winston, C., Winston, C., Winston, C., & Winston, C. (2024)' appears to have an erroneous repeated author list; please check the correct citation. This work is also directly relevant to the topic, and the paper's novelty claim should be discussed in light of it.
  5. [Section 2] The literature review on pre-consultation questionnaire generation with LLMs is thin; the 'Winston et al.' work and any other LLM-in-context-learning-based questionnaire generation papers are not discussed, which weakens the novelty argument.
  6. [Equation (2)] The graph similarity as the average cosine similarity over all edge pairs can be dominated by nodes with many edges; consider a matching-based or degree-normalized similarity measure, or at least report the distribution of edge counts.
  7. [Section 5.1] The demonstration example states that the sample EMR contains '38 key clinical facts' and that the proposed method covers 32 of them, but does not specify who identified the 38 facts or how they were counted; please clarify the source of this reference count.

Circularity Check

1 steps flagged · score 6.0 of 10

Personal key-fact coverage is largely a prompt-compliance score: Stage 1 defines the fact list and Stage 3 is required to cover it, so the headline personal-coverage advantage is built into the protocol.

  1. self definitional [Section 5.2 Evaluation Metrics; Stage 3 prompt in Figure 5; RQ2 example in Section 5.3]
    "Stage 1 extracts a set of discrete atomic assertions, representing the key medical facts. ... Personal Key Fact Coverage (C_personal): Calculated for questionnaires generated from individual EMRs, measuring the proportion of key facts present in the single patient’s EMR that appear in the generated personal questionnaire. ... The generated questions must cover the content of all atomic assertions at a minimum. ... Termination Condition: Confirm that all atomic assertions appear in the questionnaire."

    In the framework as described, the 'key facts' counted by C_personal are the atomic assertions extracted by GPT-4o in Stage 1. Stage 3 receives those same atomic assertions as input, and the Figure 5 prompt explicitly requires that all atomic assertions be covered, with a termination condition that checks they all appear. Thus C_personal measures whether the generator echoes the fact list it was handed, not whether clinically complete information from the EMR was independently captured. The direct-LLM baseline is not given this fact list, so the reported 84.2% vs 42.1% gap largely follows from prompt design.

full rationale

The main circularity is confined to the personal-questionnaire coverage comparison, which is the strongest quantitative support for the abstract’s 'superior performance in information coverage' claim. As implemented, C_personal is self-referential: the denominator is the set of Stage 1 atomic assertions, and the Stage 3 prompt requires the questionnaire to contain all of them, with a termination condition enforcing that requirement. The direct-LLM baseline is not given this extracted assertion list, so the comparison measures instruction following plus the benefit of receiving a pre-extracted fact list, rather than independent clinical completeness. The paper’s own limitation statement admits dependence on LLM capabilities, and no clinician verification of Stage 1 extraction completeness is reported. The disease-specific coverage result (92.2% vs 90.8%) is much closer and is not forced in the same way, because the disease questionnaire is generated from representative clustered networks rather than from the entire corpus fact list; I therefore do not count it as a separate circular step. The expert-rated relevance and understandability scores are point estimates without variance or significance testing, but that is a statistical reporting weakness rather than circularity. No load-bearing self-citation, imported uniqueness theorem, or ansatz-smuggling-by-citation was found; the framework’s causal-network clustering and disease-questionnaire components retain independent content. Overall score 6: one of the headline 'predictions' (personal key-fact coverage) reduces by construction, while other parts of the paper are not circular.

Assumptions & free parameters 1 free parameters · 5 assumptions · 0 invented entities

The framework rests mainly on domain assumptions about LLM extraction accuracy, causal edge validity, embedding-based similarity, and expert scoring validity. The only explicit hand-chosen numeric parameter is the dendrogram cut-off, whose value is undisclosed. No new physical or theoretical entities are introduced.

free parameters (1)
  • Dendrogram cut-off for hierarchical clustering = Not reported
    The number of disease clusters and the representative networks depend on where the dendrogram is cut in Stage 2. This value is chosen by hand and is not stated, yet it directly affects the disease-specific questionnaires.
assumptions (5)
  • domain assumption GPT-4o atomic assertion extraction is complete and accurate.
    The coverage metric treats extracted atomic assertions as ground-truth key facts. The paper does not manually verify extraction completeness or correctness.
  • domain assumption LLM-extracted causal edges reflect true clinical causality.
    Personal causal networks are built by prompting the LLM, and no clinical validation of these networks is reported. Clustering and questionnaire ordering rely on them.
  • domain assumption Concatenated BCEmbedding vectors with cosine similarity capture clinically meaningful network similarity.
    Equations (1) and (2) define the similarity measure, but there is no validation that this corresponds to clinical pathway similarity.
  • domain assumption The five-expert ratings on 0 to 10 scales are reliable and unbiased.
    No inter-rater reliability, blinding, or statistical testing is reported, and the experts who write manual baselines may also be the evaluators.
  • standard math Standard hierarchical clustering and cosine similarity mathematics are valid.
    Used in Equations (1) to (6); these are well-established mathematical tools.

how reviews work

0 comments
Cite this review

Pith. "Pith review of From EMR Data to Clinical Insight: An LLM-Driven Framework for Automated Pre-Consultation Questionnaire Generation." pith.science (2026). https://pith.science/paper/5HPVTDAQ

@misc{pith2026250800581,
  author       = {Pith},
  title        = {Pith review of: From EMR Data to Clinical Insight: An LLM-Driven Framework for Automated Pre-Consultation Questionnaire Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5HPVTDAQ}},
  note         = {Machine review of arXiv:2508.00581}
}
read the original abstract

Pre-consultation is a critical component of effective healthcare delivery. However, generating comprehensive pre-consultation questionnaires from complex, voluminous Electronic Medical Records (EMRs) is a challenging task. Direct Large Language Model (LLM) approaches face difficulties in this task, particularly regarding information completeness, logical order, and disease-level synthesis. To address this issue, we propose a novel multi-stage LLM-driven framework: Stage 1 extracts atomic assertions (key facts with timing) from EMRs; Stage 2 constructs personal causal networks and synthesizes disease knowledge by clustering representative networks from an EMR corpus; Stage 3 generates tailored personal and standardized disease-specific questionnaires based on these structured representations. This framework overcomes limitations of direct methods by building explicit clinical knowledge. Evaluated on a real-world EMR dataset and validated by clinical experts, our method demonstrates superior performance in information coverage, diagnostic relevance, understandability, and generation time, highlighting its practical potential to enhance patient information collection.

Figures

Figures reproduced from arXiv: 2508.00581 by the authors.

Figure 1
Figure 1. Typical Patient Journey including the Pre-consultation Stage. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. LLM-Driven Framework for Medical Pre-Consultation Questionnaire Generation [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Prompt Template for Atomic Assertion Extraction (left: English, right: Chinese) [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4

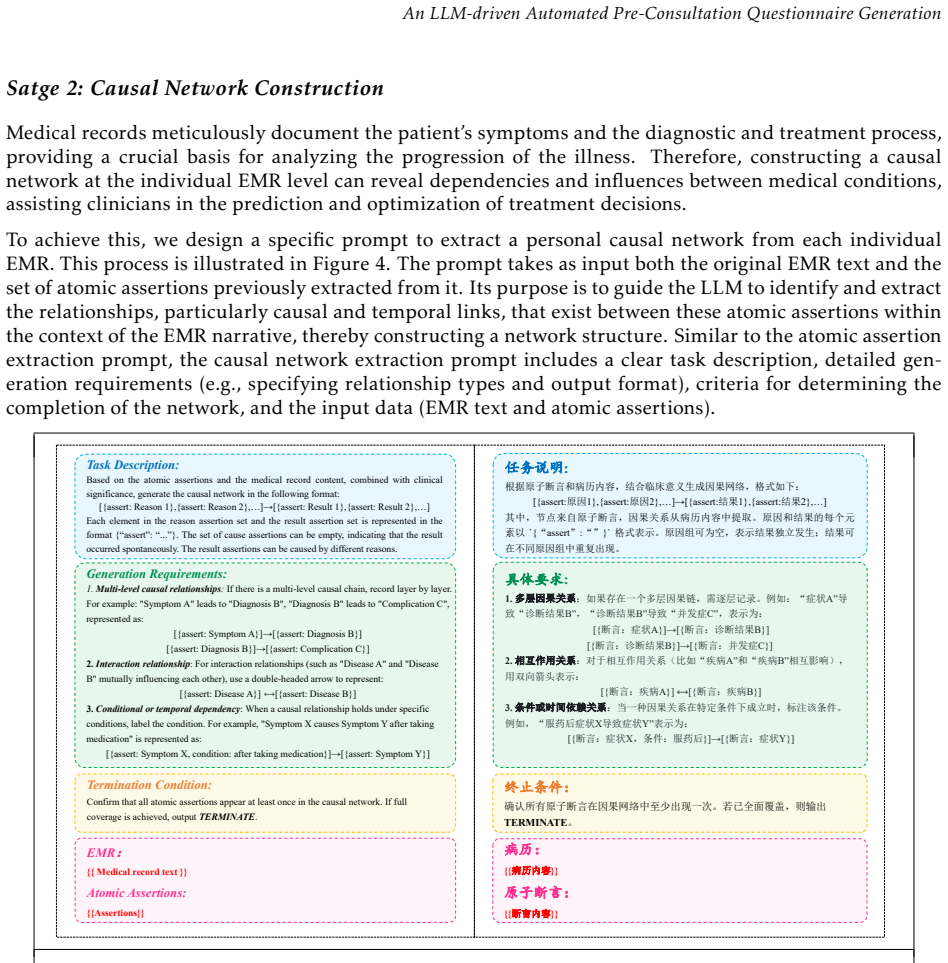

Figure 4. Figure 4: Prompt Template for Causal Network Construction (left: English, right: Chinese) [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Prompt Template for Questionnaire Generation (left: English, right: Chinese) [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
Figure 6
Figure 6. Figure 6: A Portion of the Patient’s EMR (Important medical facts are in red.) [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: Visualization of a Portion of the Personal Causal Network [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8
Figure 8. Figure 8: A Portion of the Generated Personal Questionnaire [PITH_FULL_IMAGE:figures/full_fig_p013_8.png]
Figure 9
Figure 9. Figure 9: Comparison between LLM and Our Method for Personal Questionnaires [PITH_FULL_IMAGE:figures/full_fig_p014_9.png]
Figure 10

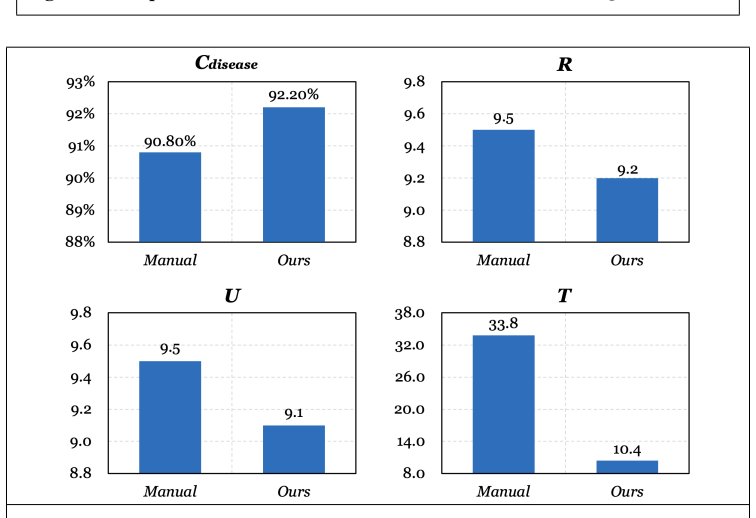

Figure 10. Figure 10: Comparison between Manual and Our Method for Disease Questionnaires [PITH_FULL_IMAGE:figures/full_fig_p014_10.png]
