Efficient Quantum State Preparation with Bucket Brigade QRAM
Pith reviewed 2026-05-18 05:56 UTC · model grok-4.3
The pith
Embedding a segment tree in bucket brigade QRAM encodes an M by N matrix into a quantum state using logarithmic qubits and time.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors demonstrate that their method encodes a matrix A in R^{M x N} in a quantum register of Theta(log2(MN)) qubits in O(log2 squared(MN)) time, requiring a constant number of working qubits under fixed precision and O(MN) memory cells within the BBQRAM architecture, by embedding a segment tree within the BBQRAM memory cells that preserves the tree hierarchy and supports data retrieval in logarithmic time via specialized access primitives.
What carries the argument
A segment-tree embedding inside BBQRAM memory cells that preserves hierarchy and supports logarithmic-time data retrieval via specialized access primitives.
If this is right
- Quantum algorithms can treat data loading as negligible overhead.
- The method provides a foundation for hardware-aware classical-to-quantum encoding algorithms.
- State preparation for matrices now requires only Theta(log(MN)) qubits plus O(MN) memory cells and constant ancillas.
- Applications in machine learning, finance, and chemistry gain a concrete route to efficient data encoding.
Where Pith is reading between the lines
- The layout could be adapted to other QRAM variants or data structures for similar gains.
- Overall complexity of quantum linear systems solvers might drop when data access is no longer the dominant cost.
- Small-scale numerical checks on the segment-tree primitives would directly test the logarithmic scaling before hardware implementation.
- The approach highlights the value of co-designing quantum algorithms with specific QRAM memory organizations.
Load-bearing premise
A memory layout exists that embeds a segment tree within BBQRAM memory cells while preserving the segment tree's hierarchy and supporting data retrieval in logarithmic time via specialized access primitives.
What would settle it
An explicit construction or simulation showing that the specialized access primitives cannot retrieve data in logarithmic time without extra qubits scaling with MN or without exceeding constant working qubits would falsify the claimed efficiency.
Figures
read the original abstract
The preparation of data in quantum states is a critical component in the design of quantum algorithms. The cost of this step can significantly limit the realization of quantum advantage in domains such as machine learning, finance, and chemistry. One of the main approaches to achieve efficient state preparation is through the use of Quantum Random Access Memory (QRAM), a theoretical device for coherent data access with several proposed hardware implementations. In this work, we present a framework that integrates the hardware model of the Bucket Brigade QRAM (BBQRAM) with the classical data structure of the Segment Tree to achieve efficient state preparation. We introduce a memory layout that embeds a segment tree within BBQRAM memory cells by preserving the segment tree's hierarchy and supporting data retrieval in logarithmic time via specialized access primitives. We demonstrate that our method encodes a matrix $A \in \mathbb{R}^{M \times N}$ in a quantum register of $\Theta(\log_2(MN))$ qubits in $\mathcal{O}(\log_2^2(MN))$ time, {requiring a constant number of working qubits (under fixed precision) and $\mathcal{O}(MN)$ memory cells within the BBQRAM architecture.} We further illustrate the method through a numerical example. This framework provides theoretical support for quantum algorithms that assume negligible data loading overhead and establishes a foundation for designing classical-to-quantum encoding algorithms that are aware of the underlying hardware QRAM architecture.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes integrating the Bucket Brigade QRAM (BBQRAM) hardware model with the classical segment tree data structure to enable efficient quantum state preparation. It introduces a memory layout that embeds a segment tree within BBQRAM cells while preserving hierarchy, and claims that this encodes a matrix A ∈ R^{M×N} into a quantum register of Θ(log₂(MN)) qubits in O(log₂²(MN)) time using a constant number of working qubits (under fixed precision) and O(MN) memory cells, with specialized access primitives supporting logarithmic retrieval. A numerical example is provided to illustrate the approach.
Significance. If the central claims hold, the work would supply a hardware-aware encoding scheme that makes data-loading overhead negligible for quantum algorithms in machine learning, finance, and chemistry, thereby strengthening the practical viability of algorithms that assume efficient QRAM access. The explicit use of segment trees to exploit BBQRAM's binary-tree routing is a concrete step toward architecture-aware quantum data structures.
major comments (2)
- [Abstract (memory-layout paragraph) and the section describing the proposed embedding] The O(log₂²(MN)) runtime bound and the assertion of constant working qubits rest on the existence of a memory layout that embeds the segment tree hierarchy into BBQRAM cells without introducing extra routing depth or auxiliary-qubit overhead per access. The manuscript states that the layout “preserves the segment tree’s hierarchy” and supports “data retrieval in logarithmic time via specialized access primitives,” but supplies neither an explicit node-to-cell mapping nor a gate-count or query-complexity analysis of those primitives. If the primitives are realized by repeated BBQRAM queries whose depth scales with tree height, the total cost would exceed the claimed bound.
- [Abstract and Complexity Analysis section] No derivation, proof sketch, or explicit resource accounting is given for the transition from the segment-tree layout to the final O(log₂²(MN)) gate or query complexity. The abstract simply asserts the result after describing the layout; without this missing step the central complexity claim cannot be verified from the supplied material.
minor comments (2)
- [Numerical Example] The numerical example would benefit from an explicit table or diagram showing the address-qubit routing and the sequence of specialized primitives for a small matrix, to make the logarithmic retrieval concrete.
- [Resource-count paragraph] Notation for the working-qubit count under “fixed precision” should be clarified; it is stated as constant but the dependence on bit precision or matrix dimension is not quantified.
Simulated Author's Rebuttal
We thank the referee for the careful review and constructive comments on our manuscript. We address each major comment below, clarifying the existing content and indicating where revisions will strengthen the presentation.
read point-by-point responses
-
Referee: [Abstract (memory-layout paragraph) and the section describing the proposed embedding] The O(log₂²(MN)) runtime bound and the assertion of constant working qubits rest on the existence of a memory layout that embeds the segment tree hierarchy into BBQRAM cells without introducing extra routing depth or auxiliary-qubit overhead per access. The manuscript states that the layout “preserves the segment tree’s hierarchy” and supports “data retrieval in logarithmic time via specialized access primitives,” but supplies neither an explicit node-to-cell mapping nor a gate-count or query-complexity analysis of those primitives. If the primitives are realized by repeated BBQRAM queries whose depth scales with tree height, the total cost would exceed the claimed bound.
Authors: We acknowledge that the manuscript currently presents the memory layout at a conceptual level without an explicit node-to-cell mapping or a full gate-count breakdown of the access primitives. In the revised manuscript we will add a new subsection that defines the precise mapping of segment-tree nodes onto BBQRAM cells, showing that parent-child relationships are realized by adjacent cells in the bucket-brigade routing tree. This mapping ensures that each specialized primitive is implemented by a single O(log(MN))-depth BBQRAM traversal rather than repeated independent queries. We will also supply an explicit resource count demonstrating that the constant-ancilla claim holds under fixed-precision arithmetic and that no additional routing depth is incurred beyond the logarithmic factor already accounted for in the O(log²(MN)) bound. revision: yes
-
Referee: [Abstract and Complexity Analysis section] No derivation, proof sketch, or explicit resource accounting is given for the transition from the segment-tree layout to the final O(log₂²(MN)) gate or query complexity. The abstract simply asserts the result after describing the layout; without this missing step the central complexity claim cannot be verified from the supplied material.
Authors: We agree that a self-contained derivation is required for independent verification. The revised Complexity Analysis section will contain a step-by-step accounting: (1) the segment-tree embedding permits each matrix-element retrieval to be performed with O(log(MN)) BBQRAM queries of depth O(log(MN)); (2) state preparation iterates over O(log(MN)) such retrievals while maintaining a constant number of working qubits; (3) the overall gate complexity is therefore O(log²(MN)). A short proof sketch will be included that bounds the ancilla overhead and confirms the claimed scaling under the fixed-precision model stated in the abstract. revision: yes
Circularity Check
No circularity in derivation chain
full rationale
The paper proposes a new memory layout embedding a segment tree into BBQRAM cells while preserving hierarchy, then states that the O(log²(MN)) encoding time and Θ(log₂(MN)) qubit count follow from this layout plus specialized logarithmic retrieval primitives. No equations, fitted parameters, or self-citations are exhibited that reduce the runtime bound to an input by construction. The central claim is presented as a direct consequence of the introduced framework and is therefore self-contained.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Segment tree hierarchy can be preserved inside BBQRAM memory cells while supporting logarithmic-time retrieval via specialized access primitives.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinctionreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

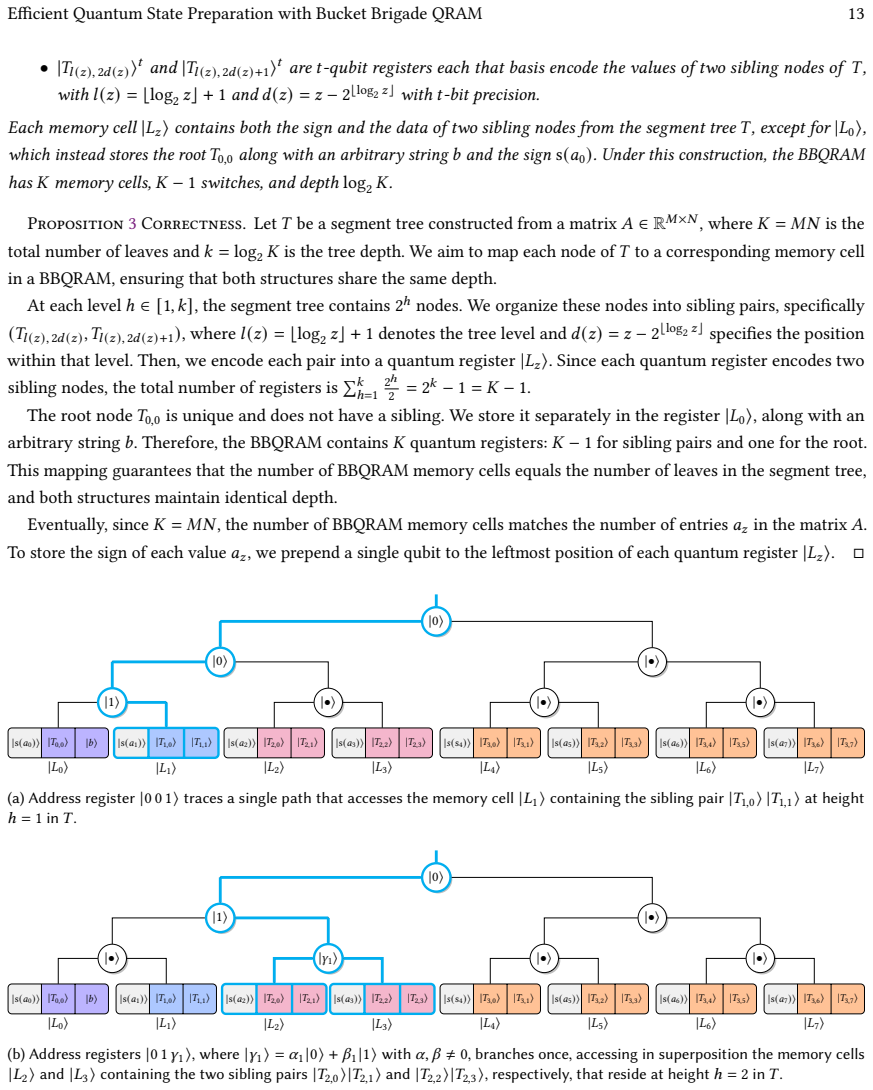

We introduce a memory layout that embeds a segment tree within BBQRAM memory cells by preserving the segment tree's hierarchy and supporting data retrieval in logarithmic time via specialized access primitives. We demonstrate that our method encodes a matrix A ∈ R^{M × N} in a quantum register of Θ(log₂(MN)) qubits in O(log₂²(MN)) time...
-
IndisputableMonolith/Cost/FunctionalEquationwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
the Bucket Brigade QRAM (BBQRAM) architecture with the classical data structure of the Segment Tree
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Forward citations
Cited by 1 Pith paper
-
Efficient Complex-Valued State Preparation on Bucket Brigade QRAM
Precomputes rotation angles classically and adds a magnitude-then-phase procedure to enable complex-valued state preparation on BBQRAM at unchanged O(log²(MN)) query cost with no reversible arithmetic on the QPU.
