Two-Stage Signal Reconstruction for Amplitude-Phase-Time Block Modulation-based Communications

Meidong Xia , Min Fan , Wei Xu , Haiming Wang , Xiaohu You This is my paper

Pith reviewed 2026-05-16 20:57 UTC · model grok-4.3

classification 📡 eess.SP
keywords APTBMsignal reconstructionpower amplifier efficiencynonlinear distortioninput back-offtwo-stage algorithmclosed-form solution
0
0 comments X

The pith

A two-stage reconstruction algorithm for amplitude-phase-time block modulation allows power amplifiers to operate at 5 dB lower input back-off in simulations and 2 dB lower in experiments without signal degradation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Power amplifiers waste less energy when run closer to saturation, but the resulting nonlinear distortion corrupts transmitted signals. Amplitude-phase-time block modulation supplies built-in amplitude and phase constraints per block that can guide reconstruction to undo this distortion. Prior methods applied the constraints only heuristically, so the paper decomposes distortion into a dominant term removed by joint use of block structure and amplifier characteristics, followed by a residual term solved exactly. The fine stage formulates the residual minimization as a nonconvex problem whose closed-form solution respects the explicit modulation constraints. Simulations and hardware tests confirm the method delivers the stated extra back-off reduction and corresponding efficiency gains while transmission quality remains intact.

Core claim

The paper decomposes PA-induced nonlinear distortion into dominant and residual components. The coarse stage removes the dominant part by jointly exploiting APTBM block structure and PA nonlinear characteristics. The fine stage then casts residual minimization as a nonconvex optimization subject to explicit APTBM constraints and derives a closed-form solution for it. This two-stage process achieves additional IBO reductions of approximately 5 dB in simulations and 2 dB in experiments over baseline reconstruction methods, producing relative PA efficiency improvements of 77.8 percent and 30.9 percent without compromising transmission quality.

What carries the argument

Two-stage signal reconstruction that first eliminates dominant distortion via joint APTBM block and PA characteristic exploitation, then minimizes residual distortion through a derived closed-form solution to the constrained nonconvex optimization.

If this is right

  • Transmitters can run power amplifiers at lower input back-off while preserving the same signal quality, directly raising efficiency.
  • The closed-form fine-stage solution removes the need for iterative solvers inside each APTBM block, lowering computational cost at the receiver.
  • The decomposition approach generalizes the use of modulation-specific constraints to counteract amplifier nonlinearity beyond heuristic statistical methods.
  • Measured efficiency gains of 30.9 percent in hardware imply reduced heat dissipation and extended battery life in portable APTBM devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the dominant-residual split holds for other amplifier models, the same two-stage structure could be reused across different hardware without redesigning the fine-stage solver.
  • The explicit constraint formulation may allow the method to be combined with forward error correction that also respects block-level amplitude and phase rules.
  • In systems where multiple APTBM blocks share the same amplifier, the coarse stage could be extended to exploit cross-block correlation for further distortion reduction.

Load-bearing premise

The nonlinear distortion can be cleanly split into a dominant component handled by coarse joint exploitation and a residual component that admits a reliable closed-form solution under the APTBM amplitude and phase constraints.

What would settle it

A side-by-side testbed run in which the two-stage method produces no additional IBO reduction beyond baselines or shows increased bit-error rate or error-vector magnitude at the claimed lower back-off levels.

Figures

Figures reproduced from arXiv: 2512.18326 by Haiming Wang, Meidong Xia, Min Fan, Wei Xu, Xiaohu You.

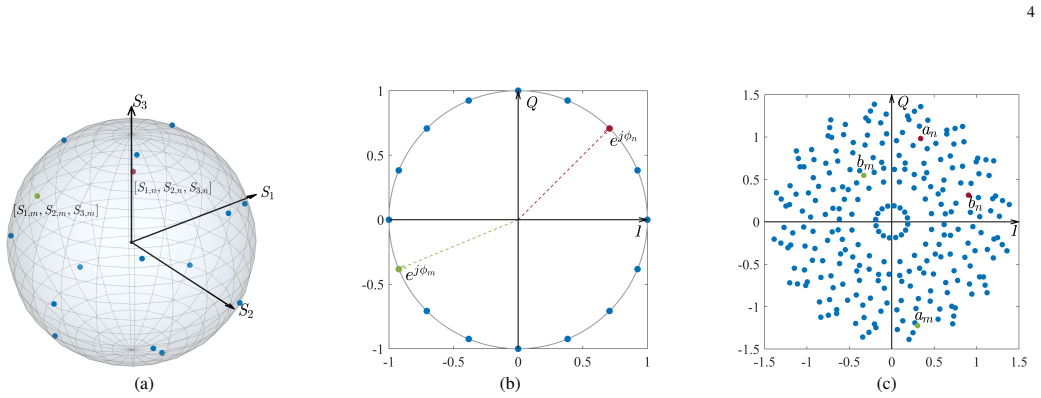

Figure 1
Figure 1. Figure 1: Constellation representation of APTBM blocks. (a) Spherical surface alphabet [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

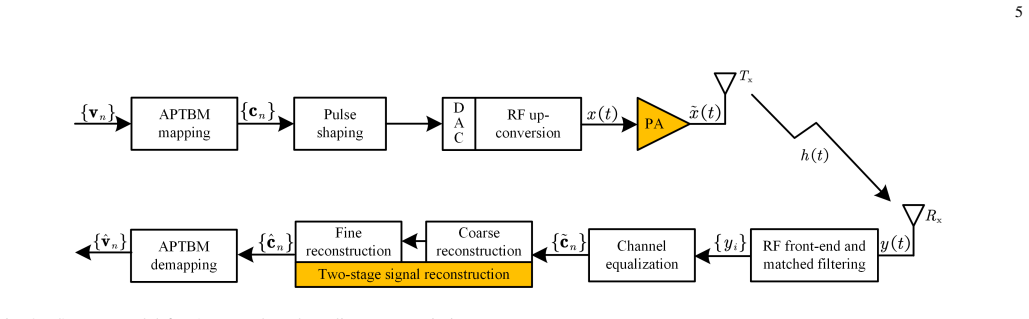

Figure 2. Figure 2: System model for APTBM-based nonlinear transmissions. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

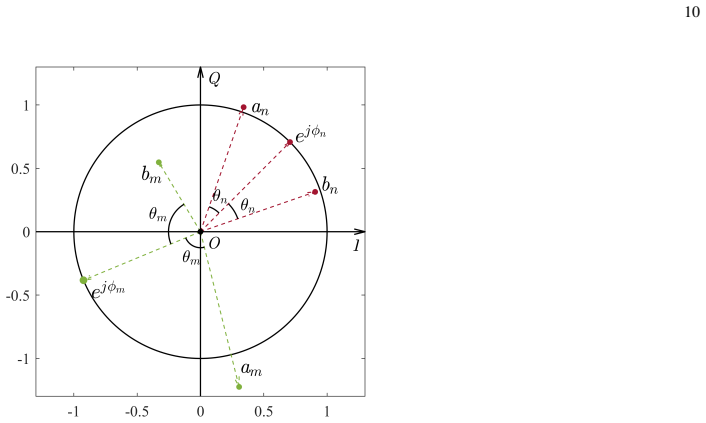

Figure 3. Figure 3: Geometric interpretation of the phase constraint in (3b) [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗

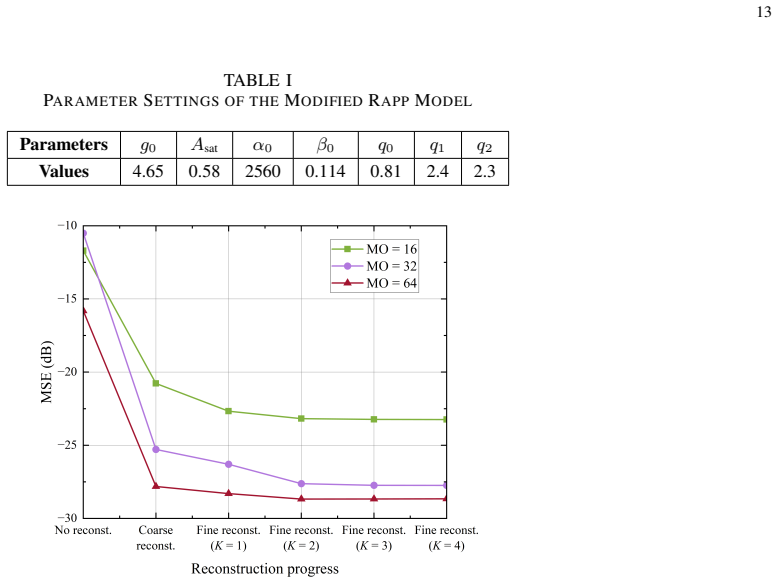

Figure 4
Figure 4. Figure 4: Convergence behavior of the proposed algorithm. [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

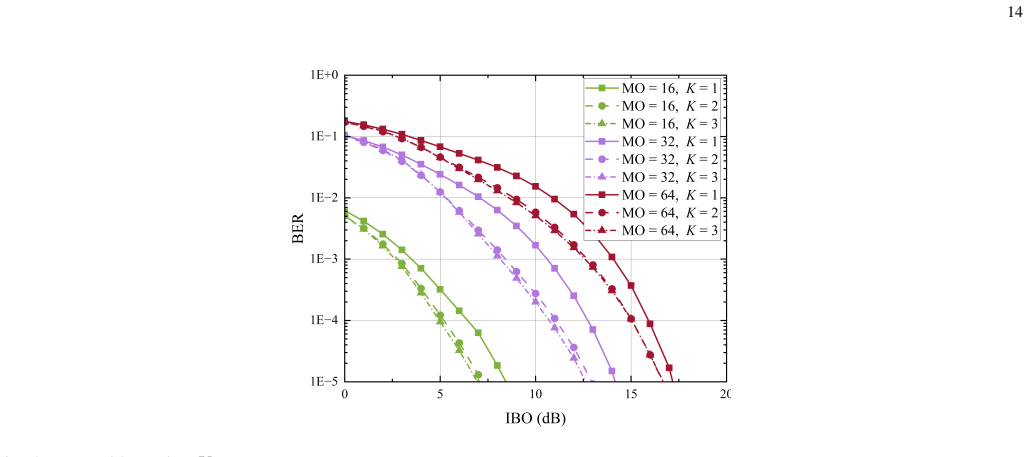

Figure 5. Figure 5: BER with varying K [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗

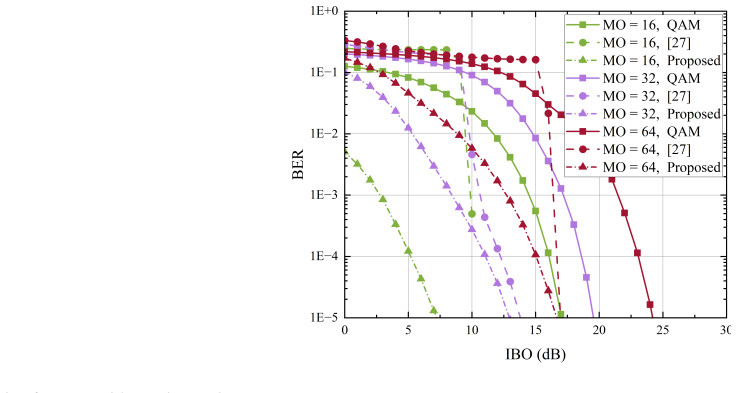

Figure 6
Figure 6. Figure 6: BER with varying IBO. the proposed algorithm consistently outperforms both the baseline and conventional QAM schemes. At a target BER of 10−4 with MO 64, the baseline achieves approximately a 6 dB IBO reduction compared to QAM, while the proposed algorithm further lowers the IBO by about 2 dB relative to the baseline, corresponding to a 33.6% improvement in PAE. For a more relaxed BER target of 10−3 , repr… view at source ↗
Figure 7

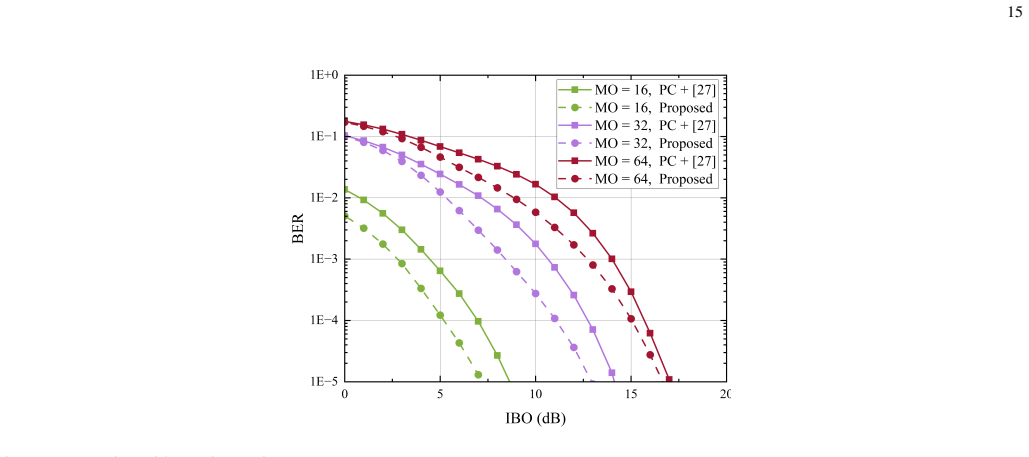

Figure 7. Figure 7: BER gains with varying IBO [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8

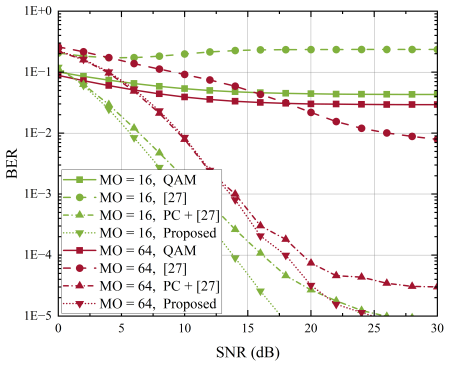

Figure 8. Figure 8: BER comparisons with varying SNR. to 8 dB for MO 16 and 16 dB for MO 64. It can be observed that both conventional QAM and the baseline algorithm fail to achieve satisfactory performance, whereas the proposed algorithm and the PC￾enhanced baseline algorithm maintain reliable communication, achieving BERs as low as 10−4 . Notably, the proposed algorithm consistently outperforms the PC-enhanced baseline algo… view at source ↗

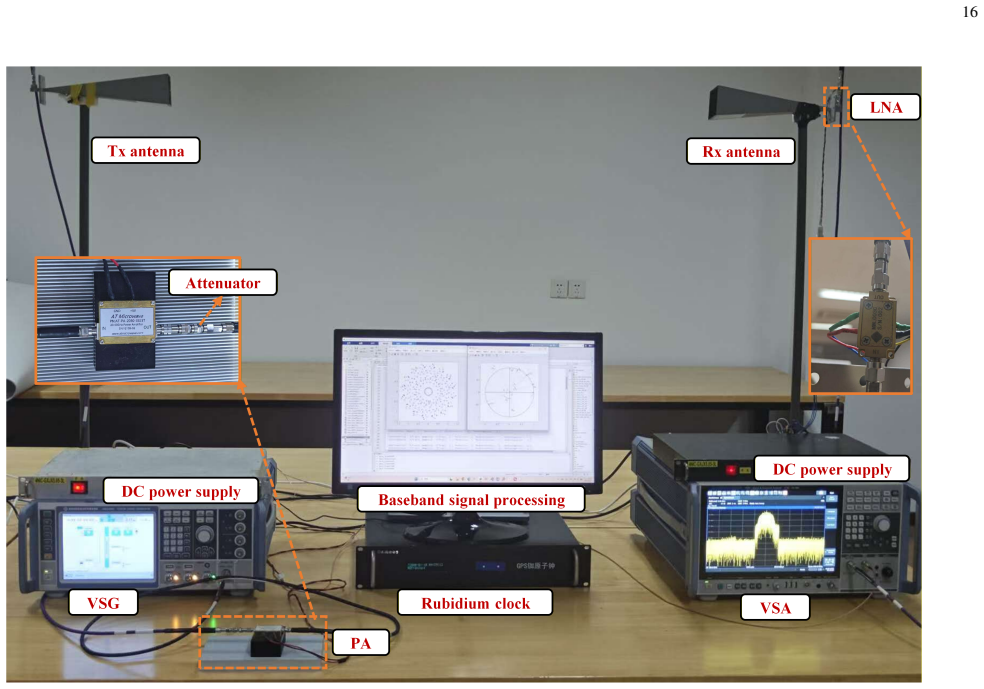

Figure 9
Figure 9. Figure 9: The used experimental platform. VSA, ensuring synchronous triggering and carrier synchronization. The LNA amplifies the received signal to enhance the VSA’s reception sensitivity, while the DC power supplies provide the necessary voltages to the PA and LNA. Experiments are carried out in both the sub-6 GHz band (specifically at 5.4 GHz) and the mmWave band (specifically at 38 GHz). Different PAs and antenn… view at source ↗

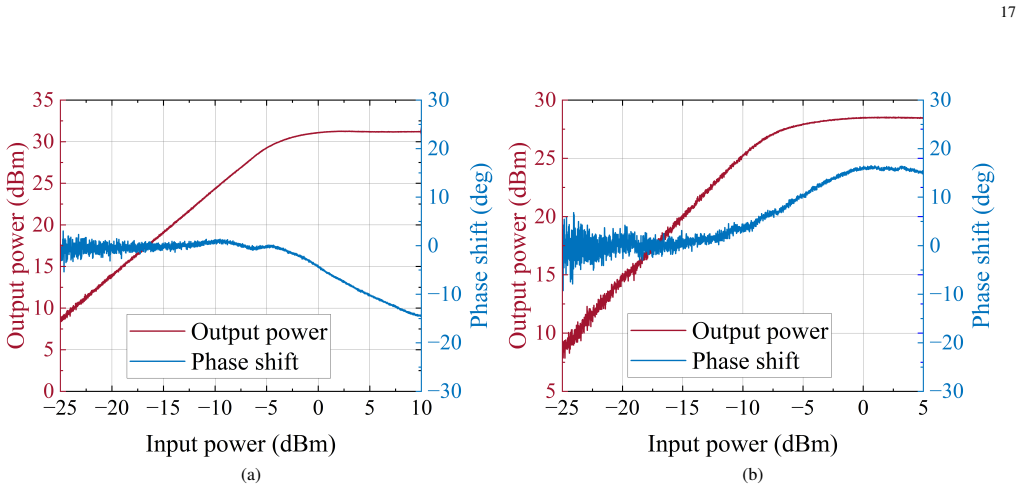

Figure 10
Figure 10. Figure 10: Measured PA characteristics in experiments. (a) 5.4 GHz. (b) 38 GHz. [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11

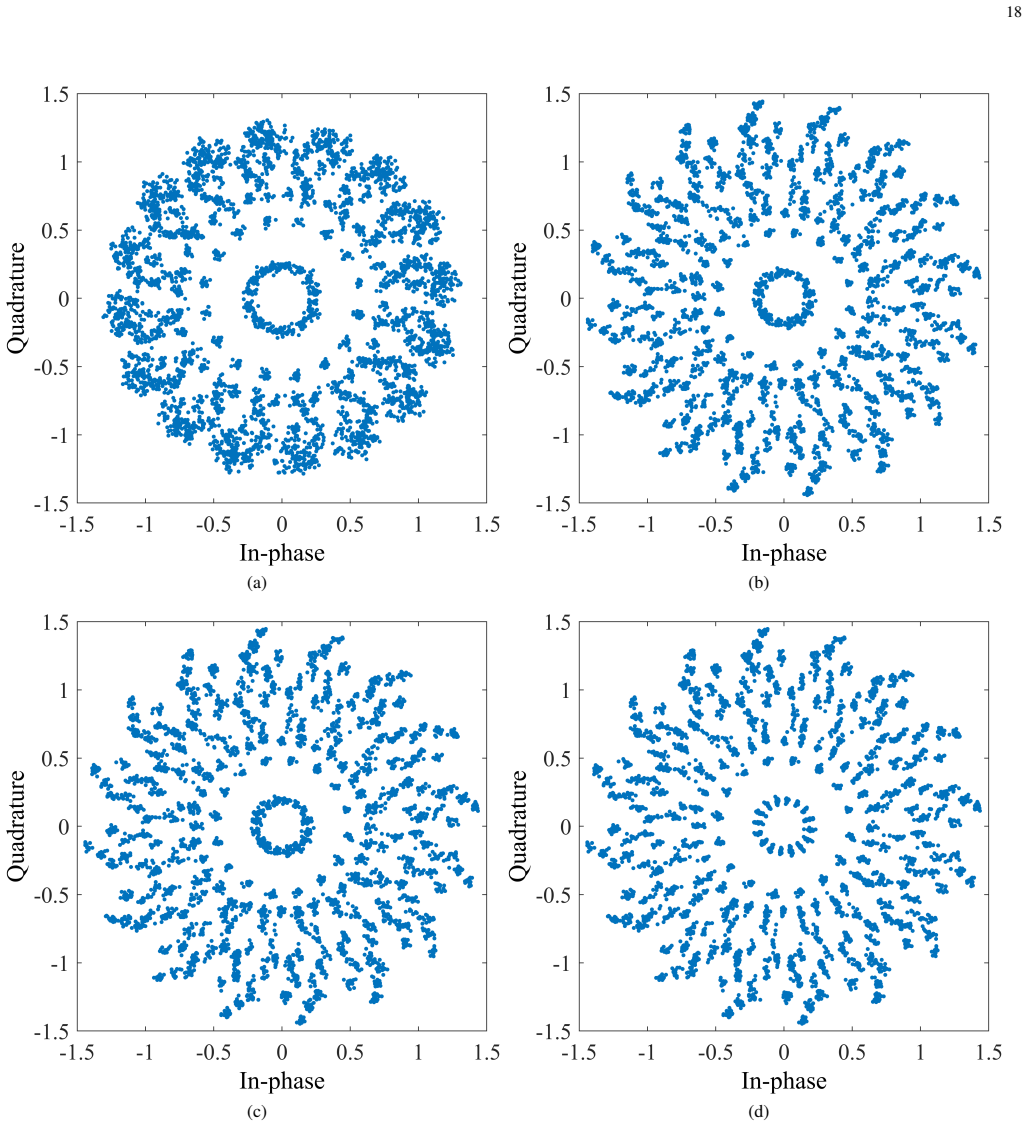

Figure 11. Figure 11: Measured constellations at 5.4 GHz. (a) Without signal reconstruction. (b) With baseline reconstruction. (c) With PC-enhanced [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12

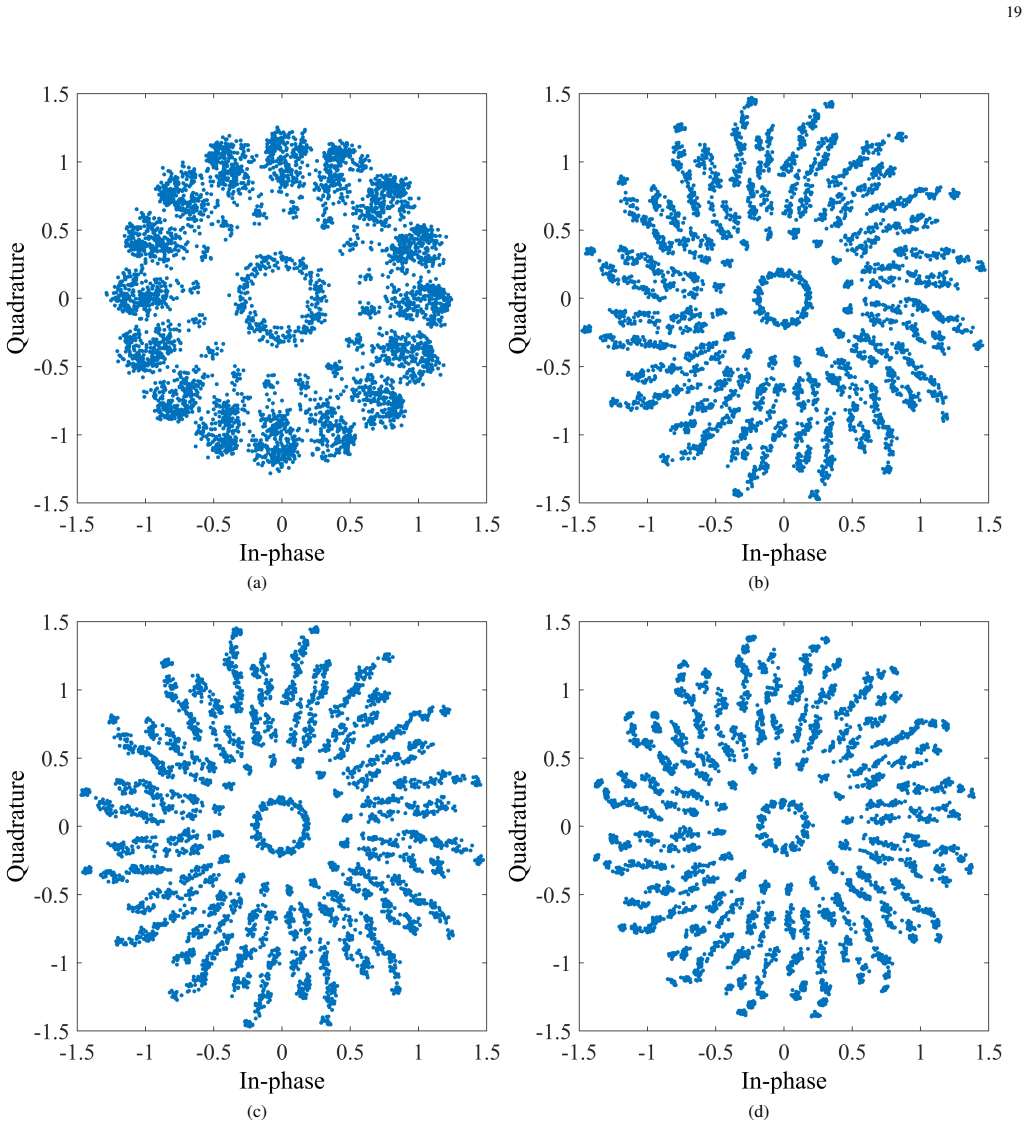

Figure 12. Figure 12: Measured constellations at 38 GHz. (a) Without signal reconstruction. (b) With baseline reconstruction. (c) With PC-enhanced [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗

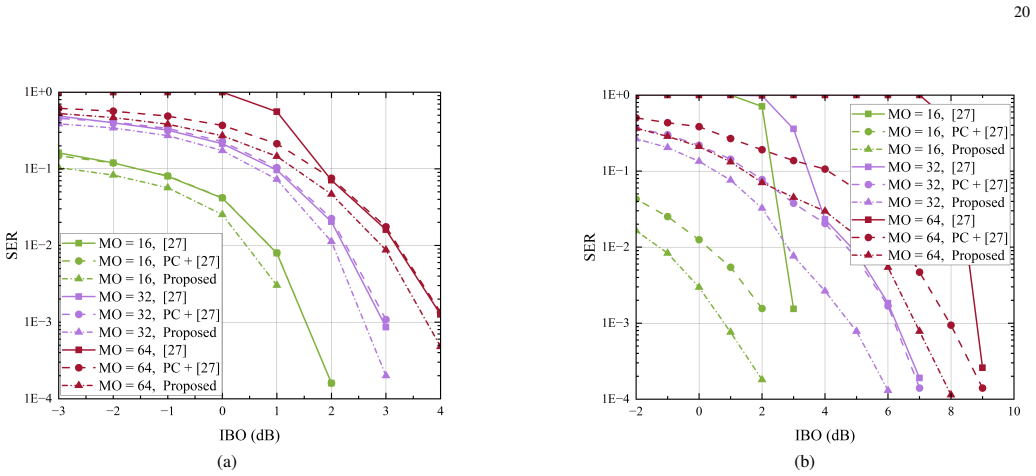

Figure 13
Figure 13. Figure 13: Measured SER in experiments. (a) 5.4 GHz. (b) 38 GHz. [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
read the original abstract

Operating power amplifiers (PAs) at lower input back-off (IBO) levels is an effective way to improve PA efficiency, but often introduces severe nonlinear distortion that degrades transmission performance. Amplitude-phase-time block modulation (APTBM) has recently emerged as an effective solution to this problem. The intrinsic amplitude and phase constraints of each APTBM block can be leveraged to mitigate PA-induced nonlinear distortion via constraint-guided signal reconstruction. However, existing reconstruction methods apply these constraints only heuristically and statistically, limiting the achievable IBO reduction and PA efficiency improvement. This paper addresses this limitation by decomposing the nonlinear distortion into dominant and residual components, and accordingly develops a novel two-stage signal reconstruction algorithm consisting of coarse and fine reconstruction stages. The coarse reconstruction stage eliminates the dominant distortion by jointly exploiting the APTBM block structure and PA nonlinear characteristics. Subsequently, the fine reconstruction stage minimizes the residual distortion by casting it as a nonconvex optimization problem subject to explicit APTBM constraints, for which a closed-form solution is derived. The proposed algorithm is validated through comprehensive numerical simulations and testbed experiments. Results show that, without compromising transmission quality, the proposed algorithm enables an additional IBO reduction of approximately 5 dB in simulations and 2 dB in experiments over baseline methods, yielding relative PA efficiency improvements of 77.8\% and 30.9\%, respectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims that decomposing PA nonlinear distortion into dominant and residual components enables a two-stage reconstruction algorithm for APTBM signals: a coarse stage jointly exploits block structure and PA characteristics to remove dominant distortion, followed by a fine stage that solves a nonconvex optimization under explicit APTBM amplitude-phase-time constraints via a derived closed-form solution. This yields an additional ~5 dB IBO reduction in simulations and ~2 dB in testbed experiments over baselines, corresponding to relative PA efficiency gains of 77.8% and 30.9% without degrading transmission quality.

Significance. If the decomposition and closed-form solution are rigorously validated, the work would offer a concrete, constraint-guided method to operate PAs at lower IBO while preserving signal integrity in APTBM systems, directly addressing efficiency bottlenecks in wireless transmitters. The inclusion of both numerical simulations and hardware experiments provides practical grounding, though the magnitude of the reported gains hinges on the unverified technical steps noted below.

major comments (3)
  1. [Abstract, §4] Abstract and §4 (fine-stage derivation): the claim that a closed-form solution exists for the nonconvex optimization subject to explicit APTBM constraints provides no derivation steps, no verification that the minimizer remains feasible under the amplitude-phase-time block constraints, and no check that the residual after the coarse stage is small enough for the dominant/residual separation to hold. This is load-bearing for attributing the reported IBO reductions to the two-stage method.
  2. [§3.1] §3.1 (distortion decomposition): the central assumption that nonlinear distortion cleanly separates into dominant and residual components lacks quantitative validation (e.g., norm of residual vs. dominant component across IBO levels or modulation parameters); without this, the performance advantage over heuristic/statistical baselines cannot be isolated from the decomposition itself.
  3. [Results section] Results (e.g., simulation and experimental figures/tables reporting IBO reduction): the claimed 5 dB (sim) and 2 dB (exp) gains and efficiency percentages are presented without error bars, confidence intervals, or statistical tests across multiple runs or channel realizations, weakening the robustness of the cross-method comparison.
minor comments (2)
  1. [Abstract, §2] Notation for APTBM block constraints is introduced without an explicit equation reference in the abstract or early sections, making it harder to trace how the fine-stage closed-form satisfies them.
  2. [Figure captions] Figure captions for experimental results should clarify the exact PA model parameters and testbed hardware used to allow reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review. We address each major comment below and indicate the specific revisions we will incorporate in the next version of the manuscript.

read point-by-point responses

  1. Referee: [Abstract, §4] Abstract and §4 (fine-stage derivation): the claim that a closed-form solution exists for the nonconvex optimization subject to explicit APTBM constraints provides no derivation steps, no verification that the minimizer remains feasible under the amplitude-phase-time block constraints, and no check that the residual after the coarse stage is small enough for the dominant/residual separation to hold. This is load-bearing for attributing the reported IBO reductions to the two-stage method.

    Authors: We agree that the derivation in §4 was presented too concisely. In the revised manuscript we will expand §4 with the complete step-by-step derivation of the closed-form solution. We will also add a short feasibility proof showing that the minimizer satisfies the explicit APTBM amplitude-phase-time block constraints and include numerical checks (across IBO levels) confirming that the residual after the coarse stage remains small enough for the dominant/residual separation to be valid. revision: yes

  2. Referee: [§3.1] §3.1 (distortion decomposition): the central assumption that nonlinear distortion cleanly separates into dominant and residual components lacks quantitative validation (e.g., norm of residual vs. dominant component across IBO levels or modulation parameters); without this, the performance advantage over heuristic/statistical baselines cannot be isolated from the decomposition itself.

    Authors: We accept that quantitative validation of the decomposition is needed. We will add a new figure (or table) in §3.1 that plots the Euclidean norms of the dominant and residual distortion components versus IBO and modulation parameters. This will explicitly demonstrate that the residual is small relative to the dominant term and thereby isolate the contribution of the two-stage reconstruction. revision: yes

  3. Referee: [Results section] Results (e.g., simulation and experimental figures/tables reporting IBO reduction): the claimed 5 dB (sim) and 2 dB (exp) gains and efficiency percentages are presented without error bars, confidence intervals, or statistical tests across multiple runs or channel realizations, weakening the robustness of the cross-method comparison.

    Authors: We agree that statistical robustness indicators are important. In the revised results section we will augment all simulation and experimental figures/tables with error bars (standard deviation) computed over multiple independent runs and channel realizations. We will also state the number of trials performed and briefly discuss the observed consistency of the reported IBO reductions. revision: yes

Circularity Check

0 steps flagged

No circularity: two-stage derivation relies on independent PA characteristics and explicit constraints

full rationale

The paper decomposes nonlinear distortion into dominant/residual parts, applies coarse reconstruction using APTBM block structure plus external PA nonlinearity, then solves the fine-stage nonconvex problem subject to explicit amplitude-phase-time constraints via a derived closed-form. No equation reduces the claimed IBO gains to a parameter fitted inside the paper, no self-citation chain bears the central result, and no ansatz or uniqueness theorem is smuggled from prior author work. Simulations and experiments provide external validation against baselines, keeping the derivation self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the domain assumption that distortion decomposes into dominant and residual parts and that the fine-stage problem has a closed-form solution; no free parameters or new entities are explicitly introduced in the abstract.

axioms (2)
  • domain assumption Nonlinear distortion from the power amplifier can be decomposed into dominant and residual components that can be handled separately.
    This decomposition justifies the coarse and fine stages and is invoked to separate the reconstruction process.
  • domain assumption The fine-stage residual minimization problem subject to APTBM constraints admits a closed-form solution.
    The paper states a closed-form solution is derived, which is required for the fine stage to be practical.

pith-pipeline@v0.9.0 · 5551 in / 1267 out tokens · 27897 ms · 2026-05-16T20:57:17.591380+00:00 · methodology
