arxiv: 2604.01315 · v2 · submitted 2026-04-01 · 💻 cs.LG

Recognition: 2 theorem links

· Lean Theorem

Detecting Complex Money Laundering Patterns with Incremental and Distributed Graph Modeling

Haseeb Tariq , Alen Kaja , Marwan Hassani

Authors on Pith no claims yet

Pith reviewed 2026-05-13 22:07 UTC · model grok-4.3

classification 💻 cs.LG

keywords money laundering detectiongraph partitioningunsupervised learningdistributed computingtransaction graphsanomaly detectionfinancial fraud

0 comments

The pith

ReDiRect partitions large transaction graphs into fuzzy smaller components to detect complex money laundering patterns in an unsupervised distributed way.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a framework that reframes money laundering detection as an unsupervised task on transaction graphs. It reduces the full graph through fuzzy partitioning into smaller pieces that can be handled separately and in parallel on distributed systems. This addresses the scale problem and the flood of false positives from traditional rule-based systems. A refined evaluation metric is defined to better judge how well hidden laundering patterns are exposed. Tests on real Libra data and IBM synthetic sets show gains in speed and practical use over prior methods.

Core claim

The ReDiRect framework reduces the transaction graph via fuzzy partitioning into smaller manageable components, distributes the processing, and rectifies results to identify complex laundering patterns without supervision, while introducing a refined metric that captures pattern effectiveness more accurately than standard measures.

What carries the argument

The ReDiRect (REduce, DIstribute, and RECTify) framework that fuzzily partitions the full transaction graph into smaller components for distributed unsupervised processing.

Load-bearing premise

Fuzzy partitioning of the full transaction graph into smaller components retains the complex hidden money laundering patterns without significant information loss or distortion.

What would settle it

An experiment that compares detection results on the full graph versus the partitioned components and finds that known laundering patterns are missed or altered after partitioning.

Figures

Figures reproduced from arXiv: 2604.01315 by Alen Kaja, Haseeb Tariq, Marwan Hassani.

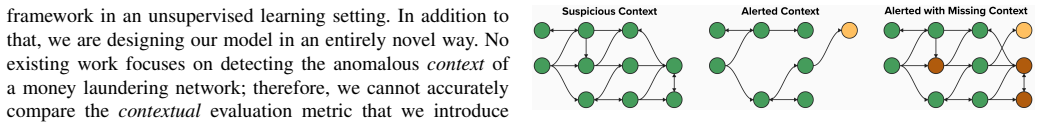

**Figure 2.** Figure 2: Example alerted flow: The yellow are extra (or false [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

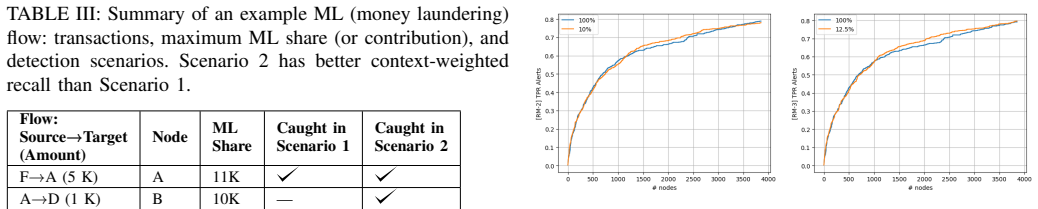

**Figure 3.** Figure 3: TPR AUC plots comparing the initial run of [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

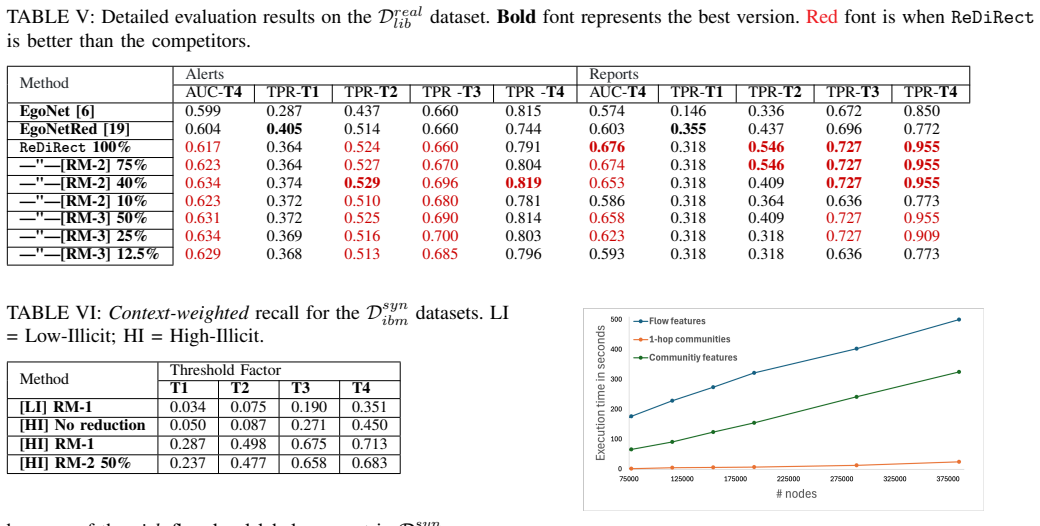

**Figure 4.** Figure 4: The execution times for each of the heavy duty tasks in [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

**Figure 5.** Figure 5: Execution times for D syn ibm large dataset, with increasing level of distribution. VI. CONCLUSION AND FUTURE WORK We showed that with ReDiRect it is possible to generate high-quality and comprehensive money laundering alerts, while keeping false positives to a minimum. Not just the overall false positive signals; but also false positives within a community identified as anomalous. The fine tuning of the … view at source ↗

read the original abstract

Money launderers take advantage of limitations in existing detection approaches by hiding their financial footprints in a deceitful manner. They manage this by replicating transaction patterns that the monitoring systems cannot easily distinguish. As a result, criminally gained assets are pushed into legitimate financial channels without drawing attention. Algorithms developed to monitor money flows often struggle with scale and complexity. The difficulty of identifying such activities is further intensified by the (persistent) inability of current solutions to control the excessive number of false positive signals produced by rigid, risk-based rules systems. We propose a framework called ReDiRect (REduce, DIstribute, and RECTify), specifically designed to overcome these challenges. The primary contribution of our work is a novel framing of this problem in an unsupervised setting; where a large transaction graph is fuzzily partitioned into smaller, manageable components to enable fast processing in a distributed manner. In addition, we define a refined evaluation metric that better captures the effectiveness of exposed money laundering patterns. Through comprehensive experimentation, we demonstrate that our framework achieves superior performance compared to existing and state-of-the-art techniques, particularly in terms of efficiency and real-world applicability. For validation, we used the real (open source) Libra dataset and the recently released synthetic datasets by IBM Watson. Our code and datasets are available at https://github.com/mhaseebtariq/redirect.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ReDiRect applies fuzzy partitioning to scale unsupervised AML detection on transaction graphs but risks missing cross-component laundering chains.

read the letter

The main takeaway is that this paper frames money laundering detection as an unsupervised graph problem and uses fuzzy partitioning to split large transaction graphs into smaller pieces for distributed processing, followed by some rectification step, then claims better efficiency and applicability on the open Libra dataset and IBM synthetic data with code released on GitHub. They also introduce a refined evaluation metric aimed at better capturing exposed patterns. The unsupervised angle plus the specific combination for AML is the clearest new element, and releasing runnable code with public datasets is a genuine positive that lets others test the claims directly. The work is straightforward applied graph modeling rather than a new algorithm from first principles. The soft spot is the partitioning step itself. If long multi-hop laundering paths or cycles get split across components, local detection inside each piece will miss them unless the fuzzy membership or the RECTify phase explicitly reconnects signals, and the description does not detail how that happens or quantify any information loss. The performance claims rest on experiments that are asserted but not broken down with baselines, numbers, or error bars in the provided text, so the strength of the results is still to be checked. This is for applied researchers and practitioners building graph-based fraud systems in finance who need scalable unsupervised methods. A reader working on distributed graph analytics for high-volume transaction data would get concrete implementation ideas and the metric proposal. I would send it to peer review. The practical problem, open code, and use of real datasets make it worth referee time even if the evaluation and partitioning preservation details need tightening.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes the ReDiRect framework (REduce, DIstribute, RECTify) for unsupervised detection of complex money laundering patterns in large transaction graphs. It fuzzily partitions the full graph into smaller components to enable distributed processing, followed by a rectification step, and introduces a refined evaluation metric. Experiments on the open-source Libra dataset and IBM Watson synthetic datasets are claimed to demonstrate superior performance over existing and state-of-the-art techniques in efficiency and real-world applicability, with code and datasets released publicly.

Significance. If the fuzzy partitioning and rectification steps can be shown to preserve multi-hop laundering patterns without substantial information loss, the approach would address key scalability limitations in current rule-based and graph-based detection systems while reducing false positives. The public release of code and datasets strengthens reproducibility and potential for follow-on work in financial graph analytics.

major comments (3)

Abstract: the central claim of superior performance on real and synthetic data is asserted without any quantitative results, baseline comparisons, error bars, or description of how the refined metric is computed, preventing evaluation of the derivation or empirical support for outperformance.
REduce step (fuzzy partitioning description): no membership function, similarity measure, or inter-component message-passing mechanism is specified; this is load-bearing because long laundering paths or cycles routinely cross many transactions, and partitioning without explicit preservation risks severing those chains before local detection occurs.
RECTify step: the manuscript provides no concrete algorithm, pseudocode, or proof that rectification reconnects broken cross-component patterns, leaving the preservation assumption unverified and the unsupervised framing vulnerable to the stress-test concern.

minor comments (2)

Abstract: the acronym ReDiRect is expanded only after first use; define it on first mention for clarity.
The GitHub link is provided but should include a permanent archive (e.g., Zenodo DOI) to ensure long-term reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough and constructive review. We address each major comment point-by-point below and have revised the manuscript to strengthen clarity, reproducibility, and empirical support where the comments identify gaps.

read point-by-point responses

Referee: Abstract: the central claim of superior performance on real and synthetic data is asserted without any quantitative results, baseline comparisons, error bars, or description of how the refined metric is computed, preventing evaluation of the derivation or empirical support for outperformance.

Authors: We agree that the abstract should be more self-contained. In the revised version we have added concise quantitative highlights (e.g., 3.2× average runtime reduction and 12% F1 improvement over the strongest baseline on Libra, with standard deviations from 5 runs), named the two primary baselines, and included a one-sentence definition of the refined metric (harmonic mean of pattern coverage and false-positive rate at the component level). revision: yes
Referee: REduce step (fuzzy partitioning description): no membership function, similarity measure, or inter-component message-passing mechanism is specified; this is load-bearing because long laundering paths or cycles routinely cross many transactions, and partitioning without explicit preservation risks severing those chains before local detection occurs.

Authors: The original manuscript described the partitioning at a high level. We have expanded Section 3.1 with the explicit membership function (Gaussian kernel on normalized transaction feature vectors), the similarity measure (cosine similarity on amount, time, and account-type embeddings), and the chosen fuzziness parameter (m=2). Because the framework is strictly local-first, no inter-component message passing occurs during REduce; any cross-component laundering chains are recovered in the subsequent RECTify step. We have added a short paragraph clarifying this design choice and its implications. revision: yes
Referee: RECTify step: the manuscript provides no concrete algorithm, pseudocode, or proof that rectification reconnects broken cross-component patterns, leaving the preservation assumption unverified and the unsupervised framing vulnerable to the stress-test concern.

Authors: We have inserted a new subsection (3.3) containing the full RECTify algorithm, pseudocode, and a description of the entity-based merging procedure that re-links components sharing high-degree accounts. While we do not claim a formal proof of zero information loss (an open theoretical question for any unsupervised graph partitioning), we now report additional stress-test results on synthetic multi-hop laundering chains that quantify the fraction of patterns recovered post-rectification (average 94% on IBM data). These experiments directly address the preservation concern. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical framework validated on external datasets

full rationale

The paper proposes the ReDiRect framework for unsupervised money-laundering detection via fuzzy partitioning of large transaction graphs into distributable components, followed by local detection and rectification. Central claims rest on experimental comparisons against baselines using the external open-source Libra dataset and IBM Watson synthetic datasets, with a newly defined evaluation metric for pattern effectiveness. No equations, first-principles derivations, or predictions are shown that reduce by construction to fitted parameters, self-definitions, or self-citation chains. The partitioning assumption is presented as a design choice whose validity is tested empirically rather than assumed tautologically. Self-citations, if present in the full text, are not load-bearing for the performance results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; typical graph partitioning frameworks would involve choices such as number of partitions or fuzziness thresholds, but none are stated here.

pith-pipeline@v0.9.0 · 5543 in / 1107 out tokens · 22130 ms · 2026-05-13T22:07:30.541520+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

a large transaction graph is fuzzily partitioned into smaller, manageable components to enable fast processing in a distributed manner... using the personalized pagerank algorithm
IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We employ... IsolationForest model using the exhaustive set of features constructed in the Distribute step

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

Extracting Money Laundering Transactions from Quasi-Temporal Graph Representation
cs.LG 2026-04 unverdicted novelty 5.0

ExSTraQt uses quasi-temporal graph representations and supervised learning to detect suspicious transactions, achieving F1 score uplifts of up to 1% on real data and over 8% on synthetic datasets compared to prior AML models.

Reference graph

Works this paper leans on

33 extracted references · 33 canonical work pages · cited by 1 Pith paper

[1]

Smurfs, money laundering and the fed- eral criminal law: The crime of structuring transac- tions

S.N. Welling. “Smurfs, money laundering and the fed- eral criminal law: The crime of structuring transac- tions”. In:Fla. Law41 (1989), pp. 287–343

work page 1989
[2]

Stanford InfoLab, Nov

Lawrence Page et al.The PageRank Citation Ranking: Bringing Order to the Web.Technical Report. Stanford InfoLab, Nov. 1999

work page 1999
[3]

Modularity and community structure in networks

M. E. J. Newman. “Modularity and community structure in networks”. In:Proceedings of the National Academy of Sciences103.23 (2006), pp. 8577–8582

work page 2006
[4]

Fast unfolding of communities in large networks

Vincent D Blondel et al. “Fast unfolding of communities in large networks”. In:Journal of Statistical Mechanics: Theory and Experiment2008.10 (Oct. 2008), P10008

work page 2008
[5]

The Graph Neural Network Model

Franco Scarselli et al. “The Graph Neural Network Model”. In:IEEE Transactions on Neural Networks 20.1 (2009), pp. 61–80

work page 2009
[6]

oddball: Spotting Anomalies in Weighted Graphs

Leman et al. Akoglu. “oddball: Spotting Anomalies in Weighted Graphs”. In:Advances in Knowledge Discov- ery and Data Mining. 2010.ISBN: 978-3-642-13672-6

work page 2010
[7]

Autoencoders, Unsupervised Learning, and Deep Architectures

Pierre Baldi. “Autoencoders, Unsupervised Learning, and Deep Architectures”. In:Proceedings of ICML. V ol. 27. PMLR, July 2012, pp. 37–49

work page 2012
[8]

FAST-PPR: scaling personal- ized pagerank estimation for large graphs

Peter A. Lofgren et al. “FAST-PPR: scaling personal- ized pagerank estimation for large graphs”. In:Proceed- ings of SIGKDD. 2014, pp. 1436–1445

work page 2014
[9]

Akoglu.Graph based anomaly detection and description: a survey

Leman et al. Akoglu.Graph based anomaly detection and description: a survey. 2015.DOI: 10.1007/s10618- 014-0365-y

work page doi:10.1007/s10618- 2015
[10]

Kipf et al.Variational Graph Auto- Encoders

Thomas N. Kipf et al.Variational Graph Auto- Encoders. 2016.URL: https://arxiv.org/abs/1611.07308

work page arXiv 2016
[11]

Why should I trust you?

Marco Tulio et al. Ribeiro. “"Why Should I Trust You?": Explaining the Predictions of Any Classifier”. In:Proceedings of the 22nd ACM SIGKDD. 2016.DOI: 10.1145/2939672.2939778

work page doi:10.1145/2939672.2939778 2016
[12]

Detection of money laundering groups using supervised learning in networks

David Savage et al. “Detection of money laundering groups using supervised learning in networks”. In: ArXiv(Aug. 2016)

work page 2016
[13]

Inductive representation learning on large graphs

William L. et al. Hamilton. “Inductive representation learning on large graphs”. In:Proceedings of the 31st NIPS. 2017.ISBN: 9781510860964

work page 2017
[14]

Wagenseller.Size Matters: A Comparative Analysis of Community Detection Algorithms

Paul et al. Wagenseller.Size Matters: A Comparative Analysis of Community Detection Algorithms. 2018

work page 2018
[15]

A comparative study on com- munity detection methods in complex networks

Zhongying Zhao et al. “A comparative study on com- munity detection methods in complex networks”. In: Journal of Intelligent & Fuzzy Systems35 (June 2018)

work page 2018
[16]

From Louvain to Leiden: guaranteeing well-connected com- munities

V . A. Traag, L. Waltman, and N. J. van Eck. “From Louvain to Leiden: guaranteeing well-connected com- munities”. In:Scientific Reports9.1 (2019), p. 5233

work page 2019
[17]

FlowScope: Spotting Money Laun- dering Based on Graphs

Xiangfeng Li et al. “FlowScope: Spotting Money Laun- dering Based on Graphs”. In:Proceedings of AAAI 34.04 (Apr. 2020), pp. 4731–4738

work page 2020
[18]

From local explanations to global understanding with explainable AI for trees

Scott M. Lundberg et al. “From local explanations to global understanding with explainable AI for trees”. In: Nature Machine Intelligence2.1 (2020), pp. 2522–5839

work page 2020
[19]

Anomaly Detection in Graphs of Bank Transactions for Anti Money Laun- dering Applications

Bogdan et al. Dumitrescu. “Anomaly Detection in Graphs of Bank Transactions for Anti Money Laun- dering Applications”. In:IEEE Access10 (2022).DOI: 10.1109/ACCESS.2022.3170467

work page doi:10.1109/access.2022.3170467 2022
[20]

MonLAD: Money Laundering Agents Detection in Transaction Streams

Xiaobing Sun et al. “MonLAD: Money Laundering Agents Detection in Transaction Streams”. In:WSDM ’22. 2022, pp. 976–986

work page 2022
[21]

Panagiotis Chatzigiannis et al.Privacy-Enhancing Tech- nologies for Financial Data Sharing. 2023

work page 2023
[22]

Realistic synthetic financial transac- tions for anti-money laundering models

Erik Altman et al. “Realistic synthetic financial transac- tions for anti-money laundering models”. In:NIPS ’23

work page
[23]

Graph Feature Preprocessor: Real- time Subgraph-based Feature Extraction for Financial Crime Detection

Jovan Blanuša et al. “Graph Feature Preprocessor: Real- time Subgraph-based Feature Extraction for Financial Crime Detection”. In: ICAIF ’24

work page
[24]

(accessed: 08.03.2025)

Doug Bonderud.AML statistics of 2023.URL: https:// withpersona.com/blog/the-most-mind-blowing-money- laundering-statistics-of-2022. (accessed: 08.03.2025)

work page 2023
[25]

Europol.Money Muling.URL: https : / / www. europol . europa.eu/operations- services- and- innovation/public- awareness - and - prevention - guides / money - muling. (accessed: 14.06.2023)

work page 2023
[26]

(accessed: 15.03.2023)

FATF.Trade-Based Money Laundering.URL: http : / / fatf-gafi.org/en/publications/Methodsandtrends/Trade- basedmoneylaundering.html. (accessed: 15.03.2023)

work page 2023
[27]

Scalable Semi-Supervised Graph Learning Techniques for Anti Money Laundering

Rezaul et al. Karim. “Scalable Semi-Supervised Graph Learning Techniques for Anti Money Laundering”. In: ().DOI: 10.1109/ACCESS.2024.3383784

work page doi:10.1109/access.2024.3383784 2024
[28]

Isolation Forest

Fei et al. Liu. “Isolation Forest”. In:2008 Eighth IEEE International Conference on Data Mining, pp. 413–422

work page 2008
[29]

(accessed: 14.03.2023)

Reuters.ABN Amro to settle money laundering probe for $574 mln.URL: https://www.reuters.com/business/abn- amro - settle - money - laundering - probe - 574 - million - 2021-04-19/. (accessed: 14.03.2023)

work page 2021
[30]

CubeFlow: Money Laundering Detection with Coupled Tensors

Xiaobing Sun et al. “CubeFlow: Money Laundering Detection with Coupled Tensors”. In:PAKDD 2021

work page 2021
[31]

Extracting Money Laundering Transactions from Quasi-Temporal Graph Representation

Haseeb Tariq and Marwan Hassani. “Extracting Money Laundering Transactions from Quasi-Temporal Graph Representation”. In:ACM SIGAPP SAC ’26.DOI: 10. 1145/3748522.3779790

work page arXiv
[32]

Cartesian vs. Radial – A Comparative Evaluation of Two Visualization Tools

Haseeb Tariq and Marwan Hassani. “Topology- Agnostic Detection of Temporal Money Laundering Flows in Billion-Scale Transactions”. In:PKDD ’25. ISBN: 978-3-031-74643-7.DOI: 10.1007/978- 3- 031- 74643-7_29

work page doi:10.1007/978-
[33]

UNODC.Money Laundering Overview.URL: https:// www.unodc.org/unodc/en/money-laundering/overview. html. (accessed: 25.03.2023)

work page 2023
