ROMAN: A Multiscale Routing Operator for Convolutional Time Series Models

Authors on Pith no claims yet

Pith reviewed 2026-05-13 20:47 UTC · model grok-4.3

classification 💻 cs.LG

keywords time series classificationmultiscale representationconvolutional neural networksinductive biaspyramid operatorrouting operatorUCR archive

0 comments

The pith

ROMAN restructures time series into shorter multiscale channels so convolutions capture coarse positions and scale interactions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces ROMAN as a deterministic preprocessing operator that builds an anti-aliased multiscale pyramid from a time series, extracts fixed-length windows at each scale, and stacks those windows as pseudochannels. This produces a compact representation whose channel dimension now carries explicit information about temporal scale and coarse position while shortening the sequence length fed to downstream models. Standard convolutional classifiers can then use their channel operations to mix scales and become less invariant to timing shifts. The authors test the mechanism on synthetic tasks that isolate position awareness, long-range correlation, and multiscale dependence, plus real long-sequence benchmarks from the UCR and UEA archives, where the accuracy gain is task-dependent but efficiency gains are common.

Core claim

ROMAN maps temporal scale and coarse temporal position into an explicit channel structure while reducing sequence length by constructing an anti-aliased multiscale pyramid and extracting fixed-length windows from each scale for stacking as pseudochannels.

What carries the argument

The ROMAN operator, which builds an anti-aliased multiscale pyramid of the input and routes fixed-length windows from each scale into additional channels.

If this is right

Convolutional models gain implicit coarse-position awareness through channel stacking without separate positional encodings.
Multiscale interactions become accessible via ordinary channel-mixing convolutions rather than custom cross-scale layers.
Effective sequence length shrinks, often lowering compute cost while retaining the information needed for the task.
Inductive bias of any convolutional pipeline can be adjusted simply by toggling the ROMAN step before the classifier.
Accuracy rises most on tasks where class information lives in long-range correlations or scale-specific patterns that pooled convolution normally suppresses.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same pyramid-and-stack step could be inserted upstream of transformers or recurrent models to inject comparable scale and position structure.
In anomaly detection the explicit coarse-position channels might help localize events at different resolutions without changing the detector architecture.
Replacing fixed windows with learnable extraction lengths could adapt the operator to datasets whose relevant scales vary widely.

Load-bearing premise

Extracting fixed-length windows from each scale of the anti-aliased pyramid preserves all task-relevant temporal structure without introducing distortions that degrade downstream accuracy.

What would settle it

If ROMAN preprocessing lowers accuracy on a task whose labels depend on precise fine-grained alignment across the full original sequence, compared with feeding the raw series to the identical classifier.

Figures

Figures reproduced from arXiv: 2604.02577 by Gonzalo Uribarri.

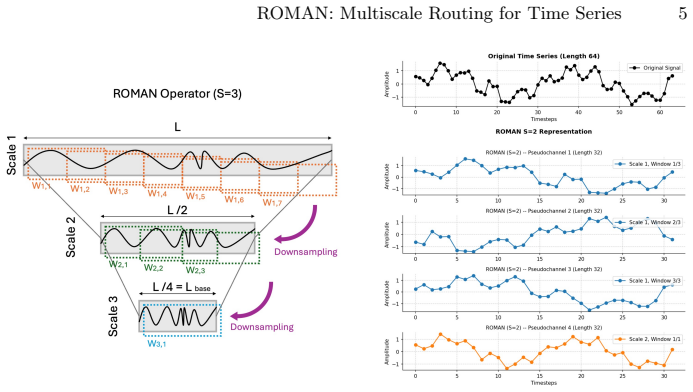

**Figure 1.** Figure 1: Overview of the ROMAN transformation. Left: schematic multiscale construction. Each scale s is partitioned into windows of common length Lbase, and the window index w records coarse temporal position within that scale. Right: Example of the stacked pseudochannels generated by applying ROMAN (S=2) to a real time series. promoting motif stability and representation robustness [17]. We selected the binomial… view at source ↗

**Figure 2.** Figure 2: Synthetic mechanism studies for (a) coarse position awareness and (b) longrange correlation. Left: representative examples. Right: mean test accuracy over ten realizations, comparing the baseline representation with ROMAN at S = 4. c) Multiscale Interaction. The third synthetic family targets dependence between fine-scale and coarse-scale evidence at the same nominal temporal location. The construction c… view at source ↗

**Figure 3.** Figure 3: Synthetic mechanism studies for (c) multiscale interaction and (d) full positional invariance. Left: representative examples. Right: mean test accuracy over ten realizations, comparing the baseline representation with ROMAN at S = 4. can occur at any temporal location alongside additional similar distractor motifs. Therefore, the task aligns naturally with pooling-based architectures that emphasise motif… view at source ↗

**Figure 4.** Figure 4: Baseline (S = 1) vs. ROMAN-transformed data (S ∈ {2, 3, 4}) results for the MiniRocket and FCN Classifier models. We present the per-dataset UCR accuracies and the scaling of computational times with respect to S [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗

**Figure 5.** Figure 5: Critical-difference diagrams for the five-model hard-voting ensemble study on UCR and UEA. Each diagram compares the eight ensemble variants within the corresponding archive: the four baseline-only ensembles and their four mixed-scale ROMAN counterparts. Lower average rank is better. E.2 Voting and reported quantities The ensemble result reported in the main paper uses hard voting. The reported difference… view at source ↗

read the original abstract

We introduce ROMAN (ROuting Multiscale representAtioN), a deterministic operator for time series that maps temporal scale and coarse temporal position into an explicit channel structure while reducing sequence length. ROMAN builds an anti-aliased multiscale pyramid, extracts fixed-length windows from each scale, and stacks them as pseudochannels, yielding a compact representation on which standard convolutional classifiers can operate. In this way, ROMAN provides a simple mechanism to control the inductive bias of downstream models: it can reduce temporal invariance, make temporal pooling implicitly coarse-position-aware, and expose multiscale interactions through channel mixing, while often improving computational efficiency by shortening the processed time axis. We formally analyze the ROMAN operator and then evaluate it in two complementary ways by measuring its impact as a preprocessing step for four representative convolutional classifiers: MiniRocket, MultiRocket, a standard CNN-based classifier, and a fully convolutional network (FCN) classifier. First, we design synthetic time series classification tasks that isolate coarse position awareness, long-range correlation, multiscale interaction, and full positional invariance, showing that ROMAN behaves consistently with its intended mechanism and is most useful when class information depends on temporal structure that standard pooled convolution tends to suppress. Second, we benchmark the same models with and without ROMAN on long-sequence subsets of the UCR and UEA archives, showing that ROMAN provides a practically useful alternative representation whose effect on accuracy is task-dependent, but whose effect on efficiency is often favorable. Code is available at https://github.com/gon-uri/ROMAN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ROMAN is a useful operator for adding multiscale and position awareness to time series CNNs, validated well on synthetics but with variable accuracy gains.

read the letter

ROMAN looks like a useful little operator for time series conv nets. It takes an anti-aliased pyramid, grabs fixed windows from each scale, and stacks them as channels so the model gets multiscale and coarse position info built in, plus shorter sequences. The idea is to control the inductive bias without changing the conv architecture itself. What they did well is set up synthetic tasks that actually test those specific properties like position awareness, long range correlations, and multiscale stuff, and the results track what the operator is supposed to do. They also ran the usual suspects like MiniRocket, MultiRocket, a standard CNN, and FCN on long UCR/UEA subsets and showed efficiency wins in many cases, with code released. That's solid and makes the claims checkable. The soft spot is the accuracy side. It helps on some tasks but not others, which they report honestly as task-dependent. The fixed window thing might drop details in messy data, though the controls suggest it's ok for the cases they care about. No big issues with the formal analysis from what I can see. I'd bring this to a reading group if we're looking at time series architectures or inductive biases in sequence models. It's for folks who want to tweak conv models without redesigning everything. The thinking is clear and the experiments are on point, with no circularity in the claims. Send it to peer review. The work is grounded enough that referees can give useful feedback on the operator and the benchmarks.

Referee Report

3 major / 2 minor

Summary. ROMAN is introduced as a deterministic operator that constructs an anti-aliased multiscale pyramid from a time series, extracts fixed-length windows from each scale, and stacks them as pseudochannels. This reduces the sequence length while explicitly encoding scale and coarse temporal position information. The operator is formally analyzed, and its impact is evaluated as a preprocessing step for four convolutional classifiers (MiniRocket, MultiRocket, CNN, FCN) on synthetic tasks designed to isolate effects like coarse position awareness and multiscale interactions, as well as on long-sequence subsets of the UCR and UEA archives. Results indicate task-dependent accuracy changes but often favorable efficiency gains.

Significance. Should the experimental results prove robust, ROMAN offers a simple, architecture-agnostic mechanism to modulate the inductive bias of convolutional time series models toward greater sensitivity to temporal structure and multiscale features. The provision of open code and the use of controlled synthetic experiments to validate the intended mechanisms are notable strengths that enhance reproducibility and interpretability.

major comments (3)

[Synthetic Experiments] Synthetic Experiments section: the isolation of mechanisms is well-designed, but the manuscript does not report error bars, number of random seeds, or statistical tests (e.g., paired Wilcoxon) for the accuracy differences; without these, the claim that ROMAN is 'most useful when class information depends on temporal structure' cannot be assessed for reliability.
[Formal Analysis] Formal Analysis section: the analysis of reduced temporal invariance and coarse-position awareness is described qualitatively; an explicit derivation or bound (e.g., relating window length to the amount of positional information preserved after pooling) is needed to make the central inductive-bias claim load-bearing rather than descriptive.
[Real-data Benchmarks] Real-data Benchmarks section: efficiency claims rest on sequence shortening, yet no direct measurements of FLOPs, parameter count, or wall-clock time are provided for the downstream models with vs. without ROMAN; this weakens the practical-utility argument.

minor comments (2)

[Abstract] Abstract: 'long-sequence subsets' of UCR/UEA should be specified (e.g., by dataset names or length threshold) for immediate reproducibility.
[§2] §2 (Operator Definition): introduce a small diagram or pseudocode for the pyramid construction and window stacking to clarify the channel-mixing step.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback and positive recommendation. We address each major comment below and will revise the manuscript accordingly to incorporate additional statistical reporting, a more explicit formal derivation, and direct efficiency measurements.

read point-by-point responses

Referee: [Synthetic Experiments] Synthetic Experiments section: the isolation of mechanisms is well-designed, but the manuscript does not report error bars, number of random seeds, or statistical tests (e.g., paired Wilcoxon) for the accuracy differences; without these, the claim that ROMAN is 'most useful when class information depends on temporal structure' cannot be assessed for reliability.

Authors: We agree that reporting variability and statistical significance would strengthen the reliability assessment. In the revised manuscript we will add mean accuracies with standard deviations computed over 10 independent random seeds for all synthetic tasks and include paired Wilcoxon signed-rank tests comparing ROMAN-augmented versus baseline models. revision: yes
Referee: [Formal Analysis] Formal Analysis section: the analysis of reduced temporal invariance and coarse-position awareness is described qualitatively; an explicit derivation or bound (e.g., relating window length to the amount of positional information preserved after pooling) is needed to make the central inductive-bias claim load-bearing rather than descriptive.

Authors: We appreciate the request for greater rigor. While the existing analysis correctly identifies the qualitative effect of the multiscale routing on invariance, we will augment the Formal Analysis section with an explicit bound: the amount of coarse positional information retained after pooling is at least proportional to the product of the number of scales and the window length divided by the cumulative downsampling factor, thereby quantifying the reduction in temporal invariance. revision: yes
Referee: [Real-data Benchmarks] Real-data Benchmarks section: efficiency claims rest on sequence shortening, yet no direct measurements of FLOPs, parameter count, or wall-clock time are provided for the downstream models with vs. without ROMAN; this weakens the practical-utility argument.

Authors: We acknowledge that direct computational metrics would better support the efficiency claims. In the revised manuscript we will report FLOPs, parameter counts, and average wall-clock training times (measured on the same hardware) for each downstream classifier both with and without ROMAN on the long-sequence UCR/UEA subsets. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The ROMAN operator is introduced as an explicit, deterministic construction: an anti-aliased multiscale pyramid followed by fixed-length window extraction per scale and stacking into pseudochannels. This definition stands alone without reducing to fitted parameters or prior results by the same authors. The paper then evaluates the operator on separately designed synthetic tasks that isolate the claimed inductive biases (coarse-position awareness, multiscale mixing, reduced invariance) and on external UCR/UEA benchmarks. No equation equates a reported performance gain to a quantity fitted from the same evaluation data, and no load-bearing claim relies on self-citation. The analysis remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The operator relies on standard signal-processing assumptions for anti-aliased downsampling and on the existence of fixed-length windows that capture relevant structure; no new physical entities are postulated.

free parameters (2)

number of scales
Hyperparameter controlling how many resolution levels are generated in the pyramid; chosen by the user or tuned on validation data.
window length
Fixed length of windows extracted at each scale; must be chosen to match the expected pattern duration in the target task.

axioms (1)

standard math Anti-aliased multiscale pyramid construction preserves signal content at each scale without introducing aliasing artifacts.
Invoked when the paper states it builds an anti-aliased multiscale pyramid; relies on classical signal-processing theory.

pith-pipeline@v0.9.0 · 5574 in / 1388 out tokens · 51158 ms · 2026-05-13T20:47:59.543415+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/DimensionForcing.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

ROMAN builds an anti-aliased multiscale pyramid, extracts fixed-length windows from each scale, and stacks them as pseudochannels... S=1 recovers the original input
IndisputableMonolith/Foundation/ArithmeticFromLogic.lean LogicNat unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

dyadic anti-aliased pyramid... h=1/4[1,2,1]... Lbase := L_S

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
