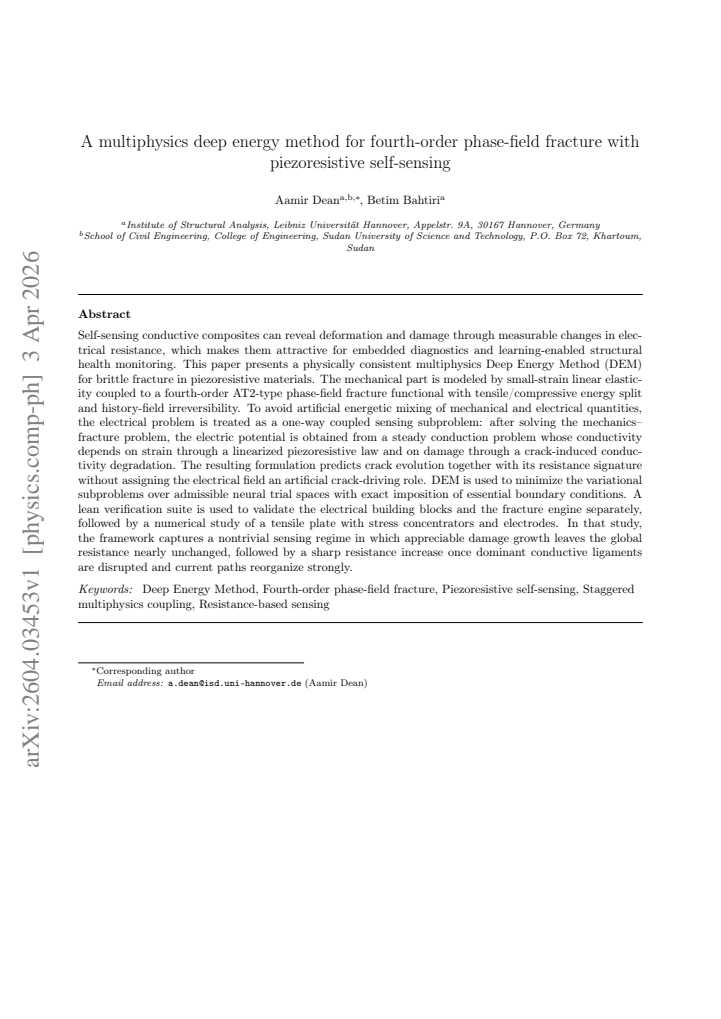

A multiphysics deep energy method for fourth-order phase-field fracture with piezoresistive self-sensing

Aamir Dean, Betim Bahtiri

Pith reviewed 2026-05-13 18:04 UTC · model grok-4.3

classification ⚛️ physics.comp-ph
keywords phase-field fracturedeep energy methodpiezoresistive sensingself-sensing compositesmultiphysics modelingstructural health monitoringfourth-order phase field
0
0 comments X

The pith

A deep energy method simulates both crack growth and resistance changes in piezoresistive materials by solving mechanics and fracture first.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a multiphysics deep energy method for brittle fracture in piezoresistive composites. It models the mechanical behavior with small-strain elasticity coupled to a fourth-order phase-field fracture model that includes energy splitting and irreversibility. The electrical problem is handled separately as a sensing task whose conductivity depends on strain and damage, solved after the mechanics-fracture step. This separation lets the method track both evolving cracks and their measurable resistance signatures. The approach matters because it supports embedded diagnostics in self-sensing materials without forcing electrical quantities to drive fracture artificially.

Core claim

The paper establishes a formulation in which the mechanics and fourth-order AT2 phase-field fracture problem are solved variationally first via neural networks that minimize the total energy, after which the electric potential is computed from a steady conduction equation whose conductivity follows a linearized piezoresistive law degraded by damage; the resulting scheme therefore yields crack paths together with their global resistance evolution without assigning any crack-driving role to the electrical field.

What carries the argument

One-way coupled multiphysics deep energy method that minimizes the mechanics-fracture variational problem first, then solves the electrical conduction subproblem with strain- and damage-dependent conductivity.

If this is right

  • The method reproduces a regime in which substantial damage grows while global resistance remains nearly constant until dominant conductive paths break.
  • Separate verification of the electrical conduction block and the fracture block confirms that each subproblem behaves correctly before coupling.
  • Neural trial spaces with exact boundary-condition enforcement preserve physical consistency across the coupled fields.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sharp resistance jump once ligaments break implies that resistance-based monitoring may act as a threshold detector rather than a continuous damage gauge.
  • Because the electrical step is cheap once the mechanical solution exists, the framework could be reused inside optimization loops that tune electrode placement for maximum sensitivity.
  • The same one-way structure offers a template for adding other sensing physics (thermal or acoustic) without reformulating the fracture driving force.

Load-bearing premise

Electrical fields exert no meaningful back-effect on the mechanical fields or on how cracks evolve.

What would settle it

A controlled experiment in which an applied electric field measurably alters crack speed or path in a piezoresistive specimen would falsify the one-way coupling premise.

Figures

Figures reproduced from arXiv: 2604.03453 by Aamir Dean, Betim Bahtiri.

Figure 1

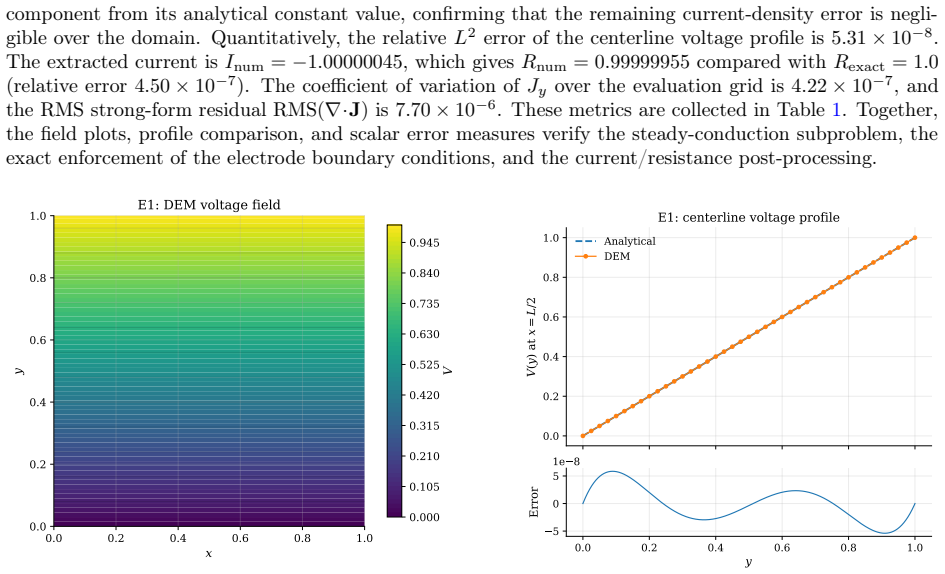

Figure 1. Figure 1: Benchmark E1: constant-conductivity conduction. Left: predicted voltage field [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Benchmark E1: current-density verification. Left: numerical deviation of the vertical current-density component [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Benchmark E2: uniform-strain piezoresistivity with top–bottom electrodes. Normalized resistance [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Benchmark E2: centerline voltage profile at the maximum prescribed strain, [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: M2 benchmark: selected phase-field snapshots for the reference-aligned SENT example at prescribed displacements [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: M2 benchmark: force–displacement response for the reference-aligned SENT example. The reaction force increases [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Illustrative geometry and dominant boundary conditions for the tensile plate with stress concentrators and electrodes [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Curated multiphysics field evolution for the tensile plate with stress concentrators. The rows correspond to three [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Global response of the tensile plate with stress concentrators. Top: normalized resistance [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
read the original abstract

Self-sensing conductive composites can reveal deformation and damage through measurable changes in electrical resistance, which makes them attractive for embedded diagnostics and learning-enabled structural health monitoring. This paper presents a physically consistent multiphysics Deep Energy Method (DEM) for brittle fracture in piezoresistive materials. The mechanical part is modeled by small-strain linear elasticity coupled to a fourth-order AT2-type phase-field fracture functional with tensile/compressive energy split and history-field irreversibility. To avoid artificial energetic mixing of mechanical and electrical quantities, the electrical problem is treated as a one-way coupled sensing subproblem: after solving the mechanics--fracture problem, the electric potential is obtained from a steady conduction problem whose conductivity depends on strain through a linearized piezoresistive law and on damage through a crack-induced conductivity degradation. The resulting formulation predicts crack evolution together with its resistance signature without assigning the electrical field an artificial crack-driving role. DEM is used to minimize the variational subproblems over admissible neural trial spaces with exact imposition of essential boundary conditions. A lean verification suite is used to validate the electrical building blocks and the fracture engine separately, followed by a numerical study of a tensile plate with stress concentrators and electrodes. In that study, the framework captures a nontrivial sensing regime in which appreciable damage growth leaves the global resistance nearly unchanged, followed by a sharp resistance increase once dominant conductive ligaments are disrupted and current paths reorganize strongly.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The manuscript develops a multiphysics deep energy method (DEM) for fourth-order AT2 phase-field fracture in piezoresistive materials. Small-strain linear elasticity is coupled to the phase-field model with tensile/compressive energy split and history-field irreversibility. The electrical problem is solved as a one-way coupled steady conduction subproblem after the mechanics-fracture solve, with conductivity depending on strain through a linearized piezoresistive law and on damage via conductivity degradation. Both subproblems are minimized variationally over neural trial spaces with exact essential boundary condition imposition. Component-wise verification is followed by a tensile-plate demonstration with stress concentrators that exhibits a regime of appreciable damage growth with nearly unchanged global resistance before a sharp increase upon ligament disruption.

Significance. If the formulation and numerical results hold, the work supplies a variationally consistent framework for self-sensing fracture simulations that avoids artificial electrical driving forces on crack evolution. This is relevant for embedded diagnostics in conductive composites and structural health monitoring. The DEM implementation offers a mesh-free route with exact boundary-condition enforcement, and the tensile-plate example illustrates nontrivial sensing phenomenology that standard one-way coupling can capture. The separation of mechanical-fracture and electrical subproblems is a deliberate modeling choice that keeps the central claim internally consistent.

major comments (1)
  1. [Verification suite] Verification section: the description of the 'lean verification suite' for the electrical building blocks and fracture engine provides no quantitative error metrics (e.g., L2 or energy-norm errors, convergence rates under mesh or network refinement). Without these, the accuracy of the combined multiphysics predictions in the tensile-plate study cannot be assessed at the level needed to support the central claim of reliable resistance signatures.
minor comments (3)
  1. [Abstract, §2] Abstract and §2: the linearized piezoresistive law is introduced without a statement of its strain-range validity or comparison to nonlinear alternatives; a brief remark would clarify applicability.
  2. [Numerical results] Figure captions (tensile-plate study): the resistance-vs-load curves lack explicit labels for the 'nearly unchanged' and 'sharp increase' regimes identified in the text, reducing immediate readability.
  3. [Method] Notation: the conductivity degradation function is denoted differently in the electrical variational form versus the text description; consistent symbols would aid clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment and the positive overall assessment. We agree that adding quantitative error metrics will strengthen the verification and better support the claims. We address the point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: Verification section: the description of the 'lean verification suite' for the electrical building blocks and fracture engine provides no quantitative error metrics (e.g., L2 or energy-norm errors, convergence rates under mesh or network refinement). Without these, the accuracy of the combined multiphysics predictions in the tensile-plate study cannot be assessed at the level needed to support the central claim of reliable resistance signatures.

    Authors: We agree that quantitative metrics are needed for a rigorous assessment. In the revised manuscript we will augment the verification section with L2-norm errors and convergence rates (under network refinement) for the electrical conduction problem against the analytical solution on a unit square, and with energy-norm errors plus convergence rates for the fourth-order phase-field fracture problem against the known 1D analytical solution and a 2D benchmark. These additions will be placed immediately after the current qualitative descriptions and will directly quantify the accuracy of each subproblem before the tensile-plate demonstration. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central formulation rests on standard variational principles for fourth-order phase-field fracture (AT2 model with energy split and history field) and an explicitly one-way coupled electrical subproblem. The electrical potential is solved after the mechanics-fracture problem using a linearized piezoresistive conductivity law that depends on strain and damage; no electrical term enters the mechanical energy or phase-field driving force. This one-way coupling is stated as a deliberate modeling choice to avoid artificial energetic mixing, making the resistance signature a direct output of the conductivity degradation rather than a fitted or self-referential prediction. No load-bearing self-citations, uniqueness theorems, or ansatzes reduce the derivation to its inputs by construction. The numerical examples serve as verification of the decoupled subproblems.

Axiom & Free-Parameter Ledger

1 free parameters · 3 axioms · 0 invented entities

The central claim rests on established continuum mechanics assumptions and a linearized piezoresistive conductivity law; no new physical entities are postulated.

free parameters (1)
  • Piezoresistive coefficients
    Coefficients in the linearized strain-dependent conductivity law are introduced to relate mechanical strain to electrical conductivity.
axioms (3)
  • domain assumption Small-strain linear elasticity
    Invoked for the mechanical response in the abstract.
  • domain assumption AT2-type phase-field functional with tensile/compressive split and history-field irreversibility
    Standard modeling assumptions for the fracture component.
  • domain assumption Steady conduction problem for the electrical subproblem
    Used to obtain electric potential after the mechanics-fracture solve.
