SMCNet: Supervised Surface Material Classification Using mmWave Radar IQ Signals and Complex-valued CNNs

Adam Misik, Driton Salihu, Eckehard Steinbach, Fabian Seguel, Stefan H\"agele

Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:12 UTC · model grok-4.3

classification 📡 eess.SP
keywords mmWave radarsurface material classificationcomplex-valued CNNFMCW radarradar IQ signalsindoor perceptionmaterial estimationrange FFT
0
0 comments X

The pith

A complex-valued CNN using mmWave radar IQ signals classifies indoor surface materials at 99 percent accuracy even at distances unseen in training.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that mmWave radar reflections carry enough distinctive information about surface composition to let a neural network identify materials reliably. Training occurs at three fixed distances while testing includes two additional untrained distances, showing that the system maintains high performance without needing distance-specific retraining. This matters for robot navigation and indoor modeling because material knowledge affects how a system interacts with floors, walls, and objects. The key addition is range FFT pre-processing of the signals, which raises accuracy on unknown distances from roughly 25 percent to nearly 59 percent.

Core claim

SMCNet processes complex-valued mmWave MIMO FMCW radar IQ signals through a complex-valued CNN to classify indoor surface materials. When trained on measurements from three sensing distances and evaluated on those distances plus two unseen ones, the network reaches 99.12 to 99.53 percent overall accuracy. Applying range FFT pre-processing before the network improves accuracy on the unseen distances from 25.25 percent to 58.81 percent without any retraining or distance normalization.

What carries the argument

The complex-valued CNN that ingests raw radar IQ signals directly, with range FFT pre-processing applied to mitigate distance-dependent effects in the reflected signals.

If this is right

  • Indoor robots can obtain material labels from a single mmWave sensor without separate vision or contact hardware.
  • Digital twins of rooms can incorporate material properties measured at varying sensor heights or positions.
  • Systems trained once can operate across a range of distances without repeated data collection or model updates.
  • Pre-processing the range dimension of radar data becomes a practical step for any distance-varying radar classification task.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same radar-plus-complex-network approach could be tested on outdoor surfaces where distance variation is larger.
  • Combining the radar output with other cheap sensors might raise accuracy on the hardest unseen-distance cases above the reported 58 percent.
  • If the material features prove stable across different radar hardware, the method could transfer to new devices without full retraining.

Load-bearing premise

The reflected mmWave IQ signals contain material-specific features that remain sufficiently consistent and distinguishable across different sensing distances, allowing the complex-valued CNN to generalize without retraining or explicit distance normalization.

What would settle it

Collecting new radar measurements at additional untrained distances with the same materials and observing whether overall accuracy falls below 50 percent even after range FFT pre-processing would falsify the claim of robust generalization.

Figures

Figures reproduced from arXiv: 2604.06847 by Adam Misik, Driton Salihu, Eckehard Steinbach, Fabian Seguel, Stefan H\"agele.

Figure 1
Figure 1. Figure 1: Data collection of different surfaces with different [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 5
Figure 5. Figure 5: Raw IQ signal (left) and range FFT (right) confusion [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 4

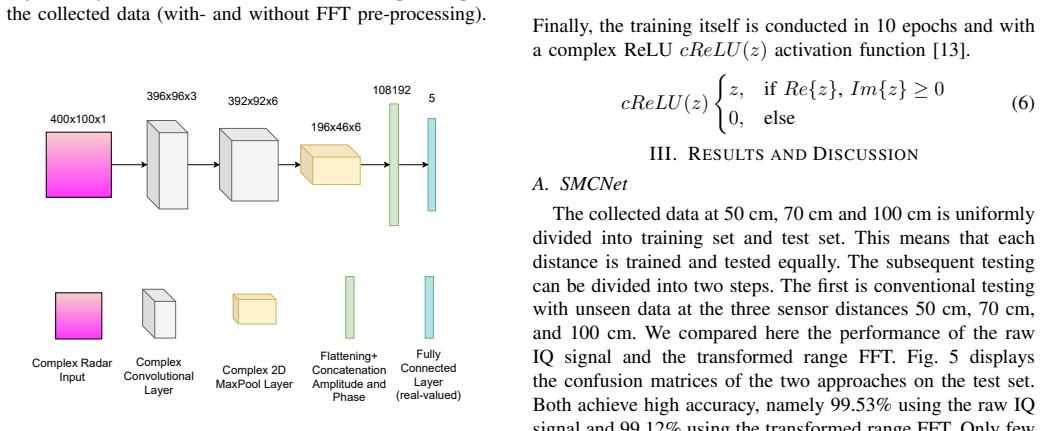

Figure 4. Figure 4: SMCNet structure for processing complex radar sig [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Raw IQ signal (left) and range FFT (right) confusion [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
read the original abstract

Understanding surface material properties is crucial for enhancing indoor robot perception and indoor digital twinning. However, not all sensor modalities typically employed for this task are capable of reliably capturing detailed surface material characteristics. By analyzing the reflected RF signal from a mmWave radar sensor, it is possible to extract information about the reflective material and its composition from a certain surface. We introduce a mmWave MIMO FMCW radar-based surface material classifier SMCNet, employing a complex-valued Convolutional Neural Network (CNN) and complex radar IQ signal input for classifying indoor surface materials. While current radar-based material estimation approaches rely on a fixed sensing distance and constrained setups, our approach incorporates a setup with multiple sensing distances. We trained SMCNet using data from three distinct distances and subsequently tested it on these distances, as well as on two more unseen distances. We reached an overall accuracy of 99.12-99.53 % on our test set. Notably, range FFT pre-processing improved accuracy on unknown distances from 25.25 % to 58.81 % without re-training.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces SMCNet, a complex-valued CNN classifier for indoor surface materials that takes mmWave MIMO FMCW radar IQ signals as input. Data are collected at five distances; the network is trained on three distances and evaluated on both the training distances and two held-out distances. The abstract reports overall test-set accuracies of 99.12–99.53 % and states that range-FFT preprocessing raises accuracy on the unseen distances from 25.25 % to 58.81 % without retraining.

Significance. If the empirical results are reproducible, the work offers a concrete demonstration that complex-valued networks can exploit radar IQ data for material discrimination and that a simple range-FFT step partially mitigates distance variation. The explicit multi-distance protocol and the numerical contrast between seen and unseen distances constitute a falsifiable contribution that could inform future radar-based perception pipelines for robotics.

major comments (2)
  1. [Abstract] Abstract: the headline claim of 99.12–99.53 % overall accuracy is driven by performance on the three training distances; the 58.81 % figure on the two unseen distances remains well below the seen-distance level, indicating that residual distance-dependent effects (attenuation, phase progression, or multipath) are still present after range-FFT preprocessing and are being exploited by the network on seen data.
  2. [Abstract] Abstract and experimental description: no information is supplied on the number of material classes, total number of samples, train/test split protocol, or sensor configuration (carrier frequency, bandwidth, antenna array size, or surface-angle variation). These omissions make it impossible to judge whether the reported accuracies are statistically reliable or whether the unseen-distance test truly isolates material signatures.
minor comments (1)
  1. [Abstract] The abstract states that the network was “subsequently tested … on two more unseen distances” but does not clarify whether the two unseen distances were drawn from the same physical surfaces or whether new surfaces were introduced; this distinction affects the interpretation of generalization.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the recommendation for major revision. We address each point below and have revised the manuscript to improve clarity and completeness.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the headline claim of 99.12–99.53 % overall accuracy is driven by performance on the three training distances; the 58.81 % figure on the two unseen distances remains well below the seen-distance level, indicating that residual distance-dependent effects (attenuation, phase progression, or multipath) are still present after range-FFT preprocessing and are being exploited by the network on seen data.

    Authors: We agree that the overall accuracy is driven by strong performance on the three training distances. The manuscript's primary contribution is the explicit multi-distance protocol and the demonstration that range-FFT preprocessing yields a measurable improvement on unseen distances (from 25.25 % to 58.81 %). To make the distinction transparent, we have revised the abstract to report accuracies separately for seen and unseen distances rather than only the aggregate figure. This change acknowledges the residual distance-dependent effects while preserving the reported improvement. revision: yes

  2. Referee: [Abstract] Abstract and experimental description: no information is supplied on the number of material classes, total number of samples, train/test split protocol, or sensor configuration (carrier frequency, bandwidth, antenna array size, or surface-angle variation). These omissions make it impossible to judge whether the reported accuracies are statistically reliable or whether the unseen-distance test truly isolates material signatures.

    Authors: The experimental setup and dataset sections of the manuscript contain the requested details on material classes, sample counts, train/test split, sensor parameters, and collection protocol (including fixed surface orientation). We acknowledge that these elements were not summarized in the abstract, which limits immediate assessment. We have therefore revised the abstract to include a concise statement of the number of classes, dataset scale, split protocol, and key sensor specifications. This ensures readers can evaluate statistical reliability and confirm that the unseen-distance test isolates material signatures under the stated conditions. revision: yes

Circularity Check

0 steps flagged

No circularity: standard supervised empirical ML evaluation on held-out radar data

full rationale

The manuscript describes data collection at five distances, training a complex-valued CNN on IQ signals (or range-FFT preprocessed versions) from three distances, and reporting test accuracies on both seen and unseen distances. All performance numbers are direct empirical outcomes of train/test splits; no equations, predictions, or claims reduce by construction to fitted parameters, self-defined quantities, or self-citation chains. The central result (accuracy figures) is externally falsifiable via replication on the same sensor setup and is not derived from any internal ansatz or uniqueness theorem. This is a self-contained supervised classification study whose validity rests on experimental protocol rather than any circular derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical deep-learning paper; the central performance claims rest on learned network weights obtained via standard supervised training rather than explicit free parameters, axioms, or newly postulated physical entities.
