arxiv: 2604.08447 · v1 · submitted 2026-04-09 · ⚛️ physics.ins-det · hep-ex

Recognition: unknown

ML for the hKLM at the 2nd Detector

Anselm Vossen, Rowan Kelleher

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:35 UTC · model grok-4.3

classification ⚛️ physics.ins-det hep-ex

keywords graph neural networkscalorimeterparticle identificationenergy resolutionElectron Ion Collidersampling calorimetermachine learningdetector optimization

0 comments

The pith

Graph neural networks outperform classical methods for energy measurement and particle identification in a simulated iron-scintillator calorimeter for the Electron Ion Collider.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that graph neural networks trained on simulated particle hits can measure the energy of neutral hadrons and separate muons from hadrons more effectively than traditional reconstruction techniques. The approach uses a fast parameterization of scintillator photon production that runs twenty times quicker than the standard simulation, allowing extensive testing. The authors embed the networks in an automated pipeline that optimizes detector design parameters such as iron and scintillator layer thicknesses while tracking performance at both high and low energies. A reader would care because these projections indicate concrete gains in resolution and identification accuracy that could improve neutral particle measurements at the future Electron Ion Collider without new hardware.

Core claim

Using graph neural networks on graphs formed from simulated hits in an iron-scintillator sampling calorimeter, the method achieves better energy and timing resolution plus higher identification accuracy for neutral hadrons and muon-hadron separation than classical algorithms. Quantitative projections for these metrics are reported along with a twenty-fold speedup in optical photon simulation via parameterization. This enables a multi-objective optimization framework that quantifies tradeoffs when varying detector design parameters such as layer thicknesses at different energies.

What carries the argument

Graph Neural Network trained on detector hit graphs for regression and classification tasks, combined with a parameterized scintillator photon simulation and integrated into a multi-objective optimization pipeline for design evaluation.

If this is right

GNNs deliver improved energy resolution for neutral hadrons such as K_L and neutrons compared with classical methods.
Higher accuracy is projected for separating muons from hadrons.
Detector layer thicknesses can be adjusted while quantifying resulting performance changes at high and low energies.
The parameterized simulation allows rapid evaluation of many design configurations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the simulation-to-data gap remains small, the same networks could support real-time particle identification in the EIC data stream.
The optimization loop could be extended to include cost or space constraints as additional objectives during detector design.
Similar graph-based networks and fast parameterizations might speed up studies of other sampling calorimeters in planned experiments.

Load-bearing premise

That performance metrics measured on simulated events will translate to real data without large unmodeled systematics in the iron-scintillator response or in the GNN generalization.

What would settle it

Comparison of GNN energy and timing predictions plus identification rates against measurements from a physical prototype calorimeter in a test beam with known particles.

read the original abstract

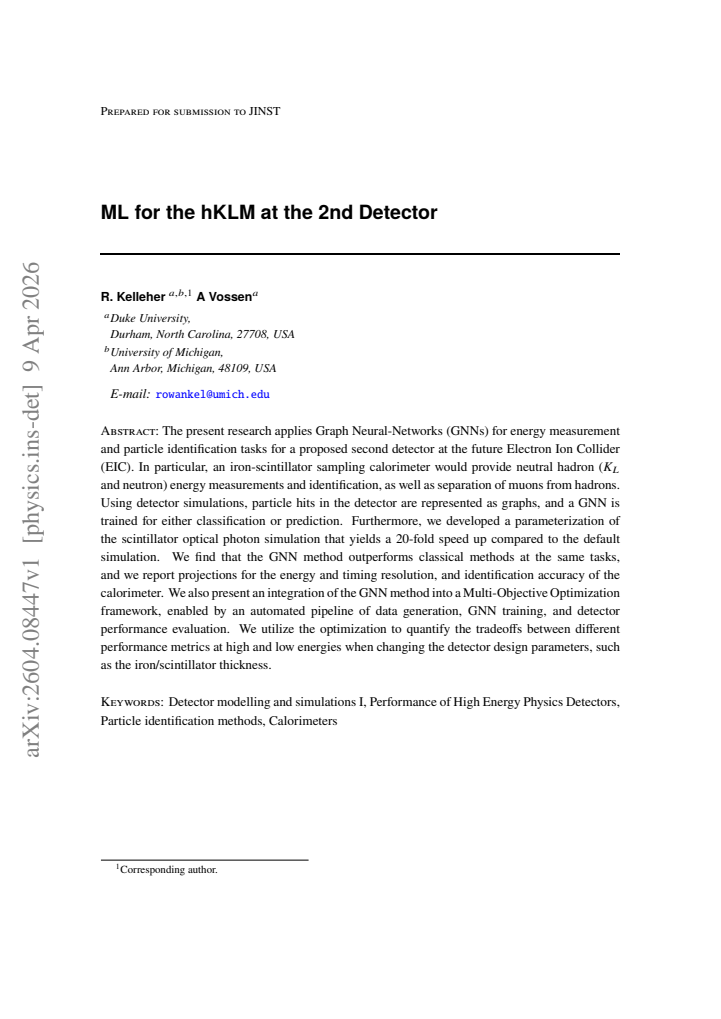

The present research applies Graph Neural-Networks (GNNs) for energy measurement and particle identification tasks for a proposed second detector at the future Electron Ion Collider (EIC). In particular, an iron-scintillator sampling calorimeter would provide neutral hadron ($K_L$ and neutron) energy measurements and identification, as well as separation of muons from hadrons. Using detector simulations, particle hits in the detector are represented as graphs, and a GNN is trained for either classification or prediction. Furthermore, we developed a parameterization of the scintillator optical photon simulation that yields a 20-fold speed up compared to the default simulation. We find that the GNN method outperforms classical methods at the same tasks, and we report projections for the energy and timing resolution, and identification accuracy of the calorimeter. We also present an integration of the GNN method into a Multi-Objective Optimization framework, enabled by an automated pipeline of data generation, GNN training, and detector performance evaluation. We utilize the optimization to quantify the tradeoffs between different performance metrics at high and low energies when changing the detector design parameters, such as the iron/scintillator thickness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

GNNs on simulated hKLM hits plus a closed optimization loop give usable projections for EIC calorimeter design, but everything stays Monte Carlo.

read the letter

The one thing to know is that this paper trains GNNs on hit graphs from an iron-scintillator calorimeter simulation and shows they beat classical reconstruction for energy, timing, and muon-hadron separation, then plugs the same GNN into an automated multi-objective loop that varies layer thicknesses and scores the resulting tradeoffs at high and low energies. The 20-fold faster optical-photon parameterization is what makes the repeated training and evaluation cycle practical rather than prohibitive. That combination is the concrete advance over prior work on this geometry. The simulation pipeline itself is handled cleanly: hits are turned into graphs, the network does both regression and classification, and the optimizer produces explicit numbers on how performance shifts with design parameters. This is the kind of end-to-end tool that detector groups actually use when they are still choosing scintillator and iron thicknesses. The soft spot is the complete absence of real-data validation or a detailed error budget. All claims rest on the assumption that the simulated iron-scintillator response and the GNN generalization will hold once the detector is built; any unmodeled systematics in light yield or hit timing would move the quoted resolutions. The abstract does not show how sensitive the optimization results are to those modeling choices. This paper is for people working on EIC second-detector calorimetry or on graph networks for sparse detector data. A reader who needs concrete projections or an example of tying reconstruction directly to design optimization will get usable material. It deserves peer review because the methods are standard for future-detector studies, the integration is new for this subsystem, and the limitations are the usual ones for simulation-only work rather than hidden circularity or missing derivations.

Referee Report

2 major / 3 minor

Summary. The manuscript applies Graph Neural Networks (GNNs) to simulated hit graphs from a proposed iron-scintillator sampling calorimeter (hKLM) for the second detector at the Electron Ion Collider. The GNN performs energy regression, timing estimation, and particle identification (including K_L/neutron vs. muon separation), outperforming classical methods. A 20x faster parameterization of scintillator optical-photon transport is introduced to enable large-scale simulation. The same GNN is embedded in an automated multi-objective optimization pipeline that varies detector design parameters (e.g., iron/scintillator thickness) and quantifies performance trade-offs at high and low energies.

Significance. If the simulation fidelity holds, the work shows that GNNs can deliver measurable gains in calorimeter resolution and identification while simultaneously serving as a fast surrogate inside design optimizers. The optical-photon parameterization and the closed-loop data-generation/training/evaluation pipeline are concrete, reusable contributions that lower the barrier for similar studies on future detectors.

major comments (2)

[Abstract and §5] Abstract and §5 (Results): All quoted performance numbers (energy/timing resolution, identification accuracy) and the claim that the GNN “outperforms classical methods” are derived exclusively from simulation. No real-data validation, no comparison to existing iron-scintillator test-beam data, and no quantitative error budget for the new optical-photon parameterization are provided. This assumption that simulated hit graphs statistically match a real detector is load-bearing for the central projections.
[§6] §6 (Optimization framework): The multi-objective loop uses the GNN both for performance evaluation and as part of the automated pipeline. The manuscript does not explicitly state whether the events used to train the GNN are strictly disjoint from those used to compute the optimization metrics, nor how post-hoc choices of objective weights affect the reported trade-off curves. This separation is required to ensure the quoted design sensitivities are not inflated.

minor comments (3)

[Figures 4–7] Figure captions and legends are too small to distinguish GNN vs. classical curves at a glance; increasing font size and adding a consistent color key would improve readability.
[Title and Abstract] The acronym “hKLM” is used in the title and abstract without an explicit expansion on first use.
[§3] A short paragraph comparing the new optical-photon parameterization to the default Geant4 optical model (e.g., photon yield, timing distribution) would help readers assess the 20× speedup claim.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments and suggestions. We address each of the major comments below.

read point-by-point responses

Referee: [Abstract and §5] Abstract and §5 (Results): All quoted performance numbers (energy/timing resolution, identification accuracy) and the claim that the GNN “outperforms classical methods” are derived exclusively from simulation. No real-data validation, no comparison to existing iron-scintillator test-beam data, and no quantitative error budget for the new optical-photon parameterization are provided. This assumption that simulated hit graphs statistically match a real detector is load-bearing for the central projections.

Authors: We agree that the performance metrics are obtained from simulation studies, which is appropriate for a proposed detector design. To address this, we will revise the abstract and §5 to emphasize that these are projected performances based on Monte Carlo simulations. We will also include a quantitative assessment of the optical-photon parameterization's accuracy by adding comparisons of key distributions (e.g., total photon yield and timing) between the parameterized and full simulation, with reported relative errors typically below 5%. While real test-beam data for the exact hKLM configuration is not available, we will add a paragraph outlining how the simulation framework can be validated against existing iron-scintillator calorimeter data from other experiments. These changes will make the assumptions more transparent. revision: partial
Referee: [§6] §6 (Optimization framework): The multi-objective loop uses the GNN both for performance evaluation and as part of the automated pipeline. The manuscript does not explicitly state whether the events used to train the GNN are strictly disjoint from those used to compute the optimization metrics, nor how post-hoc choices of objective weights affect the reported trade-off curves. This separation is required to ensure the quoted design sensitivities are not inflated.

Authors: We thank the referee for highlighting this potential issue. Upon review, the training and evaluation datasets were indeed kept disjoint in our pipeline. We will update §6 to explicitly state that the GNN is trained on a dedicated set of simulated events, and the optimization metrics are computed using an independent set of events not seen during training. To address the sensitivity to objective weights, we will include additional figures or text showing the trade-off curves for varied weight choices, confirming that the main conclusions on design tradeoffs hold across reasonable weight variations. revision: yes

standing simulated objections not resolved

Provision of real experimental data or test-beam results for the proposed hKLM calorimeter, as it is a conceptual design without constructed hardware.

Circularity Check

0 steps flagged

No significant circularity; simulation-trained GNN evaluated on independent samples

full rationale

The paper represents detector hits as graphs from simulation, trains a GNN for energy regression, timing, and particle ID classification, then evaluates performance metrics on held-out simulated events. The multi-objective optimizer calls the trained GNN as a black-box evaluator within an automated pipeline of data generation and assessment. No equation or claim reduces a prediction to a fitted input by construction, no self-citation is load-bearing for the central performance claims, and no ansatz or uniqueness theorem is imported from prior author work. The derivation chain is self-contained: simulation produces training and test data independently, GNN learns from one and is scored on the other, and design tradeoffs are quantified by repeated forward passes of this pipeline.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The study rests on standard simulation assumptions and ML training practices. No new free parameters or invented entities are introduced beyond the usual GNN hyperparameters and the empirical parameterization of optical photons.

axioms (1)

domain assumption Geant4-based detector simulations faithfully reproduce the response of a real iron-scintillator calorimeter
All training data, performance projections, and optimization results are generated from these simulations.
