arxiv: 2604.09992 · v1 · submitted 2026-04-11 · ⚛️ physics.comp-ph

Recognition: unknown

Admissible Reconstruction of Reaction-Channel Levels on Fixed Subgroup Support for Cross-Section-Space Probability Table Constructions

Beichen Zheng , Lili Wen
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:25 UTC · model grok-4.3

classification ⚛️ physics.comp-ph
keywords reaction-channel reconstructionprobability table constructioncross-section nonnegativitysubgroup methodU-238 benchmarkconvex optimizationconstrained least squares
0
0 comments X

The pith

Admissible reconstruction on fixed subgroup support restores nonnegativity of reaction-channel levels in cross-section probability tables.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to reconstruct reaction-channel levels on fixed total-subgroup nodes and probabilities while enforcing nonnegativity. The standard full-matching approach can produce negative values that lack physical meaning and may violate nonnegativity of effective cross sections. By retaining low-order channel information exactly and fitting the remaining conditions via weighted least squares, the problem reduces to a convex optimization with inequality constraints. Numerical tests on a U-238 capture benchmark indicate that violations are rare and the method corrects them with only modest loss in accuracy compared to unconstrained matching.

Core claim

We formulate an admissible constrained reconstruction problem on the fixed subgroup support, in which selected low-order channel information is retained exactly and the remaining matching conditions are fitted in a weighted least-squares sense. After null-space reduction, the problem becomes a convex optimization problem with linear inequality constraints. For the single-retention formulation, nonnegative feasibility is automatic when the retained 0-order aggregate is nonnegative, whereas for a two-retention variant it additionally requires a compatibility condition with the fixed total-subgroup nodes.

What carries the argument

Admissible constrained reconstruction on fixed total-subgroup nodes and probabilities, reduced via null-space projection to convex optimization with linear inequality constraints.

If this is right

  • Nonnegativity violations of channel levels are confined to a small subset of energy groups in representative benchmarks.
  • The admissible method restores nonnegativity on those groups while preserving exact retention of selected low-order aggregates.
  • Single-retention formulations exhibit more stable overall response behavior than two-retention variants.
  • Response accuracy experiences some deterioration relative to full matching but remains usable for downstream calculations.
  • The folded effective cross section stays nonnegative for every dilution once the channel levels satisfy the nonnegativity constraints.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The per-group convex solves could be inserted directly into existing subgroup processing codes with only local modifications.
  • The same fixed-support idea may apply to other nuclear data fitting tasks that must respect nonnegativity and moment constraints.
  • Broader testing on additional isotopes would clarify whether the single-retention preference observed for U-238 holds generally.

Load-bearing premise

Nonnegativity of the reconstructed channel levels on fixed positive total-subgroup nodes and probabilities is sufficient to ensure nonnegativity of the folded effective cross section over all dilutions.

What would settle it

A dilution calculation in which the effective cross section turns negative even though every reconstructed channel level is nonnegative on the fixed subgroup nodes and probabilities would disprove the claimed sufficiency condition.

Figures

Figures reproduced from arXiv: 2604.09992 by Beichen Zheng, Lili Wen.

Figure 1
Figure 1. Figure 1: Cumulative-probability representation of the reaction-channel subgroup levels in en [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Reaction-channel levels in cumulative-probability form for energy group 22 at [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

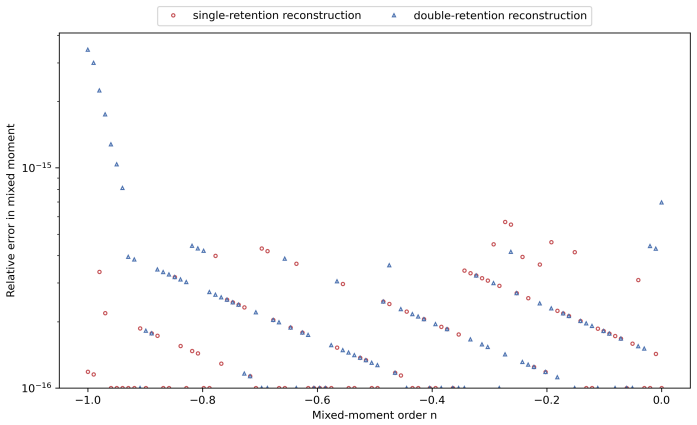

Figure 3. Figure 3: Relative errors in the mixed moments as functions of the sampled mixed-moment [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Relative mixed-moment errors over the sampled order interval [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

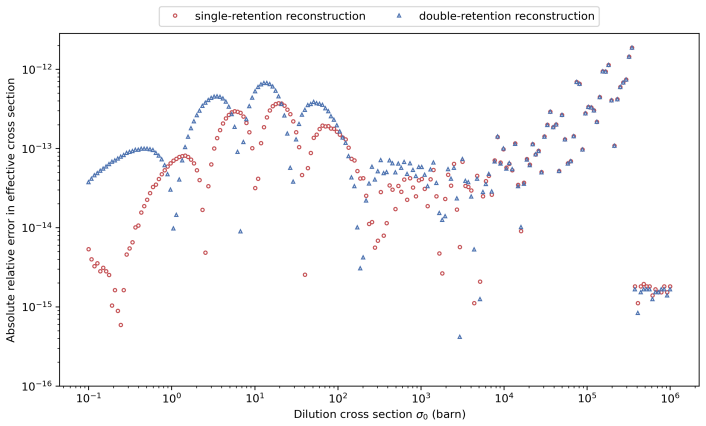

Figure 5. Figure 5: Absolute relative errors in the effective cross section as functions of the dilution [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

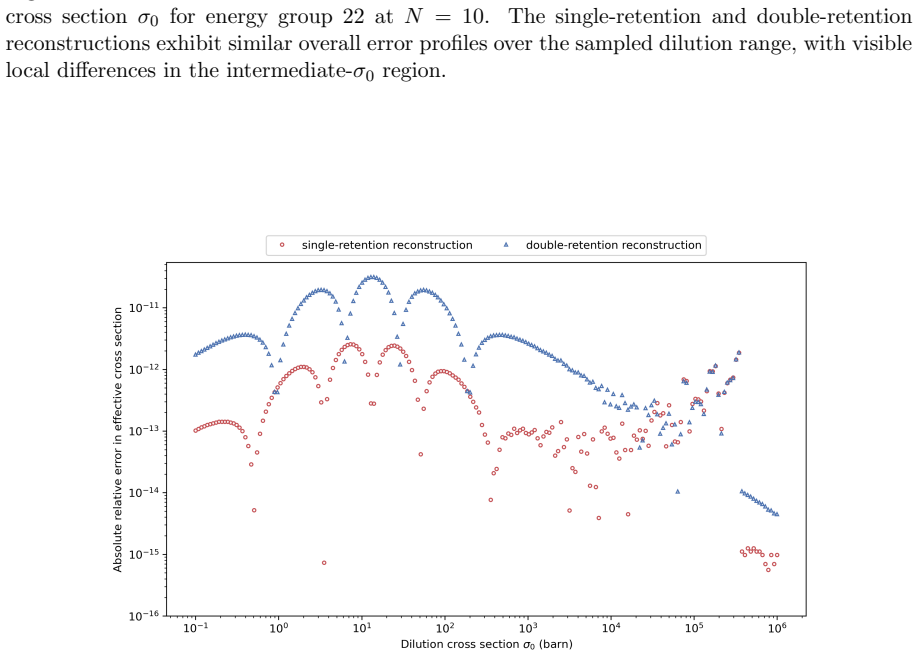

Figure 6. Figure 6: Absolute relative errors in the effective cross section as functions of the dilution [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

In cross-section-space probability table constructions, reaction-channel levels are reconstructed on fixed total-subgroup nodes and probabilities. Although the standard full-matching reconstruction is uniquely determined, it does not in general preserve componentwise nonnegativity of the channel levels. We impose nonnegativity both for physical interpretability and because, on fixed positive total-subgroup nodes and probabilities, it provides a sufficient structural condition for nonnegativity of the folded effective cross section over all dilutions. We therefore formulate an admissible constrained reconstruction problem on the fixed subgroup support, in which selected low-order channel information is retained exactly and the remaining matching conditions are fitted in a weighted least-squares sense. After null-space reduction, the problem becomes a convex optimization problem with linear inequality constraints. For the single-retention formulation, nonnegative feasibility is automatic when the retained \(0\)-order aggregate is nonnegative, whereas for a two-retention variant it additionally requires a compatibility condition with the fixed total-subgroup nodes. Numerical results for a representative U-238 capture benchmark show that nonnegativity violations are confined to a small subset of energy groups. On these groups, the admissible reconstruction restores nonnegativity, but at the cost of some response-level deterioration relative to full matching. In the comparison, the single-retention formulation shows the more stable overall behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes an admissible constrained reconstruction for reaction-channel levels in cross-section probability table constructions. On fixed positive total-subgroup nodes and probabilities, it retains selected low-order channel information exactly while fitting the remaining matching conditions in a weighted least-squares sense. After null-space reduction the problem is cast as a convex optimization with linear inequality constraints. Single-retention is shown to be automatically feasible when the 0-order aggregate is nonnegative; a two-retention variant requires an additional compatibility condition. Numerical results on a U-238 capture benchmark indicate that nonnegativity violations occur in only a small subset of energy groups, that the constrained reconstruction restores nonnegativity (at some response-level cost), and that the single-retention formulation exhibits more stable overall behavior.

Significance. If the claimed structural sufficiency of channel nonnegativity for folded effective-cross-section nonnegativity holds, the work supplies a principled, convex, and automatically feasible route to physically interpretable probability tables. The explicit reduction to a convex program with linear inequalities and the automatic feasibility result for the single-retention case are concrete technical strengths. The U-238 benchmark provides initial evidence that violations are localized, but the absence of a full derivation of the sufficiency claim and of quantitative error analysis limits the immediate applicability of the method.

major comments (2)
  1. [Abstract / motivation] Abstract and motivation section: the claim that nonnegativity of the reconstructed channel levels supplies a sufficient structural condition for nonnegativity of the folded effective cross section over all dilutions (on fixed positive total-subgroup nodes and probabilities) is asserted without the explicit expression for the folded quantity or the algebraic steps establishing the implication. Because this sufficiency is presented as one of the two primary reasons for imposing the constraint, its absence weakens the justification for preferring the constrained formulation over post-processing alternatives.
  2. [Numerical results] Numerical results paragraph: the statement that nonnegativity violations are “confined to a small subset of energy groups” is given without the number of affected groups, the magnitude of the violations, or the quantitative response-level deterioration relative to full matching. These quantities are needed to assess whether the observed trade-off is practically acceptable and whether the single-retention formulation’s “more stable overall behavior” is statistically significant.
minor comments (2)
  1. [Formulation] The weights appearing in the weighted least-squares objective are not defined explicitly; their functional form (or dependence on subgroup probabilities) should be stated so that the optimization problem is fully reproducible.
  2. [Feasibility discussion] The compatibility condition required for the two-retention variant is mentioned but not written out; an explicit inequality or matrix condition would clarify the difference from the single-retention case.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and will incorporate the requested clarifications and quantitative details into a revised version.

read point-by-point responses

  1. Referee: [Abstract / motivation] Abstract and motivation section: the claim that nonnegativity of the reconstructed channel levels supplies a sufficient structural condition for nonnegativity of the folded effective cross section over all dilutions (on fixed positive total-subgroup nodes and probabilities) is asserted without the explicit expression for the folded quantity or the algebraic steps establishing the implication. Because this sufficiency is presented as one of the two primary reasons for imposing the constraint, its absence weakens the justification for preferring the constrained formulation over post-processing alternatives.

    Authors: We agree that the explicit expression for the folded effective cross section and the algebraic steps establishing the sufficiency implication were omitted for brevity. The folded quantity is the dilution-weighted sum of the channel levels normalized by the total cross section on the fixed positive subgroup nodes; nonnegativity of each channel level then directly implies nonnegativity of the folded result for any positive dilution. We will insert the explicit expression together with the short algebraic argument into the motivation section of the revised manuscript. revision: yes

  2. Referee: [Numerical results] Numerical results paragraph: the statement that nonnegativity violations are “confined to a small subset of energy groups” is given without the number of affected groups, the magnitude of the violations, or the quantitative response-level deterioration relative to full matching. These quantities are needed to assess whether the observed trade-off is practically acceptable and whether the single-retention formulation’s “more stable overall behavior” is statistically significant.

    Authors: We acknowledge that the current numerical results paragraph lacks the quantitative detail needed for a full assessment. In the revised manuscript we will report the precise number of affected energy groups, the range and mean magnitude of the observed violations, and tabulated relative errors in the effective cross sections and selected reaction rates for both the full-matching and admissible reconstructions. These additions will also permit a clearer statistical comparison of the stability between the single-retention and two-retention formulations. revision: yes

Circularity Check

0 steps flagged

No circularity; new constrained optimization formulation is independent of prior fits

full rationale

The paper defines a novel admissible reconstruction as a convex optimization problem (after null-space reduction) that retains selected low-order channel data exactly while fitting the rest in weighted least-squares under nonnegativity constraints. This is motivated by physical interpretability plus a stated structural property of the fixed positive subgroup nodes/probabilities, but the property is not derived from or reduced to any fitted outputs or self-citations within the paper. Numerical U-238 results serve only as validation of the method's behavior, not as the source of the reconstruction equations themselves. No load-bearing step equates a claimed result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on domain assumptions standard in nuclear data processing about subgroup structures and the link between channel nonnegativity and effective cross-section nonnegativity; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption on fixed positive total-subgroup nodes and probabilities, nonnegativity of channel levels provides a sufficient structural condition for nonnegativity of the folded effective cross section over all dilutions
    Explicitly stated as justification for imposing the constraint.

pith-pipeline@v0.9.0 · 5536 in / 1313 out tokens · 55535 ms · 2026-05-10T16:25:08.511244+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

26 extracted references · 1 canonical work pages

  1. [1]

    Leo B. Levitt. The probability table method for treating unresolved neutron resonances in monte carlo calculations.Nuclear Science and Engineering, 49(4):450–457, 1972

    1972

  2. [2]

    Computing moment-based probability tables for self- shielding calculations in lattice codes.Nuclear Science and Engineering, 142(3):245–257, 2002

    Alain H´ ebert and Mireille Coste. Computing moment-based probability tables for self- shielding calculations in lattice codes.Nuclear Science and Engineering, 142(3):245–257, 2002

    2002

  3. [3]

    The ribon extended self-shielding model.Nuclear Science and Engineering, 151(1):1–24, 2005

    Alain H´ ebert. The ribon extended self-shielding model.Nuclear Science and Engineering, 151(1):1–24, 2005

    2005

  4. [4]

    Improvement of moment-based probability table for resonance self-shielding calculation.Annals of Nuclear Energy, 33(13):1141–1146, 2006

    Go Chiba and Hironobu Unesaki. Improvement of moment-based probability table for resonance self-shielding calculation.Annals of Nuclear Energy, 33(13):1141–1146, 2006

    2006

  5. [5]

    Advances in the development of a subgroup method for the self-shielding of resonant isotopes in arbitrary geometries.Nuclear Science and Engineering, 126(3):245– 263, 1997

    Alain H´ ebert. Advances in the development of a subgroup method for the self-shielding of resonant isotopes in arbitrary geometries.Nuclear Science and Engineering, 126(3):245– 263, 1997

    1997

  6. [6]

    Development of the subgroup projection method for resonance self-shielding calculations.Nuclear Science and Engineering, 162(1):56–75, 2009

    Alain H´ ebert. Development of the subgroup projection method for resonance self-shielding calculations.Nuclear Science and Engineering, 162(1):56–75, 2009

    2009

  7. [7]

    Subgroup weight generation based on shielded pin-cell cross section conservation.Annals of Nuclear Energy, 36(7):859– 868, 2009

    Han Gyu Joo, Gwan Young Kim, and Leonid Pogosbekyan. Subgroup weight generation based on shielded pin-cell cross section conservation.Annals of Nuclear Energy, 36(7):859– 868, 2009

    2009

  8. [8]

    Improvements of subgroup method based on fine group slowing-down calculation for resonance self-shielding treatment.Annals of Nuclear Energy, 136:106992, 2020

    Song Li, Zhijian Zhang, Qian Zhang, and Qiang Zhao. Improvements of subgroup method based on fine group slowing-down calculation for resonance self-shielding treatment.Annals of Nuclear Energy, 136:106992, 2020

    2020

  9. [9]

    Analysis of the fine-mesh subgroup method and its feasible improvement

    Song Li, Qian Zhang, Lei Liu, Yongfa Zhang, Jianli Hao, Xiaolong Wang, Lizhi Jiang, and Xiaoya Liu. Analysis of the fine-mesh subgroup method and its feasible improvement. Frontiers in Energy Research, 10:1036063, 2023

    2023

  10. [10]

    Temperature dependent subgroup formulation with number density adjustment for direct whole core power reactor calculation

    Yeon Sang Jung, Chang Hyun Lim, and Han Gyu Joo. Temperature dependent subgroup formulation with number density adjustment for direct whole core power reactor calculation. Annals of Nuclear Energy, 96:249–263, 2016

    2016

  11. [11]

    Yuxuan Liu and William R. Martin. Pin-resolved resonance self-shielding methods in lwr direct transport calculations.Annals of Nuclear Energy, 110:1165–1175, 2017

    2017

  12. [12]

    A general formulation of the resonance spectrum expansion self-shielding method.Nuclear Science and Engineering, 200(1):S77–S90, 2026

    Alain H´ ebert. A general formulation of the resonance spectrum expansion self-shielding method.Nuclear Science and Engineering, 200(1):S77–S90, 2026. 13

    2026

  13. [13]

    Ribon and J

    P. Ribon and J. M. Maillard. Probability tables and gauss quadrature: Application to neutron cross-sections in the unresolved energy range. InMeeting on Advances in Reactor Physics and Safety, Saratoga Springs, NY, USA, September 1986. CEA-CONF-8720

    1986

  14. [14]

    A finite-precision lanczos-golub-welsch route to probability-table construc- tion in resonance self-shielding, 2026

    Beichen Zheng. A finite-precision lanczos-golub-welsch route to probability-table construc- tion in resonance self-shielding, 2026. arXiv:2603.27715

    work page arXiv 2026

  15. [15]

    G. D. Allen, C. K. Chui, W. R. Madych, F. J. Narcowich, and P. W. Smith. Pad´ e ap- proximation and gaussian quadrature.Bulletin of the Australian Mathematical Society, 11(1):63–69, 1974

    1974

  16. [16]

    Construction of Gauss-Christoffel quadrature formulas.Mathematics of Computation, 22(102):251–270, 1968

    Walter Gautschi. Construction of Gauss-Christoffel quadrature formulas.Mathematics of Computation, 22(102):251–270, 1968

    1968

  17. [17]

    On the construction of Gaussian quadrature rules from modified moments

    Walter Gautschi. On the construction of Gaussian quadrature rules from modified moments. Mathematics of Computation, 24(110):245–260, 1970

    1970

  18. [18]

    Golub and John H

    Gene H. Golub and John H. Welsch. Calculation of Gauss quadrature rules.Mathematics of Computation, 23(106):221–230, 1969

    1969

  19. [19]

    Subgroup method with resonance interference factor table.Annals of Nuclear Energy, 59:176–187, 2013

    Sitao Peng, Xiaofeng Jiang, Shaohong Zhang, and Dezhong Wang. Subgroup method with resonance interference factor table.Annals of Nuclear Energy, 59:176–187, 2013

    2013

  20. [20]

    The Lanczos and conjugate gradient algorithms in finite precision arithmetic.Acta Numerica, 15:471–542, 2006

    G´ erard Meurant and Zdenˇ ek Strakoˇ s. The Lanczos and conjugate gradient algorithms in finite precision arithmetic.Acta Numerica, 15:471–542, 2006

    2006

  21. [21]

    Society for Industrial and Applied Mathematics, Philadelphia, 1996

    ˚Ake Bj¨ orck.Numerical Methods for Least Squares Problems. Society for Industrial and Applied Mathematics, Philadelphia, 1996

    1996

  22. [22]

    Haskell and Richard J

    Karen H. Haskell and Richard J. Hanson. An algorithm for linear least squares problems with equality and nonnegativity constraints.Mathematical Programming, 21:98–118, 1981

    1981

  23. [23]

    Lawson and Richard J

    Charles L. Lawson and Richard J. Hanson.Solving Least Squares Problems. Society for Industrial and Applied Mathematics, Philadelphia, 1995

    1995

  24. [24]

    Goldfarb and A

    D. Goldfarb and A. Idnani. A numerically stable dual method for solving strictly convex quadratic programs.Mathematical Programming, 27(1):1–33, 1983

    1983

  25. [25]

    Wright.Numerical Optimization

    Jorge Nocedal and Stephen J. Wright.Numerical Optimization. Springer, New York, 2 edition, 2006

    2006

  26. [26]

    Stark and Robert L

    Philip B. Stark and Robert L. Parker. Bounded-variable least-squares: An algorithm and applications.Computational Statistics, 10(2):129–141, 1995. 14

    1995
