Tracing the Thought of a Grandmaster-level Chess-Playing Transformer

Rui Lin , Zhenyu Jin , Guancheng Zhou , Xuyang Ge , Wentao Shu , Jiaxing Wu , Junxuan Wang , Zhengfu He
show 2 more authors
Junping Zhang Xipeng Qiu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:49 UTC · model grok-4.3

classification 💻 cs.LG
keywords chess AItransformer interpretabilitysparse decompositionLeela Chess Zeromechanistic interpretabilitytactical reasoningparallel reasoningattention and MLP modules
0
0 comments X

The pith

Sparse replacement layers decompose a grandmaster chess transformer's internal computations to reveal its tactical pathways.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a sparse decomposition framework that replaces the MLP and attention modules in Leela Chess Zero with sparse layers to trace how the model arrives at its moves. A detailed case study shows that the resulting pathways correspond to specific, verifiable tactical considerations inside the network. The authors also define three quantitative metrics that confirm the model performs parallel reasoning in a manner aligned with the design of its policy head. This marks the first decomposition of both module types together in a high-performing transformer for chess.

Core claim

By training sparse replacement layers on LC0, the internal computation of its MLP and attention modules can be separated into distinct pathways; these pathways encode rich tactical considerations that are empirically verifiable through case analysis, and quantitative metrics demonstrate that the model engages in parallel reasoning consistent with the inductive bias built into its policy head architecture.

What carries the argument

Sparse replacement layers that substitute for the original MLP and attention modules while capturing their primary computation process.

If this is right

  • The identified pathways expose rich, interpretable tactical considerations that are empirically verifiable.
  • LC0 exhibits parallel reasoning behavior consistent with the inductive bias of its policy head architecture.
  • Combining sparse replacement layers with causal interventions yields a comprehensive view of advanced tactical reasoning inside the model.
  • The approach supplies concrete insights into the mechanisms that enable superhuman performance in transformer systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sparse-replacement technique could be tested on other transformer models that perform sequential decision tasks to determine whether parallel reasoning appears outside chess.
  • If the pathways remain stable across different board positions, the method might allow targeted editing of specific tactical concepts inside the network.
  • The three quantitative metrics could be applied to compare reasoning styles across different chess engines or even non-chess reasoning transformers.

Load-bearing premise

The sparse replacement layers faithfully capture the primary computation process of the original modules without introducing substantial artifacts or losing critical information.

What would settle it

Measure whether the model’s move selection and evaluation scores remain essentially unchanged after the sparse replacement layers are inserted; if performance drops sharply or the claimed tactical pathways no longer predict the observed moves under intervention, the decomposition does not faithfully trace the original computation.

Figures

Figures reproduced from arXiv: 2604.10158 by Guancheng Zhou, Jiaxing Wu, Junping Zhang, Junxuan Wang, Rui Lin, Wentao Shu, Xipeng Qiu, Xuyang Ge, Zhengfu He, Zhenyu Jin.

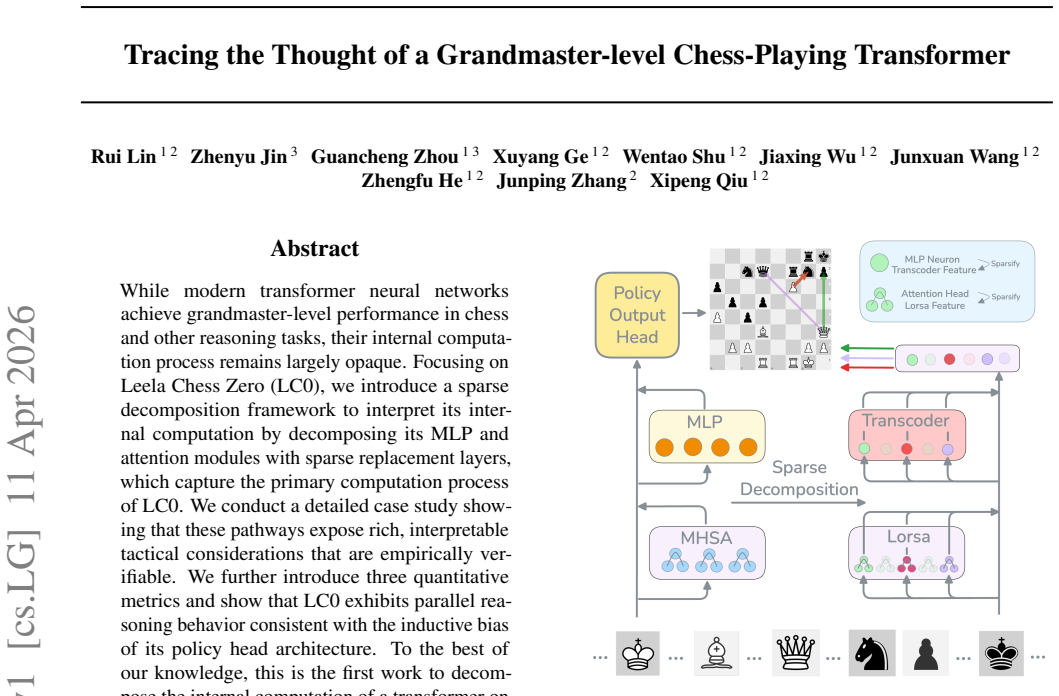

Figure 1
Figure 1. Figure 1: An overview of our approach for interpreting LC0. We use Transcoders and Lorsas as replacement layers to sparsely decompose the model’s MLP and attention module, identifying interpretable reasoning pathways through feature-steering interven￾tions. By analyzing sparse feature activations along these pathways, we reveal an interpretable computational process underlying the model’s decision-making for any inp… view at source ↗

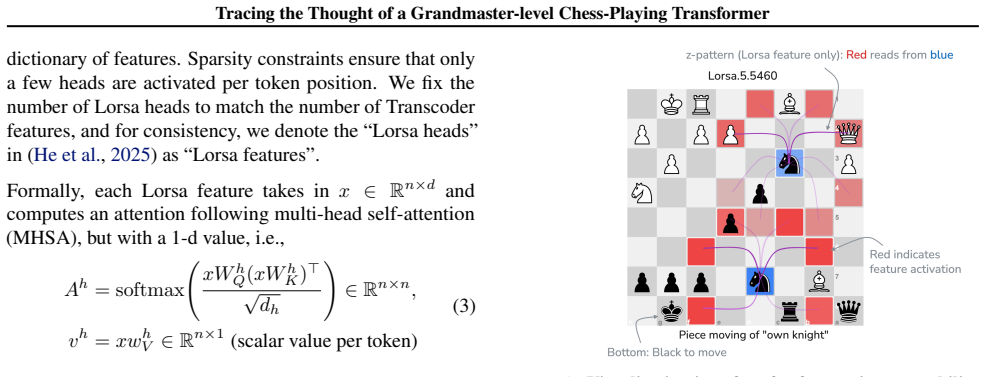

Figure 2
Figure 2. Figure 2: Visualization interface for feature interpretability. Red squares indicate the spatial activations of specific features. For Lorsa features, each activated square is associated with a z-pattern, highlighting its attentional focus (e.g., the black knight, marked in blue). Purple arrows connect each activated square to the target square to which its activation is highly attributed. Notation. We denote a feat… view at source ↗
Figure 3
Figure 3. Figure 3: A complete case study with illustration highlighting the key tactical structure discussed in this section. (A) Input position and extracted reasoning pathways. (B) Finding 1: Mechanistic validation of bishop-movement features that transfer bishop coverage information via targeted attention pattern masking. (C) Finding 2: Copying activation of Lorsa.0.7083 opponent’s rook coverage feature from g7 to h7 alte… view at source ↗
Figure 4
Figure 4. Figure 4: Mean Path Cohesion and Path Coupling between feature sets of top-2 moves across different chess positions in the dataset. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 0.5 1 1.5 2 2.5 3 3.5 4 Feature-output effect Distribution Entropy #Significant Features Distribution Entropy Distribution Entropy Across Layers Layer Entropy Random Baseline: 4.159 (a) Entropy of significant feature counts and feature-to-output ef￾fec… view at source ↗
Figure 5
Figure 5. Figure 5: Detailed analysis of feature distributions. (a) Entropy dis￾tribution across layers, indicating concentration at specific squares. (b) Spatial layout of features on the board [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Overview of the BT4 architecture, featuring SmolGen-enhanced MHSA for modeling chessboard positional relations and an attention-based policy head. A LC0 BT4 Details A.1 Transformer Architecture LC0 is a family of transformer-based chess models trained with the Monte Carlo Tree Search (MCTS) self-play reinforcement learning paradigm introduced by AlphaZero (Silver et al., 2017). In this work, we study BT42 … view at source ↗
Figure 7
Figure 7. Figure 7: Faithfulness of sparse replacement layers. We report the L2 norm error ratio (left) and the explained variance EV (right) of Transcoder and Lorsa modules across transformer layers on a randomly sampled dataset. L2 Norm Error Ratio = Et [∥xˆt − xt∥2] Et [∥xt∥2] . (13) Explained Variance = 1 − Et [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Representative feature examples by category: (1) Detection feature [Det] activating on squares occupied by an opponent knight; (2) Source square feature [Src] activating on the square from which the predicted move originates; (3) Value-based feature [Val] activating on high-value positions on the board; (4) Capture feature [Cap] activating on squares from which a piece can capture an opponent’s rook; (5) T… view at source ↗
Figure 9
Figure 9. Figure 9: Effect on policy probability and logit of steering factor on feature activations. (a) Ten random activated features at each steering factor and corresponding change of policy probability and logit. (b) Ten random significant features at each steering factor and corresponding change of policy probability and logit. We mainly focus on moves with probabilities greater than 0.25, as they are less susceptible t… view at source ↗

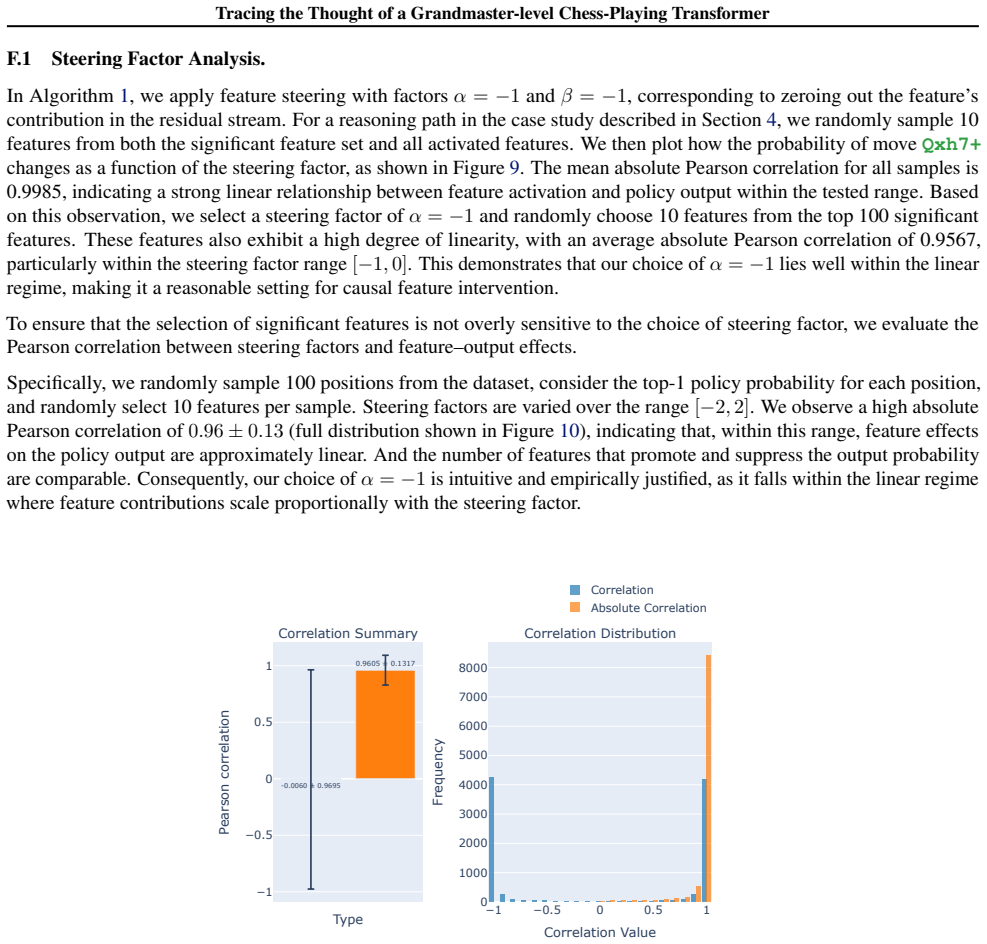

Figure 10
Figure 10. Figure 10: Pearson correlation distribution of steering sensitivity. (Left) The impact of randomly selected features on the top policy probability within the [−2, 2] steering range. (Right) The distribution of Pearson correlation coefficients. We observe significant clustering in the ranges [−1, −0.9] and [0.9, 1], with comparable counts. F.2 Feature and Edge Pruning. This amplifies the observable impact of individu… view at source ↗

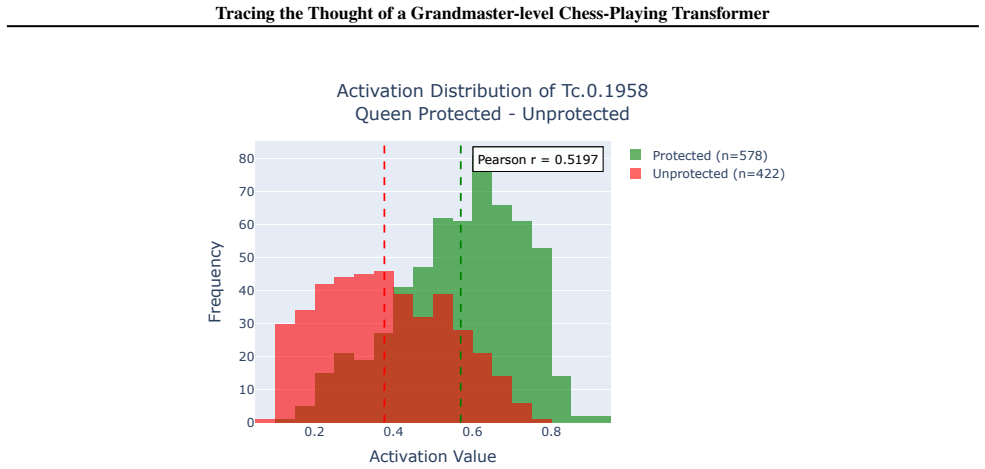

Figure 11
Figure 11. Figure 11: The correlation of between feature activation and whether the exchanging-queen is protected in 1000 activation times with the exchanging-queen. The activation value exhibits a Pearson correlation of 0.52 [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: samples with the highest activations of three bishop-move Lorsa features mentioned in Section 4 finding 1 [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗

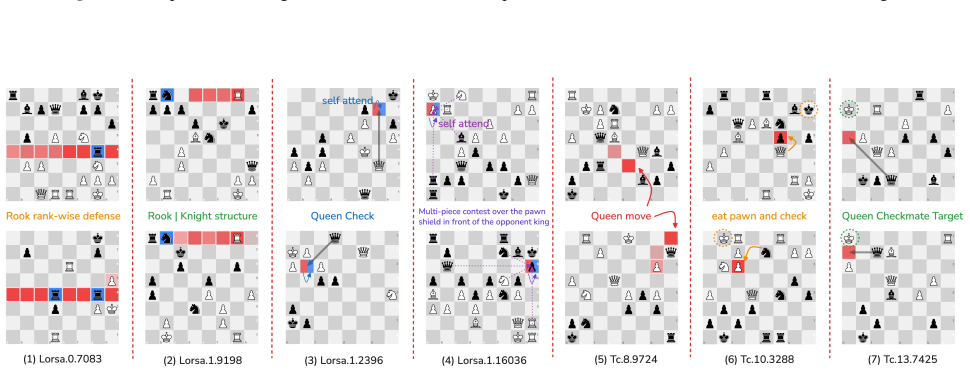

Figure 13
Figure 13. Figure 13: samples with the highest activations of features mentioned in Section 4 finding 2. For Finding 1, the samples with the highest activations of the three bishop-movement Lorsa features are shown in [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: samples with the highest activations of features mentioned in Section 4 finding 3 [PITH_FULL_IMAGE:figures/full_fig_p021_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Reasoning pathway for a defensive decision. The model detects an early-layer threat from the opponent’s queen–rook coordination threatening at h7, and consequently mobilizes a knight to block the mate-in-one threat. Key features involved in this defensive reasoning are visualized. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Reasoning pathway of a case where the model combines offensive and defensive reasoning. The figure shows the input chessboard position, the reasoning pathway supporting the selected policy Qc4+, and the associated supernode interpretations. Two key features are visualized: Tc.1.12313 represents the awareness of opponent queen’s checkmate threats, and Lorsa.4.11791 exerting diagonal threats against the opp… view at source ↗

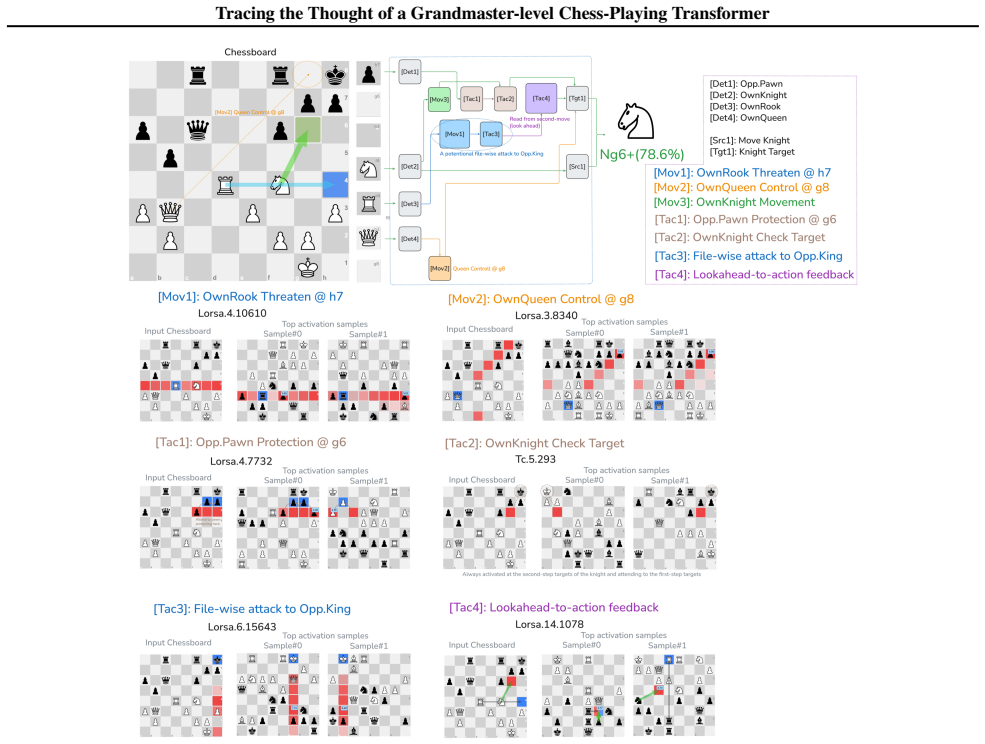

Figure 17
Figure 17. Figure 17: Reasoning pathway of look-ahead reasoning in a mate-in-two scenario. The reasoning pathway illustrates how the model integrates the immediate sacrifice move (Ng6+) with the anticipation of a subsequent checkmate threat from the rook at h4. Important correlated features with highly semantic interpretability are visualized below. Look-ahead Reasoning in a Mate-in-two Sequence via Tactical Sacrifice. In this… view at source ↗
Figure 18
Figure 18. Figure 18: Reasoning pathway for a more complex position. BT4 correctly selects Ne5 with probability 42.7%. The pathway suggests that Ne5 opens the d-file for the rook on d1, creates mating pressure by enabling a future Qf7+, and supports the development of Bg2. After Ne5, Bb7 no longer attacks the knight along the diagonal, and Black may respond with Qe7. A complex middlegame sacrifice case. In the case shown in [… view at source ↗
read the original abstract

While modern transformer neural networks achieve grandmaster-level performance in chess and other reasoning tasks, their internal computation process remains largely opaque. Focusing on Leela Chess Zero (LC0), we introduce a sparse decomposition framework to interpret its internal computation by decomposing its MLP and attention modules with sparse replacement layers, which capture the primary computation process of LC0. We conduct a detailed case study showing that these pathways expose rich, interpretable tactical considerations that are empirically verifiable. We further introduce three quantitative metrics and show that LC0 exhibits parallel reasoning behavior consistent with the inductive bias of its policy head architecture. To the best of our knowledge, this is the first work to decompose the internal computation of a transformer on both MLP and attention modules for interpretability. Combining sparse replacement layers and causal interventions in LC0 provides a comprehensive understanding of advanced tactical reasoning, offering critical insights into the underlying mechanisms of superhuman systems. Our code is available at https://github.com/JacklE0niden/Leela-SAEs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces a sparse decomposition framework that replaces MLP and attention modules in Leela Chess Zero (LC0) with sparse replacement layers to interpret its internal computation. Through a case study it claims these layers expose rich, interpretable tactical pathways that are empirically verifiable, and it introduces three quantitative metrics showing that LC0 exhibits parallel reasoning behavior consistent with the inductive bias of its policy head. The work positions itself as the first to perform such decomposition on both module types in a grandmaster-level chess transformer and releases code at the provided GitHub link.

Significance. If the central assumption holds, the work would offer a concrete advance in mechanistic interpretability of transformers performing complex strategic reasoning, by combining sparse dictionary learning with causal interventions on both MLP and attention components. The emphasis on empirical verifiability of tactical insights and the release of code are strengths that could support follow-up studies. The significance is currently limited by the absence of evidence that the replacement layers preserve the original computation sufficiently to support the interpretability claims.

major comments (3)
  1. [Abstract] Abstract: the claim that the sparse replacement layers 'capture the primary computation process of LC0' is presented without any supporting quantitative evidence (reconstruction error, policy accuracy drop, or Elo equivalence between original and replaced models). This is load-bearing for all downstream interpretability results.
  2. [Methods] Sparse decomposition framework (methods section): because the replacement layers are trained to reconstruct the original activations, any extracted 'pathways' or 'tactical considerations' risk being artifacts of the fitting objective rather than independently discovered mechanisms. No ablation or baseline is described that isolates this circularity risk.
  3. [Results] Quantitative metrics (results section): the three metrics for parallel reasoning are asserted to be empirically verifiable, yet the manuscript provides no detail on how fidelity was measured, what baselines were used, or whether interventions were controlled for reconstruction error. This undermines the claim that the metrics demonstrate genuine internal behavior.
minor comments (2)
  1. [Abstract] The abstract states that three quantitative metrics are introduced but neither names nor briefly describes them; adding one sentence of description would improve readability.
  2. Notation for the sparse replacement layers and dictionary features is introduced without an explicit equation or table summarizing the free parameters (sparsity level, number of features); a small summary table would aid clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their insightful comments and the opportunity to clarify and strengthen our manuscript. We address each major comment below, agreeing where revisions are needed and providing explanations for our approach.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the sparse replacement layers 'capture the primary computation process of LC0' is presented without any supporting quantitative evidence (reconstruction error, policy accuracy drop, or Elo equivalence between original and replaced models). This is load-bearing for all downstream interpretability results.

    Authors: We agree that the abstract makes a strong claim without immediate quantitative support in that section. To address this, we will update the abstract to include specific quantitative evidence from our experiments, such as the reported reconstruction errors and policy accuracy metrics, ensuring the claim is properly grounded. revision: yes

  2. Referee: [Methods] Sparse decomposition framework (methods section): because the replacement layers are trained to reconstruct the original activations, any extracted 'pathways' or 'tactical considerations' risk being artifacts of the fitting objective rather than independently discovered mechanisms. No ablation or baseline is described that isolates this circularity risk.

    Authors: The concern about circularity is well-taken. Although the layers are optimized for reconstruction, we validate the extracted pathways through independent means: causal ablations that alter model behavior in predictable ways, alignment with grandmaster-annotated tactics, and consistency across multiple games. However, to directly address the risk of fitting artifacts, we will include an additional baseline experiment in the revised methods section comparing against non-interpretable sparse models. revision: yes

  3. Referee: [Results] Quantitative metrics (results section): the three metrics for parallel reasoning are asserted to be empirically verifiable, yet the manuscript provides no detail on how fidelity was measured, what baselines were used, or whether interventions were controlled for reconstruction error. This undermines the claim that the metrics demonstrate genuine internal behavior.

    Authors: We apologize for the omission of detailed methodology for the quantitative metrics. In the revised version, we will expand the results section to describe: how fidelity was assessed (via activation MSE and downstream task performance on held-out data), the baselines used (including non-sparse replacements and random interventions), and how we controlled for reconstruction error in the parallel reasoning experiments. This will make the verifiability of the metrics fully transparent. revision: yes

Circularity Check

0 steps flagged

Derivation chain is self-contained with no circular reductions

full rationale

The paper introduces a sparse decomposition framework for LC0's MLP and attention modules, followed by case studies of tactical pathways, three quantitative metrics, and causal interventions to demonstrate parallel reasoning. These steps rely on empirical verification and metric computations that extend beyond the reconstruction objective used to train the replacement layers. No claimed result reduces by construction to the fitting inputs, self-citations, or definitional equivalences; the assumption of faithful capture is presented as an empirical premise rather than a tautology. The work is self-contained against external benchmarks via the reported interventions and metrics.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 1 invented entities

The framework rests on the assumption that sparse layers can be fitted to match original module behavior closely enough for interpretation, plus standard transformer architecture properties.

free parameters (2)
  • sparsity level
    Controls how many features remain active; must be chosen to balance fidelity and readability.
  • number of dictionary features
    Determines the size of the sparse basis; selected to capture primary computations.
axioms (1)
  • domain assumption Sparse replacement layers can approximate the original module computations with high fidelity
    Central premise of the decomposition framework.
invented entities (1)
  • sparse replacement layers no independent evidence
    purpose: Decompose and expose internal computation pathways
    New construct introduced to replace dense modules while preserving behavior.
