arxiv: 2604.13331 · v2 · submitted 2026-04-14 · 💻 cs.LG

Recognition: unknown

Text-Attributed Knowledge Graph Enrichment with Large Language Models for Medical Concept Representation

Mohsen Nayebi Kerdabadi , Arya Hadizadeh Moghaddam , Chen Chen , Dongjie Wang , Zijun Yao

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:03 UTC · model grok-4.3

classification 💻 cs.LG

keywords medical concept representationknowledge graph enrichmentlarge language modelselectronic health recordsgraph neural networksclinical predictionMIMIC datasets

0 comments

The pith

MedCo enriches medical knowledge graphs with large language models to improve clinical prediction performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that medical concept representations for EHR mining can be improved by constructing a knowledge graph from patient data associations and LLM-inferred cross-type relations, then enriching it with textual descriptions and rationales. This text-attributed graph is fed into a joint training process that combines a fine-tuned language model with a graph neural network to produce embeddings. A sympathetic reader would care because current ontologies often lack complete relations and semantics, so this method offers a scalable way to fill those gaps and boost downstream tasks like mortality or readmission prediction. Experiments on MIMIC-III and MIMIC-IV demonstrate consistent gains when MedCo is used as a plug-in encoder.

Core claim

MedCo first builds a global knowledge graph over medical codes by combining statistically reliable associations mined from EHRs with type-constrained LLM prompting to infer semantic relations. It then utilizes LLMs to enrich the KG into a text-attributed graph by generating node descriptions and edge rationales, providing semantic signals for both concepts and their relationships. Finally, MedCo jointly trains a LoRA-tuned LLaMA text encoder with a heterogeneous GNN, fusing text semantics and graph structure into unified concept embeddings.

What carries the argument

The MedCo pipeline of LLM-augmented text-attributed knowledge graph construction followed by joint training of a LoRA-tuned LLaMA text encoder and heterogeneous GNN for unified concept embeddings.

If this is right

MedCo serves as an effective plug-in concept encoder that boosts performance in standard EHR prediction pipelines.
Clinically important cross-type dependencies such as diagnosis-medication and medication-procedure relations become incorporated into the learned representations.
Unified embeddings capture both rich textual clinical semantics and graph structural information.
Consistent performance gains appear across multiple clinical prediction tasks on the MIMIC-III and MIMIC-IV datasets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same enrichment process could apply to other domains with incomplete ontologies by swapping the medical code types and prompting templates.
Edge rationales generated by the LLM could support more interpretable explanations for why certain concepts are linked in clinical models.
Periodic re-prompting of the LLM on updated EHR batches could allow the knowledge graph to evolve without full manual recuration.

Load-bearing premise

Type-constrained LLM prompting reliably infers clinically important cross-type semantic relations that are missing or incomplete in existing ontology resources.

What would settle it

An ablation study on MIMIC-III or MIMIC-IV showing no prediction improvement when the LLM-inferred relations and generated text are removed, or expert clinical review finding low accuracy in a sample of the inferred cross-type edges.

Figures

Figures reproduced from arXiv: 2604.13331 by Arya Hadizadeh Moghaddam, Chen Chen, Dongjie Wang, Mohsen Nayebi Kerdabadi, Zijun Yao.

**Figure 1.** Figure 1: Overview of MEDCO. (1) Extract intra-visit co-occurrence and next-visit transition evidence from EHRs, and retain well-supported code pairs. (2) Use type-constrained, evidence-conditioned LLM prompting to assign directed relation types (with confidence and rationales), thereby constructing a heterogeneous KG. (3) Enrich nodes with LLM-generated concept descriptions and edges with relation metadata. (4) Joi… view at source ↗

**Figure 2.** Figure 2: Prompt for Medical Relationship Induction. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: Performance gains from integrating MEDCO into four diagnosis prediction backbones (plug-in analysis) on MIMIC-III and MIMIC-IV [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

**Figure 4.** Figure 4: Performance evaluation across different training set sizes using the MIMIC-III and MIMIC-IV datasets. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

**Figure 5.** Figure 5: Ablation study showing the impact of remov [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

**Figure 7.** Figure 7: Distribution of final evidence-supported code [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

**Figure 8.** Figure 8: Frequency of LLM-predicted relation labels over evidence-filtered candidate code pairs in MIMIC-III. [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗

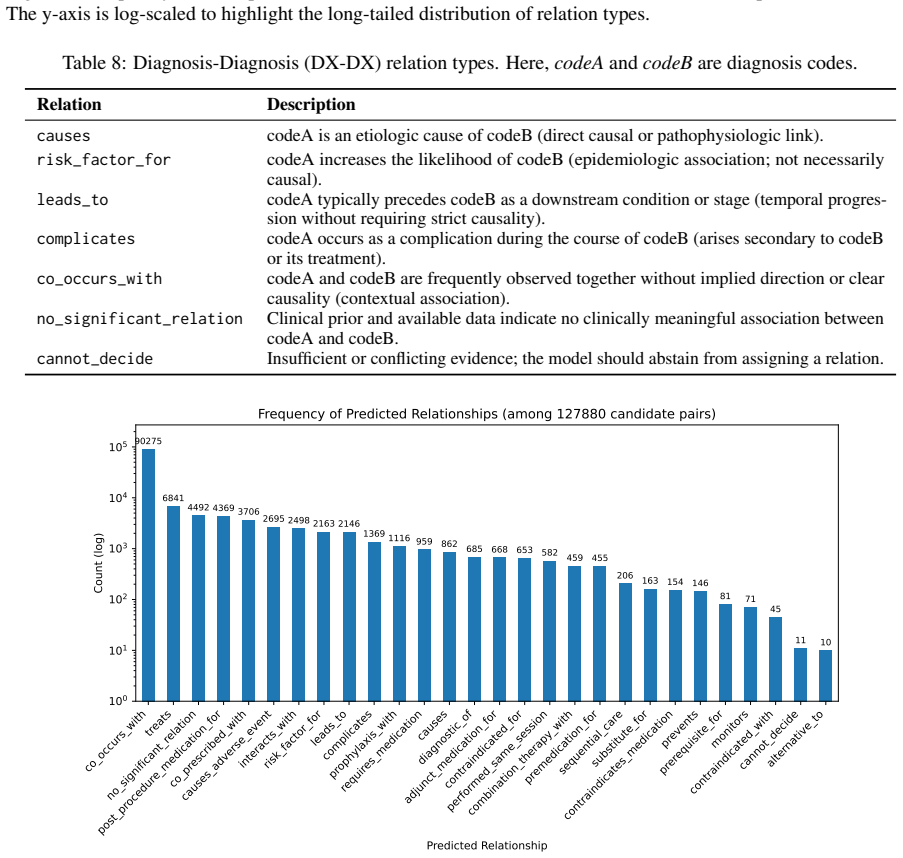

**Figure 9.** Figure 9: Frequency of LLM-predicted relation labels over evidence-filtered candidate code pairs in MIMIC-IV. [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗

**Figure 10.** Figure 10: Prompt template used to generate LLM-based node-level clinical descriptions. [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗

read the original abstract

In electronic health record (EHR) mining, learning high-quality representations of medical concepts (e.g., standardized diagnosis, medication, and procedure codes) is fundamental for downstream clinical prediction. However, ro bust concept representation learning is hindered by two key challenges: (i) clinically important cross-type dependencies (e.g., diagnosis medication and medication-procedure relations) are often missing or incomplete in existing ontology resources, limiting the ability to model complex EHR patterns; and (ii) rich clinical semantics are often missing from structured resources, and even when available as text, are difficult to integrate with KG structure for representation learning. To address these challenges, we present MedCo, an LLM empowered graph learning framework for medical concept representation. MedCo first builds a global knowledge graph (KG) over medical codes by combining statistically reliable associations mined from EHRs with type-constrained LLM prompting to infer semantic relations. It then utilizes LLMs to enrich the KG into a text-attributed graph by generating node descriptions and edge rationales, providing semantic signals for both concepts and their relationships. Finally, MedCo jointly trains a LoRA-tuned LLaMA text encoder with a heterogeneous GNN, fusing text semantics and graph structure into unified concept embeddings. Extensive experiments on MIMIC-III and MIMIC-IV show that MedCo consistently improves prediction performance and serves as an effective plug-in concept encoder for standard EHR pipelines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

MedCo builds a medical KG by mixing EHR stats with LLM-prompted cross-type edges then fuses text and structure via joint LoRA-GNN training, but the edges get no clinical check so the gains could be artifactual.

read the letter

The paper's core move is to take existing medical codes, pull reliable co-occurrence stats from MIMIC, then use type-constrained LLM prompts to add the missing diagnosis-medication and medication-procedure links that standard ontologies skip. It next generates node descriptions and edge rationales with the same model, turns the result into a text-attributed heterogeneous graph, and trains a GNN together with a LoRA-tuned LLaMA encoder so the final embeddings carry both structural and semantic signals. That pipeline is the concrete new piece; prior work has done pieces of it separately, but the medical-specific integration and the plug-in claim for downstream EHR tasks are what they actually ship.

Referee Report

2 major / 2 minor

Summary. The paper presents MedCo, a framework for medical concept representation that constructs a knowledge graph by mining statistical associations from EHRs and using type-constrained LLM prompting to infer missing cross-type semantic relations. It enriches the KG with LLM-generated text descriptions and edge rationales, then jointly trains a LoRA-tuned LLaMA text encoder with a heterogeneous GNN to produce unified embeddings. Experiments on MIMIC-III and MIMIC-IV datasets show consistent improvements in prediction performance, positioning MedCo as a plug-in encoder for standard EHR pipelines.

Significance. Should the empirical gains prove robust and the LLM-inferred relations clinically valid, MedCo would offer a practical advance in integrating textual semantics with graph structure for EHR concept learning. The approach leverages both data-driven associations and LLM capabilities to address incompleteness in medical ontologies, with potential for broader application in clinical ML pipelines. The joint training and plug-in design enhance usability.

major comments (2)

The type-constrained LLM prompting step for inferring cross-type relations (diagnosis-medication and medication-procedure edges) reports no clinical validation, expert review, inter-annotator agreement, or comparison against a held-out gold set. This is load-bearing for the central claim that these edges supply clinically important dependencies missing from existing ontologies; without it, MIMIC prediction gains remain compatible with exploitation of noisy or spurious edges by the GNN.
The experimental section asserts consistent improvements on MIMIC-III and MIMIC-IV but supplies no quantitative results, baseline comparisons, ablation details, or statistical tests in the visible summary. Full disclosure of effect sizes, prompting variability controls, and cross-validation is required to establish that gains are robust rather than sensitive to post-hoc choices.

minor comments (2)

Abstract contains a typographical error: 'ro bust' should be 'robust'.
Notation for how EHR-mined statistics are combined with LLM outputs into the final KG should be clarified with an explicit equation or pseudocode to avoid ambiguity in the construction pipeline.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback on MedCo. We address the two major comments point by point below, providing the strongest honest defense supported by the manuscript while acknowledging limitations.

read point-by-point responses

Referee: The type-constrained LLM prompting step for inferring cross-type relations (diagnosis-medication and medication-procedure edges) reports no clinical validation, expert review, inter-annotator agreement, or comparison against a held-out gold set. This is load-bearing for the central claim that these edges supply clinically important dependencies missing from existing ontologies; without it, MIMIC prediction gains remain compatible with exploitation of noisy or spurious edges by the GNN.

Authors: We acknowledge that the manuscript does not include direct clinical validation (expert review, IAA, or gold-set comparison) of the LLM-inferred cross-type edges. The central evidence remains the consistent downstream gains on MIMIC-III/IV prediction tasks when these edges are included. In the revision we have added (i) an explicit ablation removing only the LLM-inferred edges while retaining the statistically mined ones, (ii) a limitations paragraph stating that clinical validity of individual edges is not yet verified and is left for future expert annotation studies, and (iii) a brief comparison of type-constrained versus unconstrained prompting error rates on a small manually inspected sample. These changes make the evidential basis clearer without overstating the current validation. revision: partial
Referee: The experimental section asserts consistent improvements on MIMIC-III and MIMIC-IV but supplies no quantitative results, baseline comparisons, ablation details, or statistical tests in the visible summary. Full disclosure of effect sizes, prompting variability controls, and cross-validation is required to establish that gains are robust rather than sensitive to post-hoc choices.

Authors: The full manuscript contains the requested quantitative material: tables reporting AUC, AUPRC, and F1 on both MIMIC-III and MIMIC-IV, comparisons against text-only, graph-only, and prior EHR encoders, component ablations (LoRA vs. full fine-tuning, text enrichment vs. structure only), and paired t-tests with p-values across 5-fold cross-validation. Prompting variability was controlled by fixing temperature and reporting results over three independent LLM generations. The referee’s reference to the “visible summary” appears to be the abstract; we have expanded the experimental section and added a dedicated “Implementation Details and Robustness Checks” subsection that foregrounds effect sizes, seed-averaged results, and cross-validation protocol. All tables and statistical tests are now explicitly referenced in the main text. revision: yes

standing simulated objections not resolved

Direct clinical validation of the LLM-inferred relations (expert review or gold-standard comparison) cannot be supplied from the existing study; it would require new annotation resources outside the current scope.

Circularity Check

0 steps flagged

No significant circularity detected; derivation relies on external data sources and standard training.

full rationale

The paper's method constructs a KG by mining associations from EHR data and applying type-constrained LLM prompting, then enriches it with LLM-generated text before joint training of a LoRA-tuned encoder and heterogeneous GNN. Performance is assessed via downstream prediction on MIMIC-III/IV benchmarks. No equations, self-referential definitions, or load-bearing self-citations are present that reduce the claimed gains to inputs by construction. The approach uses independent components (EHR statistics, LLM outputs) and external evaluation, making the chain self-contained without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the assumption that LLM-generated relations and descriptions add reliable clinical semantics beyond statistical associations; no free parameters or invented entities are explicitly named in the abstract.

axioms (1)

domain assumption LLM prompting with type constraints produces clinically valid cross-type relations missing from ontologies
Invoked when building the global KG from EHR associations plus LLM inference.

pith-pipeline@v0.9.0 · 5567 in / 1277 out tokens · 65108 ms · 2026-05-10T15:03:08.191084+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

5 extracted references · 3 canonical work pages · 1 internal anchor

[1]

Qwen2.5-Coder Technical Report

Hcup clinical classifications software (ccs) for icd-9-cm. https://hcup-us.ahrq.gov/ toolssoftware/ccs/ccs.jsp. Accessed 2025-12- 18. Jinxiang Hu, Mohsen Nayebi Kerdabadi, Xiaohang Mei, Joseph Cappelleri, Richard Barohn, and Zijun Yao. 2025. Recurrent neural networks and attention scores for personalized prediction and interpretation of patient-reported o...

work page internal anchor Pith review Pith/arXiv arXiv 2025
[2]

Alistair EW Johnson, Lucas Bulgarelli, Lu Shen, Alvin Gayles, Ayad Shammout, Steven Horng, Tom J Pol- lard, Sicheng Hao, Benjamin Moody, Brian Gow, and 1 others

Reasoning-enhanced healthcare predictions with knowledge graph community retrieval.arXiv preprint arXiv:2410.04585. Alistair EW Johnson, Lucas Bulgarelli, Lu Shen, Alvin Gayles, Ayad Shammout, Steven Horng, Tom J Pol- lard, Sicheng Hao, Benjamin Moody, Brian Gow, and 1 others. 2023. Mimic-iv, a freely accessible elec- tronic health record dataset.Scientif...

work page arXiv 2023
[3]

Lihong Song, Chin Wang Cheong, Kejing Yin, William K Cheung, Benjamin CM Fung, and Jonathan Poon

Pre-training of graph augmented transform- ers for medication recommendation.arXiv preprint arXiv:1906.00346. Lihong Song, Chin Wang Cheong, Kejing Yin, William K Cheung, Benjamin CM Fung, and Jonathan Poon. 2019. Medical concept embedding with multiple ontological representations. InIJCAI, volume 19, pages 4613–4619. Michael Q Stearns, Colin Price, Kent ...

work page arXiv 1906
[4]

is one of the most widely adopted clinical coding systems, and CCS (Healthcare Cost and Utilization Project (HCUP), 2025) provides clini- cally meaningful groupings of ICD codes for down- stream analysis. Both are primarily hierarchical: they organize diagnoses and procedures through parent-child structure (or category groupings in CCS), which is effectiv...

2025
[5]

is a richer clinical ontology that sup- ports description-logic–based concept definition and classification through a large hierarchy and a constrained set of definitional attributes gov- erned by its concept model (MRCM). These at- tributes can include, for example, finding site, causative agent, method, and active ingredient, en- abling structured defin...

2004
