Feature-level analysis and adversarial transfer in rotationally equivariant quantum machine learning

Maureen Krumt\"unger , Martin Sevior , Muhammad Usman
Authors on Pith no claims yet

Pith reviewed 2026-05-10 10:27 UTC · model grok-4.3

classification 🪐 quant-ph
keywords equivariant quantum machine learningadversarial transfer attacksrotation invariancesymmetry sectorsfeature analysisrobustness in QML
0
0 comments X

The pith

Equivariant quantum models do not automatically gain adversarial robustness, as they can still depend on vulnerable rotation-invariant statistics such as ring-averaged intensities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how symmetry constraints in quantum machine learning models affect their resistance to adversarial attacks that transfer across models. It shows that while equivariance limits the model to using only invariant features, these features can include brittle ones that attacks can target. By identifying which specific statistics, like averages over rings in images, the model actually uses for decisions, the analysis reveals that suppressing the symmetry sector tied to those brittle features boosts robustness against classical transfer attacks. This matters because it provides a way to build more secure quantum models by deliberately choosing which invariant information to retain.

Core claim

Group-equivariant quantum models with an invariant readout base their predictions solely on the group-twirled version of the input. This isolates the symmetry-invariant information the model can access, split into distinct sectors. For rotationally equivariant models, these sectors correspond to different rotation-invariant image statistics. The work uses targeted input changes to find that models often rely on brittle statistics, especially ring-averaged intensities, which remain open to classical transfer attacks. Removing the symmetry sector linked to these weak points substantially improves the model's robustness.

What carries the argument

Targeted input transformations that isolate which rotation-invariant statistics in different symmetry sectors the model actually uses for classification.

If this is right

  • Equivariance restricts models to invariant features but does not prevent reliance on attackable ones.
  • Suppressing the symmetry sector for ring-averaged intensities enhances transfer robustness.
  • Future quantum models can use symmetry-dependent feature selection to improve security.
  • Classical attacks can still succeed by targeting specific invariant components even in equivariant quantum setups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach could be extended to other group symmetries beyond rotations to identify vulnerable features in different quantum models.
  • Designers of equivariant models might systematically test and prune sectors based on their brittleness to attacks.
  • Similar feature-level analysis might reveal why some classical equivariant models also fail at robustness despite symmetry constraints.

Load-bearing premise

Targeted input transformations can precisely identify the exact invariant statistics that the model depends on for its classifications.

What would settle it

If a rotationally equivariant model maintains high accuracy even after input transformations that alter ring-averaged intensities while preserving other invariants, or if suppressing the associated sector fails to improve robustness against transfer attacks.

Figures

Figures reproduced from arXiv: 2604.15552 by Martin Sevior, Maureen Krumt\"unger, Muhammad Usman.

Figure 1
Figure 1. Figure 1: FIG. 1. Illustration of the encoding scheme for a representative sam [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Illustration of circular correlations using a single sample [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Representative examples from the datasets considered [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Test accuracy of the rotationally equivariant quantum model under transfer attacks across the STM, MNIST, RotMNIST, RotFMNIST, [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

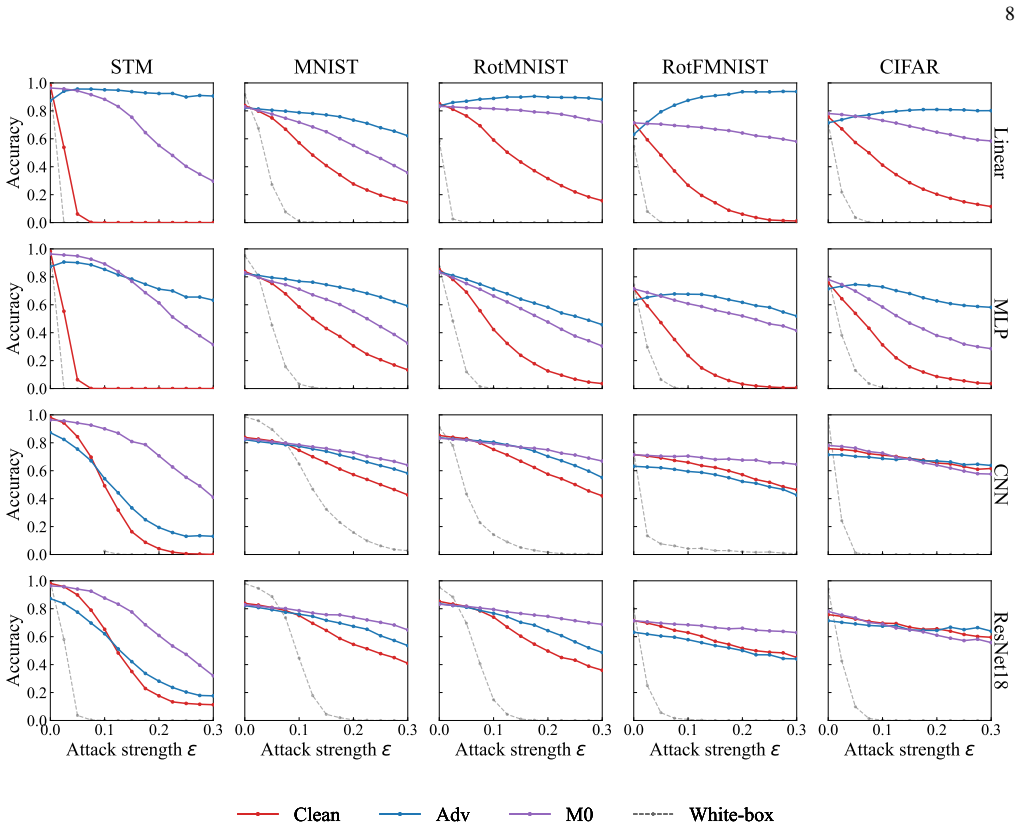

Figure 5. Figure 5: FIG. 5. Test accuracy of the rotationally equivariant quantum model under adversarial training (Adv) and the architectural intervention (M0) [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Architecture of the rotationally equivariant quantum model, adapted from Ref. [ [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. A private image [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Transfer-attack test accuracy of the rotationally equivariant quantum model across the STM, MNIST, RotMNIST, RotFMNIST, and [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Transfer-attack test accuracy of the rotationally equivariant quantum model across the STM, MNIST, RotMNIST, RotFMNIST, and [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗

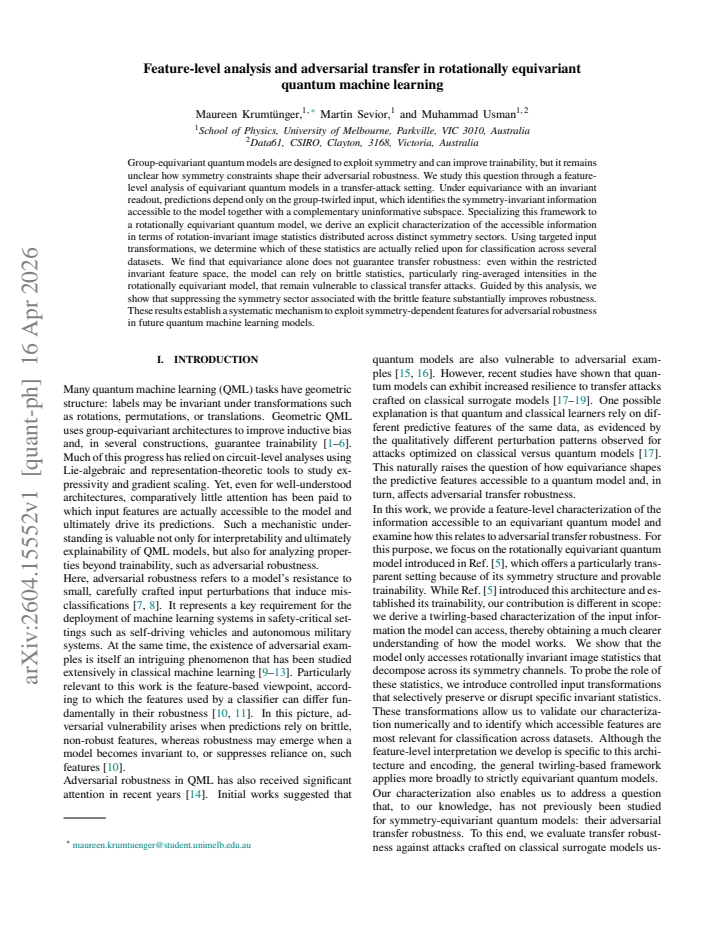

read the original abstract

Group-equivariant quantum models are designed to exploit symmetry and can improve trainability, but it remains unclear how symmetry constraints shape their adversarial robustness. We study this question through a feature-level analysis of equivariant quantum models in a transfer-attack setting. Under equivariance with an invariant readout, predictions depend only on the group-twirled input, which identifies the symmetry-invariant information accessible to the model together with a complementary uninformative subspace. Specializing this framework to a rotationally equivariant quantum model, we derive an explicit characterization of the accessible information in terms of rotation-invariant image statistics distributed across distinct symmetry sectors. Using targeted input transformations, we determine which of these statistics are actually relied upon for classification across several datasets. We find that equivariance alone does not guarantee transfer robustness: even within the restricted invariant feature space, the model can rely on brittle statistics, particularly ring-averaged intensities in the rotationally equivariant model, that remain vulnerable to classical transfer attacks. Guided by this analysis, we show that suppressing the symmetry sector associated with the brittle feature substantially improves robustness. These results establish a systematic mechanism to exploit symmetry-dependent features for adversarial robustness in future quantum machine learning models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a feature-level framework for analyzing rotationally equivariant quantum machine learning models under transfer attacks. With an invariant readout, model predictions depend only on the group-twirled input, which isolates symmetry-invariant statistics distributed across distinct sectors while rendering the orthogonal complement uninformative. Specializing to rotational equivariance, the authors derive an explicit decomposition of these invariant features (including ring-averaged intensities) and employ targeted input transformations to identify which statistics the trained models actually rely upon across multiple datasets. They conclude that equivariance alone does not ensure robustness, as models can exploit brittle sector-specific statistics vulnerable to classical attacks, and demonstrate that suppressing the brittle sector yields substantial robustness gains.

Significance. If the experimental attribution and improvement results hold, the work supplies a concrete, symmetry-aware diagnostic for adversarial brittleness in equivariant QML that goes beyond generic robustness metrics. The group-theoretic characterization of accessible invariant information is a clear strength, as it yields falsifiable, dataset-independent predictions about which features can be exploited. The demonstration that sector suppression improves transfer robustness offers a practical design principle for future models, directly addressing the gap between symmetry exploitation and adversarial considerations in quantum machine learning.

major comments (2)
  1. [§4.2] §4.2 (Targeted input transformations and sector identification): The central claim that ring-averaged intensities constitute the brittle statistic (and that suppressing their sector improves robustness) rests on the assumption that each targeted transformation affects only the intended invariant statistic without unintended side effects on other sectors or the group-twirled input. The manuscript should supply explicit verification—e.g., the change in the full set of sector statistics before versus after each transformation, or a quantitative orthogonality measure—to confirm that confounding across complementary invariant subspaces is negligible.
  2. [§5] §5 (Experimental results and robustness gains): The reported improvements in transfer robustness after sector suppression are presented without error bars, statistical significance tests, or details on data exclusion criteria and hyperparameter sensitivity. This makes it difficult to evaluate whether the gains are reproducible and load-bearing for the claim that equivariance does not guarantee robustness, particularly given the low-confidence assessment of the experimental component.
minor comments (2)
  1. Notation for symmetry sectors and twirled inputs is introduced without a compact summary table or diagram; a single figure or table collecting the sector decomposition would improve readability.
  2. The abstract states that predictions 'depend only on the group-twirled input'; this is repeated in the main text but would benefit from an explicit pointer to the relevant equation or proposition establishing the reduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback, which has identified opportunities to strengthen the rigor of our analysis and experimental reporting. We address each major comment below and outline the revisions we will make.

read point-by-point responses

  1. Referee: [§4.2] §4.2 (Targeted input transformations and sector identification): The central claim that ring-averaged intensities constitute the brittle statistic (and that suppressing their sector improves robustness) rests on the assumption that each targeted transformation affects only the intended invariant statistic without unintended side effects on other sectors or the group-twirled input. The manuscript should supply explicit verification—e.g., the change in the full set of sector statistics before versus after each transformation, or a quantitative orthogonality measure—to confirm that confounding across complementary invariant subspaces is negligible.

    Authors: We agree that explicit verification is necessary to fully substantiate the specificity of the targeted transformations. While the group-theoretic decomposition ensures that the symmetry sectors are orthogonal by construction (as the invariant features are projections onto distinct irreducible representations), we acknowledge that the manuscript does not currently provide a direct empirical check of cross-sector leakage under the chosen transformations. In the revised manuscript, we will add to §4.2 a quantitative analysis: for each transformation, we will report the pre- and post-transformation values of the complete set of sector statistics (including both the ring-averaged intensities and the orthogonal complement sectors), together with a simple orthogonality metric (e.g., the normalized inner product between the change vectors in different sectors). This will confirm that unintended effects remain negligible, as predicted by the theory. revision: yes

  2. Referee: [§5] §5 (Experimental results and robustness gains): The reported improvements in transfer robustness after sector suppression are presented without error bars, statistical significance tests, or details on data exclusion criteria and hyperparameter sensitivity. This makes it difficult to evaluate whether the gains are reproducible and load-bearing for the claim that equivariance does not guarantee robustness, particularly given the low-confidence assessment of the experimental component.

    Authors: We accept that the current experimental presentation lacks the statistical detail needed for full reproducibility assessment. In the revised version of §5, we will augment all robustness plots with error bars computed over multiple independent training runs (with fixed seeds reported), include statistical significance tests (paired t-tests or Wilcoxon signed-rank tests with p-values) comparing the baseline and sector-suppressed models, and add an appendix detailing data exclusion criteria (if any) together with a hyperparameter sensitivity study across learning rates and circuit depths. These additions will directly address concerns about reproducibility while preserving the core finding that sector suppression yields substantial robustness gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims follow from standard equivariance definitions

full rationale

The paper begins from the standard property that equivariant models with invariant readouts depend only on the group-twirled input (a direct algebraic consequence of the symmetry constraint, not a fitted or self-defined quantity). The subsequent explicit characterization of rotation-invariant statistics across symmetry sectors is obtained by specializing this property to the rotation group using standard representation theory, without reducing any prediction to the inputs by construction. The use of targeted input transformations to identify relied-upon features is an empirical diagnostic method whose outcomes are not presupposed by the framework equations. No self-citations, ansatzes, or uniqueness theorems are invoked as load-bearing steps in the derivation chain. The central finding that equivariance does not guarantee robustness is therefore an observed result rather than a tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The analysis rests on standard domain assumptions from group theory and quantum circuit equivariance, with no free parameters, new entities, or ad-hoc inventions introduced.

axioms (1)
  • domain assumption Predictions of equivariant quantum models with invariant readout depend only on the group-twirled input
    This is explicitly stated as the basis for identifying symmetry-invariant information and the complementary subspace.

pith-pipeline@v0.9.0 · 5507 in / 1347 out tokens · 87498 ms · 2026-05-10T10:27:27.489904+00:00 · methodology
