PINNACLE: An Open-Source Computational Framework for Classical and Quantum PINNs

Shimon Pisnoy , Hemanth Chandravamsi , Ziv Chen , Aaron Goldgewert , Gal Shaviner , Boris Shragner , Steven H. Frankel
Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:43 UTC · model grok-4.3

classification 💻 cs.LG physics.comp-phquant-ph
keywords physics-informed neural networksPINNshybrid quantum-classicalbenchmarkingcomputational frameworkopen-sourcemachine learning for physics
0
0 comments X

The pith

PINNACLE framework shows PINNs are sensitive to design choices, cost more than classical solvers, and hybrid quantum versions can use fewer parameters in some regimes

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PINNACLE as an open-source framework for physics-informed neural networks that supports modern training methods, multi-GPU scaling, and hybrid quantum-classical models in one workflow. It runs systematic tests on problems such as conservation laws, fluid flows, and wave propagation to measure how choices like Fourier embeddings or adaptive loss balancing affect accuracy and speed. The benchmarks confirm that these networks often demand more computing resources than traditional numerical methods. They also identify cases where adding quantum components reduces the number of parameters needed while maintaining performance. This gives concrete data that helps decide when learning-based approaches are practical for solving physics equations.

Core claim

PINNACLE provides a modular system with classical PINN enhancements including Fourier feature embeddings, random weight factorization, strict boundary enforcement, adaptive loss balancing, curriculum training, and second-order optimization, plus extensions to hybrid quantum-classical PINNs with a derived estimate of circuit-evaluation complexity under parameter-shift differentiation. Benchmarks on 1D hyperbolic conservation laws, incompressible flows, and electromagnetic wave propagation quantify impacts on convergence, accuracy, and cost, along with distributed scaling analysis. The results establish that PINNs are highly sensitive to architectural and training choices, remain more costly,

What carries the argument

The PINNACLE modular workflow that unifies training strategies, multi-GPU acceleration, and hybrid quantum-classical architectures to support systematic benchmarking and complexity analysis of PINN performance

If this is right

  • Enhancements such as Fourier embeddings and adaptive balancing change convergence and accuracy on the benchmark problems
  • PINNs require higher computational resources than classical numerical solvers across tested cases
  • Hybrid quantum-classical PINNs achieve improved parameter efficiency in certain identified regimes
  • Distributed data parallel training shows measurable runtime and memory scaling on multi-GPU hardware

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Researchers can use the framework to prototype and compare solver options quickly before selecting a method for a new problem
  • The circuit complexity estimate could be checked against timings on real quantum devices to test its accuracy
  • Running the same evaluations on three-dimensional or turbulent flow problems might reveal additional regimes where hybrids perform well

Load-bearing premise

The chosen benchmark problems and the analytical estimate of circuit-evaluation complexity are representative enough to indicate when hybrid quantum PINNs would be preferable in practice

What would settle it

A set of tests on new problems or actual quantum hardware where hybrid models show no parameter reduction or where classical solvers match or beat the reported costs would disprove the efficiency claims

Figures

Figures reproduced from arXiv: 2604.15645 by Aaron Goldgewert, Boris Shragner, Gal Shaviner, Hemanth Chandravamsi, Shimon Pisnoy, Steven H. Frankel, Ziv Chen.

Figure 1
Figure 1. Figure 1: Schematic of a multi-layer perceptron mapping two inputs ( [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematic of a basic PINNs model for solving the Burgers’ equation. Here, [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Schematic of the parametrized quantum circuit (PQC) integration between two classical neural [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Schematic of the training model incorporating a [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

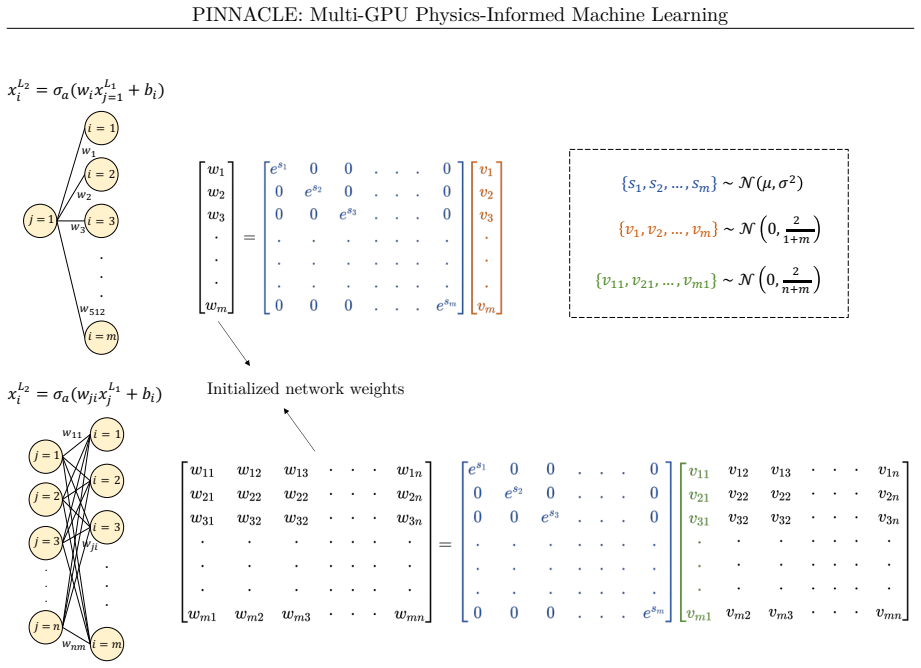

Figure 5. Figure 5: Schematic of two-layer perceptron and the matrix multiplication required for calculating network [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Visualization of weights during network initialization and their corresponding discrete probability [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Schematic network model showing the imposition of strict periodic boundary condition in [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Temporal evolution of the solution for the advection/convection equation with the initial [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Temporal evolution of the solution for the Allen-Cahn equation. The plot demonstrates the [PITH_FULL_IMAGE:figures/full_fig_p020_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: PINNs solution of Burger’s equation studied using two domain sizes. 1st column: (a,c,e) [PITH_FULL_IMAGE:figures/full_fig_p022_10.png] view at source ↗
Figure 11

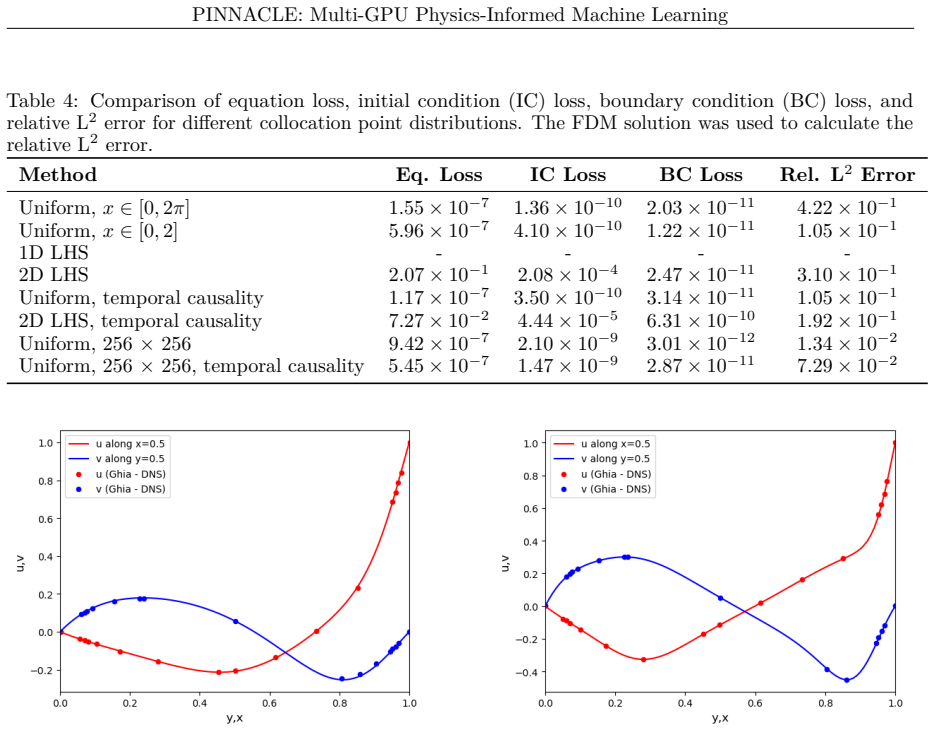

Figure 11. Figure 11: Lid-driven cavity (No curriculum training) centerline velocity profiles for [PITH_FULL_IMAGE:figures/full_fig_p023_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Lid-driven cavity results at Re = 1000. Panels (a,b) show a baseline model: (a) contour of the horizontal velocity component u, and (b) centerline profiles compared with Ghia et al. [70]. Panels (c,d) show the improved model obtained with curriculum training, 256 × 256 collocation points, and LHS: (c) contour of u, and (d) corresponding centerline profiles u(x = 0.5, y) and v(x, y = 0.5) compared with DNS… view at source ↗
Figure 13
Figure 13. Figure 13: Lid-driven cavity centerline velocity profiles at [PITH_FULL_IMAGE:figures/full_fig_p024_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Collocation points sampled for the 2D stenosis benchmark. Interior collocation points (blue) [PITH_FULL_IMAGE:figures/full_fig_p025_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Stenosis benchmark validation against CFD. (a,b) Predicted streamwise velocity [PITH_FULL_IMAGE:figures/full_fig_p026_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Sod shock tube benchmark. Comparison of PINN predictions with a finite-volume CFD [PITH_FULL_IMAGE:figures/full_fig_p027_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Two-dimensional Riemann problem, configuration 6. Comparison of PINN and CFD (computed [PITH_FULL_IMAGE:figures/full_fig_p028_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Electric field Ez (top row) and absolute error (bottom row) at t = 1.5 for the 2-D Gaussian pulse in a periodic box, computed using different PINN configurations and a Padé reference solution. 4.9 QPINNs - Quantum physics-informed neural networks 4.9.1 Solving Maxwell’s equations using QPINNs We assess how replacing a classical component of the PINN with a parametrized quantum circuit (PQC) affects traini… view at source ↗
Figure 19

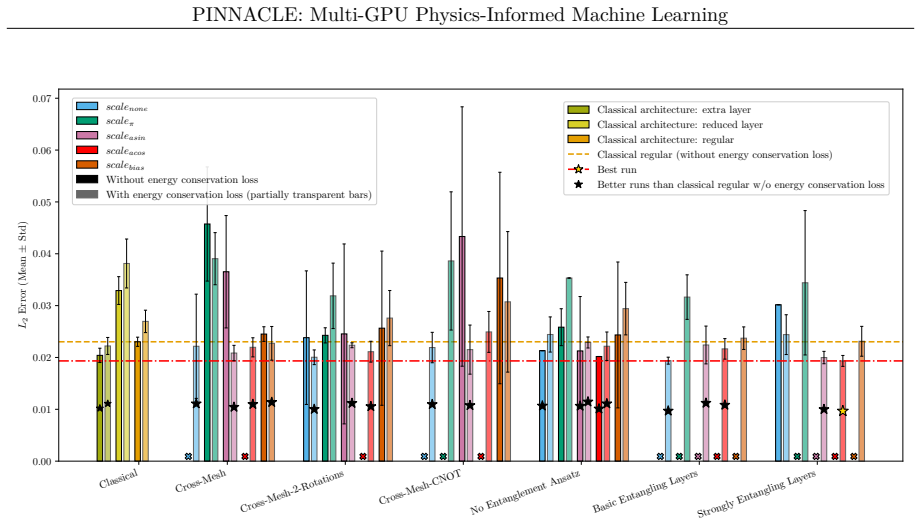

Figure 19. Figure 19: L2 errors for all combinations of ansatz, angle scaling, and energy conservation loss. 3. Energy regularization: With the energy constraint, several QPINN configurations outperform the classical baseline while using fewer parameters (approximately 19% reduction). The best configuration improves the relative L2 error by up to ∼ 19%. These observations suggest that QPINN performance on unsteady 2D Maxwell d… view at source ↗
Figure 20
Figure 20. Figure 20: GPU scaling results for 100 epochs with 40,000 collocation points across A100, A6000, and [PITH_FULL_IMAGE:figures/full_fig_p033_20.png] view at source ↗
Figure 21

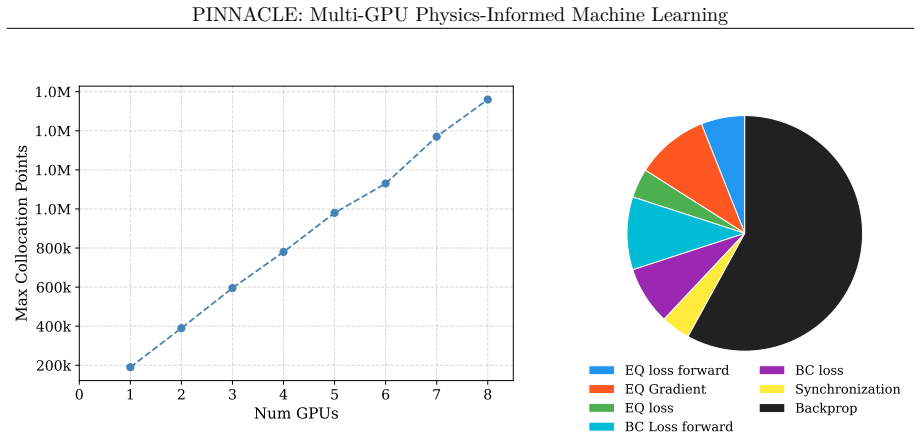

Figure 21. Figure 21: Memory capacity scaling and per-epoch runtime breakdown on the eight-GPU L40S system. [PITH_FULL_IMAGE:figures/full_fig_p034_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: TorQ GPU execution pipeline. Setup precomputes dense entanglers Ent if they are not parameter-dependent, and registers trainable parameters θ on CUDA. In the forward pass, inputs x are angle-scaled and embedded by a batched Kronecker product implemented with torch.einsum to form the statevector ψ ∈ C B×2 n . Each layer builds a dense rotation wall Rℓ (via einsum), composes a dense operator Uℓ with the pre… view at source ↗
Figure 23
Figure 23. Figure 23: Average running time per epoch comparison between [PITH_FULL_IMAGE:figures/full_fig_p035_23.png] view at source ↗
Figure 24

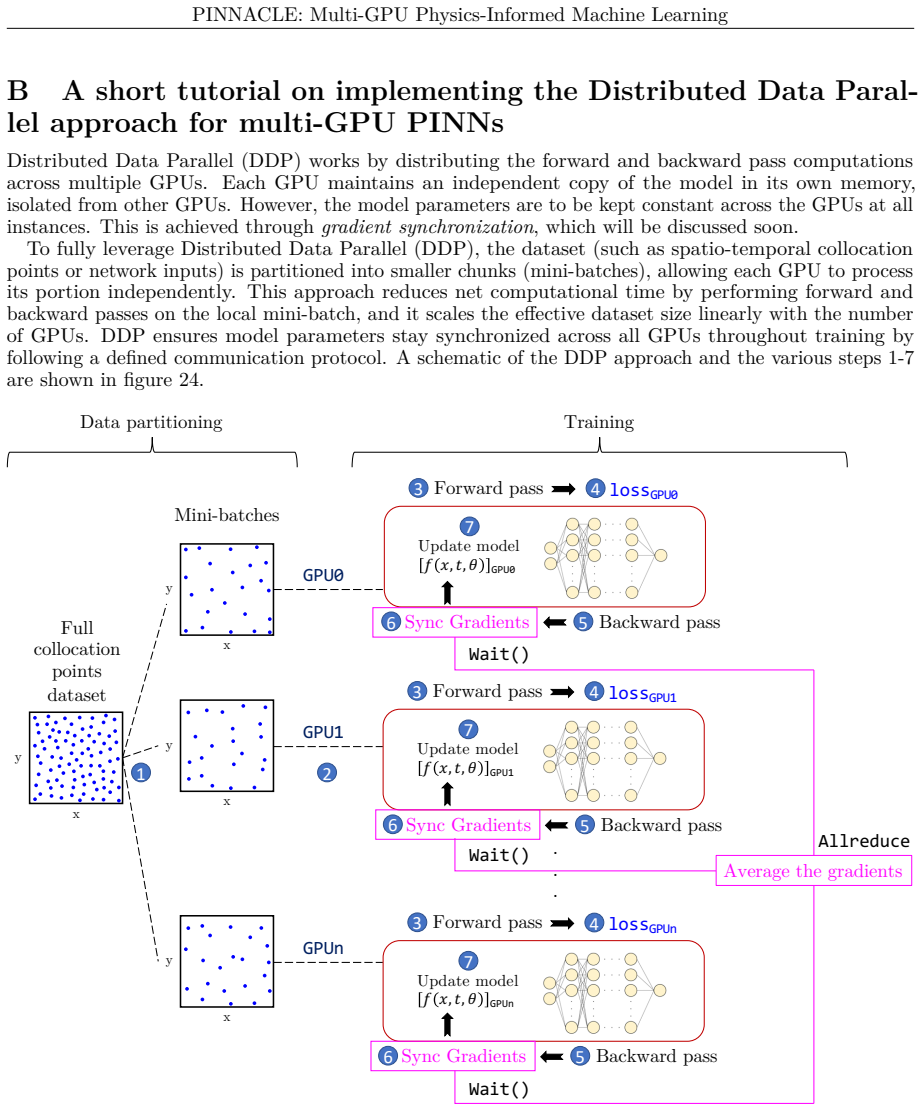

Figure 24. Figure 24: Overview of the Distributed Data Parallel (DDP) approach. This schematic illustrates how [PITH_FULL_IMAGE:figures/full_fig_p040_24.png] view at source ↗
read the original abstract

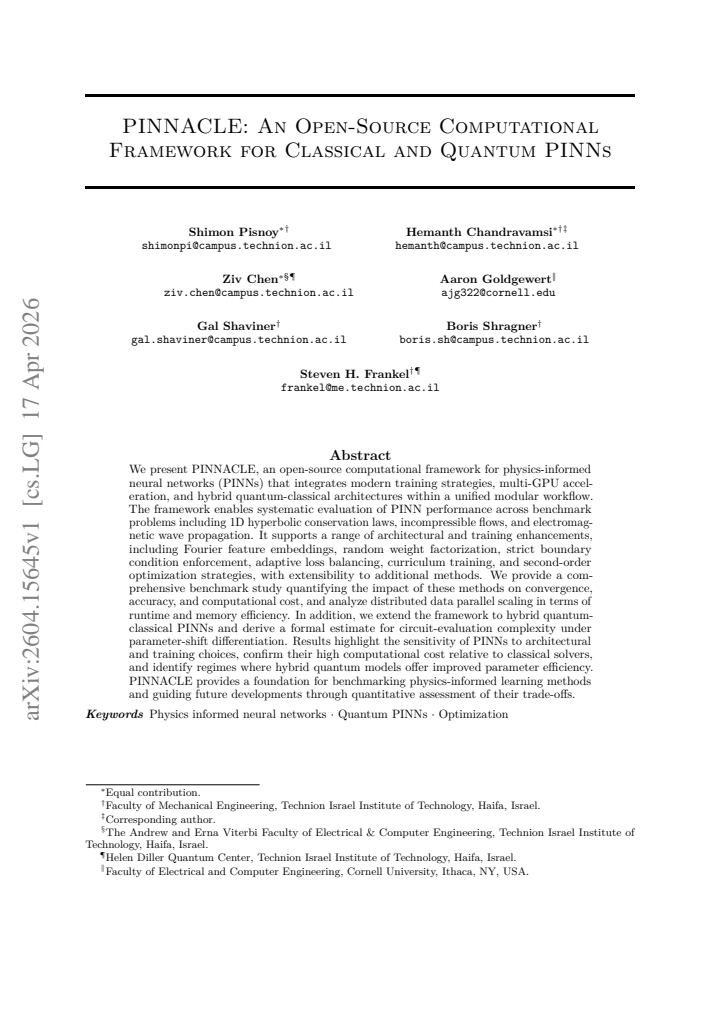

We present PINNACLE, an open-source computational framework for physics-informed neural networks (PINNs) that integrates modern training strategies, multi-GPU acceleration, and hybrid quantum-classical architectures within a unified modular workflow. The framework enables systematic evaluation of PINN performance across benchmark problems including 1D hyperbolic conservation laws, incompressible flows, and electromagnetic wave propagation. It supports a range of architectural and training enhancements, including Fourier feature embeddings, random weight factorization, strict boundary condition enforcement, adaptive loss balancing, curriculum training, and second-order optimization strategies, with extensibility to additional methods. We provide a comprehensive benchmark study quantifying the impact of these methods on convergence, accuracy, and computational cost, and analyze distributed data parallel scaling in terms of runtime and memory efficiency. In addition, we extend the framework to hybrid quantum-classical PINNs and derive a formal estimate for circuit-evaluation complexity under parameter-shift differentiation. Results highlight the sensitivity of PINNs to architectural and training choices, confirm their high computational cost relative to classical solvers, and identify regimes where hybrid quantum models offer improved parameter efficiency. PINNACLE provides a foundation for benchmarking physics-informed learning methods and guiding future developments through quantitative assessment of their trade-offs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents PINNACLE, an open-source computational framework for physics-informed neural networks (PINNs) that integrates classical and hybrid quantum-classical architectures within a modular workflow. It supports enhancements such as Fourier feature embeddings, random weight factorization, adaptive loss balancing, curriculum training, and second-order optimization, along with multi-GPU acceleration. The manuscript includes a benchmark study on 1D hyperbolic conservation laws, incompressible flows, and electromagnetic wave propagation, quantifies impacts on convergence/accuracy/cost, analyzes distributed scaling, and derives a formal estimate for circuit-evaluation complexity under parameter-shift differentiation. Results highlight PINN sensitivity to choices, high costs relative to classical solvers, and regimes of improved parameter efficiency for hybrid quantum models.

Significance. If the released code faithfully implements the described methods and benchmarks are reproducible, PINNACLE provides a valuable open-source platform for systematic evaluation of PINN variants, including quantum hybrids. The empirical benchmarks and complexity estimate offer concrete quantitative insights into trade-offs, which is a strength for guiding developments in physics-informed learning. The modular design and extensibility further enhance its utility for the community.

major comments (2)
  1. Benchmark section: the chosen problems (1D hyperbolic conservation laws, incompressible flows, EM propagation) are low-dimensional and noise-free. The claim identifying regimes of improved parameter efficiency for hybrid quantum models rests on these; without discussion of how results extrapolate to noisy or higher-dimensional settings, the practical guidance for hardware use is weakened.
  2. Circuit complexity estimate (derived under parameter-shift differentiation): the formal estimate assumes ideal conditions without decoherence, gate errors, or hardware topology. This directly affects the weakest assumption about representativeness for real-device decisions; the paper should explicitly state the scope of applicability or provide sensitivity analysis.
minor comments (2)
  1. The abstract and introduction could more explicitly link the benchmark results to the complexity estimate to clarify how they jointly support the hybrid quantum claims.
  2. Ensure all implementation details for strict boundary condition enforcement and adaptive loss balancing are accompanied by pseudocode or clear references to the open-source repository for full reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive recommendation. We address each major point below with targeted revisions to clarify scope and assumptions while preserving the manuscript's focus on the framework and benchmarks.

read point-by-point responses

  1. Referee: Benchmark section: the chosen problems (1D hyperbolic conservation laws, incompressible flows, EM propagation) are low-dimensional and noise-free. The claim identifying regimes of improved parameter efficiency for hybrid quantum models rests on these; without discussion of how results extrapolate to noisy or higher-dimensional settings, the practical guidance for hardware use is weakened.

    Authors: We agree the benchmarks use standard low-dimensional, noise-free problems to isolate effects of architecture and training choices, consistent with much of the PINN literature. The parameter-efficiency observations for hybrid models are tied to these controlled settings. In revision we will add a concise limitations paragraph in the discussion section that explicitly notes the benchmark scope, cautions against direct extrapolation to noisy or high-dimensional regimes, and cites relevant work on quantum noise in PINNs. This will strengthen practical guidance without altering the reported results. revision: yes

  2. Referee: Circuit complexity estimate (derived under parameter-shift differentiation): the formal estimate assumes ideal conditions without decoherence, gate errors, or hardware topology. This directly affects the weakest assumption about representativeness for real-device decisions; the paper should explicitly state the scope of applicability or provide sensitivity analysis.

    Authors: The estimate is a formal, ideal-case derivation under parameter-shift rules, as is conventional for theoretical quantum-circuit analyses. We will revise the relevant section to state the ideal assumptions explicitly and frame the result as a lower-bound reference for noise-free circuits. A full sensitivity analysis to decoherence or topology lies outside the paper's scope, but we will add a brief contextual note referencing noisy quantum-PINN literature to clarify applicability to hardware decisions. revision: partial

Circularity Check

0 steps flagged

No circularity in benchmark study or complexity estimate

full rationale

The paper is a software framework release accompanied by empirical benchmarks on standard PDE problems and a formal derivation of circuit-evaluation complexity for hybrid quantum PINNs under the parameter-shift rule. No load-bearing claim reduces by construction to its own inputs: the complexity estimate follows directly from counting parameter-shift evaluations on a standard quantum circuit ansatz without fitting or self-referential redefinition, and the reported performance numbers are direct measurements from the implemented code on the chosen test cases. No self-citation is used to justify uniqueness or to smuggle an ansatz, and the work does not rename known empirical patterns as novel derivations. The central results remain independent empirical observations and a straightforward complexity calculation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is a software-framework contribution rather than a theoretical derivation, so the axiom ledger contains only standard background assumptions from neural-network training and quantum-circuit differentiation.

axioms (1)
  • standard math Standard assumptions of automatic differentiation and the parameter-shift rule for quantum gradients hold.
    Invoked when deriving the circuit-evaluation complexity estimate.
