arxiv: 2604.16470 · v4 · submitted 2026-04-09 · 🌌 astro-ph.IM

Recognition: unknown

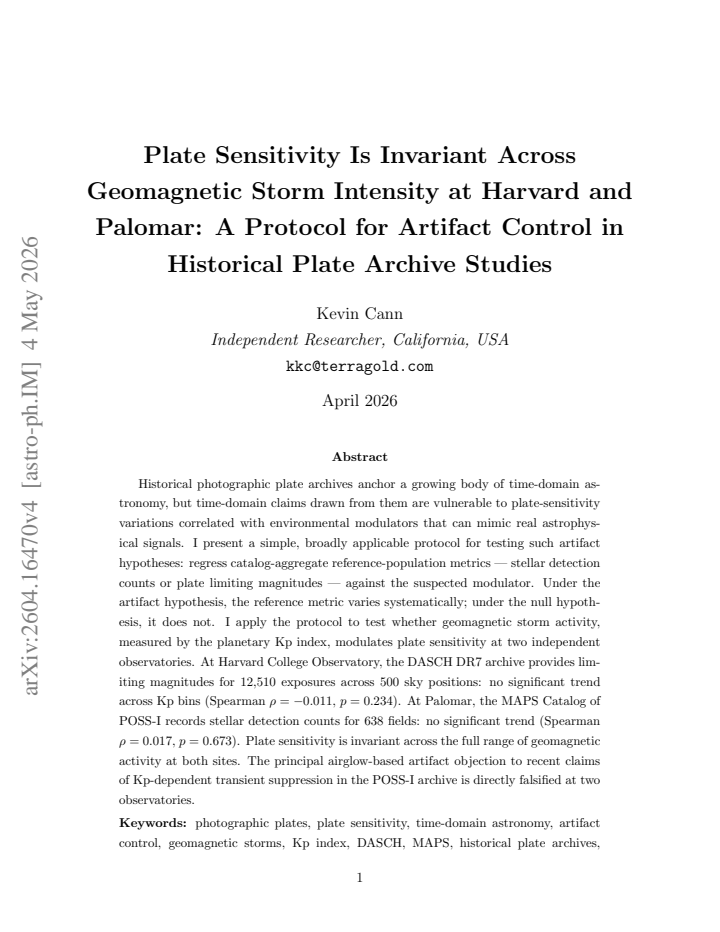

Plate Sensitivity Is Invariant Across Geomagnetic Storm Intensity at Harvard and Palomar: A Protocol for Artifact Control in Historical Plate Archive Studies

Kevin Cann
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:03 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords historical photographic platesgeomagnetic activityKp indexartifact controlplate sensitivityPOSS-IDASCHtime-domain astronomy
0
0 comments X

The pith

Plate sensitivity remains constant across geomagnetic storm intensity at Harvard and Palomar.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a straightforward protocol to test whether suspected environmental factors alter the sensitivity of historical photographic plates. It does this by regressing simple reference metrics, such as the number of detected stars or the plate limiting magnitude, against the candidate modulator. When applied to geomagnetic activity via the Kp index, the test finds no trend at either Harvard or Palomar across thousands of exposures. This invariance directly removes one common objection to using these archives for searches of transient astronomical events. The protocol itself supplies a reusable template for checking other possible artifacts in any large plate collection.

Core claim

Plate sensitivity is invariant across the full range of geomagnetic activity at both sites. No significant trend appears in limiting magnitudes for 12,510 Harvard exposures (Spearman rho = -0.011) or in stellar detection counts for 638 Palomar fields (Spearman rho = 0.017) when examined across Kp bins. The airglow-based artifact objection to recent claims of Kp-dependent transient suppression in the POSS-I archive is therefore directly falsified at two independent observatories.

What carries the argument

The regression protocol that checks for systematic variation by comparing catalog-aggregate reference metrics (stellar detection counts or limiting magnitudes) against the suspected modulator (Kp index).

Load-bearing premise

That any geomagnetic-storm-induced change in plate sensitivity would appear as a systematic variation in the chosen aggregate reference metrics across the sampled fields and sky positions.

What would settle it

A statistically significant Spearman correlation between Kp index and the reference metrics in a comparable sample of plates from these or similar observatories would falsify the invariance result.

read the original abstract

Historical photographic plate archives anchor a growing body of time-domain astronomy, but time-domain claims drawn from them are vulnerable to plate-sensitivity variations correlated with environmental modulators that can mimic real astrophysical signals. I present a simple, broadly applicable protocol for testing such artifact hypotheses: regress catalog-aggregate reference-population metrics (stellar detection counts or plate limiting magnitudes) against the suspected modulator. Under the artifact hypothesis, the reference metric varies systematically; under the null hypothesis, it does not. I apply the protocol to test whether geomagnetic storm activity, measured by the planetary Kp index, modulates plate sensitivity at two independent observatories. At Harvard College Observatory, the DASCH DR7 archive provides limiting magnitudes for 12,510 exposures across 500 sky positions: no significant trend across Kp bins (Spearman rho = -0.011, p = 0.234). At Palomar, the MAPS Catalog of POSS-I records stellar detection counts for 638 fields: no significant trend (Spearman rho = 0.017, p = 0.673). Plate sensitivity is invariant across the full range of geomagnetic activity at both sites. The principal airglow-based artifact objection to recent claims of Kp-dependent transient suppression in the POSS-I archive is directly falsified at two observatories.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a protocol for testing artifact hypotheses in historical photographic plate archives: regress aggregate reference metrics (limiting magnitudes or stellar detection counts) against a suspected modulator such as the Kp geomagnetic index. Under the artifact hypothesis the metric varies systematically; under the null it does not. The protocol is applied to two independent datasets—the DASCH DR7 archive at Harvard (12,510 exposures across 500 sky positions, Spearman rho = -0.011, p = 0.234) and the MAPS Catalog of POSS-I at Palomar (638 fields, rho = 0.017, p = 0.673)—yielding non-significant correlations. The paper concludes that plate sensitivity is invariant across the full range of geomagnetic activity at both sites, directly falsifying the principal airglow-based artifact objection to recent claims of Kp-dependent transient suppression in the POSS-I archive.

Significance. If the invariance result holds, the work supplies a simple, parameter-free empirical test that can be applied to other suspected environmental modulators in plate-based time-domain astronomy. The use of two independent observatories, large sample sizes, and direct Spearman regression without fitted parameters or self-referential definitions constitutes a clear methodological strength. The null findings provide direct empirical support for the reliability of historical plate data when the tested conditions are representative.

major comments (2)
  1. The central invariance claim is based on the absence of correlation in global aggregate metrics, yet the analysis contains no stratification by sky position, airmass, zenith distance, or interaction terms with exposure parameters. Any Kp-induced sensitivity change that varies with these factors could remain undetected in the reported rank correlations, so the data do not fully rule out heterogeneous effects and the falsification of the airglow hypothesis is therefore incomplete.
  2. The manuscript reports the Spearman statistics and sample sizes but provides no description of field-selection criteria, sky-coverage uniformity, or how limiting magnitudes and detection counts were measured and cleaned. Without these details it is impossible to evaluate potential selection biases or measurement uncertainties that could affect the p-values and the robustness of the null result.
minor comments (1)
  1. The abstract should state the actual range of Kp values sampled in each dataset to confirm coverage of the full geomagnetic-activity spectrum.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive comments. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: The central invariance claim is based on the absence of correlation in global aggregate metrics, yet the analysis contains no stratification by sky position, airmass, zenith distance, or interaction terms with exposure parameters. Any Kp-induced sensitivity change that varies with these factors could remain undetected in the reported rank correlations, so the data do not fully rule out heterogeneous effects and the falsification of the airglow hypothesis is therefore incomplete.

    Authors: The protocol is designed to detect a systematic global modulation of plate sensitivity by Kp, as would be expected from a broad airglow effect. The null results in two independent archives provide direct evidence against such an effect. We agree that unexamined interactions with observing conditions could in principle mask heterogeneous signals. In the revised manuscript we will add a stratification of the Harvard sample (the larger dataset) by airmass and zenith-distance bins, testing for Kp trends within strata. We will also note the statistical limitations of the smaller Palomar sample for such checks. This augments the falsification without altering the core aggregate finding. revision: partial

  2. Referee: The manuscript reports the Spearman statistics and sample sizes but provides no description of field-selection criteria, sky-coverage uniformity, or how limiting magnitudes and detection counts were measured and cleaned. Without these details it is impossible to evaluate potential selection biases or measurement uncertainties that could affect the p-values and the robustness of the null result.

    Authors: We agree that the Methods section requires additional detail to allow full evaluation of the analysis. In the revised manuscript we will expand the Methods to include: explicit field-selection criteria for both the DASCH DR7 and MAPS/POSS-I datasets; a description of sky-coverage uniformity; and step-by-step procedures for measuring limiting magnitudes and stellar detection counts, including any quality filtering or cleaning steps applied. These additions will permit readers to assess selection biases and the robustness of the reported p-values. revision: yes

Circularity Check

0 steps flagged

No circularity: direct empirical regression on external index

full rationale

The paper presents a protocol that regresses observed catalog metrics (limiting magnitudes at Harvard, detection counts at Palomar) against the external planetary Kp index using Spearman rank correlation. It reports null results (rho ≈ 0, p > 0.2) and concludes invariance. No equations or steps reduce a claimed prediction to a fitted parameter by construction, no self-citations are invoked as load-bearing premises, and the analysis contains no ansatzes, uniqueness theorems, or renamings of known results. The derivation chain is self-contained and relies on independent external data.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the assumption that the chosen aggregate metrics faithfully track plate sensitivity and would register any geomagnetic effect if present; no free parameters or new entities are introduced.

axioms (1)
  • domain assumption Stellar detection counts and limiting magnitudes are reliable proxies for overall plate sensitivity that would vary detectably under the artifact hypothesis.
    This premise is required to interpret a null result in the reference metrics as evidence against sensitivity modulation.

pith-pipeline@v0.9.0 · 5537 in / 1279 out tokens · 74550 ms · 2026-05-10T17:03:59.355073+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages · 2 internal anchors

  1. [1]

    & Servillat, M

    Grindlay, J., Tang, S., Los, E. & Servillat, M. Opening the 100-Year Window for Time Domain Astronomy. In: Griffin, R.E.M., Hanisch, R.J. & Seaman, R., eds.,New Hori- zons in Time Domain Astronomy, IAU Symposium Vol. 285, pp. 29–34 (2012). DOI: 10.1017/S1743921312000166

    work page doi:10.1017/s1743921312000166 2012

  2. [2]

    2020, The Astronomical Journal, 159, 8, doi: 10.3847/1538-3881/ab570f

    Villarroel, B. et al. The Vanishing and Appearing Sources during a Century of Observa- tions Project. I. USNO Objects Missing in Modern Sky Surveys and Follow-up Obser- vations of a “Missing Star”.Astron. J.159, 8 (2020). DOI: 10.3847/1538-3881/ab570f

    work page doi:10.3847/1538-3881/ab570f 2020

  3. [3]

    & Andruk, V.N

    Solano, E., Marcy, G.W., Villarroel, B., Geier, S., Streblyanska, A., Lombardi, G., B¨ ar, R.E. & Andruk, V.N. A bright triple transient that vanished within 50 min.Mon. Not. R. Astron. Soc.527, 6312–6320 (2024). DOI: 10.1093/mnras/stad3422

    work page doi:10.1093/mnras/stad3422 2024

  4. [4]

    Villarroel, B. et al. Exploring nine simultaneously occurring transients on April 12th 1950.Sci. Rep.11, 12794 (2021). DOI: 10.1038/s41598-021-92162-7

    work page doi:10.1038/s41598-021-92162-7 1950

  5. [5]

    Villarroel, B. et al. Aligned, Multiple-transient Events in the First Palomar Sky Survey. Publ. Astron. Soc. Pac.137, 104504 (2025). DOI: 10.1088/1538-3873/ae0afe

    work page doi:10.1088/1538-3873/ae0afe 2025

  6. [6]

    2025, Scientific Reports, 15, 34125, doi: 10.1038/s41598-025-21620-3

    Bruehl, S. & Villarroel, B. Transients in the Palomar Observatory Sky Survey (POSS-I) may be associated with nuclear testing and reports of unidentified anomalous phenom- ena.Sci. Rep.15, 34125 (2025). DOI: 10.1038/s41598-025-21620-3

    work page doi:10.1038/s41598-025-21620-3 2025

  7. [7]

    Geomagnetic storm suppression of photographic plate transient detections in the POSS-I archive: an independent physical variable strengthening the nuclear test correlation

    Cann, K. Geomagnetic storm suppression of photographic plate transient detections in the POSS-I archive: an independent physical variable strengthening the nuclear test correlation. arXiv:2604.04950 [astro-ph.IM] (2026). DOI: 10.48550/arXiv.2604.04950

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv.2604.04950 2026

  8. [8]

    Storm-Driven Suppression and Post-Storm Enhancement of Photographic Plate Transient Detections at Geosynchronous Altitude: Empirical Evidence and a Candidate Dusty Plasma Mechanism

    Cann, K. Storm-driven suppression and post-storm enhancement of photographic plate transient detections at geosynchronous altitude: empirical evidence and a candidate dusty plasma mechanism. arXiv:2604.06234 [astro-ph.IM] (2026). DOI: 10.48550/arXiv.2604.06234

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.48550/arxiv.2604.06234 2026

  9. [9]

    Independent Replication of Nuclear Test-Transient Correlations and Earth Shadow Deficit in POSS-I Photographic Plates

    Doherty, B. Independent replication of nuclear test-transient correlations and Earth shadow deficit in POSS-I photographic plates. arXiv:2604.00056 (2026). DOI: 10.48550/arXiv.2604.00056

    work page doi:10.48550/arxiv.2604.00056 2026

  10. [10]

    and Stolle, C

    Matzka, J., Stolle, C., Yamazaki, Y., Bronkalla, O. & Morschhauser, A. The geo- magnetic Kp index and derived indices of geomagnetic activity.Space Weather19, e2020SW002641 (2021). DOI: 10.1029/2020SW002641. 16

    work page doi:10.1029/2020sw002641 2021

  11. [11]

    DASCH: Bringing 100+ Years of Photographic Data into the 21st Century and Beyond

    Williams, P.K.G. DASCH: Bringing 100+ Years of Photographic Data into the 21st Century and Beyond. arXiv:2501.12977 [astro-ph.IM] (2025). DOI: 10.48550/arXiv.2501.12977. See also the DASCH Data Release 7 inventory at Zenodo, DOI: 10.5281/zenodo.14563521

    work page doi:10.48550/arxiv.2501.12977 2025

  12. [12]

    & Cornuelle, C.S

    Cabanela, J.E., Humphreys, R.M., Aldering, G., Larsen, J.A., Odewahn, S.C., Thurmes, P.M. & Cornuelle, C.S. The Automated Plate Scanner Catalog of the Palomar Observa- tory Sky Survey. II. The Archived Database.Publ. Astron. Soc. Pac.115, 837 (2003). DOI: 10.1086/375625

    work page doi:10.1086/375625 2003

  13. [13]

    Night-sky brightness at observatories and sites.Publ

    Garstang, R.H. Night-sky brightness at observatories and sites.Publ. Astron. Soc. Pac. 101, 306–329 (1989). DOI: 10.1086/132436

    work page doi:10.1086/132436 1989

  14. [14]

    Leinert, Ch. et al. The 1997 reference of diffuse night sky brightness.Astron. Astrophys. Suppl. Ser.127, 1–99 (1998). DOI: 10.1051/aas:1998105. 17

    work page doi:10.1051/aas:1998105 1997
