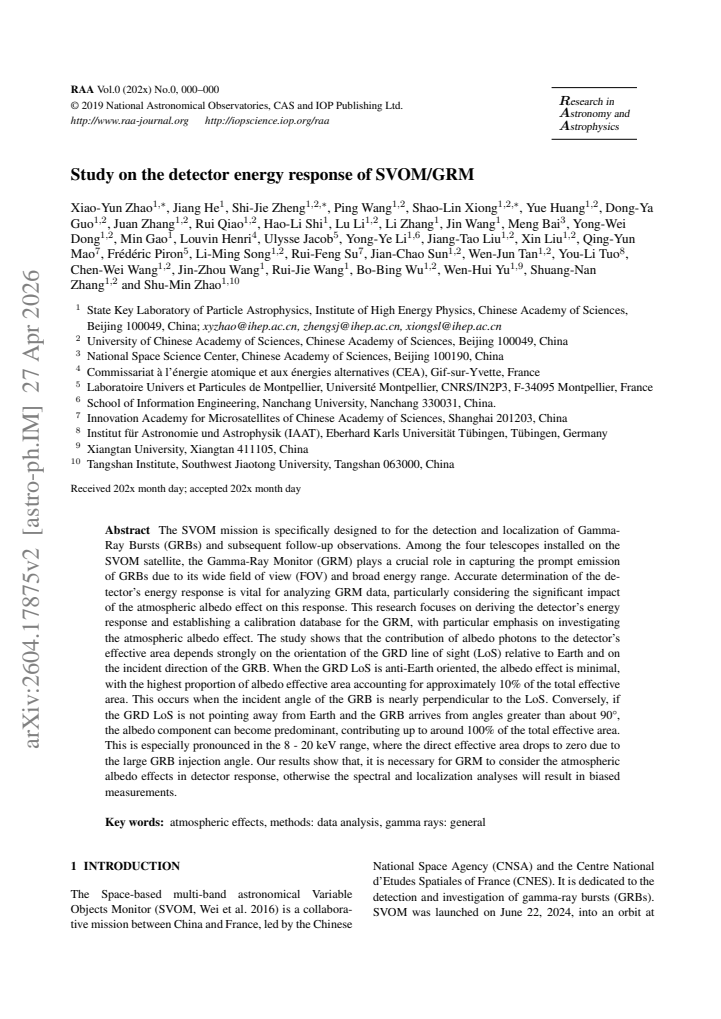

Study on the detector energy response of SVOM/GRM

Xiao-Yun Zhao , Jiang He , Shi-Jie Zheng , Ping Wang , Shao-Lin Xiong , Yue Huang , Dong-Ya Guo , Juan Zhang

show 27 more authors

Rui Qiao Hao-Li Shi Lu Li Li Zhang Jin Wang Meng Bai Yong-Wei Dong Min Gao Louvin Henri Ulysse Jacob Yong-Ye Li Jiang-Tao Liu Xin Liu Qing-Yun Mao Fr\'ed\'eric Piron Li-Ming Song Rui-Feng Su Jian-Chao Sun Wen-Jun Tan You-Li Tuo Chen-Wei Wang Jin-Zhou Wang Rui-Jie Wang Bo-Bing Wu Wen-Hui Yu Shuang-Nan Zhang Shu-Min Zhao

Authors on Pith no claims yet

Pith reviewed 2026-05-10 04:14 UTC · model grok-4.3

classification 🌌 astro-ph.IM

keywords SVOMGRMgamma-ray burstsatmospheric albedodetector responseeffective areaenergy calibrationGRB localization

0 comments

The pith

Atmospheric albedo effects must be included in the SVOM GRM detector response or GRB spectral and localization analyses will be biased.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper calculates the energy response of the Gamma-Ray Monitor instrument on the SVOM satellite, paying special attention to photons that bounce off Earth's atmosphere. It shows that these albedo photons can account for anywhere from 10% to nearly 100% of the detector's effective area, depending on the detector's pointing relative to Earth and the direction from which the gamma-ray burst arrives. When the detector points away from Earth, the effect is small, but otherwise and especially at low energies for oblique angles, albedo can dominate completely because the direct signal is blocked. Ignoring this contribution leads to systematic errors in the measured spectra and positions of bursts. The work provides a calibration database that includes the albedo component.

Core claim

The detector energy response of GRM is derived with emphasis on the atmospheric albedo effect. The albedo contribution to the effective area varies strongly with the GRD line-of-sight orientation to Earth and the GRB incident direction. For anti-Earth oriented LoS, it is at most about 10%, but for other orientations and GRB angles over 90 degrees, it can reach 100%, particularly in 8-20 keV where direct effective area is zero. Thus albedo effects must be accounted for in the response to avoid biased measurements in spectral and localization analyses.

What carries the argument

Modeling of the detector effective area that includes both direct GRB photons and albedo photons, parameterized by line-of-sight orientation and incident angle.

If this is right

GRB spectral fits from GRM data will be systematically off without albedo inclusion.
Localization of GRBs using GRM will have position biases if albedo is ignored.
The GRM calibration database must integrate albedo effects for proper use in data analysis.
Measurements in the 8-20 keV band are most affected when GRB incident angles exceed 90 degrees.
GRDs not oriented anti-Earth require albedo corrections except for near head-on GRB arrivals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Other gamma-ray burst monitors in low-Earth orbit likely need similar albedo modeling for accurate response.
Optimizing satellite attitudes to keep detectors anti-Earth pointing could reduce the need for corrections.
Validation against actual SVOM flight data from known GRBs would confirm the model's predictions.
The approach could be extended to account for time-varying atmospheric density or solar activity effects.

Load-bearing premise

The simulated transport of albedo photons through the detector and surrounding materials accurately reproduces the real on-orbit environment for all relevant geometries.

What would settle it

Analysis of an actual GRB detected by GRM, comparing spectral parameters and localization obtained with and without the albedo correction against independent measurements from other instruments.

read the original abstract

The SVOM mission is specifically designed to for the detection and localization of Gamma-Ray Bursts (GRBs) and subsequent follow-up observations. Among the four telescopes installed on the SVOM satellite, the Gamma-Ray Monitor (GRM) plays a crucial role in capturing the prompt emission of GRBs due to its wide field of view (FOV) and broad energy range. Accurate determination of the detector's energy response is vital for analyzing GRM data, particularly considering the significant impact of the atmospheric albedo effect on this response. This research focuses on deriving the detector's energy response and establishing a calibration database for the GRM, with particular emphasis on investigating the atmospheric albedo effect. The study shows that the contribution of albedo photons to the detector's effective area depends strongly on the orientation of the GRD line of sight (LoS) relative to Earth and on the incident direction of the GRB. When the GRD LoS is anti-Earth oriented, the albedo effect is minimal, with the highest proportion of albedo effective area accounting for approximately 10% of the total effective area. This occurs when the incident angle of the GRB is nearly perpendicular to the LoS. Conversely, if the GRD LoS is not pointing away from Earth and the GRB arrives from angles greater than about 90$^{\circ}$, the albedo component can become predominant, contributing up to around 100% of the total effective area. This is especially pronounced in the 8-20 keV range, where the direct effective area drops to zero due to the large GRB injection angle. Our results show that, it is necessary for GRM to consider the atmospheric albedo effects in detector response, otherwise the spectral and localization analyses will result in biased measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper supplies concrete albedo fractions for the SVOM GRM but rests entirely on unvalidated Monte Carlo runs.

read the letter

The key point is that albedo can contribute anywhere from 10% to 100% of the GRM effective area depending on whether the detector points away from Earth and on the GRB arrival angle, with the effect strongest below 20 keV. That quantitative mapping for this specific instrument is the new piece of information here. The work applies standard photon-transport modeling to the GRM geometry and produces orientation-dependent response curves that anyone reducing SVOM data will need to fold into their analysis. That practical calibration output is the main value. The modeling itself follows routine methods already used on earlier gamma-ray instruments, so the advance is incremental rather than methodological. The central limitation is the lack of any anchor to real measurements. The reported percentages come from simulation alone, with no comparison to ground tests that include Earth-viewing angles, no cross-check against alternative albedo models, and no flight data to test the predicted bias in spectral or localization results. Without error bars or sensitivity runs on the albedo spectrum and detector efficiency, it is difficult to know how much the 10% and 100% numbers could shift under plausible variations. The claim that ignoring albedo will bias analyses is plausible on its face, but the paper does not yet show how large that bias actually is or how robust it remains when the model assumptions change. This is useful reading for the SVOM instrument and data teams and for anyone building response matrices for similar wide-field gamma-ray monitors. A referee would likely ask for validation steps and clearer uncertainty estimates, but the topic is mission-relevant enough that the paper merits review rather than desk rejection.

Referee Report

2 major / 2 minor

Summary. The paper simulates the energy response of the SVOM/GRM detectors, focusing on the contribution of atmospheric albedo photons to the effective area. It reports that albedo fractions range from ~10% (anti-Earth LoS, near-perpendicular GRB incidence) to ~100% (non-anti-Earth LoS, GRB angles >90° in the 8-20 keV band where direct area vanishes), and concludes that albedo must be included in the response model or else spectral and localization analyses will be biased.

Significance. If the simulated ratios prove accurate, the work identifies a non-negligible systematic for wide-FOV, Earth-viewing gamma-ray monitors and supplies a calibration database that could reduce biases in GRB prompt-emission studies with SVOM. The quantitative thresholds (10% minimum, 100% maximum) are presented as falsifiable predictions that future on-orbit data could test.

major comments (2)

[Results (albedo fraction curves)] The central claim that albedo must be modeled to avoid biased measurements rests on the simulated albedo-to-direct effective-area ratios (abstract and results). These ratios are derived from photon-transport modeling, yet the manuscript reports neither the Monte Carlo code, input albedo spectrum, atmospheric model parameters, nor any convergence or uncertainty estimates, preventing assessment of whether the 10%–100% range is robust or sensitive to reasonable variations in those inputs.
[Discussion and calibration database] No comparison is shown to on-orbit data from SVOM/GRM itself, to ground calibration with Earth-viewing angles, or to independent albedo models used by Fermi-GBM or Swift-BAT. Without such cross-checks, the quantitative necessity conclusion cannot be verified for the full range of LoS orientations and GRB incident angles claimed in the abstract.

minor comments (2)

[Abstract] Abstract contains grammatical errors (e.g., 'designed to for the detection') and an incomplete sentence in the final paragraph.
[Introduction] Notation for line-of-sight (LoS) and GRD is introduced without a clear definition or diagram showing the coordinate system relative to Earth and the satellite.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the thorough review and valuable comments on our manuscript. We address each major comment point by point below and will revise the paper to improve clarity and robustness where feasible.

read point-by-point responses

Referee: [Results (albedo fraction curves)] The central claim that albedo must be modeled to avoid biased measurements rests on the simulated albedo-to-direct effective-area ratios (abstract and results). These ratios are derived from photon-transport modeling, yet the manuscript reports neither the Monte Carlo code, input albedo spectrum, atmospheric model parameters, nor any convergence or uncertainty estimates, preventing assessment of whether the 10%–100% range is robust or sensitive to reasonable variations in those inputs.

Authors: We agree that the simulation methodology requires more explicit documentation to support the robustness of the reported albedo fractions. In the revised manuscript we will add a dedicated methods subsection describing the Monte Carlo code, the input albedo spectrum, atmospheric model parameters, and results from convergence tests together with uncertainty estimates on the 10%–100% range. These additions will allow readers to evaluate sensitivity to reasonable input variations. revision: yes
Referee: [Discussion and calibration database] No comparison is shown to on-orbit data from SVOM/GRM itself, to ground calibration with Earth-viewing angles, or to independent albedo models used by Fermi-GBM or Swift-BAT. Without such cross-checks, the quantitative necessity conclusion cannot be verified for the full range of LoS orientations and GRB incident angles claimed in the abstract.

Authors: We acknowledge the importance of external validation. Because SVOM has not yet launched, on-orbit GRM data do not exist; we will state this limitation explicitly and note that post-launch validation is planned. We will expand the discussion to include comparisons with published albedo models from Fermi-GBM and Swift-BAT and will add any available ground-calibration results for Earth-viewing geometries. These changes will provide the requested cross-checks within the current data constraints. revision: partial

standing simulated objections not resolved

Direct comparison to on-orbit SVOM/GRM data, which is unavailable prior to launch.

Circularity Check

0 steps flagged

No significant circularity; results follow from external photon-transport modeling

full rationale

The paper derives GRM detector effective-area ratios (albedo vs. direct) from Monte Carlo photon-transport simulations of atmospheric scattering combined with detector geometry. These ratios are then used to quantify orientation-dependent contributions (e.g., ~10% max when anti-Earth, up to 100% at large angles in 8-20 keV). No equation or claim reduces by construction to a fitted parameter renamed as prediction, no self-citation chain justifies the central premise, and no ansatz or uniqueness theorem is smuggled in. The necessity conclusion for including albedo follows directly from the simulated effective areas rather than from self-referential definitions or data-fitting loops. The derivation remains self-contained against its stated modeling assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; modeling assumptions about albedo transport and detector geometry are implicit but unspecified.
