Composite Control of Grid-Following Inverters for Stabilizing AI-Induced Fast Power Disturbances

Marija Ilic; Miroslav Kosanic

REVIEW 1 major objections 2 minor 14 references

Composite Control of Grid-Following Inverters for Stabilizing AI-Induced Fast Power Disturbances

T0 review · 1 major / 2 minor · reviewed 2026-05-10 · grok-4.3

Challenge this review Download PDF Read on arXiv ↗

Pith's one-line read Singular perturbation analysis derives valid droop control for grid-following inverters to counter fast AI power transients.

desk verdict The paper derives droop control from reduced-order stability requirements for AI-driven fast transients but rests its applicability on an asserted bounded-rate disturbance class whose hardware basis is not clearly evidenced. read the letter →

arxiv 2604.18392 v1 submitted 2026-04-20 eess.SY cs.SY

Miroslav Kosanic , Marija Ilic This is my paper · ORCID

classification eess.SYcs.SY

keywords grid-followinginvertersdroopcontrolsingularperturbationAIdatacenterspowerdisturbancesstabilityanalysiscomposite

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper shows that AI data centers produce rapid power changes that break the usual slow-fast separation in inverter controls. By applying singular perturbation techniques, the authors derive droop control laws from the requirement that the reduced slow system remains stable, rather than assuming the control form upfront. This approach also confirms that physical power delivery hardware filters AI loads into a class of disturbances with bounded rates of change. The resulting analysis provides explicit formulas for controller gains that guarantee disturbance rejection, along with conditions for the control to be physically realizable and for the maximum load ramp rate the system can handle.

What carries the argument

Singular perturbation-based composite control that derives droop from reduced-system stability requirements.

What would settle it

A simulation or experiment where the AI load ramp rate exceeds the derived feasibility condition and the system becomes unstable despite using the proposed control.

Watch

Extended reading notes

Core claim

By modeling the inverter-AI load system with singular perturbation, physically-implementable droop control emerges as the stabilizing feedback for the reduced-order system, and AI workloads belong to a bounded-rate disturbance class due to hardware filtering, yielding gain bounds, a modulation admissibility condition, and a feasibility condition on maximum tolerable load ramp rate.

Load-bearing premise

AI workloads produce power disturbances with rates bounded by physical filtering in power delivery hardware, allowing singular perturbation to apply despite traditional timescale separation being violated.

Editorial extensions

If this is right

Droop gains can be tuned using explicit bounds tied to inverter parameters and disturbance rejection needs.
The control remains physically realizable only if the modulation admissibility condition holds.
Systems can tolerate AI load ramps up to a specific rate identified by the feasibility condition.
Grid-following inverters can stabilize without violating timescale separation assumptions through this derived control.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Similar techniques could apply to other fast renewable or storage controls facing rapid load variations.
Data center operators might use these bounds to size supplementary generation.
Extending to multi-inverter networks could reveal interaction effects not covered here.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

read the letter

This paper addresses stabilizing grid-following inverters against millisecond-scale power swings from AI data centers. The main move is to apply singular perturbation to obtain a reduced-order model, then derive the droop law by requiring stability of that reduced system rather than imposing droop from the start. They further classify AI loads as belonging to a bounded-rate disturbance class, which they tie to physical filtering in the power delivery hardware, and extract explicit gain bounds, a modulation admissibility condition, and a feasibility limit on maximum load ramp rate. Simulations with stochastic AI transients are used to check the predictions. The explicit links between parameters and performance, plus the attempt to handle the breakdown of traditional timescale separation, are the parts that stand out as useful. The framing gives a structured way to think about control when new loads violate older assumptions. The soft spot is the bounded-rate claim itself. The abstract states that AI workloads satisfy this class because of hardware filtering, yet no supporting measurements, hardware model, or derivation of the rate bound appear in the provided material. If real query-driven transients do not stay within the assumed rates or preserve the separation needed for the reduction, the stability guarantee does not transfer from the reduced system to the full-order dynamics, and the derived droop law loses its justification. The paper acknowledges the timescale violation but builds the entire argument on this new class without showing external validation of the filtering effect. Power-systems researchers working on inverter-dominated grids and emerging load types such as data centers would find the most direct value. Readers already comfortable with singular perturbation in power electronics could follow the adaptation to this disturbance class. The work is coherent enough on its own terms and tackles a timely practical issue, so it deserves a serious referee to examine the disturbance modeling steps and test whether the hardware filtering assumption holds with concrete data. I would send it out for peer review.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a singular perturbation-based composite control for grid-following inverters to stabilize AI-induced fast power disturbances on millisecond timescales. It derives droop control parameters by requiring stability of the reduced-order system rather than imposing them a priori. The key claim is that AI workloads belong to a bounded-rate disturbance class owing to physical filtering in power delivery hardware, which allows retaining singular perturbation analysis. This leads to explicit gain bounds linking inverter parameters to disturbance rejection, a modulation admissibility condition for physical realizability, and a feasibility condition on the maximum load ramp rate. The theoretical results are validated through numerical simulations with stochastic AI transients.

Significance. If the results hold, the work contributes a systematic way to handle load dynamics that violate traditional timescale separation assumptions in inverter control, by grounding the control design in reduced-system stability and providing concrete conditions for applicability. The explicit bounds and conditions are useful for practical implementation in data center collocated generation. The use of simulations for validation under realistic transients strengthens the practical relevance.

major comments (1)

[Disturbance Modeling and Assumptions] The assertion that AI workloads satisfy a bounded-rate disturbance class due to physical filtering in power delivery hardware (as stated in the abstract and used to justify singular perturbation applicability) lacks supporting analysis or evidence. This assumption is critical because AI loads are described as violating traditional timescale separation; without establishing the rate bound independently (e.g., via hardware chain derivation or measurements), the reduced-system stability guarantee may not extend to the full-order system, undermining the derivation of the droop control and the explicit gain bounds.

minor comments (2)

[Abstract] The abstract could more clearly distinguish between the derived droop control and the overall composite control strategy.
[Notation] Some symbols for inverter parameters and disturbance rates could be defined more explicitly to aid readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for highlighting the need to strengthen the disturbance modeling section. We address the major comment below and will incorporate revisions to improve the rigor of the bounded-rate assumption.

read point-by-point responses

Referee: The assertion that AI workloads satisfy a bounded-rate disturbance class due to physical filtering in power delivery hardware (as stated in the abstract and used to justify singular perturbation applicability) lacks supporting analysis or evidence. This assumption is critical because AI loads are described as violating traditional timescale separation; without establishing the rate bound independently (e.g., via hardware chain derivation or measurements), the reduced-system stability guarantee may not extend to the full-order system, undermining the derivation of the droop control and the explicit gain bounds.

Authors: We agree that the manuscript would benefit from a more explicit derivation of the bounded-rate disturbance class. The current text invokes physical filtering in power delivery hardware (e.g., server PSUs and associated cabling) as the mechanism that enforces the rate bound, but does not provide a dedicated derivation or supporting references. In the revised version we will add a short subsection (likely in Section II) that derives an explicit upper bound on the disturbance rate from typical hardware time constants. This will include (i) a first-order low-pass model of PSU dynamics with measured time constants from data-center literature, (ii) a simple cascade analysis showing that the effective power ramp rate seen by the inverter is bounded by the slowest filter pole, and (iii) a brief discussion of how this bound remains valid even under stochastic AI query arrivals. The added material will directly support the applicability of singular perturbation analysis and the subsequent gain bounds without altering the core theoretical results or simulation validation. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; derivation from stability requirement is independent

full rationale

The paper derives physically-implementable droop control by imposing stability on the reduced-order system via singular perturbation analysis, rather than imposing it a priori or fitting parameters to match a target outcome. This follows standard control-theoretic reduction and does not reduce to the inputs by construction. The bounded-rate disturbance class for AI loads is asserted as a consequence of physical hardware filtering to justify retaining the singular perturbation framework, but this is presented as an enabling assumption without evidence that it is constructed from or equivalent to the derived droop law or gain bounds. No self-citations, ansatzes smuggled via prior work, or renamings of known results are load-bearing in the abstract or described chain. The explicit gain bounds, modulation admissibility, and ramp-rate feasibility conditions follow from the stability analysis on the reduced system. The paper is self-contained against external benchmarks in its modeling approach.

Assumptions & free parameters 0 free parameters · 2 assumptions · 0 invented entities

The central claim rests on standard singular perturbation assumptions for timescale separation in inverter dynamics and a domain-specific claim that physical hardware filters AI power demands into bounded-rate disturbances. No free parameters or invented entities are identified in the abstract.

assumptions (2)

domain assumption Singular perturbation theory applies to separate fast and slow dynamics in the grid-following inverter system under AI load transients.
Invoked to develop the composite control and reduced-system stability analysis.
domain assumption AI workloads produce power disturbances whose rate of change is bounded due to physical filtering in power delivery hardware.
Used to define the disturbance class for which gain bounds and feasibility conditions are derived.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Composite Control of Grid-Following Inverters for Stabilizing AI-Induced Fast Power Disturbances." pith.science (2026). https://pith.science/paper/2604.18392

@misc{pith2026260418392,
  author       = {Pith},
  title        = {Pith review of: Composite Control of Grid-Following Inverters for Stabilizing AI-Induced Fast Power Disturbances},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2604.18392}},
  note         = {Machine review of arXiv:2604.18392}
}

read the original abstract

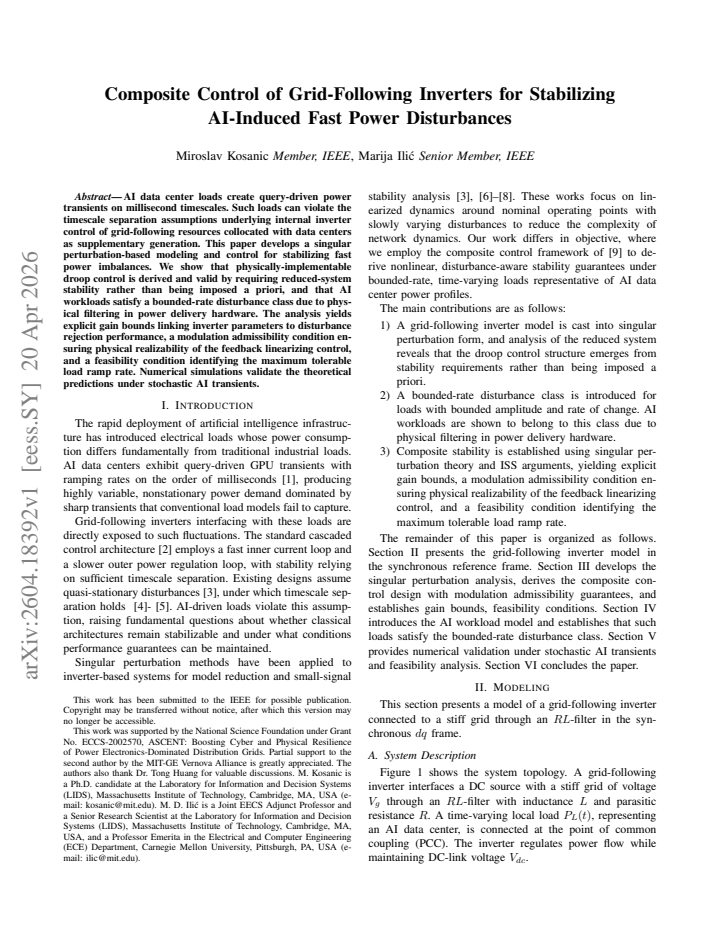

AI data center loads create query-driven power transients on millisecond timescales. Such loads can violate the timescale separation assumptions underlying internal inverter control of grid-following resources collocated with data centers as supplementary generation. This paper develops a singular perturbation-based modeling and control for stabilizing fast power imbalances. We show that physically-implementable droop control is derived and valid by requiring reduced-system stability rather than being imposed a priori, and that AI workloads satisfy a bounded-rate disturbance class due to physical filtering in power delivery hardware. The analysis yields explicit gain bounds linking inverter parameters to disturbance rejection performance, a modulation admissibility condition ensuring physical realizability of the feedback linearizing control, and a feasibility condition identifying the maximum tolerable load ramp rate. Numerical simulations validate the theoretical predictions under stochastic AI transients.

Figures

Figures reproduced from arXiv: 2604.18392 by the authors.

**Figure 3.** visualizes the feasibility region for kd as a function of load ramp rate ρP for both the baseline design (V nom dc = 1200 V) and a high-voltage design (V nom dc = 1500 V). For each design, the lower bounds k SP d (timescale separation) and k ramp d (ramp tracking) define the minimum required gain, while k volt d (voltage saturation) defines the maximum. For the baseline design, the singular perturbation bound domina… view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages

[1]

The unseen AI disruptions for power grids: LLM-induced transients,

The unseen AI disruptions for power grids: LLM-induced transients , author=. arXiv preprint arXiv:2409.11416 , year=

work page arXiv
[2]

Empirical Measurements of AI Training Power Demand on a GPU-Accelerated Node

Empirical measurements of AI training power demand on a GPU-accelerated node , author=. arXiv preprint arXiv:2412.08602 , year=

work page Pith review arXiv
[3]

AI Load Dynamics--A Power Electronics Perspective

AI Load Dynamics--A Power Electronics Perspective , author=. arXiv preprint arXiv:2502.01647 , year=

work page Pith review arXiv
[4]

IEEE Transactions on Power Systems , volume=

Stability analysis of distributed power generation with droop inverters , author=. IEEE Transactions on Power Systems , volume=. 2015 , publisher=

work page 2015
[5]

IEEE Transactions on Smart Grid , volume=

Dynamic phasors-based modeling and stability analysis of droop-controlled inverters for microgrid applications , author=. IEEE Transactions on Smart Grid , volume=. 2014 , publisher=

work page 2014
[6]

Energy Markets and Responsive Grids: Modeling, Control, and Optimization , pages=

A hierarchy of models for inverter-based microgrids , author=. Energy Markets and Responsive Grids: Modeling, Control, and Optimization , pages=. 2018 , publisher=

work page 2018
[7]

2022 58th Annual Allerton Conference on Communication, Control, and Computing (Allerton) , pages=

Dynamic performance of unified grid-forming/following inverter control , author=. 2022 58th Annual Allerton Conference on Communication, Control, and Computing (Allerton) , pages=. 2022 , organization=

work page 2022
[8]

IEEE transactions on power systems , volume=

Nonlinear dynamic load models with recovery for voltage stability studies , author=. IEEE transactions on power systems , volume=. 2002 , publisher=

work page 2002

Show all 14 references

[9]

Ajala and S

O. Ajala and S. V. Dhople and F. Milano , title =. Electric Power Systems Research / Lecture Notes in Electrical Engineering , year =
[10]

Caduff and others , title =

I. Caduff and others , title =. Electric Power Systems Research , year =
[11]

SIAM Journal on Control and Optimization , volume=

Near--Optimal Feedback Stabilization of a Class of Nonlinear Singularly Perturbed Systems , author=. SIAM Journal on Control and Optimization , volume=. 1978 , publisher=

1978
[12]

Lin and others , title =

Y. Lin and others , title =
[13]

Jafarpour and F

S. Jafarpour and F. D. Singular Perturbation and Small-signal Stability for Inverter Networks , journal =
[14]

Wu and others , title =

J. Wu and others , title =. Frontiers in Energy Research , year =
