arxiv: 2604.19127 · v1 · submitted 2026-04-21 · 💻 cs.GR

Recognition: unknown

OT-UVGS: Revisiting UV Mapping for Gaussian Splatting as a Capacity Allocation Problem

Byunghyun Kim
Authors on Pith no claims yet

Pith reviewed 2026-05-10 01:46 UTC · model grok-4.3

classification 💻 cs.GR
keywords Gaussian SplattingUV MappingCapacity AllocationOptimal Transport3D ReconstructionUVGSSlot Utilization
0
0 comments X

The pith

Treating UV mapping as a capacity allocation problem lets a separable transport-inspired assignment fill more slots and cut collisions in Gaussian Splatting.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that the mapping step in UV-parameterized Gaussian Splatting wastes representation capacity when it relies on a fixed spherical projection that ignores how the Gaussians are actually distributed. By recasting the problem as one of assigning a fixed budget of UV slots to the set of Gaussians, the authors introduce a lightweight mapping that couples assignments globally through separable one-dimensional sorting. If correct, this change improves rendering fidelity under identical resolution and per-slot limits while using the same underlying representation format. Readers would care because the result implies that a non-trivial fraction of performance in such models is controlled by allocation rather than by the Gaussians or the renderer themselves.

Core claim

UV mapping for Gaussian Splatting is reframed as the task of allocating a fixed UV tensor budget to an unstructured collection of 3D Gaussians. The deterministic spherical projection is replaced by a separable one-dimensional optimal-transport-inspired procedure that performs rank-based sorting to couple assignments across the global distribution. This mapping runs in O(N log N) time, preserves the original UVGS storage layout, and functions as a direct substitute for the spherical method. On 184 object-centric scenes plus the Mip-NeRF dataset, the revised assignment produces higher PSNR, SSIM, and lower LPIPS at the same UV resolution and K=1 capacity per slot, together with measurably more

What carries the argument

The separable one-dimensional optimal-transport-inspired mapping, realized through rank-based sorting, that assigns Gaussians to UV slots by coupling their positions according to the overall distribution rather than local spherical coordinates.

If this is right

  • Under fixed UV resolution and per-slot capacity, the revised mapping raises PSNR, SSIM, and lowers LPIPS on object-centric and Mip-NeRF scenes.
  • The same budget yields higher fractions of non-empty UV slots and fewer collisions.
  • More Gaussians are retained inside the representation without any increase in storage size.
  • The method integrates as a drop-in replacement while preserving the original UVGS tensor format.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If allocation is the dominant bottleneck, similar sorting-based reassignments could be tested on other fixed-grid parameterizations of point or splat data.
  • The separability assumption may limit performance on highly anisotropic or view-dependent distributions; a controlled ablation on scene complexity would clarify the boundary.
  • The result opens the possibility that capacity in many explicit 3D representations is underutilized mainly by the choice of initial layout rather than by model size.

Load-bearing premise

The claim rests on the premise that empty slots and collisions arise primarily because the spherical projection ignores the global spread of Gaussians, and that a separable one-dimensional sorting procedure can restore effective coupling without changing any other part of the representation.

What would settle it

Reproducing the experiments on the identical 184 object-centric scenes and Mip-NeRF dataset with the same UV resolution and K=1 capacity and observing no improvement in PSNR, SSIM, LPIPS, non-empty slot ratio, or collision count would show the mapping change does not deliver the reported gains.

Figures

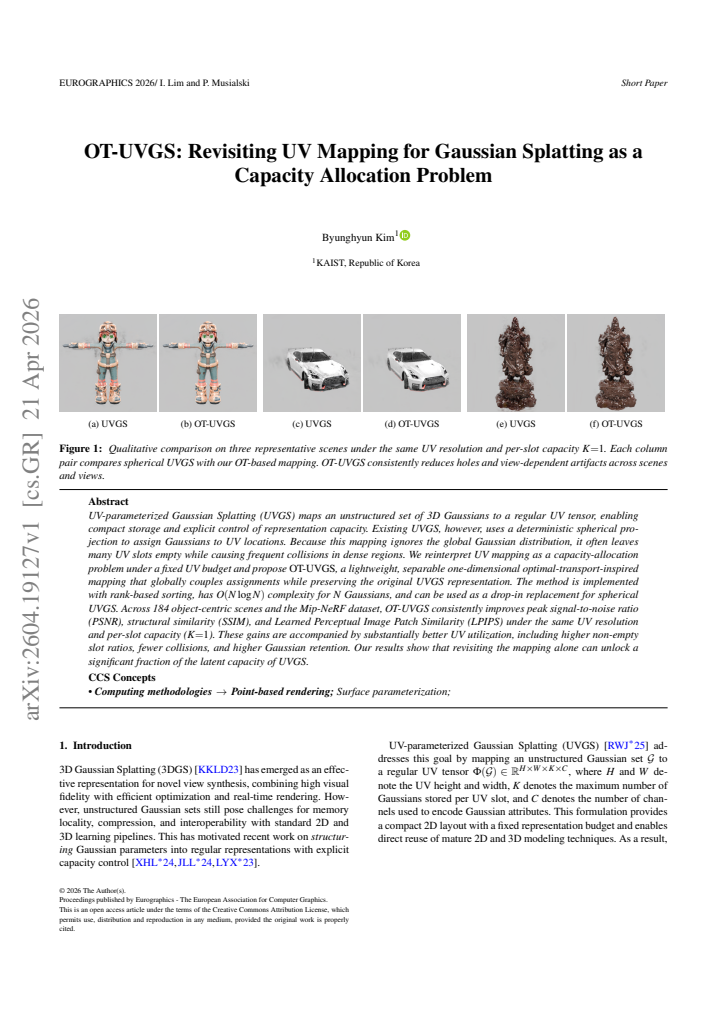

Figures reproduced from arXiv: 2604.19127 by Byunghyun Kim.

Figure 1
Figure 1. Figure 1: Qualitative comparison on three representative scenes under the same UV resolution and per-slot capacity K=1. Each column pair compares spherical UVGS with our OT-based mapping. OT-UVGS consistently reduces holes and view-dependent artifacts across scenes and views. Abstract UV-parameterized Gaussian Splatting (UVGS) maps an unstructured set of 3D Gaussians to a regular UV tensor, enabling compact storage … view at source ↗
Figure 3
Figure 3. Figure 3: Sensitivity to the per-slot capacity K. OT-UVGS main￾tains higher Gaussian retention and higher non-empty UV ratios, especially at small K. any quality difference directly reflects the effect of capacity alloca￾tion under the same nominal budget. 4. Results Setup. We conduct object-centric experiments on 184 scenes sam￾pled from Objaverse [DSS∗ 23], following the UVGS evaluation protocol [RWJ∗ 25]. Each sc… view at source ↗
Figure 4
Figure 4. Figure 4: Full-scene qualitative comparison on a Mip-NeRF scene. Left column: spherical UVGS. Right column: OT-UVGS. OT-UVGS reduces missing regions and improves structural consistency across views under the same UV budget. References [BMT∗21] BARRON J. T., MILDENHALL B., TANCIK M., HEDMAN P., MARTIN-BRUALLA R., SRINIVASAN P. P.: Mip-nerf: A multiscale representation for anti-aliasing neural radiance fields. In Proc… view at source ↗
read the original abstract

UV-parameterized Gaussian Splatting (UVGS) maps an unstructured set of 3D Gaussians to a regular UV tensor, enabling compact storage and explicit control of representation capacity. Existing UVGS, however, uses a deterministic spherical pro- jection to assign Gaussians to UV locations. Because this mapping ignores the global Gaussian distribution, it often leaves many UV slots empty while causing frequent collisions in dense regions. We reinterpret UV mapping as a capacity-allocation problem under a fixed UV budget and propose OT-UVGS, a lightweight, separable one-dimensional optimal-transport-inspired mapping that globally couples assignments while preserving the original UVGS representation. The method is implemented with rank-based sorting, has O(N log N) complexity for N Gaussians, and can be used as a drop-in replacement for spherical UVGS. Across 184 object-centric scenes and the Mip-NeRF dataset, OT-UVGS consistently improves peak signal-to-noise ratio (PSNR), structural similarity (SSIM), and Learned Perceptual Image Patch Similarity (LPIPS) under the same UV resolution and per-slot capacity (K=1). These gains are accompanied by substantially better UV utilization, including higher non-empty slot ratios, fewer collisions, and higher Gaussian retention. Our results show that revisiting the mapping alone can unlock a significant fraction of the latent capacity of UVGS.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that reinterpreting UV mapping for Gaussian Splatting as a capacity-allocation problem under fixed UV budget yields OT-UVGS, a separable one-dimensional optimal-transport-inspired mapping. This mapping is O(N log N) via rank-based sorting, acts as a drop-in replacement for deterministic spherical projection, and produces consistent gains in PSNR/SSIM/LPIPS plus improved UV utilization (higher non-empty slot ratios, fewer collisions, higher Gaussian retention) across 184 object-centric scenes and the Mip-NeRF dataset under identical UV resolution and K=1 per-slot capacity.

Significance. If the empirical gains hold, the work shows that assignment strategy alone can unlock a substantial fraction of latent capacity in UVGS without changing the underlying representation or adding significant compute. The large-scale evaluation (184 scenes plus Mip-NeRF), consistent metric improvements, and practical O(N log N) drop-in implementation are clear strengths that would be of interest to the Gaussian Splatting community.

major comments (2)
  1. [Abstract and §3] Abstract and §3 (Method): the claim that the separable 1D OT-inspired procedure 'globally couples assignments' while preserving the original UVGS representation is not obviously supported by a rank-based, axis-separable sorting scheme. Because the method is explicitly separable, it performs independent 1D transports (or sorts) along each axis before rasterization; this cannot guarantee the optimality or coupling properties of a true joint 2D transport plan. A formal argument, counter-example, or direct comparison to a non-separable 2D OT baseline is needed to substantiate the 'global coupling' interpretation that underpins the capacity-allocation narrative.
  2. [§4] §4 (Experiments): the reported improvements in PSNR/SSIM/LPIPS and UV-utilization metrics are presented as evidence that the new mapping unlocks latent capacity. However, without an ablation that isolates the OT-inspired component from generic spreading (e.g., uniform grid or random jitter under the same K=1 constraint), it remains unclear whether the gains arise from the claimed global coupling or from a simpler heuristic redistribution. Adding such a control would strengthen the causal link between the proposed mapping and the observed benefits.
minor comments (2)
  1. [Abstract] Abstract: the phrase '184 object-centric scenes' should be accompanied by an explicit list or citation of the source datasets so that the experimental scope is fully reproducible.
  2. [§3] §3: the O(N log N) complexity statement is welcome, but a brief complexity breakdown (sorting plus rasterization) would help readers verify the claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of the work's significance. We address each major comment point by point below, with revisions planned where they strengthen the manuscript without altering its core contributions.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (Method): the claim that the separable 1D OT-inspired procedure 'globally couples assignments' while preserving the original UVGS representation is not obviously supported by a rank-based, axis-separable sorting scheme. Because the method is explicitly separable, it performs independent 1D transports (or sorts) along each axis before rasterization; this cannot guarantee the optimality or coupling properties of a true joint 2D transport plan. A formal argument, counter-example, or direct comparison to a non-separable 2D OT baseline is needed to substantiate the 'global coupling' interpretation that underpins the capacity-allocation narrative.

    Authors: We agree the language 'globally couples assignments' requires clarification, as the method is explicitly separable (independent rank-based sorts along each axis) and does not compute a joint 2D OT plan. The intended meaning is that each 1D sort uses the global empirical distribution of projected coordinates to allocate slots, producing more uniform utilization than local deterministic projections. This is an efficient approximation rather than exact 2D optimality. We will revise the abstract and §3 to explicitly frame the approach as a separable 1D OT-inspired heuristic, remove any implication of full 2D coupling, and add a limited-scale comparison (on a subset of scenes with reduced N) against a 2D OT solver to quantify the approximation gap. This addresses the concern directly while preserving the O(N log N) practicality. revision: yes

  2. Referee: [§4] §4 (Experiments): the reported improvements in PSNR/SSIM/LPIPS and UV-utilization metrics are presented as evidence that the new mapping unlocks latent capacity. However, without an ablation that isolates the OT-inspired component from generic spreading (e.g., uniform grid or random jitter under the same K=1 constraint), it remains unclear whether the gains arise from the claimed global coupling or from a simpler heuristic redistribution. Adding such a control would strengthen the causal link between the proposed mapping and the observed benefits.

    Authors: We agree that isolating the contribution of the rank-based OT-inspired allocation from generic spreading would strengthen the causal claim. We will add the requested ablations in the revised §4, comparing OT-UVGS against uniform grid assignment and random jitter baselines under identical UV resolution and K=1 per-slot capacity. These controls will be run on the same 184 scenes plus Mip-NeRF to show that the structured global ordering yields measurable gains in both rendering metrics and UV utilization beyond what unstructured spreading achieves. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical gains from independent mapping

full rationale

The derivation reinterprets UV assignment as capacity allocation and defines a separable rank-based 1D OT-inspired procedure (sorting with O(N log N) complexity) as a drop-in replacement for spherical projection. Performance is then measured on independent external metrics (PSNR, SSIM, LPIPS) plus direct utilization counts (non-empty slots, collisions, retention) across fixed datasets. No equations reduce the claimed improvements to fitted parameters, self-referential definitions, or load-bearing self-citations; the mapping is constructed from standard OT sorting principles and the results are presented as empirical outcomes rather than tautological consequences.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on applying optimal transport assignment to UV mapping via a separable 1D approximation implemented by rank-based sorting; no free parameters are fitted to data, and no new entities are postulated.

axioms (1)
  • domain assumption A separable one-dimensional optimal transport approximation can globally couple Gaussian-to-UV assignments while preserving the original UVGS representation properties.
    Invoked to justify the lightweight mapping as a drop-in replacement for spherical projection.

pith-pipeline@v0.9.0 · 5540 in / 1311 out tokens · 50917 ms · 2026-05-10T01:46:53.941891+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Semantic-Fast-SAM: Efficient Semantic Segmenter

    cs.CV 2026-04 unverdicted novelty 3.0

    Semantic-Fast-SAM matches prior SAM-based semantic segmentation accuracy on Cityscapes and ADE20K while running about 20 times faster by combining FastSAM with SSA labeling and CLIP for open-vocabulary cases.

Reference graph

Works this paper leans on

18 extracted references · 7 canonical work pages · cited by 1 Pith paper

  1. [1]

    3D Gaussian Splatting for Real-Time Radiance Field Rendering , journal =

    Kerbl, Bernhard and Kopanas, Georgios and Leimk. 3D Gaussian Splatting for Real-Time Radiance Field Rendering , journal =. 2023 , doi =

    2023

  2. [2]

    Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition , year =

    Rai, Aashish and Wang, Dilin and Jain, Mihir and Sarafianos, Nikolaos and Chen, Kefan and Sridhar, Srinath and Prakash, Aayush , title =. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition , year =

  3. [3]

    and Tancik, Matthew and Barron, Jonathan T

    Mildenhall, Ben and Srinivasan, Pratul P. and Tancik, Matthew and Barron, Jonathan T. and Ramamoorthi, Ravi and Ng, Ren , title =. European Conference on Computer Vision , year =

  4. [4]

    ACM Transactions on Graphics , volume =

    Binbin Huang and Zehao Yu and Anpei Chen and Andreas Geiger and Shenghua Gao , title =. ACM Transactions on Graphics , volume =. 2024 , doi =

    2024

  5. [5]

    arXiv preprint arXiv:2412.12734 , year =

    Sebastian Weiss and Derek Bradley , title =. arXiv preprint arXiv:2412.12734 , year =

    work page arXiv

  6. [6]

    Texture-GS: Disentangling Geometry and Texture for 3D Gaussian Splatting Editing , journal =

    Tian. Texture-GS: Disentangling Geometry and Texture for 3D Gaussian Splatting Editing , journal =. 2024 , doi =

    2024

  7. [7]

    arXiv preprint arXiv:2403.11589 , year =

    Yujiao Jiang and Qingmin Liao and Xiaoyu Li and Li Ma and Qi Zhang and Chaopeng Zhang and Zongqing Lu and Ying Shan , title =. arXiv preprint arXiv:2403.11589 , year =

    work page arXiv

  8. [8]

    Computational Optimal Transport , journal =

    Peyr. Computational Optimal Transport , journal =. 2019 , doi =

    2019

  9. [9]

    and Mildenhall, Ben and Tancik, Matthew and Hedman, Peter and Martin-Brualla, Ricardo and Srinivasan, Pratul P

    Barron, Jonathan T. and Mildenhall, Ben and Tancik, Matthew and Hedman, Peter and Martin-Brualla, Ricardo and Srinivasan, Pratul P. , title =. Proceedings of the IEEE/CVF International Conference on Computer Vision , year =

  10. [10]

    arXiv preprint arXiv:2312.00109 , year =

    Lu, Tao and Yu, Mulin and Xu, Linning and Xiangli, Yuanbo and Wang, Limin and Lin, Dahua and Dai, Bo , title =. arXiv preprint arXiv:2312.00109 , year =

    work page arXiv

  11. [11]

    Compact 3D scene representation via self-organizing Gaussian grids.arXiv preprint arXiv:2312.13299, 2023

    Morgenstern, Wieland and Barthel, Florian and Hilsmann, Anna and Eisert, Peter , title =. arXiv preprint arXiv:2312.13299 , year =

    work page arXiv

  12. [12]

    arXiv preprint arXiv:2501.03399 , year =

    Lee, Soonbin and Shu, Fangwen and Sanchez, Yago and Schierl, Thomas and Hellge, Cornelius , title =. arXiv preprint arXiv:2501.03399 , year =

    work page arXiv

  13. [13]

    Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) , pages =

    Matt Deitke and Dustin Schwenk and Jordi Salvador and Luca Weihs and Oscar Michel and Eli VanderBilt and Ludwig Schmidt and Kiana Ehsani and Aniruddha Kembhavi and Ali Farhadi , title =. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) , pages =

  14. [14]

    ACM Transactions on Graphics , volume =

    Baptiste Genest and Nicolas Bonneel and Vincent Nivoliers and David Coeurjolly , title =. ACM Transactions on Graphics , volume =. 2025 , doi =

    2025

  15. [15]

    J. M. Buhmann and D. W. Fellner and M. Held and J. Ketterer and J. Puzicha , TITLE =. 1998 , PAGES =. doi:10.1111/1467-8659.00269 , NOTE =

    work page doi:10.1111/1467-8659.00269 1998

  16. [16]

    and Helmberg, Christoph , TITLE =

    Fellner, Dieter W. and Helmberg, Christoph , TITLE =. 1993 , PAGES =

    1993

  17. [17]

    Kobbelt and M

    L. Kobbelt and M. Stamminger and H.-P. Seidel , title =. doi:10.1111/1467-8659.16.3conferenceissue.36 , note =

    work page doi:10.1111/1467-8659.16.3conferenceissue.36

  18. [18]

    Lafortune and Sing-Choong Foo and Kenneth E

    Eric P. Lafortune and Sing-Choong Foo and Kenneth E. Torrance and Donald P. Greenberg , title =. Proc. SIGGRAPH '97 , volume = 31, pages =
