Intrinsic i-wave altermagnetism in 2D graphene superlattices

Cuiju Yu , Jose L. Lado

Authors on Pith no claims yet

Pith reviewed 2026-05-10 01:46 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords altermagnetismgrapheneantidot superlatticesspin splittingmagnetic instability2D materialstight-binding models

0 comments

The pith

Graphene antidot superlattices develop an interaction-induced i-wave altermagnetic splitting from their intrinsic magnetic instability.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that specific monolayer and bilayer graphene antidot superlattices can host i-wave altermagnetism, a type of magnetism featuring momentum-dependent spin splitting driven solely by magnetic order rather than by relativistic effects. This effect arises through electron interactions that trigger the structure's built-in magnetic instability, as calculated with first-principles and tight-binding methods. A sympathetic reader would care because the result supplies a carbon-only route to altermagnetic behavior, expanding the material choices beyond the transition-metal compounds usually considered for such states. If the claim holds, graphene nanostructures could serve as a platform for spintronic applications that exploit the altermagnetic splitting without requiring heavy elements.

Core claim

We establish a symmetry-guided design principle to engineer i-wave altermagnets in graphene antidot superlattices and demonstrate the emergence of altermagnetic states in specific monolayer and bilayer graphene superlattices. By combining first principles methods and atomistic tight binding models, we show the appearance of an interaction-induced i-wave altermagnetic splitting, stemming from the intrinsic magnetic instability of 2D graphene antidot superlattices.

What carries the argument

The interaction-induced i-wave altermagnetic splitting, a momentum-dependent spin splitting that appears once the antidot lattice's magnetic instability is accounted for in the electronic structure calculations.

If this is right

Graphene antidot superlattices become a concrete carbon-based platform for realizing altermagnetic order.
The same symmetry-design approach can be applied to other graphene-based 2D superlattices to generate i-wave altermagnetism.
Magnetic instabilities already known in graphene nanostructures can be repurposed to produce functional spin splitting without external fields.
Both monolayer and bilayer versions of the antidot lattice are shown to support the altermagnetic state, broadening the range of candidate structures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the altermagnetic order remains robust against disorder or edge effects common in real nanostructures, the design could integrate directly with existing graphene device fabrication methods.
Similar antidot patterns in other 2D carbon lattices might produce related altermagnetic states, extending the approach beyond graphene.
The absence of transition metals simplifies potential device integration with silicon or other conventional electronics.

Load-bearing premise

The magnetic instability in the antidot superlattices produces a stable, long-range altermagnetic order that survives in real fabricated samples and is accurately captured by the chosen first-principles and tight-binding approximations.

What would settle it

Angle-resolved photoemission spectroscopy on fabricated graphene antidot superlattice samples that either detects or fails to detect the predicted momentum-dependent spin splitting at the expected wavevectors would confirm or refute the central claim.

Figures

Figures reproduced from arXiv: 2604.19661 by Cuiju Yu, Jose L. Lado.

**Figure 2.** Figure 2: FIG. 2. (a) Top view of an antidot 6 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. (a,f) Top-view schematics of antidot structures in 6 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. (a) Schematic top and side views of divacancy [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

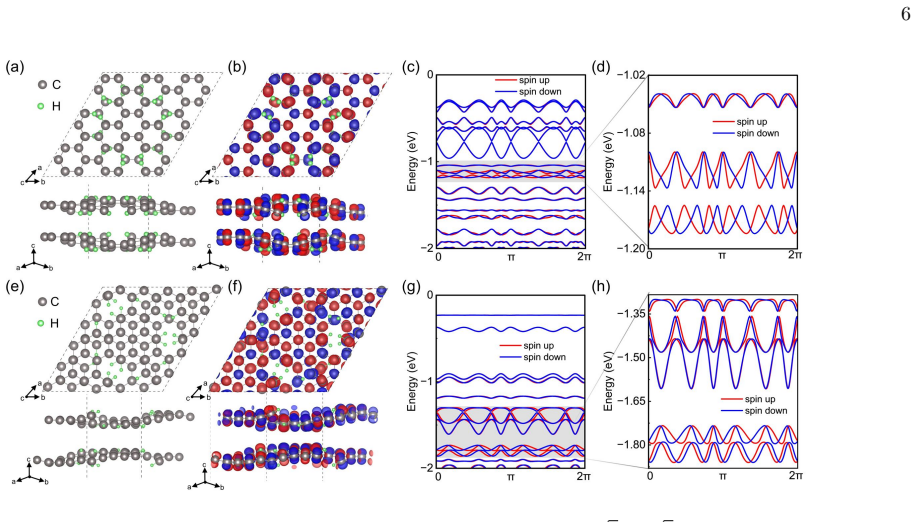

**Figure 5.** Figure 5: FIG. 5. (a,e) Schematic top and side views of graphene superlattices, stemming from 3 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

Altermagnets feature unconventional magnetism due to their momentum-dependent spin splitting purely driven by magnetic order, for which a variety of transition-metal-based d-wave altermagnets have been proposed. However, carbon-based altermagnets in graphene structures remain elusive, even though magnetism in graphene nanostructures has been widely demonstrated. Here, we establish a symmetry-guided design principle to engineer i-wave altermagnets in graphene antidot superlattices and demonstrate the emergence of altermagnetic states in specific monolayer and bilayer graphene superlattices. By combining first principles methods and atomistic tight binding models, we show the appearance of an interaction-induced i-wave altermagnetic splitting, stemming from the intrinsic magnetic instability of 2D graphene antidot superlattices. Our work establishes a strategy to engineer i-wave altermagnetism in a graphene platform, putting forward a carbon-based platform for altermagnetic spintronics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper introduces a symmetry-guided design for i-wave altermagnetism in graphene antidot superlattices using standard computational tools, though 2D order stability remains unaddressed.

read the letter

This paper shows how to get i-wave altermagnetism in carbon-based graphene antidot superlattices through an interaction-driven instability, using first-principles and tight-binding methods. The main new element is the symmetry-based design that makes this possible where other graphene structures did not. The authors do a good job explaining the design principle and presenting the resulting spin splitting with zero net moment. Their calculations demonstrate the effect in both monolayer and bilayer cases. They combine DFT for the electronic structure with tight-binding models to capture the magnetic instability. A soft spot is the reliance on mean-field approximations common to these methods. Two-dimensional magnets are prone to fluctuations that can wipe out order, and without analysis of that or finite-temperature behavior, it's hard to know if the altermagnetic state would persist in practice. The abstract mentions no checks against known limits or error estimates, which makes the quantitative claims a bit harder to assess. This kind of work is useful for people in the altermagnetism and 2D spintronics community who are looking for new material platforms. A reader interested in computational materials design would find concrete ideas here. The paper engages honestly with the topic and has enough new content to merit peer review. I recommend putting it through the referee process, with notes to the authors about addressing the stability of the order and perhaps adding more details on the computational setup.

Referee Report

2 major / 2 minor

Summary. The paper claims to introduce a symmetry-guided design principle for engineering i-wave altermagnets in graphene antidot superlattices. Using first-principles methods combined with atomistic tight-binding models, it reports the emergence of interaction-induced i-wave altermagnetic states with momentum-dependent spin splitting and zero net magnetization in specific monolayer and bilayer graphene structures, arising from the intrinsic magnetic instability of these 2D superlattices.

Significance. If the central results hold, the work would establish a carbon-based platform for altermagnetism, extending the concept beyond d-wave transition-metal systems to graphene nanostructures and offering a route to altermagnetic spintronics without heavy elements. The symmetry-design approach and demonstration of splitting in antidot lattices represent a potentially useful addition to the field.

major comments (2)

[Methods / Computational Details] The computational methods section provides no details on convergence criteria (energy cutoff, k-point sampling density, vacuum spacing), error bars, or validation against known limits such as the non-interacting or non-magnetic graphene case. This directly affects assessment of the reported splitting magnitudes and the claim of an intrinsic instability.
[Results on Altermagnetic Splitting] The results on magnetic instability (likely in the DFT/TB sections) rely on mean-field or collinear spin-polarized approximations that presuppose long-range order. No analysis of spin-wave spectrum, renormalization-group flow, or finite-temperature effects is presented to address Mermin-Wagner considerations for 2D magnetism, leaving the extrapolation from local instability to stable macroscopic i-wave altermagnetic order unverified.

minor comments (2)

[Abstract / Introduction] The abstract and introduction could more explicitly state the superlattice periodicity and antidot size parameters used in the calculations to allow direct comparison with future experiments.
[Theory / Symmetry Analysis] Notation for the i-wave symmetry (e.g., the precise form of the momentum-dependent spin splitting) should be defined with an equation or figure early in the text rather than assumed from context.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments and for recognizing the potential significance of a carbon-based altermagnetic platform. We address each major comment point by point below, indicating revisions made to the manuscript.

read point-by-point responses

Referee: [Methods / Computational Details] The computational methods section provides no details on convergence criteria (energy cutoff, k-point sampling density, vacuum spacing), error bars, or validation against known limits such as the non-interacting or non-magnetic graphene case. This directly affects assessment of the reported splitting magnitudes and the claim of an intrinsic instability.

Authors: We agree that the original Methods section lacked sufficient detail on these parameters. In the revised manuscript we have added an expanded computational details subsection specifying the plane-wave cutoff, k-point meshes, vacuum spacing, and convergence thresholds employed. We have also included explicit validation against the known non-magnetic, non-interacting graphene band structure and reported error estimates on the altermagnetic splitting obtained from parameter-variation tests. These additions directly support the reliability of the reported interaction-induced splitting. revision: yes
Referee: [Results on Altermagnetic Splitting] The results on magnetic instability (likely in the DFT/TB sections) rely on mean-field or collinear spin-polarized approximations that presuppose long-range order. No analysis of spin-wave spectrum, renormalization-group flow, or finite-temperature effects is presented to address Mermin-Wagner considerations for 2D magnetism, leaving the extrapolation from local instability to stable macroscopic i-wave altermagnetic order unverified.

Authors: The referee correctly notes that our calculations are performed within a mean-field framework. The manuscript demonstrates a symmetry-allowed local magnetic instability that produces the i-wave altermagnetic spin splitting; the symmetry-design principle itself is independent of the mechanism that ultimately stabilizes long-range order. In the revised version we have added a dedicated paragraph discussing the Mermin-Wagner considerations, noting that weak anisotropies or substrate coupling can lift the strict prohibition on order in real 2D systems, and clarifying that the work does not claim finite-temperature stability. A full spin-wave or renormalization-group analysis, however, lies outside the present scope. revision: partial

standing simulated objections not resolved

Complete spin-wave spectrum and renormalization-group analysis required to rigorously verify long-range order stability against 2D thermal fluctuations

Circularity Check

0 steps flagged

No circularity: results from explicit first-principles and tight-binding computations

full rationale

The paper's central result—an interaction-induced i-wave altermagnetic splitting—is obtained by direct numerical modeling via DFT and atomistic tight-binding calculations on graphene antidot superlattices. No parameter is fitted to the target splitting itself, no quantity is defined in terms of the output, and no load-bearing step reduces to a self-citation or ansatz that presupposes the claimed altermagnetism. The derivation chain consists of standard electronic-structure methods applied to a symmetry-guided lattice geometry; the computed instability and momentum-dependent spin texture therefore constitute independent output rather than a tautological restatement of the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard approximations in density-functional theory for magnetic systems and on the assumption that the chosen superlattice symmetries permit altermagnetic order.

axioms (1)

domain assumption Density functional theory approximations reliably capture magnetic instabilities in graphene-based systems
Invoked when first-principles methods are used to identify the interaction-induced splitting.
