Error-correcting transition pulses for co-located spin ensembles without frequency selectivity
Pith reviewed 2026-05-10 00:39 UTC · model grok-4.3
The pith
Geometric pulse sequences enable fast, robust transfers of co-located spin ensembles without frequency selectivity.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We present a new class of control pulses designed to transfer co-located ensembles without relying on frequency selectivity, thereby allowing much faster state-transitions. A geometric approach allows us to construct sequences which are robust to changes in the background magnetic field along multiple axes, and errors in the pulse area. These pulses are extremely fast, with robustness to pulse area shown at half the quantum speed limit. We demonstrate these sequences on nuclear-dipole states, showing milliradian precision over several hours, 30-fold beyond the previous state of the art. This provides a path for extending the coherent integration time of ultra-long-lived nuclear-spin states.
What carries the argument
Geometric construction of error-correcting transition pulse sequences that eliminate frequency selectivity while correcting for multi-axis magnetic field drifts and pulse-area errors.
If this is right
- Faster state transitions become possible for ensembles that occupy the same spatial location.
- Milliradian precision sustained over hours extends coherent integration times toward the 10000-second lifetime limit.
- Self-interactions are suppressed in the symmetric superposition state.
- Precision gains of 30-fold directly improve tests of QCD symmetries and dark matter searches.
- The pulses support development of nuclear-spin quantum memories.
Where Pith is reading between the lines
- The same geometric construction may apply to other co-located quantum systems that require rapid state preparation.
- Suppression of self-interactions in symmetric states could improve sensitivity in related quantum sensing protocols.
- Further work could test whether the approach scales to larger ensembles or different spin species.
Load-bearing premise
A geometric construction can simultaneously eliminate frequency selectivity while providing robustness to multi-axis magnetic-field drifts and pulse-area errors for co-located ensembles without introducing new uncontrolled interactions.
What would settle it
An experiment in which the sequences fail to maintain milliradian precision when background magnetic fields vary along multiple axes or when pulse-area robustness is tested at half the quantum speed limit would falsify the central claim.

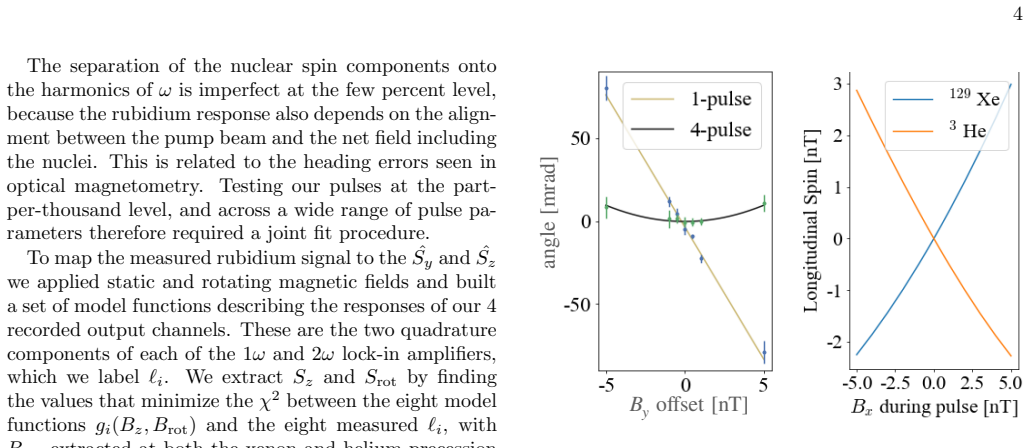

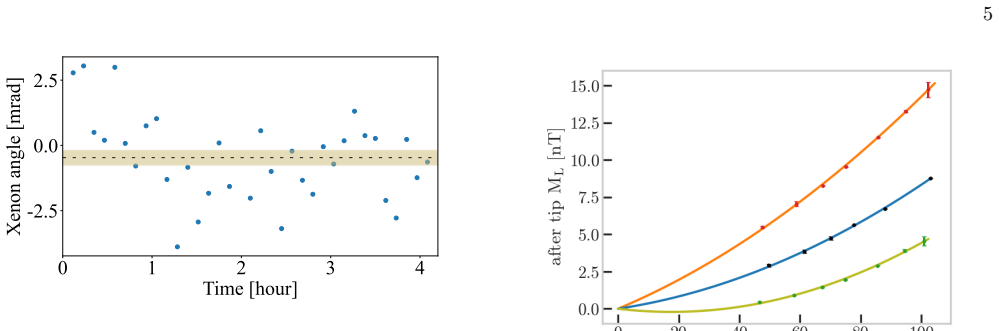

Figures

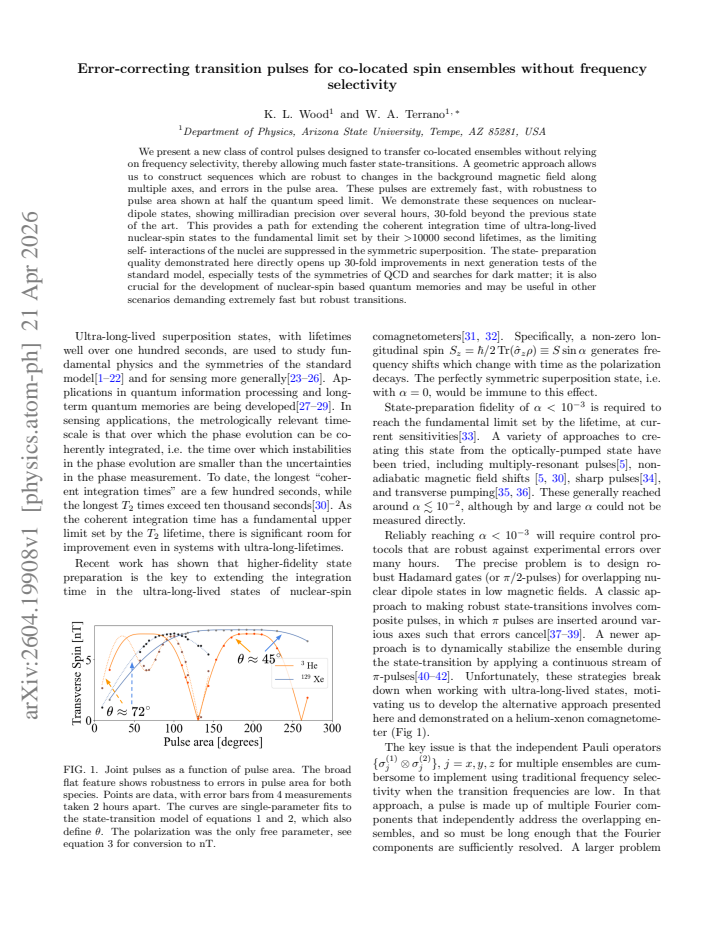

read the original abstract
We present a new class of control pulses designed to transfer co-located ensembles without relying on frequency selectivity, thereby allowing much faster state-transitions. A geometric approach allows us to construct sequences which are robust to changes in the background magnetic field along multiple axes, and errors in the pulse area. \red{These pulses are extremely fast, with robustness to pulse area shown at half the quantum speed limit.} We demonstrate these sequences on nuclear-dipole states, showing milliradian precision over several hours, 30-fold beyond the previous state of the art. This provides a path for extending the coherent integration time of ultra-long-lived nuclear-spin states to the fundamental limit set by their $>$10000 second lifetimes, as the limiting self-interactions of the nuclei are suppressed in the symmetric superposition. The state-preparation quality demonstrated here directly opens up 30-fold improvements in next generation tests of the standard model, especially tests of the symmetries of QCD and searches for dark matter; it is also crucial for the development of nuclear-spin based quantum memories and may be useful in other scenarios demanding extremely fast but robust transitions.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces a geometric construction for error-correcting transition pulses that enable fast state transfers in co-located spin ensembles without frequency selectivity. The pulses are designed to be robust to multi-axis magnetic-field drifts and pulse-area errors, with robustness to pulse area shown at half the quantum speed limit. Experimental demonstration on nuclear-dipole states reports milliradian precision sustained over several hours, representing a 30-fold improvement over prior state of the art, with implications for extending coherent times toward the >10000 s nuclear lifetime limit and improving precision tests of fundamental physics.
Significance. If the central claims hold, the work offers a notable advance in robust quantum control for long-lived nuclear spins by suppressing self-interactions in symmetric superpositions while achieving high speed and precision. This could directly enable 30-fold gains in next-generation tests of QCD symmetries and dark-matter searches, as well as applications in nuclear-spin quantum memories. The geometric approach, if verified to satisfy all conditions simultaneously without new uncontrolled terms, would be a strength for the field.
major comments (2)
- [Geometric construction section] Geometric construction section: the central claim requires that one closed path in control space simultaneously produces a frequency-independent rotation, cancels first-order errors from Bx/By/Bz drifts, and maintains pulse-area robustness at half the quantum speed limit without generating residual dipolar or quadrupolar terms that would dephase the symmetric superposition. An explicit derivation or numerical check of the effective propagator under the full multi-axis noise Hamiltonian (including finite bandwidth) is needed to confirm no new non-commuting interactions arise; without this, the simultaneous satisfaction of all three requirements remains the least secure step.
- [Experimental demonstration section] Experimental demonstration section: the abstract states milliradian precision over several hours and 30-fold improvement, yet the manuscript must supply quantitative data, error bars, statistical analysis, and direct comparison to the quantum speed limit to substantiate these claims. The current presentation leaves the soundness of the experimental validation difficult to assess without those details.
minor comments (1)
- [Abstract] The abstract is information-dense; separating the quantitative performance claims from the application implications would improve readability.
Simulated Author's Rebuttal
We thank the referee for their careful reading of the manuscript and for the constructive comments, which have helped us improve the clarity and rigor of the presentation. We address each major comment point by point below.
read point-by-point responses
-
Referee: [Geometric construction section] Geometric construction section: the central claim requires that one closed path in control space simultaneously produces a frequency-independent rotation, cancels first-order errors from Bx/By/Bz drifts, and maintains pulse-area robustness at half the quantum speed limit without generating residual dipolar or quadrupolar terms that would dephase the symmetric superposition. An explicit derivation or numerical check of the effective propagator under the full multi-axis noise Hamiltonian (including finite bandwidth) is needed to confirm no new non-commuting interactions arise; without this, the simultaneous satisfaction of all three requirements remains the least secure step.
Authors: We agree that an explicit verification under the full multi-axis noise model is necessary to confirm the simultaneous satisfaction of all robustness conditions. In the revised manuscript we have added both an analytic derivation of the effective propagator (via the Magnus expansion to second order) and supporting numerical simulations of the time-evolution operator that incorporate the complete Hamiltonian, including finite-bandwidth effects and all three magnetic-field drift components. These calculations show that the chosen closed path in control space produces the target frequency-independent rotation, cancels the first-order error terms, and does not generate appreciable residual dipolar or quadrupolar interactions capable of dephasing the symmetric superposition. The pulse-area robustness at half the quantum speed limit is retained in the same analysis. The new material appears in an expanded subsection of the Geometric construction section. revision: yes
-
Referee: [Experimental demonstration section] Experimental demonstration section: the abstract states milliradian precision over several hours and 30-fold improvement, yet the manuscript must supply quantitative data, error bars, statistical analysis, and direct comparison to the quantum speed limit to substantiate these claims. The current presentation leaves the soundness of the experimental validation difficult to assess without those details.
Authors: We appreciate the referee’s request for fuller quantitative support. The revised Experimental demonstration section now includes the raw and processed data sets, error bars obtained from repeated runs, a statistical summary (mean precision, standard deviation, and number of trials), and an explicit comparison of the demonstrated pulse duration against the quantum speed limit. These additions directly substantiate the reported milliradian precision sustained over several hours and the 30-fold improvement relative to prior work. The data-analysis procedures have also been described in greater detail to permit independent assessment. revision: yes
Circularity Check
Geometric construction yields independent robustness without reduction to inputs or self-citation chains
full rationale
The paper introduces a geometric approach to design transition pulses for co-located spin ensembles, claiming simultaneous elimination of frequency selectivity, robustness to multi-axis B-field drifts, and pulse-area errors down to half the quantum speed limit. No equations in the provided abstract or description reduce the claimed propagator or robustness properties to fitted parameters, self-defined quantities, or prior self-citations that bear the central load. The nuclear-dipole demonstration supplies external empirical content (milliradian precision over hours) that is not tautological with the design step. Standard geometric control methods are invoked without smuggling ansatzes or renaming known results via self-reference. This is the expected non-circular outcome for a methods paper whose core claim rests on explicit construction rather than post-hoc fitting.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Nuclear spins in the ensemble behave as controllable two-level systems whose interactions can be suppressed by symmetric superposition.
Reference graph
Works this paper leans on
-
[1]
S. K. Lamoreaux, J. P. Jacobs, B. R. Heckel, F. J. Raab, and E. N. Fortson, New limits on spatial anisotropy from optically-pumped 201Hg and 199Hg, Phys. Rev. Lett.57, 3125 (1986)
1986
-
[2]
S. K. Lamoreaux, J. P. Jacobs, B. R. Heckel, F. J. Raab, and N. Fortson, New constraints on time-reversal asym- metry from a search for a permanent electric dipole mo- ment of 199Hg, Phys. Rev. Lett.59, 2275 (1987)
1987
-
[3]
T. E. Chupp, R. J. Hoare, R. A. Loveman, E. R. Oteiza, J. M. Richardson, M. E. Wagshul, and A. K. Thompson, Results of a new test of local Lorentz invariance: A search for mass anisotropy in 21Ne, Phys. Rev. Lett.63, 1541 (1989)
1989
-
[4]
Graner, Y
B. Graner, Y. Chen, E. G. Lindahl, and B. R. Heckel, Reduced limit on the permanent electric dipole moment of 199Hg, Phys. Rev. Lett.116, 161601 (2016)
2016
-
[5]
Sachdeva, I
N. Sachdeva, I. Fan, E. Babcock, M. Burghoff, T. E. Chupp, S. Degenkolb, P. Fierlinger, S. Haude, E. Kraegeloh, W. Kilian, S. Knappe-Gr¨ uneberg, F. Kuch- ler, T. Liu, M. Marino, J. Meinel, K. Rolfs, Z. Salhi, A. Schnabel, J. T. Singh, S. Stuiber, W. A. Terrano, L. Trahms, and J. Voigt, New limit on the permanent electric dipole moment of 129Xe using 3He ...
2019
-
[6]
C. J. Berglund, L. R. Hunter, D. Krause, Jr., E. O. Prigge, M. S. Ronfeldt, and S. K. Lamoreaux, New limits on local Lorentz invariance from hg and cs magnetome- ters, Phys. Rev. Lett.75, 1879 (1995)
1995
-
[7]
V. A. Kosteleck´ y and C. D. Lane, Constraints on Lorentz violation from clock-comparison experiments, Phys. Rev. D60, 116010 (1999)
1999
-
[8]
D. Bear, R. E. Stoner, R. L. Walsworth, V. A. Kost- eleck´ y, and C. D. Lane, Limit on Lorentz and CPT vio- lation of the neutron using a two-species noble-gas maser, Phys. Rev. Lett.85, 5038 (2000)
2000
- [9]
-
[10]
Gemmel, W
C. Gemmel, W. Heil, S. Karpuk, K. Lenz, Y. Sobolev, K. Tullney, M. Burghoff, W. Kilian, S. Knappe- Gr¨ uneberg, W. M¨ uller, A. Schnabel, F. Seifert, L. Trahms, and U. Schmidt, Limit on Lorentz and CPT violation of the bound neutron using a free precession 3He/129Xe comagnetometer, Phys. Rev. D82, 111901 (2010)
2010
-
[11]
M. Smiciklas, J. M. Brown, L. W. Cheuk, S. J. Smullin, and M. V. Romalis, New Test of Local Lorentz In- variance Using a 21Ne-Rb-K Comagnetometer, Physi- cal Review Letters107, 171604 (2011), arXiv:1106.0738 [physics.atom-ph]
-
[12]
S. K. Peck, D. K. Kim, D. Stein, D. Orbaker, A. Foss, M. T. Hummon, and L. R. Hunter, Limits on local Lorentz invariance in mercury and cesium, Phys. Rev. A86, 012109 (2012)
2012
-
[13]
V. V. Flambaum and M. V. Romalis, Limits on Lorentz invariance violation from coulomb interactions in nuclei and atoms, Phys. Rev. Lett.118, 142501 (2017)
2017
-
[14]
P. W. Graham, D. E. Kaplan, J. Mardon, S. Rajendran, W. A. Terrano, L. Trahms, and T. Wilkason, Spin pre- cession experiments for light axionic dark matter, Phys. Rev. D97, 055006 (2018)
2018
-
[15]
T. Wu, J. W. Blanchard, G. P. Centers, N. L. Figueroa, A. Garcon, P. W. Graham, D. F. J. Kimball, S. Rajen- dran, Y. V. Stadnik, A. O. Sushkov, A. Wickenbrock, and D. Budker, Search for axionlike dark matter with a liquid-state nuclear spin comagnetometer, Phys. Rev. Lett.122, 191302 (2019)
2019
-
[16]
I. M. Bloch, Y. Hochberg, E. Kuflik, and T. Volansky, Axion-like relics: new constraints from old comagne- tometer data, Journal of High Energy Physics2020, 167 (2020)
2020
-
[17]
G. Vasilakis, J. M. Brown, T. W. Kornack, and M. V. Romalis, Limits on New Long Range Nuclear Spin-Dependent Forces Set with a K-He3 Comagne- tometer, Physical Review Letters103, 261801 (2009), arXiv:0809.4700 [physics.atom-ph]
-
[18]
Bulatowicz, R
M. Bulatowicz, R. Griffith, M. Larsen, J. Mirijanian, C. B. Fu, E. Smith, W. M. Snow, H. Yan, and T. G. Walker, Laboratory search for a long-ranget-odd,p-odd interaction from axionlike particles using dual-species nu- clear magnetic resonance with polarized 129Xe and 131Xe gas, Phys. Rev. Lett.111, 102001 (2013)
2013
-
[19]
Hunter, J
L. Hunter, J. Gordon, S. Peck, D. Ang, and J.-F. Lin, Using the earth as a polarized electron source to search for long-range spin-spin interactions, Science339, 928 (2013)
2013
-
[20]
J. Lee, A. Almasi, and M. Romalis, Improved limits on spin-mass interactions, Phys. Rev. Lett.120, 161801 (2018)
2018
-
[21]
Almasi, J
A. Almasi, J. Lee, H. Winarto, M. Smiciklas, and M. V. Romalis, New limits on anomalous spin-spin interactions, Phys. Rev. Lett.125, 201802 (2020)
2020
-
[22]
Feng, D.-H
Y.-K. Feng, D.-H. Ning, S.-B. Zhang, Z.-T. Lu, and D. Sheng, Search for monopole-dipole interactions at the submillimeter range with a Xe 129-Xe 131-Rb comagne- tometer, Physical Review Letters128, 231803 (2022)
2022
-
[23]
H. E. M¨ oller, X. J. Chen, B. Saam, K. D. Hagspiel, G. A. Johnson, T. A. Altes, E. E. de Lange, and H. Kauczor, Mri of the lungs using hyperpolarized noble gases, Mag- netic Resonance in Medicine47, 1029 (2002)
2002
-
[24]
Berthault, G
P. Berthault, G. Huber, and H. Desvaux, Biosensing us- ing laser-polarized xenon nmr/mri, Progress in Nuclear Magnetic Resonance Spectroscopy55, 35 (2009)
2009
-
[25]
J. P. Mugler III, T. A. Altes, I. C. Ruset, I. M. Dregely, J. F. Mata, G. W. Miller, S. Ketel, J. Ketel, F. W. Hers- man, and K. Ruppert, Simultaneous magnetic resonance imaging of ventilation distribution and gas uptake in the human lung using hyperpolarized xenon-129, Proceed- ings of the National Academy of Sciences107, 21707 (2010)
2010
-
[26]
Farooq, T
M. Farooq, T. Chupp, J. Grange, A. Tewsley-Booth, D. Flay, D. Kawall, N. Sachdeva, and P. Winter, Ab- solute magnetometry with 3He, Phys. Rev. Lett.124, 223001 (2020)
2020
-
[27]
O. Katz, R. Shaham, E. S. Polzik, and O. Firstenberg, Long-lived entanglement generation of nuclear spins us- ing coherent light, Physical Review Letters124, 043602 (2020)
2020
-
[28]
O. Katz, R. Shaham, E. Reches, A. V. Gorshkov, and O. Firstenberg, Optical quantum memory for noble-gas spins based on spin-exchange collisions, Physical Review A105, 042606 (2022). 9
2022
-
[29]
O. Katz, R. Shaham, and O. Firstenberg, Quantum inter- face for noble-gas spins based on spin-exchange collisions, PRX quantum3, 010305 (2022)
2022
-
[30]
Gemmel, W
C. Gemmel, W. Heil, S. Karpuk, K. Lenz, C. Lud- wig, Y. Sobolev, K. Tullney, M. Burghoff, W. Kil- ian, S. Knappe-Gr¨ uneberg, W. M¨ uller, A. Schnabel, F. Seifert, L. Trahms, and S. Baeßler, Ultra-sensitive magnetometry based on free precession of nuclear spins, The European Physical Journal D57, 303 (2010)
2010
-
[31]
M. E. Limes, N. Dural, M. V. Romalis, E. L. Foley, T. W. Kornack, A. Nelson, L. R. Grisham, and J. Vaara, Dipo- lar and scalar 3He−129Xe frequency shifts in stemless cells, Phys. Rev. A100, 010501 (2019)
2019
-
[32]
W. A. Terrano, J. Meinel, N. Sachdeva, T. E. Chupp, S. Degenkolb, P. Fierlinger, F. Kuchler, and J. T. Singh, Frequency shifts in noble-gas comagnetometers, Phys. Rev. A100, 012502 (2019)
2019
-
[33]
W. A. Terrano and M. V. Romalis, Comagnetometer probes of dark matter and new physics, Quantum Sci- ence and Technology7, 014001 (2021)
2021
-
[34]
M. E. Limes, D. Sheng, and M. V. Romalis, 3He−129Xe comagnetometery using 87Rb detection and decoupling, Phys. Rev. Lett.120, 033401 (2018)
2018
-
[35]
Korver, D
A. Korver, D. Thrasher, M. Bulatowicz, and T. G. Walker, Synchronous spin-exchange optical pumping, Phys. Rev. Lett.115, 253001 (2015)
2015
-
[36]
D. A. Thrasher, S. S. Sorensen, J. Weber, M. Bulatowicz, A. Korver, M. Larsen, and T. G. Walker, Continuous comagnetometry using transversely polarized xe isotopes, Phys. Rev. A100, 061403 (2019)
2019
-
[37]
M. H. Levitt, Composite pulses, Prog. NMR Spectrosc. 18, 61 (1986)
1986
-
[38]
Gullion, D
T. Gullion, D. B. Baker, and M. S. Conradi, New, com- pensated Carr-Purcell sequences, Journal of Magnetic Resonance (1969)89, 479 (1990)
1969
-
[39]
C. Brif, R. Chakrabarti, and H. Rabitz, Control of quan- tum phenomena: past, present, and future, New J. Phys. 12, 075008 (2010)
2010
-
[40]
Viola, E
L. Viola, E. Knill, and S. Lloyd, Dynamical decoupling of open quantum systems, Phys. Rev. Lett.82, 2417 (1999)
1999
-
[41]
Vitali and P
D. Vitali and P. Tombesi, Using parity kicks for decoher- ence control, Phys. Rev. A59, 4178 (1999)
1999
-
[42]
A. M. Souza, G. A. ´Alvarez, and D. Suter, Effects of time-reversal symmetry in dynamical decoupling, Phys. Rev. A85, 032306 (2012)
2012
-
[43]
T. E. Chupp, E. R. Oteiza, J. M. Richardson, and T. R. White, Precision frequency measurements with polarized 3He, 21Ne, and 129Xe atoms, Phys. Rev. A38, 3998 (1988)
1988
-
[44]
Appelt, A
S. Appelt, A. B.-A. Baranga, C. Erickson, M. Romalis, A. Young, and W. Happer, Theory of spin-exchange op- tical pumping of 3-He and 129-Xe, Physical review A58, 1412 (1998)
1998
-
[45]
T. W. Kornack and M. V. Romalis, Dynamics of two overlapping spin ensembles interacting by spin exchange, Phys. Rev. Lett.89, 253002 (2002)
2002
-
[46]
T. Wang, W. Lee, M. Limes, T. Kornack, E. Foley, and M. Romalis, Pulsed vector atomic magnetometer using an alternating fast-rotating field, Nature Communica- tions16, 1374 (2025)
2025
-
[47]
C. V. Rice and D. Raftery, Rubidium–xenon spin ex- change and relaxation rates measured at high pressure and high magnetic field, The Journal of chemical physics 117, 5632 (2002)
2002
-
[48]
C. J. Ballance, T. P. Harty, N. M. Linke, M. A. Sepiol, and D. M. Lucas, High-fidelity quantum logic gates using trapped-ion hyperfine qubits, Physical review letters117, 060504 (2016)
2016
-
[49]
F. A. An, A. Ransford, A. Schaffer, L. R. Sletten, J. Gae- bler, J. Hostetter, and G. Vittorini, High fidelity state preparation and measurement of ion hyperfine qubits, Phys. Rev. Lett.129, 130501 (2022)
2022
-
[50]
M. Smith, A. Leu, K. Miyanishi, M. Gely, and D. Lucas, Single-qubit gates with errors at the 10-7 level, Physical Review Letters134, 230601 (2025). [51]https://doi.org/10.5281/zenodo.16782960
