Stability of Charge Collection Efficiency and Time Resolution in a Novel Ultra-fast Graphene-Optimized Silicon Carbide Detector Under X-ray Irradiation

Zhenyu Jiang , Congcong Wang , Jingxuan He , Yi Zhan , Yingjie Huang , Xiyuan Zhang , Xin Shi
Authors on Pith no claims yet

Pith reviewed 2026-05-09 23:24 UTC · model grok-4.3

classification ⚛️ physics.ins-det
keywords silicon carbide detectorgraphene electrodecharge collection efficiencytime resolutionX-ray irradiationradiation tolerancePIN detector4H-SiC
0
0 comments X

The pith

A graphene-optimized silicon carbide PIN detector maintains 58 ps time resolution and 99 percent charge collection after 1 MGy X-ray irradiation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper fabricates a 4H-SiC PIN detector that uses a graphene electrode and measures its electrical behavior, charge collection, and timing performance before and after exposure to 160 keV X-rays at a total dose of 1 MGy. Post-irradiation the detector keeps an ultralow leakage current, reaches full depletion at 120 V, and delivers 99.24 percent charge collection efficiency. Its time resolution for beta particles is reported as 58 ps before irradiation and 64 ps afterward, a 39.6 percent improvement over a reference-electrode version of the same detector. These results indicate that the graphene electrode design preserves both efficiency and timing under conditions that would normally degrade silicon detectors.

Core claim

The graphene-optimized 4H-SiC PIN detector achieves a time resolution of 58.0 ps, comparable to state-of-the-art low-gain avalanche detectors, and retains this performance together with 99.24 percent charge collection efficiency after 1 MGy of 160 keV X-ray irradiation while leakage current remains at approximately 2.2e-10 A at 300 V.

What carries the argument

The graphene electrode integrated on the 4H-SiC PIN structure, which improves charge collection speed and timing while preserving electrical stability under high X-ray dose.

If this is right

  • The detector can sustain high timing precision in radiation fields up to at least 1 MGy without significant degradation.
  • Leakage current and depletion voltage remain suitable for operation at 300 V bias after exposure.
  • The 39.6 percent timing improvement over the reference-electrode design makes the graphene version competitive with LGADs for fast particle detection.
  • The combination of high CCE and stable timing supports use in high-energy physics experiments, space missions, and nuclear reactor monitoring.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The graphene electrode approach could be tested on other wide-bandgap materials to extend radiation tolerance beyond silicon carbide.
  • Stable timing at the 60 ps level after high dose might enable new particle-identification methods in mixed radiation environments without added cooling.
  • If the improvement scales with electrode area, larger-area versions could be developed for broader coverage in detector arrays.

Load-bearing premise

The observed stability of charge collection efficiency and time resolution is caused by the graphene electrode rather than differences in fabrication, measurement setup, or the particular irradiation conditions.

What would settle it

Fabricate and irradiate several identical 4H-SiC PIN detectors both with and without the graphene electrode under the same 1 MGy X-ray conditions and compare their post-irradiation time resolution and CCE values.

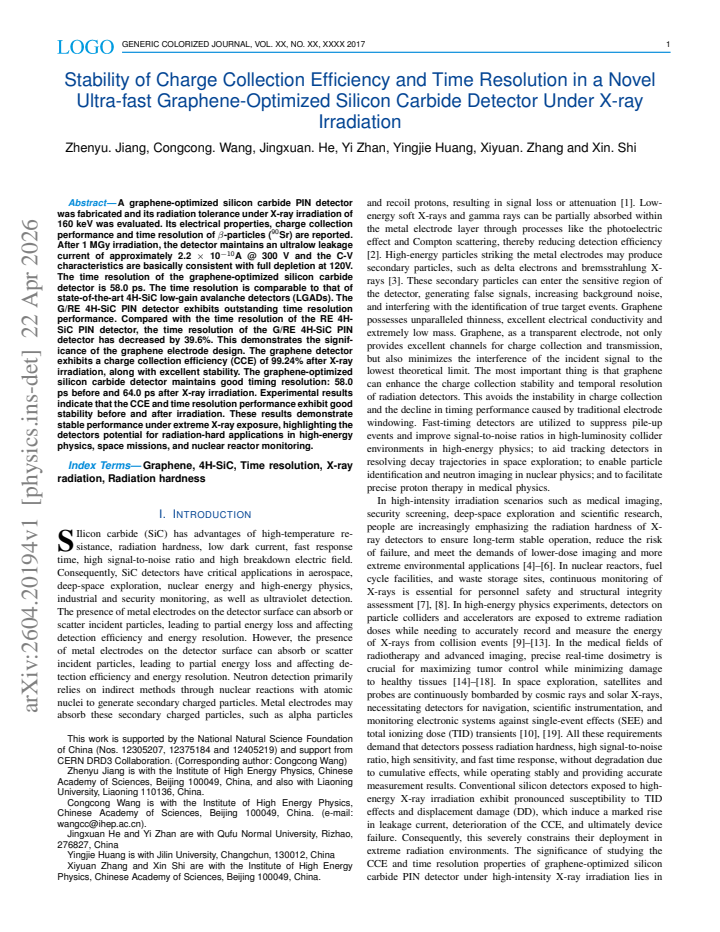

read the original abstract

A graphene-optimized silicon carbide PIN detector was fabricated and its radiation tolerance under X-ray irradiation of 160 keV was evaluated. Its electrical properties, charge collection performance and time resolution of beta-particles (90Sr) are reported. After 1 MGy irradiation, the detector maintains an ultralow leakage current of approximately 2.2e-10 A @ 300 V and the C-V characteristics are basically consistent with full depletion at 120V. The time resolution of the graphene-optimized silicon carbide detector is 58.0 ps. The time resolution is comparable to that of state-of-the-art 4H-SiC low-gain avalanche detectors (LGADs). The G/RE 4H-SiC PIN detector exhibits outstanding time resolution performance. Compared with the time resolution of the RE 4H-SiC PIN detector, the time resolution of the G/RE 4H-SiC PIN detector has decreased by 39.6%. This demonstrates the significance of the graphene electrode design. The graphene detector exhibits a charge collection efficiency (CCE) of 99.24% after X-ray irradiation, along with excellent stability. The graphene-optimized silicon carbide detector maintains good timing resolution: 58.0ps before and 64.0ps after X-ray irradiation. Experimental results indicate that the CCE and time resolution performance exhibit good stability before and after irradiation. These results demonstrate stable performance under extreme X-ray exposure, highlighting the detectors potential for radiation-hard applications in high-energy physics, space missions, and nuclear reactor monitoring.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports fabrication and characterization of a graphene-optimized 4H-SiC PIN detector, claiming radiation tolerance after 1 MGy X-ray (160 keV) exposure. Key results include post-irradiation CCE of 99.24%, leakage current ~2.2e-10 A at 300 V, C-V full depletion at 120 V, and beta-particle (90Sr) time resolution of 58.0 ps pre-irradiation and 64.0 ps post-irradiation. The graphene device is stated to show 39.6% better time resolution than a reference RE 4H-SiC PIN detector and performance comparable to state-of-the-art 4H-SiC LGADs, with overall stability of CCE and timing under irradiation.

Significance. If the reported stability and timing values are reproducible and the graphene electrode is shown to be the causal factor, the work would demonstrate a viable path toward ultra-fast, radiation-hard SiC detectors without relying on avalanche gain. This could be relevant for high-energy physics, space, and nuclear monitoring applications where low leakage and timing stability after high-dose X-ray exposure are required. The experimental focus on direct measurements rather than modeling is a strength, but the absence of error bars, replicate statistics, and matched controls limits the immediate impact.

major comments (3)
  1. [Abstract] Abstract: The 39.6% improvement in time resolution (58 ps vs. reference) and the pre/post-irradiation values (58.0 ps to 64.0 ps) are presented without uncertainties, number of tested devices, or measurement statistics. This makes it impossible to evaluate whether the small shift after 1 MGy is statistically significant or within device-to-device variation.
  2. [Abstract] Abstract / Results: The performance advantage is attributed to the graphene electrode, yet the manuscript provides no description of matched-pair fabrication (identical substrate, doping, thickness, and processing steps for G/RE and RE devices). Without such controls, the observed difference and stability cannot be confidently linked to the graphene layer rather than batch variation or contact quality.
  3. [Abstract] Abstract: The irradiation protocol (dose rate, temperature, bias during exposure, and post-irradiation annealing or measurement timeline) is not detailed, nor are the beta-particle time-resolution measurement conditions (e.g., trigger, electronics, event selection). These omissions are load-bearing for the central stability claim under 1 MGy X-ray.
minor comments (2)
  1. [Abstract] Abstract: Typo in final sentence: 'detectors potential' should read 'detector's potential'.
  2. The manuscript should include a table or section summarizing all measured parameters with uncertainties and sample sizes for both pre- and post-irradiation conditions.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments highlight important areas for improving clarity, statistical rigor, and experimental detail. We address each major comment below and will revise the manuscript to incorporate the requested information from our experimental records.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The 39.6% improvement in time resolution (58 ps vs. reference) and the pre/post-irradiation values (58.0 ps to 64.0 ps) are presented without uncertainties, number of tested devices, or measurement statistics. This makes it impossible to evaluate whether the small shift after 1 MGy is statistically significant or within device-to-device variation.

    Authors: We agree that uncertainties and replicate statistics are necessary to assess significance. The reported time resolutions were derived from repeated measurements on multiple devices using a consistent beta-particle setup. In the revised manuscript, we will update the abstract and results section to include error bars (standard deviations), the number of tested devices, and the number of events analyzed per measurement. This will clarify that the 58.0 ps to 64.0 ps shift falls within the observed experimental variation. revision: yes

  2. Referee: [Abstract] Abstract / Results: The performance advantage is attributed to the graphene electrode, yet the manuscript provides no description of matched-pair fabrication (identical substrate, doping, thickness, and processing steps for G/RE and RE devices). Without such controls, the observed difference and stability cannot be confidently linked to the graphene layer rather than batch variation or contact quality.
