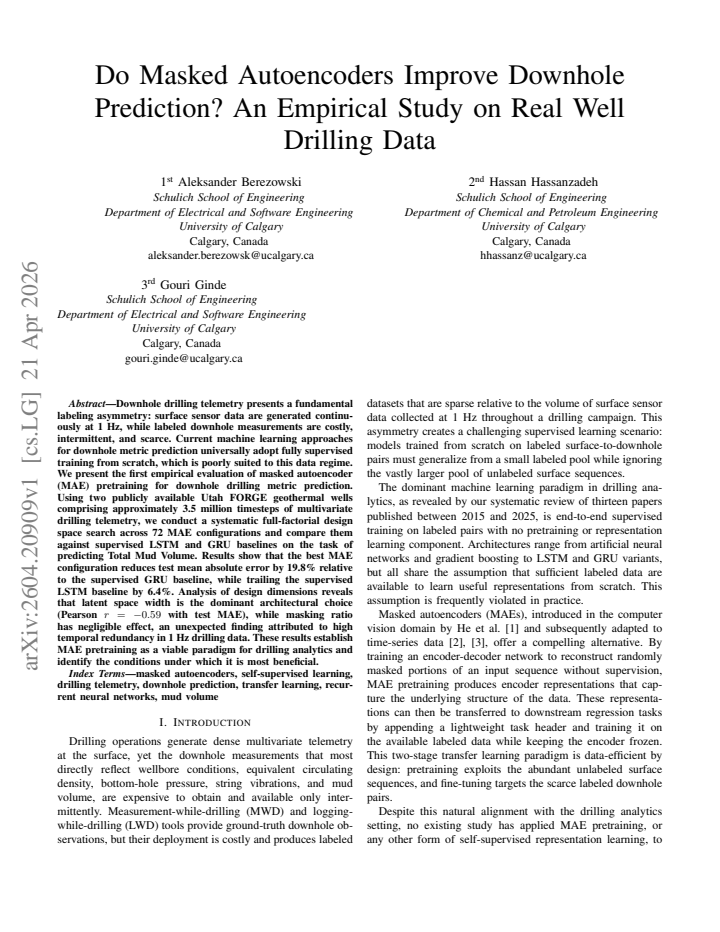

Do Masked Autoencoders Improve Downhole Prediction? An Empirical Study on Real Well Drilling Data

Aleksander Berezowski , Hassan Hassanzadeh , Gouri Ginde

Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:15 UTC · model grok-4.3

classification 💻 cs.LG

keywords masked autoencodersdownhole predictiondrilling telemetrytime series pretraininggeothermal wellsmud volumemachine learningUtah FORGE

0 comments

The pith

Masked autoencoder pretraining reduces downhole drilling prediction error by 19.8 percent versus a GRU baseline on Utah well data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Drilling telemetry produces abundant surface sensor readings at 1 Hz but only scarce and costly labels for downhole conditions. This paper conducts the first systematic test of masked autoencoder pretraining to leverage the unlabeled surface data for predicting metrics such as total mud volume. Across 72 configurations on two Utah FORGE geothermal wells totaling 3.5 million timesteps, the best MAE model lowered test mean absolute error by 19.8 percent relative to a supervised GRU while trailing an LSTM baseline by 6.4 percent. Latent space width proved the dominant design factor, whereas masking ratio showed almost no effect because of high temporal redundancy in the signals.

Core claim

The first empirical evaluation of masked autoencoder pretraining for downhole drilling metric prediction shows that, on approximately 3.5 million timesteps from two Utah FORGE wells, the optimal configuration among 72 tested reduces test mean absolute error for Total Mud Volume by 19.8 percent relative to a supervised GRU baseline while trailing the supervised LSTM baseline by 6.4 percent. Analysis across design dimensions identifies latent space width as the strongest predictor of performance with Pearson correlation of -0.59, while masking ratio exerts negligible influence due to the high temporal redundancy present in 1 Hz drilling telemetry.

What carries the argument

Masked autoencoder pretraining on multivariate time-series surface drilling telemetry followed by supervised fine-tuning for downhole regression.

If this is right

MAE pretraining constitutes a viable approach for drilling analytics under conditions of scarce downhole labels.
Latent space width is the primary architectural lever for improving downstream accuracy in this domain.
Masking ratio can be deprioritized when selecting MAE hyperparameters for 1 Hz drilling sensor streams.
The method exploits continuous surface telemetry to offset the cost of intermittent downhole measurements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same pretraining pipeline could be applied to additional downhole targets such as torque or standpipe pressure to test broader utility.
Repeating the full-factorial search on wells from other geological settings would reveal whether the latent-width dominance and masking-ratio indifference persist.
Hybrid models that combine MAE pretraining with the LSTM architecture might eliminate the remaining 6.4 percent gap to the strongest baseline.
High temporal redundancy in sensor streams suggests that simpler reconstruction objectives could replace full masked autoencoding without loss of benefit.

Load-bearing premise

That the observed error reductions from MAE pretraining on these two specific Utah FORGE wells and for Total Mud Volume will generalize to other wells, drilling operations, and downhole metrics.

What would settle it

Applying the same 72 MAE configurations to a fresh drilling dataset from a different location or for a different downhole metric and observing that none of the pretrained models outperform the supervised LSTM and GRU baselines.

Figures

Figures reproduced from arXiv: 2604.20909 by Aleksander Berezowski, Gouri Ginde, Hassan Hassanzadeh.

**Figure 2.** Figure 2: Frequency of predicted downhole metrics across the 13 reviewed [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: Pearson correlation coefficient between each input feature and the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Pearson correlation matrix across all nine sensor channels. Strong [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: Test MAE distributions as a function of latent space width [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

**Figure 6.** Figure 6: Reduced Pearson correlation matrix between the five MAE design dimensions (rows) and four performance metrics (columns). Cell color encodes [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

**Figure 7.** Figure 7: Test MAE distributions for LSTM-based (is gru = 0) versus GRUbased (is gru = 1) MAE configurations across all 72 experiments. Each box spans the interquartile range; the horizontal line is the median; whiskers extend to 1.5×IQR; circles are outliers. GRU cells produce a lower median MAE (0.02949 vs. 0.02985) and a tighter upper tail, indicating more consistent performance. The key takeaway is that GRU cel… view at source ↗

**Figure 9.** Figure 9: Test MAE distributions for single-layer ( [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗

**Figure 10.** Figure 10: Test MAE distributions for one-layer (Lh = 1) versus twolayer (Lh = 2) task headers across all 72 MAE configurations. The twolayer header reduces the median MAE from 0.03076 to 0.02915 (a 5.2% improvement) and achieves a lower minimum, indicating that additional adaptation capacity over the frozen encoder is consistently beneficial. The key takeaway is that practitioners should prefer a two-layer task h… view at source ↗

read the original abstract

Downhole drilling telemetry presents a fundamental labeling asymmetry: surface sensor data are generated continuously at 1~Hz, while labeled downhole measurements are costly, intermittent, and scarce. Current machine learning approaches for downhole metric prediction universally adopt fully supervised training from scratch, which is poorly suited to this data regime. We present the first empirical evaluation of masked autoencoder (MAE) pretraining for downhole drilling metric prediction. Using two publicly available Utah FORGE geothermal wells comprising approximately 3.5 million timesteps of multivariate drilling telemetry, we conduct a systematic full-factorial design space search across 72 MAE configurations and compare them against supervised LSTM and GRU baselines on the task of predicting Total Mud Volume. Results show that the best MAE configuration reduces test mean absolute error by 19.8\% relative to the supervised GRU baseline, while trailing the supervised LSTM baseline by 6.4\%. Analysis of design dimensions reveals that latent space width is the dominant architectural choice (Pearson $r = -0.59$ with test MAE), while masking ratio has negligible effect, an unexpected finding attributed to high temporal redundancy in 1~Hz drilling data. These results establish MAE pretraining as a viable paradigm for drilling analytics and identify the conditions under which it is most beneficial.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper runs the first big factorial sweep of MAE pretraining on real drilling telemetry and finds latent width matters more than masking ratio, but the reported gains rest on lightly tuned recurrent baselines.

read the letter

The paper's core move is applying masked autoencoders to the labeling asymmetry in drilling data, where surface sensors run continuously but downhole labels are sparse. They take two public Utah FORGE wells, about 3.5 million timesteps, and run a full-factorial search over 72 MAE setups to predict total mud volume. The best one cuts test MAE by 19.8% versus a supervised GRU and sits 6.4% behind an LSTM. They also report that latent width correlates strongly with performance while masking ratio barely moves the needle, which they link to the high temporal redundancy at 1 Hz sampling. That last observation is the most practically useful part of the work so far. It gives anyone working with similar sensor streams a concrete reason to prioritize capacity over aggressive masking. The experiment is systematic and the data are public, which is more than most domain-specific ML papers deliver. The main weakness is exactly the one the stress-test note flags. The MAE side received an exhaustive search; the LSTM and GRU baselines appear to be single or minimally tuned instantiations. Without comparable hyperparameter effort on the recurrent models, the 19.8% delta is hard to attribute cleanly to pretraining rather than optimization budget. The abstract also omits error bars, statistical tests, and details on how the train-test split was made across wells. Those gaps make it difficult to judge whether the numbers would hold up under re-implementation. Generalization is another open question: two wells and one target metric is a narrow slice of drilling operations. This work is aimed at people doing time-series prediction in oil, gas, or geothermal settings who already have abundant unlabeled surface data. A reader looking for a ready-to-try recipe on similar telemetry would get some actionable configuration guidance. It is worth sending to peer review because the question is practical, the data are public, and the design is transparent. A referee can ask for matched baseline sweeps and additional wells without rewriting the paper.

Referee Report

1 major / 3 minor

Summary. The paper claims that masked autoencoder (MAE) pretraining on multivariate surface drilling telemetry (3.5M timesteps from two Utah FORGE wells) improves test mean absolute error for predicting Total Mud Volume by 19.8% relative to a supervised GRU baseline while trailing a supervised LSTM baseline by 6.4%. It reports a full-factorial sweep over 72 MAE configurations (varying latent width, masking ratio, etc.) and identifies latent space width as the dominant factor (Pearson r = -0.59 with test MAE), attributing the negligible effect of masking ratio to high temporal redundancy in 1 Hz data.

Significance. If the central comparison holds under equivalent hyperparameter effort, the work supplies the first systematic evidence that self-supervised MAE pretraining is viable for downhole metric prediction in label-scarce drilling regimes. The exhaustive design-space exploration and identification of latent width as the key lever provide actionable guidance for practitioners and establish a reproducible baseline for future drilling-analytics studies.

major comments (1)

[Results section] Results section (and abstract): the supervised LSTM and GRU baselines are presented as single or minimally tuned instantiations, while the MAE models receive an exhaustive 72-configuration full-factorial sweep. Because the load-bearing claim is the 19.8% MAE reduction versus GRU (and near-parity with LSTM), the absence of comparable hyperparameter search ranges for hidden size, depth, and learning rate on the baselines leaves open the possibility that the observed deltas arise from unequal optimization effort rather than the value of MAE pretraining.

minor comments (3)

[Methods] Methods: explicit train/validation/test split ratios, temporal blocking strategy, and preprocessing pipeline (normalization, missing-value handling) for the 3.5 million timesteps are not detailed, hindering exact reproduction of the reported test MAE values.
[Results] Evaluation: no error bars, standard deviations across random seeds, or statistical significance tests accompany the 19.8% and 6.4% relative improvements, making it difficult to assess whether the differences are reliable.
[Discussion] Discussion: the interpretation that masking ratio has negligible effect due to temporal redundancy would benefit from a quantitative redundancy metric or ablation on downsampled data.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for highlighting the importance of equitable hyperparameter optimization in the baseline comparisons. We address the concern directly below and commit to revisions that strengthen the fairness of the reported results.

read point-by-point responses

Referee: [Results section] Results section (and abstract): the supervised LSTM and GRU baselines are presented as single or minimally tuned instantiations, while the MAE models receive an exhaustive 72-configuration full-factorial sweep. Because the load-bearing claim is the 19.8% MAE reduction versus GRU (and near-parity with LSTM), the absence of comparable hyperparameter search ranges for hidden size, depth, and learning rate on the baselines leaves open the possibility that the observed deltas arise from unequal optimization effort rather than the value of MAE pretraining.

Authors: We agree that the original presentation used standard, minimally tuned LSTM and GRU configurations drawn from common practices in time-series drilling analytics, while devoting the primary experimental effort to the 72-configuration MAE factorial design. This asymmetry does leave the central performance deltas open to the interpretation raised. To address it, the revised manuscript will include a parallel hyperparameter sweep for the supervised baselines (varying hidden size, depth, learning rate, and dropout) using the same computational budget and search methodology. We will report the best-tuned LSTM and GRU results alongside the original MAE findings and update the abstract and results section accordingly. This ensures the comparison reflects the value of MAE pretraining under equivalent optimization effort. revision: yes

Circularity Check

0 steps flagged

Purely empirical comparison with no derivation chain or self-referential structure

full rationale

The paper conducts a full-factorial empirical sweep over 72 MAE configurations on real drilling telemetry and reports direct test MAE numbers against LSTM/GRU baselines. No equations, first-principles derivations, fitted parameters renamed as predictions, or uniqueness theorems appear. All reported quantities (19.8% improvement, Pearson r = -0.59, etc.) are computed from held-out data after training; none are defined in terms of themselves or smuggled via self-citation. The study is therefore self-contained against external benchmarks and exhibits no circularity.

Axiom & Free-Parameter Ledger

2 free parameters · 0 axioms · 0 invented entities

The central claim rests entirely on empirical model performance comparisons rather than theoretical derivations. No new physical axioms, mathematical assumptions, or invented entities are introduced; the work relies on standard neural network training practices and publicly available sensor data.

free parameters (2)

latent space width
Identified as the dominant factor (Pearson r = -0.59 with test MAE) and varied across the 72 configurations.
masking ratio
Varied in the design space search but reported to have negligible effect.

pith-pipeline@v0.9.0 · 5535 in / 1384 out tokens · 165450 ms · 2026-05-10T02:15:24.373025+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

24 extracted references · 3 canonical work pages

[1]

Masked autoencoders are scalable vision learners,

K. He, X. Chen, S. Xie, Y . Li, P. Dollar, and R. Girshick, “Masked autoencoders are scalable vision learners,”2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Jun 2022

2022
[2]

Ti-mae: Self-supervised masked time series autoencoders, 2023

Z. Li, Z. Rao, L. Pan, P. Wang, and Z. Xu, “Ti-mae: Self- supervised masked time series autoencoders,” 2023. [Online]. Available: https://arxiv.org/abs/2301.08871

work page arXiv 2023
[3]

Mtsmae: Masked autoencoders for multivariate time-series forecasting,

P. Tang and X. Zhang, “Mtsmae: Masked autoencoders for multivariate time-series forecasting,” 2022. [Online]. Available: https://arxiv.org/abs/2210.02199

work page arXiv 2022
[4]

Explainable machine-learning-based prediction of equivalent circulating density using surface-based drilling data,

G. Ekechukwu and A. Adejumo, “Explainable machine-learning-based prediction of equivalent circulating density using surface-based drilling data,”Scientific reports, vol. 14, no. 1, pp. 17 780–9, 2024

2024
[5]

Machine learning models for equivalent circulating density prediction from drilling data,

H. Gamal, A. Abdelaal, and S. Elkatatny, “Machine learning models for equivalent circulating density prediction from drilling data,”ACS omega, vol. 6, no. 41, pp. 27 430–27 442, 2021

2021
[6]

New approach to evaluate the equivalent circulating density (ecd) using artificial intelligence techniques,

K. Z. Abdelgawad, M. Elzenary, S. Elkatatny, M. Mahmoud, A. Ab- dulraheem, and S. Patil, “New approach to evaluate the equivalent circulating density (ecd) using artificial intelligence techniques,”Journal of petroleum exploration and production technology, vol. 9, no. 2, pp. 1569–1578, 2019

2019
[7]

The different member equivalent circulating density prediction model and drilling parameter optimization under narrow density window,

W. Zhao, Z. Yang, T. Wang, Y . Zhou, W. Song, J. Li, and P. Zhai, “The different member equivalent circulating density prediction model and drilling parameter optimization under narrow density window,”Frontiers in earth science (Lausanne), vol. 13, 2025

2025
[8]

Bottom hole pressure prediction based on hybrid neural networks and bayesian optimization,

C.-K. Zhang, R. Zhang, Z.-P. Zhu, X.-Z. Song, Y .-A. Su, G.-S. Li, and L. Han, “Bottom hole pressure prediction based on hybrid neural networks and bayesian optimization,”Petroleum science, vol. 20, no. 6, pp. 3712–3722, 2023

2023
[9]

A novel hybrid transfer learning method for bottom hole pressure prediction,

R. Zhang, X. Song, G. Li, Z. Lv, Z. Zhu, C. Zhang, and C. Gong, “A novel hybrid transfer learning method for bottom hole pressure prediction,”ASME 2023 42nd International Conference on Ocean, Offshore and Arctic Engineering, 2023

2023
[10]

Intelligent model for predicting downhole vibrations using surface drilling data during horizontal drilling,

R. Saadeldin, H. Gamal, S. Elkatatny, and A. Abdulraheem, “Intelligent model for predicting downhole vibrations using surface drilling data during horizontal drilling,”Journal of energy resources technology, vol. 144, no. 8, 2022

2022
[11]

Detecting downhole vi- brations through drilling horizontal sections: machine learning study,

R. Saadeldin, H. Gamal, and S. Elkatatny, “Detecting downhole vi- brations through drilling horizontal sections: machine learning study,” Scientific reports, vol. 13, no. 1, pp. 6204–14, 2023

2023
[12]

An online hybrid prediction model for mud pit volume in the complex geological drilling process,

Y . Zhou, X. Chen, E. F. Fukushima, M. Wu, W. Cao, and T. Terano, “An online hybrid prediction model for mud pit volume in the complex geological drilling process,”Control engineering practice, vol. 111, pp. 104 793–, 2021

2021
[13]

Deep learning approach to prediction of drill-bit torque in directional drilling sliding mode: En- ergy saving,

W. CAO, D. MEI, Y . GUO, and H. Ghorbani, “Deep learning approach to prediction of drill-bit torque in directional drilling sliding mode: En- ergy saving,”Measurement : journal of the International Measurement Confederation, vol. 250, pp. 117 144–, 2025

2025
[14]

Machine learning-based trigger detection of drilling events based on drilling data,

J. Zhao, Y . Shen, W. Chen, Z. Zhang, and S. Johnston, “Machine learning-based trigger detection of drilling events based on drilling data,” 2017

2017
[15]

Downhole data correction for data-driven rate of penetration prediction modeling,

M. A. Encinas, A. T. Tunkiel, and D. Sui, “Downhole data correction for data-driven rate of penetration prediction modeling,”Journal of petroleum science & engineering, vol. 210, pp. 109 904–, 2022

2022
[16]

Using trees, bagging, and random forests to predict rate of penetration during drilling,

C. Hegde, S. Wallace, and K. Gray, “Using trees, bagging, and random forests to predict rate of penetration during drilling,” 2015

2015
[17]

Learning repre- sentations by back-propagating errors,

D. E. Rumelhart, G. E. Hinton, and R. J. Williams, “Learning repre- sentations by back-propagating errors,”Nature, vol. 323, no. 6088, p. 533–536, Oct 1986

1986
[18]

Foundation models,

J. Schneider, C. Meske, and P. Kuss, “Foundation models,”Business & Information Systems Engineering, vol. 66, no. 2, p. 221–231, Jan 2024

2024
[19]

The ucr time series clas- sification archive,

H. A. Dau, E. Keogh, K. Kamgar, C.-C. M. Yeh, Y . Zhu, S. Gharghabi, C. A. Ratanamahatana, Yanping, B. Hu, N. Begum, A. Bagnall, A. Mueen, G. Batista, and Hexagon-ML, “The ucr time series clas- sification archive,” October 2018

2018
[20]

Parameter-Efficient Transfer Learning for NLP

N. Houlsby, A. Giurgiu, S. Jastrzebski, B. Morrone, Q. de Laroussilhe, A. Gesmundo, M. Attariyan, and S. Gelly, “Parameter- efficient transfer learning for nlp,” 2019. [Online]. Available: https://arxiv.org/abs/1902.00751

work page Pith review arXiv 2019
[21]

Available: https://catalog.data.gov/dataset/?tags=drilling

[Online]. Available: https://catalog.data.gov/dataset/?tags=drilling
[22]

Long short-term memory,

S. Hochreiter and J. Schmidhuber, “Long short-term memory,”Neural Computation, vol. 9, no. 8, pp. 1735–1780, 1997

1997
[23]

Learning phrase representations using rnn encoder-decoder for statistical machine translation,

K. Cho, B. van Merri ¨enboer, C. Gulcehre, D. Bahdanau, F. Bougares, H. Schwenk, and Y . Bengio, “Learning phrase representations using rnn encoder-decoder for statistical machine translation,” inProceedings of the 2014 Conference on Empirical Methods in Natural Language Processing (EMNLP), 2014, pp. 1724–1734

2014
[24]

Adam: A method for stochastic optimization,

D. P. Kingma and J. Ba, “Adam: A method for stochastic optimization,” 2015

2015
