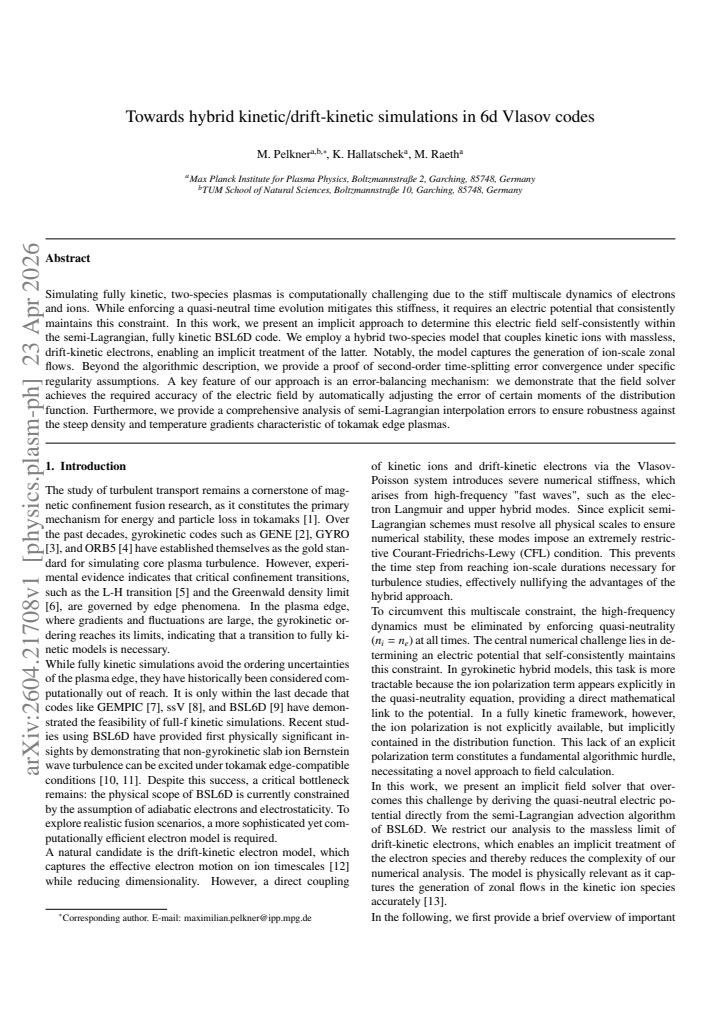

Towards hybrid kinetic/drift-kinetic simulations in 6d Vlasov codes

M. Pelkner , K. Hallatschek , M. Raeth

Authors on Pith no claims yet

Pith reviewed 2026-05-08 13:30 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords hybrid plasma simulationkinetic ionsdrift-kinetic electronsquasi-neutralityVlasov codeszonal flowstokamak edge plasmassemi-Lagrangian methods
0
0 comments X

The pith

A hybrid two-species model couples kinetic ions to massless drift-kinetic electrons to enforce quasi-neutrality implicitly in six-dimensional Vlasov simulations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a hybrid plasma model that treats ions with full kinetic dynamics while representing electrons as massless and drift-kinetic. An implicit electric-field solver maintains the quasi-neutral constraint across time steps, removing the stiffness that normally arises from electron motion. The scheme includes a mathematical proof of second-order convergence for the time-splitting error when the distributions satisfy stated regularity conditions, together with an error-balancing mechanism that automatically tunes the field accuracy to the accuracy of the distribution moments. The work also examines how semi-Lagrangian interpolation errors behave under the steep density and temperature gradients found in tokamak edge plasmas. A reader cares because this combination makes two-species kinetic simulations of edge turbulence computationally tractable while still producing ion-scale zonal flows.

Core claim

We present an implicit approach to determine the electric field self-consistently within a semi-Lagrangian fully kinetic Vlasov code. We employ a hybrid two-species model that couples kinetic ions with massless, drift-kinetic electrons, enabling an implicit treatment of the latter. The model captures the generation of ion-scale zonal flows. Beyond the algorithmic description, we provide a proof of second-order time-splitting error convergence under specific regularity assumptions. A key feature of our approach is an error-balancing mechanism: the field solver achieves the required accuracy of the electric field by automatically adjusting the error of certain moments of the distribution. We,

What carries the argument

The hybrid two-species model with implicit electric-field solver that enforces quasi-neutrality by balancing errors between the field and the moments of the ion and electron distributions.

If this is right

  • The hybrid model captures the generation of ion-scale zonal flows without resolving full electron kinetics.
  • Second-order convergence of the time-splitting error is guaranteed once the stated regularity conditions on the distributions are met.
  • The error-balancing mechanism ensures the electric-field accuracy automatically matches the accuracy of the computed distribution moments.
  • Interpolation errors remain controllable for the steep density and temperature gradients typical of tokamak edge plasmas.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same implicit balancing idea could be tested in other multiscale kinetic problems where one species can be reduced to a drift-kinetic description.
  • Longer integration times in edge-plasma turbulence studies become feasible once the electron stiffness is removed while ion-scale flows are retained.
  • Extension to three-dimensional toroidal geometry would require only that the regularity assumptions continue to hold for the resulting fields.

Load-bearing premise

The regularity assumptions required for the second-order convergence proof hold for the distribution functions and fields encountered in tokamak edge plasmas, and the quasi-neutral constraint remains consistently enforceable by the implicit solver.

What would settle it

A controlled numerical experiment with an analytic reference solution in which the measured time-splitting error for the electric field and the distribution moments both decrease quadratically with the time step size while the simulated zonal flows remain at the expected ion scales.

Figures

Figures reproduced from arXiv: 2604.21708 by K. Hallatschek, M. Pelkner, M. Raeth.

Figure 1
Figure 1. Figure 1: Illustration of the semi-Lagrangian method on a 1D1V phase-space view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of the density error convergence order. The ion distribu view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of the interpolation error correction. The ion distribu view at source ↗
Figure 4
Figure 4. Figure 4: Relative error of the ion density and the absolute value of the Fourier view at source ↗
Figure 5
Figure 5. Figure 5: Relative error of the ion density and absolute Fourier modes of the view at source ↗
Figure 6
Figure 6. Figure 6: Illustration of the time evolution of the quasi-neutral electric potential view at source ↗
Figure 7
Figure 7. Figure 7: Verification of the two Bernstein wave branches. Black dashed lines view at source ↗
read the original abstract

Simulating fully kinetic, two-species plasmas is computationally challenging due to the stiff multiscale dynamics of electrons and ions. While enforcing a quasi-neutral time evolution mitigates this stiffness, it requires an electric potential that consistently maintains this constraint. In this work, we present an implicit approach to determine this electric field self-consistently within the semi-Lagrangian, fully kinetic BSL6D code. We employ a hybrid two-species model that couples kinetic ions with massless, drift-kinetic electrons, enabling an implicit treatment of the latter. Notably, the model captures the generation of ion-scale zonal flows. Beyond the algorithmic description, we provide a proof of second-order time-splitting error convergence under specific regularity assumptions. A key feature of our approach is an error-balancing mechanism: we demonstrate that the field solver achieves the required accuracy of the electric field by automatically adjusting the error of certain moments of the distribution function. Furthermore, we provide a comprehensive analysis of semi-Lagrangian interpolation errors to ensure robustness against the steep density and temperature gradients characteristic of tokamak edge plasmas.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces a hybrid two-species plasma model in the BSL6D semi-Lagrangian Vlasov code, coupling kinetic ions with massless drift-kinetic electrons to allow an implicit self-consistent determination of the electric field while enforcing quasi-neutrality. It claims a proof of second-order time-splitting error convergence under specific regularity assumptions, an error-balancing mechanism that adjusts moment errors to achieve required field accuracy, and an analysis of semi-Lagrangian interpolation errors for robustness in tokamak edge plasmas with steep gradients. The model is shown to capture ion-scale zonal flows.

Significance. If the convergence proof holds under the stated assumptions and the scheme performs as claimed in the target regime, this would represent a valuable contribution to computational plasma physics by enabling more efficient simulations of stiff electron dynamics in fusion-relevant plasmas without sacrificing key physics such as zonal flow generation. The error-balancing and interpolation analysis address practical challenges in high-gradient regions.

major comments (2)
  1. [Convergence proof] The section presenting the convergence proof: the proof of second-order time-splitting error convergence relies on specific regularity assumptions for the distribution functions and fields, but neither this section nor the numerical results demonstrate that these assumptions remain valid once the implicit field solver and hybrid kinetic/drift-kinetic coupling are active in the presence of steep tokamak edge gradients.
  2. [Numerical results] Numerical results section: the manuscript provides no explicit verification data (e.g., measured convergence rates or quasi-neutrality residuals) to confirm that the claimed second-order accuracy and error-balancing mechanism are realized for the hybrid scheme under the target plasma conditions.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'specific regularity assumptions' is used without enumeration or forward reference; adding a parenthetical list or section pointer would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed report. The comments highlight important points regarding the scope of the convergence analysis and the presentation of numerical verification. We address each major comment below and will revise the manuscript to improve clarity and completeness while preserving the core contributions.

read point-by-point responses

  1. Referee: [Convergence proof] The section presenting the convergence proof: the proof of second-order time-splitting error convergence relies on specific regularity assumptions for the distribution functions and fields, but neither this section nor the numerical results demonstrate that these assumptions remain valid once the implicit field solver and hybrid kinetic/drift-kinetic coupling are active in the presence of steep tokamak edge gradients.

    Authors: The convergence proof is a mathematical result derived under explicitly stated regularity assumptions on the distribution functions and electromagnetic fields, which are standard for time-splitting analyses of Vlasov-type systems. These assumptions enable the second-order error bound for the splitting. The manuscript already includes a dedicated analysis of semi-Lagrangian interpolation errors tailored to steep tokamak edge gradients, which supports robustness in the target regime. However, we acknowledge that an explicit discussion linking the regularity assumptions to the hybrid implicit solver and steep-gradient cases is not present. In the revised version we will add a short subsection or remark clarifying the applicability of the assumptions, drawing on the existing interpolation-error analysis and noting that the hybrid coupling preserves the necessary smoothness properties under the quasi-neutrality constraint. revision: yes

  2. Referee: [Numerical results] Numerical results section: the manuscript provides no explicit verification data (e.g., measured convergence rates or quasi-neutrality residuals) to confirm that the claimed second-order accuracy and error-balancing mechanism are realized for the hybrid scheme under the target plasma conditions.

    Authors: The numerical section demonstrates that the hybrid model captures ion-scale zonal flows and that the implicit solver maintains quasi-neutrality, but it does not contain explicit tables or plots of measured convergence orders or residual norms for the full hybrid scheme. We agree that such quantitative verification would strengthen the claim. In the revised manuscript we will add a dedicated verification subsection (or appendix) reporting measured convergence rates on a simplified test problem and quasi-neutrality residuals for the tokamak-edge-relevant case, thereby confirming that the error-balancing mechanism achieves the required field accuracy. revision: yes

Circularity Check

0 steps flagged

No circularity: algorithmic construction and proof are independent of inputs

full rationale

The manuscript describes an implicit hybrid scheme coupling kinetic ions to massless drift-kinetic electrons, together with an explicit mathematical proof of second-order time-splitting convergence that rests only on stated regularity assumptions on the distribution functions and fields. No fitted parameters are extracted from data and then re-labeled as predictions, no central claim reduces to a self-citation chain, and no ansatz or uniqueness result is smuggled in via prior work by the same authors. The error-balancing mechanism is presented as a derived property of the field solver rather than a redefinition of its inputs. The derivation chain therefore remains self-contained; questions about whether the regularity hypotheses hold in steep-gradient tokamak edge plasmas concern external validity, not internal circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review yields minimal ledger entries; the sole explicit assumption is the regularity condition needed for the convergence proof.

axioms (1)
  • domain assumption specific regularity assumptions on the distribution functions and fields hold so that the time-splitting error is second-order
    Invoked explicitly for the convergence proof in the abstract
