pith. machine review for the scientific record. sign in

arxiv: 2604.22086 · v1 · submitted 2026-04-23 · 🪐 quant-ph · cond-mat.mtrl-sci

Recognition: unknown

Tantalum Damascene Coplanar Waveguide Resonators Fabricated Using 300 mm Scale Processes

Ekta Bhatia , Yingge Du , Krishna P Koirala , Chung Kow , Mingzhao Liu , Juan Macy , Tharanga R. Nanayakkara , Francisco Ponce
show 7 more authors
Satyavolu S. Papa Rao Drew J. Rebar Peter V. Sushko Brent A VanDevender Chongmin Wang Marvin G. Warner Zhihao Xiao
Authors on Pith no claims yet

Pith reviewed 2026-05-09 21:14 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mtrl-sci
keywords superconducting resonatorsdamascene processtantalumsurface oxide lossescoplanar waveguidequantum devices300 mm fabrication
0
0 comments X

The pith

Damascene fabrication replaces sidewall native oxides in tantalum resonators with metal-substrate interfaces to reduce losses.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether the damascene process can lower losses in superconducting resonators by swapping native sidewall oxides for cleaner metal-substrate contacts. Surface oxides on device sidewalls add dissipation that limits performance in quantum devices. The authors fabricate tantalum coplanar waveguide resonators on 300 mm wafers and bury an oxide layer during processing to mimic sidewall oxidation effects. They record a modest performance gain in the damascene devices relative to controls. The result points to a lower surface participation ratio as the source of the improvement.

Core claim

Tantalum damascene coplanar waveguide resonators made with 300 mm scale processes that include a buried oxide layer show modest improvement over reference devices. The authors attribute this to replacement of native sidewall oxide with a metal-substrate interface, which lowers the surface participation ratio.

What carries the argument

The damascene process that buries an oxide layer during fabrication to create a metal-substrate interface in place of native sidewall oxide.

Load-bearing premise

Burying an oxide layer during fabrication accurately simulates the loss contribution of native sidewall oxidation in actual devices.

What would settle it

Direct comparison of measured loss rates or quality factors in resonators that have genuine native sidewall oxides versus the buried-oxide simulation under otherwise identical conditions.

Figures

Figures reproduced from arXiv: 2604.22086 by Brent A VanDevender, Chongmin Wang, Chung Kow, Drew J. Rebar, Ekta Bhatia, Francisco Ponce, Juan Macy, Krishna P Koirala, Marvin G. Warner, Mingzhao Liu, Peter V. Sushko, Satyavolu S. Papa Rao, Tharanga R. Nanayakkara, Yingge Du, Zhihao Xiao.

Figure 1
Figure 1. Figure 1: FIG. 1. Damascene process flow for fabricating tantalum-based su [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Scanning electron microscope (SEM) images depicting an [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

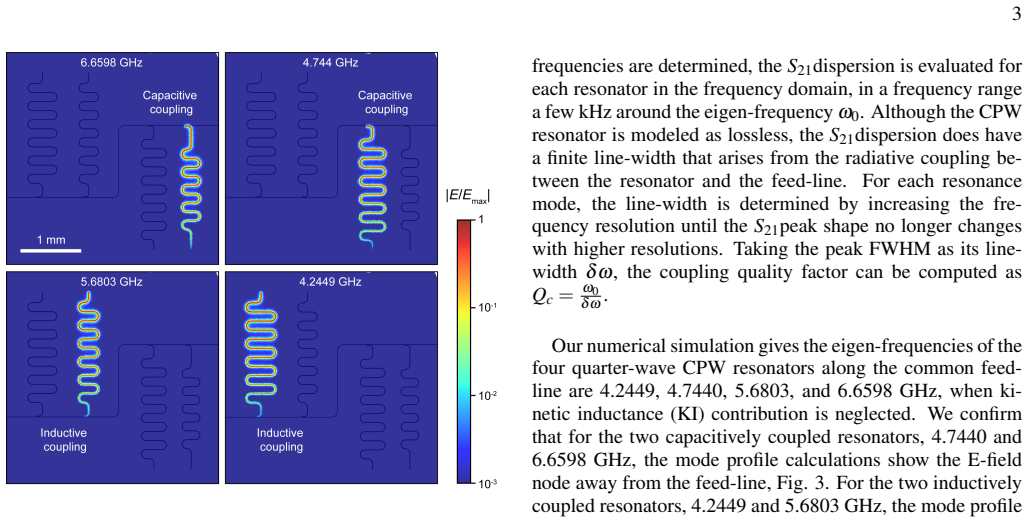

Figure 3. Figure 3: FIG. 3. Electric field distribution profiles of the quarter-wave reso [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

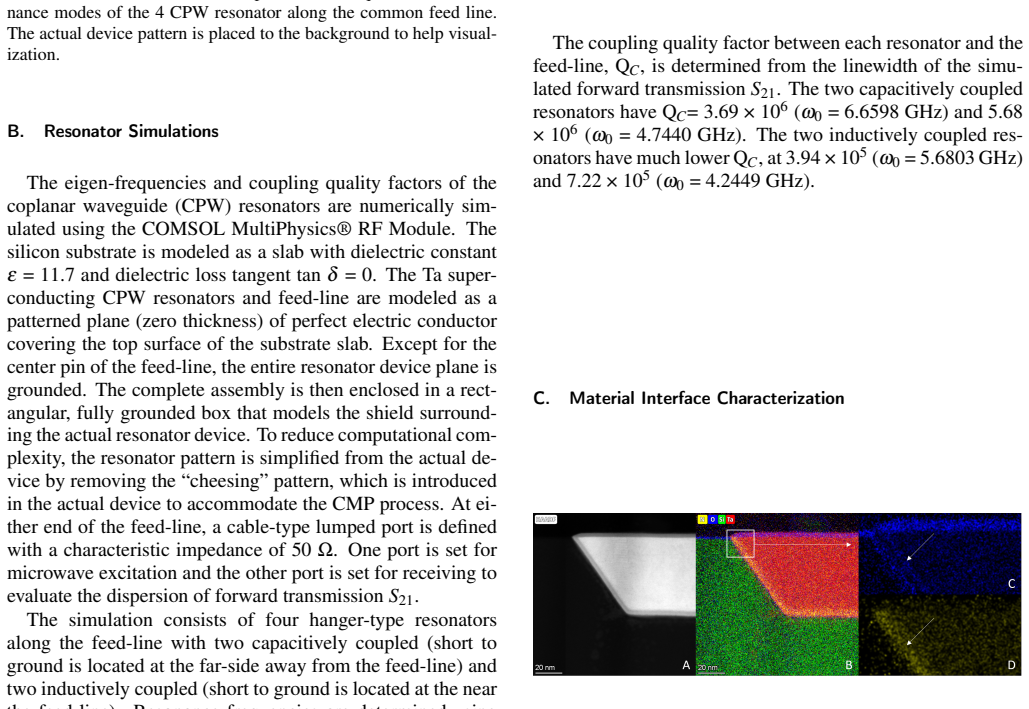

Figure 4. Figure 4: FIG. 4. (A) STEM image of a Device A type showing clearly defined [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. (A) STEM image of a Device E type showing clearly defined [PITH_FULL_IMAGE:figures/full_fig_p004_8.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. (A) STEM image of a Device C type showing clearly defined [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. (A) STEM image of a Device D type showing clearly defined [PITH_FULL_IMAGE:figures/full_fig_p004_7.png] view at source ↗
Figure 10

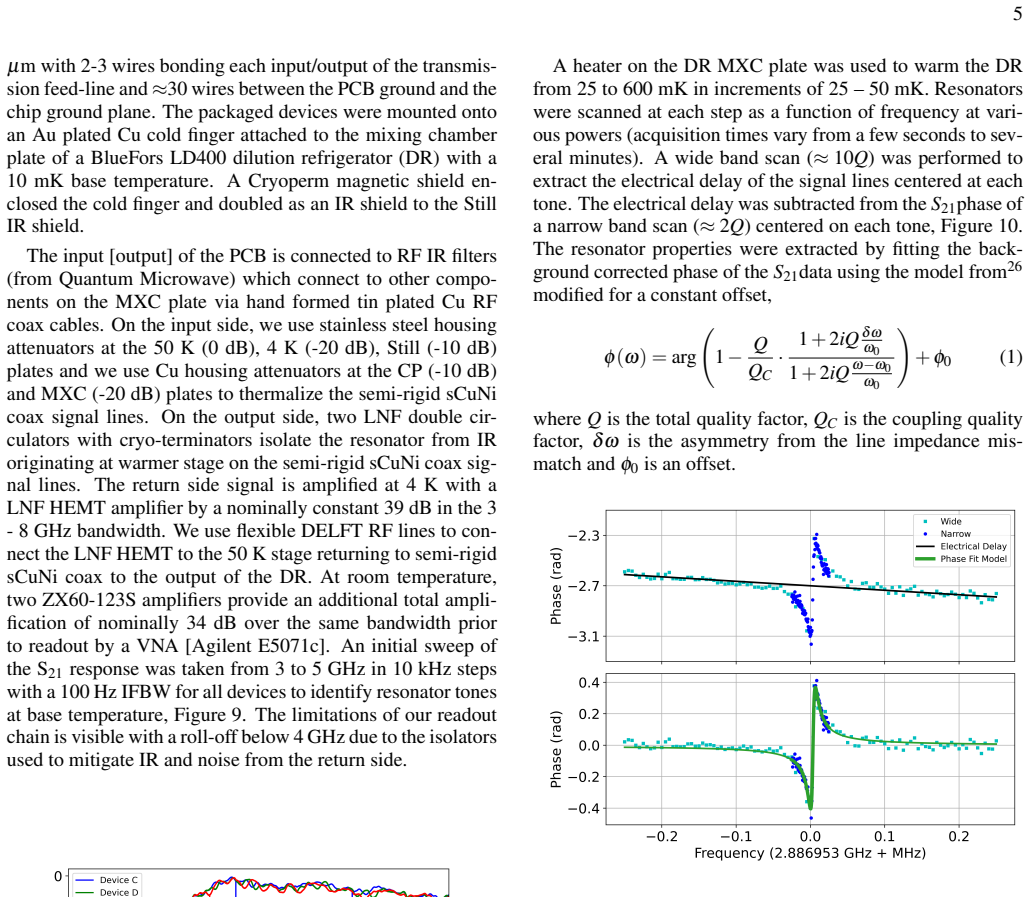

Figure 10. Figure 10: FIG. 10. (Top) Raw data from VNA for both narrow and wide band [PITH_FULL_IMAGE:figures/full_fig_p005_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Full scan of (top) magnitude and (bottom) phase of [PITH_FULL_IMAGE:figures/full_fig_p005_9.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Internal quality factor as a function of Temperature over [PITH_FULL_IMAGE:figures/full_fig_p006_12.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11 [PITH_FULL_IMAGE:figures/full_fig_p006_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. Quality factor for the seven devices under test at 25 mK and [PITH_FULL_IMAGE:figures/full_fig_p007_13.png] view at source ↗
read the original abstract

Surface oxides contribute to losses in superconducting transmon devices resulting in degraded performance. We explore the use of the damascene process to replace the sidewall native oxide of a device with a metal/substrate interface. We simulate sidewall oxidation by burying an oxide layer during fabrication. We observe a modest improvement between the two types of devices, which is suggestive of a reduction in the surface participation ratio.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript investigates tantalum damascene coplanar waveguide resonators fabricated on 300 mm wafers as a means to mitigate losses from surface oxides in superconducting quantum devices. The authors replace sidewall native oxide with a metal/substrate interface using the damascene process and simulate sidewall oxidation by burying an oxide layer during fabrication. They report a modest improvement in the damascene devices relative to standard ones, which they interpret as suggestive of a reduced surface participation ratio.

Significance. If the central observation holds with supporting quantitative data, the work could demonstrate a scalable, semiconductor-compatible route to lowering dielectric losses in resonators by altering surface interfaces. This would be relevant to quantum hardware fabrication, though the current lack of metrics and validation of the simulation limits immediate impact.

major comments (2)
  1. [Abstract] Abstract: the claim of observing 'a modest improvement' is presented without any quantitative metrics (e.g., Q-factors, loss tangents, or participation ratios), error bars, statistical analysis, or specific process parameters, leaving the data-to-claim link undemonstrated and preventing assessment of whether the improvement is statistically meaningful or load-bearing for the interpretation.
  2. [Abstract] Abstract: the suggestion that the improvement indicates a reduction in surface participation ratio rests on the buried-oxide layer accurately proxying native sidewall oxidation losses. Native oxides form conformally at ~1-3 nm with specific stoichiometry and interface states on etched sidewalls, while a buried layer is typically thicker, planarized, and located at a different metal-substrate interface; these differences in thickness, dielectric constant, electric-field participation, and TLS density could produce the shift for unrelated reasons, requiring explicit justification or additional controls.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive feedback on our manuscript. We address each major comment below and will revise the manuscript to improve clarity and support for our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim of observing 'a modest improvement' is presented without any quantitative metrics (e.g., Q-factors, loss tangents, or participation ratios), error bars, statistical analysis, or specific process parameters, leaving the data-to-claim link undemonstrated and preventing assessment of whether the improvement is statistically meaningful or load-bearing for the interpretation.

    Authors: We agree that the abstract would be strengthened by including key quantitative results. The full manuscript contains measured Q-factors, loss tangents, and process details in the results and methods sections, along with error bars and statistical context from multiple devices. In the revised version, we will update the abstract to explicitly state representative Q-factor values for both device types, the observed improvement magnitude, and a brief reference to the supporting analysis. revision: yes

  2. Referee: [Abstract] Abstract: the suggestion that the improvement indicates a reduction in surface participation ratio rests on the buried-oxide layer accurately proxying native sidewall oxidation losses. Native oxides form conformally at ~1-3 nm with specific stoichiometry and interface states on etched sidewalls, while a buried layer is typically thicker, planarized, and located at a different metal-substrate interface; these differences in thickness, dielectric constant, electric-field participation, and TLS density could produce the shift for unrelated reasons, requiring explicit justification or additional controls.

    Authors: We acknowledge the physical differences between a buried oxide layer and native sidewall oxides, including thickness, conformality, and interface characteristics. Our buried-oxide simulation was intended as a controlled proxy to isolate the effect of introducing a metal-substrate interface in place of an oxidized sidewall. In the revised manuscript, we will expand the discussion to provide explicit justification for this approach, including estimates of electric-field participation ratios for the buried layer versus native oxide and a note on potential differences in TLS density. We will also clarify the limitations of the proxy while maintaining that the observed improvement is consistent with a reduced surface participation ratio in the damascene devices. revision: partial

Circularity Check

0 steps flagged

No circularity; purely experimental comparison with no derivations or fitted predictions

full rationale

The manuscript reports fabrication and measurement of tantalum damascene CPW resonators versus standard devices, with the key observation being a modest improvement interpreted as suggestive of lower surface participation ratio via buried-oxide simulation of sidewall oxidation. No equations, parameter fits, uniqueness theorems, ansatzes, or self-citations appear in the provided text or abstract. The central claim is an empirical result whose validity rests on the physical assumption that the buried layer proxies native sidewall oxide loss, but this assumption is external to any derivation chain and does not reduce to the inputs by construction. The work is therefore self-contained experimental evidence with no load-bearing steps that loop back on themselves.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on the domain assumption that surface oxides are a dominant loss channel; no free parameters or new entities are introduced.

axioms (1)
  • domain assumption Surface oxides contribute to losses in superconducting transmon devices
    Opening sentence of the abstract states this as established background.

pith-pipeline@v0.9.0 · 5429 in / 1015 out tokens · 48355 ms · 2026-05-09T21:14:23.467158+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

41 extracted references · 5 canonical work pages · 1 internal anchor

  1. [1]

    2019 , journal =

    Towards understanding two-level-systems in amorphous solids: insights from quantum circuits , author =. 2019 , journal =

    2019

  2. [2]

    and Weiland, C

    Premkumar, A. and Weiland, C. and Hwang, S. and J. Microscopic relaxation channels in materials for superconducting qubits , journal=. 2021 , month=

    2021

  3. [3]

    Khalil, M. S. and Stoutimore, M. J. A. and Wellstood, F. C. and Osborn, K. D. , title =. Journal of Applied Physics , volume =. 2012 , month =

    2012

  4. [4]

    2024 , eprint=

    Minimizing Kinetic Inductance in Tantalum-Based Superconducting Coplanar Waveguide Resonators for Alleviating Frequency Fluctuation Issues , author=. 2024 , eprint=

    2024

  5. [5]

    Materials for Quantum Technology , year =

    Lozano, D P and Mongillo, M and Piao, X and Couet, S and Wan, D and Canvel, Y and Vadiraj, A M and Ivanov, Ts and Verjauw, J and Acharya, R and Van Damme, J and Mohiyaddin, F A and Jussot, J and Gowda, P P and Pacco, A and Raes, B and Van de Vondel, J and Radu, I P and Govoreanu, B and Swerts, J and Potočnik, A and De Greve, K , title =. Materials for Qua...

  6. [6]

    and McLellan, Russell A

    Zhou, Chenyu and Mun, Junsik and Yao, Juntao and Anbalagan, Aswin kumar and Hossain, Mohammad D. and McLellan, Russell A. and Li, Ruoshui and Kisslinger, Kim and Li, Gengnan and Tong, Xiao and Head, Ashley R. and Weiland, Conan and Hulbert, Steven L. and Walter, Andrew L. and Li, Qiang and Zhu, Yimei and Sushko, Peter V. and Liu, Mingzhao , title =. Advan...

    work page doi:10.1002/adma.202310280

  7. [7]

    and Van de Walle, Chris G

    Turiansky, Mark E. and Van de Walle, Chris G. , title =. APL Quantum , volume =. 2024 , month =

    2024

  8. [8]

    APL Quantum , volume =

    Chayanun, Lert and Biznárová, Janka and Zeng, Lunjie and Malmberg, Per and Nylander, Andreas and Osman, Amr and Rommel, Marcus and Tam, Pui Lam and Olsson, Eva and Delsing, Per and Yurgens, August and Bylander, Jonas and Fadavi Roudsari, Anita , title =. APL Quantum , volume =. 2024 , month =

    2024

  9. [9]

    Acceptor-Induced Bulk Dielectric Loss in Superconducting Circuits on Silicon , author =. Phys. Rev. X , volume =. 2024 , month =

    2024

  10. [10]

    and Bahrami, Faranak and Martinez, Jeronimo G

    Bland, Matthew P. and Bahrami, Faranak and Martinez, Jeronimo G. C. and Prestegaard, Paal H. and Smitham, Basil M. and Joshi, Atharv and Hedrick, Elizabeth and Kumar, Shashwat and Yang, Ambrose and Pakpour-Tabrizi, Alexander C. and Jindal, Apoorv and Chang, Ray D. and Cheng, Guangming and Yao, Nan and Cava, Robert J. and de Leon, Nathalie P. and Houck, An...

    work page doi:10.1038/s41586-025-09687-4

  11. [11]

    Low-loss lumped-element inductors made from granular aluminum , author =. Phys. Rev. Appl. , volume =. 2025 , month =

    2025

  12. [12]

    Eliminating Surface Oxides of Superconducting Circuits with Noble Metal Encapsulation , author =. Phys. Rev. Lett. , volume =. 2025 , month =

    2025

  13. [13]

    Resisting High-Energy Impact Events through Gap Engineering in Superconducting Qubit Arrays , author =. Phys. Rev. Lett. , volume =. 2024 , month =

    2024

  14. [14]

    Science Advances , volume =

    Mo Chen and John Clai Owens and Harald Putterman and Max Schäfer and Oskar Painter , title =. Science Advances , volume =. 2024 , doi =

    2024

  15. [15]

    npj Quantum Information , year=

    Bu, Kunliang and Huai, Sainan and Zhang, Zhenxing and Li, Dengfeng and Li, Yuan and Hu, Jingjing and Yang, Xiaopei and Dai, Maochun and Cai, Tianqi and Zheng, Yi-Cong and Zhang, Shengyu , title=. npj Quantum Information , year=

  16. [16]

    and Melville, A

    Calusine, G. and Melville, A. and Woods, W. and Das, R. and Stull, C. and Bolkhovsky, V. and Braje, D. and Hover, D. and Kim, D. K. and Miloshi, X. and Rosenberg, D. and Sevi, A. and Yoder, J. L. and Dauler, E. and Oliver, W. D. , title =. Applied Physics Letters , volume =. 2018 , month =

    2018

  17. [17]

    Place, Alexander P. M. and Rodgers, Lila V. H. and Mundada, Pranav and Smitham, Basil M. and Fitzpatrick, Mattias and Leng, Zhaoqi and Premkumar, Anjali and Bryon, Jacob and Vrajitoarea, Andrei and Sussman, Sara and Cheng, Guangming and Madhavan, Trisha and Babla, Harshvardhan K. and Le, Xuan Hoang and Gang, Youqi and J. New material platform for supercon...

    2021

  18. [18]

    npj Quantum Information , year=

    Wang, Chenlu and Li, Xuegang and Xu, Huikai and Li, Zhiyuan and Wang, Junhua and Yang, Zhen and Mi, Zhenyu and Liang, Xuehui and Su, Tang and Yang, Chuhong and Wang, Guangyue and Wang, Wenyan and Li, Yongchao and Chen, Mo and Li, Chengyao and Linghu, Kehuan and Han, Jiaxiu and Zhang, Yingshan and Feng, Yulong and Song, Yu and Ma, Teng and Zhang, Jingning ...

  19. [19]

    Bal, Mustafa and Murthy, Akshay A. and Zhu, Shaojiang and Crisa, Francesco and You, Xinyuan and Huang, Ziwen and Roy, Tanay and Lee, Jaeyel and Zanten, David van and Pilipenko, Roman and Nekrashevich, Ivan and Lunin, Andrei and Bafia, Daniel and Krasnikova, Yulia and Kopas, Cameron J. and Lachman, Ella O. and Miller, Duncan and Mutus, Josh Y. and Reagor, ...

  20. [20]

    and Masih Das, Paul and Ribet, Stephanie M

    Murthy, Akshay A. and Masih Das, Paul and Ribet, Stephanie M. and Kopas, Cameron and Lee, Jaeyel and Reagor, Matthew J. and Zhou, Lin and Kramer, Matthew J. and Hersam, Mark C. and Checchin, Mattia and Grassellino, Anna and Reis, Roberto dos and Dravid, Vinayak P. and Romanenko, Alexander , title=. ACS Nano , year=

  21. [21]

    and Bhatia, Ekta and Koirala, Krishna P

    Dhas, Jeffrey A. and Bhatia, Ekta and Koirala, Krishna P. and Zhu, Zihua and Liu, Mingzhao and Schujman, Sandra and Rebar, Drew J. and Ponce, Francisco and Warner, Marvin G. and Chang, Chih-Hung and Murray, Thomas and Kirkpatrick, Sean and Sushko, Peter V. and Papa Rao, Satyavolu S. and Du, Yingge , title=. ACS Applied Materials. 2025 , month=

    2025

  22. [22]

    Disentangling Losses in Tantalum Superconducting Circuits , author =. Phys. Rev. X , volume =. 2023 , month =

    2023

  23. [23]

    and Axline, C

    Wang, C. and Axline, C. and Gao, Y. Y. and Brecht, T. and Chu, Y. and Frunzio, L. and Devoret, M. H. and Schoelkopf, R. J. , title =. Applied Physics Letters , volume =. 2015 , month =

    2015

  24. [24]

    McRae, C. R. H. and Wang, H. and Gao, J. and Vissers, M. R. and Brecht, T. and Dunsworth, A. and Pappas, D. P. and Mutus, J. , title =. Review of Scientific Instruments , volume =. 2020 , month =

    2020

  25. [25]

    and Dutta, Aveek and Zhou, Chenyu and Jia, Yichen and Weiland, Conan and Gui, Xin and Place, Alexander P

    McLellan, Russell A. and Dutta, Aveek and Zhou, Chenyu and Jia, Yichen and Weiland, Conan and Gui, Xin and Place, Alexander P. M. and Crowley, Kevin D. and Le, Xuan Hoang and Madhavan, Trisha and Gang, Youqi and Baker, Lukas and Head, Ashley R. and Waluyo, Iradwikanari and Li, Ruoshui and Kisslinger, Kim and Hunt, Adrian and Jarrige, Ignace and Lyon, Step...

    work page doi:10.1002/advs.202300921

  26. [26]

    Andricacos, P. C. and Uzoh, C. and Dukovic, J. O. and Horkans, J. and Deligianni, H. , journal=. Damascene copper electroplating for chip interconnections , year=

  27. [27]

    Precision Measurement of the Microwave Dielectric Loss of Sapphire in the Quantum Regime with Parts-per-Billion Sensitivity , author =. Phys. Rev. Appl. , volume =. 2023 , month =

    2023

  28. [28]

    Mergenthaler, M. and M. Effects of surface treatments on flux tunable transmon qubits , journal=. 2021 , month=

    2021

  29. [29]

    Investigation of Microwave Loss Induced by Oxide Regrowth in High-Q Niobium Resonators , author =. Phys. Rev. Appl. , volume =. 2021 , month =

    2021

  30. [30]

    , title =

    Bhatia, Ekta and Kar, Soumen and Nalaskowski, Jakub and Vo, Tuan and Olson, Stephen and Frost, Hunter and Mucci, John and Martinick, Brian and Hung, Pui Yee and Wells, Ilyssa and Schujman, Sandra and Papa Rao, Satyavolu S. , title =. Journal of Vacuum Science & Technology B , volume =. 2023 , month =

    2023

  31. [31]

    J. Gao. The Physics of Superconducting Microwave Resonators. 2008. doi:10.7907/RAT0-VM75

    work page doi:10.7907/rat0-vm75 2008

  32. [32]

    R. P. Feynman. Paper name. Phys.\ Rev. 1954

    1954

  33. [33]

    N. D. Birell and P. C. W. Davies , year = 1982, title =

    1982

  34. [34]

    Edward Witten. 2001. hep-th/0106109

    work page internal anchor Pith review arXiv 2001

  35. [35]

    E. Beutler. Williams Hematology. 1994

    1994

  36. [36]

    W. J. Smith and T. J. Johnson and B. G. Miller. Surface chemistry and preferential crystal orientation on a silicon surface. 2010

    2010

  37. [37]

    AIP Conf. Proc. 2007

    2007

  38. [38]

    An O(n n / \! n) Sorting Algorithm

    Tom T \' e rrific. An O(n n / \! n) Sorting Algorithm

  39. [39]

    Jill C. Knvth. The Programming of Computer Art

  40. [40]

    Opechowski and R

    W. Opechowski and R. Guccione. Introduction to the Theory of Normal Metals. Magnetism. 1965

    1965

  41. [41]

    The Definitive Computer Manual

    Larry Manmaker. The Definitive Computer Manual
