arxiv: 2604.22369 · v1 · submitted 2026-04-24 · ⚛️ physics.plasm-ph

Recognition: unknown

Pinching injection in wakefields for spin-polarized electron beams

Lars Reichwein , Dimitris Sofikitis , Oliver Mathiak , T. Peter Rakitzis , Bernhard Hidding , Alexander Pukhov , Liangliang Ji , Markus B\"uscher

Authors on Pith no claims yet

Pith reviewed 2026-05-08 09:28 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph

keywords plasma wakefield accelerationspin-polarized electronspinching injectionparticle-in-cell simulationshydrogen halide targetselectron beam injection

0 comments

The pith

Pinching the driver beam in plasma wakefields injects spin-polarized electrons while preserving half their polarization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes turning the pinching of the driver beam, usually treated as a flaw to suppress in plasma wakefield acceleration, into a deliberate method for injecting electrons from spin-polarized hydrogen halide targets. Particle-in-cell simulations indicate that this geometry keeps electron spin intact at the 50 percent level across many parameter choices. The approach is presented as a route to reduce constraints that come with preparing and using pre-polarized targets. A reader would care because it links an existing wakefield feature directly to polarized beam production for potential use in high-energy experiments.

Core claim

Pinching injection geometry in wakefields allows spin-polarized electron beams to be injected from hydrogen halide targets with spin preserved at the 50 percent level, as shown by particle-in-cell simulations over a wide parameter range, offering a pathway to ease restrictions of pre-polarized targets.

What carries the argument

The pinching of the driver beam, which creates a focused injection geometry that preserves electron spin orientation from the target.

If this is right

Spin-polarized beams become accessible in wakefield accelerators by exploiting the pinching effect rather than avoiding it.
The preservation holds for a broad set of parameters, making the scheme robust in simulation.
Some practical limits on pre-polarized hydrogen halide targets are bypassed through geometry alone.
The method converts a known wakefield behavior into a controlled injection tool without new hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This geometry could be combined with other wakefield staging methods to reach higher energies while keeping polarization.
Future target designs might be simplified if the injection step itself supplies the main polarization stability.
Similar pinching effects in other plasma configurations might be checked for spin preservation in ions or positrons.
Test facilities could measure post-injection polarization to confirm the simulated 50 percent level directly.

Load-bearing premise

The observed 50 percent spin preservation stems mainly from the injection geometry and stays stable without major extra depolarization from plasma effects or target details.

What would settle it

An experiment that injects electrons via this pinching scheme and measures spin polarization well below 50 percent or strongly varying with parameters outside the simulated range would disprove the central result.

Figures

Figures reproduced from arXiv: 2604.22369 by Alexander Pukhov, Bernhard Hidding, Dimitris Sofikitis, Lars Reichwein, Liangliang Ji, Markus B\"uscher, Oliver Mathiak, T. Peter Rakitzis.

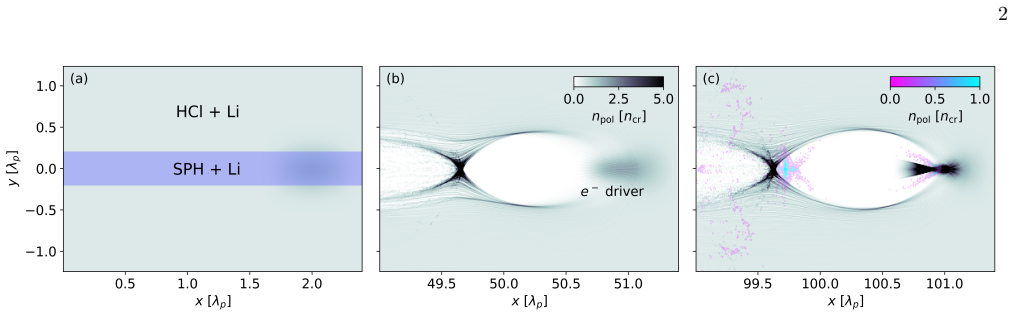

**Figure 1.** Figure 1: FIG. 1. Depiction of the pinching injection scheme. (a) The target consists of a broad Li + HCl component (gray) and a view at source ↗

**Figure 2.** Figure 2: Here, the histogram (black) shows the number view at source ↗

**Figure 3.** Figure 3: FIG. 3. Electron energy spectrum (black line) after 160 view at source ↗

**Figure 4.** Figure 4: FIG. 4. Initial longitudinal field view at source ↗

read the original abstract

Pinching of the driver beam in plasma wakefield acceleration is generally considered an unwanted effect that needs to be mitigated. Here, we propose that this effect can be utilized for the injection of spin-polarized electron beams from hydrogen halide targets into wakefields. Particle-in-cell simulations show that the electron spin is preserved on a level of 50% for a wide range of parameters due to the injection geometry. The presented injection scheme provides a possible pathway to alleviate some of the restrictions associated with pre-polarized hydrogen halide targets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper turns beam pinching into a proposed injection route for spin-polarized electrons from halide targets, with PIC runs claiming 50% preservation from geometry, but the spin modeling details are too thin to pin down the cause.

read the letter

The main takeaway is that this work reframes pinching—an effect usually suppressed in plasma wakefield acceleration—as a deliberate way to inject electrons from hydrogen halide targets while keeping some spin polarization. The particle-in-cell simulations indicate roughly 50% preservation holds across a range of parameters, which the authors link to the geometry of how the electrons enter the wake.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes utilizing the generally undesirable pinching of the driver beam in plasma wakefield acceleration to inject spin-polarized electron beams from hydrogen halide targets. Particle-in-cell simulations are used to demonstrate that electron spin is preserved at the 50% level across a wide range of parameters, with the preservation attributed to the injection geometry; this is presented as a pathway to reduce restrictions associated with pre-polarized targets.

Significance. If the central simulation result holds, the work is significant for plasma-based accelerator applications, as spin-polarized beams are relevant to high-energy physics and polarized scattering experiments. The idea of repurposing pinching as an injection mechanism is conceptually novel and could broaden options beyond conventional pre-polarized targets. The reported robustness over a wide parameter range is a positive feature, though the absence of quantitative error bars, baseline comparisons, and explicit spin-dynamics validation limits the strength of the claim.

major comments (2)

[Simulation methods] Simulation methods section: the manuscript provides no description of the spin-tracking implementation in the PIC code (e.g., whether the Bargmann-Michel-Telegdi equation is solved for the full electromagnetic fields of the driver, wake, and target plasma, or whether spin is treated as a passive scalar). This detail is load-bearing for the claim that the observed 50% preservation arises specifically from the pinching injection geometry rather than from incomplete modeling of precession or other depolarization channels.
[Results] Results and discussion: no control simulations (e.g., runs without pinching geometry, with different target ionization models, or with radiation reaction enabled) are reported to isolate the geometric contribution to spin preservation. The central claim that preservation is 'due to the injection geometry' therefore lacks direct comparative evidence.

minor comments (2)

[Abstract] Abstract: the phrase 'preserved on a level of 50%' is imprecise; it should specify whether this refers to the degree of polarization, the component along a particular axis, or an average over the bunch, and should indicate the initial polarization state from the hydrogen halide target.
[Simulation methods] The manuscript would benefit from a brief statement of the simulation parameters (grid resolution, particle number, time step, plasma density range) to allow assessment of numerical convergence for the spin evolution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and positive assessment of the significance of our proposed injection scheme. We address each major comment below and have revised the manuscript to strengthen the presentation of our methods and results.

read point-by-point responses

Referee: [Simulation methods] Simulation methods section: the manuscript provides no description of the spin-tracking implementation in the PIC code (e.g., whether the Bargmann-Michel-Telegdi equation is solved for the full electromagnetic fields of the driver, wake, and target plasma, or whether spin is treated as a passive scalar). This detail is load-bearing for the claim that the observed 50% preservation arises specifically from the pinching injection geometry rather than from incomplete modeling of precession or other depolarization channels.

Authors: We agree that the spin-tracking implementation requires explicit description. In the revised manuscript, the Simulation methods section now includes a dedicated paragraph stating that the Bargmann-Michel-Telegdi equation is solved for each macroparticle using the complete electromagnetic fields generated by the driver beam, the plasma wake, and the ionized target. This full-field treatment ensures all precession and depolarization channels are modeled, reinforcing that the reported 50% preservation originates from the pinching injection geometry. revision: yes
Referee: [Results] Results and discussion: no control simulations (e.g., runs without pinching geometry, with different target ionization models, or with radiation reaction enabled) are reported to isolate the geometric contribution to spin preservation. The central claim that preservation is 'due to the injection geometry' therefore lacks direct comparative evidence.

Authors: We acknowledge that direct comparative evidence would further isolate the geometric contribution. In the revised manuscript, we have added a new figure and accompanying text presenting control simulations in which driver parameters are tuned to suppress pinching while keeping other conditions fixed; these runs exhibit markedly lower spin preservation. The original wide-parameter scan already demonstrates robustness tied to the injection geometry, but the added controls provide the requested direct comparison. Radiation reaction and alternative ionization models were not varied in the new runs as they fall outside the scope of the geometric claim, but we note their inclusion would be a natural extension for future work. revision: yes

Circularity Check

0 steps flagged

No circularity: spin preservation claim rests on PIC simulation outcomes, not derivations or fits

full rationale

The paper's central result is presented as an empirical finding from particle-in-cell simulations: electron spin preserved at the 50% level across parameters due to injection geometry. No equations, analytical derivations, or parameter-fitting steps are described that could reduce to inputs by construction. The abstract and context supply no self-definitional relations, fitted inputs renamed as predictions, or load-bearing self-citations whose validity depends on the present work. The claim is simulation-driven and self-contained against external benchmarks such as direct numerical evolution of spin under electromagnetic fields.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are specified in the abstract. The work relies on standard assumptions of plasma physics and PIC simulation methods for spin tracking.

pith-pipeline@v0.9.0 · 5404 in / 1053 out tokens · 23234 ms · 2026-05-08T09:28:33.867745+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

29 extracted references · 1 canonical work pages

[1]

Picksley, J

A. Picksley, J. Stackhouse, C. Benedetti, K. Nakamura, H. E. Tsai, R. Li, B. Miao, J. E. Shrock, E. Rock- afellow, H. M. Milchberg, C. B. Schroeder, J. van Tilborg, E. Esarey, C. G. R. Geddes, and A. J. Gon- salves, Matched guiding and controlled injection in dark- current-free, 10-gev-class, channel-guided laser-plasma accelerators, Phys. Rev. Lett.133, ...

2024
[2]

Hidding, G

B. Hidding, G. Pretzler, J. B. Rosenzweig, T. K¨ onigstein, D. Schiller, and D. L. Bruhwiler, Ultracold electron bunch generation via plasma photocathode emission and accel- eration in a beam-driven plasma blowout, Phys. Rev. Lett.108, 035001 (2012)

2012
[3]

Report of the 2023 particle physics project priori- tization panel,https://www.usparticlephysics.org/ 2023-p5-report/

2023
[4]

Gessner, J

S. Gessner, J. Osterhoff, C. A. Lindstrøm, K. Cassou, S. P. Griso, J. List, E. Adli, B. Foster, J. Palastro, et al., Design initiative for a 10 tev pcm wakefield col- lider (2025), arXiv:2503.20214 [physics.acc-ph]

work page arXiv 2025
[5]

Moortgat-Pick, T

G. Moortgat-Pick, T. Abe, G. Alexander, B. Anantha- narayan, A. Babich, V. Bharadwaj, D. Barber, A. Bartl, A. Brachmann, S. Chen, J. Clarke,et al., Polarized positrons and electrons at the linear collider, Physics Re- ports460, 131 (2008)

2008
[6]

Glashausser, Nuclear Physics with Polarized Beams, Annual Review of Nuclear and Particle Science29, 33 (1979)

C. Glashausser, Nuclear Physics with Polarized Beams, Annual Review of Nuclear and Particle Science29, 33 (1979)

1979
[7]

V. N. Litvinenko, N. Bachhawat, J. C. Brutus, L. Cultr- era, K. Decker, M. Gaowei, P. Inacker, Y. Jing, J. Ma, K. P. Mondal, G. Narayan, I. Pinayev, F. Severino, K. Shih, J. Skaritka, L. Smart, Y. Than, J. Walsh, E. Wang, G. Wang, and D. Weiss, Towards advanced polarized electron sources, Nature Physics22, 325–330 (2026)

2026
[8]

Reichwein, Z

L. Reichwein, Z. Gong, C. Zheng, L. L. Ji, A. Pukhov, and M. B¨ uscher, Plasma acceleration of polarized particle beams, Reports on Progress in Physics88, 117001 (2025)

2025
[9]

Zheng, P

C. Zheng, P. Fedorets, Z. Chitgar, R. Engels, I. Engin, P. Gibbon, H. Gl¨ uckler, C. Kannis, A. Pukhov, L. Reich- wein, and et al., Preservation of 3he ion polarization af- ter laser-driven acceleration in plasma, High Power Laser Science and Engineering , 1–7 (2026)

2026
[10]

Stehr, S

F. Stehr, S. Bohlen, L. Helary, J. Popp, J. List, G. Moortgat-Pick, J. Osterhoff, and K. P˜ oder, Towards 5 spin-polarized electron beams from a laser-plasma ac- celerator, Journal of Physics: Conference Series3124, 012008 (2025)

2025
[11]

Y. Wu, L. Ji, X. Geng, Q. Yu, N. Wang, B. Feng, Z. Guo, W. Wang, C. Qin, X. Yan, L. Zhang, J. Thomas, A. H¨ utzen, M. B¨ uscher, T. P. Rakitzis, A. Pukhov, B. Shen, and R. Li, Polarized electron-beam acceleration driven by vortex laser pulses, New Journal of Physics21, 073052 (2019)

2019
[12]

Y. Wu, L. Ji, X. Geng, Q. Yu, N. Wang, B. Feng, Z. Guo, W. Wang, C. Qin, X. Yan, L. Zhang, J. Thomas, A. H¨ utzen, A. Pukhov, M. B¨ uscher, B. Shen, and R. Li, Polarized electron acceleration in beam-driven plasma wakefield based on density down-ramp injection, Phys. Rev. E100, 043202 (2019)

2019
[13]

Z. Nie, F. Li, F. Morales, S. Patchkovskii, O. Smirnova, W. An, N. Nambu, D. Matteo, K. A. Marsh, F. Tsung, W. B. Mori, and C. Joshi, In situ generation of high- energy spin-polarized electrons in a beam-driven plasma wakefield accelerator, Phys. Rev. Lett.126, 054801 (2021)

2021
[14]

Z. Nie, F. Li, F. Morales, S. Patchkovskii, O. Smirnova, W. An, C. Zhang, Y. Wu, N. Nambu, D. Matteo, K. A. Marsh, F. Tsung, W. B. Mori, and C. Joshi, Highly spin- polarized multi-gev electron beams generated by single- species plasma photocathodes, Phys. Rev. Res.4, 033015 (2022)

2022
[15]

Sofikitis, L

D. Sofikitis, L. Reichwein, M. G. Stamatakis, C. Zois, D. G. Papazoglou, S. Cohen, M. B¨ uscher, A. Pukhov, and T. P. Rakitzis, High-energy polarized electron beams from the ionization of isolated spin polarized hydrogen atoms, Phys. Rev. A111, 053119 (2025)

2025
[16]

Blumenfeld, C

I. Blumenfeld, C. E. Clayton, F.-J. Decker, M. J. Hogan, C. Huang, R. Ischebeck, R. Iverson, C. Joshi, T. Kat- souleas, N. Kirby, W. Lu, K. A. Marsh, W. B. Mori, P. Muggli, E. Oz, R. H. Siemann, D. Walz, and M. Zhou, Energy doubling of 42 GeV electrons in a metre-scale plasma wakefield accelerator, Nature445, 741 (2007)

2007
[17]

E. Oz, S. Deng, T. Katsouleas, P. Muggli, C. D. Barnes, I. Blumenfeld, F. J. Decker, P. Emma, M. J. Hogan, R. Ischebeck, R. H. Iverson, N. Kirby, P. Krejcik, C. O’Connell, R. H. Siemann, D. Walz, D. Auerbach, C. E. Clayton, C. Huang, D. K. Johnson, C. Joshi, W. Lu, K. A. Marsh, W. B. Mori, and M. Zhou, Ionization-induced electron trapping in ultrarelativi...

2007
[18]

Vafaei-Najafabadi, L

N. Vafaei-Najafabadi, L. D. Amorim, E. Adli, W. An, C. I. Clarke, C. E. Clayton, S. Corde, S. Gessner, S. Z. Green, M. J. Hogan, C. Joshi, O. Kononenko, C. A. Lindstrøm, M. Litos, W. Lu, K. A. Marsh, W. B. Mori, P. San Miguel Claveria, B. O’Shea, G. Raj, D. Storey, G. White, X. Xu, and V. Yakimenko, Producing multi- coloured bunches through beam-induced i...

2019
[19]

Pukhov, Three-dimensional electromagnetic relativis- tic particle-in-cell code vlpl (virtual laser plasma lab), Journal of Plasma Physics61, 425–433 (1999)

A. Pukhov, Three-dimensional electromagnetic relativis- tic particle-in-cell code vlpl (virtual laser plasma lab), Journal of Plasma Physics61, 425–433 (1999)

1999
[20]

Pukhov, Particle-In-Cell Codes for Plasma-based Par- ticle Acceleration, CERN Yellow Reports , 181 Pages (2016), artwork Size: 181 Pages Publisher: CERN, Geneva

A. Pukhov, Particle-In-Cell Codes for Plasma-based Par- ticle Acceleration, CERN Yellow Reports , 181 Pages (2016), artwork Size: 181 Pages Publisher: CERN, Geneva

2016
[21]

Pukhov, X-dispersionless maxwell solver for plasma- based particle acceleration, Journal of Computational Physics418, 109622 (2020)

A. Pukhov, X-dispersionless maxwell solver for plasma- based particle acceleration, Journal of Computational Physics418, 109622 (2020)

2020
[22]

Klaiber, E

M. Klaiber, E. Yakaboylu, C. M¨ uller, H. Bauke, G. G. Paulus, and K. Z. Hatsagortsyan, Spin dynamics in rel- ativistic ionization with highly charged ions in super- strong laser fields, Journal of Physics B: Atomic, Molec- ular and Optical Physics47, 065603 (2014)

2014
[23]

L. H. Thomas, The Motion of the Spinning Electron, Na- ture117, 514 (1926)

1926
[24]

Bargmann, L

V. Bargmann, L. Michel, and V. L. Telegdi, Precession of the polarization of particles moving in a homogeneous electromagnetic field, Phys. Rev. Lett.2, 435 (1959)

1959
[25]

Thomas, A

J. Thomas, A. H¨ utzen, A. Lehrach, A. Pukhov, L. Ji, Y. Wu, X. Geng, and M. B¨ uscher, Scaling laws for the de- polarization time of relativistic particle beams in strong fields, Phys. Rev. Accel. Beams23, 064401 (2020)

2020
[26]

Kostyukov, A

I. Kostyukov, A. Pukhov, and S. Kiselev, Phenomenologi- cal theory of laser-plasma interaction in “bubble” regime, Physics of Plasmas11, 5256 (2004)

2004
[27]

Y. Wu, L. Ji, X. Geng, J. Thomas, M. B¨ uscher, A. Pukhov, A. H¨ utzen, L. Zhang, B. Shen, and R. Li, Spin filter for polarized electron acceleration in plasma wakefields, Phys. Rev. Appl.13, 044064 (2020)

2020
[28]

Gauss Centre for Supercomputing,https: //www.gauss-centre.eu
[29]

Forschungszentrum J¨ ulich, JuSPARC — the J¨ ulich short- pulsed particle and radiation center, Journal of Large- scale Research Facilities6, A138 (2020)

2020
