Scaling laws of multi-shock implosions toward the quasi-isentropic limit

M. Murakami

Authors on Pith no claims yet

Pith reviewed 2026-05-08 09:14 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph

keywords multi-shock implosionGuderley modelself-similar solutionsquasi-isentropic compressionscaling lawinertial confinement fusionspherical convergenceentropy suppression

0 comments

The pith

Multiple stacked spherical shocks reach higher compression with suppressed entropy, approaching quasi-isentropic limits as their number grows.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the classical Guderley model for a single converging shock to a stack of N shocks that converge on a uniform solid spherical target. It derives self-similar solutions that give a scaling law for the final density achieved after all shocks have passed. One-dimensional Lagrangian simulations confirm the scaling holds from weak to strong nonlinearity. The results show compression rises steadily with N while entropy production drops, so the process approaches the isentropic limit for large N. This volumetric method avoids the Rayleigh-Taylor instability that affects shell implosions and therefore supplies a stable route to ultrahigh compression.

Core claim

Extending the classical Guderley model to N stacked, spherically converging shocks, we derive self-similar solutions and the scaling law for the final density. One dimensional Lagrangian hydrodynamic simulations confirm this relation over a broad range of parameters, from the weakly to the strongly nonlinear regime. The results show that cumulative compression increases systematically with the number of stacked shocks while entropy generation is strongly suppressed, asymptotically approaching a quasi isentropic limit as N increases to infinity.

What carries the argument

The self-similar solutions for N stacked converging shocks that extend the Guderley model and supply the scaling relation between final density, entropy, and shock number N.

If this is right

Cumulative compression increases systematically with the number of stacked shocks.
Entropy generation is strongly suppressed as N grows.
The process asymptotically approaches a quasi-isentropic limit as N tends to infinity.
The volumetric scheme strongly suppresses the Rayleigh-Taylor instability that affects shell-based implosions.
The framework supplies a robust compression pathway for inertial confinement fusion and other high-energy-density systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The scaling could be used to design laser pulse shapes that launch multiple shocks in a single target to reach high density with lower entropy than single-shock or shell designs.
If the entropy suppression persists in three-dimensional geometries, the method might reduce the energy needed to reach ignition conditions in fusion targets.
The approach connects directly to other multi-shock techniques already used in high-energy-density experiments and could be tested by varying the number of drive pulses on existing laser facilities.
The same self-similar framework may apply to converging shocks in other geometries or materials where entropy control is important.

Load-bearing premise

The self-similar stacked-shock solutions remain valid and entropy suppression holds when realized in realistic one-dimensional Lagrangian hydrodynamics across the full range from weakly to strongly nonlinear regimes, without significant deviations or additional entropy sources.

What would settle it

A set of one-dimensional hydrodynamic simulations or experiments that record final density and temperature after N shocks for several values of N and check whether the measured compression and entropy follow the derived scaling law up to large N.

Figures

Figures reproduced from arXiv: 2604.22592 by M. Murakami.

**Figure 1.** Figure 1: illustrates the temporally stacked pressure sequence ðP1 P4Þ used to generate successive shocks coalescing at the center. The initial pressure of the target material, p0, is assumed to be much lower than P1 (p0 P1). A. 1D hydrodynamic simulations demonstrating self-similarity In this subsection, we present one-dimensional (1D) hydrodynamic simulations of spherical compression in a uniform solid target c… view at source ↗

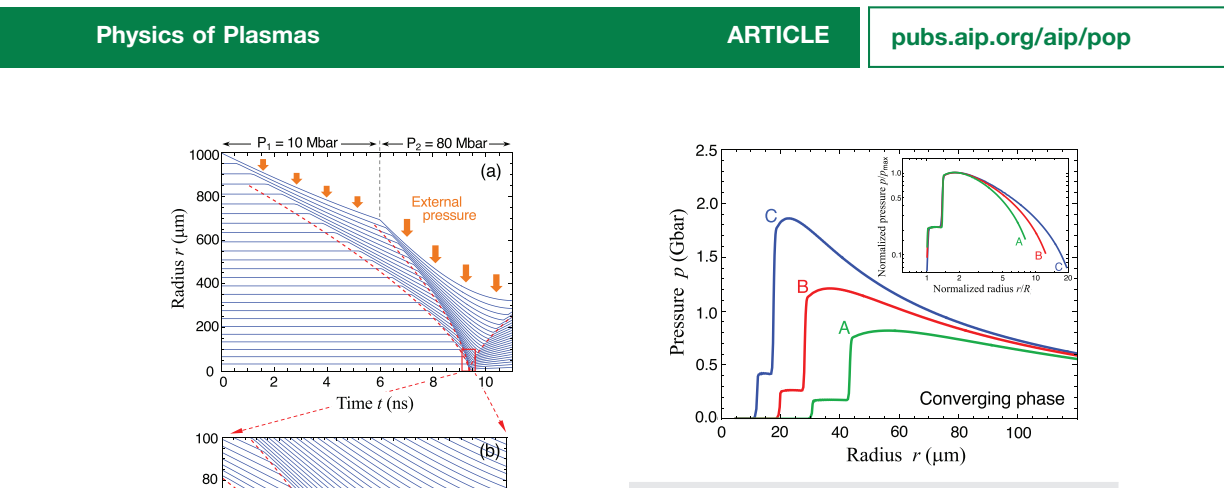

**Figure 3.** Figure 3: shows the temporal evolution of the pressure profiles at three sequential times, A, B, and C, during the converging phase, as marked in view at source ↗

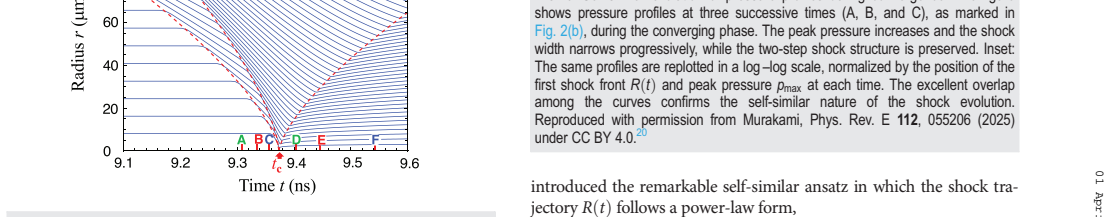

**Figure 2.** Figure 2: (b), during the converging phase. The peak pressure increases and the shock width narrows progressively, while the two-step shock structure is preserved. Inset: The same profiles are replotted in a log –log scale, normalized by the position of the first shock front RðtÞ and peak pressure pmax at each time. The excellent overlap among the curves confirms the self-similar nature of the shock evolution. Repro… view at source ↗

**Figure 4.** Figure 4: ) gives the upstream coordinates ðU2; Z2Þ¼ð0:27; 0:050Þ. With the pressure jump ~p3 p3=p2 ¼ 4:2 obtained from view at source ↗

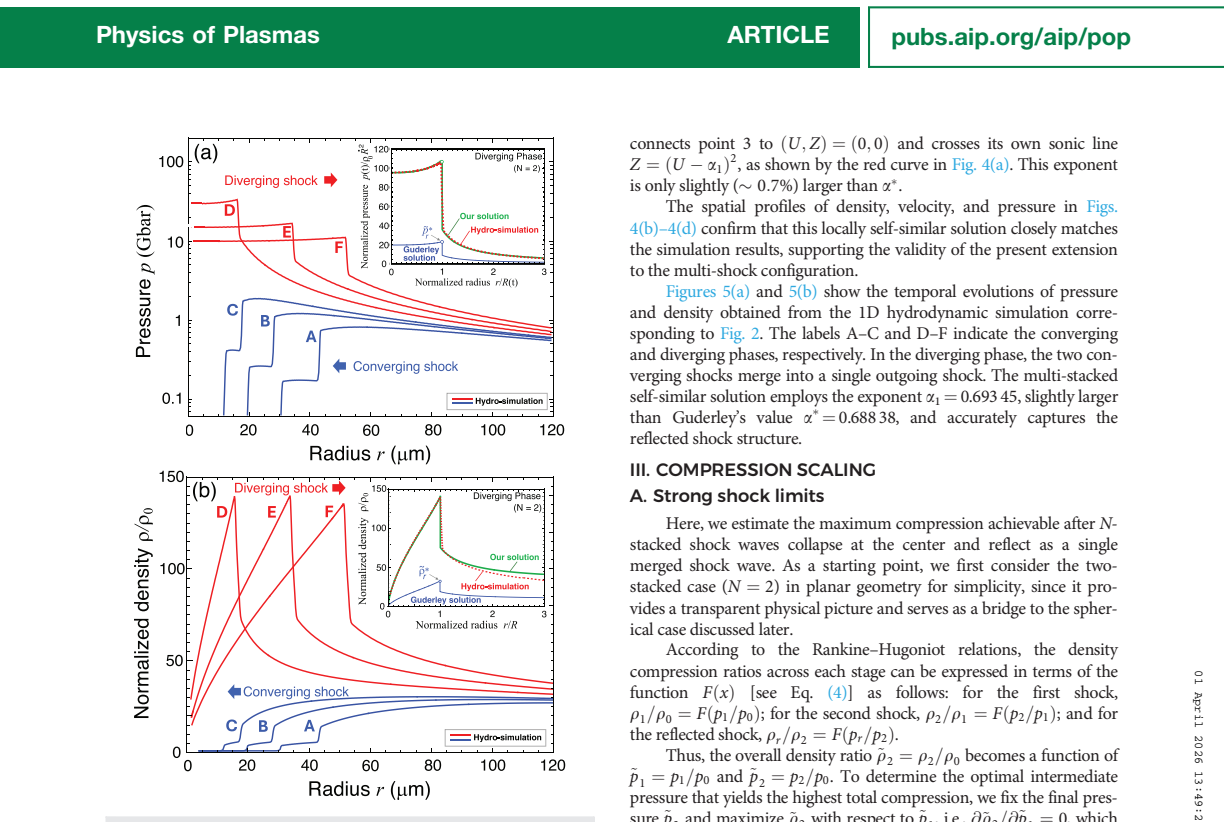

**Figure 5.** Figure 5: FIG. 5 view at source ↗

**Figure 6.** Figure 6: shows the results for planar geometry, where the final compression ratio qr=q0 is plotted as a function of P^. The numerical data are in excellent agreement with the analytical predictions given by Eqs. (10) and (17), corresponding to the strong- and weak-shock limits. Thin solid curves denote numerical solutions of the full Rankine– Hugoniot relations without limiting approximations. Notably, the weak-sh… view at source ↗

**Figure 7.** Figure 7: FIG. 7 view at source ↗

**Figure 8.** Figure 8: compares this theoretical scaling with hydrodynamic simulations and shows excellent agreement. Notably, Figs. 7 and 8 indicate that both qr and pr exhibit nearly identical dependencies on the stage pressure ratio P^, despite arising from different aspects of the implosion dynamics. This near coincidence follows directly from radial momentum conservation. At the instant of reflection, the cumulative impuls… view at source ↗

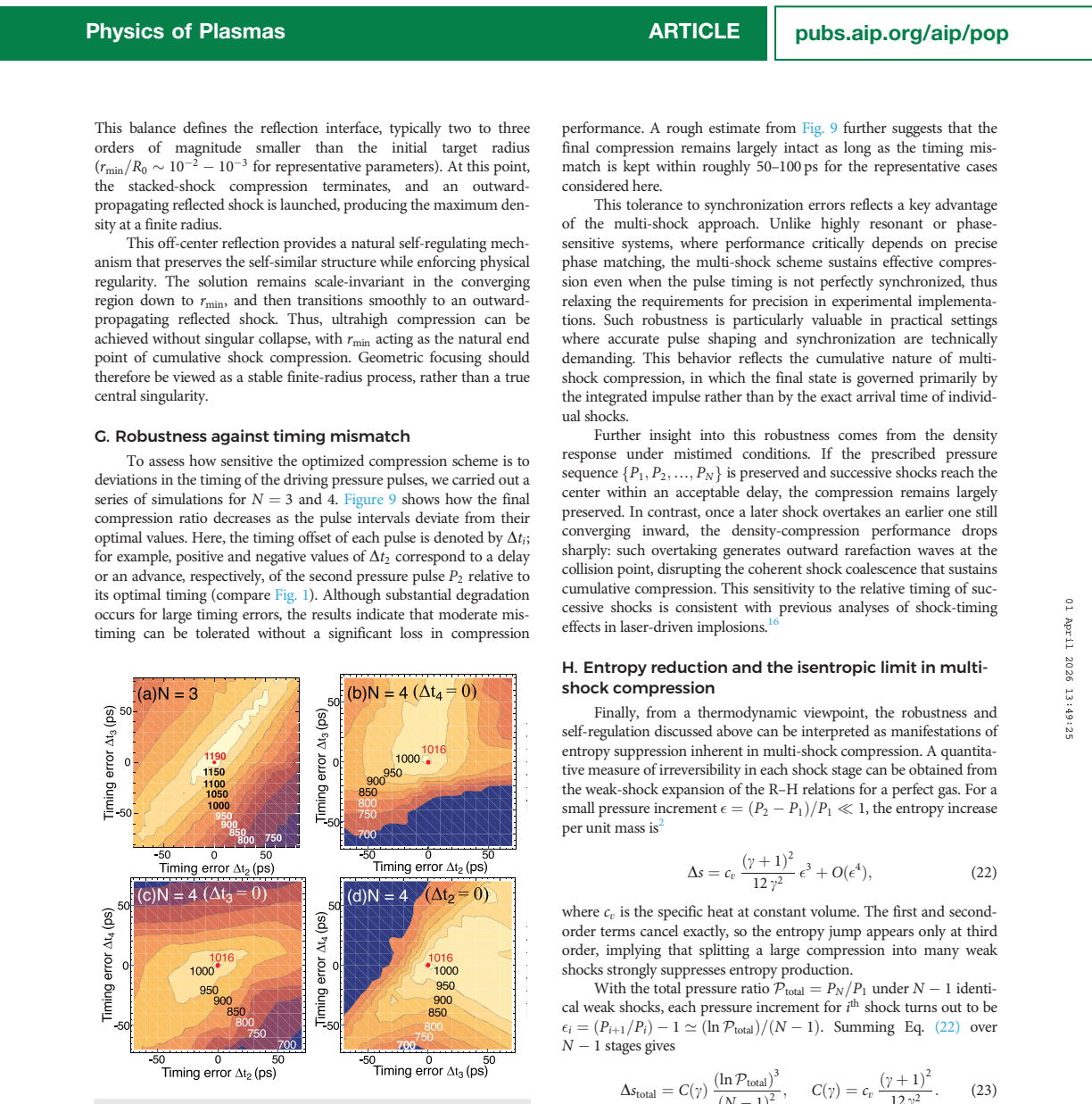

**Figure 9.** Figure 9: FIG. 9 view at source ↗

**Figure 10.** Figure 10: illustrates the dependence of the normalized cumulative entropy production and the stage pressure ratio on the number of shocks N for a fixed overall compression level. The normalized entropy increase, D~stotal Dstotal=K, decreases monotonically as N increases, indicating that the compression process approaches the quasiisentropic limit in the multi-stage regime. At the same time, the required stage pres… view at source ↗

read the original abstract

We present a unified theoretical and numerical framework for self-similar multi-shock implosions achieving ultrahigh compression in a uniform solid spherical target. Extending the classical Guderley model to N stacked, spherically converging shocks, we derive selfsimilar solutions and the scaling law for the final density. One dimensional Lagrangian hydrodynamic simulations confirm this relation over a broad range of parameters, from the weakly to the strongly nonlinear regime. The results show that cumulative compression increases systematically with the number of stacked shocks while entropy generation is strongly suppressed, asymptotically approaching a quasi isentropic limit as N increases infinity. This volumetric scheme strongly suppresses the Rayleigh Taylor instability that plagues shell based implosions and thus provides a robust, largely instability-resistant compression pathway applicable to inertial confinement fusion and other high energy density systems. The framework bridges similarity theory with realistic multi-shock dynamics, guiding the design of advanced laser-driven compression schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Murakami extends the Guderley solution to N stacked shocks and extracts an explicit final-density scaling that 1D Lagrangian runs appear to support, but post-reflection interactions could undermine the entropy-suppression part.

read the letter

The main point is that this paper works out how final compression scales with the number of stacked converging shocks in a solid spherical target by extending the classical Guderley self-similar solution. It also reports that one-dimensional Lagrangian hydrodynamics runs confirm the scaling from weak to strong nonlinearity, with compression rising and entropy staying low as N increases toward the quasi-isentropic limit. That explicit scaling and the multi-shock generalization are the new elements; they were not in the single-shock literature it cites. The numerical check over a broad parameter range is a solid step that ties the similarity analysis to concrete hydrodynamics. The volumetric compression route and its claimed resistance to Rayleigh-Taylor growth are presented as practical advantages for inertial confinement fusion and high-energy-density work. The soft spot is the handling of shock reflections. Once the lead shock reaches the center and bounces outward, it collides with the still-incoming weaker shocks. Those interactions lie outside the isolated converging-shock similarity ansatz and generically produce extra entropy at the reflected fronts. The abstract states that the simulations confirm the scaling, yet it is not clear whether they separately verify that the pre-reflection flow stays self-similar or that the post-reflection entropy increment remains negligible. If the confirmation rests only on the final state without that separation, the support for strong entropy suppression is weaker than claimed. This is worth checking in the full text, but the stress-test concern lands on the evidence as described. The work is aimed at plasma physicists and fusion target designers who already use similarity solutions or multi-shock schemes. A reader who wants an analytic handle on how compression grows with N would get direct value from the scaling formula and the reported trends. It deserves a serious referee because the extension is new, the numerical backing is present, and the application angle is clear, even though the validation on reflections needs tightening.

Referee Report

3 major / 2 minor

Summary. The manuscript extends the classical Guderley self-similar converging-shock solution to a stack of N spherically converging shocks in a uniform solid spherical target. It derives self-similar solutions and an associated scaling law for the final density, then reports that one-dimensional Lagrangian hydrodynamic simulations confirm the scaling over a broad parameter range spanning weakly to strongly nonlinear regimes. The results indicate that cumulative compression rises systematically with N while entropy production is suppressed, approaching a quasi-isentropic limit as N tends to infinity; the scheme is further claimed to suppress Rayleigh-Taylor instability relative to shell implosions and to offer a robust pathway for inertial confinement fusion and high-energy-density applications.

Significance. If the scaling and entropy-suppression claims are substantiated, the work supplies a concrete theoretical bridge between Guderley similarity theory and multi-shock dynamics, together with numerical evidence that volumetric multi-shock compression can achieve high densities while mitigating instability growth. The broad-parameter confirmation and the explicit link to quasi-isentropic limits would be useful for guiding laser-driven compression designs in plasma physics and ICF.

major comments (3)

[Theoretical derivation section] The central derivation of the N-shock self-similar solutions and the explicit scaling formula for final density (presumably in the theoretical section following the Guderley extension) is not presented with sufficient intermediate steps or closed-form expressions; without these, it is impossible to verify that the claimed entropy suppression follows directly from the similarity ansatz rather than from additional assumptions.
[Numerical results and validation section] The 1D Lagrangian simulations are asserted to confirm the scaling and the approach to the quasi-isentropic limit, yet the manuscript does not report diagnostics that isolate pre-reflection self-similarity or quantify post-convergence shock-reflection entropy increments; these interactions lie outside the isolated-converging-shock similarity framework and could introduce unaccounted irreversible heating that undermines the N-to-infinity limit.
[Results section / figures] No error analysis, tabulated simulation data, or quantitative measures of agreement (e.g., residuals between predicted and simulated final densities across the parameter sweep) are provided; this absence prevents assessment of whether the numerical confirmation is robust or merely qualitative.

minor comments (2)

[Abstract] The abstract contains the concatenated word 'selfsimilar'; standard hyphenation ('self-similar') should be used consistently throughout.
[Figures] Figure captions and axis labels should explicitly state the range of N, the equation of state, and the convergence criterion used in the Lagrangian runs to allow direct reproduction.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript. We address each major comment point by point below, providing clarifications where needed and outlining specific revisions to strengthen the theoretical presentation and numerical validation.

read point-by-point responses

Referee: [Theoretical derivation section] The central derivation of the N-shock self-similar solutions and the explicit scaling formula for final density (presumably in the theoretical section following the Guderley extension) is not presented with sufficient intermediate steps or closed-form expressions; without these, it is impossible to verify that the claimed entropy suppression follows directly from the similarity ansatz rather than from additional assumptions.

Authors: We agree that the derivation would benefit from greater detail to allow independent verification. In the revised manuscript we will expand the theoretical section to include all intermediate steps in extending the Guderley solution to N stacked shocks, together with the explicit closed-form scaling relation for final density. These additions will show that entropy suppression follows directly from the multi-shock similarity ansatz without extraneous assumptions. revision: yes
Referee: [Numerical results and validation section] The 1D Lagrangian simulations are asserted to confirm the scaling and the approach to the quasi-isentropic limit, yet the manuscript does not report diagnostics that isolate pre-reflection self-similarity or quantify post-convergence shock-reflection entropy increments; these interactions lie outside the isolated-converging-shock similarity framework and could introduce unaccounted irreversible heating that undermines the N-to-infinity limit.

Authors: The referee correctly notes that the original manuscript lacks explicit diagnostics separating the pre-reflection self-similar phase from post-convergence reflections. While the reported simulations already demonstrate the predicted scaling of final density over a wide parameter range, we will add time-resolved entropy and similarity diagnostics in the revision to quantify reflection contributions. We maintain that the systematic approach to the quasi-isentropic limit with increasing N is robust, as the cumulative compression trend persists despite these secondary effects. revision: partial
Referee: [Results section / figures] No error analysis, tabulated simulation data, or quantitative measures of agreement (e.g., residuals between predicted and simulated final densities across the parameter sweep) are provided; this absence prevents assessment of whether the numerical confirmation is robust or merely qualitative.

Authors: We acknowledge that quantitative agreement metrics were omitted. The revised manuscript will incorporate an error analysis, including residuals and relative discrepancies between the theoretical scaling predictions and simulation results across the full parameter sweep. Selected simulation data will be tabulated in an appendix to enable readers to evaluate the strength of the numerical confirmation directly. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation extends external Guderley framework with independent numerical validation

full rationale

The paper's central derivation extends the classical external Guderley self-similar converging-shock solution to N stacked shocks, analytically obtaining self-similar flow fields and an explicit scaling law for final density as a function of N. One-dimensional Lagrangian hydrodynamic simulations are used solely to confirm the derived relation across weakly to strongly nonlinear regimes. No load-bearing step reduces by construction to a fitted parameter, self-citation chain, or ansatz smuggled from prior author work; the Guderley base is cited as an independent classical result. The entropy-suppression and quasi-isentropic limit statements follow directly from the N->infinity behavior of the derived similarity solutions. The framework is therefore self-contained against external benchmarks, with simulations serving as validation rather than input.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Only the abstract is available, so the precise free parameters, axioms, and any invented entities cannot be audited in detail; the framework rests on classical hydrodynamic similarity theory plus numerical confirmation.

axioms (2)

domain assumption Self-similar solutions exist for an arbitrary number N of stacked spherically converging shocks
Invoked when extending the Guderley model to multi-shock cases
domain assumption One-dimensional Lagrangian hydrodynamics faithfully reproduces the multi-shock dynamics and entropy evolution
Basis for the claim that simulations confirm the scaling
