Augmented reality system for visualising magnetic field topology and charged-particle trajectories in magnetic fusion plasmas

Akinobu Matsuyama

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:28 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph

keywords augmented realitymagnetic fusion plasmasparticle trajectoriesmagnetic field topologyorbit-following simulationOpenCVreal-time visualizationcollaborative display

0 comments

The pith

A webcam and OpenCV system overlays real-time simulated particle trajectories on live views of magnetic fusion setups.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that combining an orbit-following simulation code with a marker-based augmented reality framework lets users see three-dimensional magnetic field structures and charged-particle paths superimposed directly on camera images. The key step is synchronizing each simulation time step with the camera frame rate so the overlays update continuously as the camera moves. This matters for fusion research because the complex 3D topology of magnetic fields and particle orbits is hard to grasp from conventional plots, especially for teams mixing physicists, engineers, and students. If the approach works, people can rotate their viewpoint simply by walking around with the camera and share the same live visualization on a screen for joint discussion.

Core claim

The central claim is that an orbit-following simulation can be integrated with a marker-based AR system using a web camera and the OpenCV library; by matching simulation time steps to camera frame rate, the resulting trajectories are continuously updated and drawn in real time on the live camera image, allowing interactive three-dimensional viewing of magnetic islands and other plasma structures.

What carries the argument

The marker-based AR framework synchronized to camera frame rate that superimposes simulation trajectories onto the live image.

If this is right

Moving the web camera lets observers inspect magnetic islands and field lines from arbitrary positions and angles.
The same visualization appears on a shared display so multiple people can reason together from identical visual data.
The method lowers cognitive load for understanding high-dimensional spatial structures in magnetic confinement.
Researchers and students from varied backgrounds in physics and engineering gain a common visual reference for discussion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Streaming the camera feed could support remote participants in seeing and discussing the same live AR view.
Adding controls to pause or rescale the simulation inside the AR view would let users explore specific orbit classes on demand.
The same marker-plus-camera approach could be tested with other plasma simulation codes to check whether the real-time overlay generalizes.

Load-bearing premise

Marker detection stays accurate and the simulation computation keeps pace with typical webcam frame rates without lag or visual glitches under ordinary lab lighting and camera motion.

What would settle it

Move the camera at normal speed under typical lab lighting and check whether the overlaid particle paths remain smoothly aligned with the image or show visible lag, jitter, or loss of marker tracking.

Figures

Figures reproduced from arXiv: 2604.25426 by Akinobu Matsuyama.

**Figure 1.** Figure 1: (a) Coordinate system used to describe the toroidal geometry. (b) Schematic illustration of the principle of the Poincar´e plot. The charged-particle trajectories in toroidal magnetic geometry are another target of visualisation in this study. The motion of charged particles perpendicular to the magnetic field is constrained to the Larmor gyroradius. Hence high-energy ions in a toroidal magnetic configurat… view at source ↗

**Figure 2.** Figure 2: Schematic illustration of the developed AR system view at source ↗

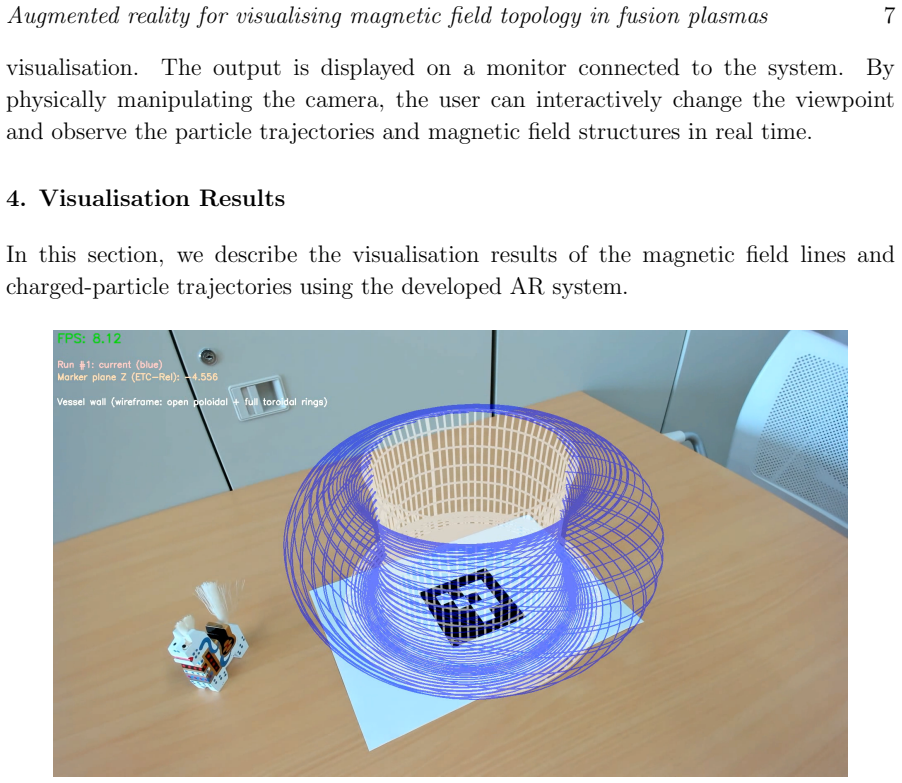

**Figure 3.** Figure 3: AR visualisation of the toroidal magnetic surface. Trajectories passing behind the inboard vessel wall are rendered with hidden-line processing view at source ↗

**Figure 4.** Figure 4: A sequence of visualisation of single magnetic field line on an irrational magnetic surface. field lines is observed on the inner side of the torus, which is related to the stability properties [20] of the plasma. In contrast, when the starting point of the field-line tracing is chosen such that the rotational transform, namely the pitch ∆θ/∆ϕ, is rational, the magnetic field line closes after a finite num… view at source ↗

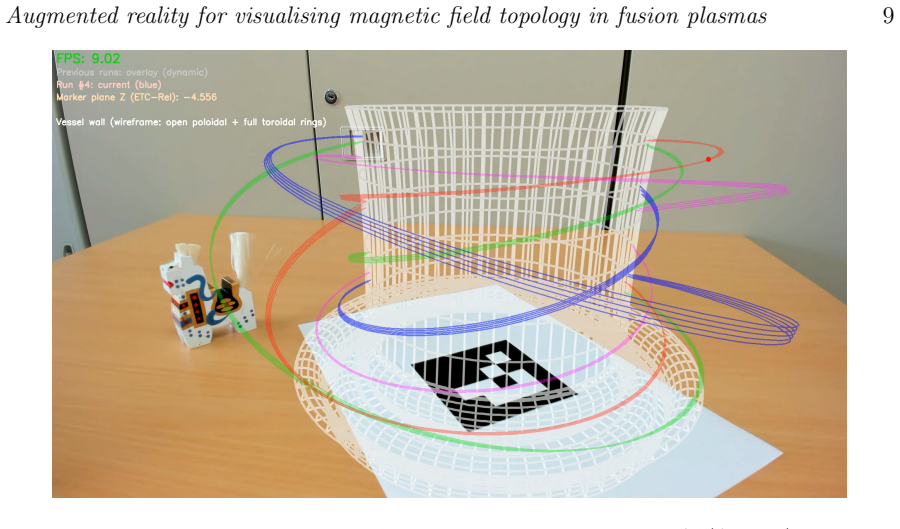

**Figure 5.** Figure 5: Visualisation of a rational magnetic surface with ∆θ/∆ϕ = 1/2 view at source ↗

**Figure 6.** Figure 6: (a) Poincar´e plot of a magnetic island. (b) The corresponding AR visualisation. The magnetic field line passing the O- (magenta) and X-point (red) are also shown. from a point displaced from the X-point by ∆θ/2π = 0.10; when the trajectory is followed for a sufficiently long time, a single field line forms an island structure that encloses the finite volume. Finally, we present the visualisation of the ch… view at source ↗

**Figure 7.** Figure 7: Charged-particle trajectories for a 3.5 MeV alpha particle. (a) Twodimensional projection. (b) Co-passing (v · B > 0) and counter-passing (v · B < 0) particles. (c) Trapped (banana) particle trajectory. large velocity along the magnetic field circulate around the torus, but due to the inhomogeneity of the magnetic field, drift across the field occurs. As a result, depending on the sign of the velocity alo… view at source ↗

read the original abstract

A cost-effective augmented reality (AR) system is presented for visualising three-dimensional magnetic field structures and charged-particle trajectories in magnetically confined fusion plasmas. The system presented in this study integrates an orbit-following simulation code with a marker-based AR framework using a web camera and the OpenCV library. By synchronizing the time step of the simulation with the frame rate of the camera, the trajectories are continuously updated and superimposed in real time onto the camera image. Through the interactive operation of manipulating the web camera, users can observe three-dimensional structures, such as magnetic islands, from various positions and viewing angles. Simultaneously, the visualisation results can be shared by multiple people through a display. Such a shared AR environment supports an intuitive understanding of three-dimensional spatial structures that involve a high cognitive load. It also enables collaborative reasoning based on common visual information in research on magnetic confinement fusion, where researchers and students have diverse backgrounds in physics, engineering, and related fields.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a clear engineering description of a webcam-based AR overlay for fusion orbit simulations that works with standard tools but provides almost no performance numbers.

read the letter

The paper shows a practical way to let people move a webcam around a physical marker and watch charged-particle trajectories from an orbit-following code update live on the screen. The key step is syncing the simulation timestep to the camera frame rate so the overlay stays current as the view changes. Multiple viewers can then look at the same display and discuss the 3D shape of magnetic islands or field lines without each person needing their own fancy setup. That part is straightforward and uses off-the-shelf pieces: OpenCV for marker tracking, a basic AR framework, and whatever orbit code they already run. It is new in the narrow sense that no one has written up this exact combination for magnetic fusion plasmas before, and the shared-view aspect could help mixed teams of physicists and engineers talk about geometry that is otherwise hard to picture. The write-up is honest about the goal—reducing cognitive load for students and collaborators—and the description of how the pieces connect is easy to follow. The main gap is the missing data. There are no measured frame rates, no tests of how well the marker stays locked under typical lab lighting or when the camera moves, and no check on whether the simulation actually keeps up without lag or dropped frames. The real-time claim is plausible on paper but rests on an untested assumption that everything stays smooth in practice. This work is for fusion researchers or educators who want a low-cost visualization aid rather than for people hunting new physics results. A reader who needs ideas for teaching tools or group discussion aids will get something usable; someone expecting quantitative validation or novel algorithms will come away wanting more. I would send it out for peer review. The core construction is sound and the application is useful enough that referees can usefully ask for the missing benchmarks.

Referee Report

1 major / 2 minor

Summary. The paper describes a cost-effective augmented reality (AR) system for visualizing three-dimensional magnetic field structures and charged-particle trajectories in magnetically confined fusion plasmas. It integrates an existing orbit-following simulation code with a marker-based AR framework that uses a web camera and the OpenCV library; by synchronizing the simulation timestep with the camera frame rate, trajectories are updated and overlaid in real time on the live camera image. Users can interactively manipulate the camera to view structures such as magnetic islands from multiple angles, with results shareable via a display for collaborative viewing.

Significance. If the real-time performance claim holds under typical lab conditions, the system provides a practical, low-cost tool for reducing the cognitive load of interpreting complex 3D topologies in fusion research. It leverages standard, well-established components (orbit-following code, OpenCV marker tracking, and frame-rate synchronization) without introducing new physics or algorithms, making the demonstration reproducible and potentially valuable for education and cross-disciplinary collaboration among physicists, engineers, and students.

major comments (1)

[Implementation section describing synchronization and AR framework] The real-time visualization claim depends on successful synchronization of the orbit code timestep with webcam frame rate and reliable marker detection, yet the manuscript provides no quantitative benchmarks (measured frame rates, latency, detection accuracy, or tests under varying lighting/movement). This performance data is load-bearing for substantiating practicality and should be added with error analysis.

minor comments (2)

[Abstract] The abstract refers to sharing the visualization 'through a display' but does not detail the technical mechanism (e.g., network streaming or multi-user setup), leaving the collaborative aspect underspecified.
[Methods/Implementation] No version number or citation is given for the OpenCV library or the specific orbit-following code used, which would aid reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the work and the recommendation for minor revision. The single major comment is addressed point-by-point below, and the manuscript has been revised accordingly.

read point-by-point responses

Referee: [Implementation section describing synchronization and AR framework] The real-time visualization claim depends on successful synchronization of the orbit code timestep with webcam frame rate and reliable marker detection, yet the manuscript provides no quantitative benchmarks (measured frame rates, latency, detection accuracy, or tests under varying lighting/movement). This performance data is load-bearing for substantiating practicality and should be added with error analysis.

Authors: We agree that quantitative benchmarks are necessary to substantiate the real-time performance of the AR system. The manuscript describes the synchronization approach, in which the orbit-following code advances its timestep in direct correspondence with each frame acquired by the webcam via OpenCV marker tracking, but does not report measured performance metrics. In the revised manuscript we have added a new subsection to the Implementation section that supplies the requested data: measured frame rates under standard operating conditions, end-to-end latency between simulation update and visual overlay, marker-detection accuracy across repeated trials, and results from controlled tests that vary lighting intensity and camera motion speed. The added material includes an error analysis with standard deviations and a brief discussion of the conditions under which the reported performance holds. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper is a descriptive engineering demonstration of an AR visualization system that integrates an existing orbit-following simulation code with marker-based AR (webcam + OpenCV) via real-time timestep synchronization. No derivations, equations, fitted parameters, predictions, or self-referential claims appear in the abstract or system description. The work contains no load-bearing steps that reduce to inputs by construction, no uniqueness theorems, and no ansatzes or renamings of known results. It is fully self-contained as a practical implementation report with no internal circular reasoning.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard computer-vision assumptions and existing simulation codes rather than introducing new physical parameters or entities.

axioms (1)

domain assumption OpenCV marker detection and pose estimation function reliably under typical indoor lighting and camera motion
The real-time overlay depends on accurate, low-latency tracking that is assumed rather than proven in the abstract.
