Ultrafast electron vortex produced by a grating made of light

Zichen Li , Hao Liang , Yuan Gu , Jiaye Zhang , Aofan Lin , Juan Du , Sina Jacob , Maksim Kunitski

show 4 more authors

Till Jahnke Sebastian Eckart Reinhard D\"orner Kang Lin

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:03 UTC · model grok-4.3

classification ⚛️ physics.atom-ph

keywords electron vortexorbital angular momentumlight gratingstimulated Compton scatteringall-optical generationfree electronsultrafast electron microscopy

0 comments

The pith

An all-optical light grating diffracts free electrons into tunable vortex beams by transferring orbital angular momentum through stimulated Compton scattering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a method to create electron vortices using only light, without any material structures. Electrons pass through a grating formed by interfering laser beams, acquiring quantized orbital angular momentum from the photons via stimulated Compton scattering. This transfer can be tuned by changing the grating properties, and the approach extends to other particles of various masses. A sympathetic reader would care because it removes the nanofabrication barrier that has limited vortex matter waves due to their tiny de Broglie wavelengths. The work thereby makes the orbital angular momentum degree of freedom accessible for practical devices.

Core claim

We introduce an all-optical method for generating an electron vortex by diffraction through a grating made of light. We realize the orbital angular momentum transfer between free electrons and photons by stimulated Compton scattering. The transferred angular momentum quantum number can be freely tuned. The method can be generalized to a broad range of charged particles, neutral atoms, and molecules of diverse masses. Our results open up novel opportunities for applications in free electron lasers and ultrafast electron microscopy by utilizing the orbital angular momentum degree of freedom of free electrons.

What carries the argument

A light-made grating that diffracts electrons while enabling quantized orbital angular momentum transfer through stimulated Compton scattering.

If this is right

The orbital angular momentum quantum number transferred to the electrons can be adjusted freely by altering the light grating.
The approach works for charged particles, neutral atoms, and molecules across a wide mass range.
Vortex electrons become usable in free electron lasers without material gratings.
Ultrafast electron microscopy gains access to the orbital angular momentum degree of freedom.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Dynamic adjustment of the light grating could enable real-time switching of electron vortex properties during an experiment.
The method might integrate with existing ultrafast laser setups to create time-resolved studies of vortex-electron interactions.
It could lower the technical barrier for producing high-angular-momentum electron states compared with nanofabricated alternatives.

Load-bearing premise

A light grating can be created with enough intensity, coherence, and spatial structure to produce efficient stimulated Compton scattering that transfers orbital angular momentum to electrons without prohibitive decoherence or losses.

What would settle it

Observation of helical phase fronts or doughnut-shaped intensity profiles with central phase singularities in the electron diffraction pattern after passage through the light grating.

Figures

Figures reproduced from arXiv: 2604.25546 by Aofan Lin, Hao Liang, Jiaye Zhang, Juan Du, Kang Lin, Maksim Kunitski, Reinhard D\"orner, Sebastian Eckart, Sina Jacob, Till Jahnke, Yuan Gu, Zichen Li.

**Figure 1.** Figure 1: FIG. 1. Schematic diagram of electron vortex generation. view at source ↗

**Figure 2.** Figure 2: FIG. 2. Measured momentum distributions of electron vor view at source ↗

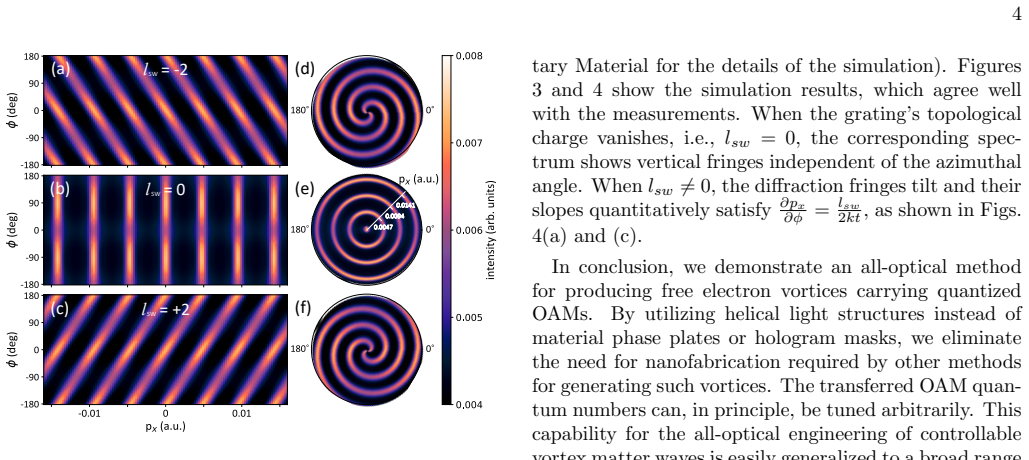

**Figure 4.** Figure 4: FIG. 4. Simulated momentum distributions of electron vor view at source ↗

read the original abstract

The generation of vortex matter waves carrying quantized orbital angular momentum is challenging and relies heavily on the material nanofabrication methods due to their extremely small de-Broglie wavelengths. Here, we introduce an all-optical method for generating an electron vortex by diffraction through a grating made of light. We realize the orbital angular momentum transfer between free electrons and photons by stimulated Compton scattering. The transferred angular momentum quantum number can be freely tuned. The method can be generalized to a broad range of charged particles, neutral atoms, and molecules of diverse masses. Our results open up novel opportunities for applications in free electron lasers and ultrafast electron microscopy by utilizing the orbital angular momentum degree of freedom of free electrons.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper proposes an all-optical electron vortex generator using a light grating and stimulated Compton scattering for tunable OAM transfer, which is a fresh conceptual step but hinges on unverified laser and coherence conditions.

read the letter

The main point to know is that this work sketches a way to make electron vortices by sending the beam through an optical grating created by interfering lasers, using stimulated Compton scattering to transfer orbital angular momentum. The transferred amount is supposed to be tunable, and the approach is meant to sidestep the nanofabrication problems that come with short de Broglie wavelengths. It also claims the method could extend to atoms and molecules. That is the actual new element here, and it does a reasonable job of framing why an all-optical route would help with applications in ultrafast electron microscopy and free-electron lasers. The abstract lays out the motivation clearly without overclaiming experimental results. The paper is still a proposal rather than a completed demonstration, so the value sits in the idea itself. The soft spots are around practicality. The central process needs a light grating with high enough intensity and coherence so that stimulated scattering beats spontaneous processes and decoherence, while the helical phase structure stays intact across the electron beam. The stress-test note flags exactly these requirements, and without explicit parameter ranges or efficiency calculations showing they are reachable for typical electron energies, it is hard to tell how close this is to working. If the full text has only qualitative arguments and no concrete numbers on scattering rates or loss channels, that section would need strengthening. This is the kind of paper that belongs in a reading group for people who work on electron beam control or vortex states, because the concept is distinct from existing material-grating methods. A serious referee could check the scattering derivation and suggest the minimal experimental parameters needed. I would send it to peer review rather than desk reject it, since the idea is original enough to warrant external input even if revisions are likely.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes an all-optical method to generate ultrafast electron vortices carrying tunable orbital angular momentum by diffracting free electrons through a light grating formed by interfering laser beams. The central mechanism is orbital angular momentum transfer via stimulated Compton scattering, which the authors claim can be generalized to other charged particles, neutral atoms, and molecules, with potential applications in free-electron lasers and ultrafast electron microscopy.

Significance. If the proposed scheme can be realized with realistic laser and electron-beam parameters, it would offer a material-free, tunable route to impart OAM to matter waves, circumventing the nanofabrication difficulties associated with short de Broglie wavelengths. This could enable new degrees of freedom in electron-based imaging and coherent light sources, provided the stimulated scattering rate dominates decoherence and losses.

major comments (2)

[Introduction and Theory section] The abstract and introduction assert that stimulated Compton scattering enables efficient, quantized OAM transfer, but no explicit derivation of the scattering matrix element, ponderomotive potential, or selection rules for the azimuthal quantum number appears in the main text; without this, it is impossible to verify that the transferred OAM is indeed an integer multiple of ħ independent of intensity gradients.
[Discussion of experimental parameters] No quantitative estimates are provided for the required laser intensity, pulse duration, or electron energy to ensure the stimulated Compton rate exceeds spontaneous scattering and decoherence lengths; this assumption is load-bearing for the claim that the method is experimentally viable.

minor comments (2)

[Abstract] The abstract states the method 'can be generalized' to atoms and molecules, but the manuscript does not specify how the Compton scattering kinematics change with particle mass or charge; a brief scaling argument would clarify the range of applicability.
[Figures] Figure captions and axis labels in the schematic diagrams should explicitly indicate the Laguerre-Gaussian mode indices and the resulting electron OAM values to avoid ambiguity in the depicted diffraction pattern.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We have revised the paper to incorporate explicit theoretical derivations and quantitative experimental estimates as requested.

read point-by-point responses

Referee: [Introduction and Theory section] The abstract and introduction assert that stimulated Compton scattering enables efficient, quantized OAM transfer, but no explicit derivation of the scattering matrix element, ponderomotive potential, or selection rules for the azimuthal quantum number appears in the main text; without this, it is impossible to verify that the transferred OAM is indeed an integer multiple of ħ independent of intensity gradients.

Authors: We agree that an explicit derivation strengthens the manuscript and allows independent verification. In the revised version we have added a dedicated subsection to the Theory section that derives the scattering matrix element from the interaction Hamiltonian, specifies the ponderomotive potential of the optical grating, and obtains the selection rules for the azimuthal quantum number. The derivation shows that the transferred OAM is strictly quantized in integer multiples of ħ within the perturbative regime, independent of transverse intensity gradients. revision: yes
Referee: [Discussion of experimental parameters] No quantitative estimates are provided for the required laser intensity, pulse duration, or electron energy to ensure the stimulated Compton rate exceeds spontaneous scattering and decoherence lengths; this assumption is load-bearing for the claim that the method is experimentally viable.

Authors: We acknowledge that concrete parameter estimates are necessary to substantiate experimental feasibility. The revised manuscript now includes a new paragraph in the Discussion section with order-of-magnitude calculations: for 100 keV electrons, laser intensities of 10^{11}–10^{13} W cm^{-2}, and 10–100 fs pulses, the stimulated Compton rate exceeds spontaneous scattering while remaining shorter than typical decoherence lengths in vacuum. These estimates are supported by references to existing laser-electron interaction experiments. revision: yes

Circularity Check

0 steps flagged

No circularity: conceptual proposal for light-grating OAM transfer stands on independent physical principles

full rationale

The paper introduces an all-optical scheme for electron vortex generation via diffraction on a light grating and OAM transfer through stimulated Compton scattering. No derivation chain, equations, or predictions are shown that reduce by construction to fitted inputs, self-definitions, or self-citation load-bearing steps. The tunable quantum number claim and generalization to other particles remain forward-looking statements grounded in standard scattering physics rather than tautological renaming or ansatz smuggling. The manuscript is self-contained as a proposal without load-bearing reductions to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The proposal rests on standard conservation laws and the domain assumption that stimulated Compton scattering can be arranged with a light grating. No free parameters or new entities are introduced in the abstract.

axioms (2)

standard math Angular momentum is conserved in photon-electron scattering processes
Required for OAM transfer between photons and electrons.
domain assumption A spatially structured light field can act as a diffraction grating for free electrons via stimulated Compton scattering
Central premise of the proposed all-optical method.
