A new diffuse reflector filament for additive manufacturing of 3D printing finely-segmented plastic scintillator

A. Boyarintsev, A. de Roeck, A. Krech, A. Rubbia, B. Grynyov, B. Li, D. Sgalaberna, E. Boillat, J. W\"uthrich, M. Sibilyev, N. Karavaeva, S. Berns, S. Hugon, S. Minenko, T. Dieminger, T. Sibilieva, T. Weber, U. Kose, X. Zhao

Authors on Pith no claims yet

Pith reviewed 2026-05-07 13:48 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords 3D printingplastic scintillatorreflective filamentadditive manufacturinglight crosstalkFDMTiO2PTFE

0 comments

The pith

A new 3D-printable reflective filament enables compact segmented plastic scintillators with lower crosstalk and higher light yield than previous printed versions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops and tests a white reflective filament made from polycarbonate and polymethyl methacrylate loaded with titanium dioxide and polytetrafluoroethylene. Layers printed by fused deposition modeling were measured for reflection and transmittance, then a small prototype scintillator was printed by fused injection modeling and exposed to cosmic rays. The results show reduced optical crosstalk and increased light yield compared with earlier 3D-printed scintillators, reaching performance levels close to conventionally made plastic scintillators. If the approach holds, it would let experimenters build finely segmented detectors in custom shapes without machining, lowering barriers to modular detector design.

Core claim

The central claim is that the new TiO2- and PTFE-loaded PC/PMMA filament, when extruded into reflective layers by FDM, provides sufficient diffuse reflectivity to separate scintillator segments. When a prototype detector is printed by FIM and read out with cosmic rays, the measured light yield and inter-segment crosstalk match or exceed values from standard plastic scintillators and earlier printed attempts.

What carries the argument

The TiO2- and PTFE-loaded PC/PMMA reflective filament printed by FDM to form diffuse optical barriers between scintillator voxels.

If this is right

Compact modular detectors can be produced by additive manufacturing instead of machining.
Light crosstalk drops and light yield rises relative to prior 3D-printed scintillators.
Finely segmented geometries become practical without custom molds or cutting tools.
Performance reaches levels comparable to conventional plastic scintillator detectors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Fully printed detector assemblies that combine scintillator, reflector, and light guides in one build could become routine.
On-demand production of custom-shaped detectors may reduce lead times and costs for small experiments.
The same filament approach might extend to other optical components such as light pipes or wavelength shifters in particle detectors.

Load-bearing premise

That optical tests on flat printed layers and cosmic-ray data from one small prototype will predict light collection and crosstalk in larger detectors operated for long periods under varying conditions.

What would settle it

A larger printed detector module that shows crosstalk above a few percent or light yield below the prototype level under realistic readout would falsify the claim of analogous performance.

read the original abstract

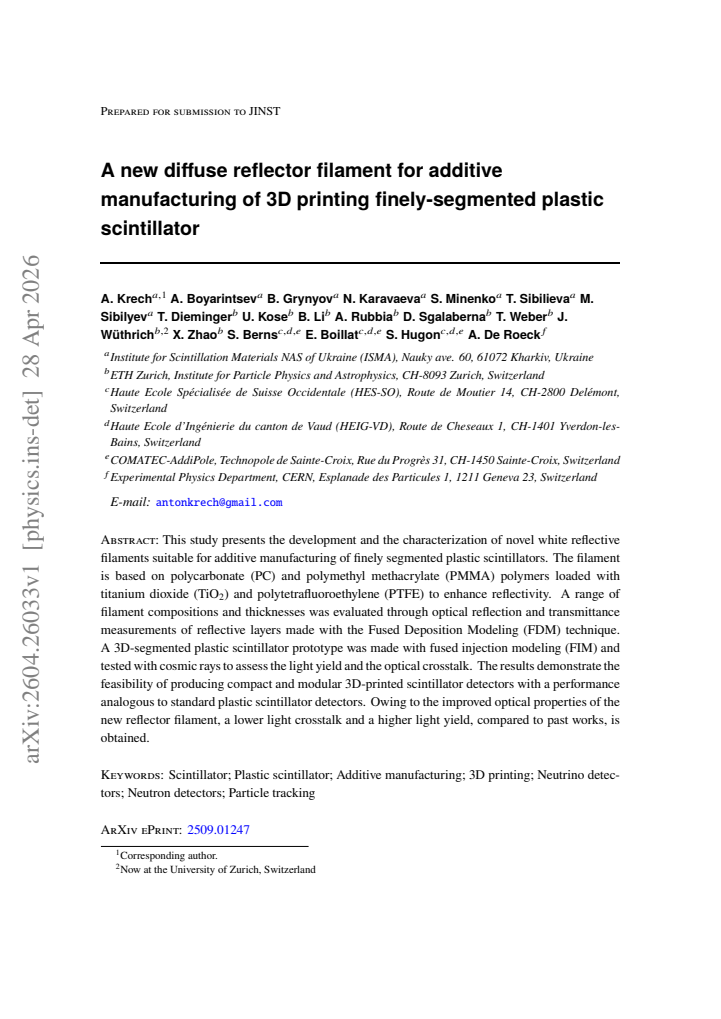

This study presents the development and the characterization of novel white reflective filaments suitable for additive manufacturing of finely segmented plastic scintillators. The filament is based on polycarbonate (PC) and polymethyl methacrylate (PMMA) polymers loaded with titanium dioxide (TiO$_2$) and polytetrafluoroethylene (PTFE) to enhance reflectivity. A range of filament compositions and thicknesses was evaluated through optical reflection and transmittance measurements of reflective layers made with the Fused Deposition Modeling (FDM) technique. A 3D-segmented plastic scintillator prototype was made with fused injection modeling (FIM) and tested with cosmic rays to assess the light yield and the optical crosstalk. The results demonstrate the feasibility of producing compact and modular 3D-printed scintillator detectors with a performance analogous to standard plastic scintillator detectors. Owing to the improved optical properties of the new reflector filament, a lower light crosstalk and a higher light yield, compared to past works, is obtained.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

New TiO2/PTFE-loaded PC/PMMA filament gives measurable gains in light yield and crosstalk for small 3D-printed segmented scintillators, but scaling and durability remain untested.

read the letter

The main takeaway is that this group has produced a specific reflective filament for FDM and FIM printing that improves optical performance in finely segmented plastic scintillators. Flat-layer tests show decent reflectivity and transmittance across compositions and thicknesses, and the single small cosmic-ray prototype delivered higher light yield with lower crosstalk than earlier printed versions, reaching levels close to standard detectors.

Referee Report

2 major / 3 minor

Summary. The manuscript describes the development and characterization of a new white reflective filament made from polycarbonate (PC) and polymethyl methacrylate (PMMA) loaded with titanium dioxide (TiO2) and polytetrafluoroethylene (PTFE). This filament is intended for additive manufacturing of finely segmented plastic scintillators using fused deposition modeling (FDM) for reflective layers and fused injection modeling (FIM) for the scintillator prototype. Optical measurements of reflection and transmittance were conducted on flat printed layers with different compositions and thicknesses. A small 3D-segmented scintillator prototype was tested with cosmic rays to evaluate light yield and optical crosstalk. The authors claim that this approach produces detectors with performance analogous to standard plastic scintillators, with improved light yield and reduced crosstalk compared to previous 3D-printed efforts.

Significance. This work has potential significance for the field of particle detector instrumentation by demonstrating a practical method for 3D printing segmented scintillators with custom geometries. The experimental validation through optical tests and cosmic-ray measurements on a working prototype is a strength, providing concrete evidence of feasibility. If the performance scales to larger systems, it could enable more modular and cost-effective detector designs for applications in high-energy physics experiments and beyond. The paper credits the direct measurements and prototype demonstration as key to supporting the feasibility claim.

major comments (2)

Cosmic-ray test results: The central claim that the prototype achieves performance analogous to standard detectors with higher light yield and lower crosstalk relies on the cosmic-ray measurements of one small FIM-printed prototype. However, the manuscript does not provide a direct side-by-side comparison with a reference detector using commercial reflectors under identical conditions, nor does it report quantitative values with uncertainties for the light yield and crosstalk. This makes it challenging to evaluate the improvement over past works and the scalability to full-scale detectors.
Optical characterization: The reflection and transmittance measurements are performed on flat layers, but the paper does not include tests on the optical properties within the complex 3D geometries of the segmented scintillator, such as multiple internal interfaces in a multi-segment array. This is a load-bearing assumption for the claim that the filament enables finely-segmented detectors with low crosstalk.

minor comments (3)

The abstract mentions 'a range of filament compositions' but does not specify the exact percentages of TiO2 and PTFE or the number of compositions tested; including these details would improve clarity.
The manuscript would benefit from additional references to prior work on 3D-printed scintillators to better contextualize the improvements in light yield and crosstalk.
Ensure that all figures showing optical data include error bars and clear legends for different compositions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each major comment below and have made revisions to strengthen the quantitative support and discussion of our results.

read point-by-point responses

Referee: Cosmic-ray test results: The central claim that the prototype achieves performance analogous to standard detectors with higher light yield and lower crosstalk relies on the cosmic-ray measurements of one small FIM-printed prototype. However, the manuscript does not provide a direct side-by-side comparison with a reference detector using commercial reflectors under identical conditions, nor does it report quantitative values with uncertainties for the light yield and crosstalk. This makes it challenging to evaluate the improvement over past works and the scalability to full-scale detectors.

Authors: We agree that a direct side-by-side comparison would strengthen the claims. Our study prioritized demonstrating the new filament in an FIM-printed prototype, so such a comparison was outside the immediate scope. The manuscript already reports light yield and crosstalk from the cosmic-ray tests; in revision we will explicitly quote the numerical values with uncertainties and add a comparison table against both literature values for standard plastic scintillators and prior 3D-printed efforts. We will also expand the discussion of scalability limitations and the additional engineering steps required for larger systems. revision: partial
Referee: Optical characterization: The reflection and transmittance measurements are performed on flat layers, but the paper does not include tests on the optical properties within the complex 3D geometries of the segmented scintillator, such as multiple internal interfaces in a multi-segment array. This is a load-bearing assumption for the claim that the filament enables finely-segmented detectors with low crosstalk.

Authors: The flat-layer measurements establish the intrinsic reflectivity and transmittance of the material. Direct validation in the actual geometry is provided by the cosmic-ray test of the multi-segment prototype, which exhibited the reported low crosstalk. In the revised manuscript we will add a dedicated paragraph discussing how the flat-sample results translate to the segmented structure, including any simplifying assumptions and the empirical support from the prototype data. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental development with direct measurements

full rationale

This paper is an experimental materials-development study. It fabricates filaments of varying TiO2/PTFE-loaded PC/PMMA compositions, prints flat layers by FDM, measures their reflectance and transmittance as functions of thickness and loading, prints one small segmented scintillator prototype by FIM, and records cosmic-ray light yield and crosstalk. All performance claims are grounded in these direct laboratory measurements; no equations, fitted parameters, model predictions, or uniqueness theorems are invoked that reduce to the input data by construction. Self-citations to prior work on similar filaments are present but are not load-bearing for any derivation. The extrapolation concern raised by the skeptic is a question of external validity, not circularity in the reported chain.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No theoretical derivations or free parameters; the work is purely experimental development and characterization. Standard assumptions about polymer processing and optical measurement techniques are used but not invented for this paper.
