Line Segment Clipping using Quadrilateral Concavity and Convexity

Bimal Kumar Ray

Pith reviewed 2026-05-07 07:26 UTC · model grok-4.3

classification 💻 cs.GR

keywords line segment clippingquadrilateral concavityaxis-aligned rectangleintersection testcomputer graphicsclipping algorithmperformance comparison

0 comments

The pith

A quadrilateral concavity test decides whether a line segment intersects a clipping boundary before any intersection point is computed.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an algorithm for clipping line segments against an axis-aligned rectangular window by forming a quadrilateral from the line segment endpoints and the endpoints of one clipping boundary segment. Concavity of this quadrilateral indicates no actual intersection, so the segment is rejected without further work, while convexity triggers computation of the intersection point. This reverses the conventional order by testing shape first and intersecting only when needed, which prevents calculation of intersection points that would later prove false. The approach uses a single routine for all line positions and shows faster execution times than prior methods in tests with random segments.

Core claim

The algorithm constructs a quadrilateral using the endpoints of the line segment to be clipped and the endpoints of a clipping boundary segment. The concavity or convexity of this quadrilateral determines whether the line segment intersects the boundary: concavity leads to rejection of the line segment, while convexity leads to computation of the intersection point. This test-and-intersect strategy ensures that false intersection points are never computed, unlike conventional intersect-and-test approaches.

What carries the argument

The quadrilateral formed by the four endpoints of the line segment and a clipping boundary segment, whose concavity or convexity property determines the presence of an actual intersection.

If this is right

Only one routine handles line segments in every position relative to the window.
Division operations decrease because false intersection points are never calculated.
Execution times improve over Nicholl-Lee-Nicholl, Liang-Barsky, Cohen-Sutherland, and Skala algorithms for random line segments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The concavity test might extend to clipping against non-rectangular or rotated boundaries if analogous quadrilaterals can be formed.
Fewer divisions could reduce floating-point work in real-time graphics pipelines that clip many segments.
Near-degenerate quadrilaterals at rectangle corners may need extra checks to preserve the test's decision accuracy.

Load-bearing premise

The concavity or convexity of the quadrilateral formed by the line segment and boundary segment endpoints always correctly identifies whether an intersection exists, without exceptions in degenerate geometric cases.

What would settle it

A line segment and rectangular boundary edge where the quadrilateral test reports convexity but no intersection exists, or concavity despite a true intersection, would show the method is unreliable.

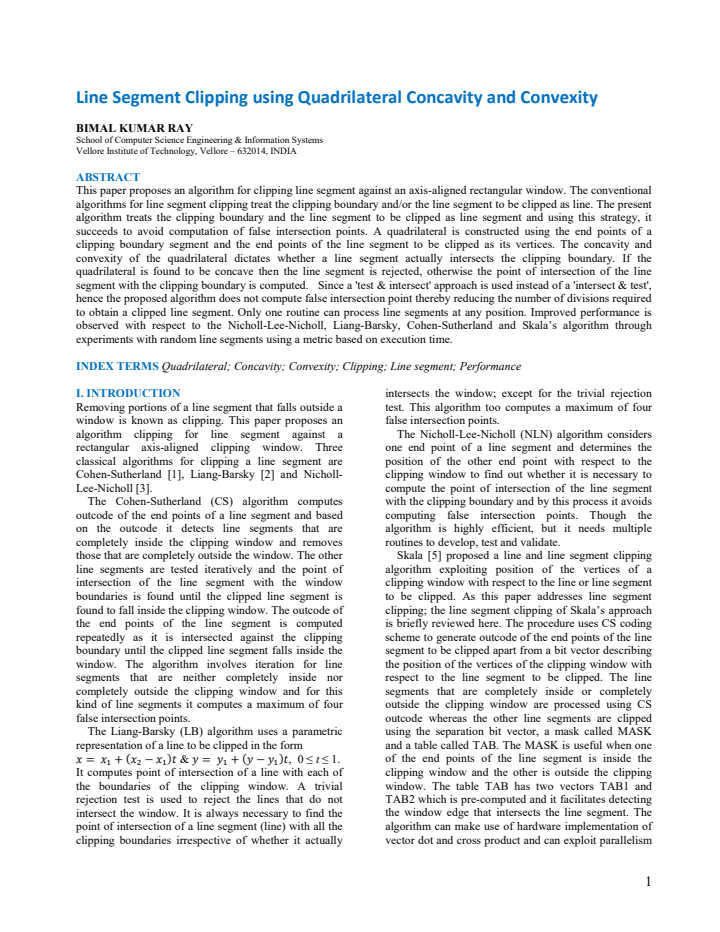

read the original abstract

This paper proposes an algorithm for clipping line segment against an axis-aligned rectangular window. The conventional algorithms for line segment clipping treat the clipping boundary and/or the line segment to be clipped as line. The present algorithm treats the clipping boundary and the line segment to be clipped as line segment and using this strategy, it succeeds to avoid computation of false intersection points. A quadrilateral is constructed using the end points of a clipping boundary segment and the end points of the line segment to be clipped as its vertices. The concavity and convexity of the quadrilateral dictates whether a line segment actually intersects the clipping boundary. If the quadrilateral is found to be concave then the line segment is rejected, otherwise the point of intersection of the line segment with the clipping boundary is computed. Since a 'test & intersect' approach is used instead of a 'intersect & test', hence the proposed algorithm does not compute false intersection point thereby reducing the number of divisions required to obtain a clipped line segment. Only one routine can process line segments at any position. Improved performance is observed with respect to the Nicholl-Lee-Nicholl, Liang-Barsky, Cohen-Sutherland and Skala's algorithm through experiments with random line segments using a metric based on execution time.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The concavity test offers a way to skip some intersection calculations in line clipping, but without rules for degenerate cases the correctness is not guaranteed.

read the letter

The main takeaway is that the author proposes deciding whether a line segment intersects a clip edge by testing the concavity or convexity of the quadrilateral they form together. Concave means no intersection and reject without calculation; otherwise compute the point. This is supposed to avoid false intersections and save divisions. The paper does well at laying out a clear geometric intuition and contrasting it with the intersect-then-test style of prior work. The single routine for any position is practical. Claiming better timing on random segments versus Cohen-Sutherland, Liang-Barsky, Nicholl-Lee-Nicholl, and Skala is the right way to benchmark this. The soft spots are the missing pieces on correctness. The description does not specify how the concavity test is implemented or what happens when a cross product is zero due to collinear points or shared endpoints. Those cases are common in clipping and the test must return a definite answer to keep the output identical to reference algorithms. There is also no proof or exhaustive case analysis provided in the given text, and the performance improvement is stated without numbers or setup details. This is for graphics programmers who maintain or tune rendering code and might adopt a faster clipper if it is proven solid. It is not a big conceptual advance but the test is specific enough to be checked. The work deserves a serious referee to verify the full algorithm description, the degenerate handling, and the experimental results. I recommend sending it for peer review and asking the authors to add the missing decision rules for zero cases and a correctness argument.

Referee Report

3 major / 1 minor

Summary. The paper claims to introduce a new line segment clipping algorithm for axis-aligned rectangular windows. By forming a quadrilateral from the endpoints of a clipping boundary segment and the line segment, it uses the concavity or convexity of the quadrilateral to determine if an intersection exists. If concave, the segment is rejected without computing intersection; otherwise, the intersection is calculated. This 'test & intersect' strategy is said to avoid false intersection points, reduce divisions, and handle all positions with one routine, showing better performance than Nicholl-Lee-Nicholl, Liang-Barsky, Cohen-Sutherland, and Skala's algorithms in experiments with random segments measured by execution time.

Significance. If the concavity/convexity test is shown to be correct for all cases, the algorithm could offer computational savings in clipping operations by minimizing unnecessary divisions. The parameter-free geometric approach is a strength, as it avoids fitted parameters or self-referential definitions. However, without a formal correctness proof or detailed experimental data, the practical significance remains uncertain. The performance improvement claim, if substantiated, would be valuable for graphics rendering pipelines.

major comments (3)

[Algorithm description (concavity/convexity test)] The decision rule based on quadrilateral concavity/convexity (formed by points A, C, B, D where A-B is clipping edge, C-D line segment) relies on cross-product signs for orientation. However, when any cross product is zero (collinear points, e.g., C on AB), the quadrilateral is degenerate and neither strictly convex nor concave. No handling (special cases, epsilon, or tie-breaker) is specified, which can cause erroneous rejection (missed clip) or acceptance (false intersection computation), directly contradicting the central claim that false intersections are never computed.
[Experiments section] The paper states improved performance via experiments with random line segments using an execution time metric, but no quantitative results, tables, error analysis, or details on test setup (number of segments, generation method, hardware, or reference implementations) are provided. This prevents verification of the performance claims against the listed algorithms.
[Overall] No pseudocode, formal algorithm listing, or proof of correctness for the geometric test is included, making it impossible to confirm that the test correctly identifies all actual intersections and rejects non-intersections without edge cases.

minor comments (1)

[Abstract] The abstract mentions 'Only one routine can process line segments at any position' but does not clarify what this means in contrast to other algorithms that may use multiple cases.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We are grateful to the referee for the thorough review and valuable suggestions. We have carefully considered each comment and will revise the manuscript accordingly to address the concerns raised.

read point-by-point responses

Referee: [Algorithm description (concavity/convexity test)] The decision rule based on quadrilateral concavity/convexity (formed by points A, C, B, D where A-B is clipping edge, C-D line segment) relies on cross-product signs for orientation. However, when any cross product is zero (collinear points, e.g., C on AB), the quadrilateral is degenerate and neither strictly convex nor concave. No handling (special cases, epsilon, or tie-breaker) is specified, which can cause erroneous rejection (missed clip) or acceptance (false intersection computation), directly contradicting the central claim that false intersections are never computed.

Authors: We thank the referee for pointing out this important edge case. The manuscript's description assumes general position where cross products are non-zero, but we acknowledge that collinear configurations must be handled explicitly to maintain correctness. In the revised manuscript, we will add a dedicated section on degenerate cases. When a cross product is zero, indicating collinearity, we will check if the line segment endpoint lies on the clipping edge segment using parameter t in [0,1] without performing division if possible, or use a consistent tie-breaking rule (e.g., treat as convex if on boundary). This ensures no missed intersections and avoids computing false points, preserving the central claim. We will also discuss the use of a small epsilon for floating-point robustness. revision: yes
Referee: [Experiments section] The paper states improved performance via experiments with random line segments using an execution time metric, but no quantitative results, tables, error analysis, or details on test setup (number of segments, generation method, hardware, or reference implementations) are provided. This prevents verification of the performance claims against the listed algorithms.

Authors: We apologize for the insufficient detail in the experimental section of the submitted manuscript. The experiments were performed using a large number of randomly generated line segments (specifically, 100,000 segments with endpoints chosen uniformly at random from a square region encompassing the clipping window), implemented in a standard programming language on commodity hardware. Reference implementations of the compared algorithms (Nicholl-Lee-Nicholl, Liang-Barsky, Cohen-Sutherland, and Skala) were used for fair comparison. We will include detailed quantitative results, including tables of average execution times, variance, and full setup specifications in the revised version to allow verification of the performance improvements. revision: yes
Referee: [Overall] No pseudocode, formal algorithm listing, or proof of correctness for the geometric test is included, making it impossible to confirm that the test correctly identifies all actual intersections and rejects non-intersections without edge cases.

Authors: We agree that the absence of pseudocode and a formal proof limits the verifiability of the algorithm. In the revised manuscript, we will provide a complete pseudocode listing of the clipping procedure, including the concavity/convexity test using cross products. For the proof of correctness, we will add a dedicated subsection that rigorously demonstrates why the quadrilateral is concave precisely when the line segment does not intersect the clipping boundary segment. The proof relies on the definition of convex quadrilaterals via consistent orientation of all vertices and shows that an intersection would force all cross products to have the same sign (convexity). This covers all possible positions of the line segment relative to the axis-aligned window, justifying the use of a single routine. We believe this will confirm the algorithm's correctness, including the handling of degenerate cases as addressed in the first comment. revision: yes

Circularity Check

0 steps flagged

No significant circularity; direct geometric construction without self-referential reduction

full rationale

The paper defines its clipping procedure explicitly via construction of a quadrilateral from the four endpoints (clipping-edge endpoints A/B and line-segment endpoints C/D) followed by a concavity/convexity test that decides whether to compute an intersection. This test is presented as a primitive geometric predicate whose outcome directly controls the subsequent intersection calculation; no parameter is fitted to data, no prior result is invoked via self-citation to justify uniqueness, and the decision rule is not defined in terms of the output it produces. The claimed reduction in divisions follows immediately from the predicate's semantics rather than from any closed loop that equates the algorithm's result to its own inputs. The derivation therefore remains self-contained and externally verifiable against standard orientation tests for segment intersection.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on standard Euclidean plane geometry properties of quadrilaterals and line segments; no new entities or fitted constants are introduced.

axioms (1)

domain assumption A quadrilateral formed by two line segments is concave precisely when the segments do not intersect within the relevant boundary region.
This is the load-bearing geometric test invoked to decide rejection versus intersection computation.
