Local probing of superconductivity at oxide interfaces with atomic force microscopy
Pith reviewed 2026-05-07 05:47 UTC · model grok-4.3
The pith
Atomic force microscopy detects superconductivity locally via dissipation in 200-nm edge channels of LaAlO3/SrTiO3 devices.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Using ultralow-temperature non-contact atomic force microscopy together with dissipation spectroscopy and Kelvin probe force microscopy, the authors locally probe signatures of superconductivity in patterned LAO/STO devices. Spatially resolved energy-dissipation measurements reveal superconducting signatures, with features confined in some devices to edge channels approximately 200 nm wide. Dissipation spectra exhibit a characteristic nonlinear bias dependence that provides a local diagnostic of superconductivity, consistent with the intermediate carrier-density regime near the superconducting dome, and persisting up to the critical field.
What carries the argument
Energy-dissipation spectroscopy in non-contact atomic force microscopy, which maps local energy loss versus bias voltage and position to identify confined superconducting regions.
If this is right
- The method allows nanoscale mapping of superconducting regions to test whether superconductivity is uniform or restricted to edges in patterned structures.
- It can directly address transport anomalies such as width-independent critical currents by supplying spatial resolution on the same devices.
- AFM-based dissipation measurements establish a contact-free local probe for superconductivity that can be applied to other oxide nanostructures.
- Persistence of the dissipation features up to the critical field supports their origin in the superconducting state rather than normal-state dissipation channels.
Where Pith is reading between the lines
- The technique could be extended to other two-dimensional superconductors or correlated oxide phases to distinguish edge states from bulk behavior.
- The reported 200 nm channel width suggests a possible intrinsic length scale for confinement or coherence that could be compared with theoretical models of the LAO/STO interface.
- Correlating dissipation maps with simultaneous Kelvin probe data would link local electrostatic potential variations to the spatial distribution of superconductivity.
- Applying the probe to devices with systematically varied patterning widths would test whether edge confinement is a universal feature or depends on device geometry.
Load-bearing premise
The observed nonlinear bias dependence and spatial confinement of dissipation arise from superconductivity rather than alternative local effects such as charge trapping or heating.
What would settle it
Observation of the same nonlinear bias dependence in dissipation spectra on the same devices above the critical temperature or magnetic field where transport measurements show superconductivity is absent would falsify the superconducting interpretation.
Figures
read the original abstract

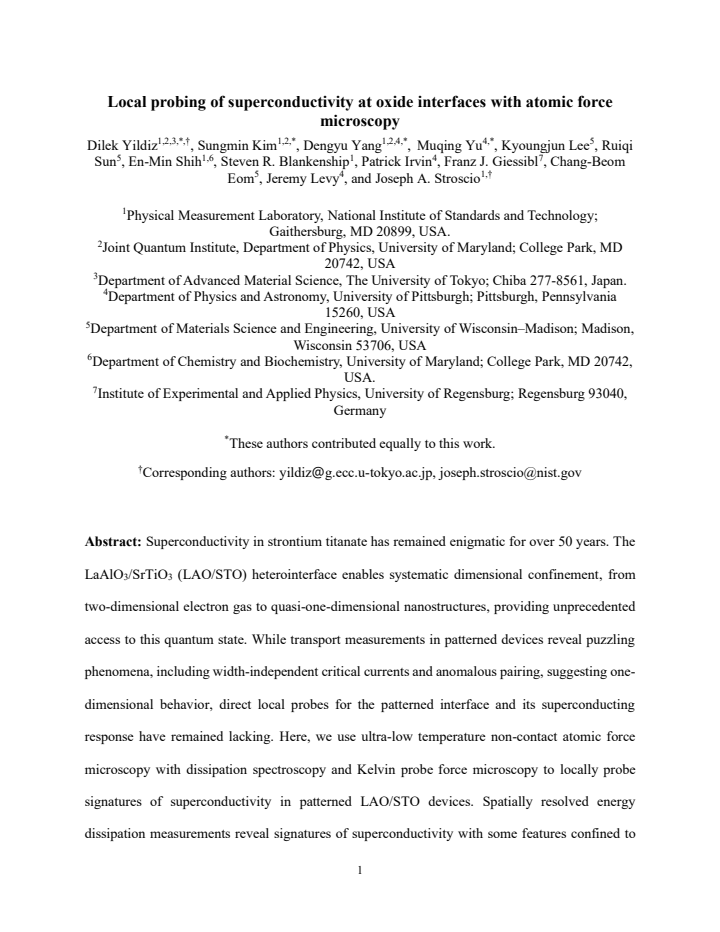

Superconductivity in strontium titanate has remained enigmatic for more than 50 years. The LaAlO$_3$/SrTiO$_3$ (LAO/STO) heterointerface enables systematic dimensional confinement, from a two-dimensional electron gas to quasi-one-dimensional nanostructures, providing access to this quantum state. Transport measurements in patterned devices reveal puzzling phenomena, including width-independent critical currents and anomalous pairing suggestive of one-dimensional behavior, but direct local probes of the patterned interface and its superconducting response have been lacking. Here we use ultralow-temperature non-contact atomic force microscopy, dissipation spectroscopy, and Kelvin probe force microscopy to locally probe signatures of superconductivity in patterned LAO/STO devices. Spatially resolved energy-dissipation measurements reveal superconducting signatures, with features confined in some devices to edge channels approximately 200 nm wide. Dissipation spectra exhibit a characteristic nonlinear bias dependence that provides a local diagnostic of superconductivity, consistent with the intermediate carrier-density regime near the superconducting dome, and persisting up to the critical field. These results establish atomic force microscopy as a local probe of superconductivity in patterned LAO/STO structures and provide a route to addressing longstanding questions about quantum confinement and transport anomalies in correlated oxide nanostructures.
