Pre-charging polymer surfaces enhances droplet mobility and electrification
Pith reviewed 2026-05-09 18:44 UTC · model grok-4.3
The pith
Pre-charged polymer surfaces transfer deposited ions directly to droplets on first contact while also increasing droplet mobility.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Droplets pick up pre-deposited surface ions during the first wetting of the surface, and the transferred charge directly correlates with the deposited charge encountered by the wetted area for moderate deposited densities independent of material properties. The deposited charge reduces contact angle and increases contact-line mobility in a manner consistent with an increase in effective solid surface energy. For higher surface charge densities, instabilities such as droplet splitting or detachment are observed.
What carries the argument
Pre-deposited surface charge density that transfers to the droplet on initial wetting and simultaneously raises the effective solid surface energy to change wetting behavior.
If this is right
- Charge transferred to the droplet scales directly with deposited charge for moderate densities below 40 μC/m².
- Contact angle drops and contact-line speed rises with increasing deposited charge.
- The charge-transfer relation is independent of the specific polymer tested.
- At higher deposited densities droplets split or detach, providing a route to controlled release.
- Surface charge can be used to amplify or suppress solid-liquid electrification and to direct fluid motion.
Where Pith is reading between the lines
- Charge-patterned surfaces could be created to steer droplets along predefined paths without external fields or pumps.
- The same pre-charging step might be tested on other interfaces such as particle-laden or air-liquid boundaries to check for similar mobility gains.
- In microfluidic channels the approach could reduce the need for mechanical valves by using deposited charge to set droplet paths and speeds.
Load-bearing premise
Neutralizing the surface with an anti-static ion blower removes all charge without leaving residual chemical or morphological changes, and the ion gun adds charge uniformly and stably without other surface effects.
What would settle it
Measure the net charge carried away by a droplet after it wets and slides across a known area of pre-charged surface and compare it to the product of deposited density and wetted area; significant deviation from direct correlation would disprove the transfer claim.

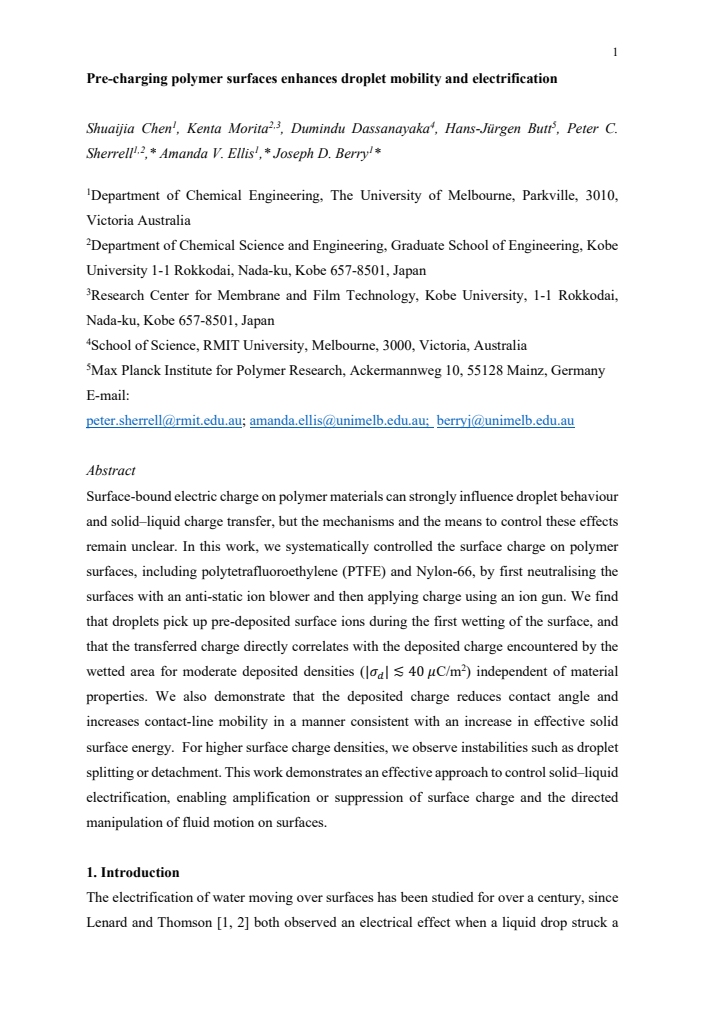

read the original abstract
Surface-bound electric charge on polymer materials can strongly influence droplet behaviour and solid-liquid charge transfer, but the mechanisms and the means to control these effects remain unclear. In this work, we systematically controlled the surface charge on polymer surfaces, including polytetrafluoroethylene (PTFE) and Nylon-66, by first neutralising the surfaces with an anti-static ion blower and then applying charge using an ion gun. We find that droplets pick up pre-deposited surface ions during the first wetting of the surface, and that the transferred charge directly correlates with the deposited charge encountered by the wetted area for moderate deposited densities (|{\sigma}_d |<40 {\mu}C/m2) independent of material properties. We also demonstrate that the deposited charge reduces contact angle and increases contact-line mobility in a manner consistent with an increase in effective solid surface energy. For higher surface charge densities, we observe instabilities such as droplet splitting or detachment. This work demonstrates an effective approach to control solid-liquid electrification, enabling amplification or suppression of surface charge and the directed manipulation of fluid motion on surfaces.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript describes an experimental protocol for controlling surface charge on polymers (PTFE and Nylon-66) by first neutralizing with an anti-static ion blower and then depositing charge via an ion gun. It reports that droplets pick up pre-deposited ions on first wetting, with transferred charge correlating directly with deposited charge density for |σ_d| < 40 μC/m² independent of material properties. The deposited charge is also shown to lower contact angle and enhance contact-line mobility in a manner consistent with increased effective solid surface energy, while higher densities produce droplet splitting or detachment.
Significance. If the electrostatic mechanism is isolated from treatment artifacts, the work provides a controllable, material-independent route to modulate solid-liquid charge transfer and droplet mobility on polymers. This has potential utility for microfluidic devices, electrostatic spraying, and surface engineering in soft-matter systems. The systematic pre-charging approach and the reported correlation range constitute a clear experimental advance over prior uncontrolled observations.
major comments (2)
- [Surface-preparation and charging protocol] The central claims (ion pickup correlation for |σ_d| < 40 μC/m² and contact-angle reduction) rest on the assumption that anti-static blower neutralization leaves a truly charge-free surface without chemical, morphological, or adsorbate changes and that ion-gun deposition adds only electrostatic charge. No post-treatment characterization (XPS, AFM, or comparative contact-angle data on neutralized surfaces) is described to exclude non-electrostatic confounders. This is load-bearing because residual treatment effects could produce the observed droplet behavior without requiring the claimed electrostatic mechanism. (Surface-preparation and charging protocol, as outlined in the abstract and methods.)
- [Results on charge transfer and contact-angle measurements] The material-independence of the transferred-charge correlation and the consistency with increased effective surface energy are stated for moderate densities, yet the results section provides no explicit statistical tests, error bars on the correlation, or side-by-side data tables for PTFE versus Nylon-66. Without these, the robustness of the independence claim and the quantitative link to surface-energy change cannot be evaluated. (Results on charge transfer and contact-angle measurements.)
minor comments (2)
- [Abstract] The abstract uses inconsistent LaTeX notation for surface charge density (|σ_d|); adopt uniform symbol usage (σ_d) throughout the text and figures.
- [Figures] Figure captions and axis labels should explicitly state the number of independent trials and whether error bars represent standard deviation or standard error.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed review of our manuscript. The comments highlight important aspects of experimental rigor that we have addressed through revisions and clarifications. Below we provide point-by-point responses to the major comments.
read point-by-point responses
-
Referee: [Surface-preparation and charging protocol] The central claims (ion pickup correlation for |σ_d| < 40 μC/m² and contact-angle reduction) rest on the assumption that anti-static blower neutralization leaves a truly charge-free surface without chemical, morphological, or adsorbate changes and that ion-gun deposition adds only electrostatic charge. No post-treatment characterization (XPS, AFM, or comparative contact-angle data on neutralized surfaces) is described to exclude non-electrostatic confounders. This is load-bearing because residual treatment effects could produce the observed droplet behavior without requiring the claimed electrostatic mechanism. (Surface-preparation and charging protocol, as outlined in the abstract and methods.)
Authors: We agree that explicit verification of the neutralization step is valuable for excluding potential artifacts. The anti-static ion blower is a standard, non-contact method routinely employed in electrostatic polymer studies precisely because it minimizes mechanical or chemical alteration. In the revised manuscript we have added comparative contact-angle measurements on neutralized versus as-received surfaces (new data in Methods and Figure S1), confirming that the blower treatment produces no detectable change in wettability. While XPS and AFM were not performed owing to facility limitations during the study, the observed linear correlation between deposited charge density and transferred charge—reproduced across two chemically dissimilar polymers and multiple charge polarities—provides strong evidence that the dominant effect is electrostatic rather than chemical or morphological. We have expanded the Methods and Discussion sections to explicitly address possible non-electrostatic confounders and to cite prior literature validating the ion-blower protocol. revision: partial
-
Referee: [Results on charge transfer and contact-angle measurements] The material-independence of the transferred-charge correlation and the consistency with increased effective surface energy are stated for moderate densities, yet the results section provides no explicit statistical tests, error bars on the correlation, or side-by-side data tables for PTFE versus Nylon-66. Without these, the robustness of the independence claim and the quantitative link to surface-energy change cannot be evaluated. (Results on charge transfer and contact-angle measurements.)
Authors: We appreciate this observation and have revised the Results section accordingly. All charge-transfer and contact-angle plots now include error bars representing the standard deviation from at least five independent measurements per condition. We have added linear-regression statistics (R², slope, and 95 % confidence intervals) to the correlation figures, together with a brief description of the fitting procedure. Side-by-side data tables comparing PTFE and Nylon-66 (deposited charge, transferred charge, contact angles, and mobility metrics) are now provided in the Supplementary Information. These additions confirm the material-independent correlation for |σ_d| < 40 μC/m² and quantify the link between charge-induced contact-angle reduction and the effective increase in solid surface energy via the electrostatic contribution to the Young equation. revision: yes
Circularity Check
No significant circularity: purely experimental observations with no derivations or self-referential loops
full rationale
The paper reports direct experimental measurements of surface charge deposition via ion gun after neutralization, followed by observations of droplet charge transfer, contact angle reduction, and mobility changes on PTFE and Nylon-66. No equations, models, fitted parameters, or derivations are present that could reduce to their own inputs by construction. Claims of correlation between deposited charge density (for |σ_d| < 40 μC/m²) and transferred charge, plus effective surface energy increase, rest on measured quantities without any predictive framework or self-citation chain that assumes the result. The experimental protocol (ion blower neutralization and ion gun deposition) is described as a control method, but the outcomes are presented as observations rather than outputs of a closed logical loop. This is a standard non-circular experimental study.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
for more details on the procedure) a programmable syringe pump (NE-1000, NewEra Pump System, USA) was adopted to manipulate wetting and dewetting of the surface by adjusting a droplet of deionised water (Milli-Q, resistivity 18.2 MΩ·cm) of volume (V) via the volumetric flow-rate (Q). Each experimental trial consisted of 2 cyclic wetting (dispensing) and d...
2000
-
[2]
Conclusion Controlled pre‑charging of dielectric polymer surfaces (PTFE and Nylon) systematically modifies solid–liquid charge transfer and droplet behaviour. Using neutralisation and ion‑gun pre‑charging together with sessile‑drop charge measurements across an extensive dataset (>500 trials), we show that droplets pick up pre‑deposited surface ions durin...
2023
-
[3]
Advanced Materials, 2025: p
Zhou, X., et al., Spontaneous Charging from Sliding Water Drops Determines the Interfacial Deposition of Charged Solutes. Advanced Materials, 2025: p. 2420263
2025
-
[4]
arXiv preprint arXiv:2602.03362,
Hinduja, C., et al., How Spontaneous Electrowetting and Surface Charge affect Drop Motion. arXiv preprint arXiv:2602.03362,
-
[5]
arXiv preprint arXiv:2305.02172,
Ratschow, A.D., et al., How charges separate when surfaces are dewetted. arXiv preprint arXiv:2305.02172,
-
[7]
arXiv preprint arXiv:2510.10368,
Lin, M., et al., Spontaneous Coulomb fissions of drops on lubricated surfaces. arXiv preprint arXiv:2510.10368,
