arxiv: 2605.00937 · v1 · submitted 2026-05-01 · ⚛️ physics.flu-dyn · cs.LG

Recognition: unknown

An ALE-Consistent Graph Neural Operator-Transformer Framework for Fluid-Structure Interaction

Haokui Jiang, Mart\'in Saravia, Shihang Zhao, Shunxiang Cao, Zhiyang Xue

Authors on Pith no claims yet

Pith reviewed 2026-05-09 19:11 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn cs.LG

keywords fluid-structure interactionarbitrary Lagrangian-Euleriangraph neural operatorvision transformermachine learning surrogatelong-term predictionpartitioned couplingmoving interface

0 comments

The pith

An ALE-consistent coupling of graph neural operators and transformers predicts stable long-term fluid-structure interactions on deforming meshes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a machine learning surrogate for fluid-structure interaction problems that must handle moving interfaces between fluid and solid domains. It uses a graph neural operator combined with a vision transformer to forecast fluid flow on changing meshes and a recurrent network to track structural motion, linking them through a partitioned solver. A key addition is a correction step based on arbitrary Lagrangian-Eulerian formulation that aligns velocities at the shared boundary using the latest structural predictions. This setup, refined through staged training to curb error buildup, produces phase-accurate forecasts over many time steps and holds up when inlet flows change, offering a path to faster simulations than full physics solvers for engineering applications.

Core claim

The framework models fluid dynamics with a graph neural operator and vision transformer surrogate on deforming unstructured meshes while an LSTM predicts structural kinematics, coupled via partitioned procedure with an ALE-consistent boundary-correction that updates fluid interface velocity from predicted structural velocity to enforce compatibility, yielding accurate phase-consistent long-term predictions and generalization under inlet variations on the flexible beam in cylinder wake benchmark.

What carries the argument

The ALE-consistent boundary-correction step that enforces kinematic compatibility by updating the fluid-side interface velocity with the predicted structural velocity at each coupling update.

If this is right

Phase-consistent predictions are maintained over long autoregressive rollouts in fluid-structure interaction simulations.
Robust performance holds under variations in inlet profiles for both interpolation and extrapolation regimes.
The vision transformer module, ALE boundary correction, and long-term autoregressive fine-tuning each contribute to overall accuracy and stability as shown in ablation studies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The approach may extend to other moving-boundary multiphysics problems where interface conditions are critical for stability.
Reducing computational cost for repeated FSI queries could enable optimization loops or uncertainty quantification in design.
Further validation on three-dimensional or turbulent cases would test the scalability of the mesh-handling and correction strategy.

Load-bearing premise

Kinematic compatibility between fluid and structure at the deforming interface holds when fluid velocities are corrected using the structural velocity predictions from the LSTM.

What would settle it

Observation of accumulating phase errors or interface mismatches in long-term rollouts without the boundary correction step, or failure to generalize when inlet conditions differ substantially from training data.

Figures

Figures reproduced from arXiv: 2605.00937 by Haokui Jiang, Mart\'in Saravia, Shihang Zhao, Shunxiang Cao, Zhiyang Xue.

**Figure 1.** Figure 1: Schematic of the flexible beam (gray shaded region) clamped to a rigid cylinder (white circle) and view at source ↗

**Figure 2.** Figure 2: ALE-consistent GNO–Transformer framework for long-horizon FSI prediction. (a) Overview of the view at source ↗

**Figure 3.** Figure 3: Gmsh generate fluid mesh based on the structure boundary. view at source ↗

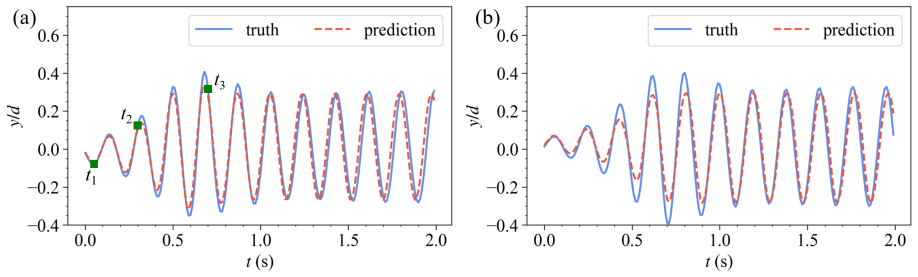

**Figure 4.** Figure 4: Prediction and truth for the time histories of normalized transverse displacement at monitoring point A in view at source ↗

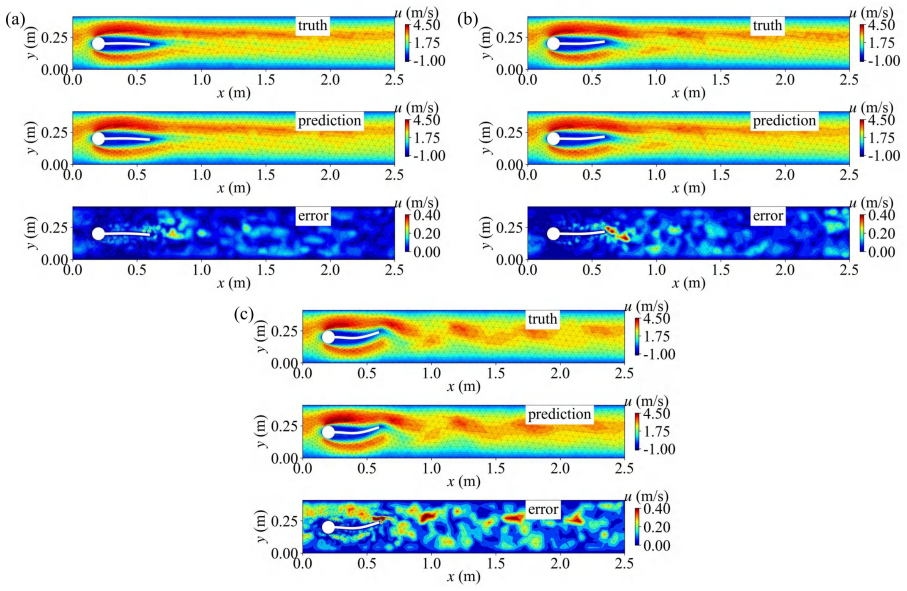

**Figure 5.** Figure 5: Comparison of prediction and truth of flow field view at source ↗

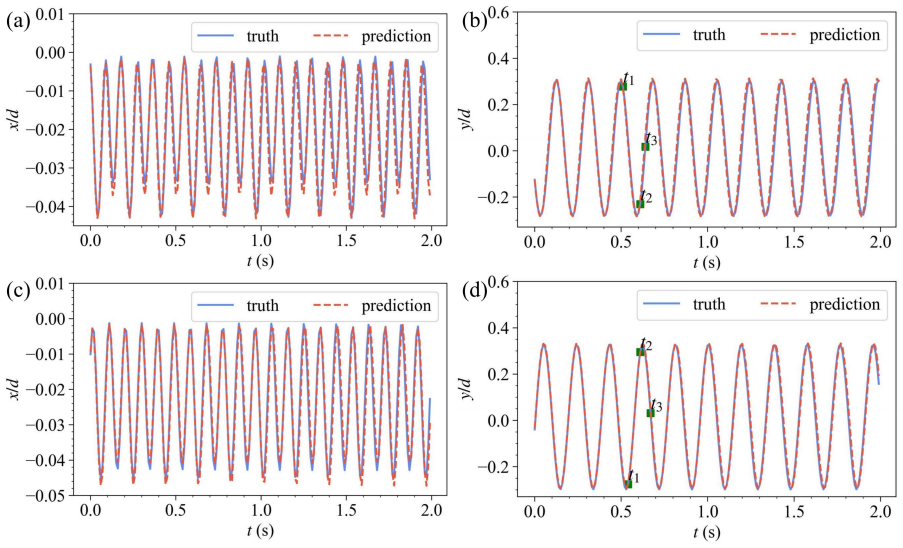

**Figure 6.** Figure 6: Prediction and truth for the time histories of normalized structural displacements at monitoring point A in view at source ↗

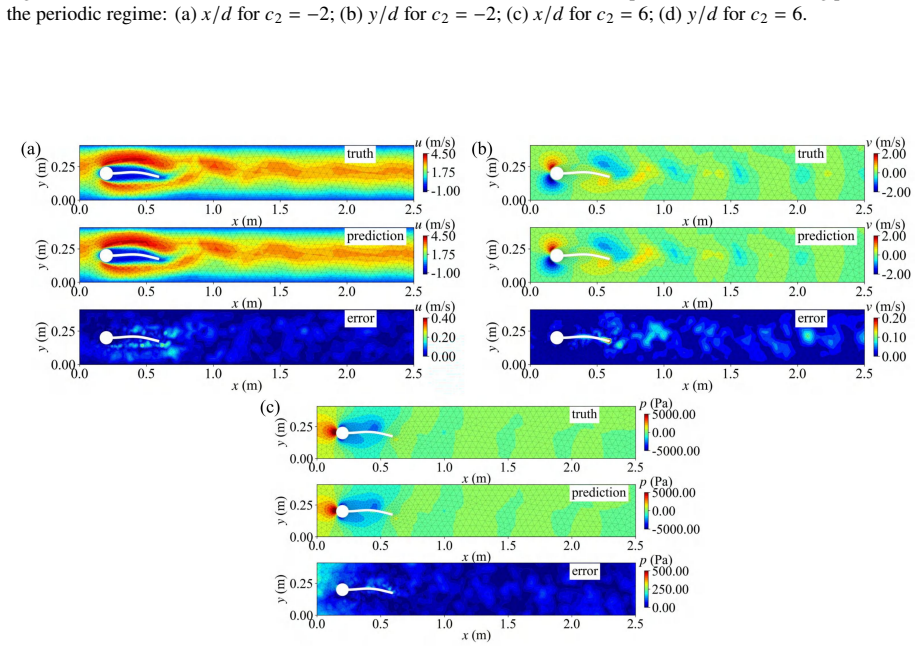

**Figure 7.** Figure 7: Comparison of prediction and truth of flow field at time view at source ↗

**Figure 8.** Figure 8: Truth and prediction results of flow field by different methods at step 1 and step 15 for view at source ↗

**Figure 9.** Figure 9: Time evolution of the correlation coefficient view at source ↗

**Figure 10.** Figure 10: Comparison of boundary pressure predictions by GNO-ViT, GNO and GNO-ViT-NoBM for view at source ↗

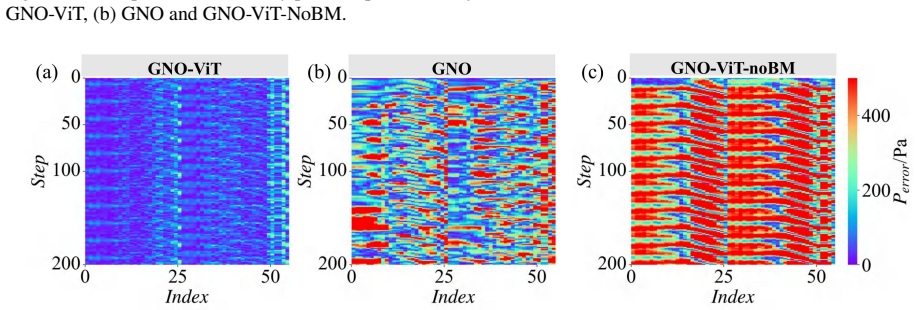

**Figure 11.** Figure 11: Time-evolution of predicted 𝑝 𝑓 errors by different method for 𝑐2 = −2: (a) GNO-ViT, (b) GNO, (c) GNO-ViT-noBM view at source ↗

**Figure 12.** Figure 12: Structural boundary node indexing and representative displacements of the flexible beam in the view at source ↗

**Figure 13.** Figure 13: Prediction and distribution of structural boundary velocity for GNO-ViT and GNO-ViT-NoBM: predicted view at source ↗

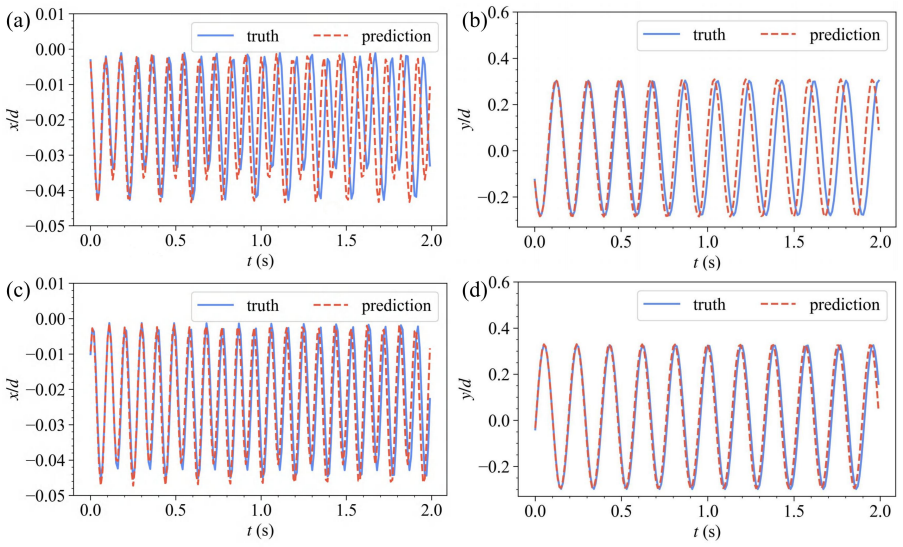

**Figure 14.** Figure 14: Prediction and truth for the time histories of normalized structural displacements at monitoring point A view at source ↗

**Figure 15.** Figure 15: Time evolution of the flow-field correlation coefficient view at source ↗

read the original abstract

We propose an arbitrary Lagrangian-Eulerian (ALE)-consistent machine learning framework for long-term fluid-structure interaction (FSI) prediction on deforming unstructured meshes. Specifically, the fluid dynamics are modeled by a surrogate that combines a graph neural operator (GNO) with a vision Transformer (ViT) for spatiotemporal prediction, while a lightweight long short-term memory (LSTM) network predicts structural kinematics at the interface. The two surrogates are coupled through a standard partitioned procedure. Most importantly, kinematic compatibility at the moving interface is enforced via an ALE-consistent boundary-correction step that updates the fluid-side interface velocity with the predicted structural velocity at each coupling update, thereby improving near-interface accuracy and long-term rollout stability. To mitigate autoregressive error accumulation, a two-stage training strategy is adopted, consisting of single-step supervised pretraining followed by long-term autoregressive fine-tuning. The proposed framework is validated on the benchmark problem of a flexible beam vibration in the wake of a cylinder. Results demonstrate accurate phase-consistent predictions over long rollouts and robust generalization under inlet-profile variations in both interpolation and extrapolation settings. Systematic ablation studies further assess the respective contributions of the ViT module, ALE-consistent boundary correction, and long-term training to predictive accuracy and rollout robustness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper's main addition is an ALE-consistent boundary velocity correction that couples a GNO-ViT fluid surrogate to an LSTM structure model and appears to help long-term rollout stability on the cylinder-beam benchmark.

read the letter

The work combines a graph neural operator with a vision transformer to handle fluid prediction on deforming unstructured meshes, uses a simple LSTM for the structural response at the interface, and couples them through a partitioned scheme. The distinctive step is the ALE-consistent correction that overwrites the fluid-side interface velocity with the structure prediction at each step to enforce kinematic compatibility. They also use two-stage training: first single-step supervised, then autoregressive fine-tuning to limit error growth over long horizons. Ablations check the separate roles of the ViT, the boundary correction, and the long-term training phase. Tests cover the standard flexible beam in cylinder wake case and check generalization across inlet profiles in both interpolation and extrapolation regimes. The abstract claims phase-consistent predictions and improved stability from the correction, which is plausible given the design. The approach is technically coherent and the validation protocol follows common practice in the field. The main limitation is that the provided description supplies no concrete error values, mesh resolutions, or rollout lengths, so the size of the gains from each component remains unclear. If the full paper contains solid quantitative tables and figures without obvious overfitting, the contribution is real but incremental rather than transformative. This is useful reading for groups already working on operator learning or reduced-order models for fluid-structure problems who want a concrete coupling recipe. It is not yet something I would cite in my own work, but the method is clear enough and the benchmark standard enough that a serious editor should send it out for review rather than desk-reject.

Referee Report

2 major / 3 minor

Summary. The manuscript proposes an ALE-consistent machine learning framework for long-term fluid-structure interaction (FSI) on deforming unstructured meshes. Fluid dynamics are modeled by a graph neural operator (GNO) combined with a vision Transformer (ViT) for spatiotemporal prediction, while structural kinematics at the interface are predicted by a lightweight LSTM network. The surrogates are coupled via a partitioned procedure, with kinematic compatibility enforced by an ALE-consistent boundary-correction step that updates the fluid-side interface velocity using the predicted structural velocity. A two-stage training strategy (single-step supervised pretraining followed by autoregressive fine-tuning) is used to mitigate error accumulation. The framework is validated on the cylinder-flexible beam benchmark, claiming accurate phase-consistent long rollouts and robust generalization to inlet-profile variations (interpolation and extrapolation), supported by systematic ablations on the ViT module, boundary correction, and long-term training.

Significance. If the empirical results hold with the claimed quantitative support, this work would represent a meaningful advance in surrogate modeling for FSI problems involving moving interfaces and long-term stability. The explicit handling of ALE consistency and the two-stage training address known challenges in autoregressive rollout for coupled physics, and the ablation studies provide a clear assessment of component contributions. Such frameworks could reduce computational cost in engineering applications like aeroelasticity or biomedical flows, provided they demonstrate reliable generalization beyond the specific benchmark.

major comments (2)

[Abstract and Results/Validation sections] The central empirical claim of 'accurate phase-consistent predictions over long rollouts' and 'robust generalization' is load-bearing for the paper's contribution, yet the abstract (and by extension the validation description) supplies no quantitative metrics, error norms, error bars, baseline comparisons, or data details (e.g., mesh resolution, rollout length in time steps, or specific L2 errors). This gap prevents confirmation that the data support the stated performance; the results section must include these to substantiate the claims.
[Method section (ALE boundary correction)] § on the ALE-consistent boundary-correction step: the description states that updating the fluid-side interface velocity with the predicted structural velocity improves near-interface accuracy and long-term stability, but no derivation or proof of ALE consistency (e.g., satisfaction of the geometric conservation law or interface velocity matching) is provided. This is central to the framework's novelty and requires explicit verification or reference to the underlying ALE formulation.

minor comments (3)

[Method] Notation for the GNO-ViT-LSTM architecture and coupling variables should be defined consistently in a single table or early section to avoid ambiguity when reading the partitioned procedure.
[Figures and Results] Figure captions for the benchmark results and ablation studies should explicitly state the rollout horizon, inlet conditions tested, and any error metrics plotted.
[Training strategy] The two-stage training procedure would benefit from a clearer description of the loss functions used in each stage and the number of fine-tuning steps relative to pretraining.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important areas where the empirical support and theoretical grounding can be strengthened. We address each major comment below and commit to revisions that will improve clarity and substantiation without altering the core contributions.

read point-by-point responses

Referee: [Abstract and Results/Validation sections] The central empirical claim of 'accurate phase-consistent predictions over long rollouts' and 'robust generalization' is load-bearing for the paper's contribution, yet the abstract (and by extension the validation description) supplies no quantitative metrics, error norms, error bars, baseline comparisons, or data details (e.g., mesh resolution, rollout length in time steps, or specific L2 errors). This gap prevents confirmation that the data support the stated performance; the results section must include these to substantiate the claims.

Authors: We agree that the absence of explicit quantitative metrics in the abstract and validation description weakens the ability to evaluate the performance claims. The current manuscript does not report specific L2 errors, rollout lengths, mesh details, error bars, or baseline comparisons in those sections. In the revised manuscript we will update the abstract to include key quantitative indicators (e.g., average L2 norms for fluid and structural fields over long rollouts, mesh resolution, number of time steps, and comparisons to baselines) and expand the validation section with the same metrics, error bars, and data details drawn from our existing experiments. These additions will directly substantiate the claims of phase-consistent long-term predictions and generalization. revision: yes
Referee: [Method section (ALE boundary correction)] § on the ALE-consistent boundary-correction step: the description states that updating the fluid-side interface velocity with the predicted structural velocity improves near-interface accuracy and long-term stability, but no derivation or proof of ALE consistency (e.g., satisfaction of the geometric conservation law or interface velocity matching) is provided. This is central to the framework's novelty and requires explicit verification or reference to the underlying ALE formulation.

Authors: The referee is correct that the manuscript provides no explicit derivation or proof of ALE consistency for the boundary-correction step. Although the correction is motivated by the standard kinematic matching requirement in ALE formulations, we did not derive its consistency with the geometric conservation law or supply numerical verification. In the revision we will insert a dedicated subsection in the Methods section that (i) recalls the relevant ALE geometric conservation law, (ii) derives how the velocity-update step enforces interface matching, and (iii) presents numerical checks confirming conservation properties on the cylinder-beam benchmark. This will make the novelty claim fully rigorous. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents an empirical ML architecture for FSI (GNO+ViT fluid surrogate coupled to LSTM structural predictor via partitioned scheme plus ALE boundary-velocity correction and two-stage training). All load-bearing claims are validated by benchmark rollouts, inlet-profile generalization tests, and systematic ablations that isolate the contribution of the boundary-correction step, ViT module, and autoregressive fine-tuning. No equation or modeling choice reduces by construction to its own inputs; the ALE correction is an explicit algorithmic design whose effect is measured externally rather than assumed. No self-citation chain is invoked to justify uniqueness or to substitute for independent evidence. The derivation chain is therefore self-contained against the reported external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The framework rests on standard domain assumptions from FSI and ML time-series modeling; the main empirical addition is the boundary correction whose benefit is shown via ablation.

free parameters (1)

GNO-ViT-LSTM network weights and hyperparameters
Fitted during single-step pretraining and autoregressive fine-tuning to achieve reported accuracy on the benchmark.

axioms (2)

domain assumption Partitioned coupling procedure remains valid when augmented with ALE-consistent velocity correction.
Invoked in the coupling description as the standard way to link fluid and structure surrogates.
domain assumption Two-stage training mitigates autoregressive error accumulation in spatiotemporal rollouts.
Stated as the strategy adopted to improve long-term stability.
