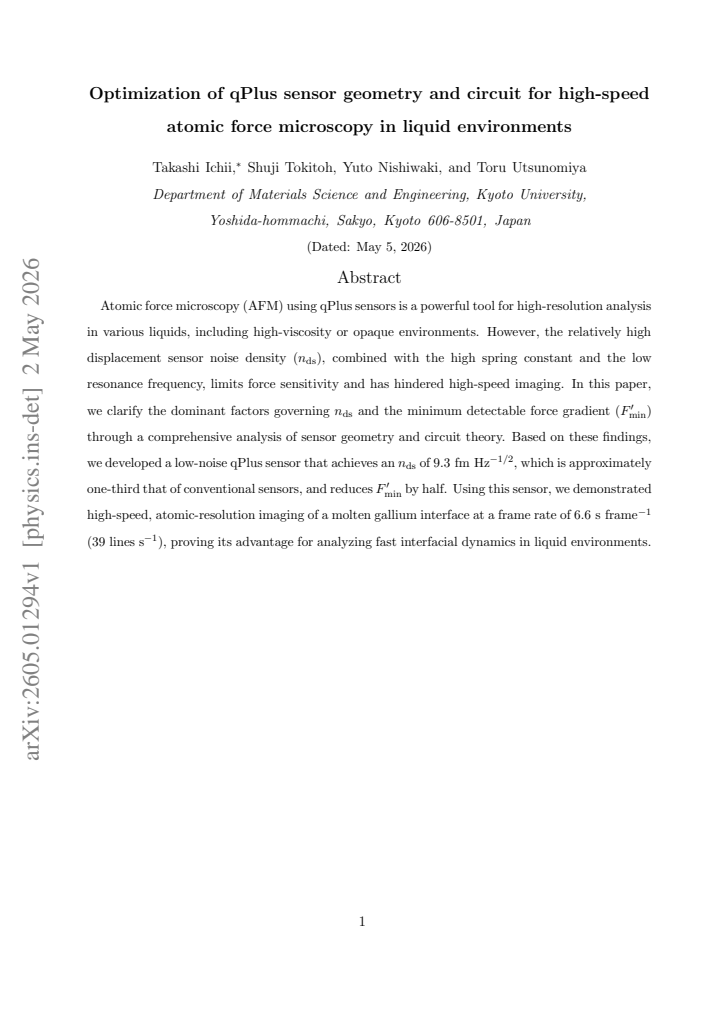

Optimization of qPlus sensor geometry and circuit for high-speed atomic force microscopy in liquid environments

Shuji Tokitoh, Takashi Ichii, Toru Utsunomiya, Yuto Nishiwaki

Authors on Pith no claims yet

Pith reviewed 2026-05-09 13:42 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords sensorforceenvironmentshigh-speedqplusanalysisatomiccircuit

0 comments

The pith

A redesigned qPlus sensor reaches 9.3 fm Hz^{-1/2} displacement noise (one-third of conventional values), halves the minimum detectable force gradient, and supports 6.6 s/frame atomic imaging of a molten gallium interface.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Atomic force microscopes feel surfaces with a tiny vibrating sensor whose motion is read by electronics. In liquids the sensor is noisy, so imaging must be slow to average out the noise. The authors mapped how the sensor's physical shape and the electronics together set the noise level. By changing both, they cut the noise to one-third. They then used the quieter sensor to scan a liquid metal surface and recorded clear atomic images at 39 lines per second.

Core claim

we developed a low-noise qPlus sensor that achieves an n_ds of 9.3 fm Hz^{-1/2}, which is approximately one-third that of conventional sensors, and reduces F'_min by half. Using this sensor, we demonstrated high-speed, atomic-resolution imaging of a molten gallium interface at a frame rate of 6.6 s frame^{-1} (39 lines s^{-1})

Load-bearing premise

That the dominant contributions to displacement sensor noise density and minimum detectable force gradient are fully captured by the sensor geometry and circuit analysis, with no significant unmodeled noise sources arising in the liquid environment or from the specific imaging conditions.

read the original abstract

Atomic force microscopy (AFM) using qPlus sensors is a powerful tool for high-resolution analysis in various liquids, including high-viscosity or opaque environments. However, the relatively high displacement sensor noise density (n_{ds}), combined with the high spring constant and the low resonance frequency, limits force sensitivity and has hindered high-speed imaging. In this paper, we clarify the dominant factors governing n_{ds} and the minimum detectable force gradient (F'_{min}) through a comprehensive analysis of sensor geometry and circuit theory. Based on these findings, we developed a low-noise qPlus sensor that achieves an n_{ds} of 9.3 fm Hz^{-1/2}, which is approximately one-third that of conventional sensors, and reduces F'_{min} by half. Using this sensor, we demonstrated high-speed, atomic-resolution imaging of a molten gallium interface at a frame rate of 6.6 s frame^{-1} (39 lines s^{-1}), proving its advantage for analyzing fast interfacial dynamics in liquid environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The geometry and circuit optimization delivers a concrete noise drop and a working high-speed liquid AFM demo, but the liquid environment modeling looks incomplete.

read the letter

The main thing to know is that this paper takes existing qPlus sensor ideas, runs a targeted analysis of geometry and readout circuit, and comes out with a sensor that hits 9.3 fm Hz^{-1/2} noise density—about one-third the usual level—and halves the minimum detectable force gradient. They then use it for atomic-resolution scans of a molten gallium interface at 6.6 seconds per frame, which is a usable speed for watching fast dynamics in liquid.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard models of qPlus sensor noise and circuit behavior; no new free parameters or invented entities are introduced in the abstract.

axioms (1)

domain assumption Dominant noise sources in qPlus sensors are governed by geometry and readout circuit parameters as modeled by standard displacement-sensor theory.
The paper states it clarifies these factors through comprehensive analysis.
