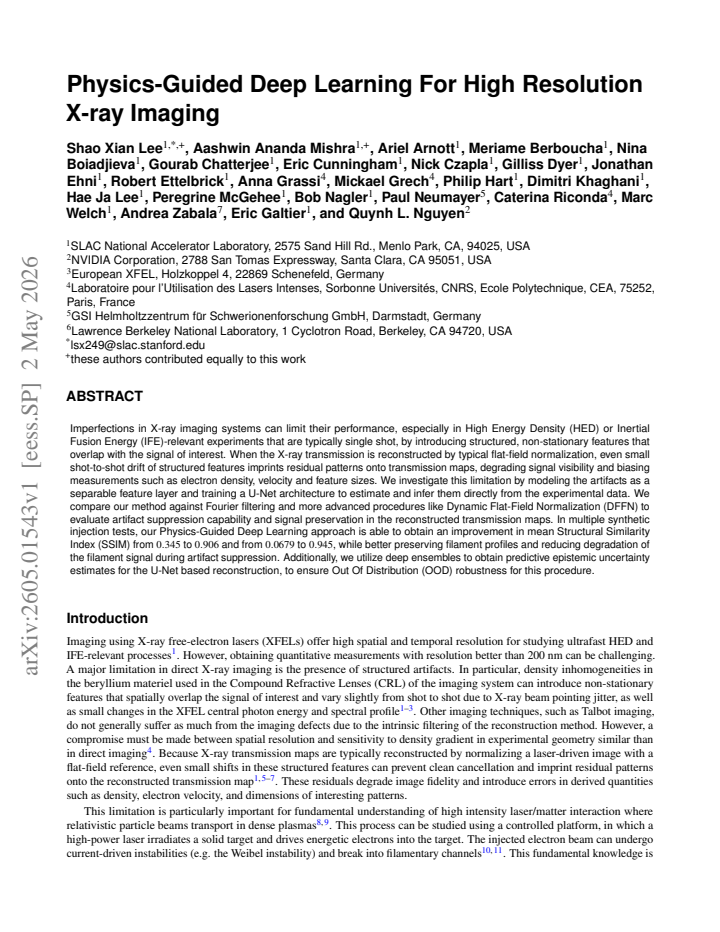

Physics-Guided Deep Learning For High Resolution X-ray Imaging

Aashwin Ananda Mishra, Andrea Zabala, Anna Grassi, Ariel Arnott, Bob Nagler, Caterina Riconda, Dimitri Khaghani, Eric Cunningham, Eric Galtier, Gilliss Dyer, Gourab Chatterjee, Hae Ja Lee, Jonathan Ehni, Marc Welch, Meriame Berboucha, Mickael Grech, Nick Czapla, Nina Boiadjieva, Paul Neumayer, Peregrine McGehee, Philip Hart, Quynh L. Nguyen, Robert Ettelbrick, Shao Xian Lee

Authors on Pith no claims yet

Pith reviewed 2026-05-09 18:02 UTC · model grok-4.3

classification 📡 eess.SP physics.comp-ph

keywords x-ray imagingartifact suppressionu-netdeep learninghigh energy densityinertial fusionstructural similarityepistemic uncertainty

0 comments

The pith

Modeling X-ray artifacts as a separable feature layer lets a U-Net estimate and remove them directly from single-shot data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models structured, non-stationary artifacts in X-ray imaging systems as an independent layer that overlaps with the signal of interest. A U-Net is trained on synthetic injections of these artifacts to infer and subtract them, replacing the residual patterns left by ordinary flat-field normalization. This targets high-energy-density and inertial-fusion experiments that rely on single shots where drift between exposures cannot be averaged away. In controlled tests the network raises mean structural similarity from 0.345 to 0.906 and from 0.0679 to 0.945 while retaining filament profiles more faithfully than Fourier filtering or dynamic flat-field normalization. Deep ensembles supply epistemic uncertainty maps to indicate when the reconstruction may be unreliable on unseen data.

Core claim

By treating artifacts as a separable feature layer and training a U-Net to estimate that layer from experimental radiographs, the method reconstructs transmission maps that preserve filament signals and yield higher structural similarity scores than conventional normalization techniques.

What carries the argument

U-Net architecture trained to estimate the artifact feature layer from raw measurements, using physics-guided synthetic injections for supervision.

If this is right

Transmission maps with higher structural fidelity improve downstream calculations of electron density, velocity, and feature size.
Filament profiles remain intact during artifact removal, reducing systematic bias in plasma diagnostics.
Epistemic uncertainty estimates from deep ensembles flag shots where the reconstruction may be unreliable.
The approach reduces reliance on repeated reference exposures that are often unavailable in single-shot experiments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the method holds on real data it could shorten the time needed to extract quantitative results from each expensive shot.
The separable-layer premise may transfer to other single-exposure imaging modalities that suffer structured detector artifacts.
Uncertainty maps could be used to weight or discard individual pixels in downstream physics analysis.

Load-bearing premise

X-ray artifacts can be treated as a separable feature layer independent of the true signal and that a U-Net trained only on synthetic examples will generalize to real experimental images without introducing new biases or signal loss.

What would settle it

Direct application of the trained U-Net to real HED X-ray radiographs that shows either lower SSIM than dynamic flat-field normalization or measurable attenuation of known filament features.

Figures

Figures reproduced from arXiv: 2605.01543 by Aashwin Ananda Mishra, Andrea Zabala, Anna Grassi, Ariel Arnott, Bob Nagler, Caterina Riconda, Dimitri Khaghani, Eric Cunningham, Eric Galtier, Gilliss Dyer, Gourab Chatterjee, Hae Ja Lee, Jonathan Ehni, Marc Welch, Meriame Berboucha, Mickael Grech, Nick Czapla, Nina Boiadjieva, Paul Neumayer, Peregrine McGehee, Philip Hart, Quynh L. Nguyen, Robert Ettelbrick, Shao Xian Lee.

**Figure 1.** Figure 1: Comparison of defect-suppression methods for the X-ray transmission map. (a) Fourier-filtered image, (b) DFFN image, and (c) U-Net reconstructed image. The dashed line indicates the lineout location at y = 43 µm from the sample surface. (d) Corresponding lineouts at y = 43 µm from the raw (unprocessed), Fourier-filtered, DFFN, and U-Net reconstructed images. Filaments 1 to 6 are marked in (d), and their po… view at source ↗

**Figure 2.** Figure 2: (a) Synthetic ground truth 1 (contrast-enhanced filament map with stronger filament contrast). The dashed line marks the lineout location at y = 45.2 µm from the sample surface. (b) Lineout comparison at y = 45.2 µm across the filament region, showing the ground truth profile and the profiles obtained from Fourier Filtering, DFFN, and U-Net reconstruction. (c) Synthetic ground truth 2 (contrast-enhanced fi… view at source ↗

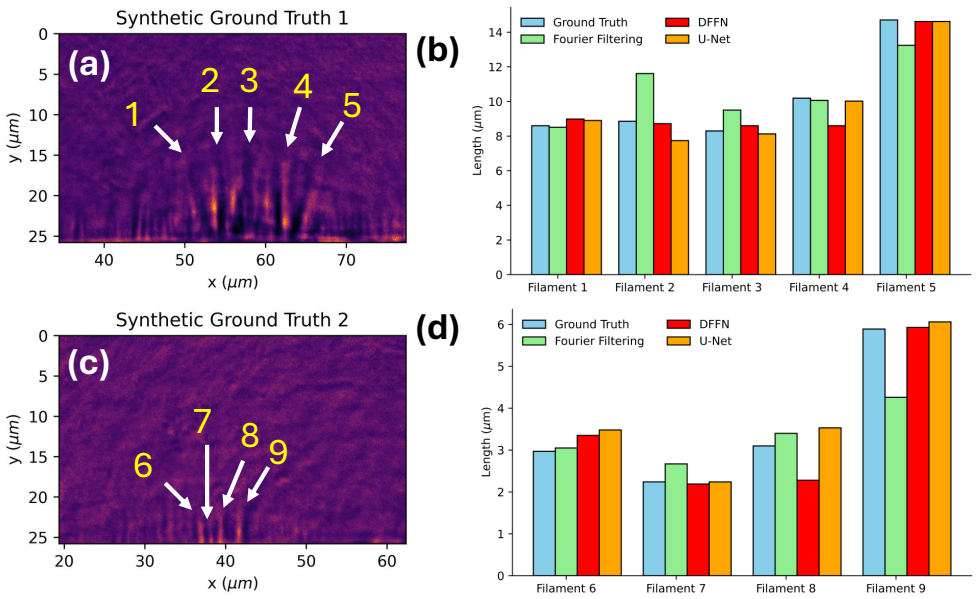

**Figure 3.** Figure 3: (a), (c) Synthetic ground truths with the labeled filaments used for length measurement. (b), (d) Comparison of filament lengths measured from the ground truth, U-Net reconstruction, Fourier filtering and DFFN. We then processed each synthetic image using Fourier filtering, DFFN, and the trained U-Net model. We quantified the filament signal preservation by computing the mean structural similarity index (M… view at source ↗

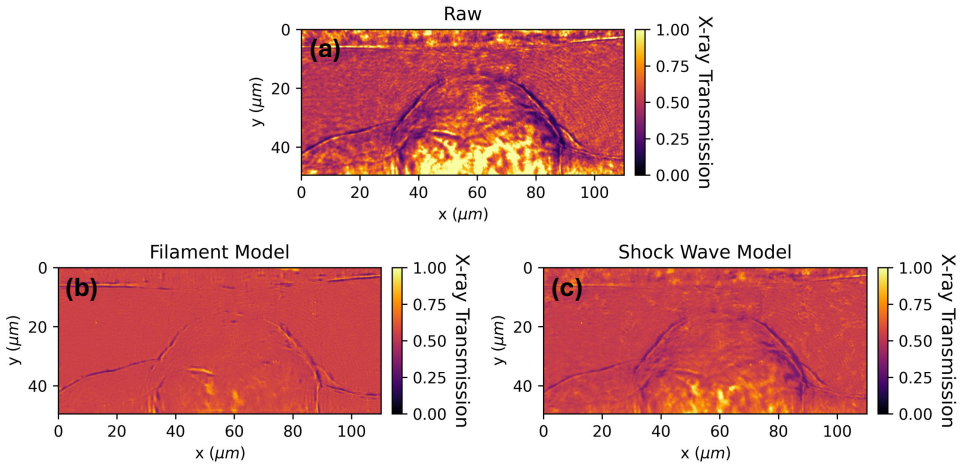

**Figure 4.** Figure 4: (a) Raw X-ray Transmission map of a shock wave. (b) Reconstructed X-ray transmission map using the filament model. (c) Reconstructed X-ray transmission map using the shock wave model. filtering and 11.3% for DFFN. This result shows U-Net reconstruction suppresses the imaging artifacts and also provides low-error filament length measurement, which is important for subsequent measurements such as electron ve… view at source ↗

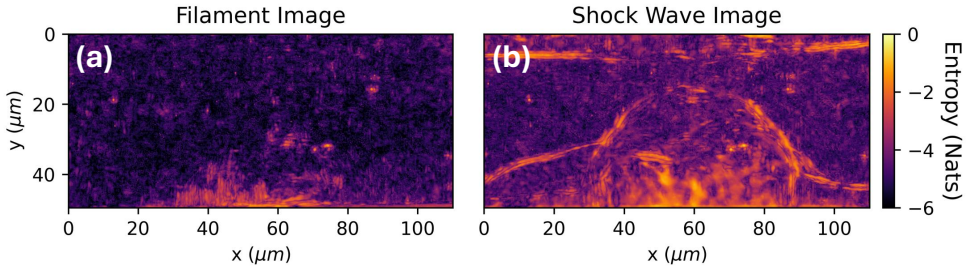

**Figure 5.** Figure 5: Pixel-wise entropy map computed from an ensemble of 10 models for (a) a filament image and (b) a shock wave. Brighter color (higher entropy) represents higher uncertainty, highlighting regions where the ensemble shows the largest disagreement (typically near the prominent physical structures). To assess the reliability of the artifact suppression and detect potential OOD features, we implemented a deep ens… view at source ↗

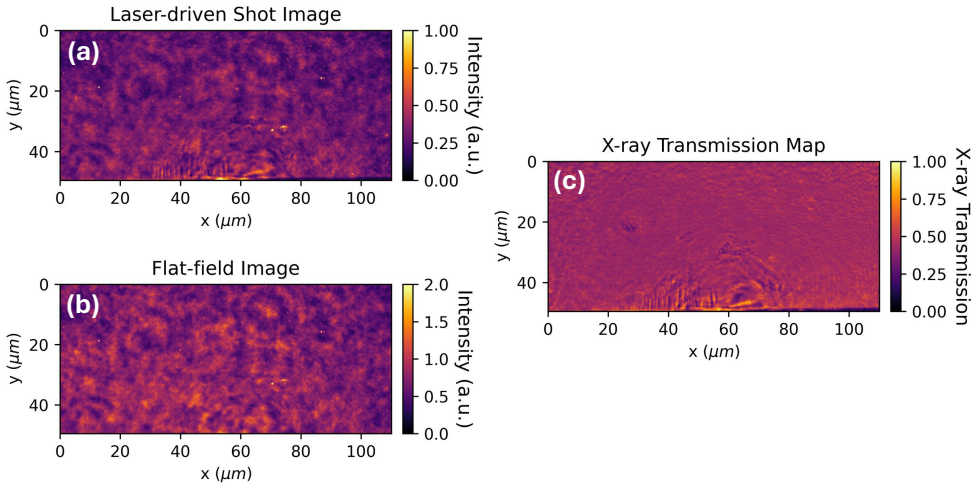

**Figure 6.** Figure 6: (a) Laser-driven shot image with filaments formed on the bottom of the image. Laser hit the Si bulk sample from the bottom. (b) Flat-field image. (c) X-ray transmission map computed using the images from (a) and (b). Dynamic Flat-Field Normalization DFFN was used to correct the dynamics in flat field before normalization7 . Let If lat,m denote the mth flat-field image and ¯If lat the mean flat field. Each … view at source ↗
