arxiv: 2605.01774 · v1 · submitted 2026-05-03 · ⚛️ physics.flu-dyn

Recognition: unknown

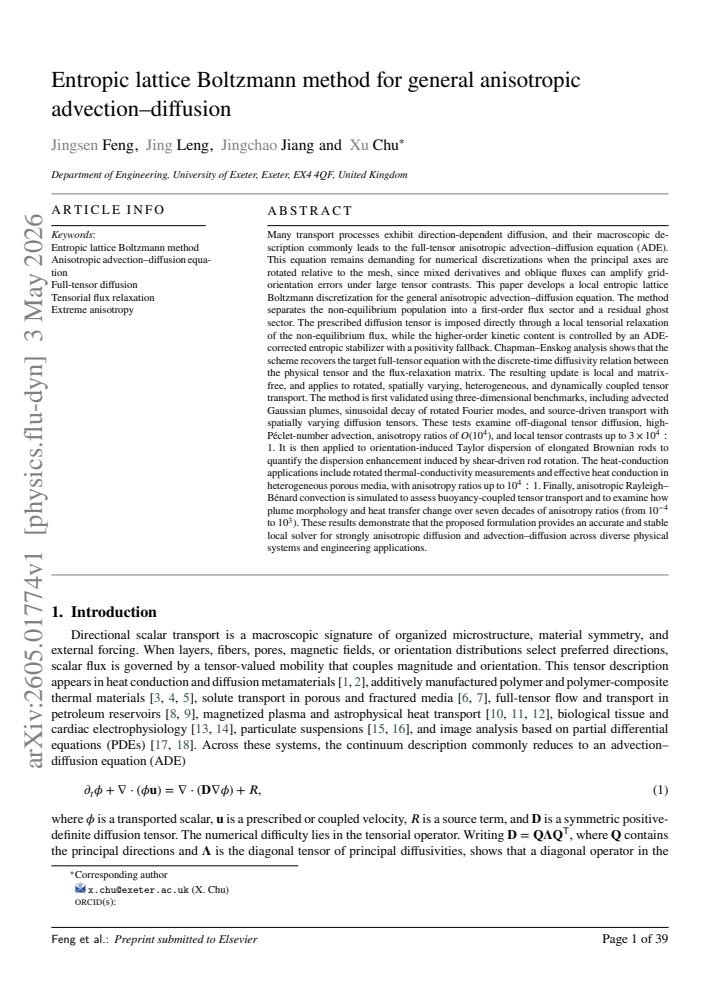

Entropic lattice Boltzmann method for general anisotropic advection--diffusion

Jingsen Feng , Jing Leng , Jingchao Jiang , Xu Chu
Authors on Pith no claims yet

Pith reviewed 2026-05-09 16:54 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords entropic lattice Boltzmannanisotropic advection-diffusiontensorial relaxationChapman-Enskog analysisporous mediaRayleigh-Benard convectionTaylor dispersion
0
0 comments X

The pith

A local entropic lattice Boltzmann scheme recovers the general anisotropic advection-diffusion equation via tensorial flux relaxation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a lattice Boltzmann discretization for the full-tensor anisotropic advection-diffusion equation that works even when principal diffusion directions are rotated relative to the computational grid. Non-equilibrium populations are split into a first-order flux sector and a residual ghost sector; the diffusion tensor is imposed through local tensorial relaxation of the flux while an ADE-corrected entropic stabilizer with positivity fallback controls higher-order content. Chapman-Enskog analysis establishes that the scheme recovers the target macroscopic equation together with a discrete-time relation between the physical tensor and the relaxation matrix. The resulting update is local and matrix-free, which matters for transport problems in porous media, convection, and particle dispersion where standard discretizations suffer from grid-orientation errors under large anisotropy.

Core claim

The central claim is that the proposed entropic lattice Boltzmann method recovers the target full-tensor anisotropic advection-diffusion equation. Non-equilibrium populations are partitioned into a flux sector whose tensorial relaxation sets the physical diffusion tensor and a ghost sector whose content is controlled by an ADE-corrected entropic stabilizer. Chapman-Enskog analysis supplies the discrete-time diffusivity relation that links the relaxation matrix to the imposed tensor, and the scheme remains stable for rotated, spatially varying, and heterogeneous tensors.

What carries the argument

Split of non-equilibrium populations into first-order flux sector and residual ghost sector, with tensorial relaxation of the flux and ADE-corrected entropic stabilization.

If this is right

  • The update applies without modification to rotated, spatially varying, heterogeneous, and dynamically coupled tensors.
  • Benchmarks confirm stability and accuracy for anisotropy ratios of order 10^4, local contrasts of 3x10^4:1, and high-Peclet advection.
  • The method quantifies orientation-induced Taylor dispersion enhancement for Brownian rods under shear.
  • Anisotropic Rayleigh-Benard convection runs remain stable across seven decades of anisotropy ratio and reveal systematic changes in plume shape and heat transfer.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The strictly local update structure would support straightforward GPU parallelization for large-scale 3D anisotropic transport simulations.
  • The same splitting and stabilization strategy could be tested on time-dependent or nonlinear diffusion tensors without reformulating the core algorithm.
  • If the positivity fallback remains robust, the approach may extend to other kinetic schemes that currently struggle with strong off-diagonal diffusion terms.

Load-bearing premise

The flux-ghost population split together with the entropic stabilizer sufficiently suppresses higher-order kinetic modes so that the scheme recovers the full anisotropic equation without uncontrolled errors or instabilities.

What would settle it

A 3D simulation of rotated high-anisotropy advection-diffusion in which the measured effective diffusion tensor deviates from the imposed tensor by more than discretization error, or in which the Rayleigh-Benard convection run becomes unstable at anisotropy ratios of order 10^4.

Figures

Figures reproduced from arXiv: 2605.01774 by Jingchao Jiang, Jing Leng, Jingsen Feng, Xu Chu.

Figure 1
Figure 1. Figure 1: Centroid-centered three-dimensional concentration distributions at the largest normalized time shown in view at source ↗
Figure 2
Figure 2. Figure 2: Evolution of centroid-centered concentration profiles along the three principal axes. Rows (a)–(d) correspond to the four diffusivity ratios in view at source ↗
Figure 3
Figure 3. Figure 3: Sinusoidal-decay validation for the four rotated constant-tensor cases. Panel (a) shows the normalized modal amplitudes 𝐴(𝑡)∕𝐴(0) against the normalized time 𝜏 = 𝛼theory𝑡 for the four anisotropy ratios 104 ∶ 104 ∶ 1, 104 ∶ 103 ∶ 1, 104 ∶ 102 ∶ 1, and 104 ∶ 101 ∶ 1. The dashed line denotes the exact decay law 𝑒 −𝜏 . Panel (b) reports the relative decay-rate error |𝛼ELBM − 𝛼theory|∕𝛼theory for the same four cases view at source ↗
Figure 4
Figure 4. Figure 4: Sensitivity of the sinusoidal-decay benchmark to the Euler angle 𝛽𝐸 for the fixed anisotropy ratio 𝑑1 ∶ 𝑑2 ∶ 𝑑3 = 104 ∶ 102 ∶ 1. Panel (a) presents the normalized decay curves for 𝛽𝐸 = 0◦ , 30◦ , 60◦ , and 90◦ together with the exact law 𝑒 −𝜏 . Panel (b) shows the corresponding relative decay-rate errors view at source ↗
Figure 5
Figure 5. Figure 5: Numerical and analytical solutions for the three-dimensional anisotropic advection–diffusion equation with constant velocity and variable diffusion tensor at 𝑃 𝑒 = 106 . Rows (a)–(d) correspond to the four baseline diffusivity ratios 𝑑1 ∶ 𝑑2 ∶ 𝑑3 = 104 ∶ 104 ∶ 1, 104 ∶ 103 ∶ 1, 104 ∶ 102 ∶ 1, and 104 ∶ 101 ∶ 1. Columns show the 𝑥𝑦 section at 𝑧 = 0.25 and 𝑡 = 1, the 𝑦𝑧 section at 𝑥 = 0.25 and 𝑡 = 2, and the… view at source ↗
Figure 6
Figure 6. Figure 6: Schematic of Taylor dispersion of elongated rods in a plane Poiseuille flow. A Gaussian plug is initially localized in the streamwise direction and uniformly distributed across the channel width. Shear-induced rotation and anisotropic diffusion redistribute the rods across the shear layers. At long times, this coupling yields an effective axial transport with modified mean speed and enhanced longitudinal d… view at source ↗
Figure 7
Figure 7. Figure 7: Geometric and transport quantities for an elongated Brownian rod in a plane Poiseuille flow [16]. The local shear rate ̇𝛾(𝑦) drives Jeffery rotation, 𝜃 is the in-plane orientation angle, 𝐷∥ and 𝐷⟂ are the translational diffusivities parallel and perpendicular to the rod axis, and 𝐷𝜃 is the rotational diffusivity. The semimajor and semiminor axes are denoted by 𝑎𝑝 and 𝑏𝑝 , so the aspect ratio is 𝑝 = 𝑎𝑝∕𝑏𝑝 .… view at source ↗
Figure 8
Figure 8. Figure 8: Comparison between the semi-analytic closure and ELBM for Taylor dispersion of elongated rods at 𝑃 𝑒 = 1000. Panel (a) shows the dimensionless mean particle speed 𝑢𝑚 as a function of 𝑃 𝑒𝑟 ; panel (b) shows the normalized effective dispersion 𝜅∕𝜅𝑠 . Solid lines denote the semi-analytic predictions obtained from Eqs. (76)–(84), and open circles are ELBM measurements extracted from the long-time growth of the… view at source ↗
Figure 9
Figure 9. Figure 9: Anisotropic porous cube-array geometries used for the effective-conductivity measurement. Panel (a) shows the ordered array, where the dispersed cubes remain aligned through successive streamwise layers. Panel (b) shows the cross array, where alternating layers are shifted in the transverse plane. The dispersed cube phase is embedded in a continuous conducting matrix between the hot and cold plates, and th… view at source ↗
Figure 10
Figure 10. Figure 10: Temperature distributions in the ordered cube array for the four Euler-angle cases in view at source ↗
Figure 11
Figure 11. Figure 11: Temperature distributions in the cross cube array for the same material tensors as view at source ↗
Figure 12
Figure 12. Figure 12: Temperature departures from the conductive profile in anisotropic Rayleigh–Bénard convection at 𝑅𝑎 = 109 and 𝑃 𝑟𝑣 = 1. Panels (a)–(h) show increasing values of 𝑟 = 𝑑2∕𝑑1 from 10−4 to 103 . The vertical diffusivity 𝑑2 is fixed in all cases, while the horizontal diffusivity decreases as 𝑟 increases view at source ↗
Figure 13
Figure 13. Figure 13: Heat transport and plume morphology as functions of 𝑟 = 𝑑2∕𝑑1 . Panel (a) compares the bulk Nusselt number with the flux-plateau estimate. Panel (b) reports two bulk plume statistics computed from 𝜃 − 𝜃cond over 0.2𝐻 ≤ 𝑧 ≤ 0.8𝐻: the horizontal spectral centroid 𝑛𝑐 and the fraction of spectral energy in modes 𝑛 ≥ 8 view at source ↗
Figure 14
Figure 14. Figure 14: Late-time vertical profiles for the anisotropic Rayleigh–Bénard sweep. Panel (a) shows the cross-section￾averaged heat-flux profile 𝑁𝑢(𝑧) = ⟨𝑞𝑧 ⟩𝑥∕𝑞0 . Panel (b) shows the horizontally averaged temperature profile, with the dashed line denoting the conductive solution view at source ↗
read the original abstract

Many transport processes exhibit direction-dependent diffusion, described macroscopically by the full-tensor anisotropic advection--diffusion equation (ADE). Numerical discretization is demanding when the principal axes are rotated relative to the mesh, since mixed derivatives and oblique fluxes amplify grid-orientation errors under large tensor contrasts. This paper develops a local entropic lattice Boltzmann discretization for the general anisotropic ADE. The non-equilibrium population is split into a first-order flux sector and a residual ghost sector. The diffusion tensor is imposed through local tensorial relaxation of the flux, while higher-order kinetic content is controlled by an ADE-corrected entropic stabilizer with positivity fallback. Chapman--Enskog analysis shows the scheme recovers the target full-tensor equation with a discrete-time diffusivity relation between the physical tensor and the flux-relaxation matrix. The update is local, matrix-free, and applies to rotated, spatially varying, heterogeneous, and dynamically coupled tensor transport. We validate it on 3D benchmarks--advected Gaussian plumes, decay of rotated Fourier modes, and source-driven transport with varying tensors--covering off-diagonal diffusion, high-P\'eclet advection, anisotropy ratios of O(104)O(10^4) O(104), and local contrasts up to $3\times10^4:1$. It is then applied to orientation-induced Taylor dispersion of Brownian rods, quantifying enhancement from shear-driven rotation. Heat-conduction tests include rotated thermal-conductivity measurements and effective conduction in heterogeneous porous media with anisotropy up to $10^4:1. Finally, anisotropic Rayleigh--B\'enard convection is simulated to examine how plume morphology and heat transfer change over seven decades of anisotropy ratios, demonstrating an accurate, stable local solver for strongly anisotropic advection--diffusion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper develops a local entropic lattice Boltzmann discretization for the general anisotropic advection-diffusion equation (ADE) with arbitrary diffusion tensor, including rotated, heterogeneous, and dynamically varying cases. Non-equilibrium populations are split into a first-order flux sector (tensorially relaxed to impose the target diffusion tensor) and a residual ghost sector; higher-order content is controlled via an ADE-corrected entropic stabilizer with positivity fallback. Chapman-Enskog analysis is claimed to recover the full-tensor ADE with a discrete-time diffusivity relation between the physical tensor and the flux-relaxation matrix. The scheme is validated on 3D benchmarks (advected Gaussians, rotated Fourier modes, source-driven transport, Taylor dispersion of rods, heat conduction in porous media, and anisotropic Rayleigh-Bénard convection) at anisotropy ratios up to 10^4 and local contrasts of 3×10^4:1.

Significance. If the recovery and stability claims hold, the method supplies a matrix-free, fully local solver for strongly anisotropic transport that avoids grid-orientation errors common in finite-difference or standard LBM approaches under large tensor contrasts and rotations. The multi-benchmark validation suite, covering off-diagonal diffusion, high-Péclet advection, and coupled problems such as orientation-induced dispersion and anisotropic convection, provides concrete evidence of practical utility across seven decades of anisotropy ratios. The explicit discrete-time diffusivity relation and local update are strengths for implementation in complex geometries.

major comments (1)
  1. [Chapman-Enskog analysis section] The Chapman-Enskog analysis (abstract and the multiscale section) recovers the target ADE from the linear tensorial relaxation of the flux sector but does not explicitly derive the O(Kn) contribution of the nonlinear ADE-corrected entropic stabilizer (or the positivity fallback) to the macroscopic equation. Under the reported anisotropy ratios of O(10^4) and local contrasts of 3×10^4:1, the widely differing relaxation rates across tensor eigenvalues can source higher moments from the ghost sector that back-react at first order, potentially violating the stated discrete-time diffusivity relation; a concrete bound or additional term in the expansion is required to confirm absence of spurious corrections.
minor comments (2)
  1. [validation sections] The abstract and validation sections report anisotropy ratios up to 10^4 and contrasts of 3×10^4:1 but do not tabulate quantitative L2 or L∞ errors, convergence rates with grid refinement, or direct comparisons against reference solutions (e.g., finite-element or spectral methods) for the rotated Fourier-mode and heterogeneous-tensor cases; adding these would strengthen the quantitative support.
  2. [method section] Notation for the flux-relaxation matrix and the ADE-corrected entropic stabilizer should be introduced with explicit definitions (including how the correction term is constructed) before the Chapman-Enskog expansion to improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The single major comment identifies a legitimate gap in the explicit multiscale derivation that we will address directly in the revision.

read point-by-point responses

  1. Referee: [Chapman-Enskog analysis section] The Chapman-Enskog analysis (abstract and the multiscale section) recovers the target ADE from the linear tensorial relaxation of the flux sector but does not explicitly derive the O(Kn) contribution of the nonlinear ADE-corrected entropic stabilizer (or the positivity fallback) to the macroscopic equation. Under the reported anisotropy ratios of O(10^4) and local contrasts of 3×10^4:1, the widely differing relaxation rates across tensor eigenvalues can source higher moments from the ghost sector that back-react at first order, potentially violating the stated discrete-time diffusivity relation; a concrete bound or additional term in the expansion is required to confirm absence of spurious corrections.

    Authors: We agree that the original multiscale section focuses on the linear tensorial relaxation of the flux sector and does not explicitly expand the nonlinear contributions of the ADE-corrected entropic stabilizer or the positivity fallback to O(Kn). In the revised manuscript we will augment the Chapman-Enskog analysis to include these terms. We will demonstrate that the stabilizer is constructed to leave the first-order flux moments unchanged, so that its nonlinear action enters the macroscopic equation only at O(Kn²) or higher. We will also derive a bound on the ghost-sector back-reaction that holds when the tensorial relaxation rates satisfy the reported discrete-time diffusivity relation, showing that the back-reaction remains negligible for anisotropy ratios up to 10^4 and local contrasts up to 3×10^4:1. These additions will be placed in the multiscale section and will not alter the core recovery statement or the numerical validation results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained via standard multiscale analysis

full rationale

The paper defines a novel splitting of non-equilibrium populations into flux and ghost sectors, imposes the diffusion tensor via local tensorial relaxation of the flux sector, and controls higher moments with an ADE-corrected entropic stabilizer plus positivity fallback. It then applies the standard Chapman-Enskog multiscale expansion directly to this defined scheme to derive the target full-tensor ADE and the discrete-time diffusivity relation. The relaxation matrix is constructed from the physical tensor as an input, not fitted to any output quantity. No step reduces by construction to its own result, no parameter is renamed as a prediction, and the recovery proof does not rely on a self-citation chain for its load-bearing content. Prior entropic LBM citations supply the stabilizer technique but are not invoked as a uniqueness theorem or to smuggle the anisotropic extension; the central claim remains independently verifiable by repeating the CE expansion on the given update rule.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard kinetic-theory assumptions plus the specific numerical splitting and stabilization strategy introduced here; no new physical entities are postulated.

free parameters (1)
  • elements of the flux-relaxation matrix
    Set locally from the physical diffusion tensor to satisfy the discrete-time diffusivity relation recovered by Chapman-Enskog analysis.
axioms (2)
  • standard math Chapman-Enskog multiscale expansion recovers the target macroscopic ADE from the kinetic scheme
    Invoked to demonstrate that the discretization produces the correct full-tensor equation.
  • domain assumption The ADE-corrected entropic stabilizer with positivity fallback adequately controls higher-order moments and maintains stability
    Used to manage residual ghost-sector content without introducing uncontrolled errors.
