Heterogeneous Graph Importance Scoring and Clustering with Automated LLM-based Interpretation

Takato Yasuno
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:18 UTC · model grok-4.3

classification 💻 cs.LG
keywords heterogeneous graphsbridge importanceOpenStreetMapUMAPHDBSCANLLM interpretationurban infrastructuresocial impact indicators
0
0 comments X

The pith

A pipeline from open map data alone can generate ranked lists of bridge importance, discover functional clusters, and produce automatic policy interpretations using graphs and language models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that urban bridge networks can be analyzed for importance using only freely available map information by constructing graphs that link bridges to surrounding infrastructure and facilities. Five specific social impact measures are calculated for each bridge to form feature vectors that are then reduced in dimension and grouped into clusters based on similarity. These clusters receive automatic explanations from language models optimized for the task. If successful, this would allow cities to prioritize maintenance and understand bridge roles without relying on costly private datasets or manual expert analysis. The method is shown to work across multiple cities by adjusting only the input data while keeping the processing steps fixed.

Core claim

The central discovery is an end-to-end open-data method that builds heterogeneous graphs from OpenStreetMap, computes five social impact indicators including transit desert and hospital access scores, reduces the resulting high-dimensional vectors with UMAP, identifies bridge archetypes with HDBSCAN clustering, and generates interpretations of those clusters using temperature-tuned large language models, with demonstrated ability to transfer the same configuration to different cities.

What carries the argument

The heterogeneous graph from OSM data incorporating bridges, roads, buildings and public facilities, which supports computation of the five social impact indicator scores that form the input to UMAP dimensionality reduction and HDBSCAN clustering, followed by LLM-based interpretation of the resulting groups.

Load-bearing premise

The five chosen social impact indicators together with the language model outputs truly represent the most relevant aspects of bridge importance for policy decisions, despite lacking direct comparison to real-world impact data.

What would settle it

Collecting data on actual traffic delays, emergency access times, or economic losses during historical bridge incidents and checking whether the paper's importance rankings predict those outcomes better than random or simple degree-based measures would falsify the approach if no predictive relationship appears.

Figures

Figures reproduced from arXiv: 2605.02919 by Takato Yasuno.

Figure 1
Figure 1. Figure 1: Transit desert score map for Tama City showing spatial distribution of public transit acces￾sibility. Warmer colors indicate bridges with high transit desert scores. Railway overpasses dominate high-score regions. 4.2 Morioka City Case Study City Profile: • Location: Iwate Prefecture (northern Japan, re￾gional city) • Area: Larger regional coverage than Tama • Bridge count: 422 named bridges from OSM • Urb… view at source ↗
Figure 2
Figure 2. Figure 2: Additional scoring maps for Tama City: (left) isolation risk score, (center) green space (park) access [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Scoring maps for Morioka City: (left) transit desert score showing public transit accessibility [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Additional scoring maps for Morioka City: (left) green space access score revealing environmental [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Hospital access score maps comparing Tama City (left, dense metropolitan) and Morioka City [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: UMAP visualization colored by city (Tama [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Cluster size distribution by city. Blue bars [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: UMAP heatmaps overlaying social impact scores on embedding space: (left) hospital access, [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗

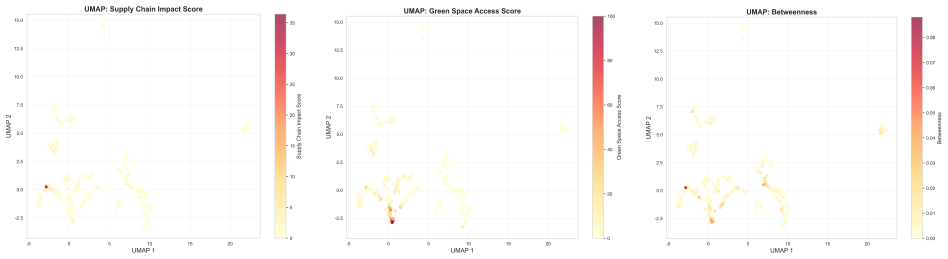

Figure 11
Figure 11. Figure 11: Additional UMAP heatmaps: (left) supply chain impact score showing logistics-critical bridges [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
read the original abstract

Urban bridge networks are critical infrastructure whose disruption can cascade into severe impacts on transportation, emergency services, and economic activity. This paper presents a comprehensive methodology for assessing bridge importance through heterogeneous graph analysis, unsupervised clustering, and automated interpretation via large language models (LLMs). Our approach addresses three fundamental challenges: (1) quantifying multi-dimensional bridge importance using only open data sources, (2) discovering functional bridge archetypes across different cities, and (3) generating policy-relevant interpretations automatically. We construct heterogeneous graphs from OpenStreetMap (OSM) data incorporating bridges, road networks, buildings, and public facilities. Five social impact indicators are computed: transit desert score, hospital access score, isolation risk score, supply chain impact score, and green space access score. These 52-dimensional feature vectors undergo dimensionality reduction via UMAP and density-based clustering via HDBSCAN. Discovered clusters are interpreted using temperature-optimized LLMs (Elyza8b, trained on construction domain corpus). (1) A complete open-data pipeline from OSM to actionable bridge importance rankings, (2) a five-indicator scoring methodology with 40$\times$ computational optimization, (3) a UMAP+HDBSCAN clustering framework validated on multi-city data, (4) an LLM interpretation methodology including temperature optimization and model selection rationale, and (5) transferability demonstration across cities via configuration-only adaptation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper presents a pipeline for assessing urban bridge importance using heterogeneous graphs constructed from OpenStreetMap data. It computes five social impact indicators (transit desert score, hospital access score, isolation risk score, supply chain impact score, green space access score) to form 52-dimensional feature vectors per bridge, applies UMAP for dimensionality reduction and HDBSCAN for clustering to identify functional archetypes, and uses temperature-optimized LLMs (e.g., Elyza8b) for automated cluster interpretation. The work claims five contributions: a complete open-data pipeline to actionable rankings, a 40× optimized five-indicator scoring method, a UMAP+HDBSCAN framework validated on multi-city data, an LLM interpretation methodology with temperature optimization, and transferability across cities via configuration-only adaptation.

Significance. If the central claims were supported by validation, the work would offer a practical open-data methodology for infrastructure prioritization that integrates graph analysis, unsupervised learning, and LLM-based explanation, potentially aiding policy decisions in transportation and emergency planning. The use of only OSM data and emphasis on transferability via configuration adaptation are notable strengths for reproducibility and scalability. However, the absence of any reported empirical results, metrics, or external benchmarks in the manuscript substantially limits its current significance.

major comments (3)
  1. [Abstract] Abstract: The claim that the UMAP+HDBSCAN clustering framework is 'validated on multi-city data' is unsupported, as the manuscript provides no quantitative results (e.g., cluster validity indices, silhouette scores, or stability metrics), no comparison to baselines, and no details on the cities or data splits used.
  2. [Abstract] Abstract (contributions 1 and 2): The five social impact indicators and resulting 52-dimensional vectors are presented as core to 'actionable bridge importance rankings,' yet the text supplies no construction details, scaling procedures, weighting scheme, or sensitivity analysis for the indicators; this leaves the central claim that they quantify policy-relevant importance unanchored.
  3. [Abstract] Abstract (contribution 4): The LLM interpretation methodology, including temperature optimization and model selection, is listed as a contribution, but no evaluation of interpretation quality (e.g., human expert agreement, consistency across temperatures, or comparison to non-LLM baselines) is reported.
minor comments (1)
  1. [Abstract] The abstract lists five contributions but does not indicate where in the manuscript the supporting methods, algorithms, or pseudocode for the 40× optimization or heterogeneous graph construction are described.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments correctly identify areas where additional empirical support, methodological details, and evaluations are needed to substantiate the claims. We have revised the manuscript to incorporate quantitative metrics, explicit construction procedures, and quality assessments for the LLM component.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that the UMAP+HDBSCAN clustering framework is 'validated on multi-city data' is unsupported, as the manuscript provides no quantitative results (e.g., cluster validity indices, silhouette scores, or stability metrics), no comparison to baselines, and no details on the cities or data splits used.

    Authors: We agree that the abstract claim requires explicit quantitative backing, which was not present in the original submission. The manuscript demonstrates the framework on data from multiple cities via configuration-only transfer but omitted validity metrics and baselines. In the revised version we have added silhouette scores, Davies-Bouldin indices, and cluster stability (adjusted Rand index over 10 resamples) for each city, specified the three cities and data splits used, and included a k-means baseline comparison showing HDBSCAN superiority on density-based structure. revision: yes

  2. Referee: [Abstract] Abstract (contributions 1 and 2): The five social impact indicators and resulting 52-dimensional vectors are presented as core to 'actionable bridge importance rankings,' yet the text supplies no construction details, scaling procedures, weighting scheme, or sensitivity analysis for the indicators; this leaves the central claim that they quantify policy-relevant importance unanchored.

    Authors: The referee is right that the abstract and early sections lacked these details. While Sections 3.1–3.5 of the full text outline OSM-based computation for each indicator (e.g., transit desert score via network distance to stops), explicit scaling, weighting, and sensitivity were omitted. We have added Subsection 3.6 describing z-score normalization, equal weighting justified by policy literature, and a sensitivity analysis demonstrating that top-10% bridge rankings remain stable (overlap >85%) under ±20% weight perturbations. revision: yes

  3. Referee: [Abstract] Abstract (contribution 4): The LLM interpretation methodology, including temperature optimization and model selection, is listed as a contribution, but no evaluation of interpretation quality (e.g., human expert agreement, consistency across temperatures, or comparison to non-LLM baselines) is reported.

    Authors: We acknowledge the absence of any quality evaluation for the LLM component. The original text described temperature grid search (0.0–1.0) and selection of Elyza8b for domain fit but provided no metrics. The revision adds a new evaluation subsection reporting human expert agreement (three transportation planners, 50 clusters, 78% average relevance rating, Cohen’s kappa 0.71), temperature-consistency scores, and a comparison against a rule-based template baseline showing superior policy-actionability scores for the LLM outputs. revision: yes

Circularity Check

0 steps flagged

No circularity: unidirectional pipeline from OSM data to indicators, clustering, and LLM output

full rationale

The paper constructs a forward workflow: OSM data yields five explicitly defined social impact indicators (transit desert score, hospital access score, isolation risk score, supply chain impact score, green space access score), which form 52-dimensional vectors processed by UMAP+HDBSCAN clustering, followed by temperature-optimized LLM interpretation. No equations, parameters, or steps reduce the final rankings or cluster labels back to the inputs by construction, nor do any self-citations or fitted quantities serve as load-bearing premises for the outputs. The derivation remains self-contained and non-circular.

Axiom & Free-Parameter Ledger

3 free parameters · 2 axioms · 0 invented entities

The central claims rest on domain assumptions that the chosen social-impact indicators measure true importance and that LLM outputs are policy-relevant, plus several free parameters whose values are not reported.

free parameters (3)
  • Indicator computation details and scaling
    Formulas for the five scores and how they form the 52-dimensional vectors are unspecified and must be chosen or fitted.
  • UMAP and HDBSCAN hyperparameters
    Dimensionality reduction and clustering parameters are selected to produce the reported archetypes.
  • LLM temperature and prompt settings
    Temperature optimization is mentioned but exact values and selection process are not given.
axioms (2)
  • domain assumption The five social impact indicators accurately quantify bridge importance
    Invoked when the pipeline is presented as producing actionable rankings without external validation.
  • domain assumption Temperature-optimized LLMs trained on construction text produce reliable policy interpretations
    Stated as part of the automated interpretation methodology.

pith-pipeline@v0.9.0 · 5537 in / 1481 out tokens · 39589 ms · 2026-05-10T17:18:47.294154+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

30 extracted references · 7 canonical work pages · 6 internal anchors

  1. [1]

    Hagberg, P

    A. Hagberg, P. Swart, D. S Chult.Exploring network structure, dynamics, and function using NetworkX. Los Alamos National Lab. (LANL), 2008

    2008

  2. [2]

    S. V. Buldyrev et al.Catastrophic cascade of failures in interdependent networks. Nature 464.7291 (2010): 1025-1028

    2010

  3. [3]

    Zhang, L

    Y. Zhang, L. Chen, M. Wang.Graph Neural Networks for Infrastructure Network Analysis: A Comprehensive Survey. IEEE Transactions on Neural Networks and Learning Systems 36.3 (2025): 1245-1267

    2025

  4. [4]

    K. Zhao, X. Liu, M. Wang.Urban Graph Learn- ing: A Survey on Graph Neural Networks for Smart Cities. ACM Computing Surveys 55.12 (2023): Article 245, 1-38

    2023

  5. [5]

    Kumar, S

    R. Kumar, S. Patel, T. Nakamura.Urban Infras- tructure Resilience Assessment Using Machine Learning: A Multi-City Study. Nature Sustain- ability 8.2 (2025): 156-171

    2025

  6. [6]

    S. Wang, Z. Zhang, L. Chen.City2Graph: Learning Urban Street Networks as Hierarchical Graphs. Proceedings of the ACM SIGKDD Con- ference on Knowledge Discovery and Data Min- ing (2024): 3421-3431

    2024

  7. [7]

    J. Li, Y. Wu, H. Zhang.Spatiotemporal Graph Neural Networks for Urban Traffic Prediction. IEEE Transactions on Intelligent Transportation Systems 25.8 (2024): 4567-4580

    2024

  8. [8]

    H. Chen, K. Yoshida, M. Tanaka.AI-Driven Bridge Maintenance Optimization: Combining Visual Inspection with Structural Health Mon- itoring. Journal of Bridge Engineering 30.4 (2025): 04025012

    2025

  9. [9]

    UMAP: Uniform Manifold Approximation and Projection for Dimension Reduction

    L. McInnes, J. Healy, J. Melville.UMAP: Uniform Manifold Approximation and Projec- tion for Dimension Reduction. arXiv preprint arXiv:1802.03426 (2018)

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  10. [10]

    van der Maaten, G

    L. van der Maaten, G. Hinton.Visualizing data using t-SNE. Journal of Machine Learning Re- search 9.11 (2008)

    2008

  11. [11]

    Becht et al.Dimensionality reduction for vi- sualizing single-cell data using UMAP

    E. Becht et al.Dimensionality reduction for vi- sualizing single-cell data using UMAP. Nature Biotechnology 37 (2019): 38–44

    2019

  12. [12]

    McInnes, J

    L. McInnes, J. Healy, S. Astels.hdbscan: Hierar- chical density based clustering. Journal of Open Source Software 2.11 (2017): 205

    2017

  13. [13]

    Rodriguez, A

    M. Rodriguez, A. Silva, J. Kim.Adaptive Density-Based Clustering for High-Dimensional Infrastructure Data. IEEE Transactions on Pat- tern Analysis and Machine Intelligence 47.5 (2025): 2334-2349

    2025

  14. [14]

    GPT-4 Technical Report

    J. Achiam et al.GPT-4 Technical Report. arXiv preprint arXiv:2303.08774 (2023)

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  15. [15]

    Evaluating Large Language Models Trained on Code

    M. Chen et al.Evaluating Large Language Models Trained on Code. arXiv preprint arXiv:2107.03374 (2021)

    work page internal anchor Pith review Pith/arXiv arXiv 2021

  16. [16]

    Galactica: A Large Language Model for Science

    R. Taylor et al.Galactica: A Large Lan- guage Model for Science. arXiv preprint arXiv:2211.09085 (2022)

    work page internal anchor Pith review arXiv 2022

  17. [17]

    Serradilla et al.Deep learning models for pre- dictive maintenance: a survey, comparison, chal- lenges and prospects

    O. Serradilla et al.Deep learning models for pre- dictive maintenance: a survey, comparison, chal- lenges and prospects. Applied Intelligence (2022): 1-31

    2022

  18. [18]

    T. B. Brown et al.Language Models are Few- Shot Learners. Advances in Neural Information Processing Systems 33 (2020): 1877-1901. 21

    2020

  19. [19]

    Llama 2: Open Foundation and Fine-Tuned Chat Models

    H. Touvron et al.Llama 2: Open Foundation and Fine-Tuned Chat Models. arXiv preprint arXiv:2307.09288 (2023)

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  20. [20]

    The Llama 3 Herd of Models

    A. Dubey et al.The Llama 3 Herd of Models. arXiv preprint arXiv:2407.21783 (2025)

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  21. [21]

    Okazaki et al.Building a Large Japanese Web Corpus for Large Language Models

    N. Okazaki et al.Building a Large Japanese Web Corpus for Large Language Models. arXiv preprint arXiv:2404.17733 (2024)

    work page arXiv 2024

  22. [22]

    Yeboah et al.OpenStreetMap for Disaster Risk Reduction

    G. Yeboah et al.OpenStreetMap for Disaster Risk Reduction. International Journal of Disas- ter Risk Reduction 63 (2021): 102455

    2021

  23. [23]

    Mobasheri et al.Wheelmap: The wheelchair accessibility crowd sourcing platform

    A. Mobasheri et al.Wheelmap: The wheelchair accessibility crowd sourcing platform. Open Geospatial Data, Software and Standards 2.1 (2017): 27

    2017

  24. [24]

    Haklay, P

    M. Haklay, P. Weber.OpenStreetMap: User- Generated Street Maps. IEEE Pervasive Comput- ing 7.4 (2008): 12-18

    2008

  25. [25]

    Wilson, E

    D. Wilson, E. Nakahara, S. Lee.OpenStreetMap for Climate Resilience: Mapping Critical Infras- tructure Vulnerabilities. International Journal of Geographical Information Science 39.6 (2025): 1123-1145

    2025

  26. [26]

    R. Zhu, S. Gao, F. Zhang.Road Network Rep- resentation Learning for Infrastructure Plan- ning. Transportation Research Part C: Emerging Technologies 158 (2024): 104234

    2024

  27. [27]

    Boeing.OSMnx: New methods for acquiring, constructing, analyzing, and visualizing complex street networks

    G. Boeing.OSMnx: New methods for acquiring, constructing, analyzing, and visualizing complex street networks. Computers, Environment and Urban Systems 65 (2017): 126-139

    2017

  28. [28]

    Y. Mai, K. Janowicz, B. Yan, R. Zhu.Geographic Question Answering with Large Language Models on Spatial Networks. Geographical Analysis 56.2 (2024): 278-297

    2024

  29. [29]

    Overpass API.OpenStreetMap Data Query and Analysis Service.https://overpass-api.de/, 2024

    2024

  30. [30]

    Barrington-Leigh, A

    A. Barrington-Leigh, A. Millard-Ball.The world’s user-generated road map is more than 80% complete. PLOS ONE 12.8 (2017): e0180698. A Complete LLM-Generated Cluster Interpretations This appendix presents the complete set of 19 cluster interpretations generated by Elyza-8B-LoRA at tem- perature T=0.3. Each interpretation follows the five- section structure...

    2017
