Inertial-Range Energy Transfer Free from Isotropic Assumption in Turbulent Space Plasma1
Pith reviewed 2026-05-07 13:25 UTC · model grok-4.3
The pith
Two methods for 3D energy transfer in anisotropic space plasma turbulence respond differently to spacecraft geometry.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Systematic comparison on the same turbulence realizations shows that DA exhibits both polar and azimuthal dependence but proves insensitive to spacecraft configuration, whereas LPDE is strongly affected by spacecraft separation and tetrahedral shape while remaining comparatively insensitive to the sampling trajectory.
What carries the argument
The direct head-to-head comparison of direction-averaging (DA) versus lag polyhedral derivative ensemble (LPDE) applied to third-order structure functions to extract the full 3D dependence of inertial-range energy transfer.
If this is right
- DA can supply reliable directional information on energy transfer rates irrespective of how the spacecraft are positioned.
- LPDE results demand careful selection of spacecraft separation distances and formation shape to prevent geometry-induced artifacts.
- Either method, or both together, can be applied to multi-spacecraft data to characterize anisotropic cascades in the inertial range.
- Mission planning for constellations can incorporate the complementary sensitivities to improve dissipation-rate estimates.
Where Pith is reading between the lines
- Processing pipelines for upcoming missions could routinely run both methods on the same intervals to flag configuration biases.
- The same comparative test could be repeated on synthetic turbulence datasets with controlled anisotropy to isolate method effects further.
- Insights on method robustness may extend to other multi-point observations of energy cascades in astrophysical flows.
Load-bearing premise
That observed differences between the methods arise only from the methods themselves when both are applied to identical underlying turbulence data, without hidden influences from non-stationarity or inhomogeneity.
What would settle it
Reprocessing the identical spacecraft data with both DA and LPDE and obtaining identical polar-azimuthal patterns with no configuration sensitivity in either case would contradict the reported distinct dependencies.

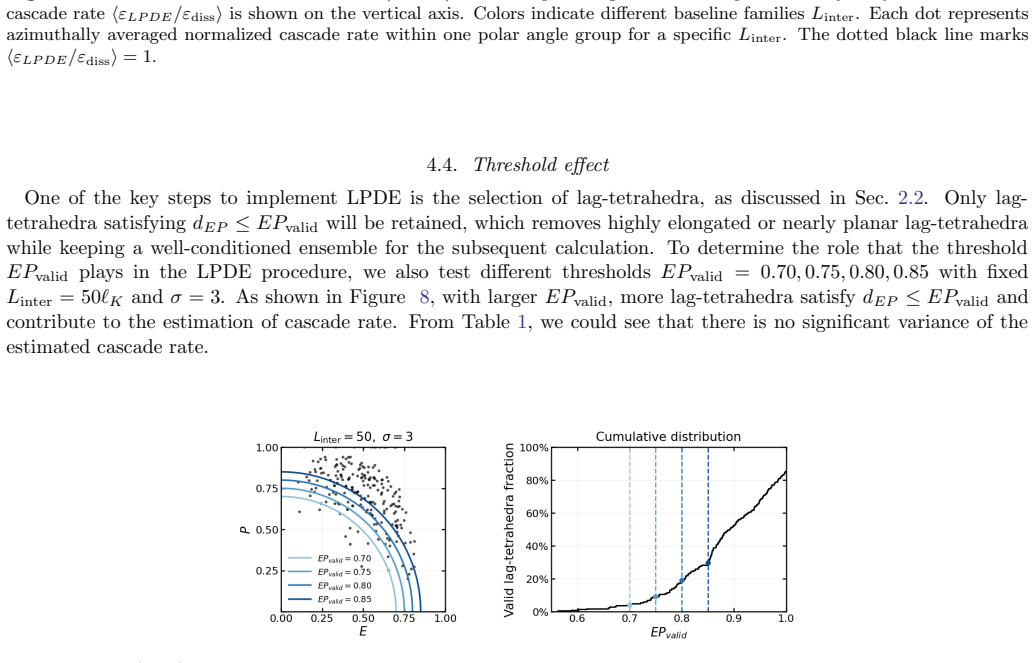

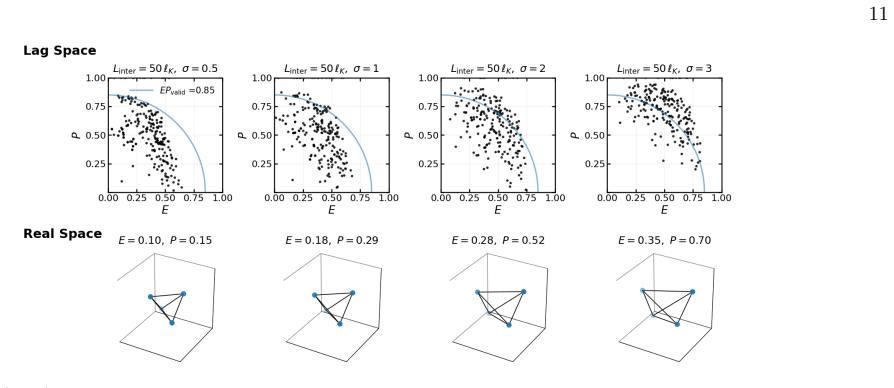

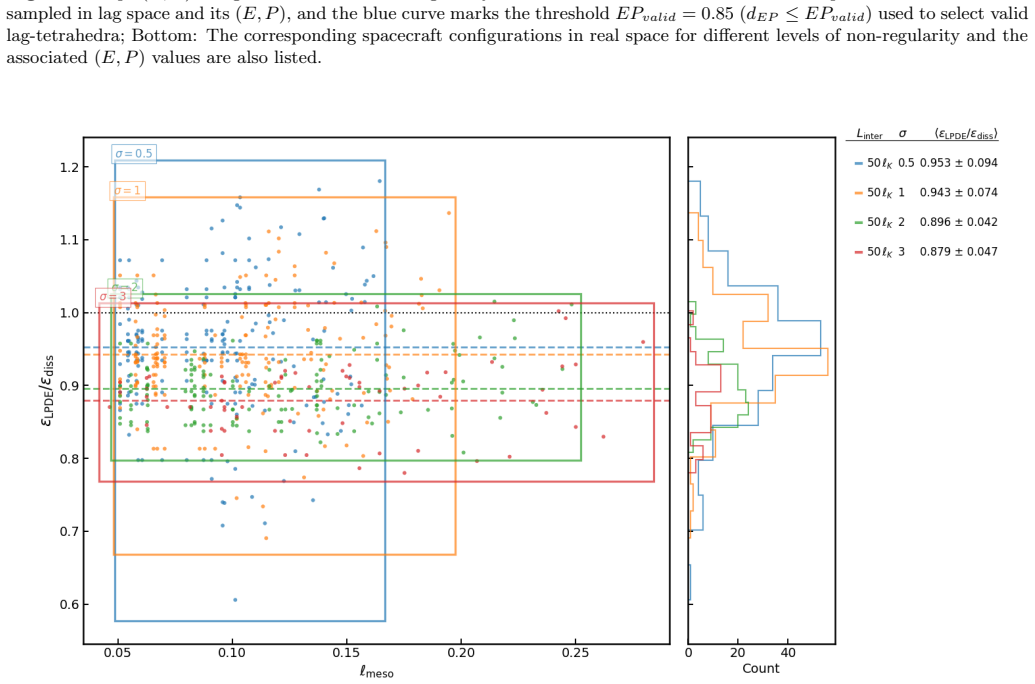

Figures

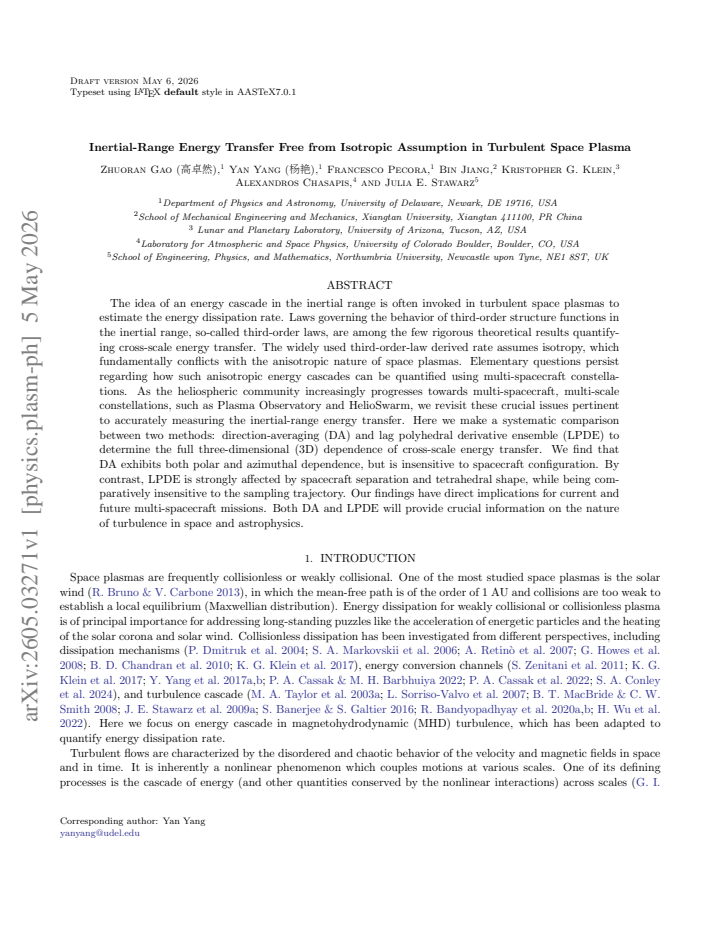

read the original abstract
The idea of an energy cascade in the inertial range is often invoked in turbulent space plasmas to estimate the energy dissipation rate. Laws governing the behavior of third-order structure functions in the inertial range, so-called third-order laws, are among the few rigorous theoretical results quantifying cross-scale energy transfer. The widely used third-order-law derived rate assumes isotropy, which fundamentally conflicts with the anisotropic nature of space plasmas. Elementary questions persist regarding how such anisotropic energy cascades can be quantified using multi-spacecraft constellations. As the heliospheric community increasingly progresses towards multi-spacecraft, multi-scale constellations, such as Plasma Observatory and HelioSwarm, we revisit these crucial issues pertinent to accurately measuring the inertial-range energy transfer. Here we make a systematic comparison between two methods: direction-averaging (DA) and lag polyhedral derivative ensemble (LPDE) to determine the full three-dimensional (3D) dependence of cross-scale energy transfer. We find that DA exhibits both polar and azimuthal dependence, but is insensitive to spacecraft configuration. By contrast, LPDE is strongly affected by spacecraft separation and tetrahedral shape, while being comparatively insensitive to the sampling trajectory. Our findings have direct implications for current and future multi-spacecraft missions. Both DA and LPDE will provide crucial information on the nature of turbulence in space and astrophysics.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a systematic comparison of two methods—direction-averaging (DA) and lag polyhedral derivative ensemble (LPDE)—for quantifying the full three-dimensional dependence of inertial-range cross-scale energy transfer in anisotropic turbulent space plasmas, without assuming isotropy. Using multi-spacecraft data, it reports that DA exhibits both polar and azimuthal angular dependence but remains insensitive to spacecraft configuration, whereas LPDE is strongly sensitive to spacecraft separation and tetrahedral geometry while being comparatively insensitive to sampling trajectory. The work concludes with implications for data analysis on current and future missions such as Plasma Observatory and HelioSwarm.
Significance. If the reported method-specific sensitivities are shown to be robust, the results would be significant for the heliophysics and plasma turbulence communities. They address a long-standing tension between isotropic third-order laws and the observed anisotropy of space plasmas, offering practical guidance on method selection for multi-spacecraft constellations. This could improve estimates of energy dissipation rates and inform mission design for resolving 3D energy cascades.
major comments (2)
- [Abstract and §3 (Methods)] Abstract and §3 (Methods): The central comparison attributes polar/azimuthal dependence and configuration insensitivity to DA versus separation/tetrahedral sensitivity to LPDE. This requires both methods to be applied to identical turbulence realizations and data segments. The manuscript does not explicitly confirm shared data intervals, selection criteria for quasi-stationarity, or identical lag/ensemble construction between the two methods; any unstated differences would make the observed distinctions partly methodological artifacts.
- [§4 (Results)] §4 (Results): The claims of DA insensitivity to spacecraft configuration and LPDE sensitivity to tetrahedral shape are presented without quantitative error bars, statistical significance tests, or robustness checks across multiple realizations. Without these, it is unclear whether the reported differences exceed uncertainties arising from finite sampling or non-stationarity.
minor comments (2)
- [Introduction] The acronyms DA and LPDE are introduced in the abstract but should be spelled out at first use in the main text for clarity.
- [Figure captions] Figure captions should explicitly state the spacecraft separations and tetrahedral volumes used in the LPDE tests to allow direct comparison with the reported sensitivities.
Simulated Author's Rebuttal
We thank the referee for the constructive comments on our manuscript. We address each major point below, confirming that both methods were applied to identical data while adding clarifications and quantitative robustness measures as requested.
read point-by-point responses
-
Referee: [Abstract and §3 (Methods)] Abstract and §3 (Methods): The central comparison attributes polar/azimuthal dependence and configuration insensitivity to DA versus separation/tetrahedral sensitivity to LPDE. This requires both methods to be applied to identical turbulence realizations and data segments. The manuscript does not explicitly confirm shared data intervals, selection criteria for quasi-stationarity, or identical lag/ensemble construction between the two methods; any unstated differences would make the observed distinctions partly methodological artifacts.
Authors: Both DA and LPDE were applied to the exact same MMS data intervals and turbulence realizations, selected using identical quasi-stationarity criteria described in Section 2. Lag vectors and ensemble averaging were constructed identically for both methods to ensure a direct comparison. We acknowledge that this shared usage was not stated with sufficient explicitness. In the revised manuscript we have added a dedicated paragraph in Section 3 confirming the common data segments, selection criteria, and consistent lag/ensemble construction, thereby eliminating any possibility that the reported differences arise from methodological artifacts. revision: yes
-
Referee: [§4 (Results)] §4 (Results): The claims of DA insensitivity to spacecraft configuration and LPDE sensitivity to tetrahedral shape are presented without quantitative error bars, statistical significance tests, or robustness checks across multiple realizations. Without these, it is unclear whether the reported differences exceed uncertainties arising from finite sampling or non-stationarity.
Authors: We agree that explicit uncertainty quantification strengthens the results. The revised Section 4 now includes bootstrap-derived error bars on all relevant figures to account for finite-sampling uncertainties. We have also added a new subsection reporting robustness checks performed across multiple independent quasi-stationary intervals. These checks confirm that the DA insensitivity to spacecraft configuration and the LPDE sensitivity to tetrahedral geometry remain consistent and exceed the estimated uncertainties. The added material demonstrates that the distinctions are robust without altering the original conclusions. revision: yes
Circularity Check
No significant circularity in empirical method comparison
full rationale
The paper presents an empirical comparison of two independent methods (direction-averaging and lag polyhedral derivative ensemble) for computing 3D inertial-range energy transfer from multi-spacecraft observations, without assuming isotropy. The reported sensitivities (DA to polar/azimuthal dependence and configuration insensitivity; LPDE to separation/tetrahedral shape) are derived from direct application to data and external spacecraft geometry parameters. No load-bearing step reduces by construction to a fitted input, self-definition, or self-citation chain; the third-order laws invoked are standard external results, and the comparison is framed as a test against observable geometry rather than a derived prediction equivalent to its inputs. Any concerns about shared data intervals or stationarity assumptions pertain to empirical validity, not circularity in the derivation.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Aluie, H., & Eyink, G. L. 2010, Phys. Rev. Lett., 104, 081101
2010
-
[2]
Bandyopadhyay, R., Chasapis, A., Chhiber, R., et al. 2018, Astrophys. J., 866, 106, doi: 10.3847/1538-4357/aade04
-
[3]
Bandyopadhyay, R., Sorriso-Valvo, L., Chasapis, A., et al. 2020a, Phys. Rev. Lett., 124, 225101, doi: 10.1103/PhysRevLett.124.225101
-
[4]
Bandyopadhyay, R., Goldstein, M. L., Maruca, B. A., et al. 2020b, Astrophys. J. Suppl. Ser, 246, 48, doi: 10.3847/1538-4365/ab5dae
-
[5]
2016, Journal of Physics A: Mathematical and Theoretical, 50, 015501
Banerjee, S., & Galtier, S. 2016, Journal of Physics A: Mathematical and Theoretical, 50, 015501
2016
-
[6]
Broeren, T., Klein, K. G., TenBarge, J. M., et al. 2021, Frontiers in Astronomy and Space Sciences, 8, 727076, doi: 10.3389/fspas.2021.727076
-
[7]
Living Reviews in Solar Physics , keywords =
Bruno, R., & Carbone, V. 2013, Living Rev. Solar Phys., 10, doi: 10.12942/lrsp-2013-2
-
[8]
Burch, J. L., Moore, T. E., Torbert, R. B., & Giles, B. L. 2016, Space Science Reviews, 199, doi: 10.1007/s11214-015-0164-9
-
[9]
Y., & Zang Jr, T
Canuto, C., Quarteroni, A., Hussaini, M. Y., & Zang Jr, T. A. 2007, Spectral methods: evolution to complex geometries and applications to fluid dynamics (Springer)
2007
-
[10]
Cassak, P. A., & Barbhuiya, M. H. 2022, arXiv preprint arXiv:2211.13160
-
[11]
Cassak, P. A., Barbhuiya, M. H., & Weldon, H. A. 2022, arXiv preprint arXiv:2211.13161
-
[12]
2010, The Astrophysical Journal, 720, 503
Germaschewski, K. 2010, The Astrophysical Journal, 720, 503
2010
-
[13]
T., Forman, M
Coburn, J. T., Forman, M. A., Smith, C. W., Vasquez, B. J., & Stawarz, J. E. 2015, Phil. Trans. R. Soc. A, 373, 20140150
2015
-
[14]
Conley, S. A., Juno, J., TenBarge, J. M., et al. 2024, Physics of Plasmas, 31, 122117, doi: 10.1063/5.0231200 de K´ arm´ an, T., & Howarth, L. 1938, Proc. Roy. Soc. London Ser. A, 164, 192, doi: 10.1098/rspa.1938.0013
-
[15]
H., & Seenu, N
Dmitruk, P., Matthaeus, W. H., & Seenu, N. 2004, Astrophys. J., 617, 667
2004
-
[16]
P., Fehringer, M., & Goldstein, M
Escoubet, C. P., Fehringer, M., & Goldstein, M. 2001, Annales Geophysicae, 19, 1197, doi: 10.5194/angeo-19-1197-2001
-
[17]
Galtier, S. 2012, Astrophys. J., 746, 184, doi: 10.1088/0004-637X/746/2/184
-
[18]
Goldstein, M. L., Roberts, D. A., & Matthaeus, W. H. 1995, Ann. Rev. Astron. Astrophys., 33, 283, doi: 10.1146/annurev.aa.33.090195.001435
-
[19]
Gottlieb, D., & Orszag, S. A. 1977, Numerical analysis of spectral methods: theory and applications (SIAM)
1977
-
[20]
Anisotropy in Space Plasma Turbulence: Solar Wind Observations
Horbury, T. S., Wicks, R. T., & Chen, C. H. K. 2012, Space Sci. Rev., 172, 325, doi: 10.1007/s11214-011-9821-9
-
[21]
2008, Physical Review Letters, 100, 065004
Howes, G., Dorland, W., Cowley, S., et al. 2008, Physical Review Letters, 100, 065004
2008
-
[22]
2023, Journal of Fluid Mechanics, 974, A20, doi: 10.1017/jfm.2023.743
Jiang, B., Li, C., Yang, Y., et al. 2023, Journal of Fluid Mechanics, 974, A20, doi: 10.1017/jfm.2023.743
-
[23]
2026, The Astrophysical Journal, 1000, 71, doi: 10.3847/1538-4357/ae4a16
Jiang, B., Gao, Z., Yang, Y., et al. 2026, The Astrophysical Journal, 1000, 71, doi: 10.3847/1538-4357/ae4a16
-
[24]
G., Howes, G
Klein, K. G., Howes, G. G., & TenBarge, J. M. 2017, Journal of Plasma Physics, 83
2017
-
[25]
G., Spence, H., Alexandrova, O., et al
Klein, K. G., Spence, H., Alexandrova, O., et al. 2023, Space Science Reviews, 219, 74, doi: 10.1007/s11214-023-01019-0
-
[26]
Kolmogorov, A. N. 1941a, Dokl. Akad. Nauk SSSR, 30, 301, doi: 10.1098/rspa.1991.0075
-
[27]
T., & Smith, C
MacBride, B. T., & Smith, C. W. 2008, Astrophys. J., 679, 1644
2008
-
[28]
F., Retin` o, A., & the Plasma Observatory Team
Marcucci, M. F., Retin` o, A., & the Plasma Observatory Team. 2024, in EGU General Assembly 2024, Vienna, Austria, 14–19 Apr 2024, EGU General Assembly Conference Abstracts, EGU24–11903, doi: 10.5194/egusphere-egu24-11903
-
[29]
Markovskii, S. A., Vasquez, B. J., Smith, C. W., & Hollweg, J. V. 2006, Astrophys. J., 639, 1177, doi: 10.1086/499398
-
[30]
S., & Yaglom, A
Monin, A. S., & Yaglom, A. M. 1975, Statistical Fluid
1975
-
[31]
2 (Cambridge, Mass.: MIT Press) M¨ uller, W.-C., & Biskamp, D
Mechanics, Vol. 2 (Cambridge, Mass.: MIT Press) M¨ uller, W.-C., & Biskamp, D. 2000, Phys. Rev. Lett., 84, 475 M¨ uller, W.-C., & Grappin, R. 2005, Phys. Rev. Lett., 95, 114502, doi: 10.1103/PhysRevLett.95.114502
-
[32]
Nie, Q., & Tanveer, S. 1999, Proc. Roy. Soc. Lond. A, 455, 1615, doi: 10.1098/rspa.1999.0374
-
[33]
Orszag, S. A. 1971, Journal of Atmospheric Sciences, 28, 1074 , doi: https://doi.org/10.1175/1520- 0469(1971)028⟨1074:OTEOAI⟩2.0.CO;2
-
[34]
Orszag, S. A. 1972, Studies in Applied Mathematics, 51, 253, doi: 10.1002/sapm1972513253
-
[35]
Small-scale structure of two-dimensional magnetohydrodynamic turbulence
Orszag, S. A., & Tang, C.-M. 1979, Journal of Fluid Mechanics, 90, 129143, doi: 10.1017/S002211207900210X
-
[36]
T., & Horbury, T
Osman, K. T., & Horbury, T. S. 2007, Astrophys. J., 654, L103
2007
-
[37]
T., Wan, M., Matthaeus, W
Osman, K. T., Wan, M., Matthaeus, W. H., Weygand, J. M., & Dasso, S. 2011, Phys. Rev. Lett., 107, 165001
2011
-
[38]
Oughton, S., Matthaeus, W. H., Wan, M., & Osman, K. T. 2015, Phil. Trans. R. Soc. A, 373, doi: 10.1098/rsta.2014.0152 16
-
[39]
Paschmann, G., & Daly, P. W. 2008, Multi-Spacecraft Analysis Methods Revisited, ISSI Scientific Report SR-008, International Space Science Institute (ISSI). https://www.issibern.ch/publication/pdf/sr8.pdf
2008
-
[40]
2024, doi: 10.48550/arXiv.2410.16099
Pecora, F. 2024, doi: 10.48550/arXiv.2410.16099
-
[41]
Pecora, F., Servidio, S., Primavera, L., et al. 2023a, Astrophys. J. Lett., 945, L20, doi: 10.3847/2041-8213/acbb03
-
[42]
Pecora, F., Yang, Y., Matthaeus, W. H., et al. 2023b, Physical Review Letters, 131, 225201, doi: 10.1103/PhysRevLett.131.225201
-
[43]
Podesta, J. J., Forman, M. A., & Smith, C. W. 2007, Phys. Plasmas, 14, doi: 10.1063/1.2783224
-
[44]
Politano, H., & Pouquet, A. 1998b, Geophys. Res. Lett., 25, 273 Retin` o, A., Sundkvist, D., Vaivads, A., et al. 2007, Nat. Phys., 3, 236, doi: 10.1038/nphys574 Retin` o, A., Khotyaintsev, Y., Le Contel, O., et al. 2022, Experimental Astronomy, 54, 427, doi: 10.1007/s10686-021-09797-7
-
[45]
C., et al
Robert, P., Roux, A., Harvey, C. C., et al. 1998, in Analysis Methods for Multi-Spacecraft Data, ed. G. Paschmann & P. W. Daly, ISSI Scientific Report Series No. SR-001 (Noordwijk, The Netherlands: ESA Publications Division), 323–348
1998
-
[46]
Schekochihin, A. A. 2022, Journal of Plasma Physics, 88, 155880501, doi: 10.1017/S0022377822000721
-
[48]
Sorriso-Valvo, L., Marino, R., Carbone, V., et al. 2007, Phys. Rev. Lett., 99, doi: 10.1103/PhysRevLett.99.115001
-
[49]
Spence, H. E. 2019, HelioSwarm: Unlocking the multiscale mysteries of weakly-collisional magnetized plasma turbulence and ion heating,, AGU Fall Meeting Abstracts
2019
-
[50]
Stawarz, J. E., Smith, C. W., Vasquez, B. J., Forman, M. A., & MacBride, B. T. 2009b, Astrophys. J., 697, 1119, doi: 10.1088/0004-637X/697/2/1119
-
[51]
Taylor, G. I. 1938, Proc. Roy. Soc. Lond. A, 164, 476, doi: 10.1098/rspa.1938.0032
-
[53]
Taylor, M. A., Kurien, S., & Eyink, G. L. 2003b, Phys. Rev. E, 68, 026310, doi: 10.1103/PhysRevE.68.026310
-
[55]
Verdini, A., Grappin, R., Hellinger, P., Landi, S., & M¨ uller, W. C. 2015b, The Astrophysical Journal, 804, 119, doi: 10.1088/0004-637X/804/2/119
-
[56]
2022, The Astrophysical Journal, 937, 76
Wang, Y., Chhiber, R., Adhikari, S., et al. 2022, The Astrophysical Journal, 937, 76
2022
-
[57]
Wu, H., Tu, C., He, J., Wang, X., & Yang, L. 2022, Astrophys. J., 926, 116, doi: 10.3847/1538-4357/ac4413
-
[58]
2021, The Astrophysical Journal, 909, 175, doi: 10.3847/1538-4357/abdf58
Yang, Y., Linkmann, M., Biferale, L., & Wan, M. 2021, The Astrophysical Journal, 909, 175, doi: 10.3847/1538-4357/abdf58
-
[59]
2011, Physical review letters, 106, 195003
Zenitani, S., Hesse, M., Klimas, A., & Kuznetsova, M. 2011, Physical review letters, 106, 195003
2011
