iSMC: A BDD-based Symbolic Model Checker with Interactive Certification

Philipp Czerner , Javier Esparza , Konrad Winslow

Authors on Pith no claims yet

Pith reviewed 2026-05-07 13:12 UTC · model grok-4.3

classification 💻 cs.LO

keywords model checkinginteractive certificationBDDCTLsymbolic verificationself-certifyingjustice requirements

0 comments

The pith

iSMC is the first self-certifying model checker with interactive certification for arbitrary CTL properties.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents iSMC as a BDD-based symbolic model checker for Computation Tree Logic properties that include justice requirements. After solving whether a property holds in a model, iSMC runs an interactive certification procedure drawn from proof systems. This procedure guarantees correctness with a high probability chosen by the user. The system adapts and extends prior interactive certification technology developed for QBF solvers to fit the needs of CTL model checking with BDD data structures. A reader would care because model checking supports safety-critical designs, and self-certification reduces the need to fully trust the checker implementation.

Core claim

iSMC performs BDD-based symbolic model checking for arbitrary CTL properties with justice requirements and then conducts an interactive certification procedure. The procedure is obtained by extending, improving, and re-implementing the interactive certification technology from a prior QBF solver, adapting it to the algorithms and data structures of CTL model checking to deliver a user-chosen high-probability guarantee that the answer is correct.

What carries the argument

Interactive certification procedure adapted from QBF solvers to BDD representations of CTL fixed-point computations and justice constraints.

Load-bearing premise

The interactive certification procedure, when adapted from QBF to the specific BDD algorithms and data structures of CTL model checking, still delivers the claimed high-probability soundness guarantee.

What would settle it

A CTL model-checking instance on which iSMC reports an incorrect answer yet the certification procedure still succeeds with probability above the user-chosen threshold.

Figures

Figures reproduced from arXiv: 2605.03705 by Javier Esparza, Konrad Winslow, Philipp Czerner.

**Figure 1.** Figure 1: At the top, symbolic checking algorithm for the formula EFp (on the left), and one of its possible execution traces (on the right). At the bottom, circuit for this execution. Blue nodes correspond to basic gates, white nodes to “macros”. generalization of the boolean circuits with partial evaluation used in [11] defined below, and a set of equivalence claims. In a nutshell, every instruction of the trace i… view at source ↗

**Figure 2.** Figure 2: Comparison of Apply(v1, v2, ⊛) and our new algorithm ApplyEBDD(v1, v2, ⊛). 5.1 Implementation of Prover by Couillard et al. [11] At first sight, the computations performed by Solver and Prover on an instance of the model-checking problem seem to be unrelated: Solver computes BDDs for the (boolean functions of) the gates of a circuit φ, while Prover computes polynomials for the gates of conv(φ). More precis… view at source ↗

**Figure 3.** Figure 3: eBDDs for Jψ1 ∨ ψ2K, δx1 Jψ1 ∨ ψ2K, and δx2 δx1 Jψ1 ∨ ψ2K, where ψ1 = x1 and ψ2 = x1 ∧ x2, and BDD obtained after simplifying the latter. Solver of [11] just runs ComputeEBDD(v1, v2, ⊛) instead of Apply(v1, v2, ⊛). Appendix D describes the algorithm in detail. The data structure is called extended BDDs (eBDDs). Formally, an eBDD node e is either 0, 1, a node hx, e0, e1i, where x ∈ X and e0, e1 are eBDD no… view at source ↗

**Figure 4.** Figure 4: New computation of immutable eBDDs using links for versioning. We present a new algorithm ApplyEBDD, shown on the right of view at source ↗

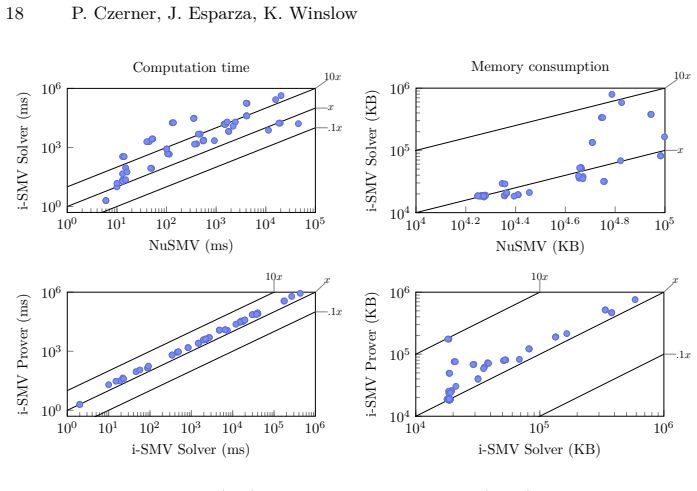

**Figure 5.** Figure 5: Top: Solving time (left) and memory consumption (right) of solving instances using iSMC vs. NuSMV. Bottom: iSMC’s Solver vs. iSMC’s Prover computation time. length of the execution trace, while Prover’s time is linear on the time it takes to execute it. Generally, execution traces for larger benchmarks manipulate larger BDDs, which improves the speedup of Verifier w.r.t. Prover; however, some have long tra… view at source ↗

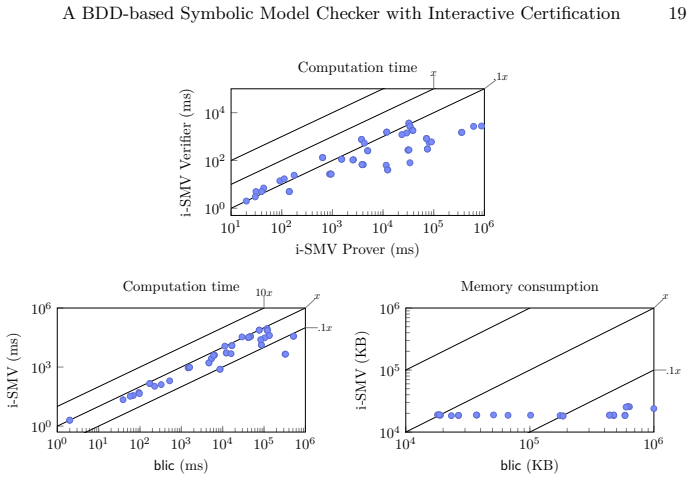

**Figure 6.** Figure 6: Top: Computation time of iSMC’s Prover vs. Verifier. Bottom: iSMC using our improvements vs. blic. checker not only for full CLT, but for the full modal µ-calculus. It can also be used to certify a CTL model-checker that computes predecessors by iterative squaring of the transition relation. The execution sequence of this algorithm always has polynomial length in the size of the model-checking instance, an… view at source ↗

read the original abstract

We present iSMC, the first self-certifying model checker with interactive certification, a certification paradigm based on the theory of interactive proof systems. iSMC is a symbolic BDD-based model checker for arbitrary properties of Computation Tree Logic (CTL) with justice requirements. After solving an instance of the model-checking problem, iSMC conducts a certification procedure that guarantees with high probability (chosen by the user) that the answer is correct. iSMC is based on the technology of the QBF-solver with interactive certification presented by Couillard et al. at CAV 2023. We extend, improve on, and re-implement this technology, adapting it to the needs of CTL model checking.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

iSMC extends the 2023 QBF interactive certification to a BDD-based CTL model checker with justice constraints, which is a practical engineering step but requires explicit validation that the probabilistic guarantee survives the adaptation.

read the letter

The main point is that this paper takes the interactive certification protocol from Couillard et al.'s CAV 2023 QBF solver and re-implements it inside a symbolic BDD model checker for full CTL with justice. That combination is new. They adapt the certification layer to the fixed-point computations for operators like EU and EG, plus the handling of justice requirements, and claim the result gives a user-chosen high-probability guarantee that the model-checking answer is correct. The engineering looks competent because it builds directly on existing BDD infrastructure instead of starting over. If the adaptation is clean, this supplies a usable certification layer for an established verification technique without changing the core algorithms much. The soft spot is exactly the one the stress test flags: whether the original error bound carries over unchanged. BDD variable ordering, the iterative nature of the fixed points, and the specific encoding of justice can create data structures and computation paths that did not exist in the QBF setting. The paper needs to show, either by argument or by bounding any new error sources, that no additional failure modes appear and that the probability remains as advertised. If that step is only sketched or assumed by analogy, the central claim rests on weaker ground than the abstract suggests. This work is for people in the model-checking and certified-verification community who care about making existing tools more trustworthy. A reader already familiar with BDD-based checkers and the 2023 QBF paper will get the most out of the adaptation details. It deserves a serious referee because the idea is concrete, the extension is non-trivial, and the potential impact on safety-critical tool trust is real, even if the soundness argument needs tightening.

Referee Report

1 major / 2 minor

Summary. The manuscript presents iSMC, a BDD-based symbolic model checker for arbitrary CTL properties that include justice requirements. After solving a model-checking instance, iSMC runs an interactive certification procedure adapted from the QBF solver of Couillard et al. (CAV 2023). The procedure is claimed to guarantee correctness with a user-chosen high probability. The work asserts that iSMC is the first self-certifying model checker with interactive certification for CTL and that the prior QBF technology has been extended, improved, and re-implemented to handle BDD representations and CTL fixed-point computations.

Significance. If the adaptation of the interactive certification protocol is shown to preserve the original high-probability soundness guarantee when applied to BDD encodings of CTL operators and justice constraints, the result would be a useful step toward practical self-certifying symbolic model checkers. The explicit credit to the CAV 2023 QBF work and the focus on re-implementation for CTL fixed points and fairness are positive; such tools could increase confidence in verification results for systems with fairness assumptions.

major comments (1)

[Certification procedure (Section 4)] The central claim that the interactive certification provides a user-chosen high-probability guarantee of correctness for CTL model checking rests on the adaptation of Couillard et al.'s QBF protocol to BDD data structures and CTL algorithms. No explicit argument is given showing that the original error bound carries over to the fixed-point computations for operators such as EU and EG, or to the encoding of justice requirements, without introducing new failure modes (e.g., from variable ordering or iteration). This is load-bearing for the soundness claim.

minor comments (2)

The abstract and introduction could more explicitly list the concrete improvements made to the CAV 2023 technology beyond re-implementation for BDD and CTL.
[Preliminaries (Section 2)] Notation for justice constraints and their encoding in the BDD representation should be introduced with a short example in the preliminaries for readers outside the immediate subfield.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback. We appreciate the acknowledgment of the work's potential and the explicit credit to the CAV 2023 QBF foundation. We address the major comment below.

read point-by-point responses

Referee: The central claim that the interactive certification provides a user-chosen high-probability guarantee of correctness for CTL model checking rests on the adaptation of Couillard et al.'s QBF protocol to BDD data structures and CTL algorithms. No explicit argument is given showing that the original error bound carries over to the fixed-point computations for operators such as EU and EG, or to the encoding of justice requirements, without introducing new failure modes (e.g., from variable ordering or iteration). This is load-bearing for the soundness claim.

Authors: We agree that an explicit argument for preservation of the error bound is necessary to fully support the central soundness claim. The interactive certification in iSMC applies the protocol from Couillard et al. to the final BDDs produced by the CTL algorithms rather than to the intermediate fixed-point steps. Because the protocol verifies the correctness of the claimed BDD (as a compact representation of the set of states satisfying the property) through random queries on its structure, and because all CTL operators (including EU and EG) are computed via a finite sequence of standard, deterministic BDD operations with a fixed variable ordering chosen upfront, the original probabilistic guarantee carries over directly. Justice requirements are encoded as additional conjunctive BDD constraints that are part of the same final certificate and are therefore covered by the same verification queries. No new failure modes arise from iteration counts or ordering, as the protocol does not depend on the computation history. In the revised manuscript we will add a dedicated subsection to Section 4 containing a formal argument and proof sketch establishing this preservation. revision: yes

Circularity Check

0 steps flagged

No circularity: central claim extends independently published external certification technology

full rationale

The paper's derivation chain consists of adapting and re-implementing the interactive certification procedure from the externally cited Couillard et al. CAV 2023 QBF-solver work to BDD-based CTL model checking with justice constraints. The abstract explicitly positions iSMC as 'based on the technology of the QBF-solver with interactive certification presented by Couillard et al. at CAV 2023' and states that the authors 'extend, improve on, and re-implement this technology'. No self-citations appear in the load-bearing steps, no parameters are fitted and then renamed as predictions, and no uniqueness theorems or ansatzes are smuggled via author-overlapping citations. The probabilistic guarantee is imported from the prior independent publication rather than derived from the present paper's own inputs or definitions. The adaptation itself is presented as an engineering extension whose soundness transfer is asserted but not reduced to a self-referential equation or fit. This satisfies the criteria for a self-contained derivation against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work relies on the established theory of interactive proof systems and the correctness of the prior QBF certification procedure; no new free parameters or invented entities are introduced in the abstract.

axioms (2)

domain assumption Interactive proof systems provide probabilistic soundness guarantees for the certification procedure
Invoked when the abstract states that the certification guarantees correctness with high probability chosen by the user.
domain assumption The QBF interactive certification technology from Couillard et al. (CAV 2023) can be correctly extended and re-implemented for CTL model checking
Central to the adaptation claim in the abstract.
