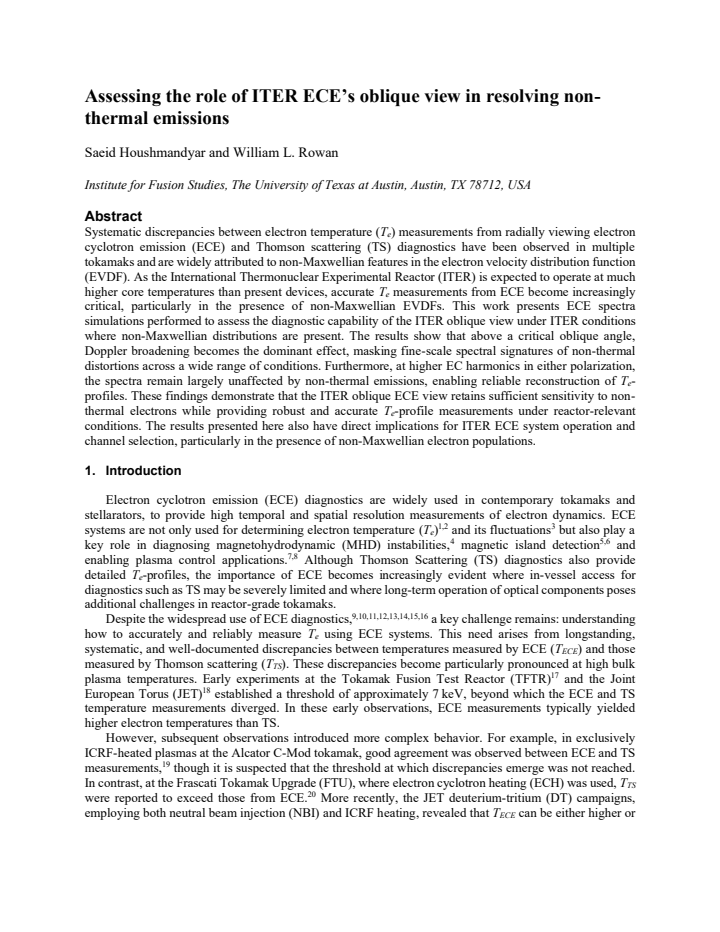

Assessing the role of ITER ECE oblique view in resolving non-thermal emissions
Pith reviewed 2026-05-07 13:02 UTC · model grok-4.3
The pith
Above a critical oblique angle in ITER's ECE diagnostic, Doppler broadening masks fine spectral signatures of non-thermal electron distributions, while higher harmonics enable reliable temperature profile measurements in any polarization.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Simulations of ECE spectra demonstrate that above a critical oblique angle, Doppler broadening becomes the dominant effect, masking fine-scale spectral signatures of non-thermal distortions in the electron velocity distribution function across a wide range of conditions. At higher EC harmonics in either polarization, the spectra remain largely unaffected by non-thermal emissions, which enables reliable reconstruction of electron temperature profiles.
What carries the argument
The ECE spectrum calculation for non-Maxwellian EVDFs at varying oblique angles and harmonics, where the transition to Doppler-dominated broadening determines the masking of non-thermal signatures.
If this is right
- The oblique view retains sensitivity to non-thermal electrons at angles below the critical value.
- Selection of higher EC harmonics provides robust Te profiles regardless of non-thermal presence.
- ITER ECE system operation can use these findings to choose channels that avoid masking effects.
- Accurate Te measurements are possible under expected reactor conditions with non-Maxwellian electrons.
Where Pith is reading between the lines
- If actual ITER distributions differ from the assumed non-Maxwellian forms, the critical angle for masking may change.
- These results could inform diagnostic design in other high-temperature fusion experiments facing similar non-thermal issues.
- Combining oblique ECE with Thomson scattering might help cross-validate the masking thresholds in practice.
- Real-time adjustment of viewing parameters could optimize for either detection or accurate profiling during operation.
Load-bearing premise
The conclusions depend on the specific assumed shapes of non-Maxwellian electron velocity distributions and the chosen ITER plasma parameters in the simulations.
What would settle it
Direct comparison of measured ECE spectra from ITER's oblique view at varying angles against predictions, checking whether non-thermal signatures disappear above the simulated critical angle while higher harmonic channels match thermal Te profiles.
read the original abstract
Systematic discrepancies between electron temperature (Te) measurements from radially viewing electron cyclotron emission (ECE) and Thomson scattering (TS) diagnostics have been observed in multiple tokamaks and are widely attributed to non-Maxwellian features in the electron velocity distribution function (EVDF). As the International Thermonuclear Experimental Reactor (ITER) is expected to operate at much higher core temperatures than present devices, accurate Te measurements from ECE become increasingly critical, particularly in the presence of non-Maxwellian EVDFs. This work presents ECE spectra simulations performed to assess the diagnostic capability of the ITER oblique view under ITER conditions where non-Maxwellian distributions are present. The results show that above a critical oblique angle, Doppler broadening becomes the dominant effect, masking fine-scale spectral signatures of non-thermal distortions across a wide range of conditions. Furthermore, at higher EC harmonics in either polarization, the spectra remain largely unaffected by non-thermal emissions, enabling reliable reconstruction of Te-profiles. These findings demonstrate that the ITER oblique ECE view retains sufficient sensitivity to non-thermal electrons while providing robust and accurate Te-profile measurements under reactor-relevant conditions. The results presented here also have direct implications for ITER ECE system operation and channel selection, particularly in the presence of non-Maxwellian electron populations.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports forward simulations of ECE spectra for ITER's oblique viewing geometry under reactor-relevant conditions with non-Maxwellian EVDFs. It claims that above a critical oblique angle Doppler broadening dominates and masks fine-scale non-thermal spectral features across a wide range of conditions, while higher EC harmonics (in either polarization) remain largely insensitive to non-thermal populations, thereby enabling reliable Te-profile reconstruction. The work concludes that the ITER oblique ECE view retains diagnostic utility for both non-thermal detection and accurate Te measurements.
Significance. If the reported thresholds prove robust, the results would directly inform ITER ECE channel selection, viewing-angle choices, and harmonic utilization, addressing a known diagnostic challenge in high-temperature reactor plasmas. The systematic parameter scans under ITER profiles constitute a concrete contribution to diagnostic design.
major comments (2)
- [Simulation setup / EVDF parametrization] Simulation setup and EVDF modeling: the central claims (critical oblique angle for Doppler masking and harmonic insensitivity) are obtained from forward spectra computed with specific assumed non-Maxwellian EVDF parametrizations (tail energies, anisotropies, bump fractions). No sensitivity study to variations in these parameters or explicit validation against Maxwellian reference cases is presented, so the assertion that the behavior holds “across a wide range of conditions” rests on untested modeling choices.
- [Results on oblique-angle dependence] Results section on oblique-angle scans: the reported masking threshold is stated without accompanying quantitative metrics (e.g., fractional change in spectral shape or derived Te error) that would allow readers to judge how sharply the transition occurs or how it depends on the chosen EVDF parameters.
minor comments (2)
- [Figures] Figure captions should explicitly list the EVDF parameters (e.g., tail temperature, density fraction) used for each curve to improve reproducibility.
- [Abstract] The abstract states that higher harmonics “remain largely unaffected”; a brief quantitative statement (e.g., maximum fractional deviation in brightness temperature) would strengthen this claim.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments, which have identified opportunities to strengthen the clarity and robustness of our presentation. We respond to each major comment below and will incorporate revisions to address the concerns raised.
read point-by-point responses
-
Referee: Simulation setup / EVDF parametrization: Simulation setup and EVDF modeling: the central claims (critical oblique angle for Doppler masking and harmonic insensitivity) are obtained from forward spectra computed with specific assumed non-Maxwellian EVDF parametrizations (tail energies, anisotropies, bump fractions). No sensitivity study to variations in these parameters or explicit validation against Maxwellian reference cases is presented, so the assertion that the behavior holds “across a wide range of conditions” rests on untested modeling choices.
Authors: We appreciate the referee's emphasis on this issue. The specific EVDF parametrizations were selected to reflect representative non-thermal populations expected under ITER-relevant conditions, informed by prior experimental and modeling studies of tokamak plasmas. Baseline comparisons to Maxwellian distributions were performed internally to isolate non-thermal effects, but these were not presented as dedicated validation cases. We agree that an explicit sensitivity analysis would better substantiate the claim of applicability across a wide range. In the revised manuscript we will add a dedicated subsection with parameter variations (tail energy, anisotropy, bump fraction) over physically motivated ranges, together with explicit Maxwellian reference spectra for all primary figures. This will directly test and support the robustness of the reported critical angle and harmonic insensitivity. revision: yes
-
Referee: Results on oblique-angle dependence: Results section on oblique-angle scans: the reported masking threshold is stated without accompanying quantitative metrics (e.g., fractional change in spectral shape or derived Te error) that would allow readers to judge how sharply the transition occurs or how it depends on the chosen EVDF parameters.
Authors: The referee is correct that quantitative metrics would allow a more precise evaluation of the transition sharpness and its parameter dependence. In the submitted manuscript the critical oblique angle was determined from the point at which non-thermal spectral features became visually indistinguishable due to Doppler broadening. To improve rigor, the revised results section will include quantitative diagnostics: fractional spectral deviation from the Maxwellian case and the resulting error in reconstructed Te, both plotted versus oblique angle for the scanned EVDF parameter sets. These additions will quantify the transition and its sensitivity to the modeling choices. revision: yes
Circularity Check
No circularity: claims are direct outputs of forward simulations
full rationale
The paper conducts forward ECE spectral simulations using chosen non-Maxwellian EVDF parametrizations and fixed ITER plasma profiles. The reported masking thresholds, Doppler dominance above a critical angle, and harmonic insensitivity are computed results from these simulations, not quantities fitted to data or redefined by the same inputs. No self-citations, uniqueness theorems, or ansatzes are invoked to justify the central claims. The derivation chain is self-contained within the modeling framework and does not reduce any prediction to its inputs by construction.
Axiom & Free-Parameter Ledger
free parameters (2)
- critical oblique angle
- non-Maxwellian distribution parameters
axioms (2)
- domain assumption Electron cyclotron emission spectra can be accurately computed from a given electron velocity distribution function and magnetic field geometry.
- domain assumption ITER plasma conditions (density, temperature, magnetic field) fall within the parameter space explored by the simulations.
Reference graph
Works this paper leans on
-
[1]
Introduction Electron cyclotron emission (ECE) diagnostics are widely used in contemporary tokamaks and stellarators, to provide high temporal and spatial resolution measurements of electron dynamics. ECE systems are not only used for determining electron temperature (Te)1,2 and its fluctuations3 but also play a key role in diagnosing magnetohydrodynamic ...
-
[2]
The corresponding kinetic profiles are shown in Figure 2.a, and the magnetic equilibrium is shown in Figure 1.c
Radiation transport modelling To support the analysis presented in this work, simulations were carried out using kinetic profiles and magnetic equilibrium from a recent ITER IMAS H-mode scenario at full field (5 Tesla). The corresponding kinetic profiles are shown in Figure 2.a, and the magnetic equilibrium is shown in Figure 1.c. Figure 2.b includes the ...
-
[3]
Simulations were carried out for both Maxwellian and non -Maxwellian EVDFs, the latte r incorporating localized two -temperature distortions at the plasma core
Conclusions This study used GENRAY 3D ray -tracing simulations to evaluate the performance of the ITER ECE diagnostic system’s 9.25° oblique view under ITER-relevant plasma conditions. Simulations were carried out for both Maxwellian and non -Maxwellian EVDFs, the latte r incorporating localized two -temperature distortions at the plasma core. Results sho...
-
[4]
The location of each ECE channel is mapped to its radial position in the tokamak using Equation (A.1)
Appendix I Using cold plasma dispersion, the ECE channel frequencies can be calculated. The location of each ECE channel is mapped to its radial position in the tokamak using Equation (A.1). 𝜔𝑛 = 𝑛 𝑒 𝛾𝑚𝑒 |𝐁| 1 1−𝑣∥𝑐𝑜𝑠𝜃 𝑐⁄ . (A.1) In Equation (A.1), = (1 – v²/c²)-1/2 is the Lorentz factor, c is the speed of light , B represents the total magnetic field v...
-
[5]
1987, Principles of Plasma Diagnostics, Cambridge University Press, New York
References 1 Hutchinson I. 1987, Principles of Plasma Diagnostics, Cambridge University Press, New York. 2 Costley A. E., 2008 Fusion Sci., Technol. 55 1 3 C. Watts, Fusion Sci., Technol. 52 176 (2007) 4 A. Wingen, R. S. Wilcox, L. F. Delgado-Aparicio, R. Granetz, S. Houshmandyar, S. Shiraiwa, M. R. Cianciosa, and S. K. Seal, Phys. Plasmas 26 022501(2019)...
